4-17 1. Shift pedal N. Neutral
1. Pédale de sélection N. Point mort
1. Pedal del cambio N. Punto muerto
1. Drive select lever
1. Levier de présélection
1. Palanca de selección de gama
EBU00083
Shift pedal
This machine is equipped with a constant-mesh
5-speed transmission. The shift pedal is located
on the left side of the engine. Neutral is at the bot-
tom position.
EBU00085
Drive select lever
The drive select lever is used for driving the ma-
chine either forward or in reverse. Refer to page
6-11 for drive select lever operation.
EE.book Page 17 Monday, June 25, 2001 2:27 PM

4-19 1. Recoil starter
1. Lanceur à réenroulement
1. Arranque por tracción de cable
1. Fuel tank cap
1. Bouchon de réservoir de carburant
1. Tapón del depósito de combustible
EBU00591
Recoil starter
Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
Put the transmission in neutral and set the
parking brake before starting the engine or the
ATV could start to move unexpectedly, which
could cause an accident.
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
EE.book Page 19 Monday, June 25, 2001 2:27 PM

4-21
EBU00093
Fuel cock
The fuel cock supplies fuel from the fuel tank to the
carburetor.
The fuel cock has three positions.
OFF: With the lever in this position fuel will not
flow. Always turn the lever to this position
when the engine is not running.
ON: With the lever in this position, fuel flows to
the carburetor. Normal riding is done with
the lever in this position.
RES: This indicates reserve. If you run out of fuel
while riding, turn the lever to this position.
THEN FILL THE FUEL TANK AT THE
FIRST OPPORTUNITY. After refuelling, re-
turn the fuel cock lever to the “ON” position.
EE.book Page 21 Monday, June 25, 2001 2:27 PM

4-23 1. Fully open 2. Half open
3. Closed A. Starter (choke)
1. Complètement ouvert 2. Mi-ouvert
3. FerméA. Starter (enrichisseur)
1. Abre completamente 2. Semiabierto
3. Cerrado A. Starter (choke)
EBU00094
Starter (choke)
Starting a cold engine requires a richer air-fuel
mixture. A separate starter circuit supplies this
mixture.
Move in direction
a to turn on the starter (choke).
Move in direction
b to turn off the starter (choke).
Refer to “Starting a cold engine” for proper opera-
tion. (See page 6-3.)
EE.book Page 23 Monday, June 25, 2001 2:27 PM

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, condition and free play.
Adjust if necessary.5-5 ~ 5-7,
8-45 ~ 8-57
FuelCheck fuel level.
Fill with fuel if necessary.5-9 ~ 5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13 ~ 5-15,
8-13 ~ 8-21
Final gear oilCheck for leakage. 5-17, 8-23 ~ 8-27
ThrottleCheck for proper throttle cable operation. 5-17, 8-43
Wheels and tiresCheck tire pressure, wear and damage.5-21 ~ 5-27,
8-67 ~ 8-69
Fittings and FastenersCheck all fittings and fasteners. 5-19
LightsCheck for proper operation. 5-19, 8-81 ~ 8-85
BatteryCheck fluid level.
Fill with distilled water if necessary.5-19, 8-71 ~ 8-77
EE.book Page 1 Monday, June 25, 2001 2:27 PM

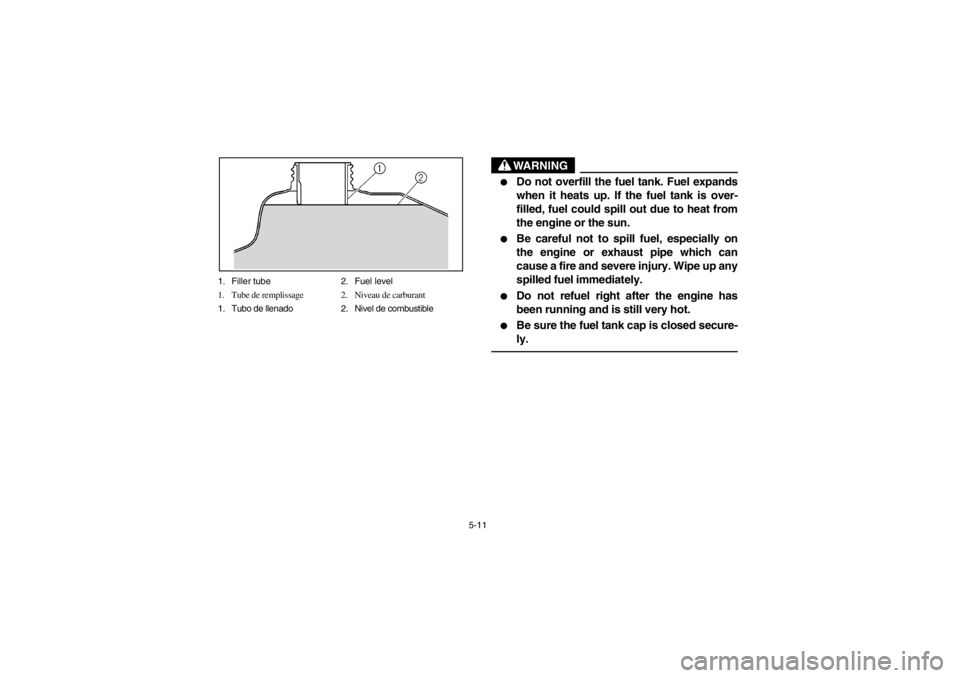

5-11 1. Filler tube 2. Fuel level
1. Tube de remplissage 2. Niveau de carburant
1. Tubo de llenado 2. Nivel de combustible
WARNING
_

Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is over-
filled, fuel could spill out due to heat from
the engine or the sun.


Be careful not to spill fuel, especially on
the engine or exhaust pipe which can
cause a fire and severe injury. Wipe up any
spilled fuel immediately.


Do not refuel right after the engine has
been running and is still very hot.


Be sure the fuel tank cap is closed secure-
ly.
_
EE.book Page 11 Monday, June 25, 2001 2:27 PM

5-13
EBU00485*
Engine oil
Make sure the engine oil is at the specified level.
Fill with oil as necessary. (See pages 8-13 ~ 8-21
for details.)
Recommended oil:
Recommended engine oil classification:
API Service SE, SF, SG type or higher

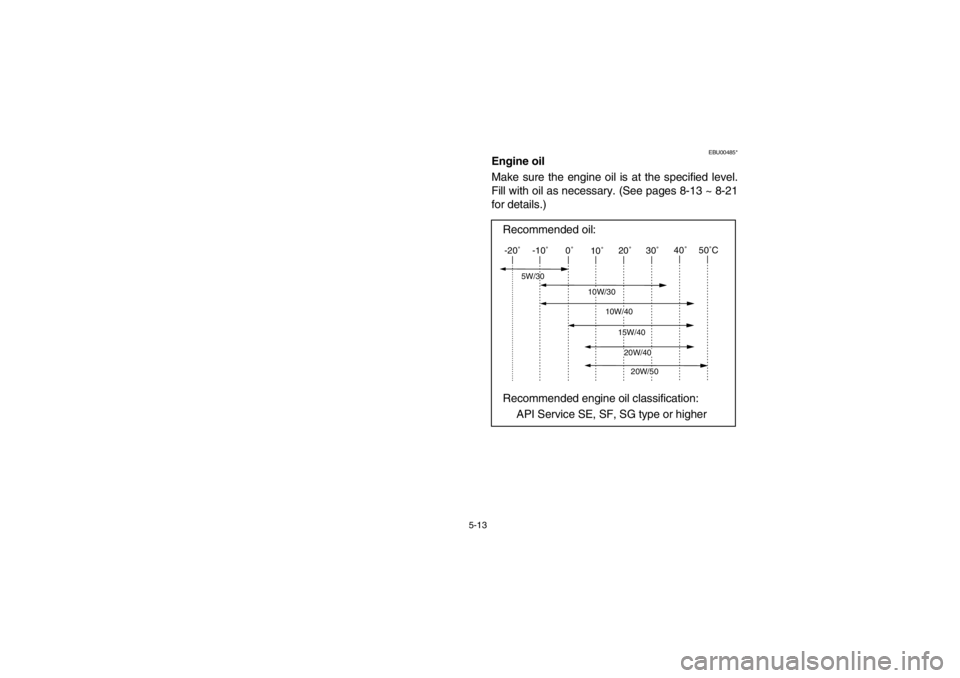

-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
EE.book Page 13 Monday, June 25, 2001 2:27 PM

5-15
CAUTION:_ Be sure to use motor oils that do not contain
anti-friction modifiers. Passenger car motor
oils (often labeled “Energy Conserving II”)
contain anti-friction additives which will cause
clutch and/or starter clutch slippage, resulting
in reduced component life and poor engine
performance. _
Oil quantity:
Total amount:
1.5 L
Periodic oil change:
1.6 L
With oil filter replacement:
1.8 L
EE.book Page 15 Monday, June 25, 2001 2:27 PM

5-19
EBU00152
Fittings and Fasteners
Always check the tightness of chassis fittings and
fasteners before a ride. Take the machine to a
Yamaha dealer or refer to the Service Manual for
correct tightening torque.
EBU00803
Lights
Check the headlight and tail/brake light to make
sure they are in working condition. Repair as nec-
essary for proper operation.
EBU00912
Switches
Check the operation of the light switch, engine
stop switch and any other switches. Repair as nec-
essary for proper operation.
EBU00499
Battery
Check fluid level and fill if necessary. Use only dis-
tilled water if refilling is necessary. (See pages
8-71 ~ 8-77.)
EE.book Page 19 Monday, June 25, 2001 2:27 PM

6-3
EBU00501
Starting a cold engine
WARNING
_ Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision. _1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON” and the engine
stop switch to “RUN”.
4. Shift the transmission into neutral.
