stop start YAMAHA DT125R 2006 Owners Manual

EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10550
ON
All electrical circuits are supplied with
power, the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be star-
ted. The key cannot be removed.
NOTE:
The headlights come on automatically
when the engine is started and stay
on until the key is turned to “OFF”,
even if the engine stalls.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.
T
o unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
EWA10060
s s
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the vehi-
cle is stopped before turning the
key to “OFF” or “LOCK”.
ONOFF
PUSHLOCKIGNITION
3
INSTRUMENT AND CONTROL FUNCTIONS
3-1
1D0-F8199-E2.qxd 20/9/04 11:32 Página 15

EAU11640
Speedometer unit
1. Odometer
2. Tripmeter
3. Reset button
4. Coolant temperature warning lamp
The speedometer unit is equipped
with a speedometer, an odometer and
a tripmeter. The speedometer shows
riding speed. The odometer shows
the total distance traveled. The trip-
meter shows the distance traveled
since it was last set to zero with the
reset knob. The tripmeter can be used
to estimate the distance that can be
traveled with a full tank of fuel. This
information will enable you to plan
future fuel stops.
NOTE:
Only for the German model equipped
with a speed limiter:
The speed limiter prevents the vehicle
from exceeding a riding speed of 80
km/h.
EAU12343
Handlebar switches
1. Dimmer switch “j/k”
2. Horn switch “a”
3. Turn signal switch “c/d”
4. Hazard switch “ ”
EAU12400
Dimmer switch “j/k”
Set this switch to “j” for the high
beam and to “k” for the low beam.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “d”. To signal a left-hand
turn, push this switch to “c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAU12660
Engine stop switch “f/e”
1. Stop switch “f/e”
2. Start switch “g”
Set this switch to “f” before starting
the engine. Set this switch to “e” to
0km
/h406080
100
120
130 20
y
00001
5
0008
bj
zN
3
INSTRUMENT AND CONTROL FUNCTIONS
3-3
1
23
4
1
2 41
3
2
1D0-F8199-E2.qxd 20/9/04 11:32 Página 17

stop the engine in case of an emer-
gency, such as when the motorcycle
overturns or when the throttle cable is
stuck.
EAU12710
Start switch “g”
Push this switch to crank the engine
with the starter.
ECA10050
CAUTION
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12763
Hazard switch “ ”
With the key in the “ON” position, turn
this switch to “ ” to turn on the
hazard lights (simultaneous flashing
of all turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10060
CAUTION
Do not use the hazard light for an
extended length of time, otherwi-
sethe battery may discharge.
EAU12820
Clutch lever
1. Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the hand-
lebar grip. To engage the clutch, rele-
ase the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the
ignition circuit cut-off system. (See
page 3-11.)
EAU12880
Shift pedal
N. Neutral
1. Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed
constant-mesh transmission equip-
ped on this motorcycle.
NOTE:
Use your toes or heel to shift up and
your toes to shift down.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
1
1D0-F8199-E2.qxd 20/9/04 11:32 Página 18

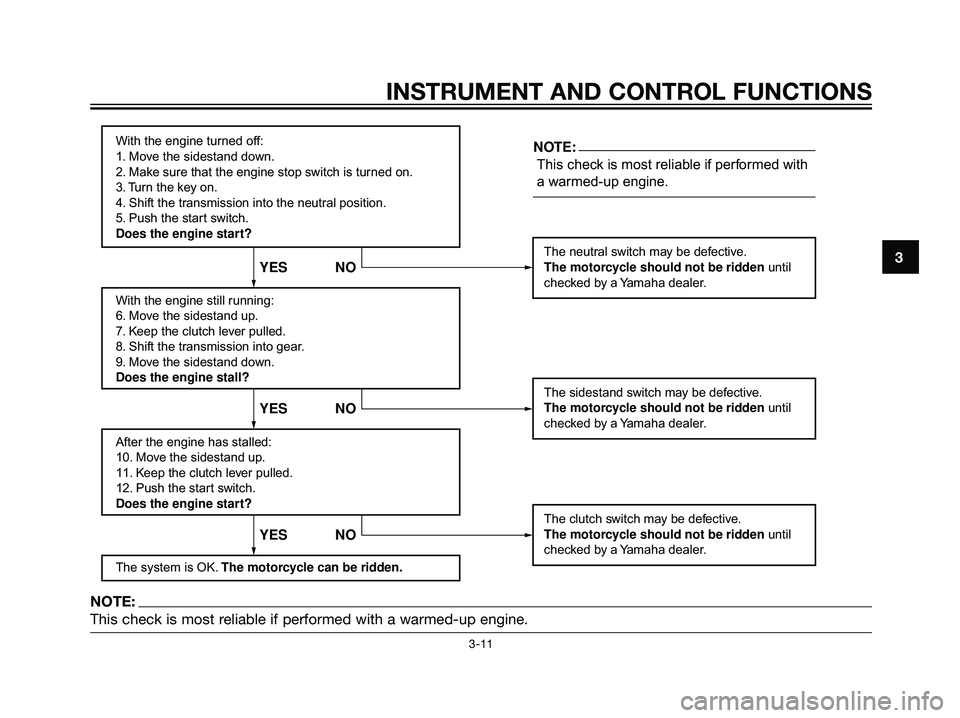

NOTE:
This check is most reliable if performed with a warmed-up engine.
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
This check is most reliable if performed with
a warmed-up engine.
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO NOTE:
1D0-F8199-E2.qxd 20/9/04 11:32 Página 25

EAU15950
EWA10270
s s
WARNING
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thoroughly
understand.
Never start the engine or ope-
rate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of cons-
ciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised comple-
tely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
EAU16060
Starting a cold engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EWA10290
s s
WARNING
Before starting the engine,
check the function of the igni-
tion circuit cut-off system
according to the procedure
described on page 3-11.
Never ride with the sidestand
down.
1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch
is set to “f”.
3. Shift the transmission into the
neutral position.
NOTE:
When the transmission is in the neu-
tral position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical
circuit.
4. Turn the starter (choke) on and
completely close the throttle.
(See page 3-8.)
5. Start the engine by pushing the
start switch.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.
6. After starting the engine, move
the starter (choke) back halfway.
ECA11040
CAUTION
For maximum engine life, never
accelerate hard when the engine is
cold!
5
OPERATION AND IMPORTANT RIDING POINTS
5-1
1D0-F8199-E2.qxd 20/9/04 11:32 Página 29

ECA10680
CAUTION
Do not overtighten the screws,
otherwise the lens may break.
EAU24201
Replacing a turn signal light
bulb
1. Screw
2. Lens
3. Bulb
1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.4. Install the lens by installing the
screw.
ECA11190
CAUTION
Do not overtighten the screw,
otherwise the lens may break.
EAU24350
Supporting the motorcycle
Since this model is not equipped with
a centerstand, follow these precau-
tions when removing the front and
rear wheel or performing other main-
tenance requiring the motorcycle to
stand upright. Check that the
motorcycle is in a stable and level
position before starting any mainte-
nance. A strong wooden box can be
placed under the engine for added
stability.
To service the front wheel
1. Stabilize the rear of the motorcy-
cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing
a jack under the frame in front of
the rear wheel.2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a
motorcycle stand is not available, by
placing a jack either under each side
of the frame in front of the rear wheel
or under each side of the swingarm.
EAU24360
Front wheel
EAU24640
To remove the front wheel
1. Speedometer cable
2. Axle retainer nut (x4)
3. Wheel axle
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
1
3
2
31
2
1D0-F8199-E2.qxd 20/9/04 11:32 Página 57

NOTE:
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6Wait until the
engine has cooled.Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.
The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.
Add coolant. (See NOTE.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
Engine overheatingEWA10400
s s
WARNING
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
1D0-F8199-E2.qxd 20/9/04 11:32 Página 62
