Periodic maintenance and adjustment
6-14
6 12. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
TIP
After the engine is started, the engine
oil level warning light should go off if
the oil level is sufficient.
NOTICE
ECA10402
If the oil level warning light flickers
or remains on even if the oil level is
correct, immediately turn the engine
off and have a Yamaha dealer check
the vehicle.
13. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU85450
Why Yamalube
YAMALUBE oil is a Genuine YAMAHA
Part born of the engineers’ passion
and belief that engine oil is an impor-
tant liquid engine component. We form
teams of specialists in the fields of me-
chanical engineering, chemistry, elec-
tronics and track testing, and have
them develop the engine together with
the oil it will use. Yamalube oils take full
advantage of the base oil’s qualities
and blend in the ideal balance of addi-
tives to make sure the final oil clears
our performance standards. Thus,
Yamalube mineral, semisynthetic and
synthetic oils have their own distinct
characters and value. Yamaha’s expe-
rience gained over many years of re-
search and development into oil since
the 1960’s helps make Yamalube the
best choice for your Yamaha engine.
UB96E2E0.book Page 14 Wednesday, September 18, 2019 10:21 AM

Periodic maintenance and adjustment
6-16
6 4. Install the final gear oil drain bolt
and its new gasket, and then tight-
en the bolt to the specified torque.
5. Refill with the recommended final
gear oil to the brim of the filler
hole.
6. Check the oil filler bolt gasket for
damage, and replace it if neces-
sary.
7. Install the oil filler bolt and its gas-
ket, and then tighten the bolt to
the specified torque.
8. Check the final gear case for oil
leakage. If oil is leaking, check for
the cause.
EAUS1203
Coolant
The coolant level should be checked
regularly. In addition, the coolant must
be changed at the intervals specified in
the periodic maintenance chart.
TIP
If genuine Yamaha coolant is not avail-
able, use an ethylene glycol antifreeze
containing corrosion inhibitors for alu-
minum engines and mix with distilled
water at a 1:1 ratio.
EAU54164To check the coolant level
1. Wait for the engine to cool. The
coolant level will vary with engine
temperature.
2. Place the vehicle on the center-
stand.
3. Remove the left cowling vent pan-
el. (See page 3-37.)
4. Look at the coolant reservoir.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil drain bolt
Tightening torque:
Final gear oil drain bolt:
23 N·m (2.3 kgf·m, 17 lb·ft)
Recommended final gear oil:
Yamaha genuine shaft drive gear oil
SAE 80W-90 API GL-5
Oil quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)
Tightening torque:
Final gear oil filler bolt:
23 N·m (2.3 kgf·m, 17 lb·ft)
1
2
32
Recommended coolant:
YAMALUBE coolant
Coolant quantity:
Coolant reservoir (max level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes):
2.60 L (2.75 US qt, 2.29 Imp.qt)
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
2
1
3
UB96E2E0.book Page 16 Wednesday, September 18, 2019 10:21 AM

Periodic maintenance and adjustment
6-17
65. If the coolant is at or below the mi-
nimum level mark, remove the
coolant reservoir cap. WARNING!
Remove only the coolant reser-
voir cap. Never attempt to re-
move the radiator cap when the
engine is hot.
[EWA15162]
6. Add coolant or distilled water to
raise the coolant to the maximum
level mark, and install the coolant
reservoir cap. NOTICE: If coolant
is not available, use distilled wa-
ter or soft tap water instead. Do
not use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10473]
7. Install the panel.
EAU33032Changing the coolant
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove
the radiator cap when the engine is
hot.
[EWA10382]
1. Coolant reservoir cap
1
UB96E2E0.book Page 17 Wednesday, September 18, 2019 10:21 AM

Periodic maintenance and adjustment
6-19
68. Install the intake air shroud by in-
stalling the screw and the quick
fastener screws.
9. Install the panel.
EAU44735
Checking the engine idling
speed
Check the engine idling speed and, if
necessary, have it corrected by a
Yamaha dealer.
1. Fuel tank overflow hose
1
Engine idling speed:
1000–1100 r/min
UB96E2E0.book Page 19 Wednesday, September 18, 2019 10:21 AM

Periodic maintenance and adjustment
6-20
6
EAU21386
Checking the throttle grip free
play
Measure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
EAU21403
Valve clearance
The valves are an important engine
component, and since valve clearance
changes with use, they must be
checked and adjusted at the intervals
specified in the periodic maintenance
chart. Unadjusted valves can result in
improper air-fuel mixture, engine
noise, and eventually engine damage.
To prevent this from occurring, have
your Yamaha dealer check and adjust
the valve clearance at regular intervals.
TIP
This service must be performed when
the engine is cold.1. Throttle grip free play
Throttle grip free play:
1.0–3.0 mm (0.04–0.12 in)
1
UB96E2E0.book Page 20 Wednesday, September 18, 2019 10:21 AM

Periodic maintenance and adjustment
6-37
6
EAU86390

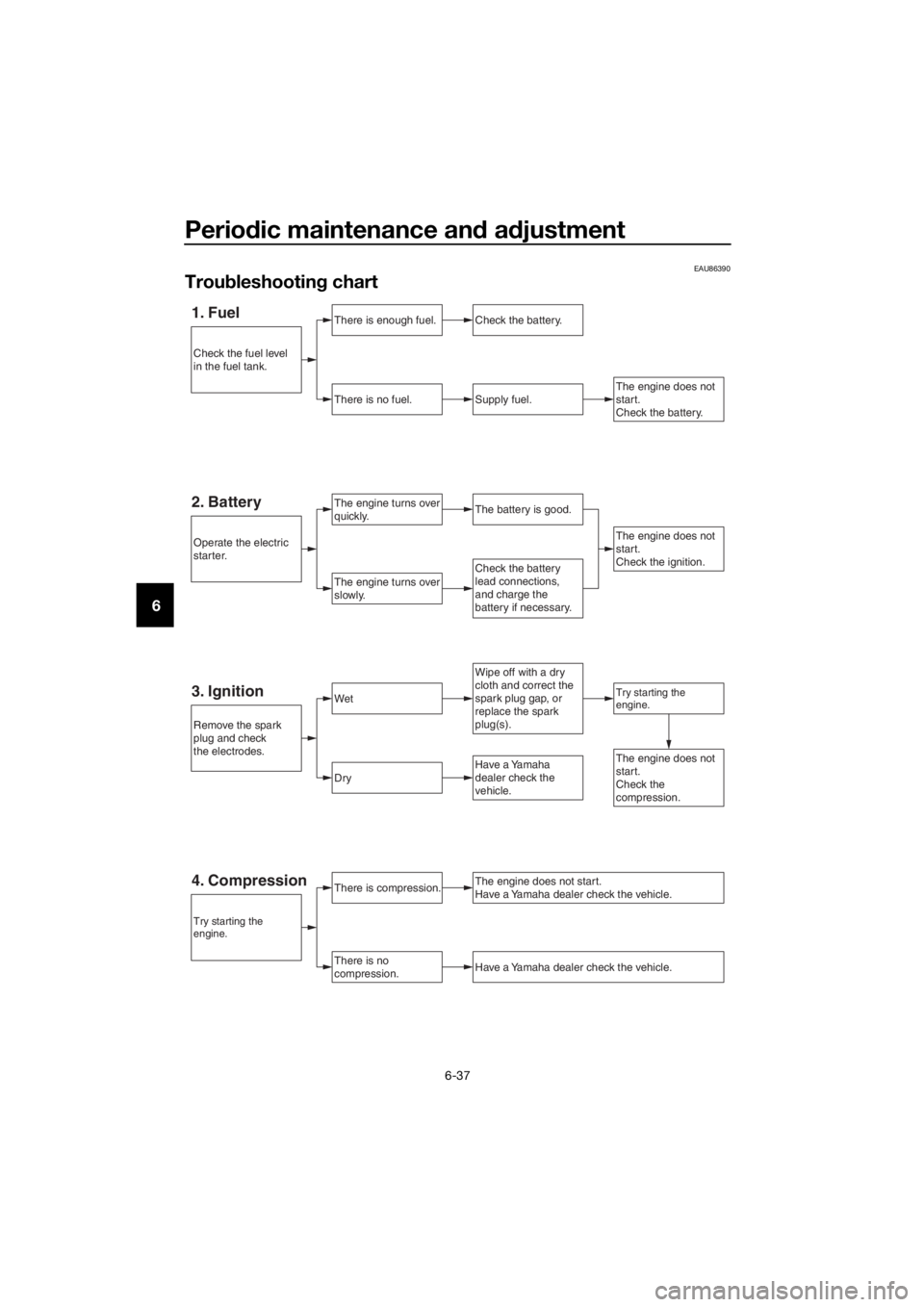

Troubleshooting chart
1. FuelThere is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine turns over
quickly.
The engine turns over
slowly.
Try starting the
engine.
The engine does not
start.
Check the battery.
Wipe off with a dry
cloth and correct the
spark plug gap, or
replace the spark
plug(s).
Check the battery
lead connections,
and charge the
battery if necessary.
2. BatteryThe battery is good.
The engine does not
start.
Check the ignition.
3. IgnitionWet
Dry
There is compression.
There is no
compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.
Have a Yamaha dealer check the vehicle.
The engine does not
start.
Check the
compression.Have a Yamaha
dealer check the
vehicle.
Remove the spark
plug and check
the electrodes.
Operate the electric
starter.
Try starting the
engine.
Check the fuel level
in the fuel tank.
4. Compression
UB96E2E0.book Page 37 Wednesday, September 18, 2019 10:21 AM

Periodic maintenance and adjustment
6-38
6
EAU86430Engine overheating
WARNING
EWAT1041
Do not remove the radiator cap when the engine and radiator are hot.
Scalding hot fluid and steam may be blown out under pressure, which
could cause serious injury. Be sure to wait until the engine has cooled.
Place a thick rag, like a towel, over the radiator cap, and then slowly ro-
tate the cap counterclockwise to the detent to allow any residual pres-
sure to escape. When the hissing sound has stopped, press down on the
cap while turning it counterclockwise, and then remove the cap.
TIP
If coolant is not available, tap water can be temporarily used instead, provided
that it is changed to the recommended coolant as soon as possible.
Wait until the engine
has cooled.
Check the coolant
level in the reservoir
and radiator.Add coolant.
(See TIP.)
The coolant level is
OK.
There is no leakage.
There is leakage.
The coolant level is
low.
Check the cooling
system for leakage.
Have a Yamaha
dealer check and
repair the cooling
system.
Start the engine. If the engine overheats again,
have a Yamaha dealer check and repair the cooling
system.
UB96E2E0.book Page 38 Wednesday, September 18, 2019 10:21 AM

Consumer information
9-3
9
EAU85300
Vehicle data recording
This model’s ECU stores certain vehi-
cle data to assist in the diagnosis of
malfunctions and for research, statisti-
cal analysis and development purpos-
es.
Although the sensors and recorded
data will vary by model, the main data
points are:
Vehicle status and engine perfor-
mance data
Fuel-injection and emission-relat-
ed data
This data will be uploaded only when a
special Yamaha diagnostic tool is at-
tached to the vehicle, such as when
maintenance checks or service proce-
dures are performed.
Vehicle data uploaded will be handled
appropriately according to the follow-
ing Privacy Policy.
Privacy Policy
Yamaha will not disclose this data to a
third party except in the following cas-
es. In addition, Yamaha may provide
vehicle data to a contractor in order to
outsource services related to the han-
dling of vehicle data. Even in this case,
Yamaha will require the contractor to
properly handle the vehicle data we
provided and Yamaha will appropriate-
ly manage the data.
With the consent of the vehicle
owner
Where obligated by law
For use by Yamaha in litigation
When the data is not related to an
individual vehicle nor owner
https://www.yamaha-motor.eu/eu/
privacy/privacy-policy.aspx
UB96E2E0.book Page 3 Wednesday, September 18, 2019 10:21 AM

10-1
10
Index
A
ABS ....................................................... 3-25
ABS warning light ................................... 3-4
Accessory box ...................................... 3-35
Air filter element, cleaning .................... 6-18
Auxiliary DC jack ................................... 3-44
B
Battery .................................................. 6-32
Brake and clutch fluid levels,
checking ............................................. 6-26
Brake and clutch fluids, changing ........ 6-28
Brake and clutch levers, checking and
lubricating ........................................... 6-30
Brake and shift pedals, checking and
lubricating ........................................... 6-29
Brake lever ............................................ 3-24
Brake lever free play, checking............. 6-24
Brake light switches.............................. 6-25
Brake pedal........................................... 3-25
C
Cables, checking and lubricating ......... 6-28
Canister................................................. 6-11
Care ........................................................ 7-1
Catalytic converter ................................ 3-30
Centerstand and sidestand, checking
and lubricating .................................... 6-30
Clutch lever ................................. 3-23, 6-24
Coolant ................................................. 6-16
Cornering lights .................................... 3-47
Cowling vents, opening and closing ..... 3-37
Cruise control indicator lights ................. 3-4
Cruise control switches ........................ 3-23
Cruise control system ............................. 3-6
D
Data recording, vehicle ........................... 9-3
Diagnostic connector.............................. 9-2
Dimmer/Pass switch ............................. 3-22
D-mode (drive mode) ............................ 3-21
E
Engine break-in....................................... 5-1
Engine idling speed, checking .............. 6-19
Engine oil and oil filter cartridge ........... 6-11
Engine overheating ............................... 6-38
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-4
F
Final gear oil.......................................... 6-15
Front and rear brake pads, checking.... 6-25
Front fork, checking .............................. 6-31
Fuel ....................................................... 3-28Fuel consumption, tips for reducing ...... 5-5
Fuel tank cap ........................................ 3-28
Fuel tank overflow hose ....................... 3-30
Fuses, replacing ................................... 6-34
H
Handlebar position, adjusting .............. 3-37
Handlebar switches .............................. 3-22
Hazard switch....................................... 3-22
Headlight beams, adjusting.................. 3-36
High beam indicator light ....................... 3-3
Horn switch .......................................... 3-22
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system............... 3-45
Immobilizer system ................................ 3-1
Immobilizer system indicator light.......... 3-5
Indicator lights and warning lights ......... 3-3
M
Main switch/steering lock....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system.................................................. 6-3
Matte color, caution ............................... 7-1
Menu switch ......................................... 3-23
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-9
N
Neutral indicator light ............................. 3-3
O
Oil level warning light ............................. 3-4
P
Panels, removing and installing.............. 6-7
Parking ................................................... 5-6
Part locations ......................................... 2-1
R
Rear view mirrors ................................. 3-39
Rider seat height, adjusting.................. 3-32
S
Safety information .................................. 1-1
Seats .................................................... 3-31
Select switch ........................................ 3-23
Shifting ................................................... 5-4
Shift pedal ............................................ 3-24
Sidestand ............................................. 3-45
Spark plugs, checking .......................... 6-10
Specifications ......................................... 8-1
Starting the engine ................................. 5-2
Steering, checking................................ 6-31
Stop/Run/Start switch .......................... 3-22
Storage ................................................... 7-4
UB96E2E0.book Page 1 Wednesday, September 18, 2019 10:21 AM
