Safety information
1-4
1sleeping bags, duffel bags, or
tents, can create unstable han-
dling or a slow steering re-
sponse.
This vehicle is not designed to
pull a trailer or to be attached to
a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail-
able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and ac-
cessories or offer other modifications
for Yamaha vehicles. Yamaha is not in
a position to test the products that
these aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifications
performed to your vehicle that change
any of the vehicle’s design or operation
characteristics can put you and othersat greater risk of serious injury or
death. You are responsible for injuries
related to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your motorcycle.
Carefully inspect the accessory
before using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension travel,
steering travel or control opera-
tion, or obscure lights or reflec-
tors.
• Accessories fitted to the han-
dlebar or the front fork area can
create instability due to improp-
er weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
• Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become
unstable in cross winds. These
accessories may also cause in-
stability when passing or being
passed by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
UB96E2E0.book Page 4 Wednesday, September 18, 2019 10:21 AM

Description
2-3
2
EAU63401
Controls and instruments
12 3 4 5678 29
10,11 12
11
1. Clutch lever (page 3-23)
2. Rear view mirror (page 3-39)
3. Left handlebar switches (page 3-22)
4. Clutch fluid reservoir (page 6-26)
5. Multi-function meter unit (page 3-9)
6. Main switch/steering lock (page 3-2)
7. Front brake fluid reservoir (page 6-26)
8. Right handlebar switches (page 3-22)
9. Brake lever (page 3-24)
10.Throttle grip (page 6-20)
11.Grip warmer (page 3-11)
12.Headlight beam adjusting knob (page 3-36)
UB96E2E0.book Page 3 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-2
3
EAU10474
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
TIP
Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-
registering.
EAU85040ON
All electrical circuits are supplied with
power and the vehicle lights are turned
on. The engine can be started. The key
cannot be removed.
TIP
To prevent battery discharge, do
not leave the key in the on position
without the engine running.
The headlight comes on automat-
ically when the engine is started.
EAU10662OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10696LOCK
The steering is locked and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. With the key in the “OFF” position,
push the key in and turn it to
“LOCK”.
3. Remove the key.
TIP
If the steering will not lock, try turning
the handlebars back to the right or left
slightly.
P
ON
OFF
LOCK
1. Push.
2. Turn.
12
UB96E2E0.book Page 2 Wednesday, September 18, 2019 10:21 AM

Instrument and control functions
3-3
3 To unlock the steering
From the “LOCK” position, push the
key and turn it to “OFF”.
EAU65680 (Parking)
The hazard lights can be turned on, but
all other electrical systems are off. The
key can be removed.
The steering must be locked before the
key can be turned to “ ”.
NOTICE
ECA22330
Using the hazard lights for an ex-
tended length of time may cause the
battery to discharge.
EAU4939H
Indicator lights and warning
lights
EAU11032Turn signal indicator lights “ ”
and“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11061Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
1. Push.
2. Turn.
12
1. Immobilizer system indicator light Ž
2. Left turn signal indicator light Ž
3. Engine trouble warning light Ž
4. Oil level warning light Ž
5. Neutral indicator light Ž
6. High beam indicator light Ž
7. ABS warning light Ž
8. Right turn signal indicator light Ž
9. Suspension system warning light Ž
10.Traction control system indicator light Ž
11.Cruise control indicator lights
GEARN25A.TEMP ˚C
LoC.TEMP ˚C
0:06TIME TRIP
128374
1011
65
9
ABS
UB96E2E0.book Page 3 Wednesday, September 18, 2019 10:21 AM

Periodic maintenance and adjustment
6-4
6
EAU71372
General maintenance and lubrication chart
NO. ITEM
1*Diagnostic system
check• Perform dynamic inspection
using Yamaha diagnostic tool.
• Check the error codes.√√√√√√
2*Air filter element• Clean.√√
• Replace.√√
3*Clutch• Check operation, fluid level and
vehicle for fluid leakage.√√√√√
4*Front brake• Check operation, fluid level,
and for fluid leakage.
• Replace brake pads if neces-
sary.√√√√√√
5*Rear brake• Check operation, fluid level,
and for fluid leakage.
• Replace brake pads if neces-
sary.√√√√√√
6*Brake hoses• Check for cracks or damage.√√√√√
• Replace. Every 4 years
7*Brake fluid• Change. Every 2 years
8*Wheels• Check runout and for damage.
• Replace if necessary.√√√√
9*Tires• Check tread depth and for
damage.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.√√√√√
10*Wheel bearings• Check bearing for looseness or
damage.√√√√
11*Swingarm pivot
bearings• Check operation and for exces-
sive play.√√√√
12*Steering bearings• Check bearing assemblies for
looseness.
√√ √
• Moderately repack with lithium-
soap-based grease.√√
X 1000 km CHECK OR
MAINTENANCE JOB
X 1000 mi
ODOMETER
READINGS
ANNUAL CHECK
110203040
0.66121824
UB96E2E0.book Page 4 Wednesday, September 18, 2019 10:21 AM

Periodic maintenance and adjustment
6-31
6
EAU23273

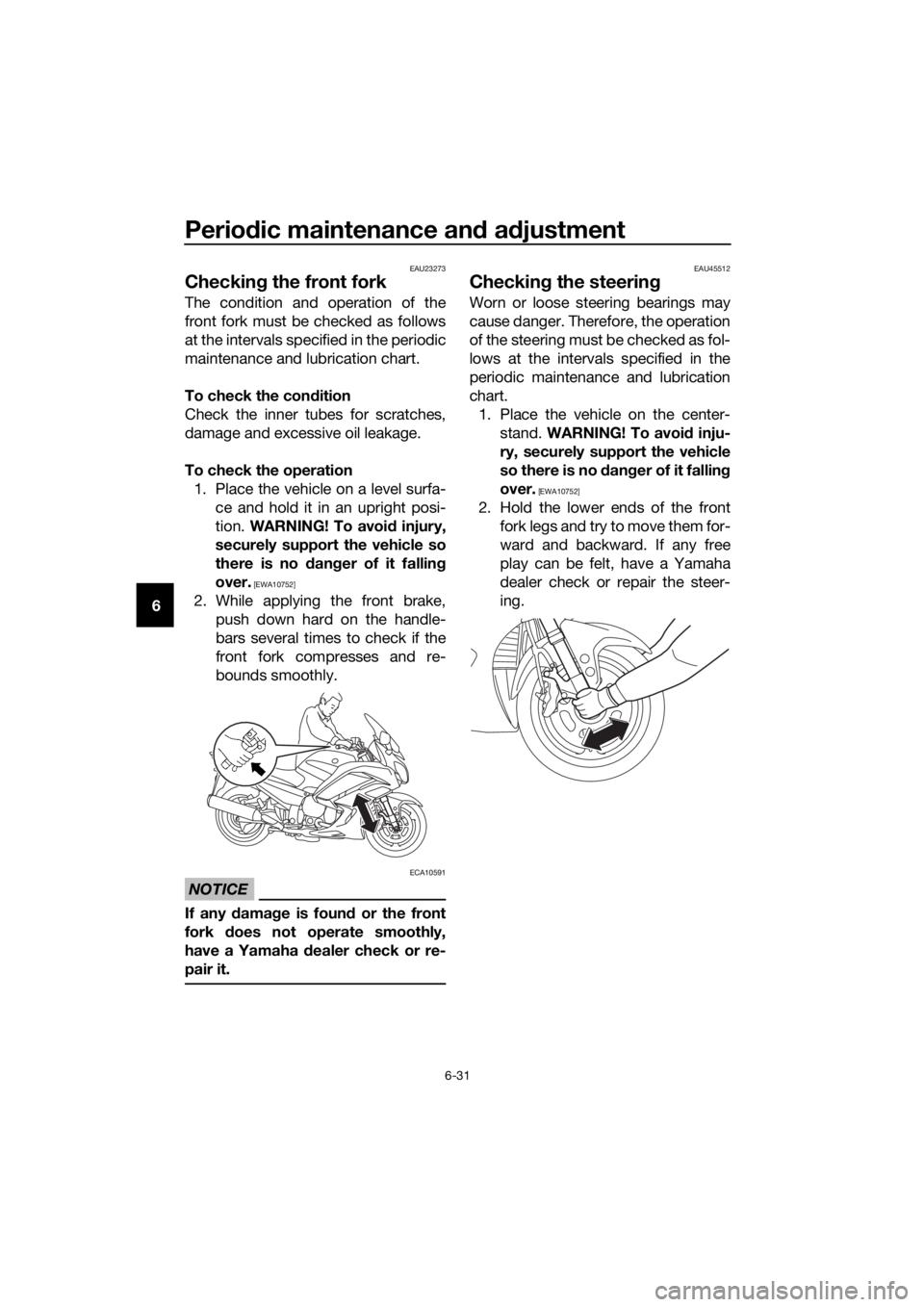

Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10752]
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
NOTICE
ECA10591
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU45512
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Place the vehicle on the center-
stand. WARNING! To avoid inju-
ry, securely support the vehicle
so there is no danger of it falling
over.
[EWA10752]
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
UB96E2E0.book Page 31 Wednesday, September 18, 2019 10:21 AM

Consumer information
9-1
9

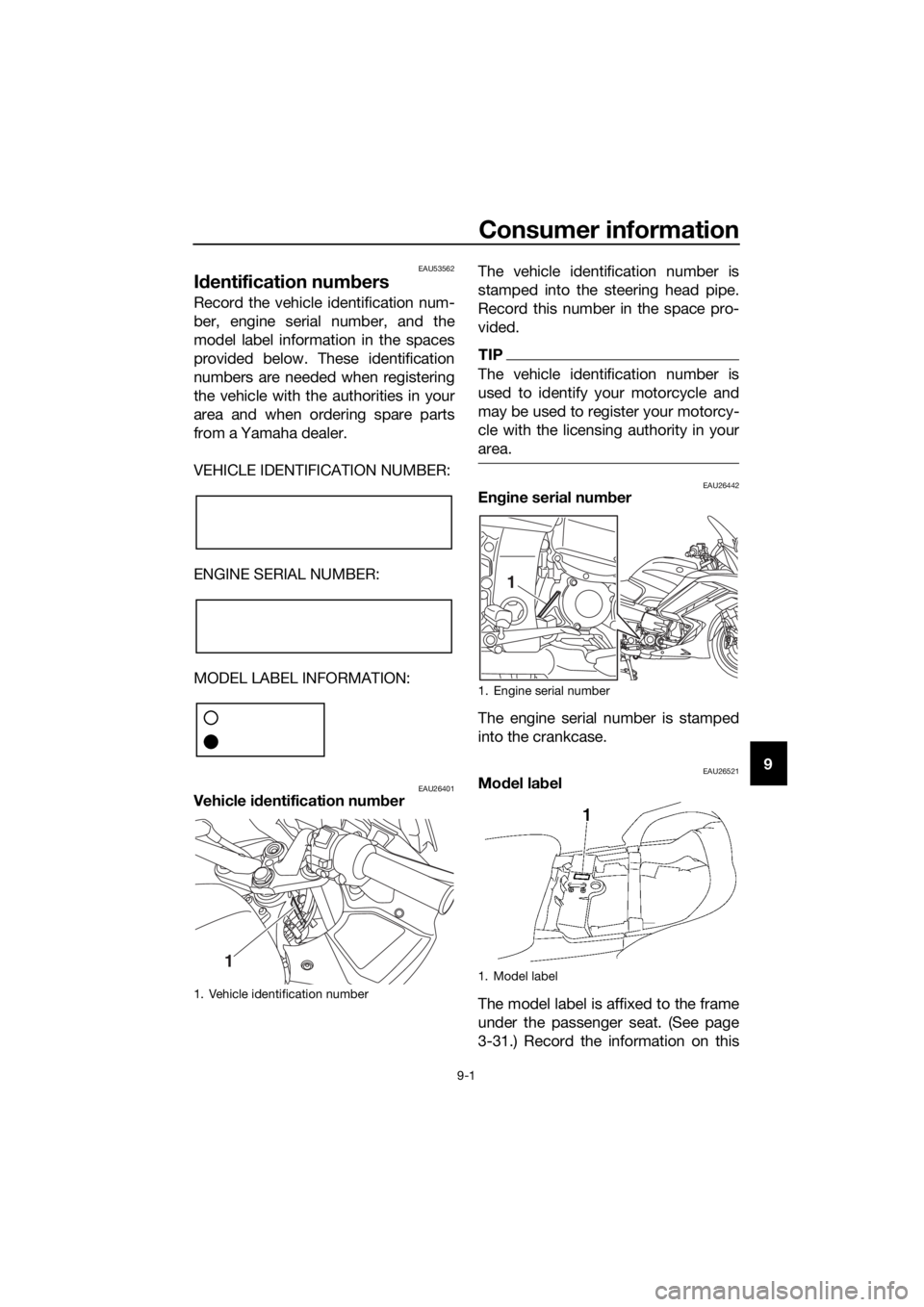

EAU53562
Identification numbers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401Vehicle identification numberThe vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442Engine serial number
The engine serial number is stamped
into the crankcase.
EAU26521Model label
The model label is affixed to the frame
under the passenger seat. (See page
3-31.) Record the information on this
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
UB96E2E0.book Page 1 Wednesday, September 18, 2019 10:21 AM

10-1
10
Index
A
ABS ....................................................... 3-25
ABS warning light ................................... 3-4
Accessory box ...................................... 3-35
Air filter element, cleaning .................... 6-18
Auxiliary DC jack ................................... 3-44
B
Battery .................................................. 6-32
Brake and clutch fluid levels,
checking ............................................. 6-26
Brake and clutch fluids, changing ........ 6-28
Brake and clutch levers, checking and
lubricating ........................................... 6-30
Brake and shift pedals, checking and
lubricating ........................................... 6-29
Brake lever ............................................ 3-24
Brake lever free play, checking............. 6-24
Brake light switches.............................. 6-25
Brake pedal........................................... 3-25
C
Cables, checking and lubricating ......... 6-28
Canister................................................. 6-11
Care ........................................................ 7-1
Catalytic converter ................................ 3-30
Centerstand and sidestand, checking
and lubricating .................................... 6-30
Clutch lever ................................. 3-23, 6-24
Coolant ................................................. 6-16
Cornering lights .................................... 3-47
Cowling vents, opening and closing ..... 3-37
Cruise control indicator lights ................. 3-4
Cruise control switches ........................ 3-23
Cruise control system ............................. 3-6
D
Data recording, vehicle ........................... 9-3
Diagnostic connector.............................. 9-2
Dimmer/Pass switch ............................. 3-22
D-mode (drive mode) ............................ 3-21
E
Engine break-in....................................... 5-1
Engine idling speed, checking .............. 6-19
Engine oil and oil filter cartridge ........... 6-11
Engine overheating ............................... 6-38
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-4
F
Final gear oil.......................................... 6-15
Front and rear brake pads, checking.... 6-25
Front fork, checking .............................. 6-31
Fuel ....................................................... 3-28Fuel consumption, tips for reducing ...... 5-5
Fuel tank cap ........................................ 3-28
Fuel tank overflow hose ....................... 3-30
Fuses, replacing ................................... 6-34
H
Handlebar position, adjusting .............. 3-37
Handlebar switches .............................. 3-22
Hazard switch....................................... 3-22
Headlight beams, adjusting.................. 3-36
High beam indicator light ....................... 3-3
Horn switch .......................................... 3-22
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system............... 3-45
Immobilizer system ................................ 3-1
Immobilizer system indicator light.......... 3-5
Indicator lights and warning lights ......... 3-3
M
Main switch/steering lock....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system.................................................. 6-3
Matte color, caution ............................... 7-1
Menu switch ......................................... 3-23
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-9
N
Neutral indicator light ............................. 3-3
O
Oil level warning light ............................. 3-4
P
Panels, removing and installing.............. 6-7
Parking ................................................... 5-6
Part locations ......................................... 2-1
R
Rear view mirrors ................................. 3-39
Rider seat height, adjusting.................. 3-32
S
Safety information .................................. 1-1
Seats .................................................... 3-31
Select switch ........................................ 3-23
Shifting ................................................... 5-4
Shift pedal ............................................ 3-24
Sidestand ............................................. 3-45
Spark plugs, checking .......................... 6-10
Specifications ......................................... 8-1
Starting the engine ................................. 5-2
Steering, checking................................ 6-31
Stop/Run/Start switch .......................... 3-22
Storage ................................................... 7-4
UB96E2E0.book Page 1 Wednesday, September 18, 2019 10:21 AM
