INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU11601
Speedometer The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAU11872
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 9000 r/min and above
EAU40537
Multi-function display
WARNING
EWA14431
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
The multi-function display is equipped
with the following:
an odometer
two tripmeters (which show the
distance traveled since they were
last set to zero)
1. Tachometer
2. Speedometer
3. Multi-function display
1. Tachometer
2. Tachometer red zone
1. Multi-function display
2. Select button
3. Reset button
U2D2E3E0.book Page 7 Friday, September 26, 2008 3:51 PM
Page 22 of 108
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)
a clock
a fuel meter
a coolant temperature meter
a transmission gear display
an ambient temperature display
a fuel consumption display (instan-
taneous and average consumption
functions)
a self-diagnosis device
TIPBe sure to turn the key to “ON” beforeusing the select and reset buttons.Odometer and tripmeter modes

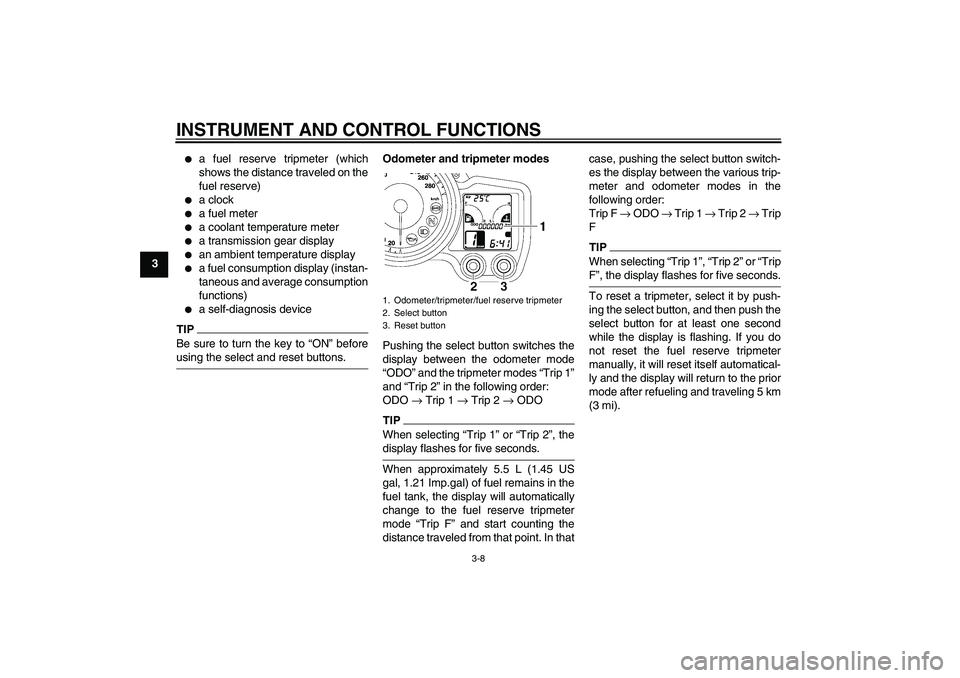

Pushing the select button switches the
display between the odometer mode
“ODO” and the tripmeter modes “Trip 1”
and “Trip 2” in the following order:
ODO → Trip 1 → Trip 2 → ODO
TIPWhen selecting “Trip 1” or “Trip 2”, thedisplay flashes for five seconds.
When approximately 5.5 L (1.45 US
gal, 1.21 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “Trip F” and start counting the
distance traveled from that point. In thatcase, pushing the select button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
Trip F → ODO → Trip 1 → Trip 2 → Trip
F
TIPWhen selecting “Trip 1”, “Trip 2” or “TripF”, the display flashes for five seconds.
To reset a tripmeter, select it by push-
ing the select button, and then push the
select button for at least one second
while the display is flashing. If you do
not reset the fuel reserve tripmeter
manually, it will reset itself automatical-
ly and the display will return to the prior
mode after refueling and traveling 5 km
(3 mi).
1. Odometer/tripmeter/fuel reserve tripmeter
2. Select button
3. Reset button
U2D2E3E0.book Page 8 Friday, September 26, 2008 3:51 PM
Page 23 of 108
INSTRUMENT AND CONTROL FUNCTIONS
3-9

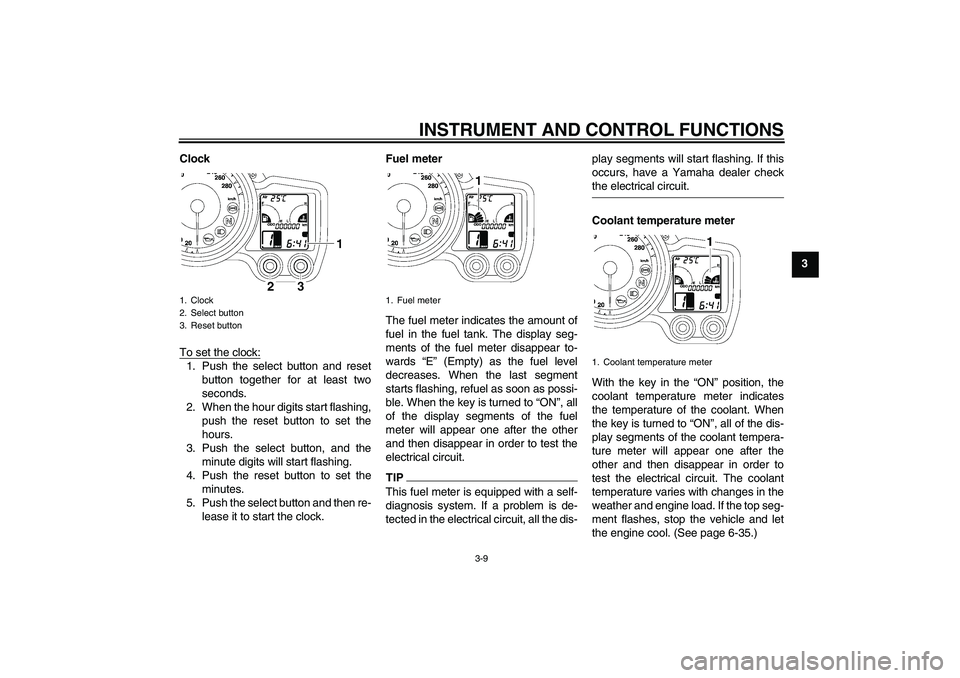

3 Clock
To set the clock:
1. Push the select button and reset
button together for at least two
seconds.
2. When the hour digits start flashing,
push the reset button to set the
hours.
3. Push the select button, and the
minute digits will start flashing.
4. Push the reset button to set the
minutes.
5. Push the select button and then re-
lease it to start the clock.Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment
starts flashing, refuel as soon as possi-
ble. When the key is turned to “ON”, all
of the display segments of the fuel
meter will appear one after the other
and then disappear in order to test the
electrical circuit.
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, all the dis-play segments will start flashing. If this
occurs, have a Yamaha dealer check
the electrical circuit.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. When
the key is turned to “ON”, all of the dis-
play segments of the coolant tempera-
ture meter will appear one after the
other and then disappear in order to
test the electrical circuit. The coolant
temperature varies with changes in the
weather and engine load. If the top seg-
ment flashes, stop the vehicle and let
the engine cool. (See page 6-35.)
1. Clock
2. Select button
3. Reset button
1. Fuel meter
1. Coolant temperature meter
U2D2E3E0.book Page 9 Friday, September 26, 2008 3:51 PM
Page 24 of 108
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
NOTICE
ECA10021
Do not continue to operate the en-gine if it is overheating.

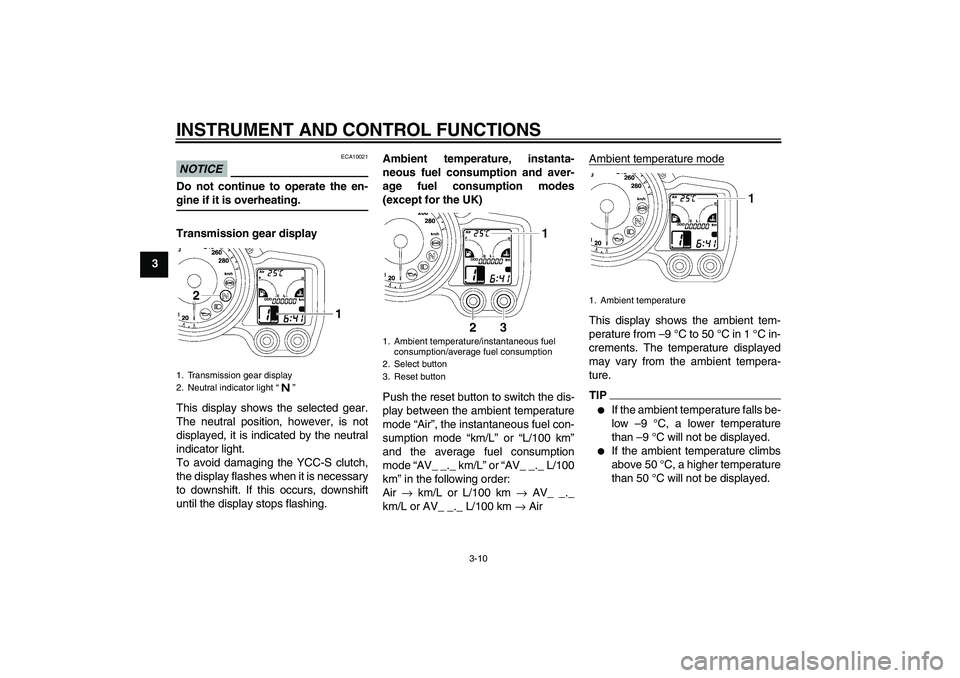

Transmission gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.
To avoid damaging the YCC-S clutch,
the display flashes when it is necessary
to downshift. If this occurs, downshift
until the display stops flashing.Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes
(except for the UK)
Push the reset button to switch the dis-
play between the ambient temperature
mode “Air”, the instantaneous fuel con-
sumption mode “km/L” or “L/100 km”
and the average fuel consumption
mode “AV_ _._ km/L” or “AV_ _._ L/100
km” in the following order:
Air → km/L or L/100 km → AV_ _._
km/L or AV_ _._ L/100 km → AirAmbient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.TIP
If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.
If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.
1. Transmission gear display
2. Neutral indicator light“”
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2. Select button
3. Reset button
1. Ambient temperature
U2D2E3E0.book Page 10 Friday, September 26, 2008 3:51 PM
Page 25 of 108
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h) or when stopped at trafficsignals, railroad crossings, etc.

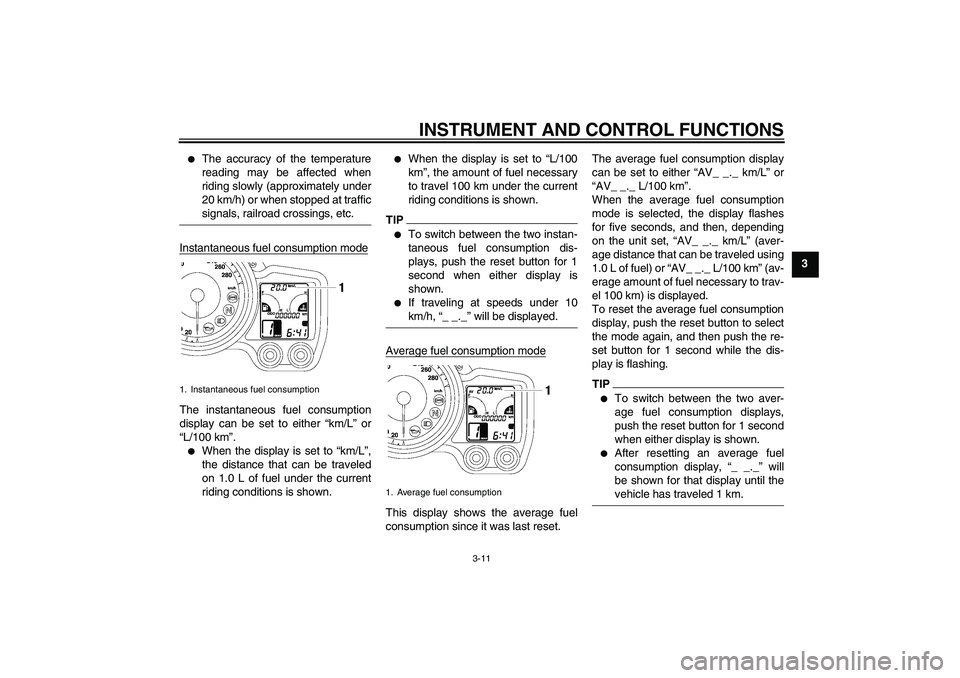

Instantaneous fuel consumption mode
The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km”.
When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.
When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.
TIP
To switch between the two instan-
taneous fuel consumption dis-
plays, push the reset button for 1
second when either display is
shown.
If traveling at speeds under 10km/h, “_ _._” will be displayed.
Average fuel consumption mode
This display shows the average fuel
consumption since it was last reset.The average fuel consumption display
can be set to either “AV_ _._ km/L” or
“AV_ _._ L/100 km”.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then, depending
on the unit set, “AV_ _._ km/L” (aver-
age distance that can be traveled using
1.0 L of fuel) or “AV_ _._ L/100 km” (av-
erage amount of fuel necessary to trav-
el 100 km) is displayed.
To reset the average fuel consumption
display, push the reset button to select
the mode again, and then push the re-
set button for 1 second while the dis-
play is flashing.
TIP
To switch between the two aver-
age fuel consumption displays,
push the reset button for 1 second
when either display is shown.
After resetting an average fuel
consumption display, “_ _._” will
be shown for that display until thevehicle has traveled 1 km.
1. Instantaneous fuel consumption
1. Average fuel consumption
U2D2E3E0.book Page 11 Friday, September 26, 2008 3:51 PM
Page 26 of 108
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
NOTICE
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealercheck the vehicle.

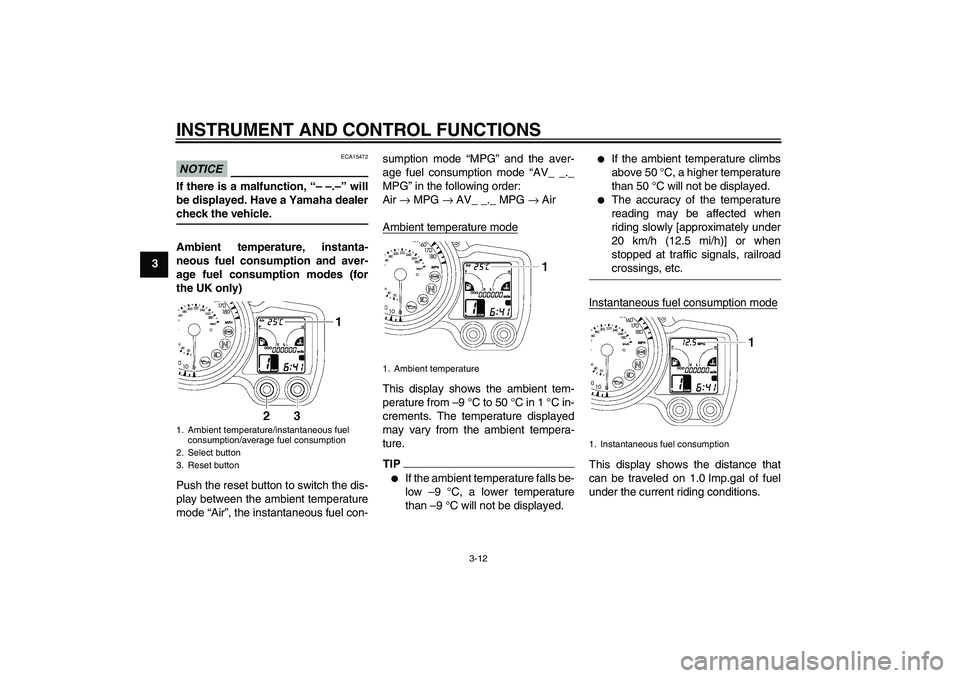

Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes (for
the UK only)
Push the reset button to switch the dis-
play between the ambient temperature
mode “Air”, the instantaneous fuel con-sumption mode “MPG” and the aver-
age fuel consumption mode “AV_ _._
MPG” in the following order:
Air → MPG → AV_ _._ MPG → Air
Ambient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.TIP
If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.
If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.
The accuracy of the temperature
reading may be affected when
riding slowly [approximately under
20 km/h (12.5 mi/h)] or when
stopped at traffic signals, railroadcrossings, etc.
Instantaneous fuel consumption mode
This display shows the distance that
can be traveled on 1.0 Imp.gal of fuel
under the current riding conditions.
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2. Select button
3. Reset button
1. Ambient temperature
1. Instantaneous fuel consumption
U2D2E3E0.book Page 12 Friday, September 26, 2008 3:51 PM
Page 27 of 108
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
TIPIf traveling at speeds under 10 km/h(6.0 mi/h), “_ _._” will be displayed.
Average fuel consumption modeThis display shows the average fuel
consumption since it was last reset.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then “AV_ _._
MPG” (average distance that can be
traveled using 1.0 Imp.gal of fuel) is
displayed.
TIP
To reset the average fuel con-
sumption display, push the reset
button to select the mode again,
and then push the reset button for
1 second while the display is flash-
ing.
After resetting the average fuel
consumption display, “_ _._” will
be shown for that display until thevehicle has traveled 1 km (0.6 mi).
NOTICE
ECA15472
If there is a malfunction, “– –.–” will

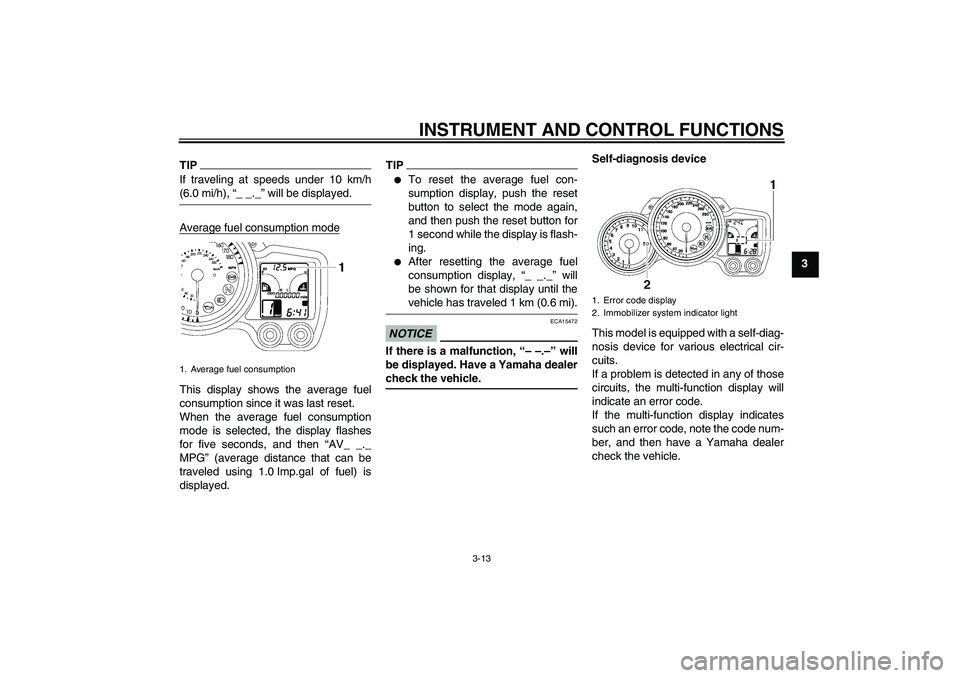

be displayed. Have a Yamaha dealercheck the vehicle.Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the multi-function display will
indicate an error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
1. Average fuel consumption
1. Error code display
2. Immobilizer system indicator light
U2D2E3E0.book Page 13 Friday, September 26, 2008 3:51 PM
Page 28 of 108
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
NOTICE

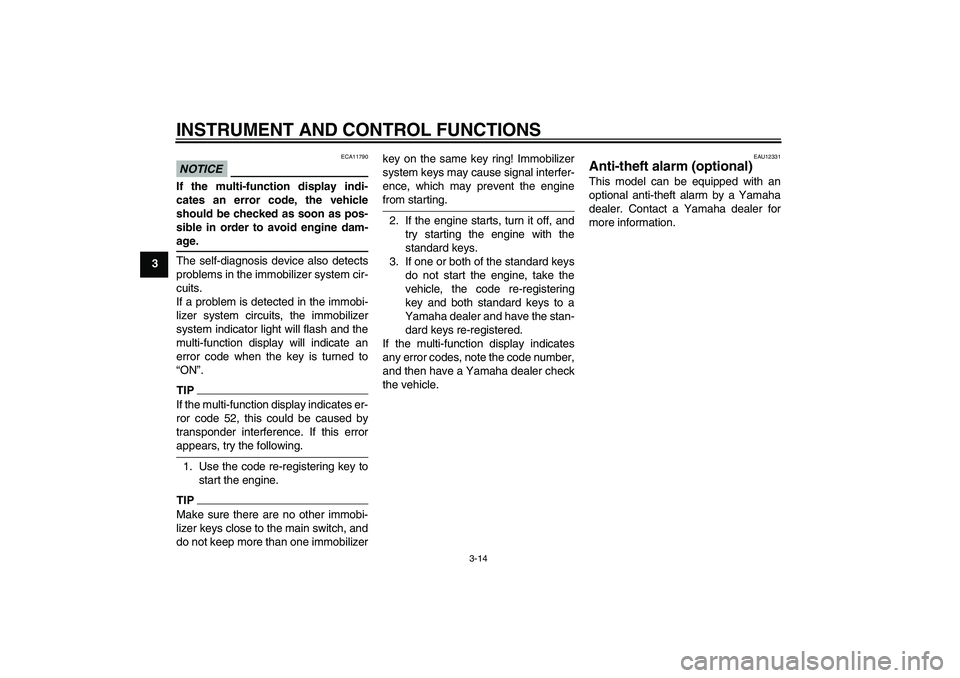

ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-age.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.
If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash and the
multi-function display will indicate an
error code when the key is turned to
“ON”.TIPIf the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this errorappears, try the following.
1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizerkey on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
U2D2E3E0.book Page 14 Friday, September 26, 2008 3:51 PM
Page 29 of 108
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU12347
Handlebar switches LeftRight
EAU12380
Pass switch“”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12493
Windshield position adjusting
switch“”
To move the windshield up, push this
switch in direction (a). To move the
windshield down, push the switch in di-
rection (b).TIPWhen the key is turned to “OFF”, the
windshield will automatically return tothe lowest position.
1. Pass switch“”
2. Windshield position adjusting switch“”
3. Dimmer switch“/”
4. Turn signal switch“/”
5. Horn switch“”
6. Hand shift control switch
1. Engine stop switch“/”
2. Hazard switch“”
3. Start switch“”
1. Windshield position adjusting switch“”
U2D2E3E0.book Page 15 Friday, September 26, 2008 3:51 PM
Page 30 of 108
INSTRUMENT AND CONTROL FUNCTIONS
3-16
3

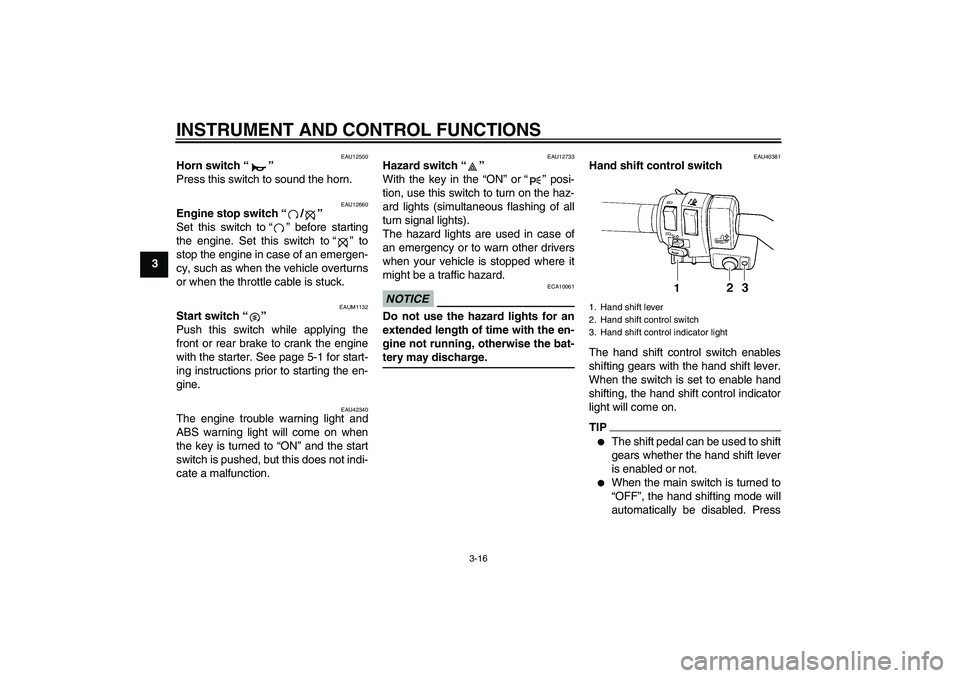

EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAUM1132
Start switch“”
Push this switch while applying the
front or rear brake to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU42340
The engine trouble warning light and
ABS warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU40381
Hand shift control switch
The hand shift control switch enables
shifting gears with the hand shift lever.
When the switch is set to enable hand
shifting, the hand shift control indicator
light will come on.TIP
The shift pedal can be used to shift
gears whether the hand shift lever
is enabled or not.
When the main switch is turned to
“OFF”, the hand shifting mode will
automatically be disabled. Press
1. Hand shift lever
2. Hand shift control switch
3. Hand shift control indicator light
U2D2E3E0.book Page 16 Friday, September 26, 2008 3:51 PM
