INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU55391
Electronically adjustable suspen-
sion system warning light “ ”
This warning light comes on if a prob-
lem is detected in the electronically ad-
justable suspension system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU55430
Shift down indicator light “ ”
This indicator light flashes when the
transmission gear is too high for the ve-
hicle speed.
To avoid damaging the YCC-S clutch,
the shift down indicator light flashes
when it is necessary to downshift. If this
occurs, downshift until the indicator
light stops flashing.
EAU55441
YCC-S system warning light “ ”
If this warning light comes on while
riding, the YCC-S system may not work
correctly. If this occurs:●
It may be impossible to shift out of
the gear you are in.
●
The clutch may stay engaged, so a
shuddering sensation may be felt
as you come to a stop.
Stop the vehicle when it is safe to do so,
and park it away from traffic. Have a
Yamaha dealer check the YCC-S sys-
tem.
TIPIn order to be able to move the vehicle
after it has stopped, if shifting is impos-
sible using the hand shift lever and shift
pedal, proceed as follows:
Place the vehicle on the centerstand,
then while rotating the rear wheel, push
the shift pedal rod and shift pedal rod
pivot forward until the transmission is in
the neutral position.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU55450
Stop mode function indicator
light “ ”
This indicator light comes on when the
stop mode function is activated.
If the stop mode function fails to shift
down, the indicator light will flash.1. Shift pedal rod pivot
2. Shift pedal rod
1
2
U1MDE0E0.book Page 6 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3See page 3-26 for an explanation of the
stop mode function.
EAU54680
Immobilizer system indicator
light “ ”
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits. (See page 3-23 for an explana-
tion of the self-diagnosis device.)
EAU55380
Cruise control system This model is equipped with a cruise
control system designed to maintain a
set cruising speed.
The cruise control system operates
only when riding in 3rd gear at speeds
between about 50 km/h (31 mi/h) and
160 km/h (100 mi/h), or 4th or 5th gear
at speeds between about 50 km/h (31
mi/h) and 180 km/h (112 mi/h).
WARNING
EWA16340
●
Improper use of the cruise con-
trol system may result in loss of
control, which could lead to an
accident. Do not activate the
cruise control system in heavy
traffic, poor weather conditions,
or among winding, slippery,
hilly, rough or gravel roads.
●
When traveling uphill or down-
hill, the cruise control system
may not be able to maintain the
set cruising speed.
●
To prevent accidentally activat-
ing the cruise control system,
turn it off when not in use. Make
sure that the cruise control sys-
tem indicator light “ ” is off.
1. Cruise control system indicator light “ ”
2. Cruise control setting indicator light “SET”
1. Cruise control setting switch “RES+/SET–”
2. Cruise control power switch “ ”
NA.TEM
P
C.TEM
P
TIME T
R
2
1
1
2
U1MDE0E0.book Page 7 Friday, February 15, 2013 1:26 PM

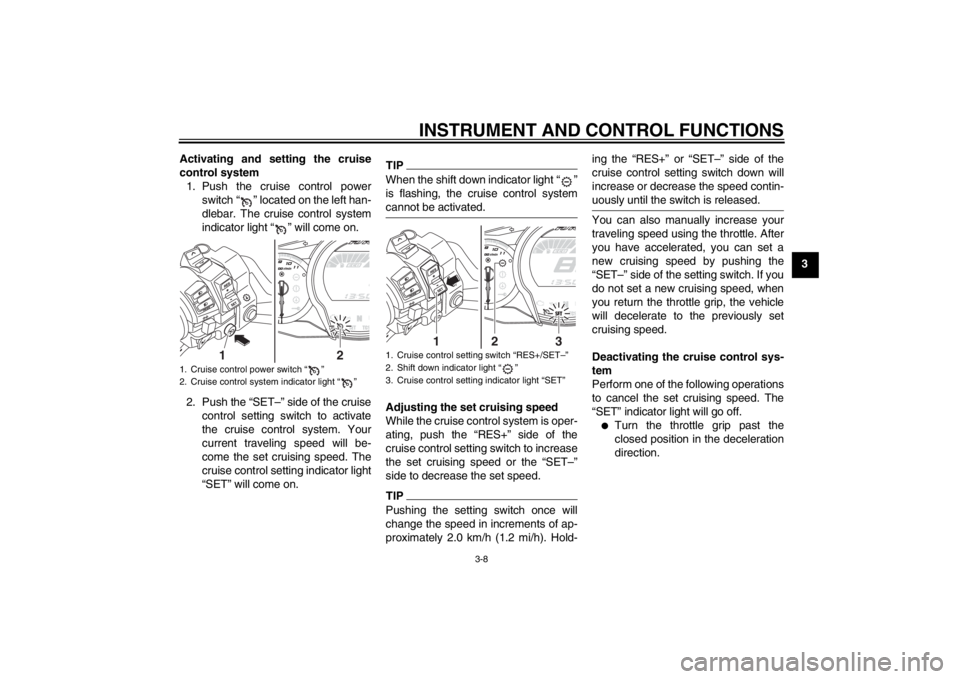

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
Activating and setting the cruise
control system
1. Push the cruise control power switch “ ” located on the left han-
dlebar. The cruise control system
indicator light “ ” will come on.
2. Push the “SET–” side of the cruise control setting switch to activate
the cruise control system. Your
current traveling speed will be-
come the set cruising speed. The
cruise control setting indicator light
“SET” will come on.
TIPWhen the shift down indicator light “ ”
is flashing, the cruise control system
cannot be activated.Adjusting the set cruising speed
While the cruise control system is oper-
ating, push the “RES+” side of the
cruise control setting switch to increase
the set cruising speed or the “SET–”
side to decrease the set speed.TIPPushing the setting switch once will
change the speed in increments of ap-
proximately 2.0 km/h (1.2 mi/h). Hold- ing the “RES+” or “SET–” side of the
cruise control setting switch down will
increase or decrease the speed contin-
uously until the switch is released.
You can also manually increase your
traveling speed using the throttle. After
you have accelerated, you can set a
new cruising speed by pushing the
“SET–” side of the setting switch. If you
do not set a new cruising speed, when
you return the throttle grip, the vehicle
will decelerate to the previously set
cruising speed.
Deactivating the cruise control sys-
tem
Perform one of the following operations
to cancel the set cruising speed. The
“SET” indicator light will go off.●
Turn the throttle grip past the
closed position in the deceleration
direction.
1. Cruise control power switch “ ”
2. Cruise control system indicator light “ ”
2
1
1. Cruise control setting switch “RES+/SET–”
2. Shift down indicator light “ ”
3. Cruise control setting indicator light “SET”
2
3
1
U1MDE0E0.book Page 8 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
●
Apply the front or rear brake.
●
Operate the hand shift lever.
●
Operate the shift pedal.
Push the power switch to turn off the
cruise control system. The “ ” indica-
tor light and the “SET” indicator light will
go off.
TIPTraveling speed decreases as soon as
the cruise control system is deactivat-
ed; unless the throttle grip is turned.Using the resume function
Push the “RES+” side of the cruise con-
trol setting switch to reactivate the
cruise control system. The traveling speed will return to the previously set
cruising speed. The “SET” indicator
light will come on.
WARNING
EWA16350
It is dangerous to use the resume
function when the previously set
cruising speed is too high for cur-
rent conditions.TIP●
The resume function operates
when riding in 3rd gear at speeds
between about 50 km/h (31 mi/h)
and 160 km/h (100 mi/h), or 4th or
5th gear at speeds between about
50 km/h (31 mi/h) and 180 km/h
(112 mi/h).
●
Pushing the power switch while
the system is operating will turn
the system off completely and
erase the previously set cruising
speed. You will not be able to use
the resume function until a new
cruising speed has been set.
Automatic deactivation of the cruisecontrol systemThe cruise control system for this mod-
el is electronically controlled and is
linked with the other control systems.
The cruise control system will automat-
ically become deactivated under the
following conditions:●
The cruise control system is not
able to maintain the set cruising
speed.
●
Wheel slip or wheel spin is detect-
ed. (If the traction control system
has not been turned off, the trac-
tion control system will work.)
●
The start/engine stop switch is set
to the “ ” position.
●
The engine stalls.
●
The sidestand is lowered.
When traveling with a set cruising
speed, if the cruise control system is
deactivated under the above condi-
tions, the “ ” indicator light will go off
and the “SET” indicator light will flash
for 4 seconds, and then go off.
When not traveling with a set cruising
speed, if the start/engine stop switch is
set to the “ ” position, the engine
1. Closed position
2. Cruise control cancel direction
2
1
U1MDE0E0.book Page 9 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
stalls, or the sidestand is lowered, then
the “ ” indicator light will go off (the
“SET” indicator light will not flash).
If the cruise control system is automati-
cally deactivated, please stop and con-
firm that your vehicle is in good
operating condition.
Before using the cruise control system
again, activate it using the power
switch.
TIPIn some cases, the cruise control sys-
tem may not be able to maintain the set
cruising speed when the vehicle is trav-
eling uphill or downhill.●
When the vehicle is traveling up-
hill, the actual traveling speed may
become lower than the set cruising
speed. If this occurs, accelerate to
the desired traveling speed using
the throttle.
●
When the vehicle is traveling
downhill, the actual traveling
speed may become higher than
the set cruising speed. If this oc-
curs, the setting switch cannot be
used to adjust the set cruising
speed. To reduce the traveling speed, apply the brakes. When the
brakes are applied, the cruise con-
trol system will become deactivat-
ed.
Self-diagnosis device
The cruise control system will also be-
come deactivated when an irregularity
with any of the vehicle systems is de-
tected. The “SET” indicator light will go
off and the “ ” indicator light will flash.
You will not be able to use the cruise
control system while the engine trouble
warning light or the YCC-S system
warning light is on, or while the cruise
control system is malfunctioning.
WARNING
EWA16360
If the cruise control system is not
working correctly, the “ ” indicator
light will flash. If this occurs, turn the
cruise control system off and have a
Yamaha dealer check it.NOTICE
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.
1. YCC-S system warning light “ ”
2. Engine trouble warning light “ ”
3. Cruise control system indicator light “ ”
4. Cruise control setting indicator light “SET”
5. Error code display
GEARN
25
A.TEMP
˚C
Lo
C.TEMP ˚C
0:06
TIME TRIP
3
4
5
2
1
U1MDE0E0.book Page 10 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU55411
Multi-function meter unit
WARNING
EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changingsettings while riding can distract the
operator and increase the risk of an
accident.
TIPThe select switch “ / ” and the
menu switch “MENU” are located on
the left handlebar. These switches al-
low you to control or change the set-
tings of the multi-function meter unit.The multi-function meter unit is
equipped with the following:●
a speedometer
●
a tachometer
●
a clock
●
a fuel meter
●
a transmission gear display
●
a drive mode display (which shows
the selected drive mode)
●
a function display (which shows
the selected function)
●
an information display (which
shows various information, such
as the odometer reading)
●
a setting mode display (which al-
lows you to set, select, or reset the
items shown in the information dis-
play)
●
a self-diagnosis device
TIP●
Be sure to turn the key to “ON” be-
fore pushing the select
switch “ / ”, menu switch
“MENU”, “RESET” button and
“TCS” button.
●
For the UK only: To switch the
meter displays between kilometers
and miles, see page 3-18.

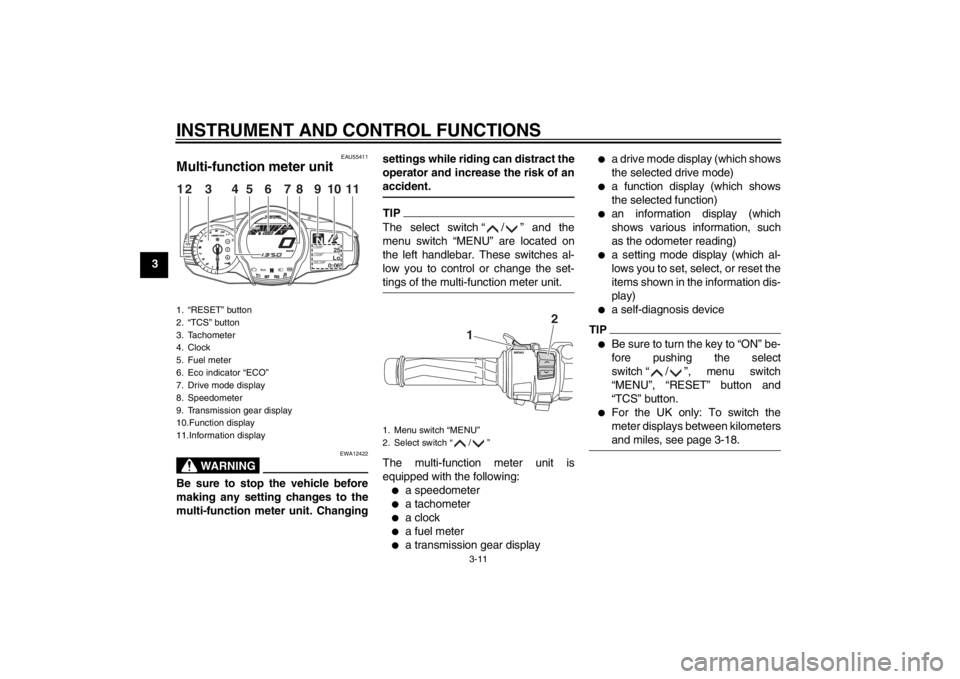

1. “RESET” button
2. “TCS” button
3. Tachometer
4. Clock
5. Fuel meter
6. Eco indicator “ECO”
7. Drive mode display
8. Speedometer
9. Transmission gear display
10.Function display
11.Information display
GEARN
25
A.TEMP
˚C
Lo
C.TEMP˚C
0:06
TIME TRIP
12
3
11
4
5
8
7
6
9
10
1. Menu switch “MENU”
2. Select switch “ / ”
1
2
U1MDE0E0.book Page 11 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle sweeps once across
the r/min range and then returns to zero
r/min in order to test the electrical cir-
cuit.

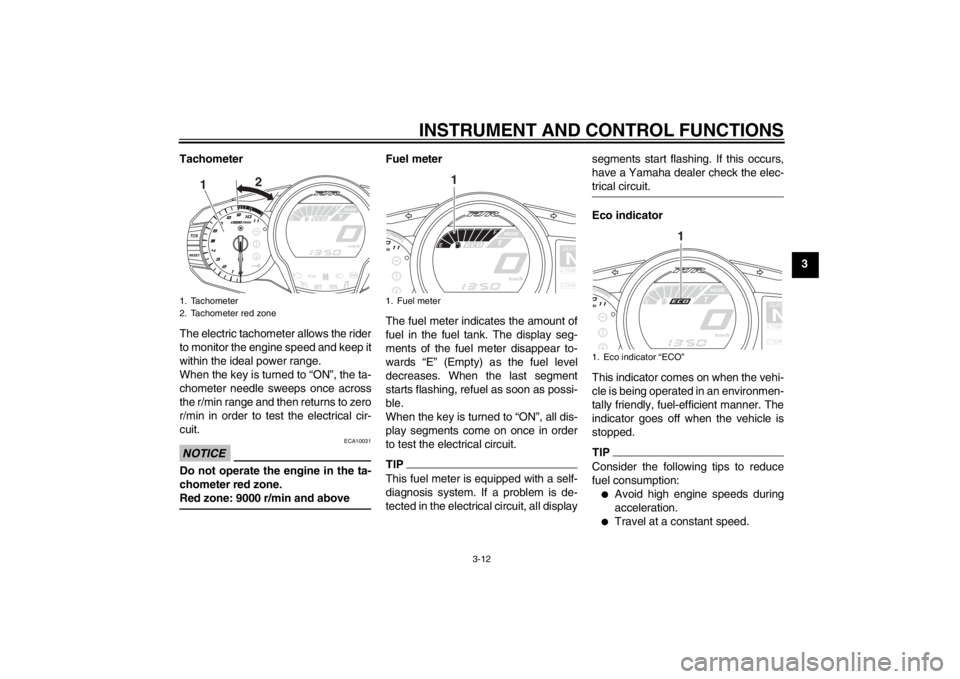

NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 9000 r/min and above
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment
starts flashing, refuel as soon as possi-
ble.
When the key is turned to “ON”, all dis-
play segments come on once in order
to test the electrical circuit.TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, all display segments start flashing. If this occurs,
have a Yamaha dealer check the elec-
trical circuit.
Eco indicator
This indicator comes on when the vehi-
cle is being operated in an environmen-
tally friendly, fuel-efficient manner. The
indicator goes off when the vehicle is
stopped.TIPConsider the following tips to reduce
fuel consumption:●
Avoid high engine speeds during
acceleration.
●
Travel at a constant speed.
1. Tachometer
2. Tachometer red zone
1
2
1. Fuel meter
GEARNA.TEM
P
C.TEM
P
1
1. Eco indicator “ECO”
GEARNA.TEM
P
C.TEM
P
1
U1MDE0E0.book Page 12 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
●
Select the transmission gear that
is appropriate for the vehicle
speed.
Transmission gear display

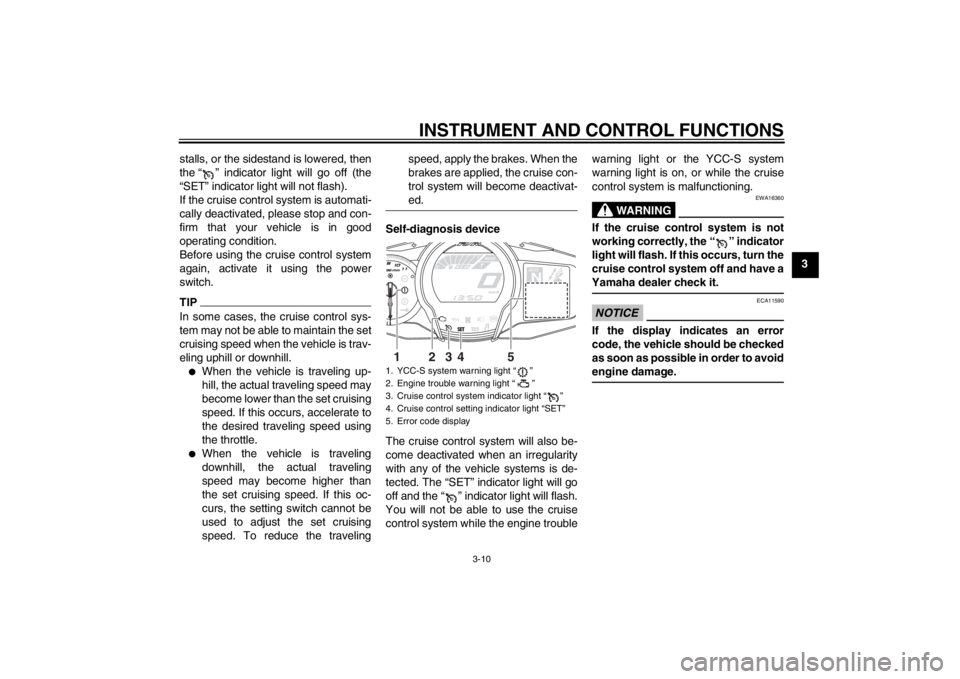

This display shows the selected gear.
The neutral position is indicated by the
neutral indicator light “ ” and by the
transmission gear display “ ”.
To avoid damaging the YCC-S clutch,
the shift down indicator light flashes
when it is necessary to downshift. If this
occurs, downshift until the display stops
flashing.Drive mode display
This display indicates which drive
mode has been selected: Touring
mode “T” or sports mode “S”. For more
details on the modes and on how to se-
lect them, see pages 3-24 and 3-27.
Function display1. Shift down indicator light “ ”
2. Neutral indicator light “ ”
3. Transmission gear display
GEARN
25
A.TEMP
˚C
Lo
C.TEMP˚C
0:06
TIME TRIP
2
1
3
1. Drive mode display
GEARNA.TEM
P
C.TEM
P
1

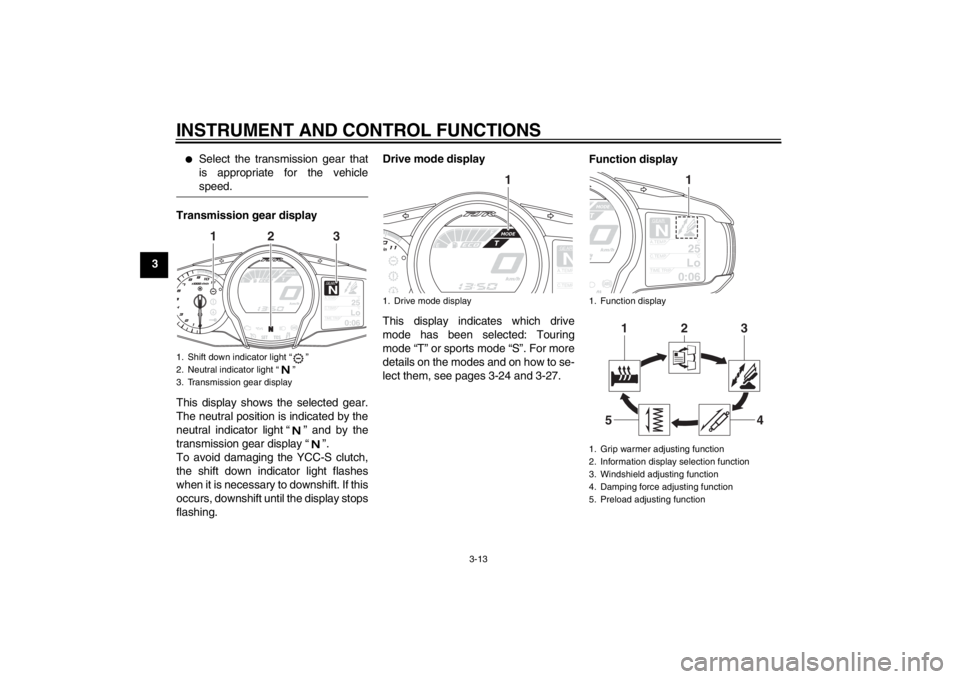

1. Function display
1. Grip warmer adjusting function
2. Information display selection function
3. Windshield adjusting function
4. Damping force adjusting function
5. Preload adjusting function
GEARN
25
A.TEMP˚C
Lo
C.TEMP˚C
0:06
TIME TRIP
12
1
3
4
5
U1MDE0E0.book Page 13 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
Push the menu switch “MENU” to
switch the display between the follow-
ing functions. The display changes
each time the switch is pushed.
●
Grip warmer adjusting function
●
Information display selection func-
tion
●
Windshield adjusting function
●
Damping force adjusting function
●
Preload adjusting function
TIPThe preload adjusting function will ap-
pear only when the vehicle is stopped
with the engine running.The following pages contain explana-
tion of the grip warmer, information dis-
play, and windshield functions. See
page 3-42 for an explanation of the pre-
load and damping force adjusting func-
tions.
Adjusting the grip warmerThis vehicle is equipped with grip
warmers, which can only be used when
the engine is running. There are 4 grip
warmer settings. To increase the grip warmer tempera-
ture, push the “ ” side of the select
switch. To decrease the grip warmer
temperature, push the “ ” side of the
select switch.
NOTICE
ECA17930
●
Be sure to wear gloves when us-
ing the grip warmers.
●
If the ambient temperature is 20
°C (68 °F) or higher, do not set
the grip warmer to the high set-
ting.
●
If the handlebar grip or throttle
grip becomes worn or damaged,
stop using the grip warmers and
replace the grips.
Selecting the information displayThere are 3 information displays. The
selected information display can be
switched by pushing the select switch.
The following items are shown in the in-
formation displays:●
an odometer display
●
tripmeter displays
●
a fuel reserve tripmeter display
●
an estimated traveling range dis-
play
●
an elapsed time display
●
an ambient temperature display
●
a coolant temperature display

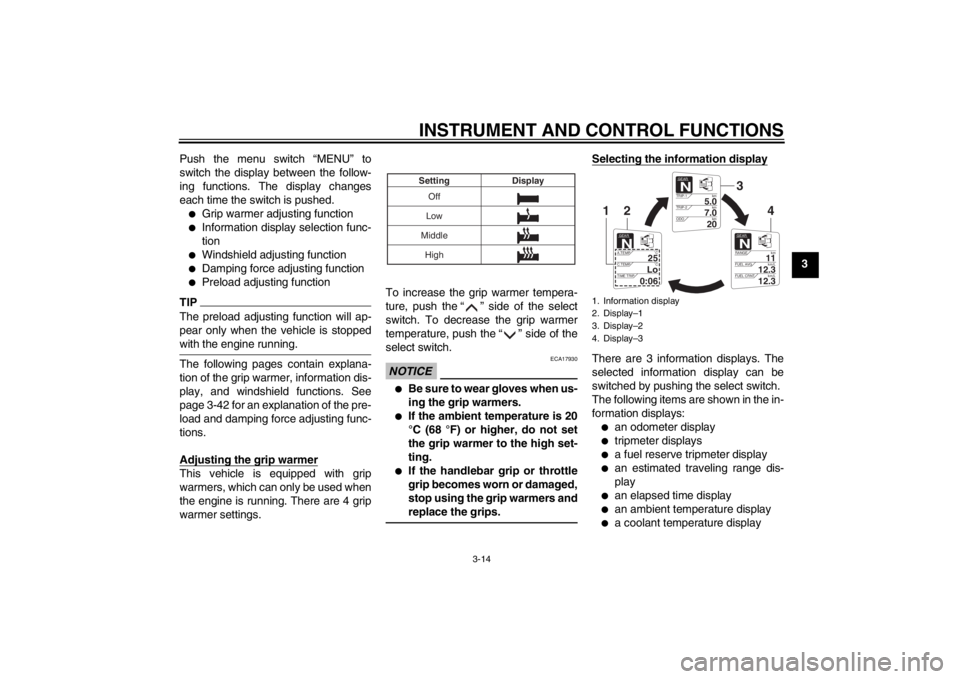

Off
Low
Middle Display
Setting
High
1. Information display
2. Display–1
3. Display–2
4. Display–3
GEARN
5.0
TRIP-1 km
7.0
TRIP-2km
km
20
ODO
GEARN
11
RANGE km
12.3
FUEL AVG km/L
km/L
12.3
FUEL CRNT
GEARN
25
A.TEMP ˚C
Lo
C.TEMP ˚C
0:06
TIME TRIP
3
4
2
1
U1MDE0E0.book Page 14 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
●
an average fuel consumption dis-
play
●
an instantaneous fuel consump-
tion display
The items shown in each information
display can be selected.
To set or select the items shown, see
page 3-18.

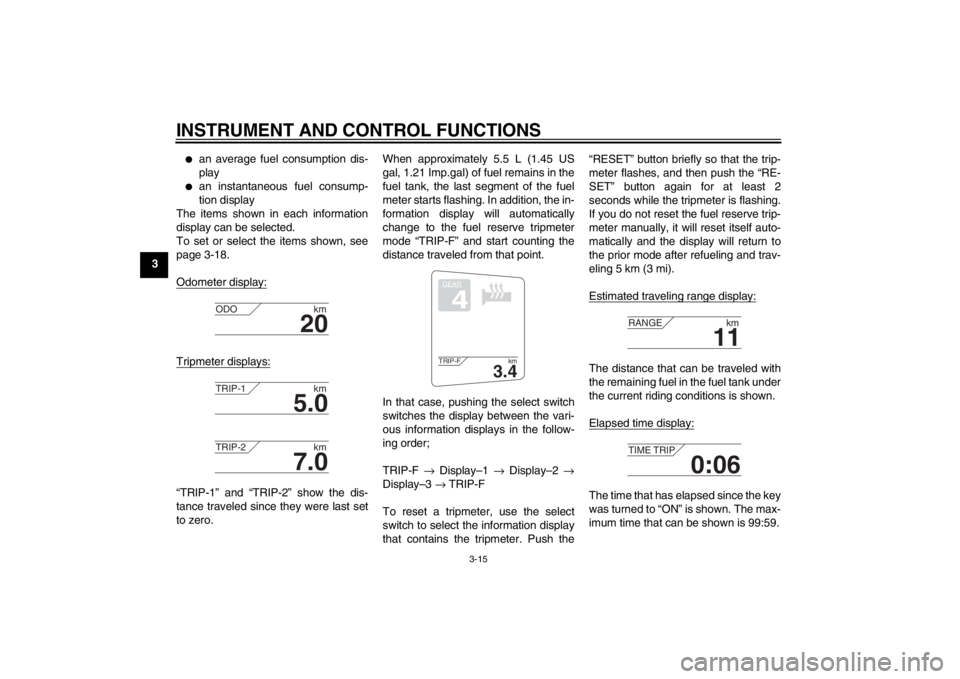

Odometer display:
Tripmeter displays:“TRIP-1” and “TRIP-2” show the dis-
tance traveled since they were last set
to zero. When approximately 5.5 L (1.45 US
gal, 1.21 Imp.gal) of fuel remains in the
fuel tank, the last segment of the fuel
meter starts flashing. In addition, the in-
formation display will automatically
change to the fuel reserve tripmeter
mode “TRIP-F” and start counting the
distance traveled from that point.
In that case, pushing the select switch
switches the display between the vari-
ous information displays in the follow-
ing order;
TRIP-F
→ Display–1 → Display–2 →
Display–3 → TRIP-F
To reset a tripmeter, use the select
switch to select the information display
that contains the tripmeter. Push the “RESET” button briefly so that the trip-
meter flashes, and then push the “RE-
SET” button again for at least 2
seconds while the tripmeter is flashing.
If you do not reset the fuel reserve trip-
meter manually, it will reset itself auto-
matically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
Estimated traveling range display:
The distance that can be traveled with
the remaining fuel in the fuel tank under
the current riding conditions is shown.
Elapsed time display:The time that has elapsed since the key
was turned to “ON” is shown. The max-
imum time that can be shown is 99:59.
20
ODO
km
5.0
TRIP-1km
7.0
TRIP-2km
GEAR4
3.4
TRIP-F km
11
RANGEkm
0:06
TIME TRIP
U1MDE0E0.book Page 15 Friday, February 15, 2013 1:26 PM
