INSTRUMENT AND CONTROL FUNCTIONS
3-36
3
2. Install the passenger seat.
TIP●
Make sure that the seats are prop-
erly secured before riding.
●
The rider seat height can be ad-
justed to change the riding posi-
tion. (See the following section.)
EAU39632

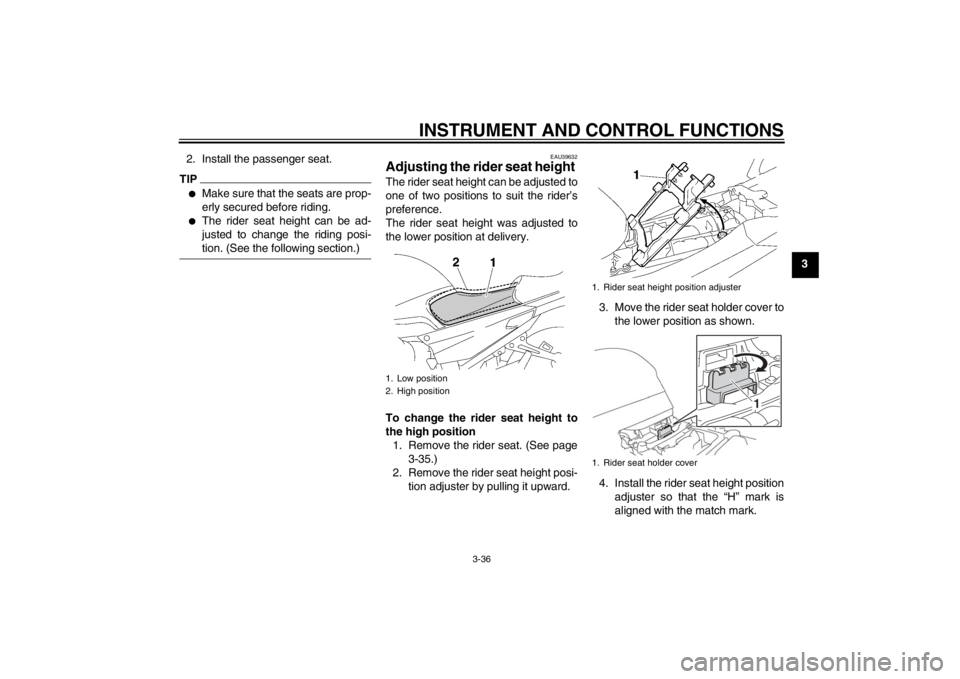

Adjusting the rider seat height The rider seat height can be adjusted to
one of two positions to suit the rider’s
preference.
The rider seat height was adjusted to
the lower position at delivery.
To change the rider seat height to
the high position
1. Remove the rider seat. (See page 3-35.)
2. Remove the rider seat height posi- tion adjuster by pulling it upward. 3. Move the rider seat holder cover to
the lower position as shown.
4. Install the rider seat height position adjuster so that the “H” mark is
aligned with the match mark.1. Low position
2. High position
1. Rider seat height position adjuster
1. Rider seat holder cover
1
U1MDE0E0.book Page 36 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-37

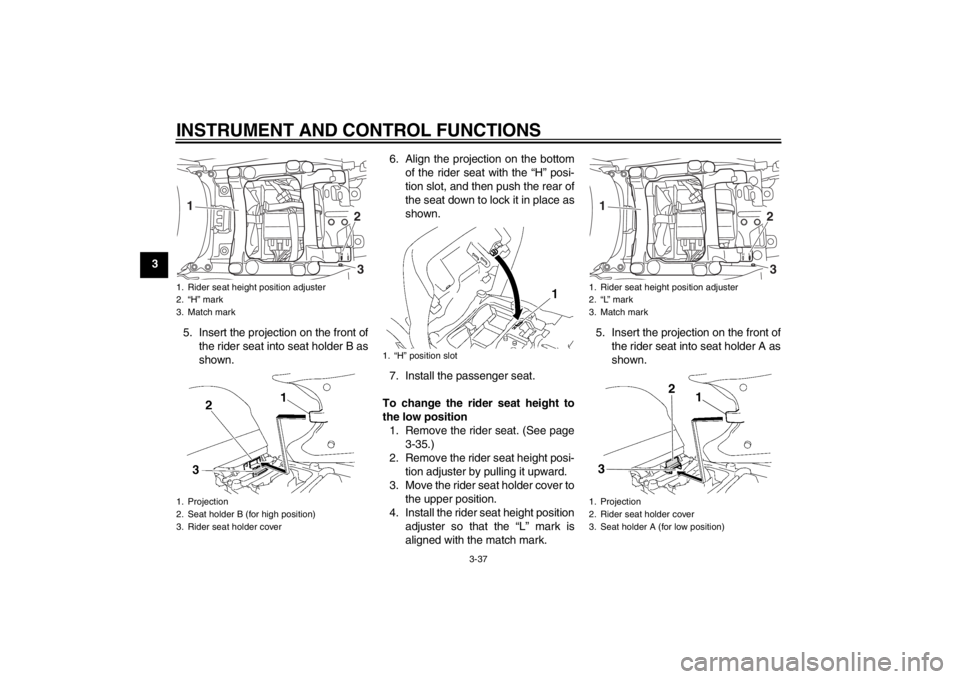

35. Insert the projection on the front ofthe rider seat into seat holder B as
shown. 6. Align the projection on the bottom
of the rider seat with the “H” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
To change the rider seat height to
the low position 1. Remove the rider seat. (See page 3-35.)
2. Remove the rider seat height posi- tion adjuster by pulling it upward.
3. Move the rider seat holder cover to the upper position.
4. Install the rider seat height position adjuster so that the “L” mark is
aligned with the match mark. 5. Insert the projection on the front of
the rider seat into seat holder A as
shown.
1. Rider seat height position adjuster
2. “H” mark
3. Match mark
1. Projection
2. Seat holder B (for high position)
3. Rider seat holder cover
HL
1
23
1. “H” position slot
1. Rider seat height position adjuster
2. “L” mark
3. Match mark
1. Projection
2. Rider seat holder cover
3. Seat holder A (for low position)
HL
1
23
1
2
3
U1MDE0E0.book Page 37 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-38
3
6. Align the projection on the bottom
of the rider seat with the “L” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
TIPMake sure that the seats are properly
secured before riding.
EAU14463

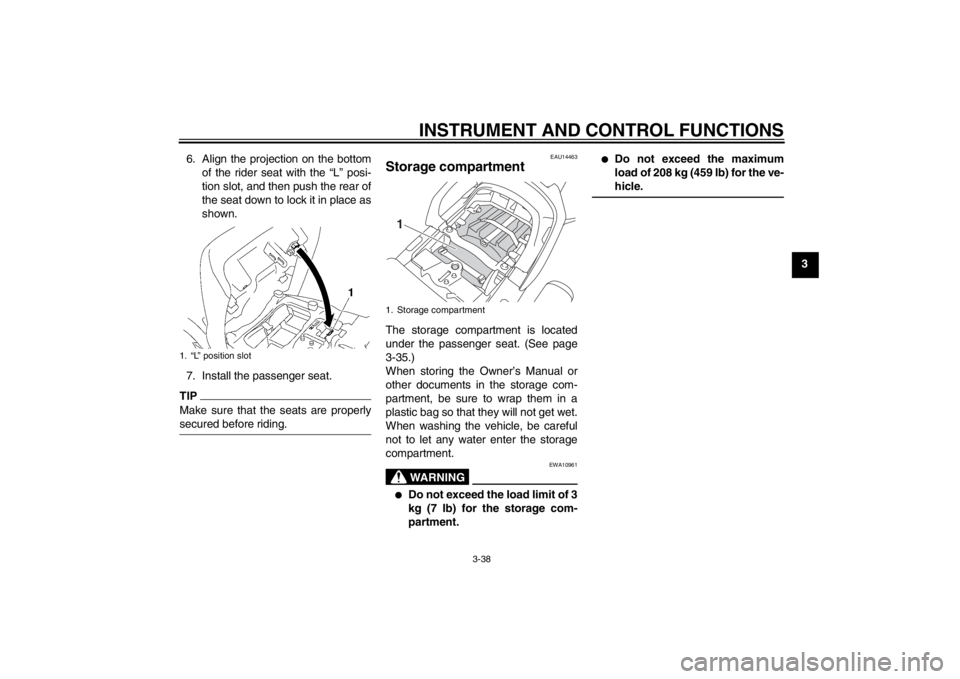

Storage compartment The storage compartment is located
under the passenger seat. (See page
3-35.)
When storing the Owner’s Manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get wet.
When washing the vehicle, be careful
not to let any water enter the storage
compartment.
WARNING
EWA10961
●
Do not exceed the load limit of 3
kg (7 lb) for the storage com-
partment.
●
Do not exceed the maximum
load of 208 kg (459 lb) for the ve-
hicle.
1. “L” position slot
1. Storage compartment1
U1MDE0E0.book Page 38 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-39
3
EAU39480
Accessory box The accessory box is located beside
the meter panel.
To open the accessory box1. Insert the key into the main switch, and then turn it to “ON”.
2. Push the accessory box button, and then open the accessory box
lid.
3. Turn the key to “OFF” to preserve the battery.
To close the accessory box 1. Fold the accessory box lid down. 2. Remove the key.
NOTICE
ECA11800
Do not place heat-sensitive items in
the accessory box. The accessory
box gets extremely hot especially
when the engine is running or is hot.
WARNING
EWA11421
●
Do not exceed the load limit of
0.3 kg (0.66 lb) for the accessory
box.
●
Do not exceed the maximum
load of 208 kg (459 lb) for the ve-
hicle.
EAU39611
Adjusting the headlight
beams The headlight beam adjusting knobs
are used to raise or lower the height of
the headlight beams. It may be neces-
sary to adjust the headlight beams to
increase visibility and help prevent
blinding oncoming drivers when carry-
ing more or less load than usual. Obey
local laws and regulations when adjust-
ing the headlights.
To raise the headlight beams, turn the
knobs in direction (a). To lower the
headlight beams, turn the knobs in di-
rection (b).

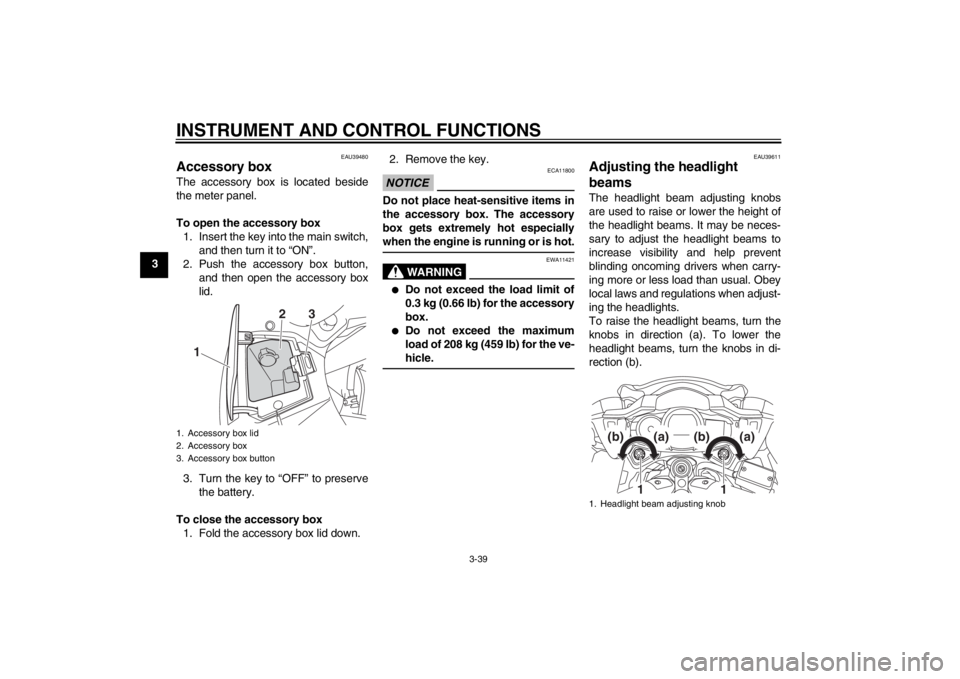

1. Accessory box lid
2. Accessory box
3. Accessory box button
1
2
3
1. Headlight beam adjusting knob
1
1
(b)
(a)
(b)
(a)
U1MDE0E0.book Page 39 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-40
3
EAU39641
Handlebar position The handlebars can be adjusted to one
of three positions to suit the rider’s pref-
erence. Have a Yamaha dealer adjust
the position of the handlebars.
EAU54150
Opening and closing the cowl-
ing vents The cowling vents can be opened 20
mm (0.79 in) for added ventilation to
suit the riding conditions.

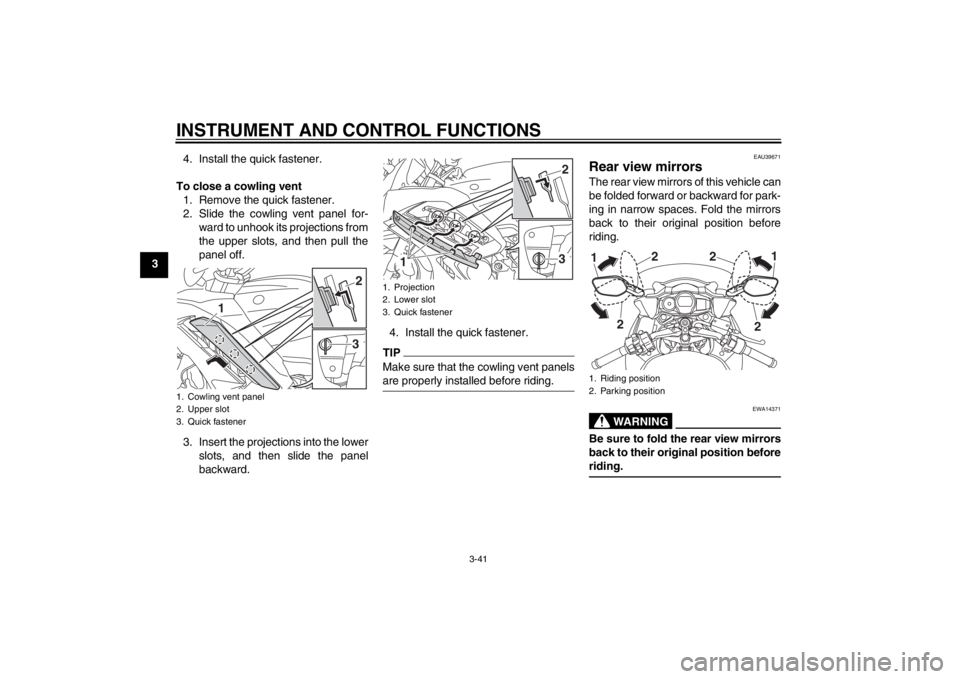

To open a cowling vent1. Remove the quick fastener.
2. Slide the cowling vent panel for- ward to unhook its projections from
the lower slots, and then pull the
panel off. 3. Insert the projections into the up-
per slots, and then slide the panel
backward.

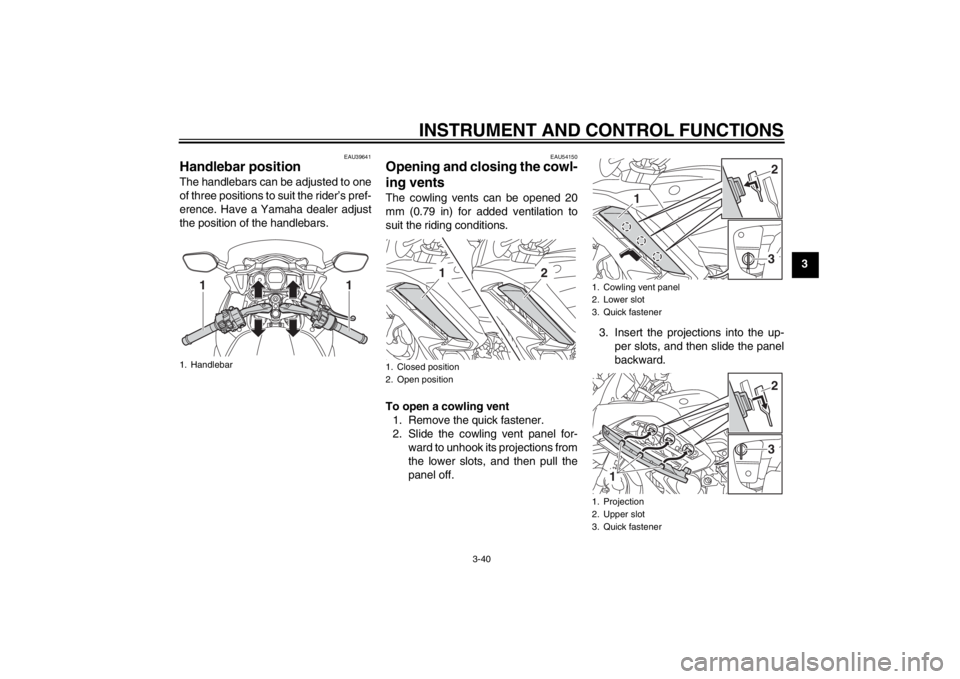

1. Handlebar
11
1. Closed position
2. Open position
1
2
1. Cowling vent panel
2. Lower slot
3. Quick fastener
1. Projection
2. Upper slot
3. Quick fastener
3
1
2
1
32
U1MDE0E0.book Page 40 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-41
34. Install the quick fastener.
To close a cowling vent 1. Remove the quick fastener.
2. Slide the cowling vent panel for- ward to unhook its projections from
the upper slots, and then pull the
panel off.
3. Insert the projections into the lower slots, and then slide the panel
backward. 4. Install the quick fastener.
TIPMake sure that the cowling vent panels
are properly installed before riding.
EAU39671
Rear view mirrors The rear view mirrors of this vehicle can
be folded forward or backward for park-
ing in narrow spaces. Fold the mirrors
back to their original position before
riding.
WARNING
EWA14371
Be sure to fold the rear view mirrors
back to their original position before
riding.
1. Cowling vent panel
2. Upper slot
3. Quick fastener
3
1
2
1. Projection
2. Lower slot
3. Quick fastener
1
32
1. Riding position
2. Parking position
2
2
1
2 2
1
U1MDE0E0.book Page 41 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-42
3
EAU55423
Adjusting the front and rear
suspension This model is equipped with an elec-
tronically adjustable suspension sys-
tem. The preload of the rear shock
absorber and the damping forces of
both the front fork and rear shock ab-
sorber can be adjusted.
WARNING
EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.Preload
When riding with luggage or a passen-
ger, use the preload adjusting function
to adjust the suspension system to
match the load. There are 4 preload
settings.TIP●
The preload adjusting function will
appear only when the engine is
running.
●
Changing the preload setting will
also adjust the front and rear sus-
pension damping forces accord-
ingly. See “Damping force” on
page 3-44 for more information.
●
About cold temperature operation: When using the preload adjust- ing function, there should be no
weight on the vehicle.
When using the preload adjust- ing function at ambient tempera-
tures near or below 0 °C (32 °F),
to protect the preload adjusting
function motor, the electronically
adjustable suspension system
warning light may come on.
The suspension will still operate as normal, only the preload ad-
justing function cannot be used.
To reset the electronically ad- justable suspension system
warning light, wait approximate-
ly 6 minutes and then turn the
key to “OFF” or immediately turn
the key to “OFF” and then wait 6
minutes. If the electronically adjustable
suspension system warning
light remains on, have a
Yamaha dealer check the sus-
pension system.

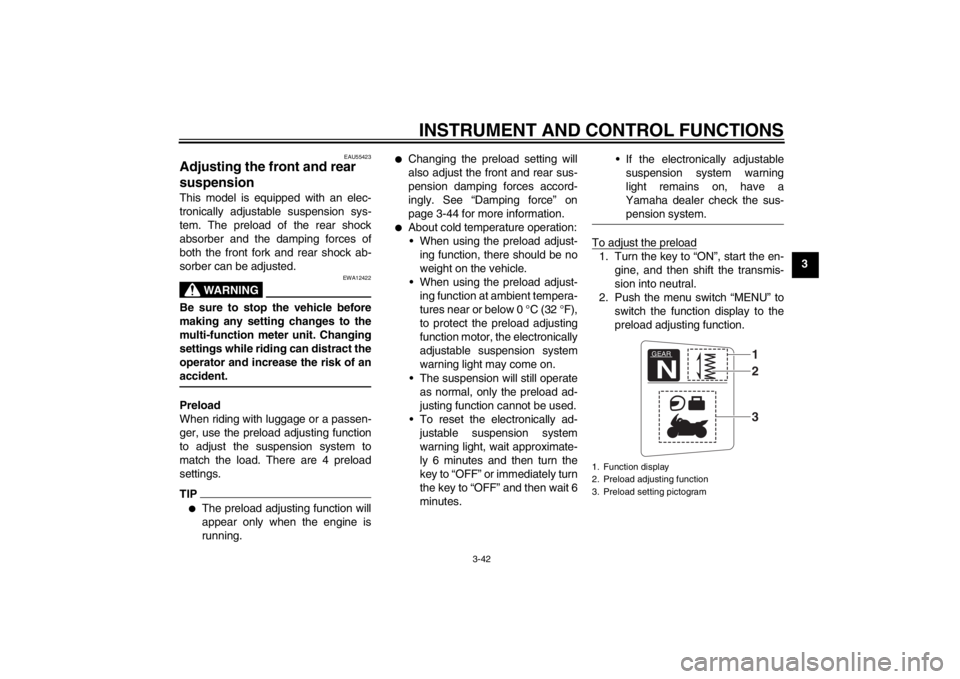

To adjust the preload1. Turn the key to “ON”, start the en- gine, and then shift the transmis-
sion into neutral.
2. Push the menu switch “MENU” to switch the function display to the
preload adjusting function.1. Function display
2. Preload adjusting function
3. Preload setting pictogram
GEARN
132
U1MDE0E0.book Page 42 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-43
33. Use the select switch to select thedesired preload setting pictogram.
Select the suitable setting from the
following 4 pictograms according
to your load condition. While the preload is being adjust-
ed, the information display will
show a group of dots moving in a
circle. Once the selected picto-
gram returns, the preload adjust-
ment is complete.While the preload is being adjusted, the
information display may change as fol-
lows.
●
If the key is turned to “OFF” or the
engine is stopped while the pre-
load is being set, the following pre-
load setting pictogram will flash to
alert you that the current preload
setting does not match the picto-
gram. If this occurs, adjust the pre-
load again.
●
If the vehicle starts moving, the fol-
lowing preload setting pictogram
will flash to alert you that the cur-
rent preload setting does not
match the pictogram. If this occurs,
stop the vehicle and adjust the pre-
load again.

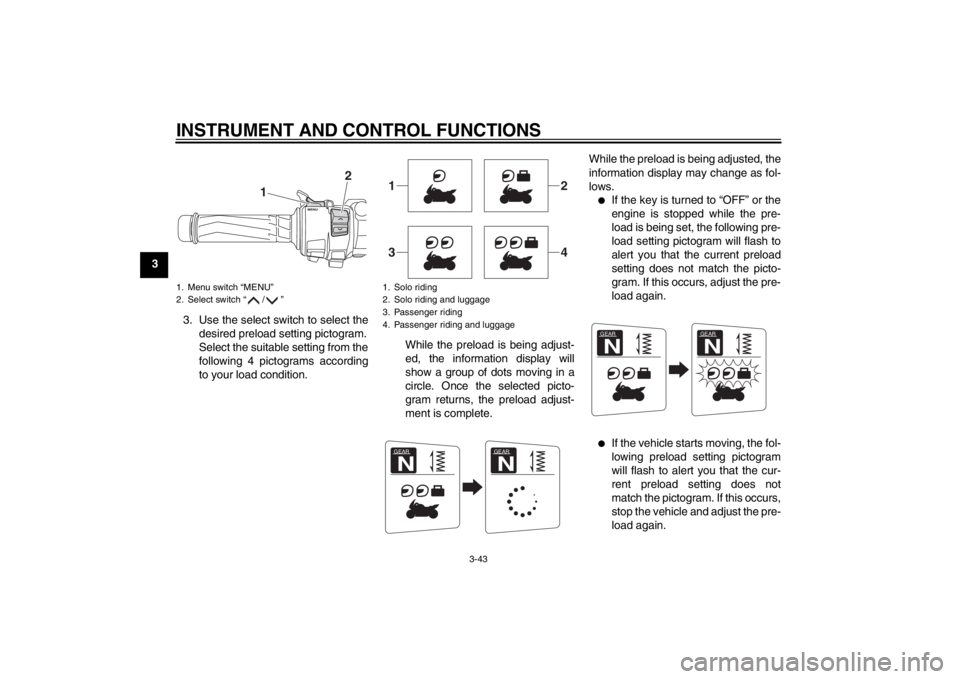

1. Menu switch “MENU”
2. Select switch “ / ”
1
2
1. Solo riding
2. Solo riding and luggage
3. Passenger riding
4. Passenger riding and luggage1
2
3
4
GEARN
GEARN
GEARN
GEARN
U1MDE0E0.book Page 43 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-44
3
●

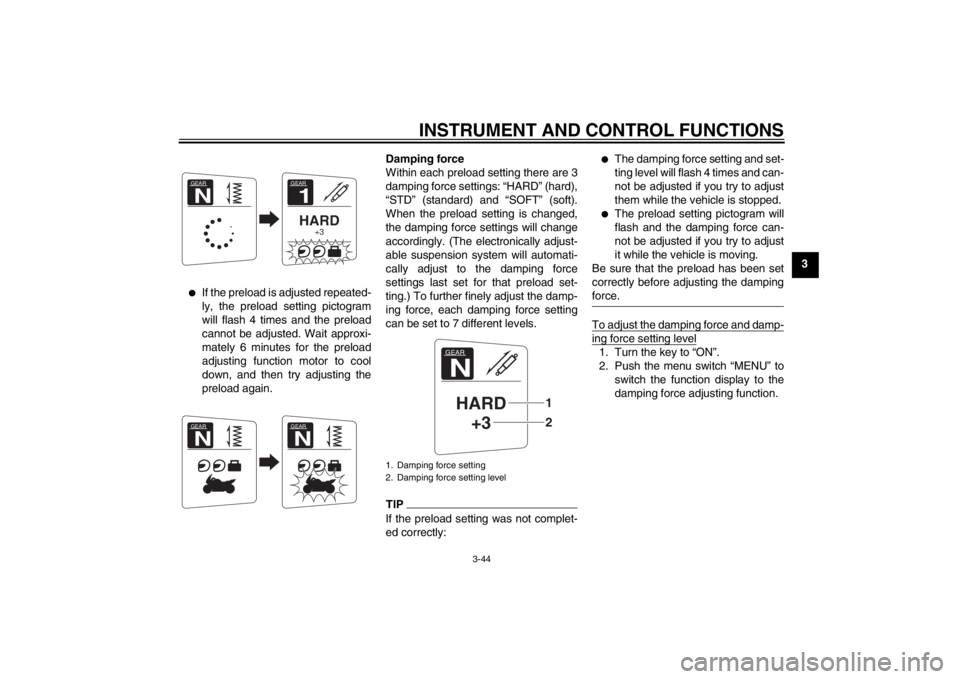

If the preload is adjusted repeated-
ly, the preload setting pictogram
will flash 4 times and the preload
cannot be adjusted. Wait approxi-
mately 6 minutes for the preload
adjusting function motor to cool
down, and then try adjusting the
preload again.Damping force
Within each preload setting there are 3
damping force settings: “HARD” (hard),
“STD” (standard) and “SOFT” (soft).
When the preload setting is changed,
the damping force settings will change
accordingly. (The electronically adjust-
able suspension system will automati-
cally adjust to the damping force
settings last set for that preload set-
ting.) To further finely adjust the damp-
ing force, each damping force setting
can be set to 7 different levels.
TIPIf the preload setting was not complet-
ed correctly:
●
The damping force setting and set-
ting level will flash 4 times and can-
not be adjusted if you try to adjust
them while the vehicle is stopped.
●
The preload setting pictogram will
flash and the damping force can-
not be adjusted if you try to adjust
it while the vehicle is moving.
Be sure that the preload has been set
correctly before adjusting the damping
force.

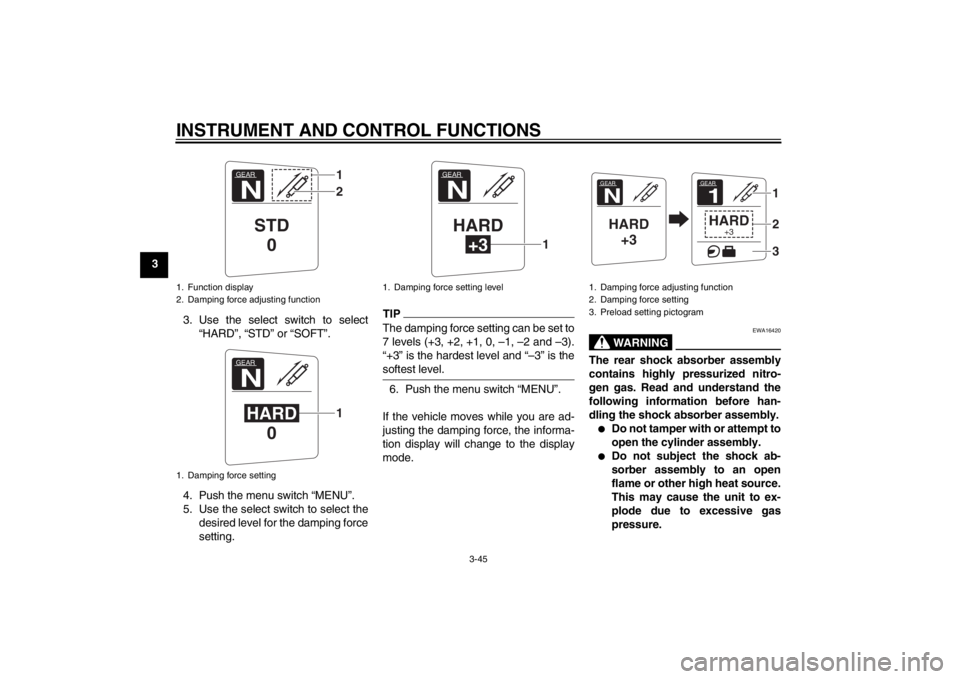

To adjust the damping force and damp-ing force setting level1. Turn the key to “ON”.
2. Push the menu switch “MENU” to switch the function display to the
damping force adjusting function.
GEAR1HARD
+3
GEARNGEARN
GEARN
1. Damping force setting
2. Damping force setting level
GEARNHARD+3
21
U1MDE0E0.book Page 44 Friday, February 15, 2013 1:26 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-45
33. Use the select switch to select“HARD”, “STD” or “SOFT”.
4. Push the menu switch “MENU”.
5. Use the select switch to select the desired level for the damping force
setting.
TIPThe damping force setting can be set to
7 levels (+3, +2, +1, 0, –1, –2 and –3).
“+3” is the hardest level and “–3” is the
softest level.6. Push the menu switch “MENU”.
If the vehicle moves while you are ad-
justing the damping force, the informa-
tion display will change to the display
mode.
WARNING
EWA16420
The rear shock absorber assembly
contains highly pressurized nitro-
gen gas. Read and understand the
following information before han-
dling the shock absorber assembly.●
Do not tamper with or attempt to
open the cylinder assembly.
●
Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
1. Function display
2. Damping force adjusting function
1. Damping force setting
GEARN
STD 0
12
GEARNHARD 0
1
1. Damping force setting level
GEARNHARD
+3
1
1. Damping force adjusting function
2. Damping force setting
3. Preload setting pictogramGEARNHARD+3
GEAR1HARD
+3
123
U1MDE0E0.book Page 45 Friday, February 15, 2013 1:26 PM
