YAMAHA FX CRUISER 2006 Owner's Manual

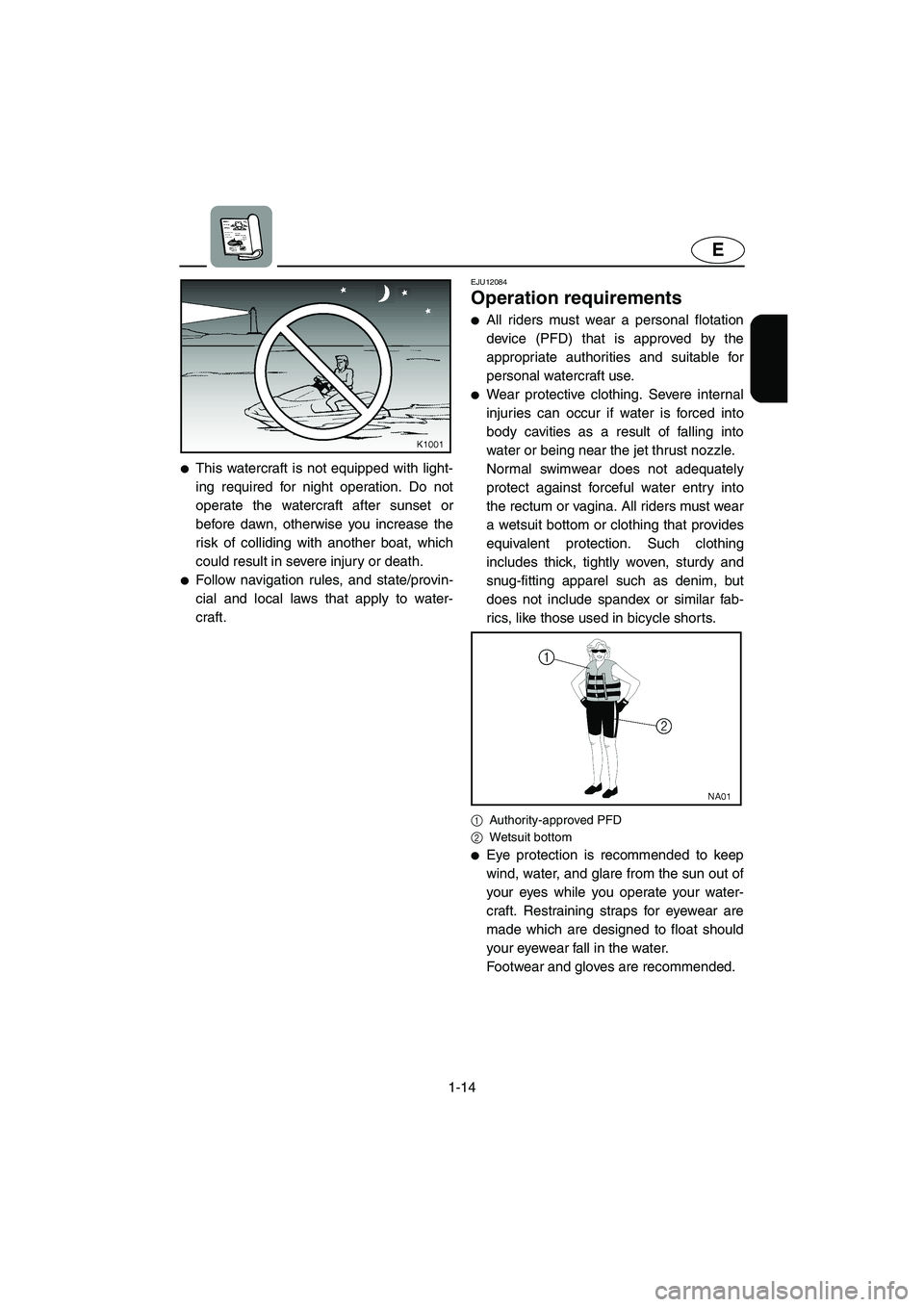

1-14
E

This watercraft is not equipped with light-
ing required for night operation. Do not
operate the watercraft after sunset or
before dawn, otherwise you increase the
risk of colliding with another boat, which
could result in severe injury or death.

Follow navigation rules, and state/provin-
cial and local laws that apply to water-
craft.
EJU12084
Operation requirements

All riders must wear a personal flotation
device (PFD) that is approved by the
appropriate authorities and suitable for
personal watercraft use.

Wear protective clothing. Severe internal
injuries can occur if water is forced into
body cavities as a result of falling into
water or being near the jet thrust nozzle.
Normal swimwear does not adequately
protect against forceful water entry into
the rectum or vagina. All riders must wear
a wetsuit bottom or clothing that provides
equivalent protection. Such clothing
includes thick, tightly woven, sturdy and
snug-fitting apparel such as denim, but
does not include spandex or similar fab-
rics, like those used in bicycle shorts.
1
Authority-approved PFD
2
Wetsuit bottom

Eye protection is recommended to keep
wind, water, and glare from the sun out of
your eyes while you operate your water-
craft. Restraining straps for eyewear are
made which are designed to float should
your eyewear fall in the water.
Footwear and gloves are recommended.
E_F1Y-70.book Page 14 Friday, August 26, 2005 9:47 AM

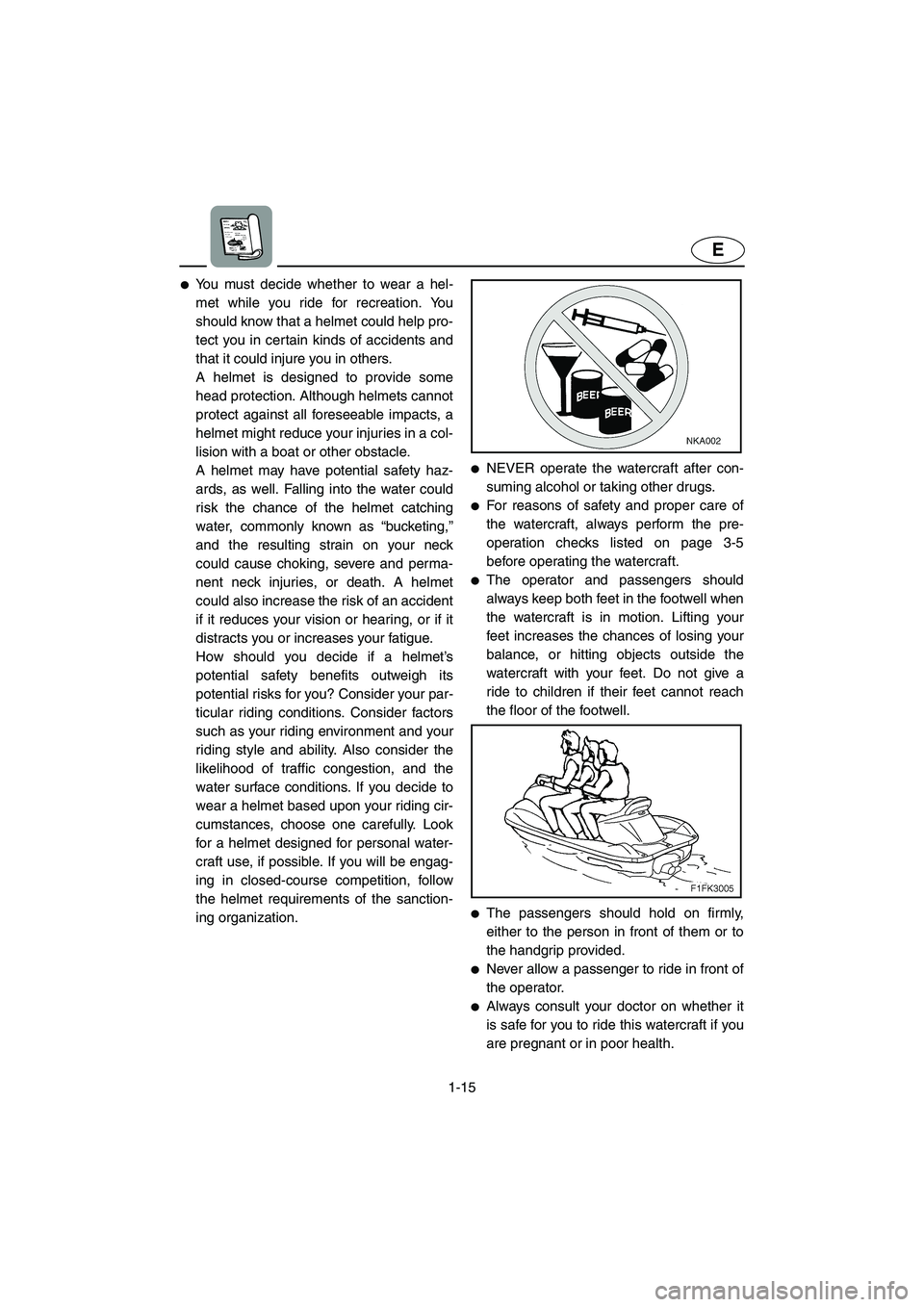

1-15
E

You must decide whether to wear a hel-
met while you ride for recreation. You
should know that a helmet could help pro-
tect you in certain kinds of accidents and
that it could injure you in others.
A helmet is designed to provide some
head protection. Although helmets cannot
protect against all foreseeable impacts, a
helmet might reduce your injuries in a col-
lision with a boat or other obstacle.
A helmet may have potential safety haz-
ards, as well. Falling into the water could
risk the chance of the helmet catching
water, commonly known as “bucketing,”
and the resulting strain on your neck
could cause choking, severe and perma-
nent neck injuries, or death. A helmet
could also increase the risk of an accident
if it reduces your vision or hearing, or if it
distracts you or increases your fatigue.
How should you decide if a helmet’s
potential safety benefits outweigh its
potential risks for you? Consider your par-
ticular riding conditions. Consider factors
such as your riding environment and your
riding style and ability. Also consider the
likelihood of traffic congestion, and the
water surface conditions. If you decide to
wear a helmet based upon your riding cir-
cumstances, choose one carefully. Look
for a helmet designed for personal water-
craft use, if possible. If you will be engag-
ing in closed-course competition, follow
the helmet requirements of the sanction-
ing organization.

NEVER operate the watercraft after con-
suming alcohol or taking other drugs.

For reasons of safety and proper care of
the watercraft, always perform the pre-
operation checks listed on page 3-5
before operating the watercraft.

The operator and passengers should
always keep both feet in the footwell when
the watercraft is in motion. Lifting your
feet increases the chances of losing your
balance, or hitting objects outside the
watercraft with your feet. Do not give a
ride to children if their feet cannot reach
the floor of the footwell.

The passengers should hold on firmly,
either to the person in front of them or to
the handgrip provided.

Never allow a passenger to ride in front of
the operator.

Always consult your doctor on whether it
is safe for you to ride this watercraft if you
are pregnant or in poor health.
E_F1Y-70.book Page 15 Friday, August 26, 2005 9:47 AM

1-16
E

Do not attempt to modify this watercraft!
Modifications to your watercraft may
reduce safety and reliability, and render
the watercraft unsafe or illegal for use.

Attach the engine shut-off cord (lanyard)
to your wrist and keep it free from the
handlebars so that the engine stops if the
operator falls off. After riding, remove the
engine shut-off cord from the watercraft to
avoid accidental starting or unauthorized
use by children or others.

Scan carefully for swimmers and stay
away from swimming areas. Swimmers
are hard to see and you could acciden-
tally hit someone in the water.

Avoid being hit by another boat! You
should always take the responsibility to
watch for traffic; other boaters may not be
watching for you. If they do not see you,
or if you maneuver more quickly than
other boaters expect, you risk a collision.

Maintain a safe distance from other boats
and watercraft, and also watch for ski
ropes or fishing lines. Obey the “Safe
boating rules,” and be sure to check
behind you before making a turn. (See
Safe boating rules on page 1-20.)
EJU01382
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to sig-
nal other boats.

Visual distress signals
It is recommended that an authority-
approved pyrotechnic device be stored in
a waterproof container on your watercraft.
A mirror can also be used as an emer-
gency signal. Contact your Yamaha
dealer for more information.

Watch
A watch is helpful so you will know how
long you have been operating.

Towline
A towline can be used to tow a disabled
watercraft in an emergency.
E_F1Y-70.book Page 16 Friday, August 26, 2005 9:47 AM

1-17
E
EJU01781
Hazard information

Never start the engine or let it run for any
length of time in an enclosed area.
Exhaust fumes contain carbon monoxide,
a colorless, odorless gas that may cause
loss of consciousness and death within a
short time. Always operate the watercraft
in an open area.

Hot oil tank, muffler, and engine surfaces
can cause serious burns. Do not touch
the oil tank, muffler, or engine immedi-
ately after turning the engine off.
EJU19970
Watercraft characteristics

Jet thrust turns the watercraft. Releasing
the throttle lever completely produces
only minimum thrust. If you are traveling
at speeds above trolling, you will have
rapidly decreasing ability to steer without
throttle. This model has the Yamaha
Engine Management System (YEMS)
that includes an Off-Throttle Steering
(OTS) system. It will activate at planing
speeds should you attempt to steer the
watercraft after releasing the throttle lever.
The OTS system assists in turning by
continuing to supply some thrust while the
watercraft is decelerating, but you can
turn more sharply if you apply throttle
while turning the handlebars. The OTS
system does not function below planing
speeds or when the engine is off. Once
the engine slows down, the watercraft will
no longer turn in response to handlebar
input until you apply throttle again or you
reach trolling speed. Practice turning in
an open area without obstructions until
you have a good feel for this maneuver.

This watercraft is water-jet propelled. The
jet pump is directly connected to the
engine. This means that jet thrust will pro-
duce some movement whenever the
engine is running. There is no “neutral”
position. You are in either “forward” or
“reverse,” depending upon the shift lever
position.

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or
impact the handlebars. You could also
damage the shift mechanism.
This could increase the risk of back/spinal
injury (paralysis), facial injuries, and bro-
ken legs, ankles, and other bones.
E_F1Y-70.book Page 17 Friday, August 26, 2005 9:47 AM

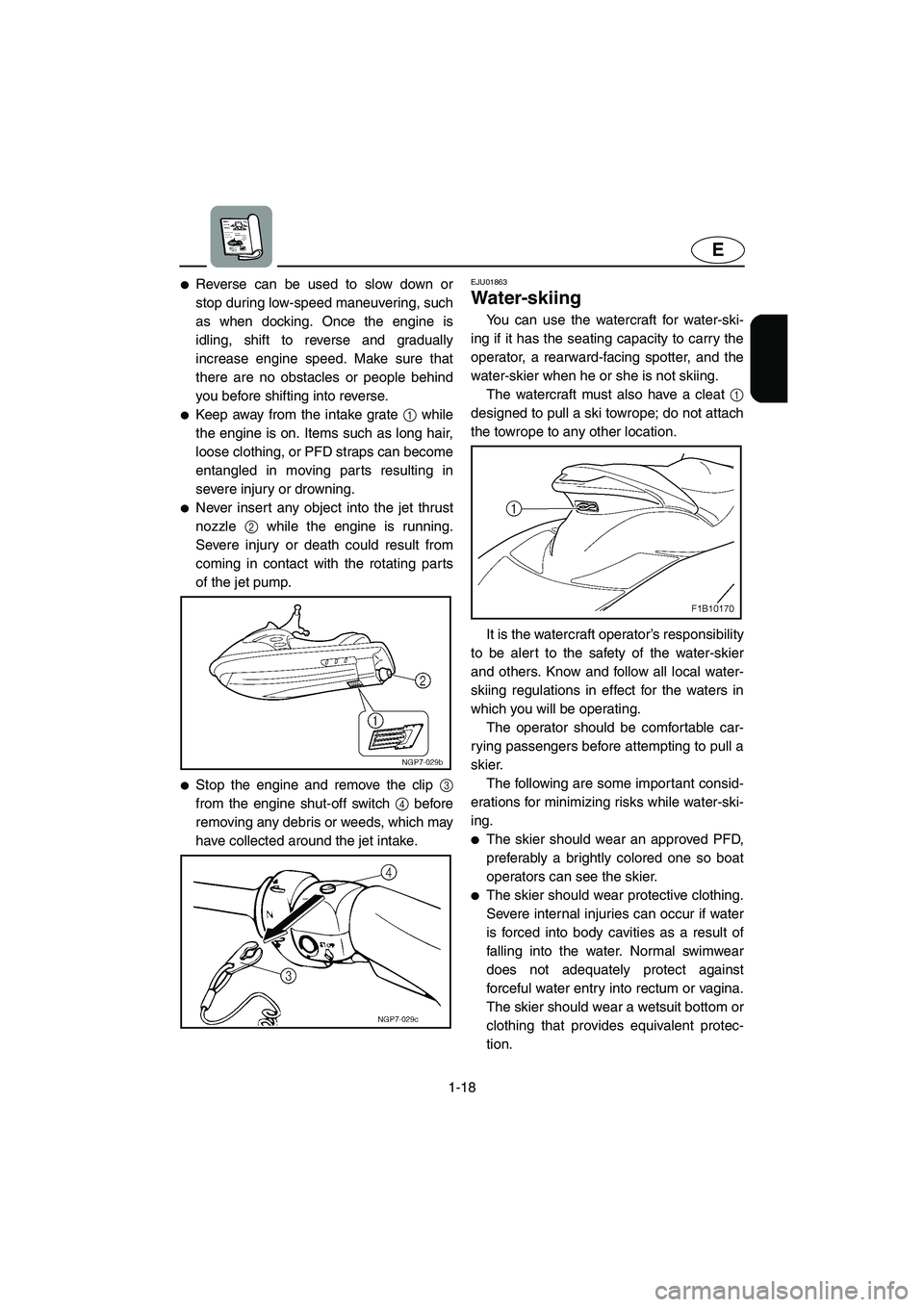

1-18
E

Reverse can be used to slow down or
stop during low-speed maneuvering, such
as when docking. Once the engine is
idling, shift to reverse and gradually
increase engine speed. Make sure that
there are no obstacles or people behind
you before shifting into reverse.

Keep away from the intake grate 1 while
the engine is on. Items such as long hair,
loose clothing, or PFD straps can become
entangled in moving parts resulting in
severe injury or drowning.

Never insert any object into the jet thrust
nozzle 2 while the engine is running.
Severe injury or death could result from
coming in contact with the rotating parts
of the jet pump.

Stop the engine and remove the clip 3
from the engine shut-off switch 4 before
removing any debris or weeds, which may
have collected around the jet intake.
EJU01863
Water-skiing
You can use the watercraft for water-ski-
ing if it has the seating capacity to carry the
operator, a rearward-facing spotter, and the
water-skier when he or she is not skiing.
The watercraft must also have a cleat 1
designed to pull a ski towrope; do not attach
the towrope to any other location.
It is the watercraft operator’s responsibility
to be alert to the safety of the water-skier
and others. Know and follow all local water-
skiing regulations in effect for the waters in
which you will be operating.
The operator should be comfortable car-
rying passengers before attempting to pull a
skier.
The following are some important consid-
erations for minimizing risks while water-ski-
ing.

The skier should wear an approved PFD,
preferably a brightly colored one so boat
operators can see the skier.

The skier should wear protective clothing.
Severe internal injuries can occur if water
is forced into body cavities as a result of
falling into the water. Normal swimwear
does not adequately protect against
forceful water entry into rectum or vagina.
The skier should wear a wetsuit bottom or
clothing that provides equivalent protec-
tion.
E_F1Y-70.book Page 18 Friday, August 26, 2005 9:47 AM

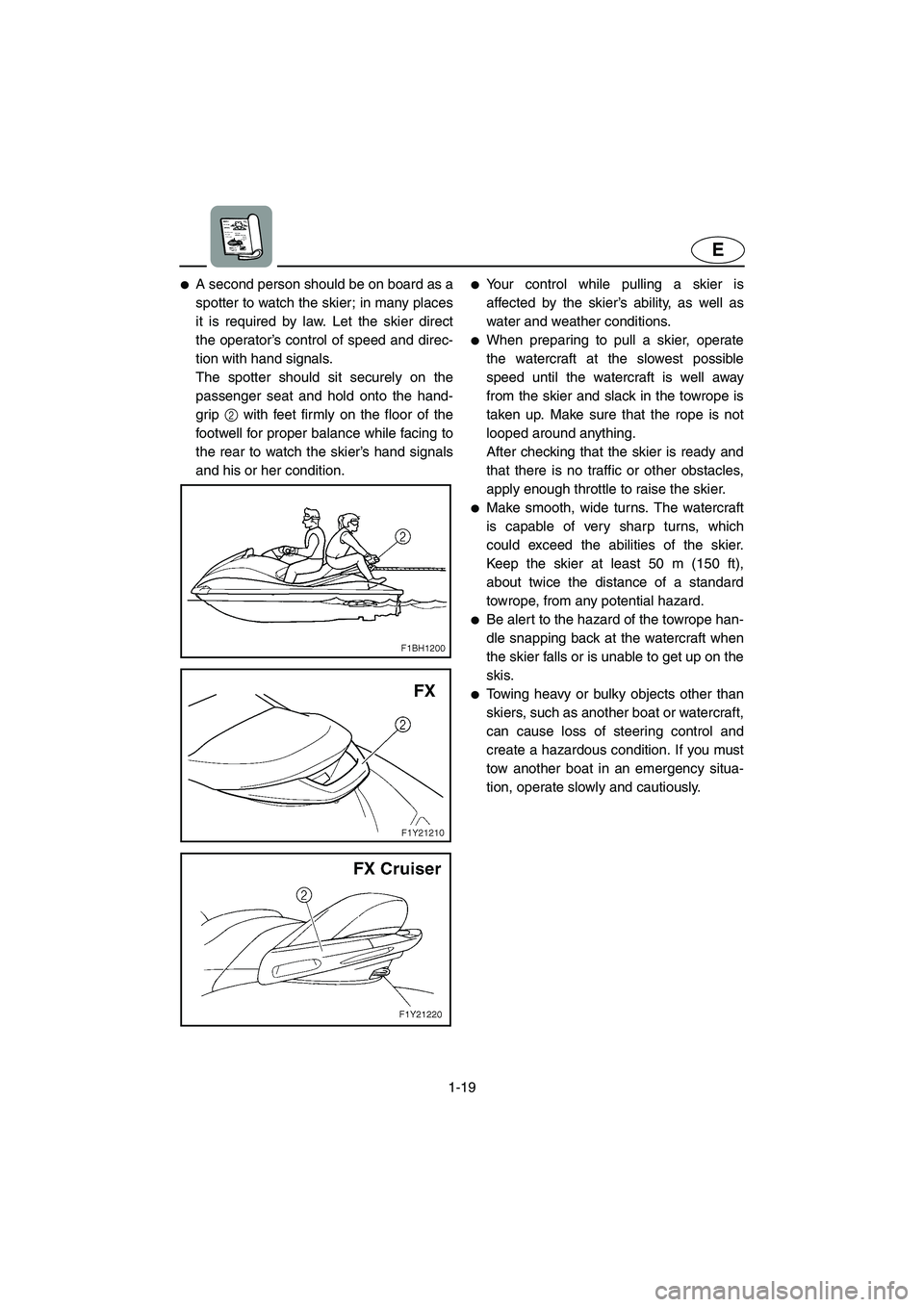

1-19
E

A second person should be on board as a
spotter to watch the skier; in many places
it is required by law. Let the skier direct
the operator’s control of speed and direc-
tion with hand signals.
The spotter should sit securely on the
passenger seat and hold onto the hand-
grip 2 with feet firmly on the floor of the
footwell for proper balance while facing to
the rear to watch the skier’s hand signals
and his or her condition.
Your control while pulling a skier is
affected by the skier’s ability, as well as
water and weather conditions.

When preparing to pull a skier, operate
the watercraft at the slowest possible
speed until the watercraft is well away
from the skier and slack in the towrope is
taken up. Make sure that the rope is not
looped around anything.
After checking that the skier is ready and
that there is no traffic or other obstacles,
apply enough throttle to raise the skier.

Make smooth, wide turns. The watercraft
is capable of very sharp turns, which
could exceed the abilities of the skier.
Keep the skier at least 50 m (150 ft),
about twice the distance of a standard
towrope, from any potential hazard.

Be alert to the hazard of the towrope han-
dle snapping back at the watercraft when
the skier falls or is unable to get up on the
skis.

Towing heavy or bulky objects other than
skiers, such as another boat or watercraft,
can cause loss of steering control and
create a hazardous condition. If you must
tow another boat in an emergency situa-
tion, operate slowly and cautiously.
E_F1Y-70.book Page 19 Friday, August 26, 2005 9:47 AM

1-20
E
EJU01005
Safe boating rules
Your Yamaha watercraft is legally consid-
ered a powerboat. Operation of the water-
craft must be in accordance with the rules
and regulations governing the waterway on
which it is used.
EJU10061
Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility
to treat these other people, and the lands,
waters, and wildlife with respect and cour-
tesy.
Whenever and wherever you ride, think of
yourself as the guest of those around you.
Remember, for example, that the sound of
your watercraft may be music to you, but it
could be just noise to others. And the exciting
splash of your wake can make waves others
won’t enjoy. Avoid riding close to shoreline
homes and waterfowl nesting areas or other
wildlife areas, and keep a respectful distance
from fishermen, other boats, swimmers, and
populated beaches. When travel in areas like
these is unavoidable, ride slowly and obey all
laws.
Proper maintenance is necessary to
ensure that the exhaust emission and sound
levels of your watercraft will continue to be
within regulated limits. You have the responsi-
bility to make sure that the recommended
maintenance in this Owner’s/Operator’s Man-
ual is carried out.
Remember that pollution can be harmful to
the environment. Do not refuel or add oil
where a spill could cause damage to nature.
Remove your watercraft from the water and
move it away from the shoreline before refuel-
ing. And keep your surroundings pleasant for
the people and wildlife that share the water-
ways: don’t litter!
When you ride responsibly, with respect
and courtesy for others, you help ensure that
our waterways stay open for the enjoyment of
a variety of recreational oppor tunities.
E_F1Y-70.book Page 20 Friday, August 26, 2005 9:47 AM

E
–MEMO–
E_F1Y-70.book Page 21 Friday, August 26, 2005 9:47 AM

E
2
EJU01007
FEATURES AND
FUNCTIONS
Location of main components .............. 2-1
Operation of controls and other
functions ................................................... 2-5
Rear seat ................................................ 2-5
Front seat ............................................... 2-6
Hood ....................................................... 2-7
Fuel tank filler cap .................................. 2-7
Engine stop switch ................................. 2-7
Engine shut-off switch ............................ 2-8
Throttle lever .......................................... 2-8
Start switch ............................................. 2-9
Cooling water pilot outlet ....................... 2-9
Steering system ................................... 2-10
Tilt lever ................................................ 2-11
Shift lever ............................................. 2-12
Quick Shift Trim System (QSTS)
selector ................................................. 2-13
Handgrip ............................................... 2-15
Reboarding step (for FX Cruiser) ........ 2-15
Yamaha Engine Management System
(YEMS) ................................................. 2-16
Multifunction meter ............................... 2-16
Analog speedometer/tachometer and
indicator lights ...................................... 2-17
Left multifunction display and
operation buttons ................................. 2-20
Storage compartments ........................ 2-25
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM

2-1
E
EJU01008
Location of main components
1Handlebars
Use to control direction.
2Rear seat
3Front seat
4Footwell
Use to place feet for balance.
To keep proper balance while facing to the rear
to watch the skier.
5Sponsons
6Gunwale
7Bow eye
Use to attach rope for transporting, mooring or
towing the watercraft in an emergency.
8Hood
E_F1Y-70.book Page 1 Friday, August 26, 2005 9:47 AM
