YAMAHA FX CRUISER 2006 Owner's Guide

2-2
E
1Fuel tank filler cap
2Intake grate
Prevents debris from getting into the jet pump.
3Speed sensor
4Stern eye
Use to attach rope for transporting or mooring.
5Stern drain plugs
Use to drain water in the bilge when the water-
craft is on dry land.
6Reverse gate
Controls direction of jet thrust when in reverse.
7Ride plate
8Jet thrust nozzle
Changes the direction of jet thrust according
to handlebar position.9Reboarding step (for FX Cruiser)
Use to board the watercraft in water.
0Electric bilge pilot outlet
ACleat
Use to attach a towrope for pulling water-skier,
or a rope for mooring the watercraft.
BHandgrip
Use for suppor t when boarding the watercraft
or when seated facing rearward and acting as
a spotter for a water-skier.
E_F1Y-70.book Page 2 Friday, August 26, 2005 9:47 AM

2-3
E
1Quick Shift Trim System (QSTS) selector
Use to select the trim angle of the watercraft.
2QSTS shift lock lever
3Watertight compartment
4Start switch
Push to start the engine.
5Engine shut-off switch
Remove the clip to stop the engine and dis-
able it from starting.
6Clip
Insert into the engine shut-off switch to enable
starting of the engine.
Remove to stop the engine or prevent acci-
dental star ting of the engine or unauthorized
use of the watercraft.
7Multifunction meter
Use to check watercraft operation.8Beverage holder
9Rearview mirrors
0Throttle lever
Use to accelerate and decelerate.
AShift lever
Use to put the watercraft into forward or
reverse.
BTilt lever
Use to adjust the tilt of the handlebars.
CGlove compartment
DEngine stop switch
Push to stop the engine normally.
EEngine shut-off cord (lanyard)
Attach to wrist so that the engine stops if the
operator falls off the watercraft.
E_F1Y-70.book Page 3 Friday, August 26, 2005 9:47 AM

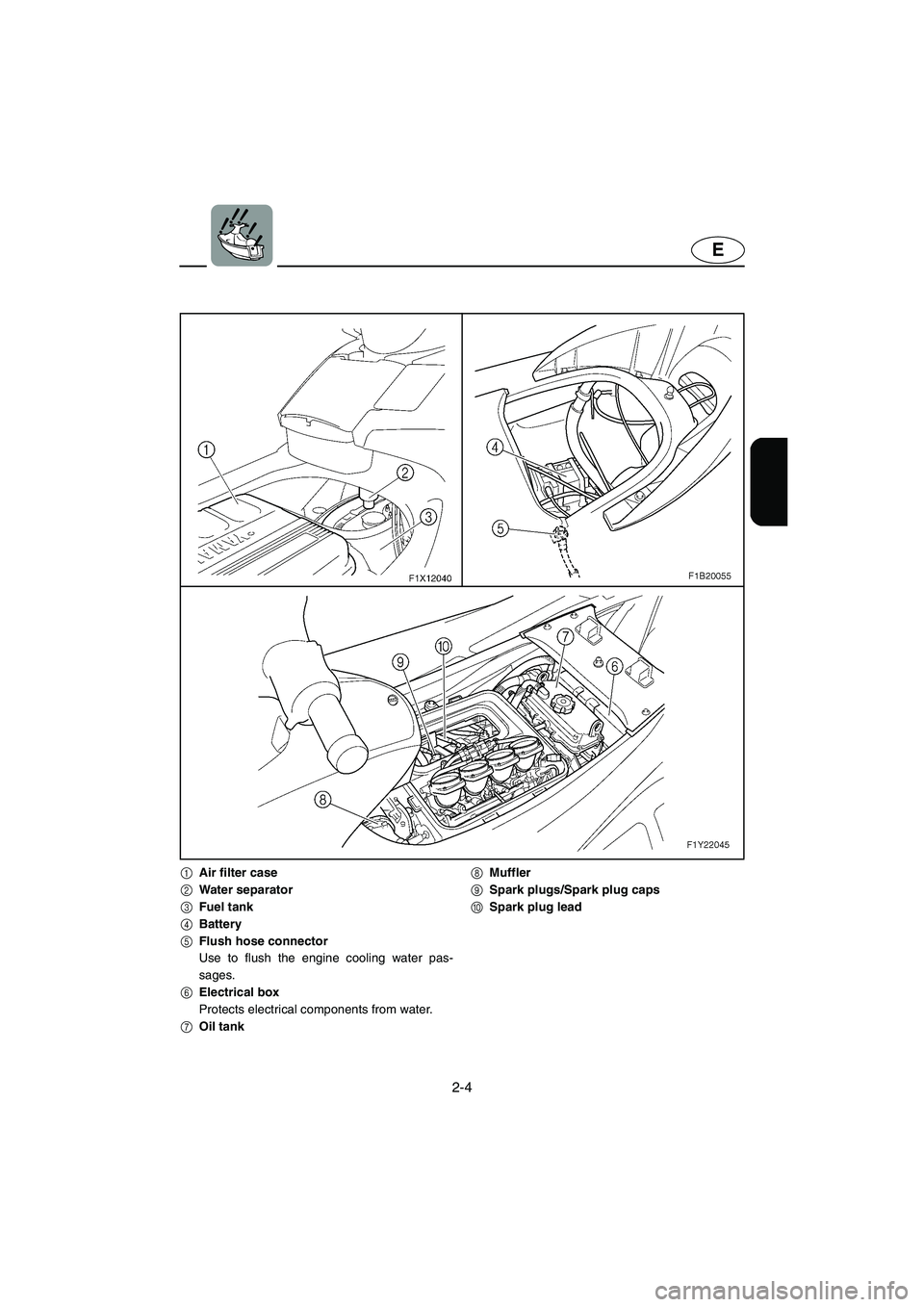

2-4
E
1Air filter case
2Water separator
3Fuel tank
4Battery
5Flush hose connector
Use to flush the engine cooling water pas-
sages.
6Electrical box
Protects electrical components from water.
7Oil tank8Muffler
9Spark plugs/Spark plug caps
0Spark plug lead
E_F1Y-70.book Page 4 Friday, August 26, 2005 9:47 AM

2-5
E
EJU01009
Operation of controls and
other functions
EJU01211
Rear seat
To remove the rear seat:
Pull the rear seat latch 1 up, and then
pull the seat off.
To install the rear seat:
Insert the projections on the front of the
seat into the stays on the deck, and then
push the rear of the seat down to lock it in
place securely.
E_F1Y-70.book Page 5 Friday, August 26, 2005 9:47 AM

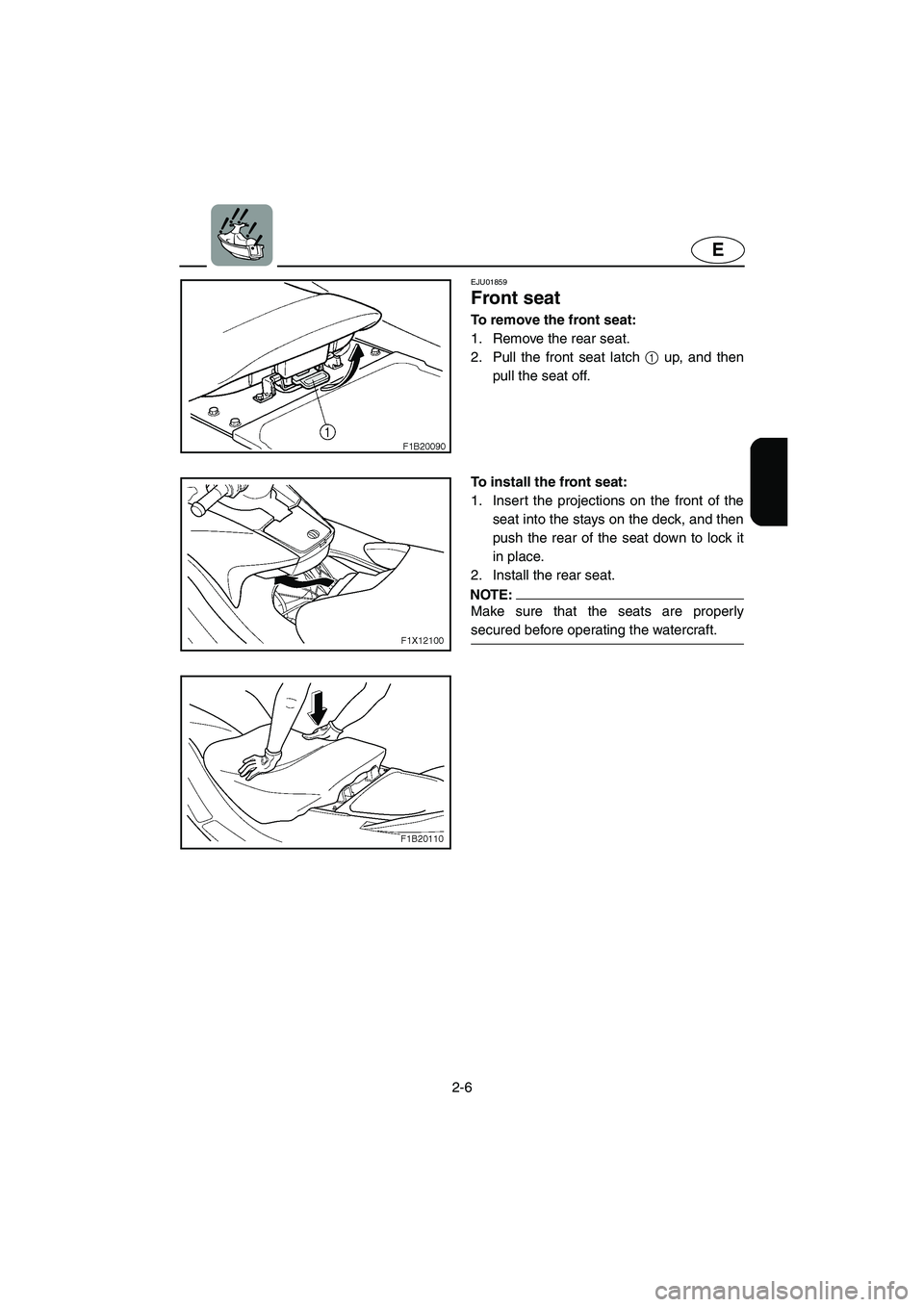

2-6
E
EJU01859
Front seat
To remove the front seat:
1. Remove the rear seat.
2. Pull the front seat latch 1 up, and then
pull the seat off.
To install the front seat:
1. Insert the projections on the front of the
seat into the stays on the deck, and then
push the rear of the seat down to lock it
in place.
2. Install the rear seat.
NOTE:@ Make sure that the seats are properly
secured before operating the watercraft.
E_F1Y-70.book Page 6 Friday, August 26, 2005 9:47 AM

2-7
E
EJU10110
Hood
To open the hood, push the latch 1
down, and then lift the hood up.
To close the hood, push the hood down to
lock it in place.
NOTE:@ Make sure that the hood is properly secured
before operating the watercraft.
@
EJU01012
Fuel tank filler cap
To remove the fuel tank filler cap 1, turn it
counterclockwise.
NOTE:@ Make sure that the fuel tank filler cap is
properly secured before operating the water-
craft.
EJU01015
Engine stop switch
Push this switch 1 (red button) to stop
the engine normally.
E_F1Y-70.book Page 7 Friday, August 26, 2005 9:47 AM

2-8
E
EJU01016
Engine shut-off switch
Insert the clip 1, on the end of the engine
shut-off cord 2, under the engine shut-off
switch 3 (black button). The engine will stop
automatically when the clip is removed from
the switch, such as if the operator falls off
the watercraft.
WARNING@
Always attach the engine shut-off cord
to your wrist and the clip to the engine
shut-off switch BEFORE starting the
engine.

To prevent accidental starting of the
engine or unauthorized use by chil-
dren or others, always remove the clip
from the shut-off switch when the
engine is not running.
EJU01018
Throttle lever
Squeeze the throttle lever 1 to increase
engine speed.
Release the throttle lever to decrease
engine speed or to return it to the idle posi-
tion.
E_F1Y-70.book Page 8 Friday, August 26, 2005 9:47 AM

2-9
E
EJU01861
Start switch
Push the start switch 1 (green button) to
start the engine.
NOTE:@ The engine will not start when the clip is
removed from the engine shut-off switch or if
the throttle lever is squeezed.
EJU01784
Cooling water pilot outlet
This watercraft is equipped with cooling
water pilot outlets.
When the engine is running, cooling
water is circulated in the engine, and then it
is discharged from the pilot outlets.
To check for proper operation of the cool-
ing system, check that water is being dis-
charged from the port (left) pilot outlet. If
water is not being discharged from this out-
let, cooling water may not be circulating in
the engine. When this occurs, stop the
engine and check for the cause. (See pages
2-24 and 5-3 for further instructions.)
NOTE:@
If the cooling water passages are dry, it
will take about 60 seconds for the water to
reach the outlet after the engine is
started.

Water discharge may not be constant at
idle, therefore, open the throttle a little to
check that water discharges properly.

Water discharge may not be constant at
the starboard (right) pilot outlet, however,
if it is constant at the port (left) pilot outlet,
the cooling system is operating normally.
E_F1Y-70.book Page 9 Friday, August 26, 2005 9:47 AM

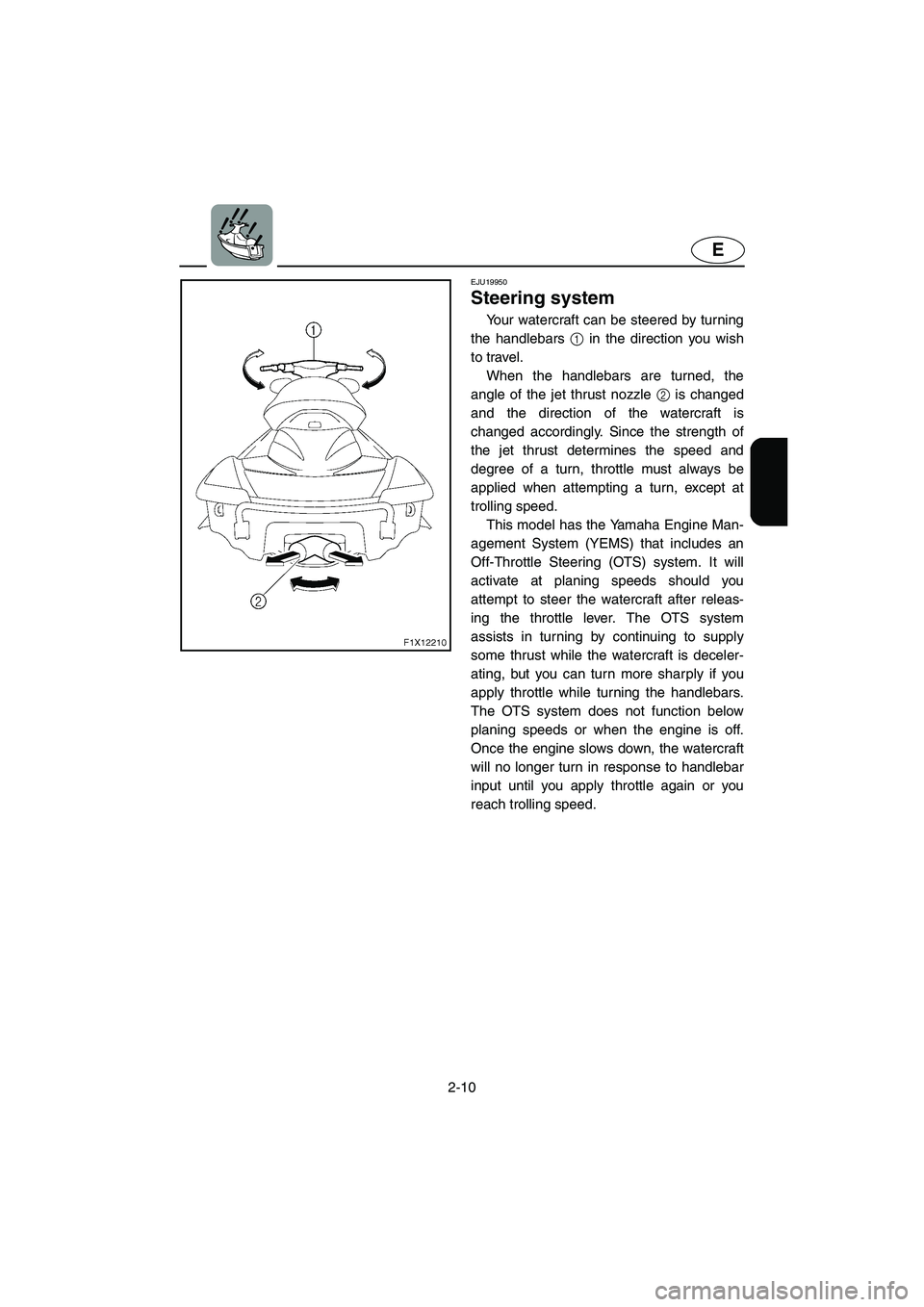

2-10
E
EJU19950
Steering system
Your watercraft can be steered by turning
the handlebars 1 in the direction you wish
to travel.
When the handlebars are turned, the
angle of the jet thrust nozzle 2 is changed
and the direction of the watercraft is
changed accordingly. Since the strength of
the jet thrust determines the speed and
degree of a turn, throttle must always be
applied when attempting a turn, except at
trolling speed.
This model has the Yamaha Engine Man-
agement System (YEMS) that includes an
Off-Throttle Steering (OTS) system. It will
activate at planing speeds should you
attempt to steer the watercraft after releas-
ing the throttle lever. The OTS system
assists in turning by continuing to supply
some thrust while the watercraft is deceler-
ating, but you can turn more sharply if you
apply throttle while turning the handlebars.
The OTS system does not function below
planing speeds or when the engine is off.
Once the engine slows down, the watercraft
will no longer turn in response to handlebar
input until you apply throttle again or you
reach trolling speed.
E_F1Y-70.book Page 10 Friday, August 26, 2005 9:47 AM

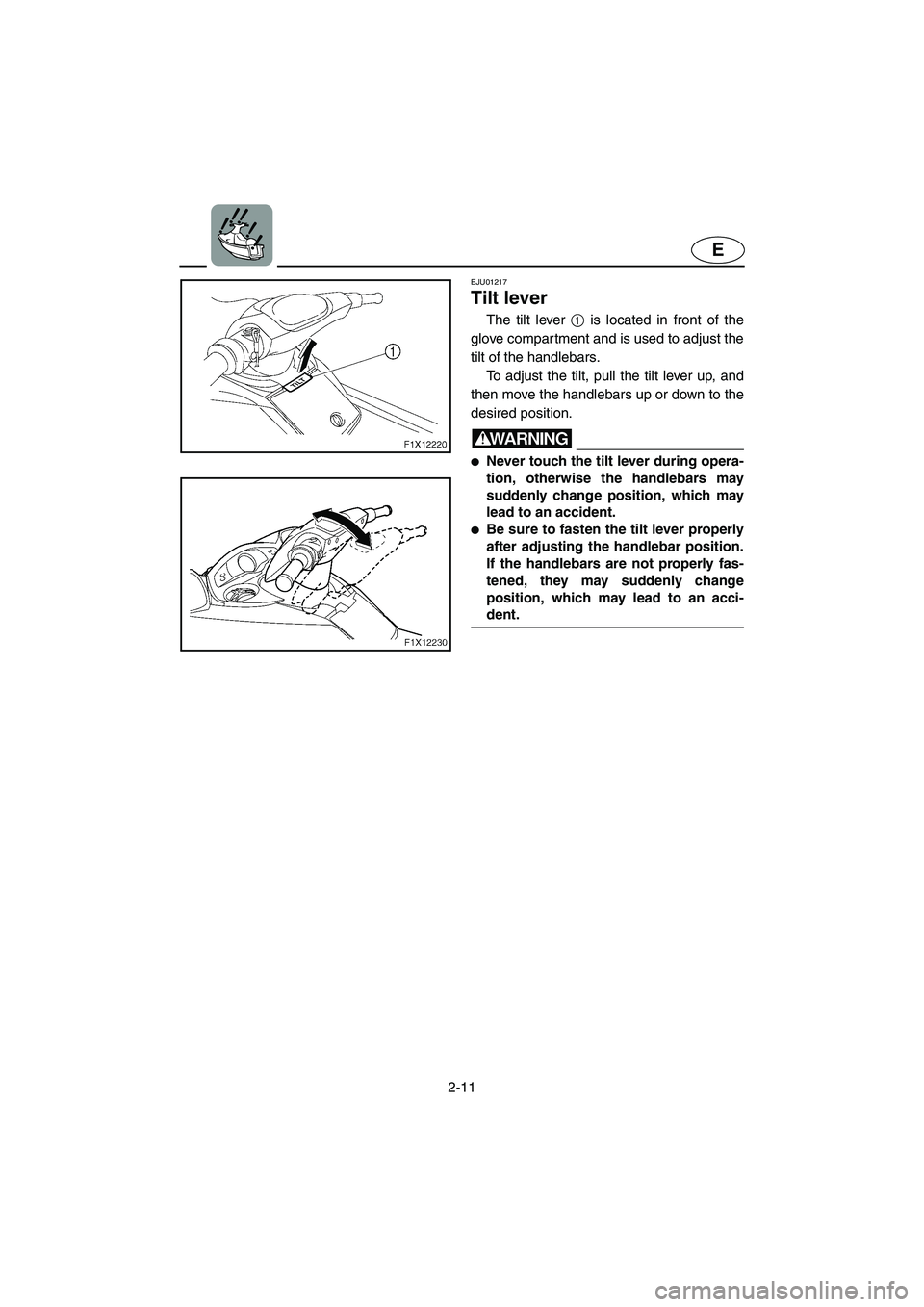

2-11
E
EJU01217
Tilt lever
The tilt lever 1 is located in front of the
glove compartment and is used to adjust the
tilt of the handlebars.
To adjust the tilt, pull the tilt lever up, and
then move the handlebars up or down to the
desired position.
WARNING@
Never touch the tilt lever during opera-
tion, otherwise the handlebars may
suddenly change position, which may
lead to an accident.

Be sure to fasten the tilt lever properly
after adjusting the handlebar position.
If the handlebars are not properly fas-
tened, they may suddenly change
position, which may lead to an acci-
dent.
