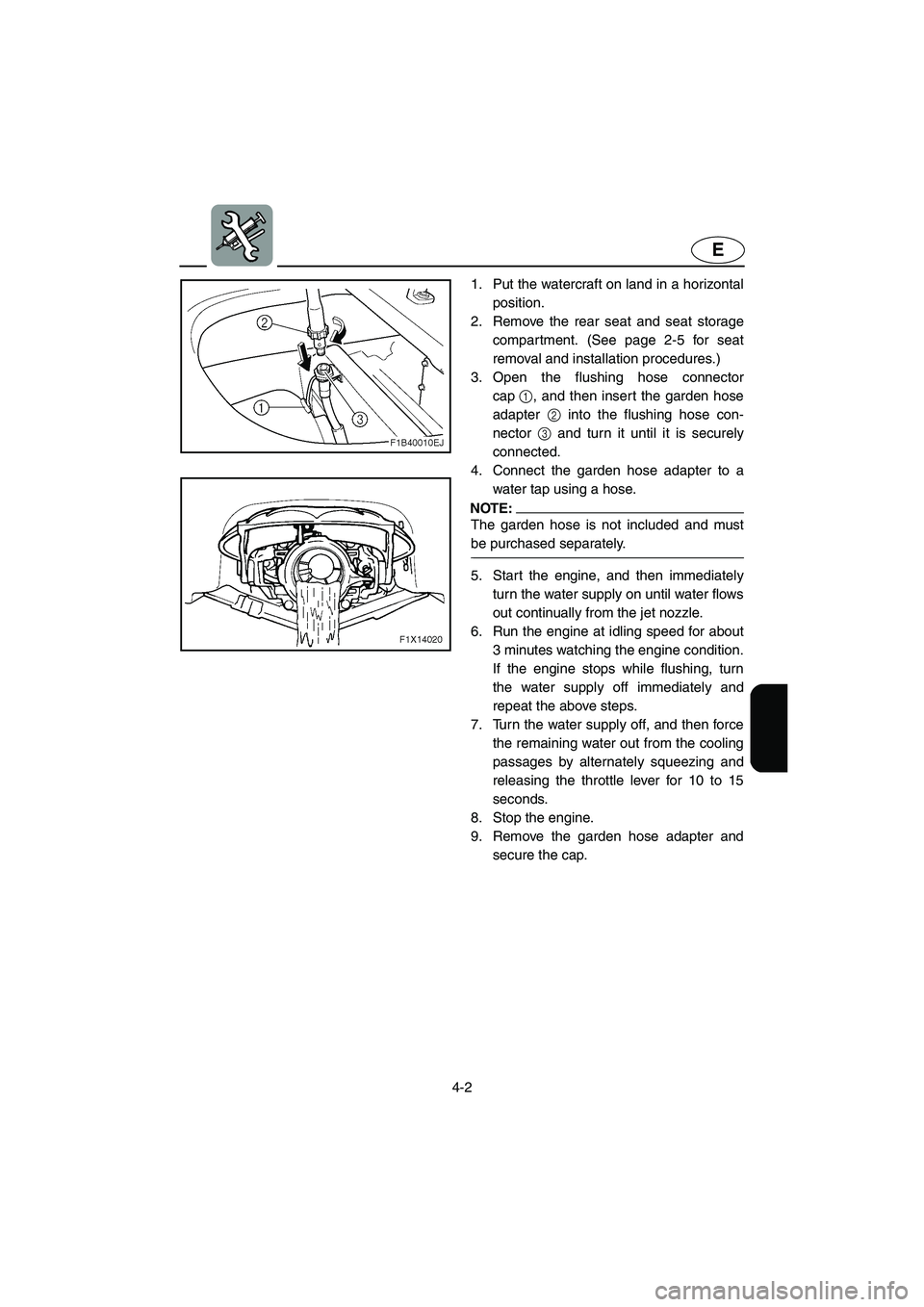

1. Put the watercraft on land in a horizontal
position.
2. Remove the rear seat and seat storage
compartment. (See page 2-5 for seat
removal and installation procedures.)
3. Open the flushing hose connector
cap1, and then insert the garden hose
adapter 2 into the flushing hose con-
nector 3 and turn it until it is securely
connected.
4. Connect the garden hose adapter to a
water tap using a hose.
NOTE:@ The garden hose is not included and must
be purchased separately.
@
5. Start the engine, and then immediately
turn the water supply on until water flows
out continually from the jet nozzle.
6. Run the engine at idling speed for about
3 minutes watching the engine condition.
If the engine stops while flushing, turn
the water supply off immediately and
repeat the above steps.
7. Turn the water supply off, and then force
the remaining water out from the cooling
passages by alternately squeezing and
releasing the throttle lever for 10 to 15
seconds.
8. Stop the engine.
9. Remove the garden hose adapter and
secure the cap.
E_F1X-70.book Page 2 Friday, August 26, 2005 11:00 AM

4-3
E
EJU18980

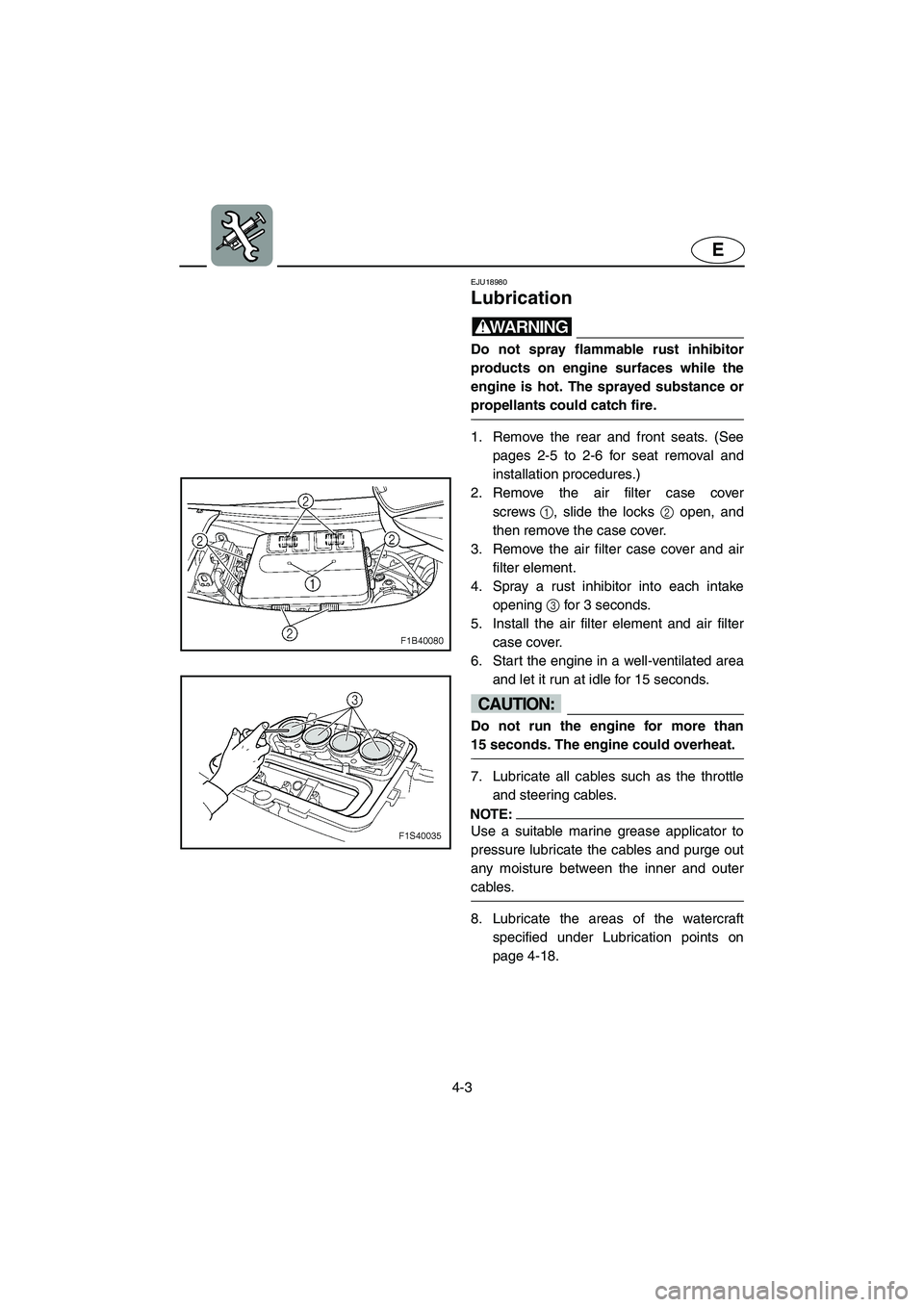

Lubrication
WARNING@ Do not spray flammable rust inhibitor
products on engine surfaces while the
engine is hot. The sprayed substance or
propellants could catch fire.
@
1. Remove the rear and front seats. (See
pages 2-5 to 2-6 for seat removal and
installation procedures.)
2. Remove the air filter case cover
screws1, slide the locks 2 open, and
then remove the case cover.
3. Remove the air filter case cover and air
filter element.
4. Spray a rust inhibitor into each intake
opening 3 for 3 seconds.
5. Install the air filter element and air filter
case cover.
6. Start the engine in a well-ventilated area
and let it run at idle for 15 seconds.
CAUTION:@ Do not run the engine for more than
15 seconds. The engine could overheat.
@
7. Lubricate all cables such as the throttle
and steering cables.
NOTE:@ Use a suitable marine grease applicator to
pressure lubricate the cables and purge out
any moisture between the inner and outer
cables.
@
8. Lubricate the areas of the watercraft
specified under Lubrication points on
page 4-18.
E_F1X-70.book Page 3 Friday, August 26, 2005 11:00 AM

4-4
E
EJU19652

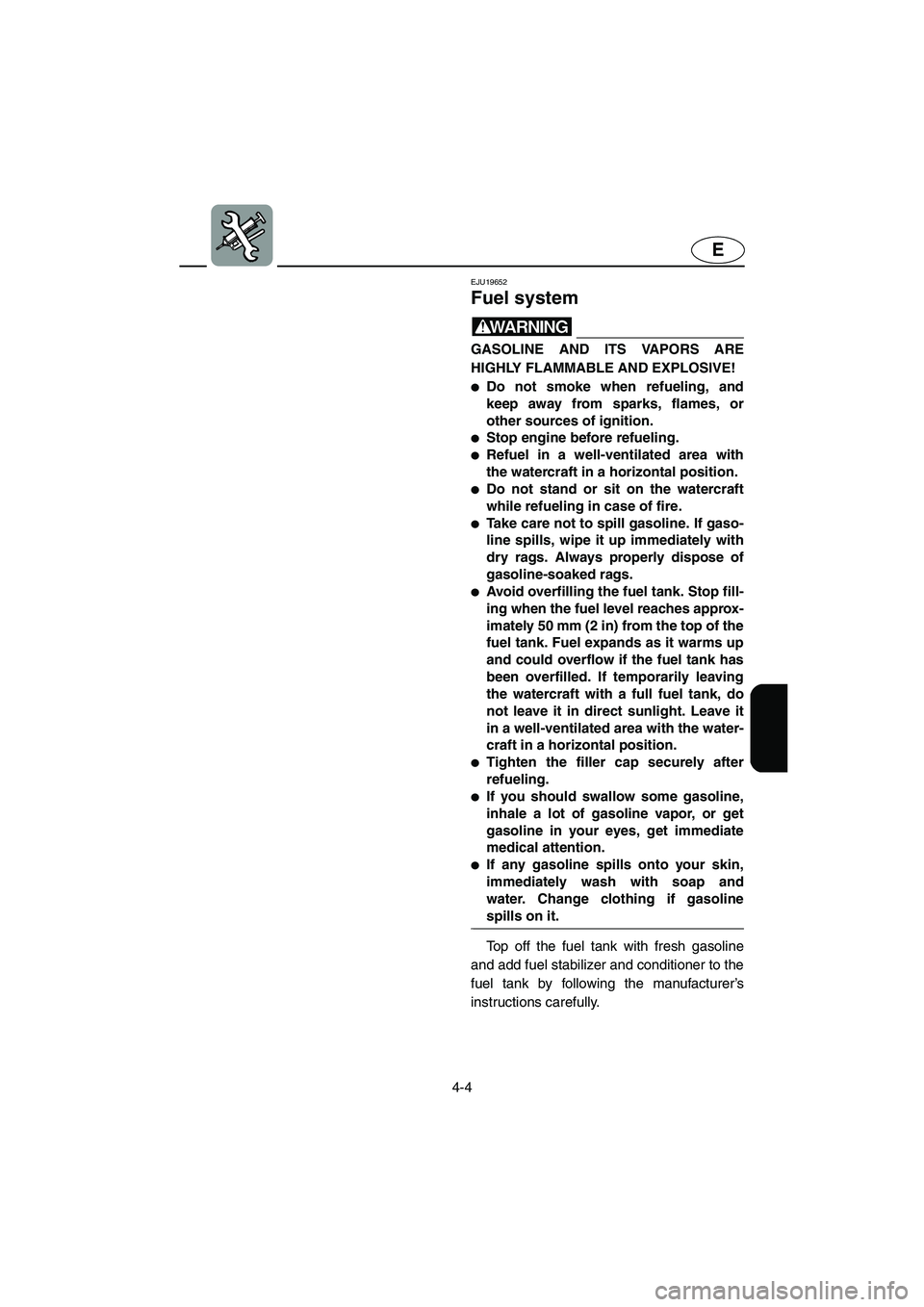

Fuel system
WARNING@ GASOLINE AND ITS VAPORS ARE
HIGHLY FLAMMABLE AND EXPLOSIVE!

Do not smoke when refueling, and
keep away from sparks, flames, or
other sources of ignition.

Stop engine before refueling.

Refuel in a well-ventilated area with
the watercraft in a horizontal position.

Do not stand or sit on the watercraft
while refueling in case of fire.

Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags. Always properly dispose of
gasoline-soaked rags.

Avoid overfilling the fuel tank. Stop fill-
ing when the fuel level reaches approx-
imately 50 mm (2 in) from the top of the
fuel tank. Fuel expands as it warms up
and could overflow if the fuel tank has
been overfilled. If temporarily leaving
the watercraft with a full fuel tank, do
not leave it in direct sunlight. Leave it
in a well-ventilated area with the water-
craft in a horizontal position.

Tighten the filler cap securely after
refueling.

If you should swallow some gasoline,
inhale a lot of gasoline vapor, or get
gasoline in your eyes, get immediate
medical attention.

If any gasoline spills onto your skin,
immediately wash with soap and
water. Change clothing if gasoline
spills on it.
@
Top off the fuel tank with fresh gasoline
and add fuel stabilizer and conditioner to the
fuel tank by following the manufacturer’s
instructions carefully.
E_F1X-70.book Page 4 Friday, August 26, 2005 11:00 AM

4-5
E
EJU19700

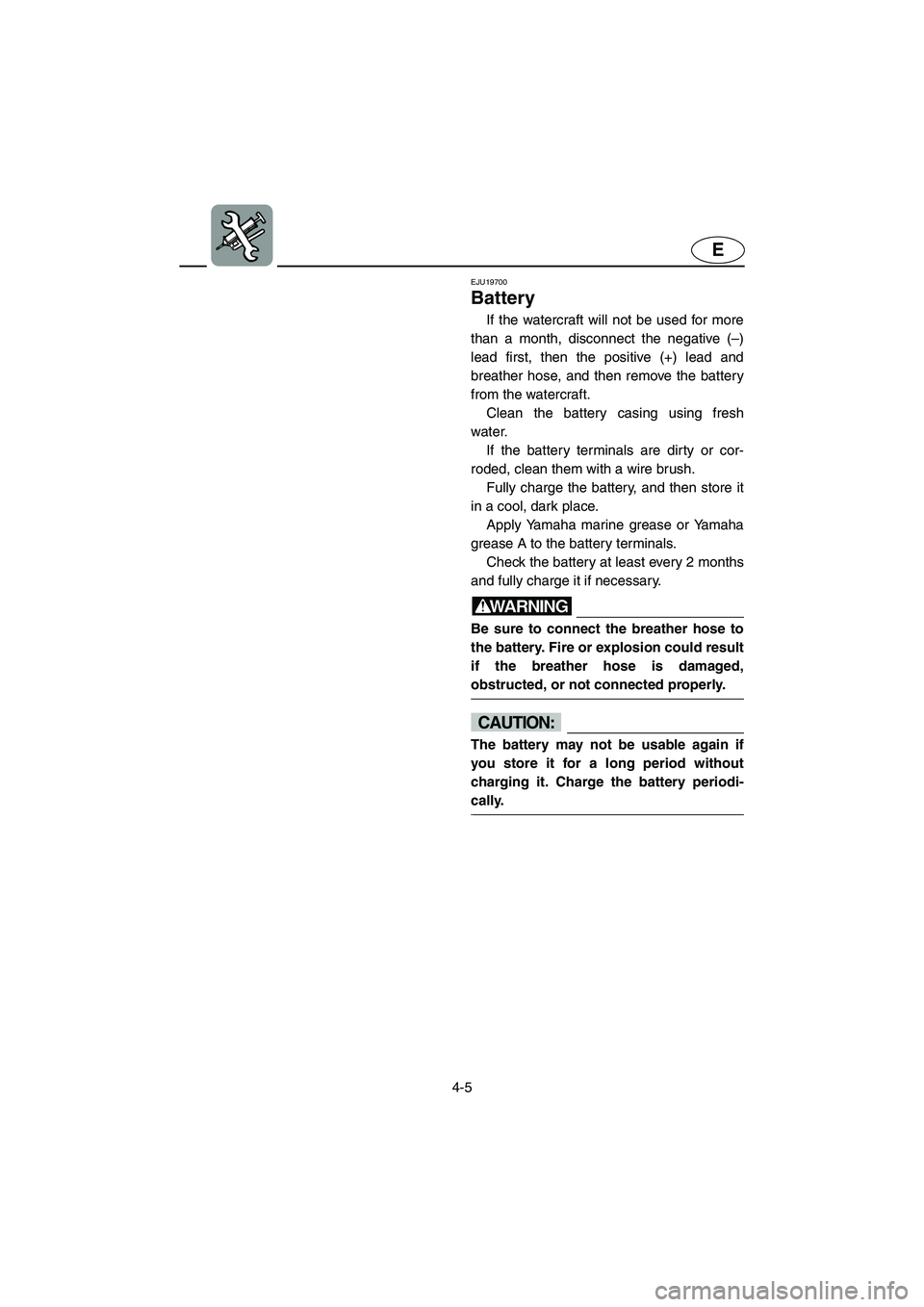

Battery
If the watercraft will not be used for more
than a month, disconnect the negative (–)
lead first, then the positive (+) lead and
breather hose, and then remove the battery
from the watercraft.
Clean the battery casing using fresh
water.
If the battery terminals are dirty or cor-
roded, clean them with a wire brush.
Fully charge the battery, and then store it
in a cool, dark place.
Apply Yamaha marine grease or Yamaha
grease A to the battery terminals.
Check the battery at least every 2 months
and fully charge it if necessary.
WARNING@ Be sure to connect the breather hose to
the battery. Fire or explosion could result
if the breather hose is damaged,
obstructed, or not connected properly.
@
CAUTION:@ The battery may not be usable again if
you store it for a long period without
charging it. Charge the battery periodi-
cally.
@
E_F1X-70.book Page 5 Friday, August 26, 2005 11:00 AM

4-6
E

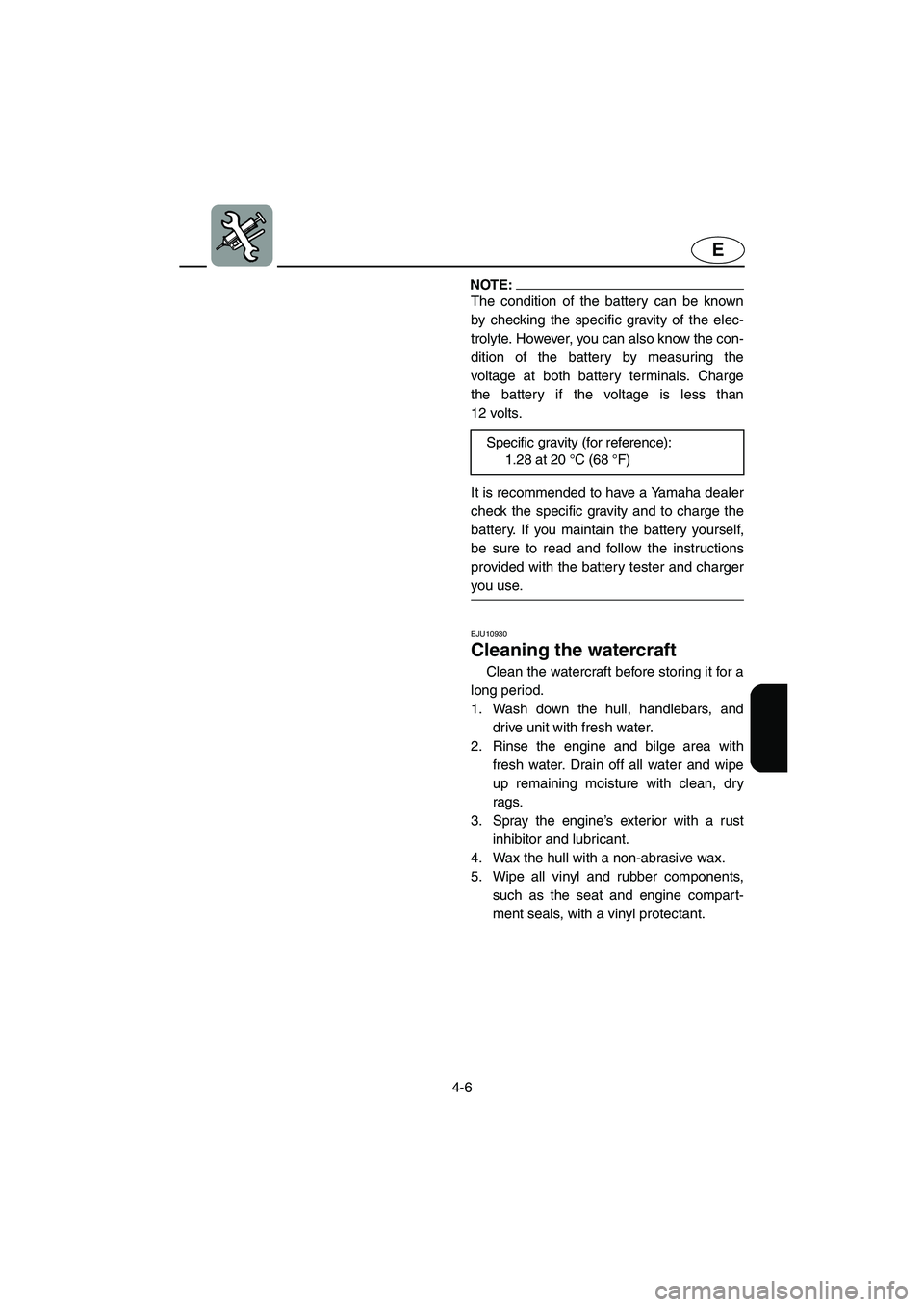

NOTE:@ The condition of the battery can be known
by checking the specific gravity of the elec-
trolyte. However, you can also know the con-
dition of the battery by measuring the
voltage at both battery terminals. Charge
the battery if the voltage is less than
12 volts.
It is recommended to have a Yamaha dealer
check the specific gravity and to charge the
battery. If you maintain the battery yourself,
be sure to read and follow the instructions
provided with the battery tester and charger
you use.
@
EJU10930
Cleaning the watercraft
Clean the watercraft before storing it for a
long period.
1. Wash down the hull, handlebars, and
drive unit with fresh water.
2. Rinse the engine and bilge area with
fresh water. Drain off all water and wipe
up remaining moisture with clean, dry
rags.
3. Spray the engine’s exterior with a rust
inhibitor and lubricant.
4. Wax the hull with a non-abrasive wax.
5. Wipe all vinyl and rubber components,
such as the seat and engine compart-
ment seals, with a vinyl protectant. Specific gravity (for reference):
1.28 at 20 °C (68 °F)
E_F1X-70.book Page 6 Friday, August 26, 2005 11:00 AM

4-7
E
EJU21751

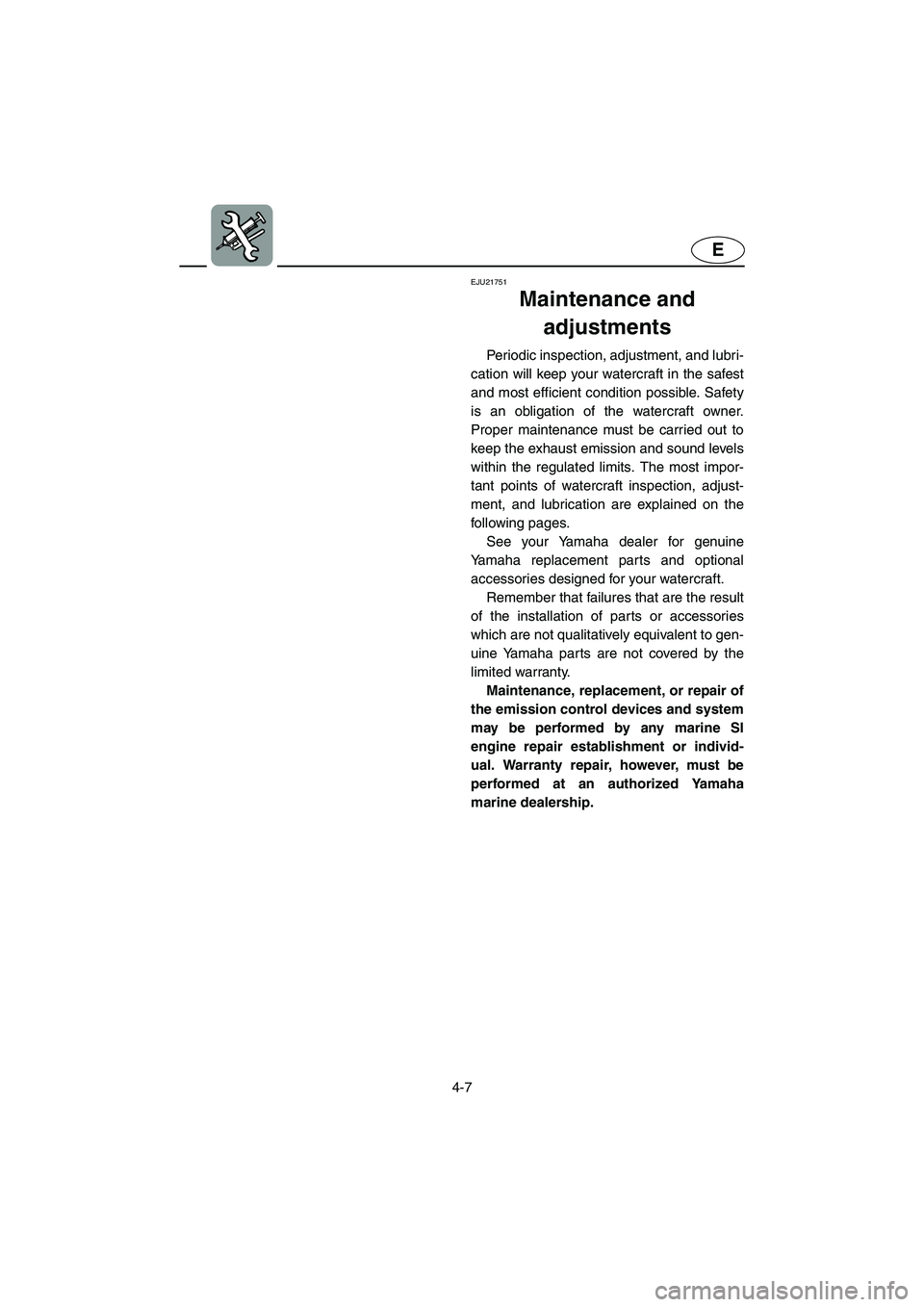

Maintenance and
adjustments
Periodic inspection, adjustment, and lubri-
cation will keep your watercraft in the safest
and most efficient condition possible. Safety
is an obligation of the watercraft owner.
Proper maintenance must be carried out to
keep the exhaust emission and sound levels
within the regulated limits. The most impor-
tant points of watercraft inspection, adjust-
ment, and lubrication are explained on the
following pages.
See your Yamaha dealer for genuine
Yamaha replacement parts and optional
accessories designed for your watercraft.
Remember that failures that are the result
of the installation of parts or accessories
which are not qualitatively equivalent to gen-
uine Yamaha parts are not covered by the
limited warranty.
Maintenance, replacement, or repair of
the emission control devices and system
may be performed by any marine SI
engine repair establishment or individ-
ual. Warranty repair, however, must be
performed at an authorized Yamaha
marine dealership.
E_F1X-70.book Page 7 Friday, August 26, 2005 11:00 AM

4-8
E

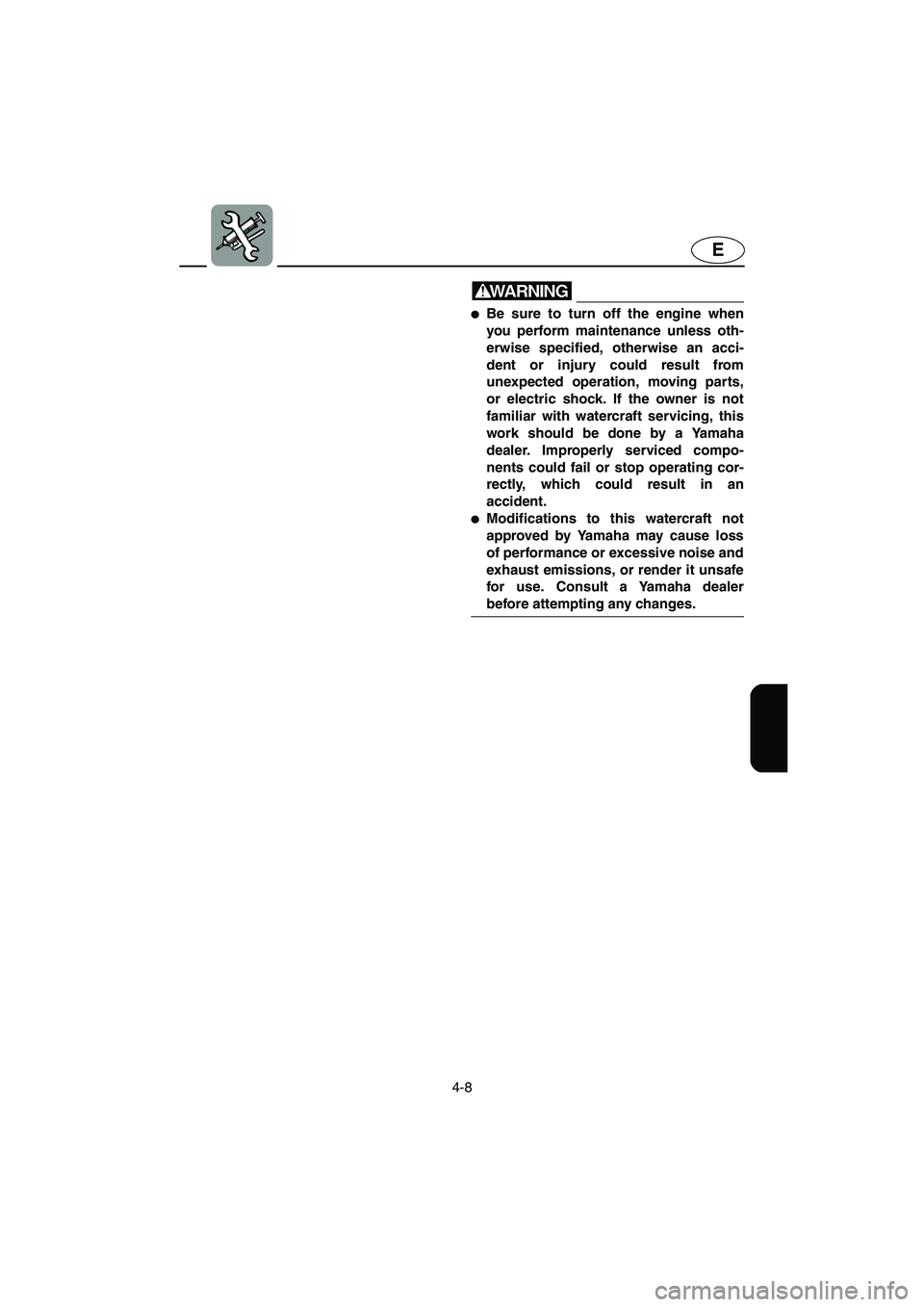

WARNING@
Be sure to turn off the engine when
you perform maintenance unless oth-
erwise specified, otherwise an acci-
dent or injury could result from
unexpected operation, moving parts,
or electric shock. If the owner is not
familiar with watercraft servicing, this
work should be done by a Yamaha
dealer. Improperly serviced compo-
nents could fail or stop operating cor-
rectly, which could result in an
accident.

Modifications to this watercraft not
approved by Yamaha may cause loss
of performance or excessive noise and
exhaust emissions, or render it unsafe
for use. Consult a Yamaha dealer
before attempting any changes.
@
E_F1X-70.book Page 8 Friday, August 26, 2005 11:00 AM

4-9
E
EJU22371

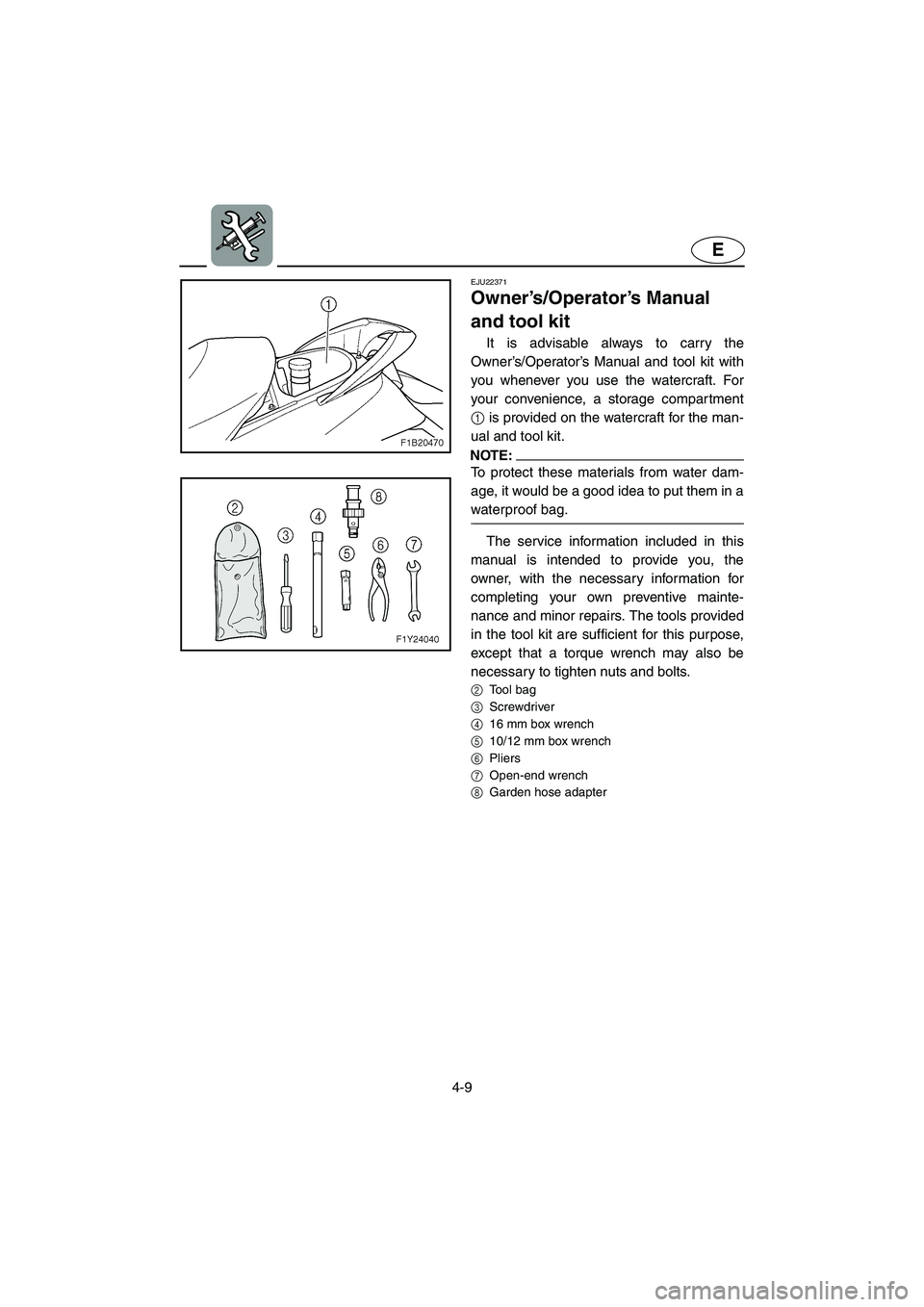

Owner’s/Operator’s Manual
and tool kit
It is advisable always to carry the
Owner’s/Operator’s Manual and tool kit with
you whenever you use the watercraft. For
your convenience, a storage compartment
1 is provided on the watercraft for the man-
ual and tool kit.
NOTE:@ To protect these materials from water dam-
age, it would be a good idea to put them in a
waterproof bag.
@
The service information included in this
manual is intended to provide you, the
owner, with the necessary information for
completing your own preventive mainte-
nance and minor repairs. The tools provided
in the tool kit are sufficient for this purpose,
except that a torque wrench may also be
necessary to tighten nuts and bolts.
2Tool bag
3Screwdriver
416 mm box wrench
510/12 mm box wrench
6Pliers
7Open-end wrench
8Garden hose adapter
E_F1X-70.book Page 9 Friday, August 26, 2005 11:00 AM

4-10
E
EJU13550
Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, depend-
ing on your operating conditions maintenance may need to be performed more frequently.
PMC-F1B1(
) This mark indicates maintenance that you may do yourself.
(
❍) This mark indicates work to be done by a Yamaha dealer.
MAINTENANCE INTERVAL
INITIALTHEREAFTER
EVERYPA G E
10
hours50
hours100
hours100
hours200
hours
ITEM
6
months12
months12
months24
months
Spark plug Inspect, clean, adjust



4-16
Lubrication points Lubricate

/❍

/❍
4-18
Intermediate housing Lubricate❍
*1

*2

*2 4-20
Fuel system Inspect❍❍
4-11
Fuel tank Inspect, clean❍❍
4-11
Trolling speed Inspect, adjust❍❍
4-23
Throttle shaft Inspect❍❍
—
Cooling water passages Flush

*3 4-1
Water inlet strainer Inspect, clean❍❍
—
Bilge strainer Clean❍❍
—
Electric bilge pump strainer Inspect, clean❍❍
—
Impeller Inspect❍❍
—
Jet thrust nozzle angle Inspect, adjust

/❍

/❍
4-15
Steering master Inspect❍❍❍
—
QSTS mechanism Inspect, adjust❍❍❍
—
Shift cable and mechanism Inspect, adjust❍❍
4-15
Throttle cable Inspect, adjust❍❍❍
4-15
Stern drain plugs Inspect, replace❍❍
3-10
Battery Inspect ❍❍
—
Rubber coupling Inspect❍
—
Engine mount Inspect❍
—
Nuts and bolts Inspect❍❍❍
—
Air filter Inspect, replace


4-14
Engine oil Replace❍❍❍
4-12
Engine oil filter Replace❍❍
—
Valve clearance Inspect, adjust❍
—
*1: Grease quantity: 33.0–35.0 cm3 (1.11–1.18 oz)
*2: Grease quantity: 6.0–8.0 cm3 (0.20–0.27 oz)
*3: After every use
E_F1X-70-4.fm Page 10 Monday, August 29, 2005 1:36 PM

4-11
E
EJU18160

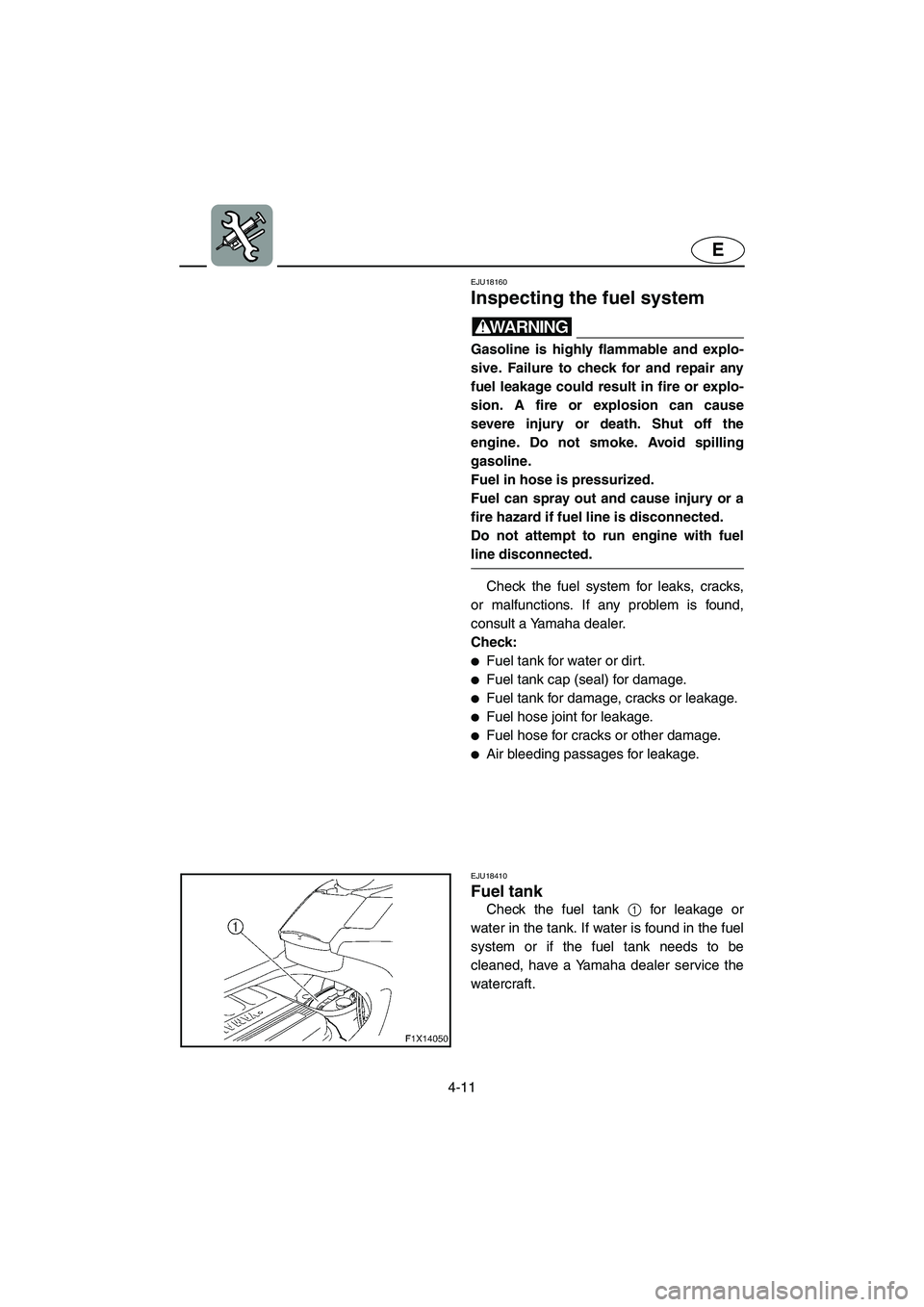

Inspecting the fuel system
WARNING@ Gasoline is highly flammable and explo-
sive. Failure to check for and repair any
fuel leakage could result in fire or explo-
sion. A fire or explosion can cause
severe injury or death. Shut off the
engine. Do not smoke. Avoid spilling
gasoline.
Fuel in hose is pressurized.
Fuel can spray out and cause injury or a
fire hazard if fuel line is disconnected.
Do not attempt to run engine with fuel
line disconnected.
@
Check the fuel system for leaks, cracks,
or malfunctions. If any problem is found,
consult a Yamaha dealer.
Check:

Fuel tank for water or dirt.

Fuel tank cap (seal) for damage.

Fuel tank for damage, cracks or leakage.

Fuel hose joint for leakage.

Fuel hose for cracks or other damage.

Air bleeding passages for leakage.
EJU18410
Fuel tank
Check the fuel tank 1 for leakage or
water in the tank. If water is found in the fuel
system or if the fuel tank needs to be
cleaned, have a Yamaha dealer service the
watercraft.
E_F1X-70.book Page 11 Friday, August 26, 2005 11:00 AM
