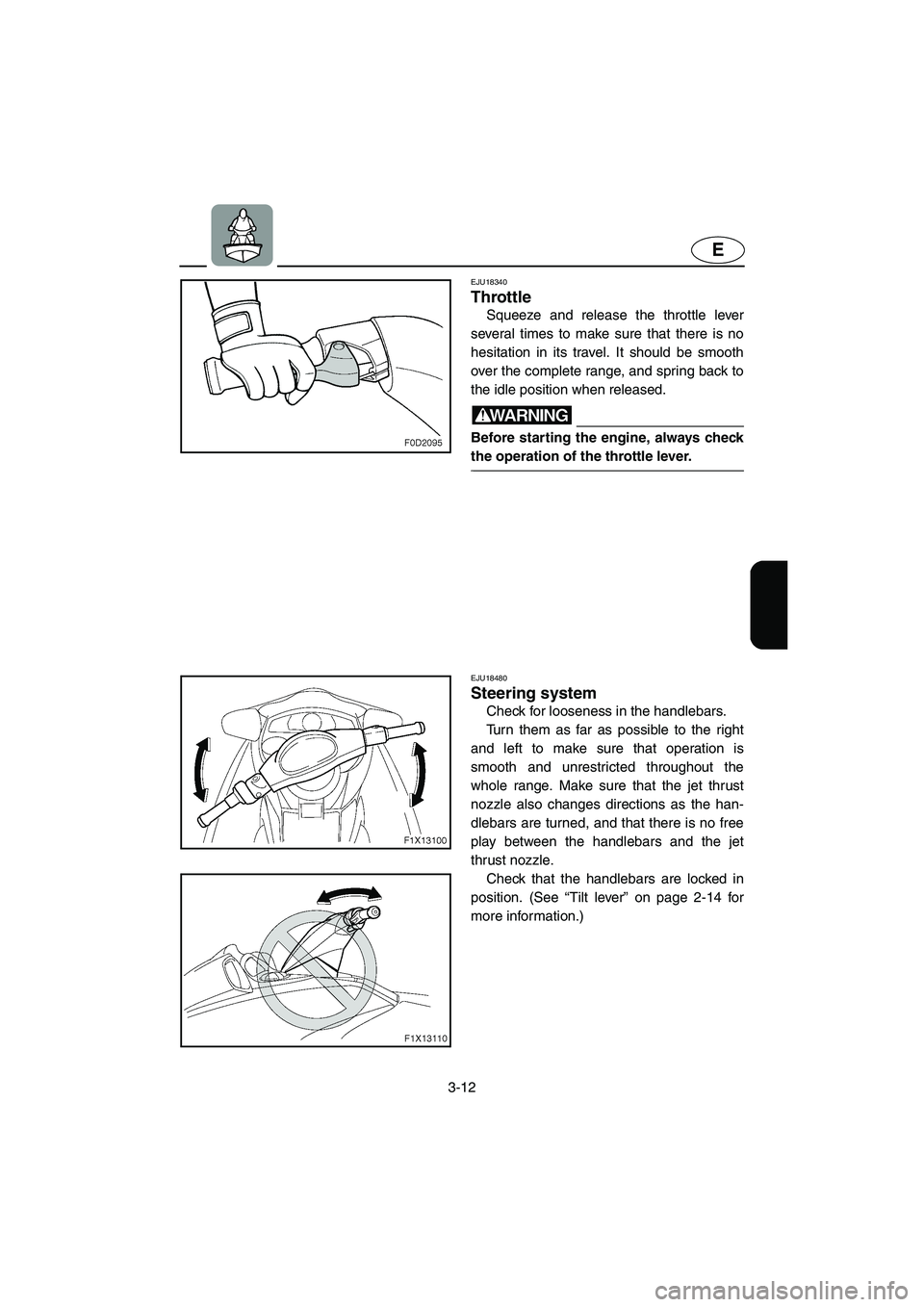

Throttle
Squeeze and release the throttle lever
several times to make sure that there is no
hesitation in its travel. It should be smooth
over the complete range, and spring back to
the idle position when released.
WARNING@ Before starting the engine, always check
the operation of the throttle lever.
@
EJU18480
Steering system
Check for looseness in the handlebars.
Turn them as far as possible to the right
and left to make sure that operation is
smooth and unrestricted throughout the
whole range. Make sure that the jet thrust
nozzle also changes directions as the han-
dlebars are turned, and that there is no free
play between the handlebars and the jet
thrust nozzle.
Check that the handlebars are locked in
position. (See “Tilt lever” on page 2-14 for
more information.)
E_F1X-70.book Page 12 Friday, August 26, 2005 11:00 AM
Page 82 of 152
3-13
E
EJU12451

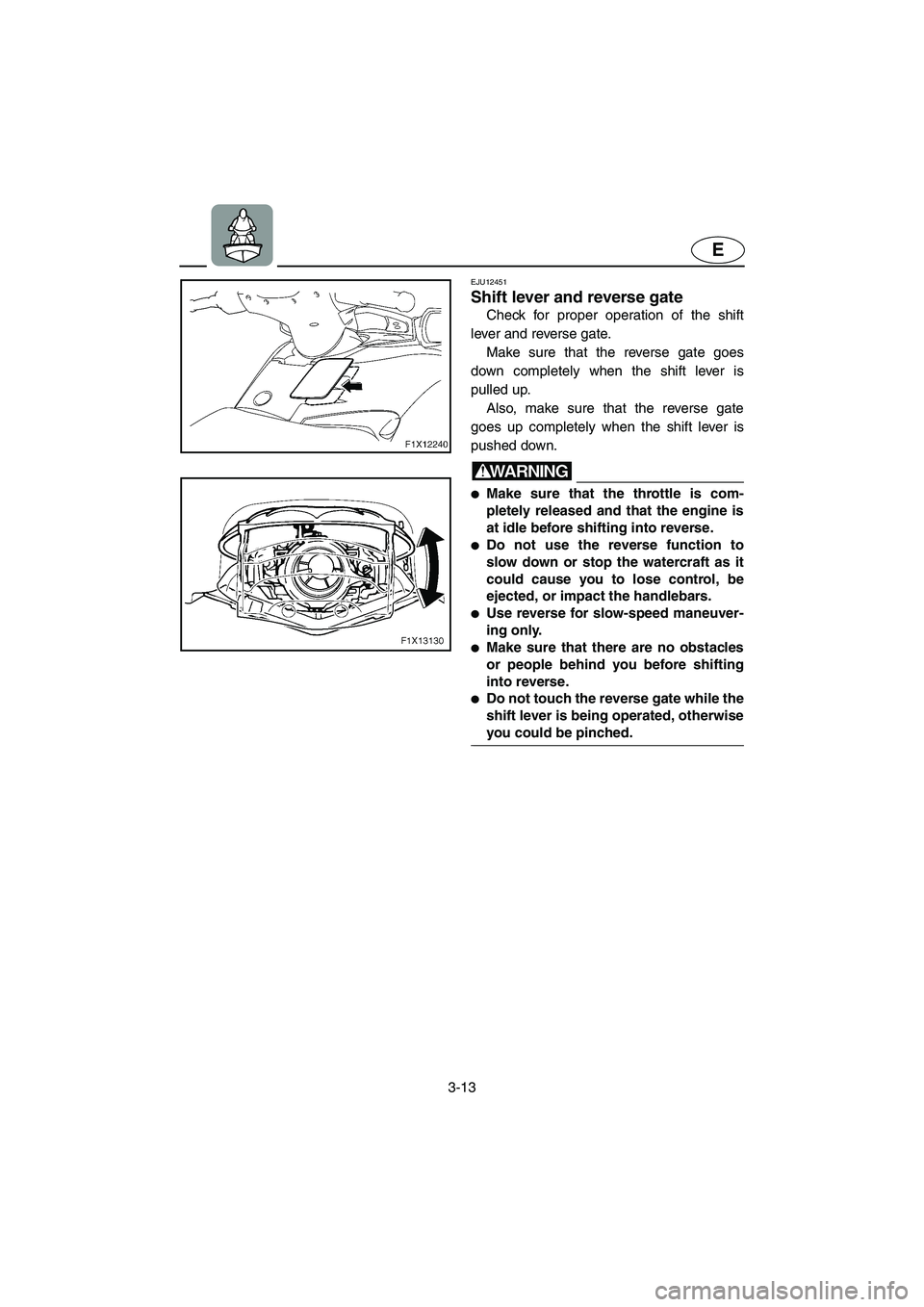

Shift lever and reverse gate
Check for proper operation of the shift
lever and reverse gate.
Make sure that the reverse gate goes
down completely when the shift lever is
pulled up.
Also, make sure that the reverse gate
goes up completely when the shift lever is
pushed down.
WARNING@ Make sure that the throttle is com-
pletely released and that the engine is
at idle before shifting into reverse.
Do not use the reverse function to
slow down or stop the watercraft as it
could cause you to lose control, be
ejected, or impact the handlebars.
Use reverse for slow-speed maneuver-
ing only.
Make sure that there are no obstacles
or people behind you before shifting
into reverse.
Do not touch the reverse gate while the
shift lever is being operated, otherwise
you could be pinched.
@
E_F1X-70.book Page 13 Friday, August 26, 2005 11:00 AM
Page 83 of 152
3-14
E
EJU20620

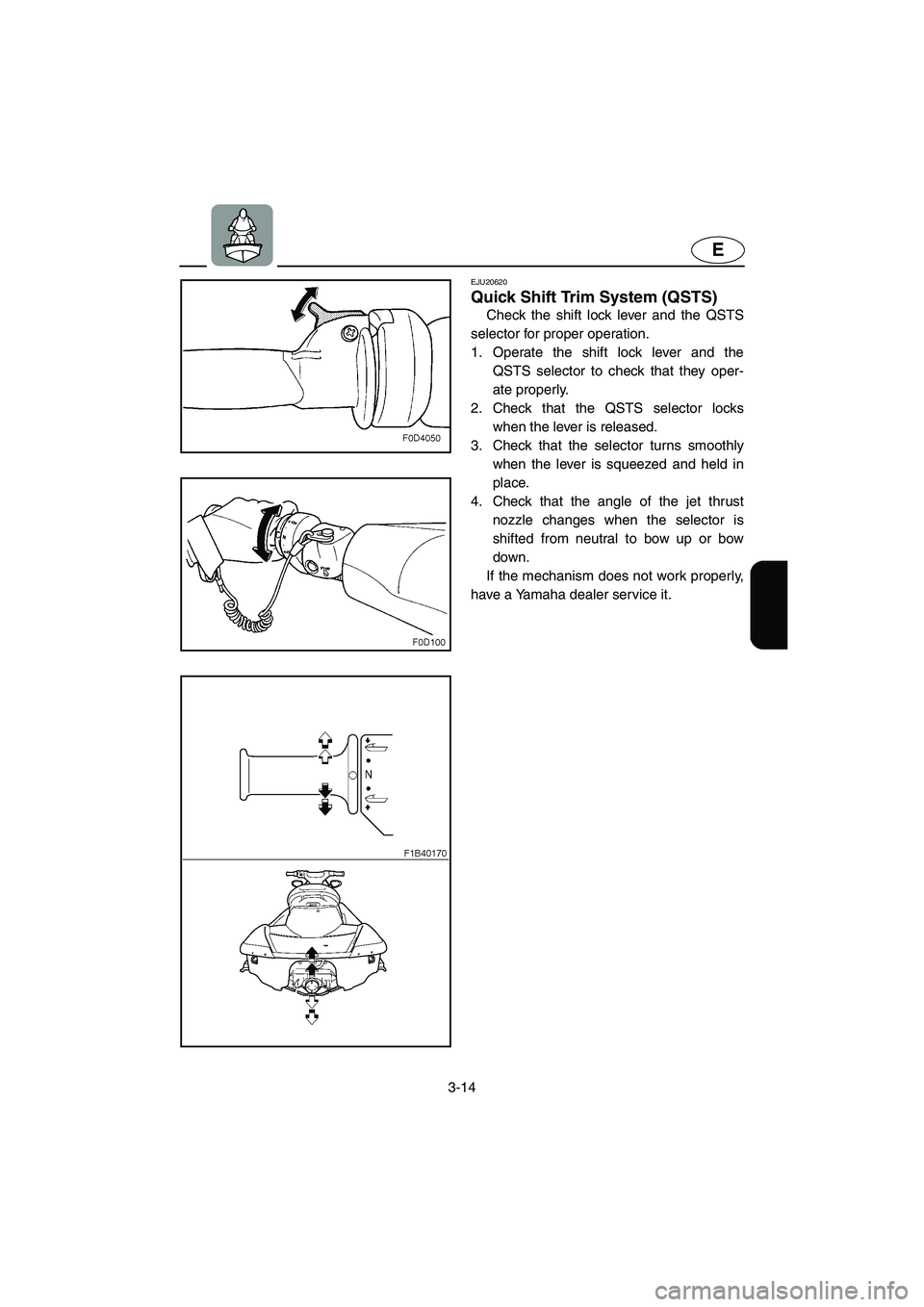

Quick Shift Trim System (QSTS)
Check the shift lock lever and the QSTS
selector for proper operation.
1. Operate the shift lock lever and the
QSTS selector to check that they oper-
ate properly.
2. Check that the QSTS selector locks
when the lever is released.
3. Check that the selector turns smoothly
when the lever is squeezed and held in
place.
4. Check that the angle of the jet thrust
nozzle changes when the selector is
shifted from neutral to bow up or bow
down.
If the mechanism does not work properly,
have a Yamaha dealer service it.
E_F1X-70.book Page 14 Friday, August 26, 2005 11:00 AM
Page 84 of 152
3-15
E
EJU10580

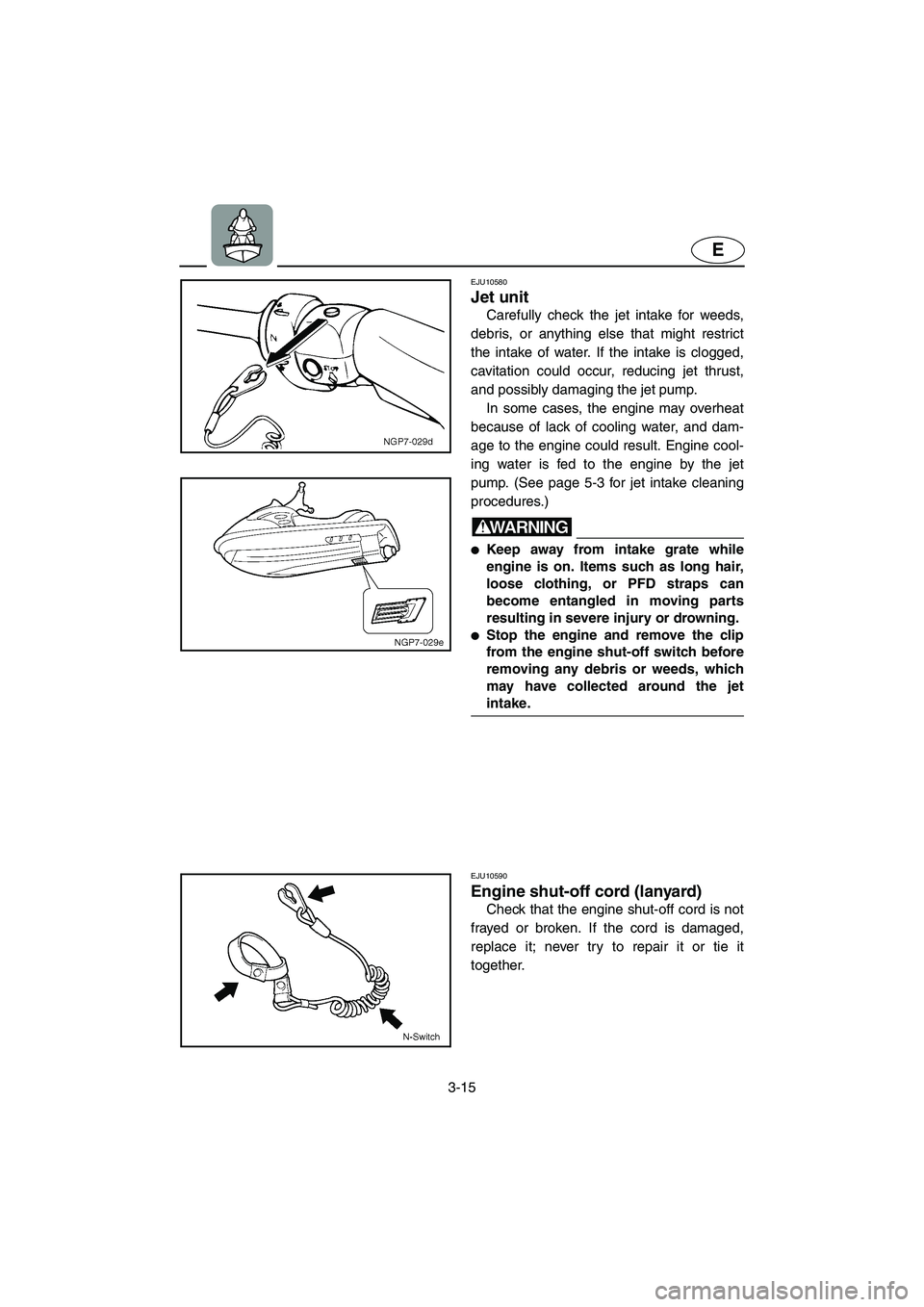

Jet unit
Carefully check the jet intake for weeds,
debris, or anything else that might restrict
the intake of water. If the intake is clogged,
cavitation could occur, reducing jet thrust,
and possibly damaging the jet pump.
In some cases, the engine may overheat
because of lack of cooling water, and dam-
age to the engine could result. Engine cool-
ing water is fed to the engine by the jet
pump. (See page 5-3 for jet intake cleaning
procedures.)
WARNING@ Keep away from intake grate while
engine is on. Items such as long hair,
loose clothing, or PFD straps can
become entangled in moving parts
resulting in severe injury or drowning.
Stop the engine and remove the clip
from the engine shut-off switch before
removing any debris or weeds, which
may have collected around the jet
intake.
@
EJU10590
Engine shut-off cord (lanyard)
Check that the engine shut-off cord is not
frayed or broken. If the cord is damaged,
replace it; never try to repair it or tie it
together.
E_F1X-70.book Page 15 Friday, August 26, 2005 11:00 AM
Page 85 of 152
3-16
E
EJU18352

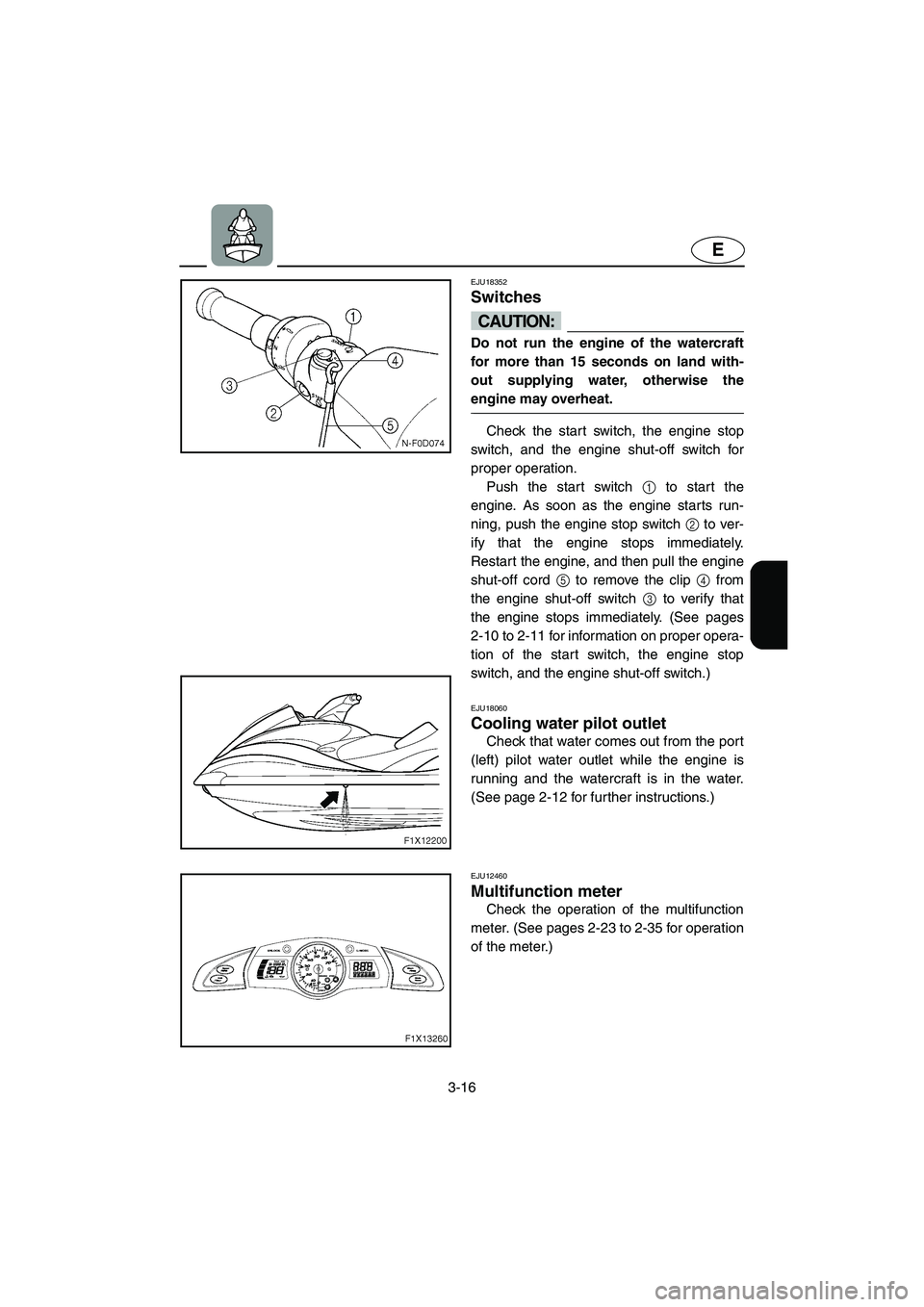

Switches
CAUTION:@ Do not run the engine of the watercraft
for more than 15 seconds on land with-
out supplying water, otherwise the
engine may overheat.
@
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation.
Push the start switch 1 to start the
engine. As soon as the engine starts run-
ning, push the engine stop switch 2 to ver-
ify that the engine stops immediately.
Restart the engine, and then pull the engine
shut-off cord 5 to remove the clip 4 from
the engine shut-off switch 3 to verify that
the engine stops immediately. (See pages
2-10 to 2-11 for information on proper opera-
tion of the start switch, the engine stop
switch, and the engine shut-off switch.)
EJU18060
Cooling water pilot outlet
Check that water comes out from the port
(left) pilot water outlet while the engine is
running and the watercraft is in the water.
(See page 2-12 for further instructions.)
EJU12460
Multifunction meter
Check the operation of the multifunction
meter. (See pages 2-23 to 2-35 for operation
of the meter.)
E_F1X-70.book Page 16 Friday, August 26, 2005 11:00 AM
Page 86 of 152
3-17
E
EJU18360

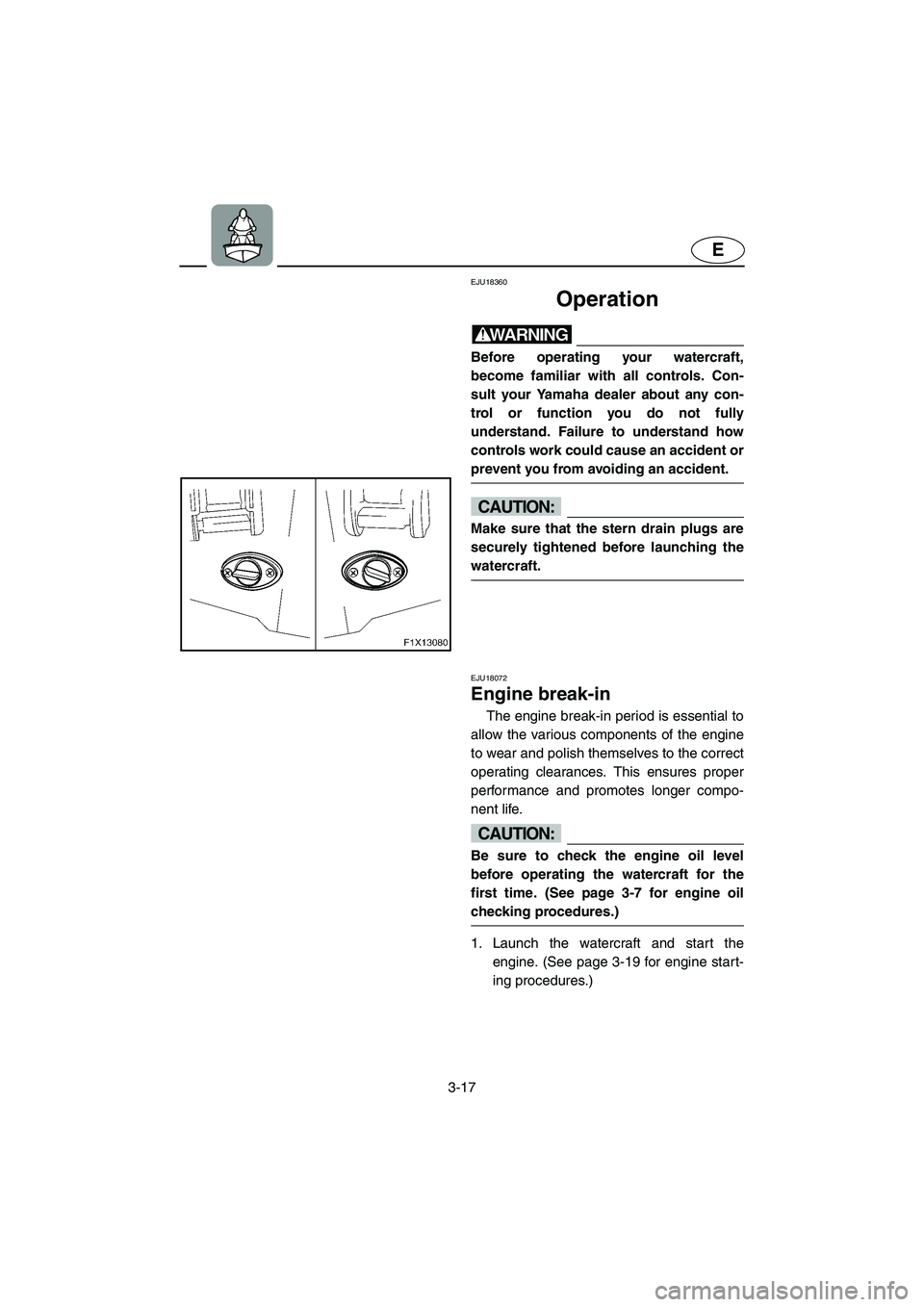

Operation
WARNING@ Before operating your watercraft,
become familiar with all controls. Con-
sult your Yamaha dealer about any con-
trol or function you do not fully
understand. Failure to understand how
controls work could cause an accident or
prevent you from avoiding an accident.
@
CAUTION:@ Make sure that the stern drain plugs are
securely tightened before launching the
watercraft.
@
EJU18072
Engine break-in
The engine break-in period is essential to
allow the various components of the engine
to wear and polish themselves to the correct
operating clearances. This ensures proper
performance and promotes longer compo-
nent life.
CAUTION:@ Be sure to check the engine oil level
before operating the watercraft for the
first time. (See page 3-7 for engine oil
checking procedures.)
@
1. Launch the watercraft and start the
engine. (See page 3-19 for engine start-
ing procedures.)
E_F1X-70.book Page 17 Friday, August 26, 2005 11:00 AM
Page 87 of 152
3-18
E

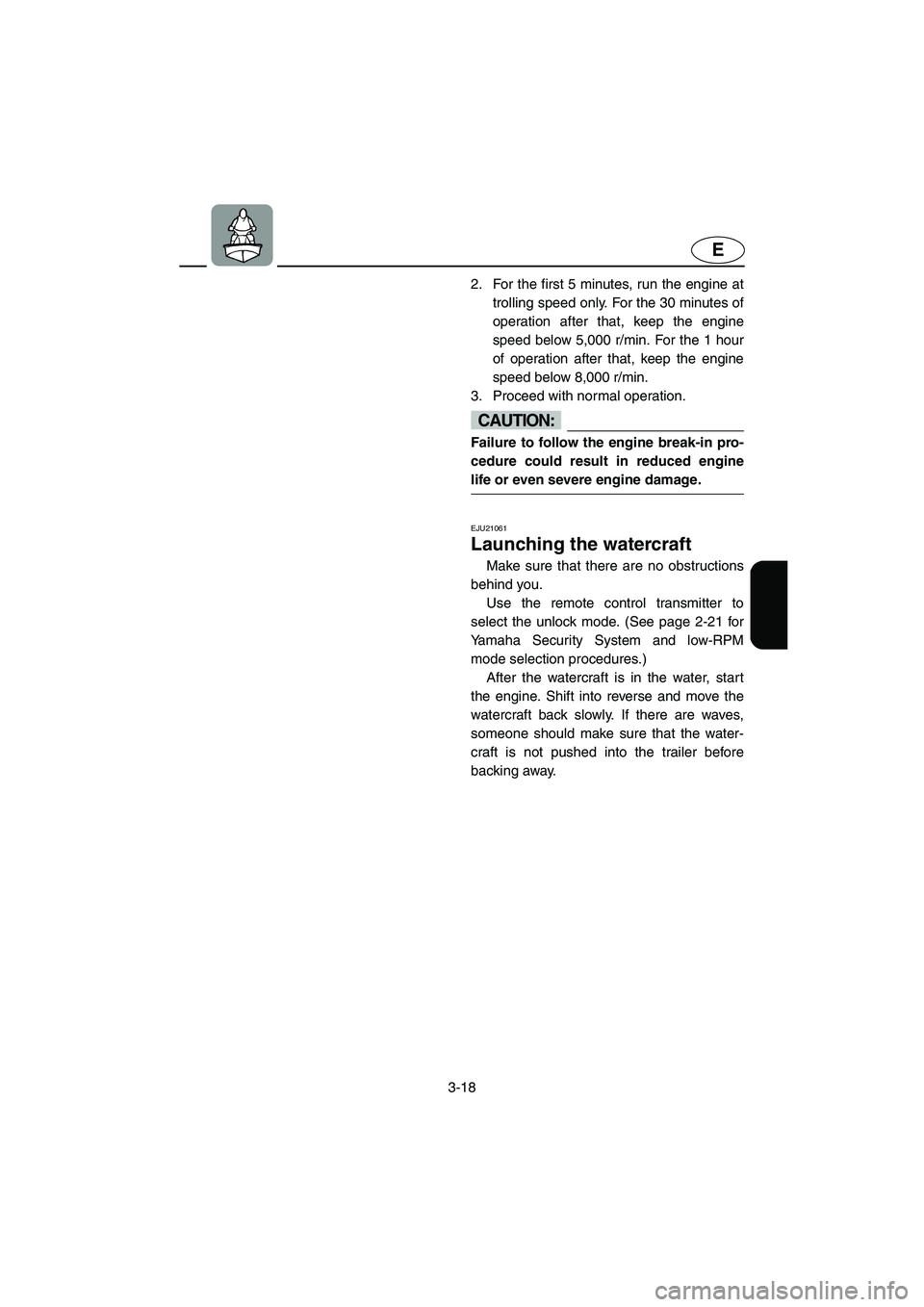

2. For the first 5 minutes, run the engine at
trolling speed only. For the 30 minutes of
operation after that, keep the engine
speed below 5,000 r/min. For the 1 hour
of operation after that, keep the engine
speed below 8,000 r/min.
3. Proceed with normal operation.
CAUTION:@ Failure to follow the engine break-in pro-
cedure could result in reduced engine
life or even severe engine damage.
@
EJU21061
Launching the watercraft
Make sure that there are no obstructions
behind you.
Use the remote control transmitter to
select the unlock mode. (See page 2-21 for
Yamaha Security System and low-RPM
mode selection procedures.)
After the watercraft is in the water, start
the engine. Shift into reverse and move the
watercraft back slowly. If there are waves,
someone should make sure that the water-
craft is not pushed into the trailer before
backing away.
E_F1X-70.book Page 18 Friday, August 26, 2005 11:00 AM
Page 88 of 152
3-19
E
EJU20841

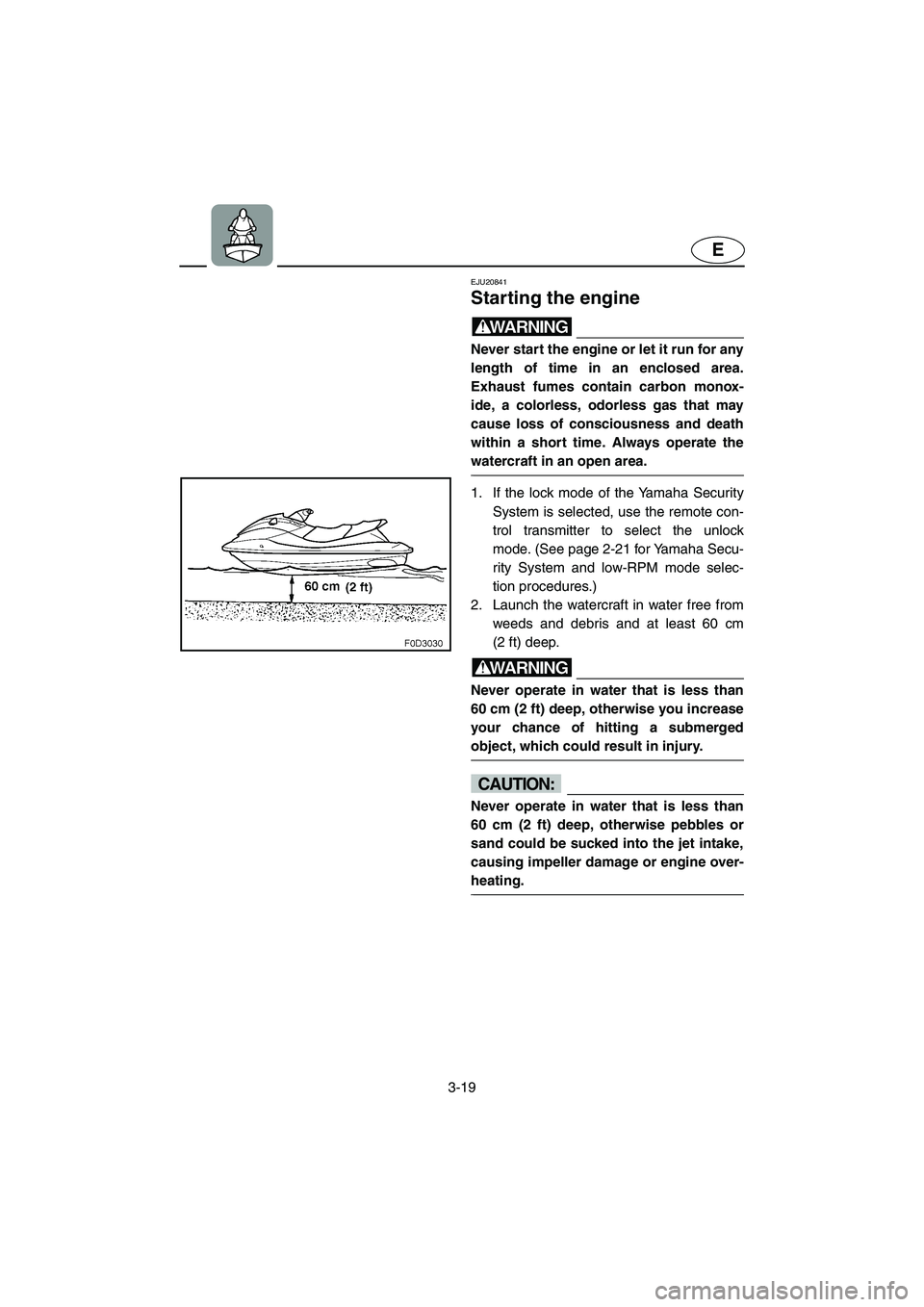

Starting the engine
WARNING@ Never start the engine or let it run for any
length of time in an enclosed area.
Exhaust fumes contain carbon monox-
ide, a colorless, odorless gas that may
cause loss of consciousness and death
within a short time. Always operate the
watercraft in an open area.
@
1. If the lock mode of the Yamaha Security
System is selected, use the remote con-
trol transmitter to select the unlock
mode. (See page 2-21 for Yamaha Secu-
rity System and low-RPM mode selec-
tion procedures.)
2. Launch the watercraft in water free from
weeds and debris and at least 60 cm
(2 ft) deep.
WARNING@ Never operate in water that is less than
60 cm (2 ft) deep, otherwise you increase
your chance of hitting a submerged
object, which could result in injury.
@
CAUTION:@ Never operate in water that is less than
60 cm (2 ft) deep, otherwise pebbles or
sand could be sucked into the jet intake,
causing impeller damage or engine over-
heating.
@
E_F1X-70.book Page 19 Friday, August 26, 2005 11:00 AM
Page 89 of 152
3-20
E

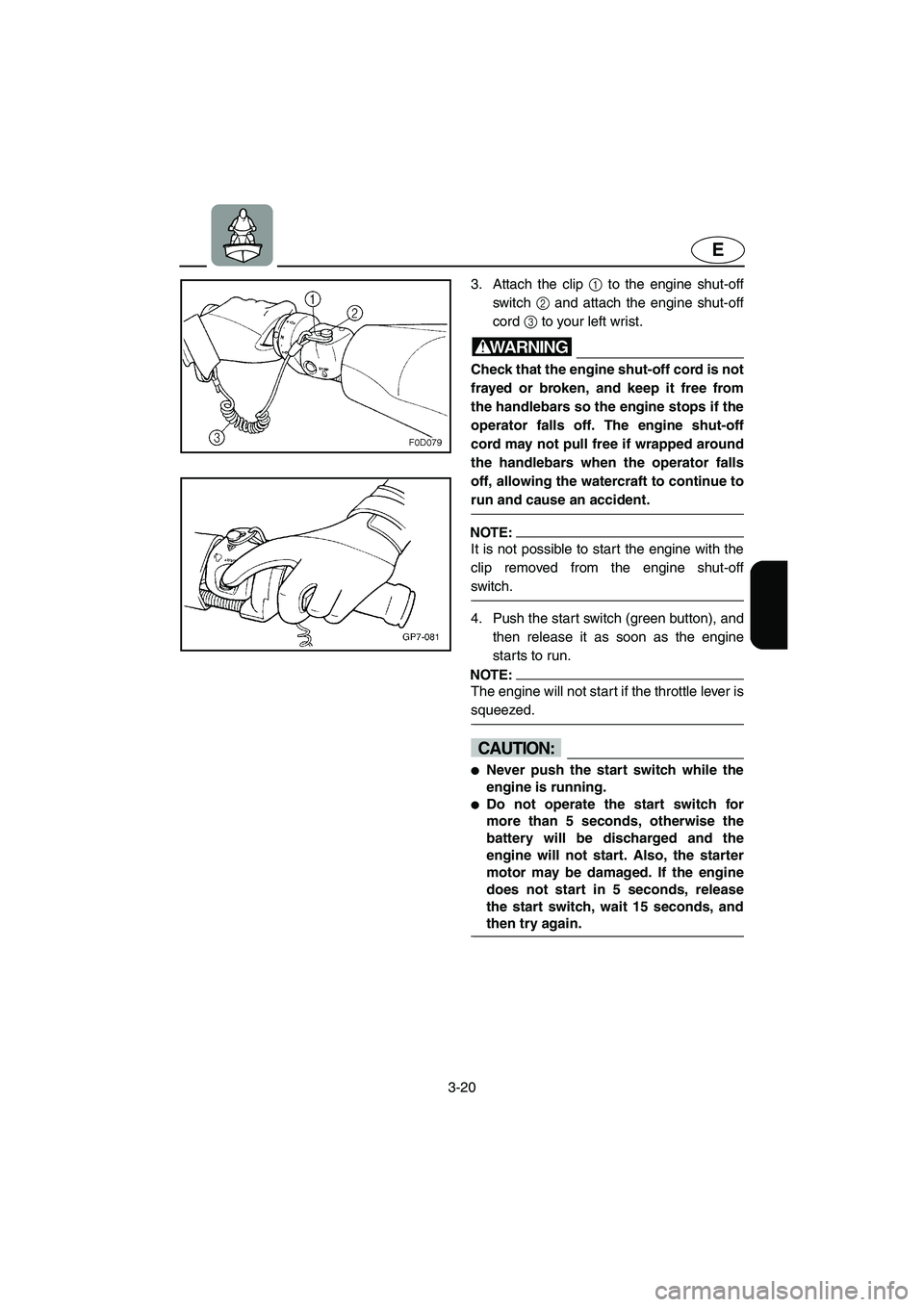

3. Attach the clip 1 to the engine shut-off
switch 2 and attach the engine shut-off
cord 3 to your left wrist.
WARNING@ Check that the engine shut-off cord is not
frayed or broken, and keep it free from
the handlebars so the engine stops if the
operator falls off. The engine shut-off
cord may not pull free if wrapped around
the handlebars when the operator falls
off, allowing the watercraft to continue to
run and cause an accident.
@
NOTE:@ It is not possible to start the engine with the
clip removed from the engine shut-off
switch.
@
4. Push the start switch (green button), and
then release it as soon as the engine
starts to run.
NOTE:@ The engine will not start if the throttle lever is
squeezed.
@
CAUTION:@ Never push the start switch while the
engine is running.
Do not operate the start switch for
more than 5 seconds, otherwise the
battery will be discharged and the
engine will not start. Also, the starter
motor may be damaged. If the engine
does not start in 5 seconds, release
the start switch, wait 15 seconds, and
then try again.
@
E_F1X-70.book Page 20 Friday, August 26, 2005 11:00 AM
Page 90 of 152
3-21
E
EJU10660

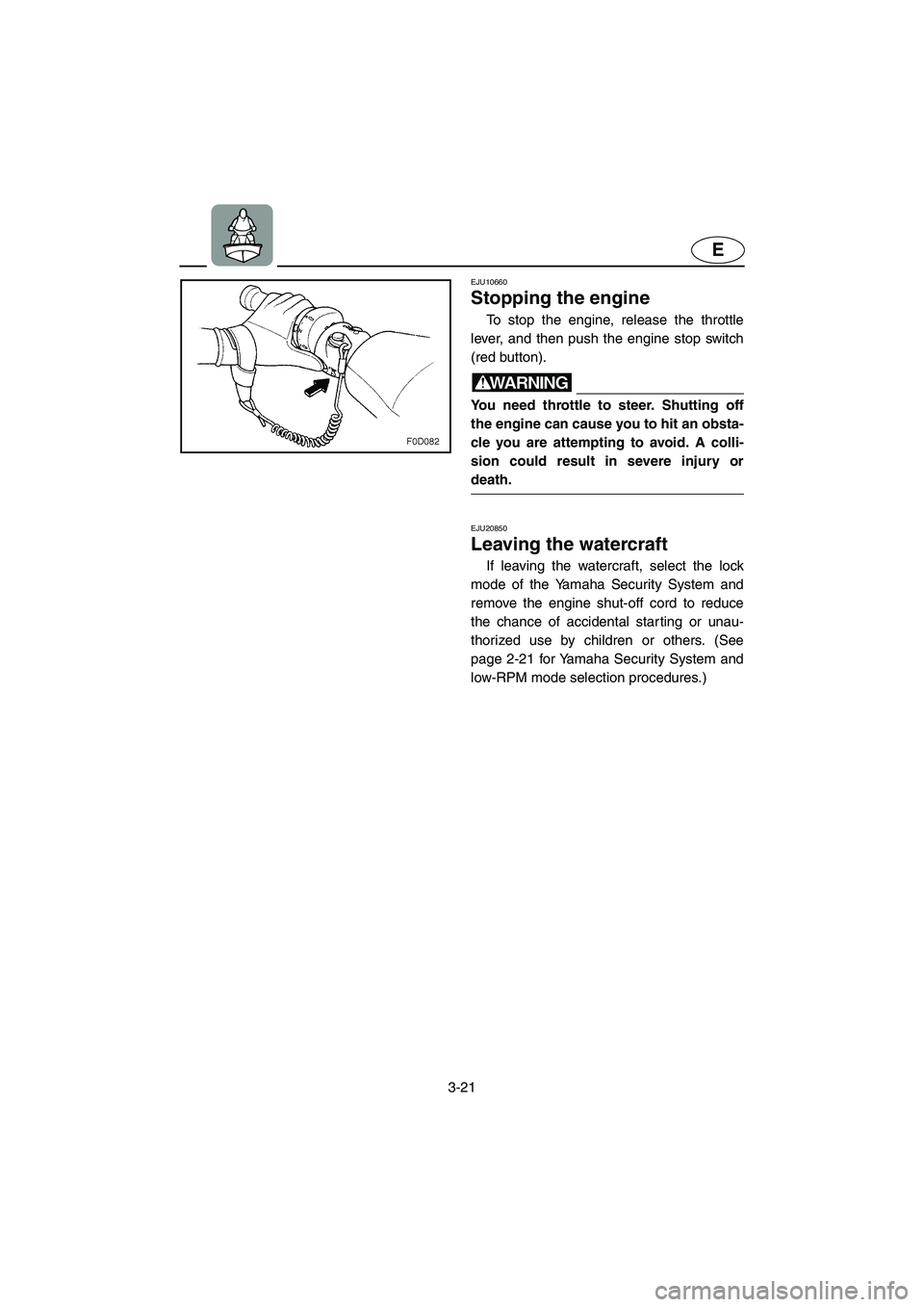

Stopping the engine
To stop the engine, release the throttle
lever, and then push the engine stop switch
(red button).
WARNING@ You need throttle to steer. Shutting off
the engine can cause you to hit an obsta-
cle you are attempting to avoid. A colli-
sion could result in severe injury or
death.
@
EJU20850
Leaving the watercraft
If leaving the watercraft, select the lock
mode of the Yamaha Security System and
remove the engine shut-off cord to reduce
the chance of accidental starting or unau-
thorized use by children or others. (See
page 2-21 for Yamaha Security System and
low-RPM mode selection procedures.)
E_F1X-70.book Page 21 Friday, August 26, 2005 11:00 AM
