YAMAHA FX HO 2006 Owners Manual

4-12
E
EJU21590

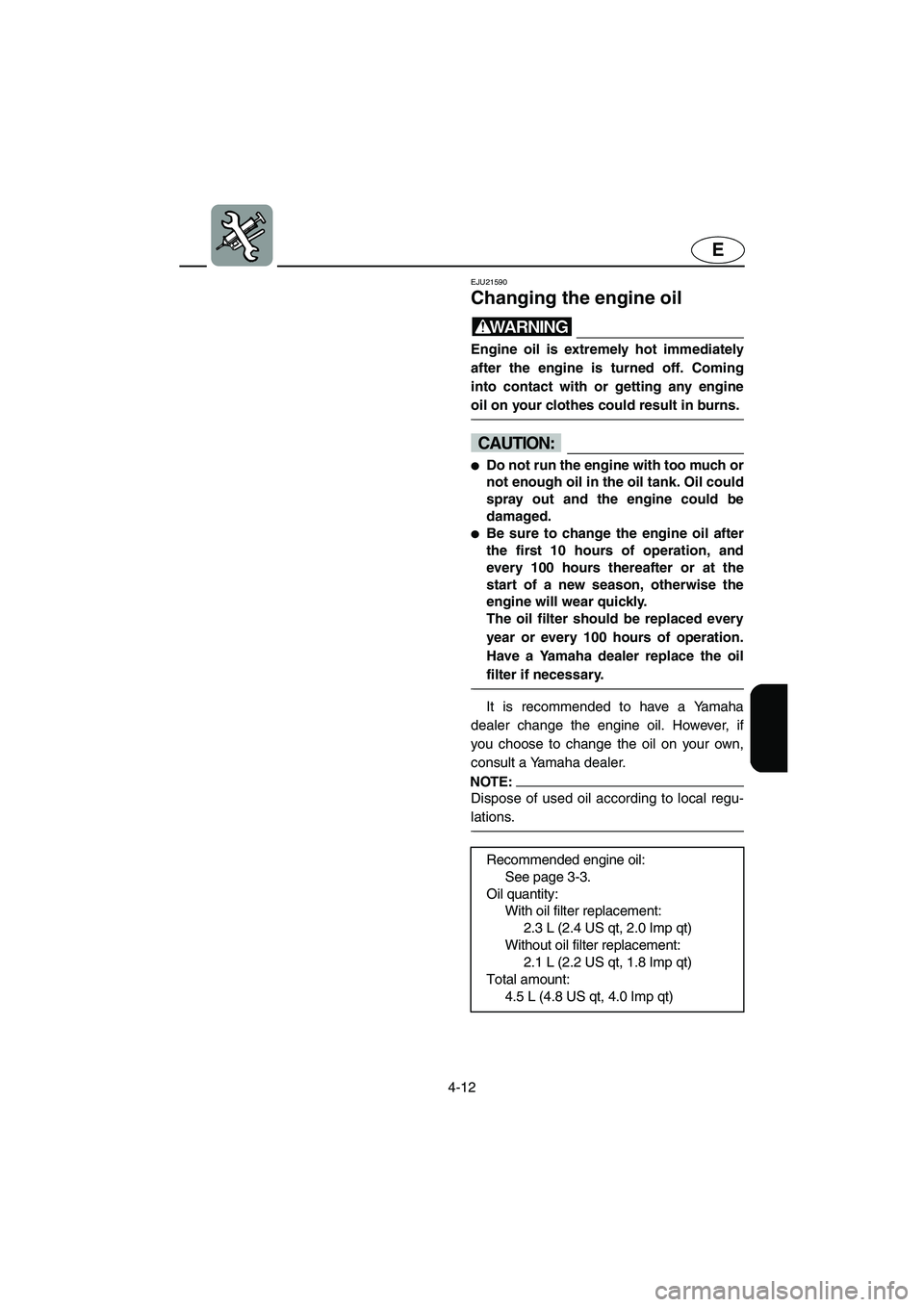

Changing the engine oil
WARNING@ Engine oil is extremely hot immediately
after the engine is turned off. Coming
into contact with or getting any engine
oil on your clothes could result in burns.
@
CAUTION:@
Do not run the engine with too much or
not enough oil in the oil tank. Oil could
spray out and the engine could be
damaged.

Be sure to change the engine oil after
the first 10 hours of operation, and
every 100 hours thereafter or at the
start of a new season, otherwise the
engine will wear quickly.
The oil filter should be replaced every
year or every 100 hours of operation.
Have a Yamaha dealer replace the oil
filter if necessary.
@
It is recommended to have a Yamaha
dealer change the engine oil. However, if
you choose to change the oil on your own,
consult a Yamaha dealer.
NOTE:@ Dispose of used oil according to local regu-
lations.
@
Recommended engine oil:
See page 3-3.
Oil quantity:
With oil filter replacement:
2.3 L (2.4 US qt, 2.0 Imp qt)
Without oil filter replacement:
2.1 L (2.2 US qt, 1.8 Imp qt)
Total amount:
4.5 L (4.8 US qt, 4.0 Imp qt)
E_F1X-70.book Page 12 Friday, August 26, 2005 11:00 AM

4-13
E

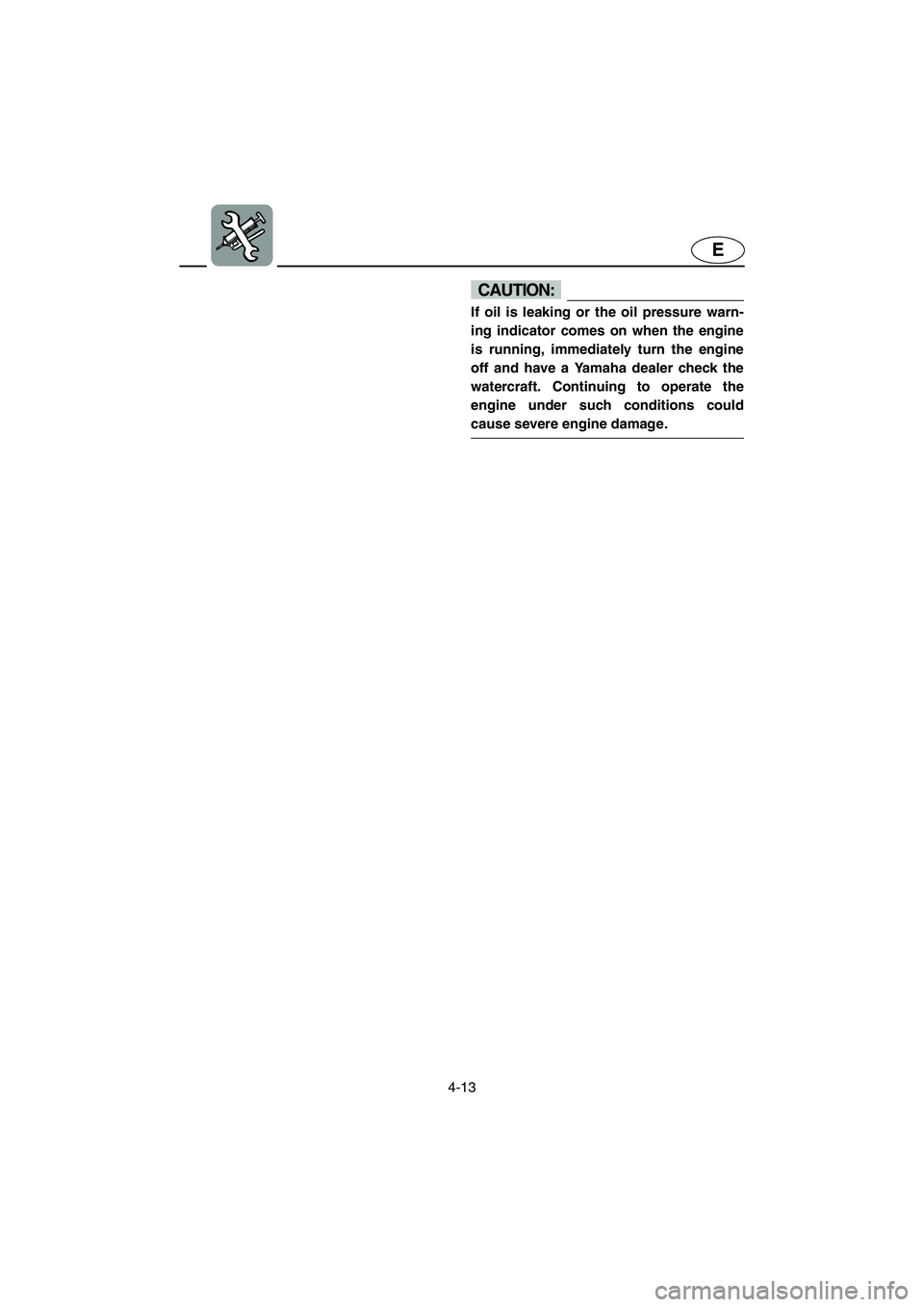

CAUTION:@ If oil is leaking or the oil pressure warn-
ing indicator comes on when the engine
is running, immediately turn the engine
off and have a Yamaha dealer check the
watercraft. Continuing to operate the
engine under such conditions could
cause severe engine damage.
@
E_F1X-70.book Page 13 Friday, August 26, 2005 11:00 AM

4-14
E
EJU18190

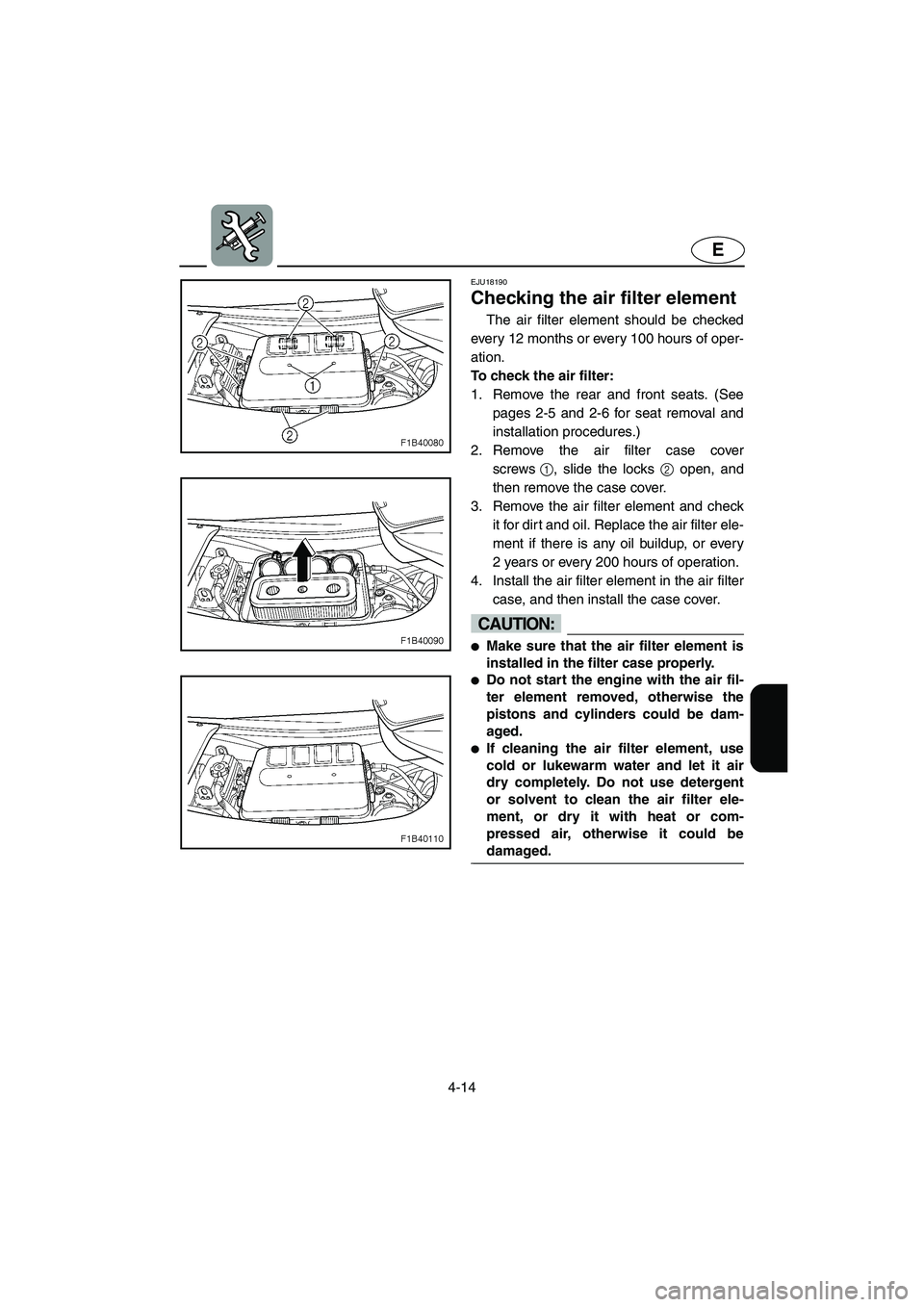

Checking the air filter element
The air filter element should be checked
every 12 months or every 100 hours of oper-
ation.
To check the air filter:
1. Remove the rear and front seats. (See
pages 2-5 and 2-6 for seat removal and
installation procedures.)
2. Remove the air filter case cover
screws1, slide the locks 2 open, and
then remove the case cover.
3. Remove the air filter element and check
it for dirt and oil. Replace the air filter ele-
ment if there is any oil buildup, or every
2 years or every 200 hours of operation.
4. Install the air filter element in the air filter
case, and then install the case cover.
CAUTION:@
Make sure that the air filter element is
installed in the filter case properly.

Do not start the engine with the air fil-
ter element removed, otherwise the
pistons and cylinders could be dam-
aged.

If cleaning the air filter element, use
cold or lukewarm water and let it air
dry completely. Do not use detergent
or solvent to clean the air filter ele-
ment, or dry it with heat or com-
pressed air, otherwise it could be
damaged.
@
E_F1X-70.book Page 14 Friday, August 26, 2005 11:00 AM

4-15
E
EJU18970

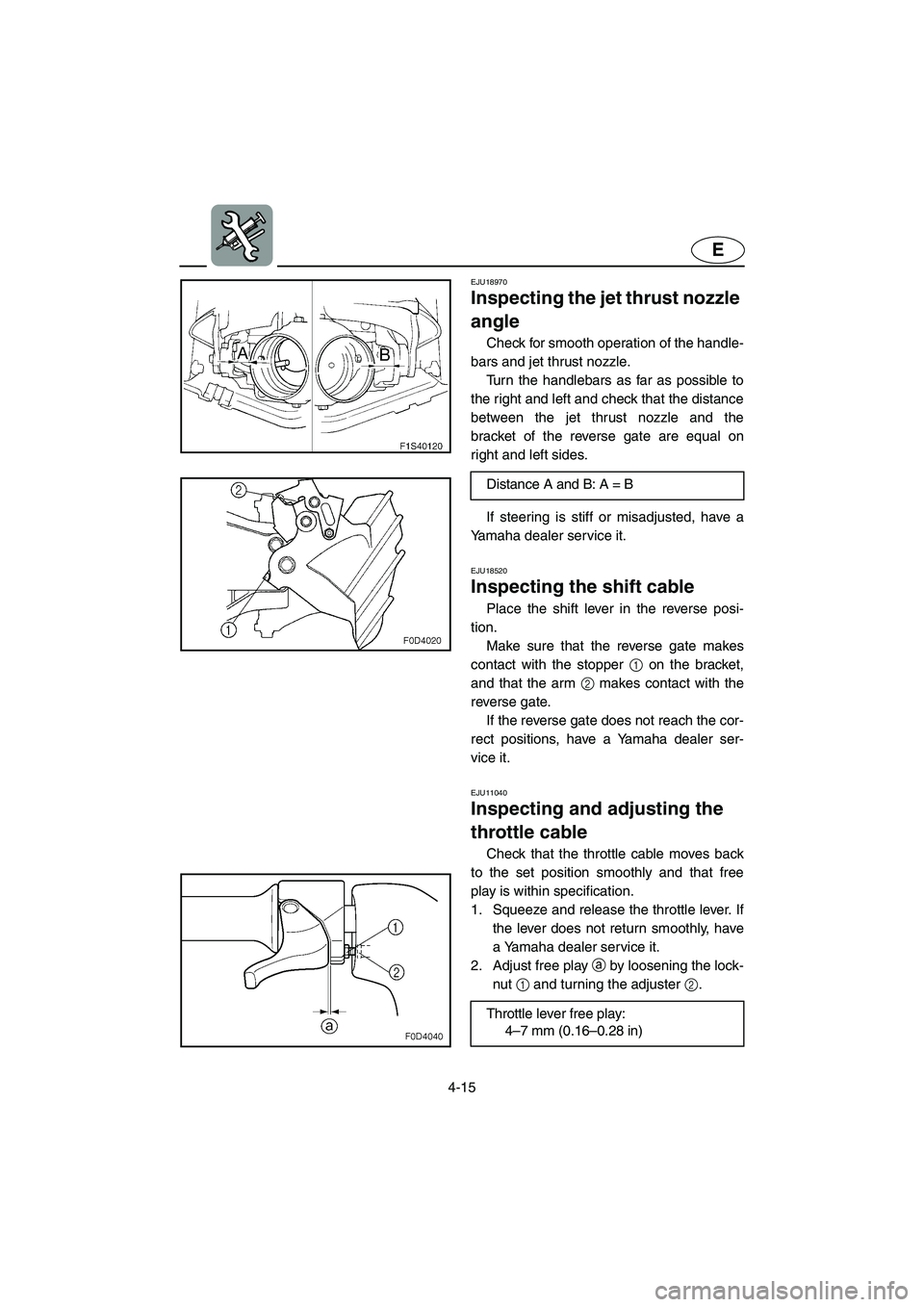

Inspecting the jet thrust nozzle
angle
Check for smooth operation of the handle-
bars and jet thrust nozzle.
Turn the handlebars as far as possible to
the right and left and check that the distance
between the jet thrust nozzle and the
bracket of the reverse gate are equal on
right and left sides.
If steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU18520
Inspecting the shift cable
Place the shift lever in the reverse posi-
tion.
Make sure that the reverse gate makes
contact with the stopper 1 on the bracket,
and that the arm 2 makes contact with the
reverse gate.
If the reverse gate does not reach the cor-
rect positions, have a Yamaha dealer ser-
vice it.
EJU11040
Inspecting and adjusting the
throttle cable
Check that the throttle cable moves back
to the set position smoothly and that free
play is within specification.
1. Squeeze and release the throttle lever. If
the lever does not return smoothly, have
a Yamaha dealer service it.
2. Adjust free play a by loosening the lock-
nut 1 and turning the adjuster 2. Distance A and B: A = B
Throttle lever free play:
4–7 mm (0.16–0.28 in)
E_F1X-70.book Page 15 Friday, August 26, 2005 11:00 AM

4-16
E
EJU21070
Cleaning and adjusting the
spark plugs
The spark plug is an important engine
component and is easy to inspect. The con-
dition of the spark plug can indicate some-
thing about the condition of the engine. For
example, if one spark plug shows a distinctly
different color, the engine could be defec-
tive. Do not attempt to diagnose any prob-
lems yourself. Have a Yamaha dealer
service the watercraft.
Remove and inspect the spark plugs peri-
odically; heat and deposits will cause the
spark plugs to slowly break down and erode.
If electrode erosion becomes excessive, or if
carbon and other deposits are excessive,
replace the spark plug with the specified
plug.
Removing a spark plug:
1. Remove the air filter case cover and air
filter element. (See page 4-14 for air filter
removal and installation procedures.)
2. Remove the spark plug cap.
CAUTION:@ Do not use any tools to remove or install
the spark plug cap, otherwise the igni-
tion coil coupler may get damaged. The
spark plug cap may be difficult to remove
because the rubber seal on the end of
the cap fits tightly. To remove the spark
plug cap, simply twist it back and forth
while pulling it up; to install it, twist it
back and forth while pushing it down.
@
3. Remove the spark plug.
Specified spark plug: NGK CR9EB
E_F1X-70.book Page 16 Friday, August 26, 2005 11:00 AM

4-17
E

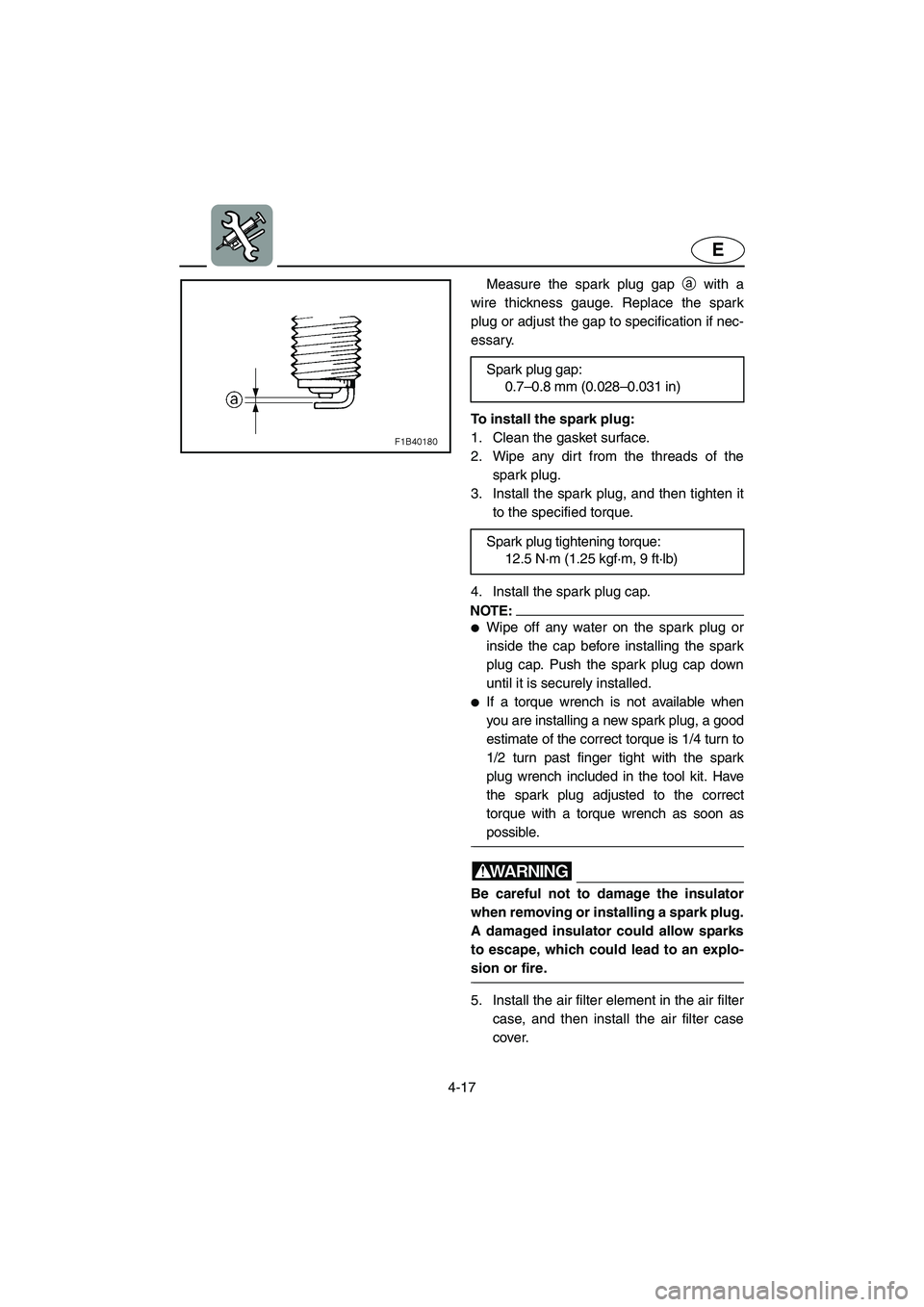

Measure the spark plug gap a with a
wire thickness gauge. Replace the spark
plug or adjust the gap to specification if nec-
essary.
To install the spark plug:
1. Clean the gasket surface.
2. Wipe any dirt from the threads of the
spark plug.
3. Install the spark plug, and then tighten it
to the specified torque.
4. Install the spark plug cap.
NOTE:@
Wipe off any water on the spark plug or
inside the cap before installing the spark
plug cap. Push the spark plug cap down
until it is securely installed.

If a torque wrench is not available when
you are installing a new spark plug, a good
estimate of the correct torque is 1/4 turn to
1/2 turn past finger tight with the spark
plug wrench included in the tool kit. Have
the spark plug adjusted to the correct
torque with a torque wrench as soon as
possible.
@
WARNING@ Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks
to escape, which could lead to an explo-
sion or fire.
@
5. Install the air filter element in the air filter
case, and then install the air filter case
cover. Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Spark plug tightening torque:
12.5 N·m (1.25 kgf·m, 9 ft·lb)
E_F1X-70.book Page 17 Friday, August 26, 2005 11:00 AM

4-18
E
EJU22440

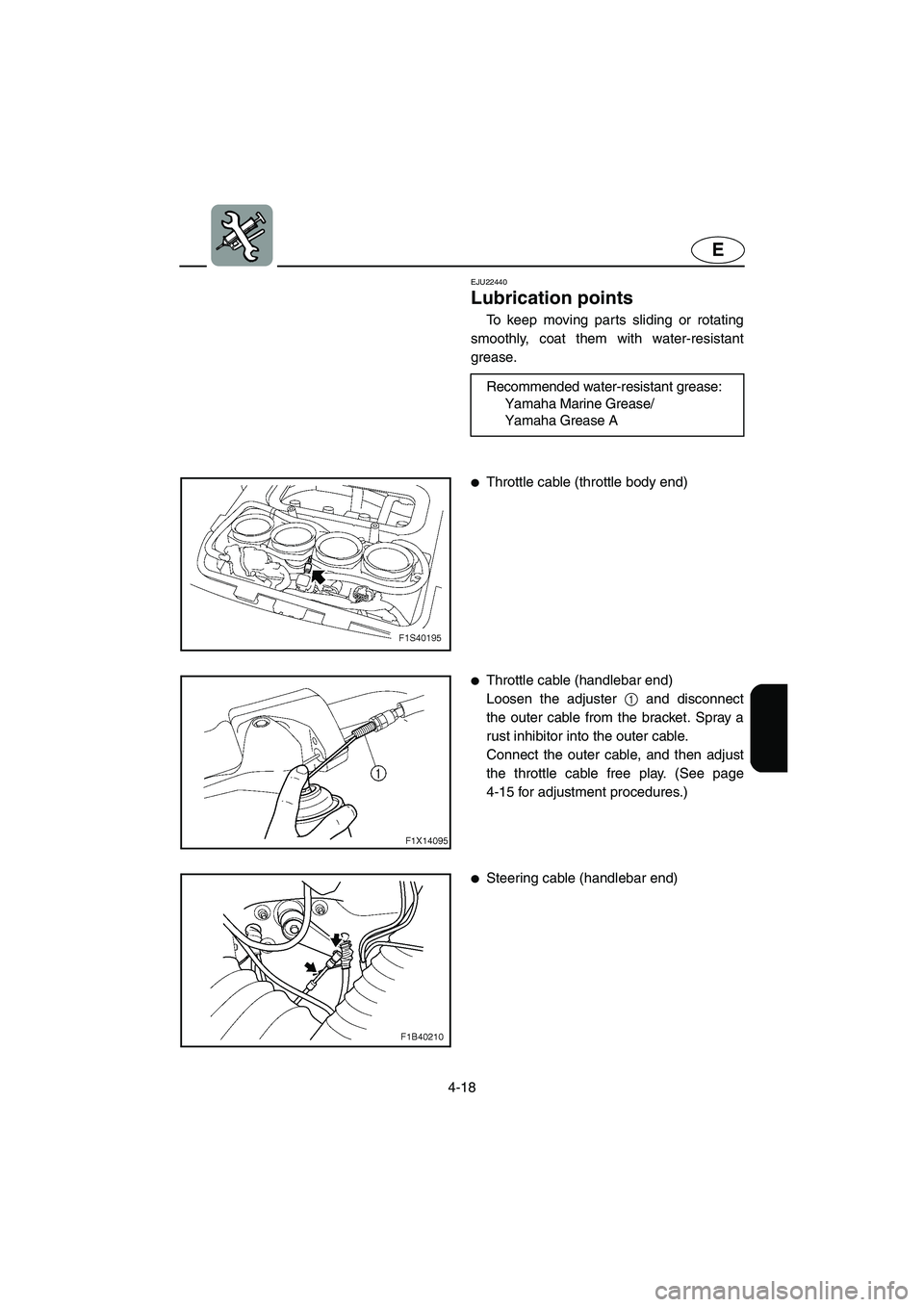

Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Recommended water-resistant grease:
Yamaha Marine Grease/
Yamaha Grease A

Throttle cable (throttle body end)

Throttle cable (handlebar end)
Loosen the adjuster 1 and disconnect
the outer cable from the bracket. Spray a
rust inhibitor into the outer cable.
Connect the outer cable, and then adjust
the throttle cable free play. (See page
4-15 for adjustment procedures.)

Steering cable (handlebar end)
E_F1X-70.book Page 18 Friday, August 26, 2005 11:00 AM

4-19
E

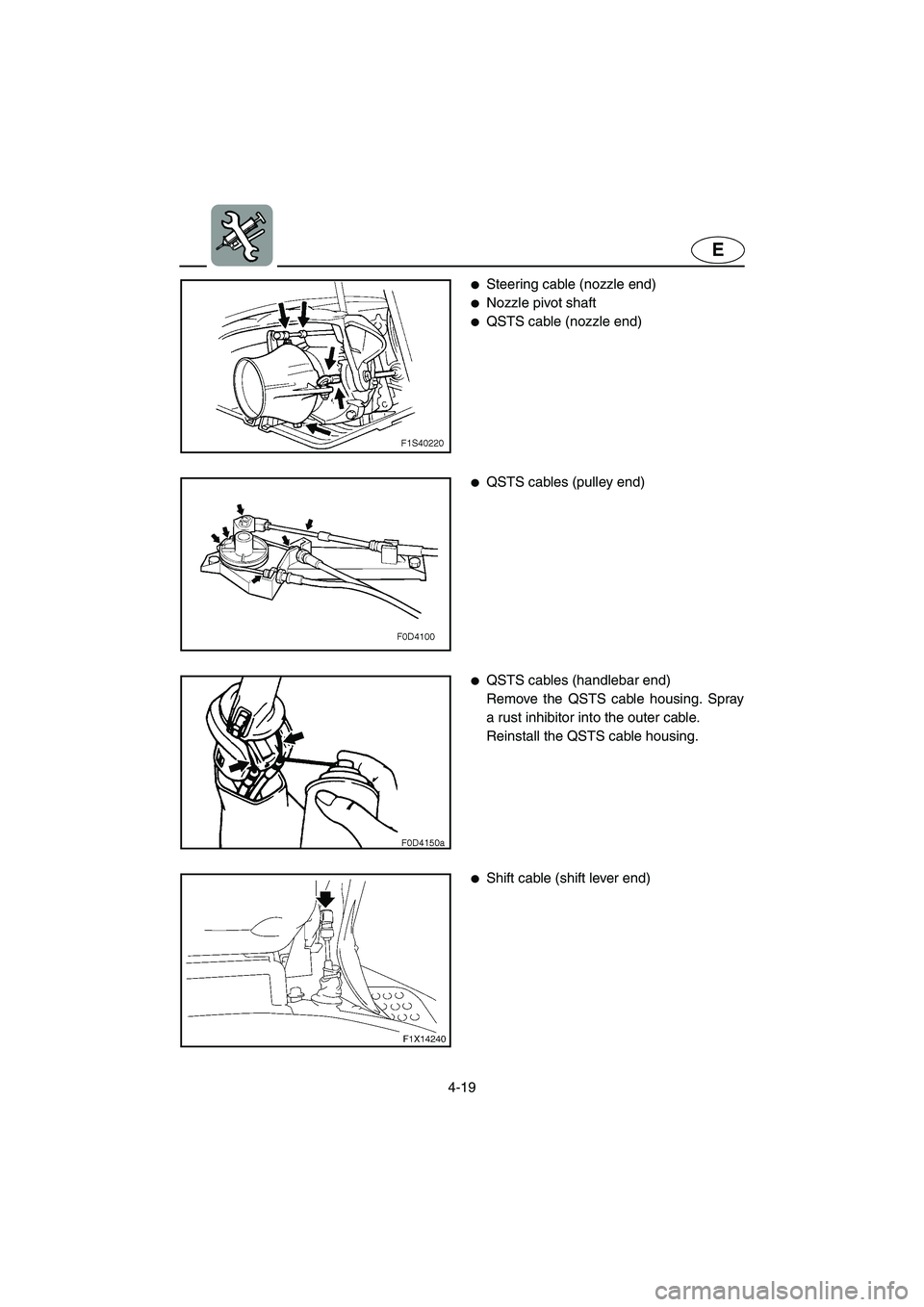

Steering cable (nozzle end)

Nozzle pivot shaft

QSTS cable (nozzle end)

QSTS cables (pulley end)

QSTS cables (handlebar end)
Remove the QSTS cable housing. Spray
a rust inhibitor into the outer cable.
Reinstall the QSTS cable housing.

Shift cable (shift lever end)
E_F1X-70.book Page 19 Friday, August 26, 2005 11:00 AM

4-20
E

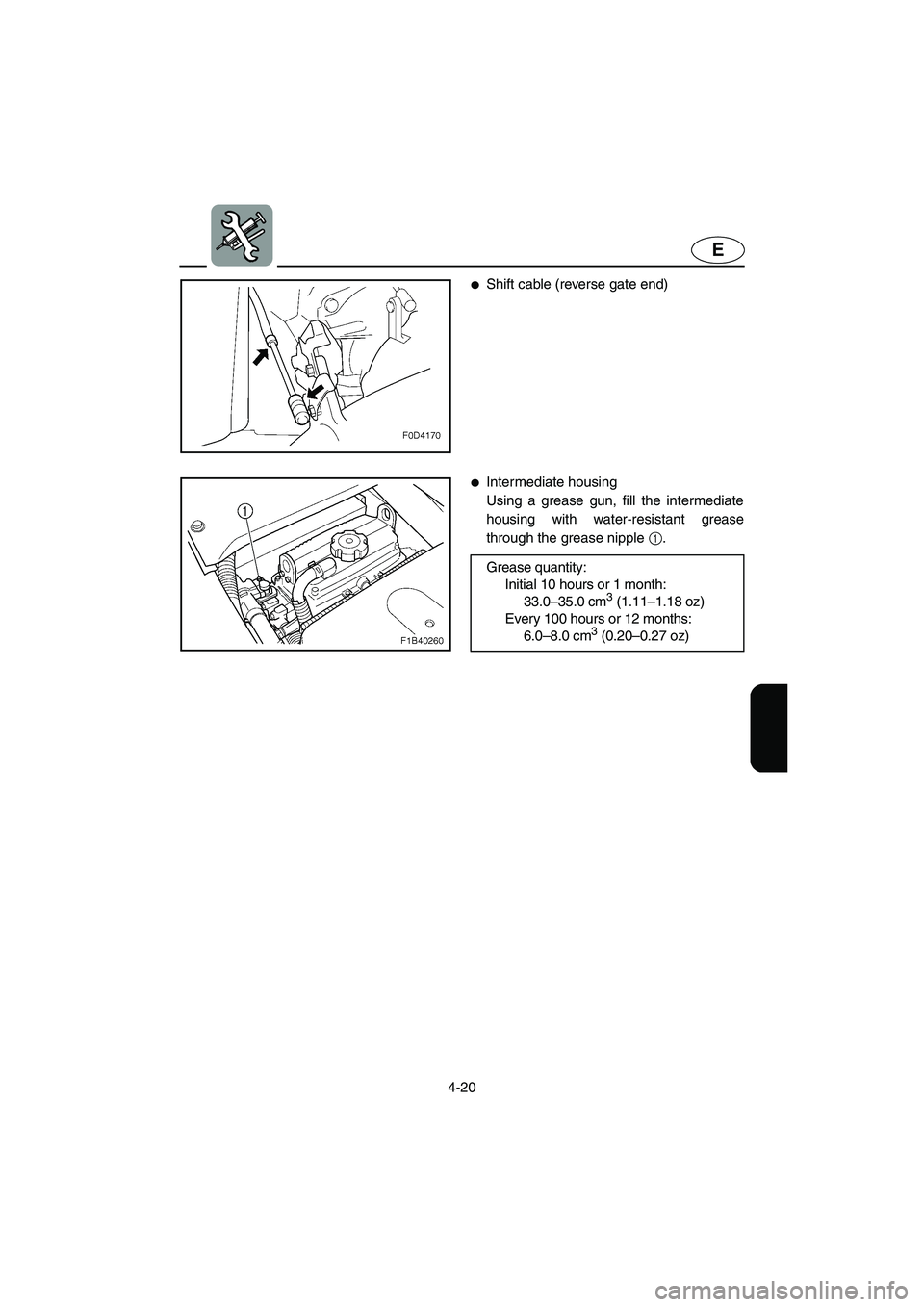

Shift cable (reverse gate end)

Intermediate housing
Using a grease gun, fill the intermediate
housing with water-resistant grease
through the grease nipple 1.
Grease quantity:
Initial 10 hours or 1 month:
33.0–35.0 cm
3 (1.11–1.18 oz)
Every 100 hours or 12 months:
6.0–8.0 cm
3 (0.20–0.27 oz)
E_F1X-70.book Page 20 Friday, August 26, 2005 11:00 AM

4-21
E
EJU19710

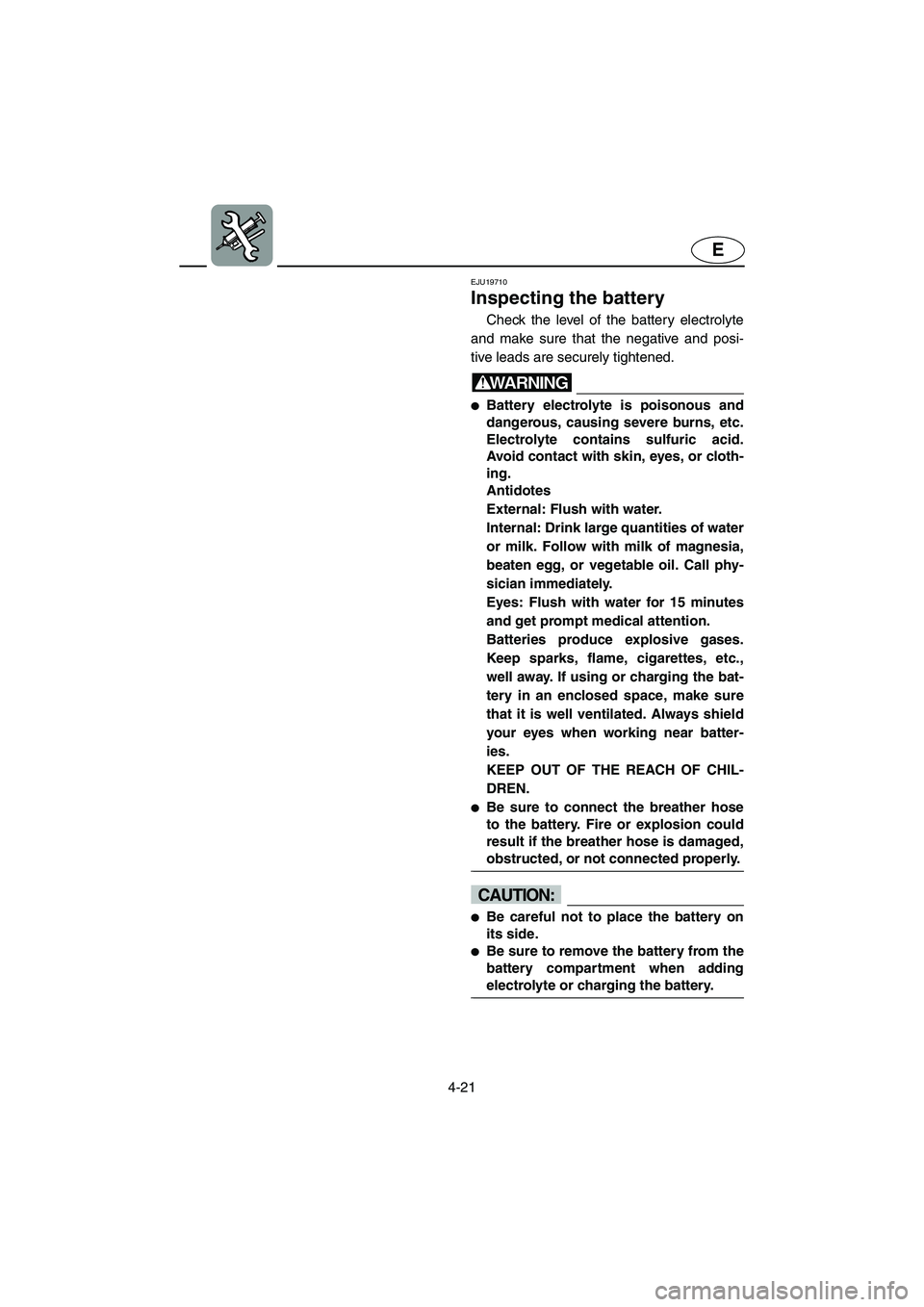

Inspecting the battery
Check the level of the battery electrolyte
and make sure that the negative and posi-
tive leads are securely tightened.
WARNING@
Battery electrolyte is poisonous and
dangerous, causing severe burns, etc.
Electrolyte contains sulfuric acid.
Avoid contact with skin, eyes, or cloth-
ing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call phy-
sician immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases.
Keep sparks, flame, cigarettes, etc.,
well away. If using or charging the bat-
tery in an enclosed space, make sure
that it is well ventilated. Always shield
your eyes when working near batter-
ies.
KEEP OUT OF THE REACH OF CHIL-
DREN.

Be sure to connect the breather hose
to the battery. Fire or explosion could
result if the breather hose is damaged,
obstructed, or not connected properly.
@
CAUTION:@
Be careful not to place the battery on
its side.

Be sure to remove the battery from the
battery compartment when adding
electrolyte or charging the battery.
@
E_F1X-70.book Page 21 Friday, August 26, 2005 11:00 AM
