YAMAHA FX HO CRUISER 2022 Owners Manual

Maintenance
112
EJU43103Periodic maintenance chart
The periodic maintenance chart gives general guidelines for periodic maintenance. Have a
Yamaha dealer perform the checks in the following chart. However, maintenance may need to be performed more frequently depending on your operating conditions. If you have any
questions, consult a Yamaha dealer.
This “ √” mark indicates items to be checked and serviced by a Yamaha dealer.
Item OperationInitial Thereafter every
Page
10 hours 50 hours
or 12
months *1 100
hours or 12
months *1 200
hours or 24
months *1
Fuel line Check fuel hoses and
clamps
√
—
Fuel filler cap/Wa-
ter separator Check O-rings for cracks
and deformation
√
—
Fuel tank Check installation and
straps
√
—
Water inlet strainer Check for clogs and dam-
age
√
—
Cooling water hos-
es Check for damage and
leakage, and check
clamps
√
—
Engine oil Replace √√ 114
Oil filter Replace √114
Intermediate hous-
ing Lubricate
√—
Spark plugs Check √√ —
Battery Check state of charge,
terminals and bands
√
—
Battery leads Check terminals √—
Steering master Check operation and for
looseness
√√
—
Steering cable Check exterior and con-
nections, and lubricate
√
—
Electric trim rod Check exterior and con-
nections, and lubricate
√
—
Shift rod and re-
verse gate Check exterior and con-
nections, and lubricate
√
—
Air filter element Check for damage and
dirt
√
—
Air intake hoses Check for damage, and
check clamps
√
—
Thr

ottle body Lubricate throttle valve √—
UF3V73E0.book Page 112 Friday, October 8, 2021 1:30 PM

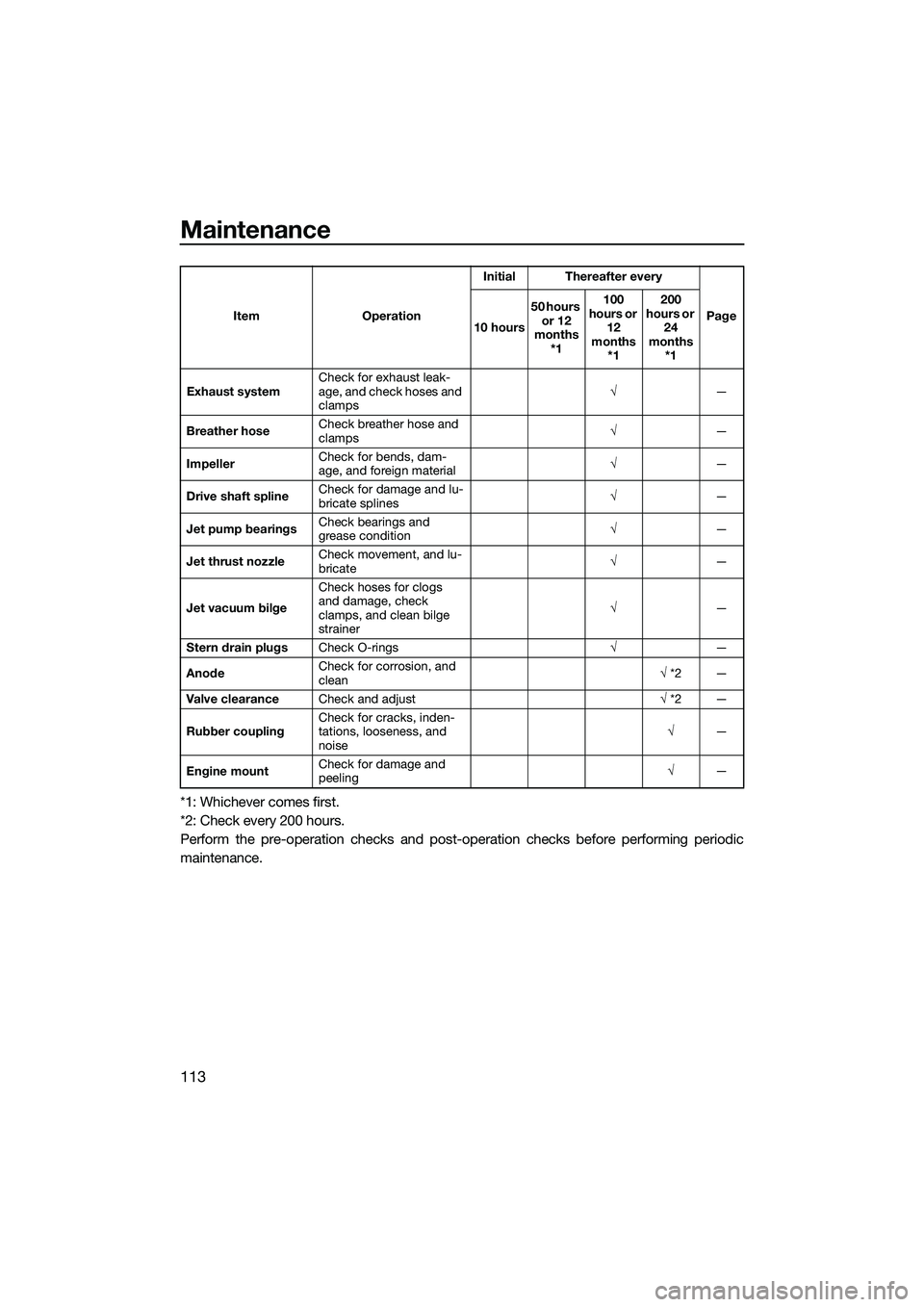

Maintenance
113
*1: Whichever comes first.
*2: Check every 200 hours.
Perform the pre-operation checks and post-operation checks before performing periodic
maintenance.
Exhaust systemCheck for exhaust leak-
age, and check hoses and
clamps √
—
Breather hose Check breather hose and
clamps
√
—
Impeller Check for bends, dam-
age, and foreign material
√
—
Drive shaft spline Check for damage and lu-
bricate splines
√
—
Jet pump bearings Check bearings and
grease condition
√
—
Jet thrust nozzle Check movement, and lu-
bricate
√
—
Jet vacuum bilge Check hoses for clogs
and damage, check
clamps, and clean bilge
strainer
√
—
Stern drain plugs Check O-rings √—
Anode Check for corrosion, and
clean
√
*2 —
Valve clearance Check and adjust √ *2 —
Rubber coupling Check for cracks, inden-
tations, looseness, and
noise √
—
Engine mount Check for damage and
peeling
√
—
Item Operation
Initial Thereafter every
Page
10 hours 50 hours
or 12
months *1 100
hours or 12
months *1 200
hours or 24
months *1
UF3V73E0.book Page 113 Friday, October 8, 2021 1:30 PM

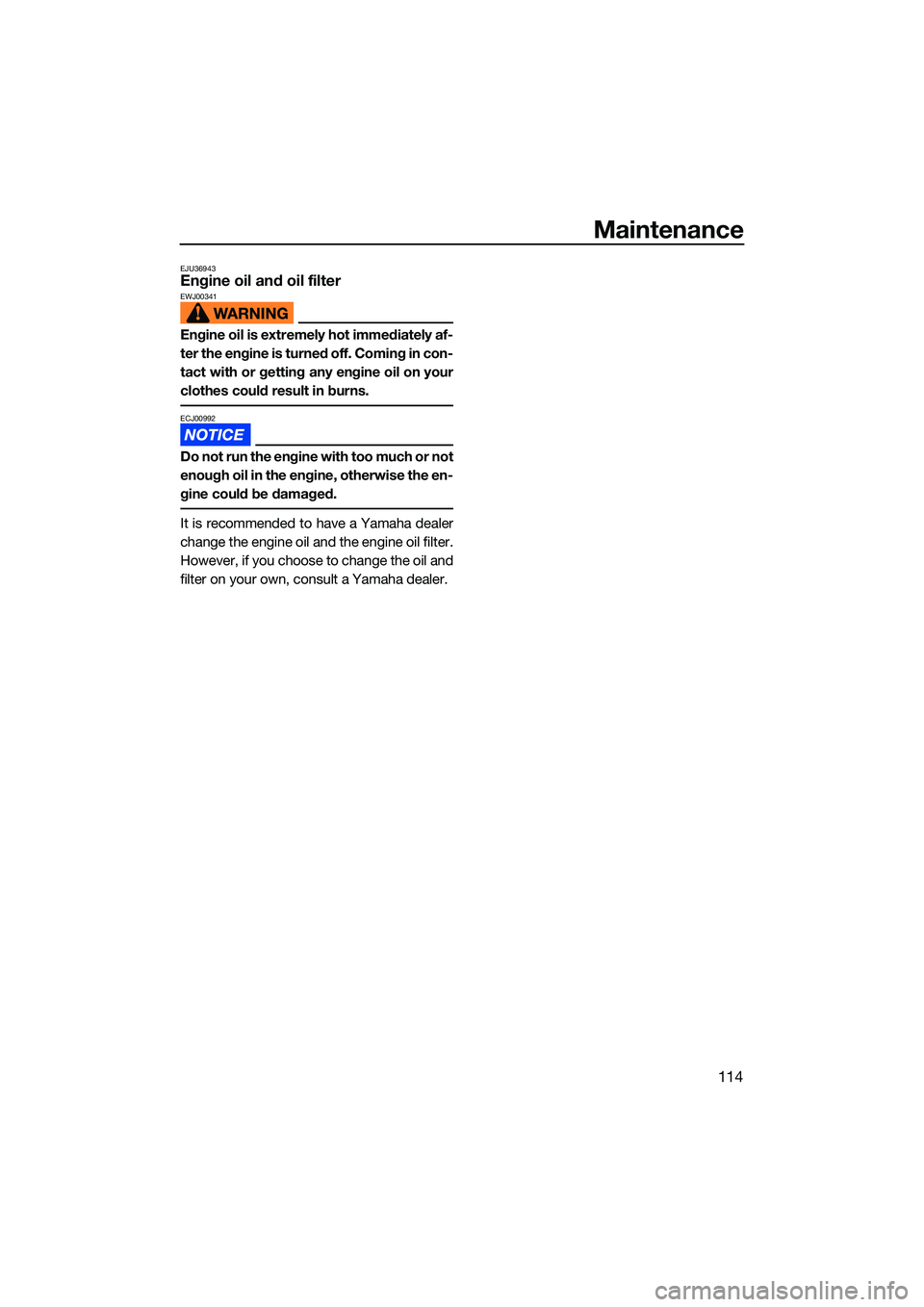

Maintenance
114
EJU36943Engine oil and oil filterEWJ00341
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
ECJ00992
Do not run the engine with too much or not
enough oil in the engine, otherwise the en-
gine could be damaged.
It is recommended to have a Yamaha dealer
change the engine oil and the engine oil filter.
However, if you choose to change the oil and
filter on your own, consult a Yamaha dealer.
UF3V73E0.book Page 114 Friday, October 8, 2021 1:30 PM

Specifications
115
EJU46451
Specifications
Watercraft capaci-
ty:Maximum people on board: 3 person
Maximum load capacity: 240 kg (530 lb)
Dimensions and
weight: Length: 3.58 m (140.9 in)
Width: 1.27 m (50.0 in)
Height: 1.23 m (48.4 in)
Dry weight: 381 kg (840 lb) (FX HO)
389 kg (858 lb) (FX HO with audio)
382 kg (842 lb) (FX CRUISER HO)
390 kg (860 lb) (FX CRUISER HO with
audio)
Performance: Maximum output (according to ISO
8665/SAE J1228): 125.0 kW at 7600 r/min
Maximum fuel consumption: 49.7 L/h (13.1 US gal/h,
10.9 Imp.gal/h)
Cruising range at full throttle: 1.41 hour
Trolling speed: 1300 ±100 r/min
Engine: Engine type: Liquid cooled 4-stroke, DOHC
Number of cylinders: 4
Engine displacement: 1812 cm³
Bore × stroke: 86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio: 11.0 : 1
Valve clearance-intake (cold): 0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold): 0.28–0.37 mm (0.0110–0.0146 in)
Lubrication system: Wet sump
Cooling system: Water
Starting system: Electric
Ignition system: T.C.I.
Spark plug (NGK): LFR6A
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Battery capacity: 12 V, 18 Ah
Battery type: YTX20L-BS
Charging system: Flywheel magneto
Drive unit: Propulsion system: Jet pump
Jet pump type: Axial flow, single stage
Impeller rotation: Counterclockwise
Jet thrust nozzle angle: 24+24 °
Jet thrust nozzle trim angle: -5, -3, 0, 3, 6 °
UF3V73E0.book Page 115 Friday, October 8, 2021 1:30 PM

Specifications
116
Fuel and oil:Recommended fuel: Regular unleaded gasoline
Minimum octane rating (PON): 86
Minimum octane rating (RON): 90
Recommended engine oil: YAMALUBE 4W or 4-stroke motor oil
Recommended engine oil type SAE: SAE 10W-30, 10W-40, 20W-40,
20W-50
Recommended engine oil grade API: API SG, SH, SJ, SL
Fuel tank total capacity: 70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter re-
placement: 3.7 L (3.91 US qt, 3.26 Imp.qt)
Engine oil quantity without oil filter re-
placement: 3.5 L (3.70 US qt, 3.08 Imp.qt)
Engine oil total quantity: 5.3 L (5.60 US qt, 4.66 Imp.qt)
UF3V73E0.book Page 116 Friday, October 8, 2021 1:30 PM

Trouble recovery
117
EJU34562
Troubleshooting
If you have any trouble with your watercraft, use the troubleshooting chart to check for the
possible cause.
If you cannot find the cause, consult a Yamaha dealer.
EJU46132Troubleshooting chart
Confirm the possible cause and remedy, and then refer to the applicable page.
TROUBLEPOSSIBLE CAUSE REMEDYPAGE
Engine does not
start (Starter motor
does not turn over) Ya m a h a S e -
curity System
Lock mode selected Select unlock mode
24
Engine shut-
off switch Clip not in place Install clip
25
Fuse Burned out Have serviced by
Yamaha dealer —
Battery Run down Recharge106
Poor terminal con-
nections Tighten as required
106
Terminal corroded Clean or replace 106
Starter motor Faulty Have serviced by
Yamaha dealer —
Engine does not
start (Starter motor
turns over) Throttle lever Squeezed
Release24
Faulty Have serviced by
Yamaha dealer —
RiDE lever Squeezed Release24
Faulty Have serviced by
Yamaha dealer —
Fuel Fuel tank empty Refill as soon as pos-
sible 77
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Fuel injec-
tion system Fuel pump faulty Have serviced by
Yamaha dealer —
UF3V73E0.book Page 117 Friday, October 8, 2021 1:30 PM

Trouble recovery
118
Engine runs irregu-
larly or stallsFuel Fuel tank empty Refill as soon as pos-
sible77
Stale or contaminat-
ed Have serviced by
Yamaha dealer
—
Fuel tank Water or dirt present Have serviced by Yamaha dealer—
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Incorrect heat range Have serviced by Yamaha dealer —
Gap incorrect Have serviced by Yamaha dealer —
Electrical wir-
ing Loose connection Have serviced by
Yamaha dealer —
Fuel injec-
tion system Faulty or clogged in-
jectors Have serviced by
Yamaha dealer
—
Warning is dis-
played Fuel level
warningFuel tank empty Refill as soon as pos-
sible 77
Oil pressure
warning Oil pressure dropped Have serviced by
Yamaha dealer 65
Engine over-
heat warning Jet intake clogged Clean
120
Check en-
gine warning Faulty sensors Have serviced by
Yamaha dealer 64
TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF3V73E0.book Page 118 Friday, October 8, 2021 1:30 PM

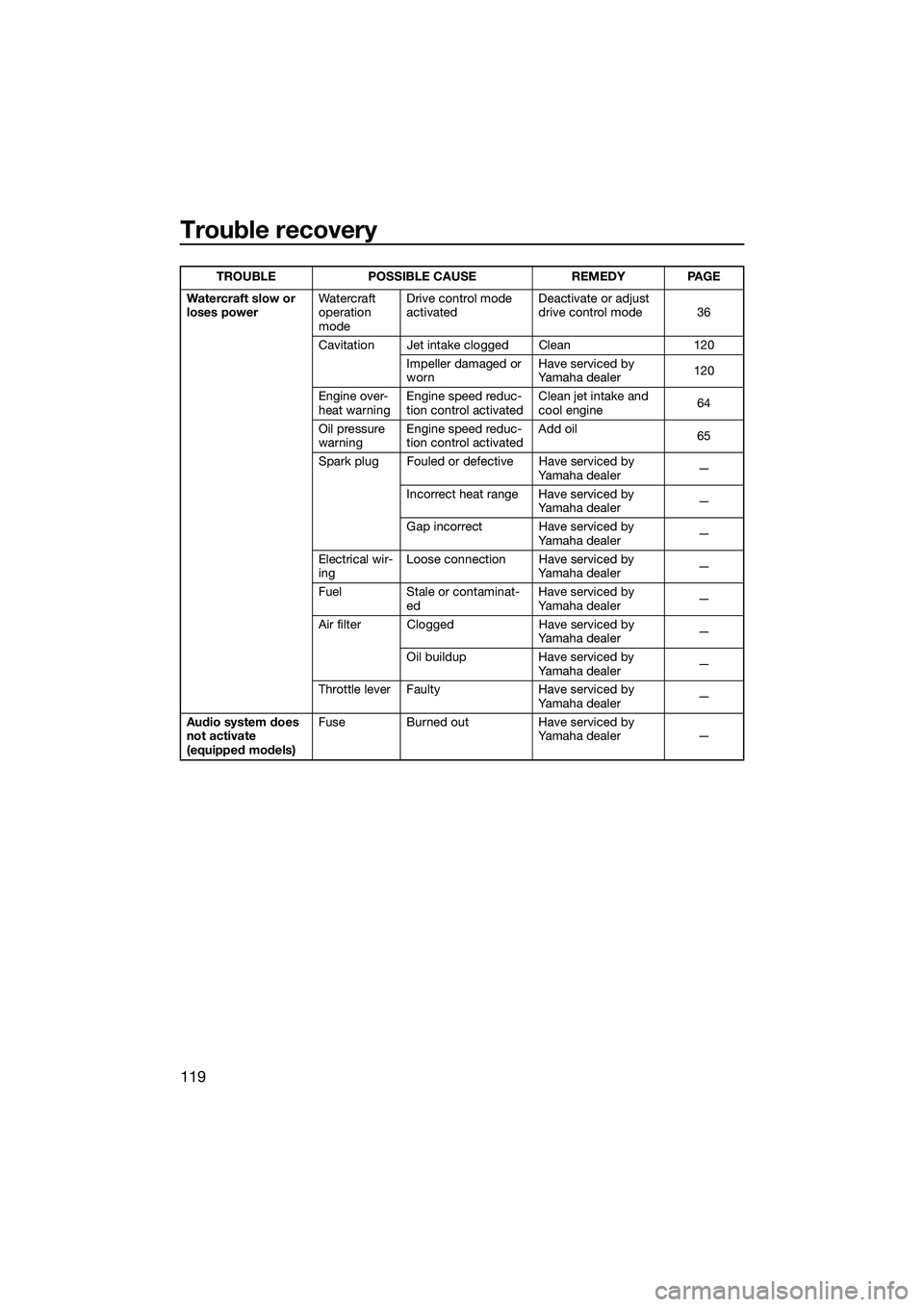

Trouble recovery
119
Watercraft slow or
loses powerWatercraft
operation
modeDrive control mode
activated
Deactivate or adjust
drive control mode 36
Cavitation Jet intake clogged Clean 120 Impeller damaged or
worn Have serviced by
Yamaha dealer
120
Engine over-
heat warning Engine speed reduc-
tion control activated Clean jet intake and
cool engine
64
Oil pressure
warning Engine speed reduc-
tion control activated Add oil
65
Spark plug Fouled or defective Have serviced by Yamaha dealer—
Incorrect heat range Have serviced by Yamaha dealer —
Gap incorrect Have serviced by Yamaha dealer —
Electrical wir-
ing Loose connection Have serviced by
Yamaha dealer —
Fuel Stale or contaminat- ed Have serviced by
Yamaha dealer
—
Air filter Clogged Have serviced by Yamaha dealer—
Oil buildup Have serviced by Yamaha dealer —
Throttle lever Faulty Have serviced by Yamaha dealer—
Audio system does
not activate
(equipped models) Fuse Burned out Have serviced by
Yamaha dealer —
TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF3V73E0.book Page 119 Friday, October 8, 2021 1:30 PM

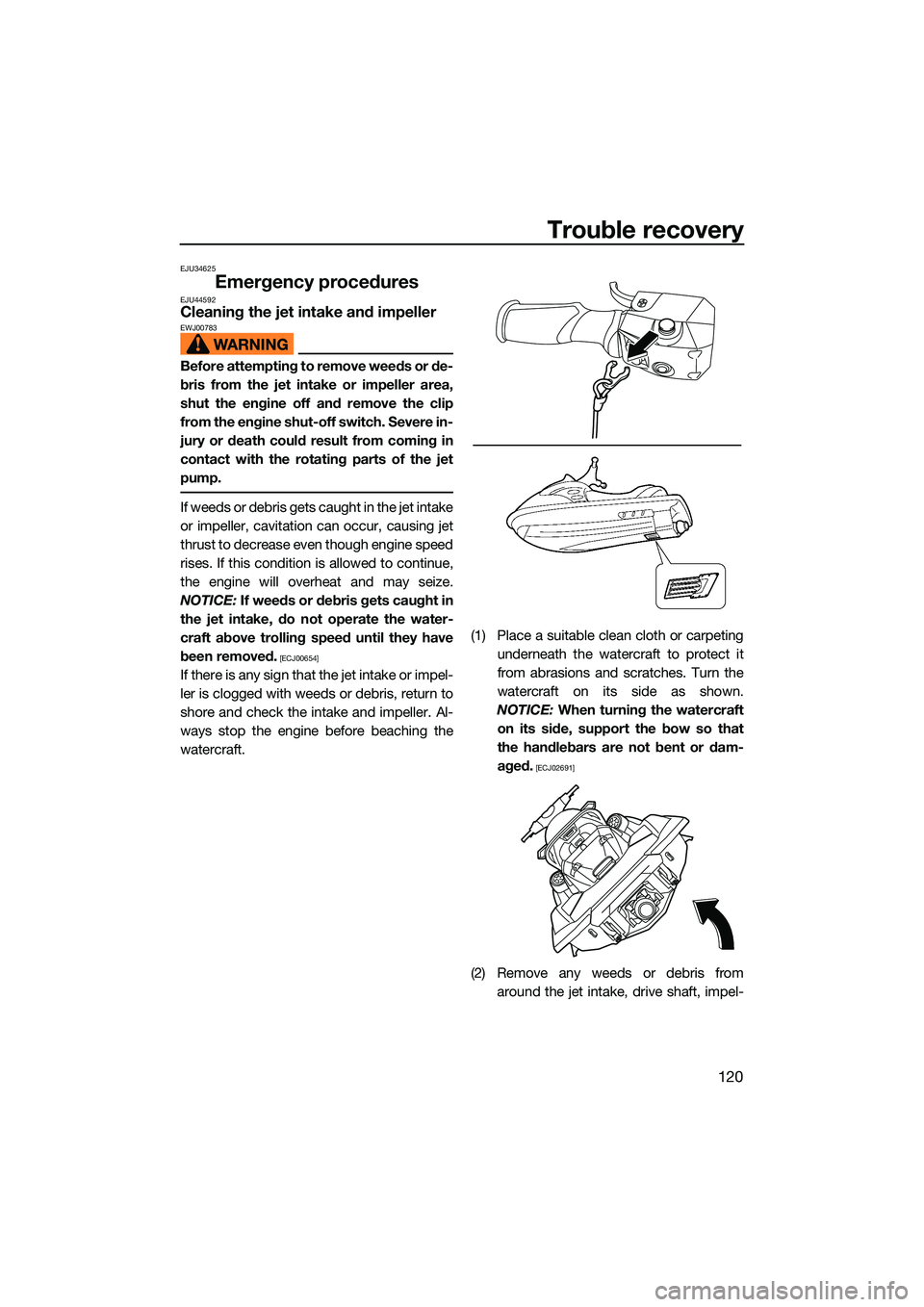

Trouble recovery
120
EJU34625
Emergency proceduresEJU44592Cleaning the jet intake and impellerEWJ00783
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the water-
craft above trolling speed until they have
been removed.
[ECJ00654]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-
ways stop the engine before beaching the
watercraft. (1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown.
NOTICE: When turning the watercraft
on its side, support the bow so that
the handlebars are not bent or dam-
aged.
[ECJ02691]
(2) Remove any weeds or debris from around the jet intake, drive shaft, impel-
UF3V73E0.book Page 120 Friday, October 8, 2021 1:30 PM

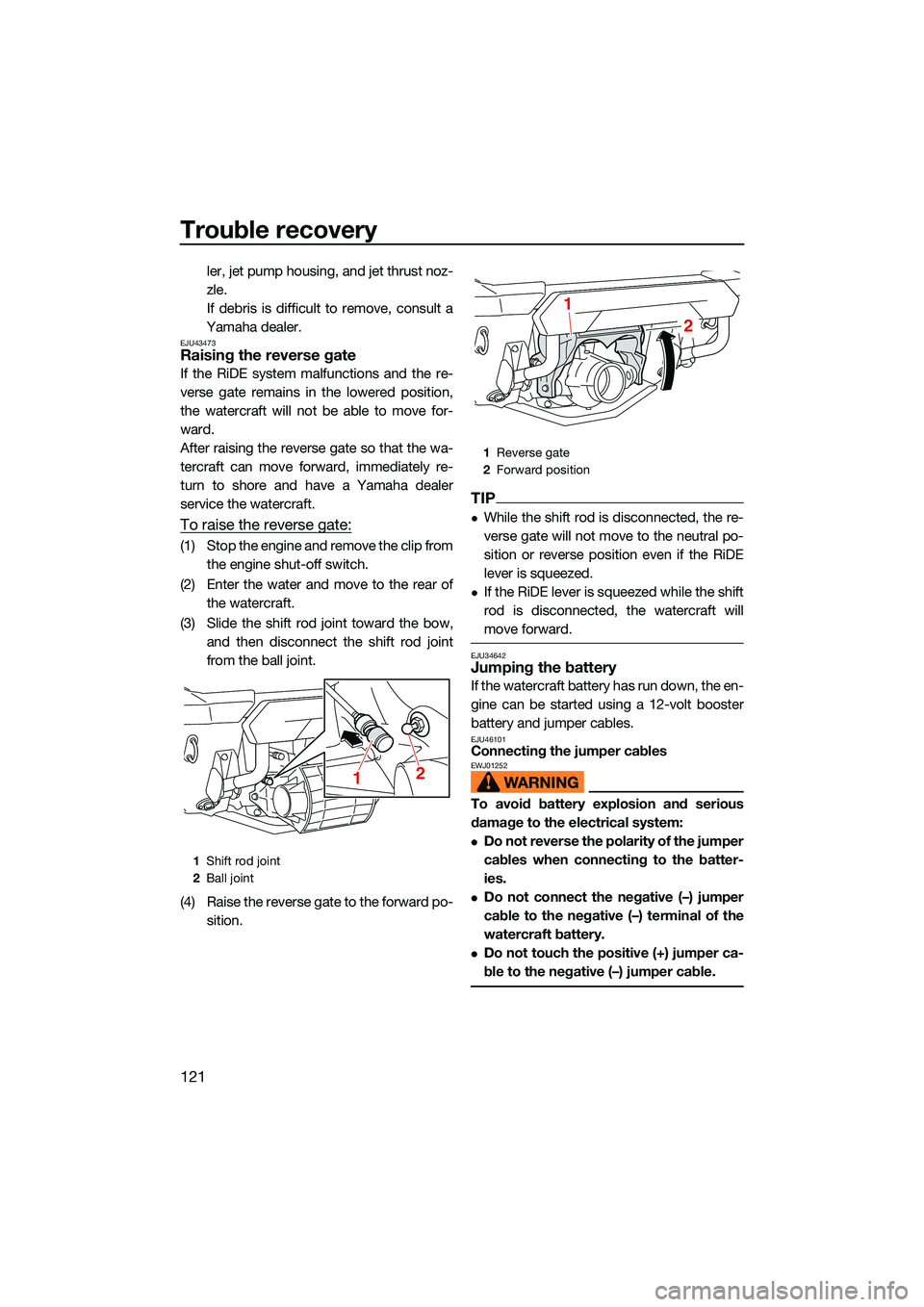

Trouble recovery
121
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.
EJU43473Raising the reverse gate
If the RiDE system malfunctions and the re-
verse gate remains in the lowered position,
the watercraft will not be able to move for-
ward.
After raising the reverse gate so that the wa-
tercraft can move forward, immediately re-
turn to shore and have a Yamaha dealer
service the watercraft.
To raise the reverse gate:
(1) Stop the engine and remove the clip from the engine shut-off switch.
(2) Enter the water and move to the rear of the watercraft.
(3) Slide the shift rod joint toward the bow, and then disconnect the shift rod joint
from the ball joint.
(4) Raise the reverse gate to the forward po- sition.
TIP
While the shift rod is disconnected, the re-
verse gate will not move to the neutral po-
sition or reverse position even if the RiDE
lever is squeezed.
If the RiDE lever is squeezed while the shift
rod is disconnected, the watercraft will
move forward.
EJU34642Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU46101Connecting the jumper cablesEWJ01252
To avoid battery explosion and serious
damage to the electrical system:
Do not reverse the polarity of the jumper
cables when connecting to the batter-
ies.
Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.
Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
1Shift rod joint
2 Ball joint
1 2
1
Reverse gate
2 Forward position
2
1
UF3V73E0.book Page 121 Friday, October 8, 2021 1:30 PM
