Safety information
15

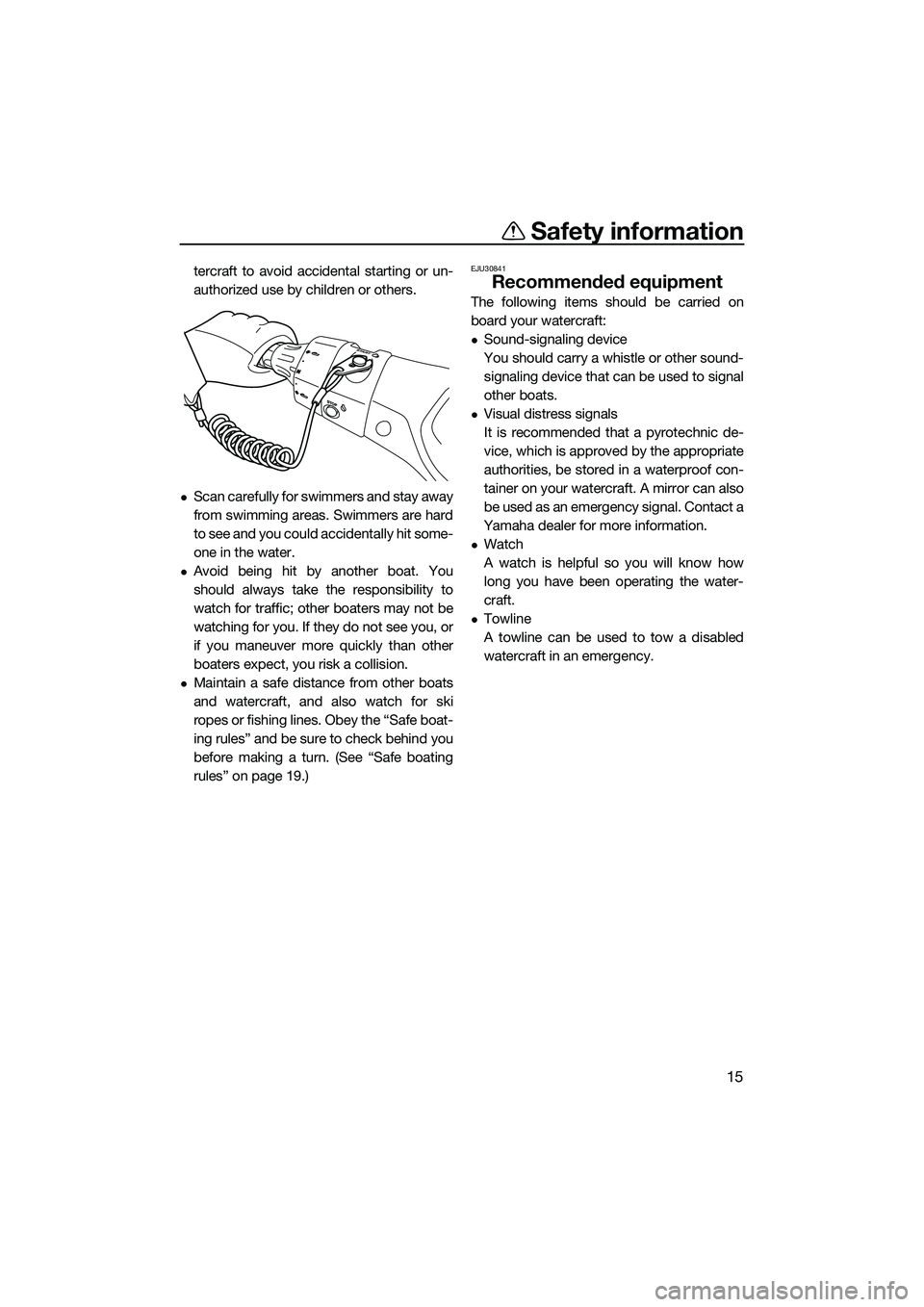

tercraft to avoid accidental starting or un-
authorized use by children or others.
Scan carefully for swimmers and stay away
from swimming areas. Swimmers are hard
to see and you could accidentally hit some-
one in the water.
Avoid being hit by another boat. You
should always take the responsibility to
watch for traffic; other boaters may not be
watching for you. If they do not see you, or
if you maneuver more quickly than other
boaters expect, you risk a collision.
Maintain a safe distance from other boats
and watercraft, and also watch for ski
ropes or fishing lines. Obey the “Safe boat-
ing rules” and be sure to check behind you
before making a turn. (See “Safe boating
rules” on page 19.)
EJU30841
Recommended equipment
The following items should be carried on
board your watercraft:
Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to signal
other boats.
Visual distress signals
It is recommended that a pyrotechnic de-
vice, which is approved by the appropriate
authorities, be stored in a waterproof con-
tainer on your watercraft. A mirror can also
be used as an emergency signal. Contact a
Yamaha dealer for more information.
Watch
A watch is helpful so you will know how
long you have been operating the water-
craft.
Towline
A towline can be used to tow a disabled
watercraft in an emergency.
UF3J70E0.book Page 15 Wednesd ay, October 9, 2013 2:07 PM

Safety information
16

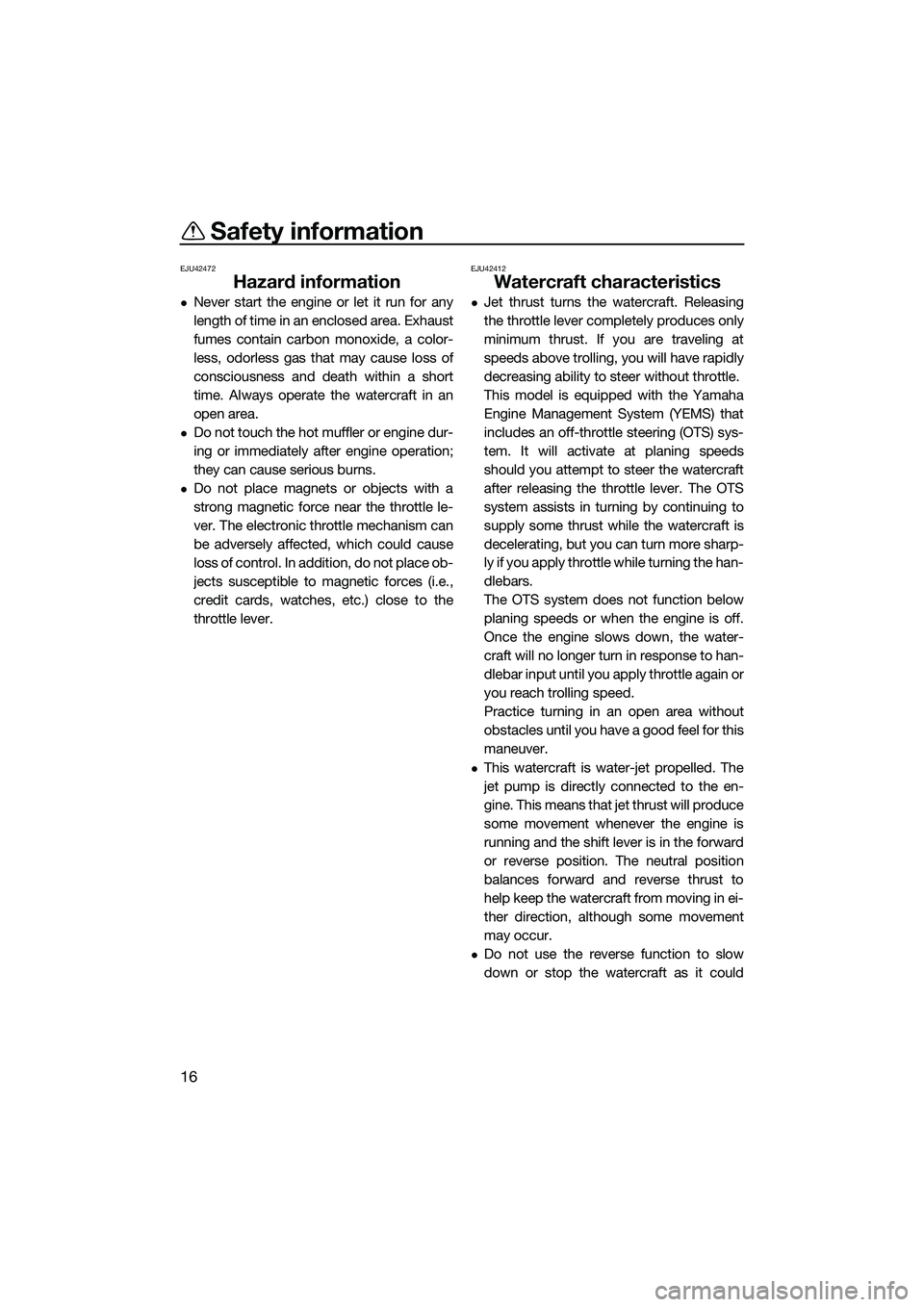

EJU42472
Hazard information
Never start the engine or let it run for any
length of time in an enclosed area. Exhaust
fumes contain carbon monoxide, a color-
less, odorless gas that may cause loss of
consciousness and death within a short
time. Always operate the watercraft in an
open area.
Do not touch the hot muffler or engine dur-
ing or immediately after engine operation;
they can cause serious burns.
Do not place magnets or objects with a
strong magnetic force near the throttle le-
ver. The electronic throttle mechanism can
be adversely affected, which could cause
loss of control. In addition, do not place ob-
jects susceptible to magnetic forces (i.e.,
credit cards, watches, etc.) close to the
throttle lever.
EJU42412
Watercraft characteristics
Jet thrust turns the watercraft. Releasing
the throttle lever completely produces only
minimum thrust. If you are traveling at
speeds above trolling, you will have rapidly
decreasing ability to steer without throttle.
This model is equipped with the Yamaha
Engine Management System (YEMS) that
includes an off-throttle steering (OTS) sys-
tem. It will activate at planing speeds
should you attempt to steer the watercraft
after releasing the throttle lever. The OTS
system assists in turning by continuing to
supply some thrust while the watercraft is
decelerating, but you can turn more sharp-
ly if you apply throttle while turning the han-
dlebars.
The OTS system does not function below
planing speeds or when the engine is off.
Once the engine slows down, the water-
craft will no longer turn in response to han-
dlebar input until you apply throttle again or
you reach trolling speed.
Practice turning in an open area without
obstacles until you have a good feel for this
maneuver.
This watercraft is water-jet propelled. The
jet pump is directly connected to the en-
gine. This means that jet thrust will produce
some movement whenever the engine is
running and the shift lever is in the forward
or reverse position. The neutral position
balances forward and reverse thrust to
help keep the watercraft from moving in ei-
ther direction, although some movement
may occur.
Do not use the reverse function to slow
down or stop the watercraft as it could
UF3J70E0.book Page 16 Wednesday, October 9, 2013 2:07 PM

Safety information
17

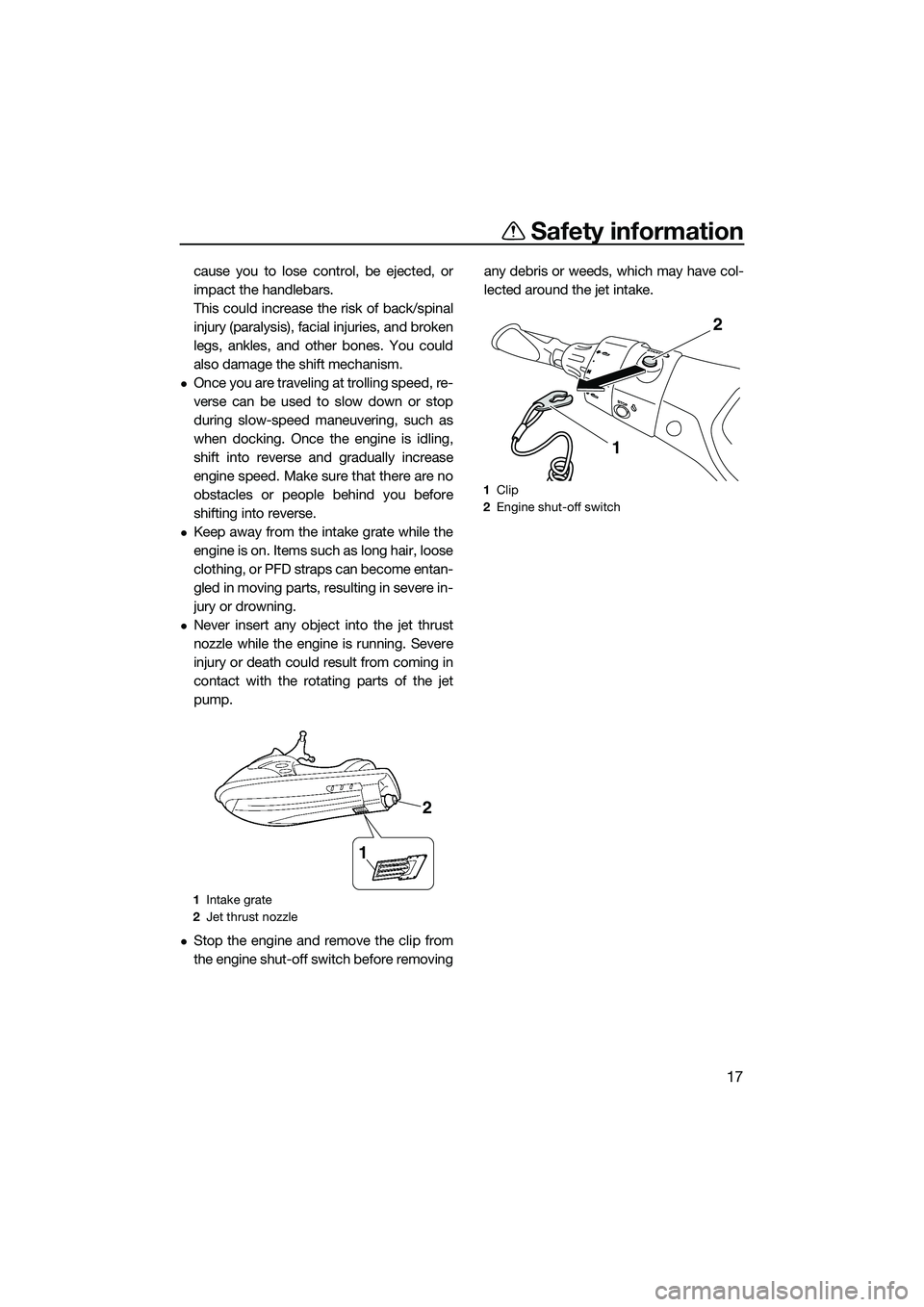

cause you to lose control, be ejected, or
impact the handlebars.
This could increase the risk of back/spinal
injury (paralysis), facial injuries, and broken
legs, ankles, and other bones. You could
also damage the shift mechanism.
Once you are traveling at trolling speed, re-
verse can be used to slow down or stop
during slow-speed maneuvering, such as
when docking. Once the engine is idling,
shift into reverse and gradually increase
engine speed. Make sure that there are no
obstacles or people behind you before
shifting into reverse.
Keep away from the intake grate while the
engine is on. Items such as long hair, loose
clothing, or PFD straps can become entan-
gled in moving parts, resulting in severe in-
jury or drowning.
Never insert any object into the jet thrust
nozzle while the engine is running. Severe
injury or death could result from coming in
contact with the rotating parts of the jet
pump.
Stop the engine and remove the clip from
the engine shut-off switch before removingany debris or weeds, which may have col-
lected around the jet intake.
1
Intake grate
2 Jet thrust nozzle
1
2
1Clip
2 Engine shut-off switch
2
1
UF3J70E0.book Page 17 Wednesd ay, October 9, 2013 2:07 PM

Safety information
18
EJU30955

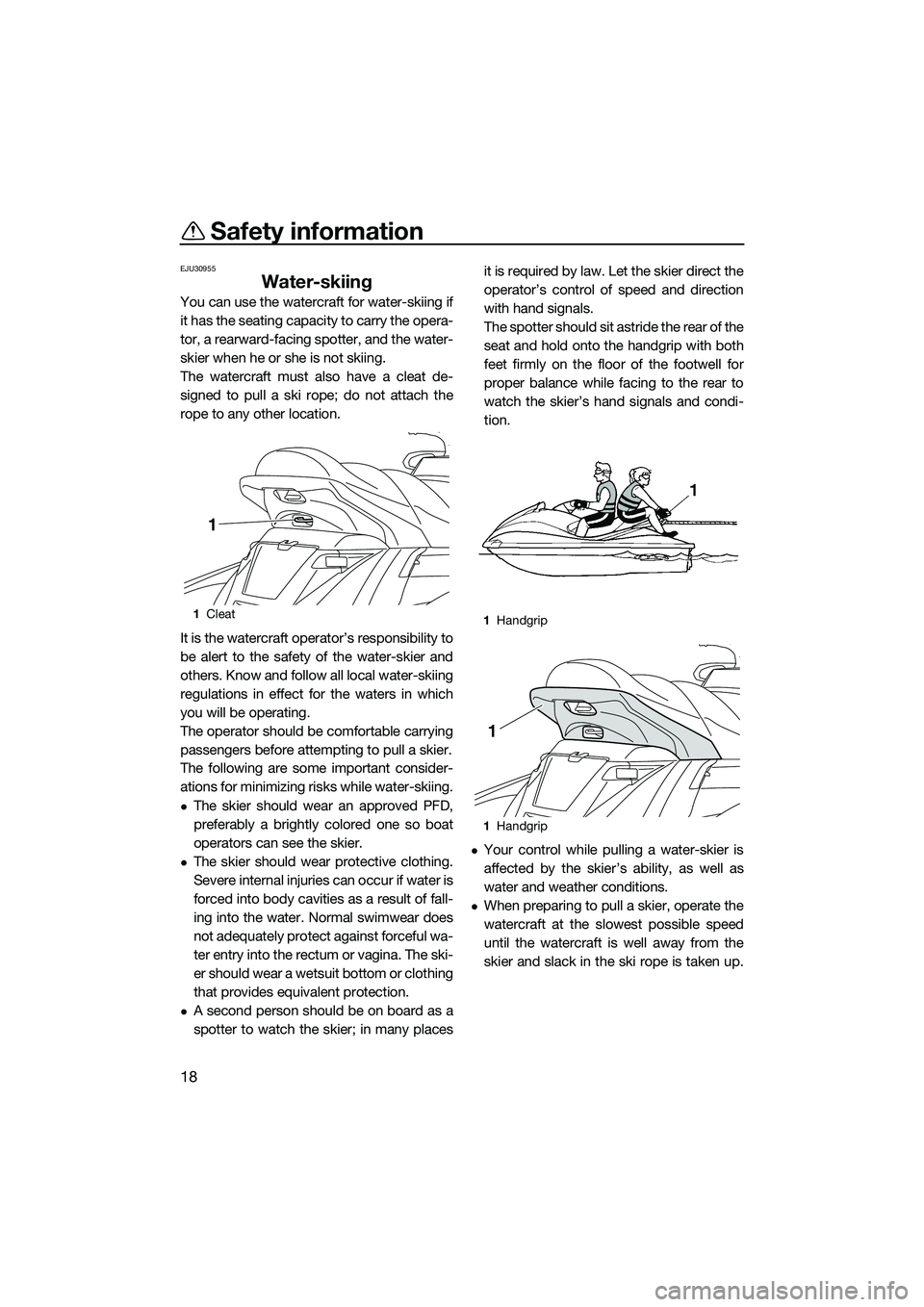

Water-skiing
You can use the watercraft for water-skiing if
it has the seating capacity to carry the opera-
tor, a rearward-facing spotter, and the water-
skier when he or she is not skiing.
The watercraft must also have a cleat de-
signed to pull a ski rope; do not attach the
rope to any other location.
It is the watercraft operator’s responsibility to
be alert to the safety of the water-skier and
others. Know and follow all local water-skiing
regulations in effect for the waters in which
you will be operating.
The operator should be comfortable carrying
passengers before attempting to pull a skier.
The following are some important consider-
ations for minimizing risks while water-skiing.
The skier should wear an approved PFD,
preferably a brightly colored one so boat
operators can see the skier.
The skier should wear protective clothing.
Severe internal injuries can occur if water is
forced into body cavities as a result of fall-
ing into the water. Normal swimwear does
not adequately protect against forceful wa-
ter entry into the rectum or vagina. The ski-
er should wear a wetsuit bottom or clothing
that provides equivalent protection.
A second person should be on board as a
spotter to watch the skier; in many placesit is required by law. Let the skier direct the
operator’s control of speed and direction
with hand signals.
The spotter should sit astride the rear of the
seat and hold onto the handgrip with both
feet firmly on the floor of the footwell for
proper balance while facing to the rear to
watch the skier’s hand signals and condi-
tion.
Your control while pulling a water-skier is
affected by the skier’s ability, as well as
water and weather conditions.
When preparing to pull a skier, operate the
watercraft at the slowest possible speed
until the watercraft is well away from the
skier and slack in the ski rope is taken up.
1
Cleat
1
1Handgrip
1 Handgrip
1
UF3J70E0.book Page 18 Wednesd ay, October 9, 2013 2:07 PM

Safety information
19

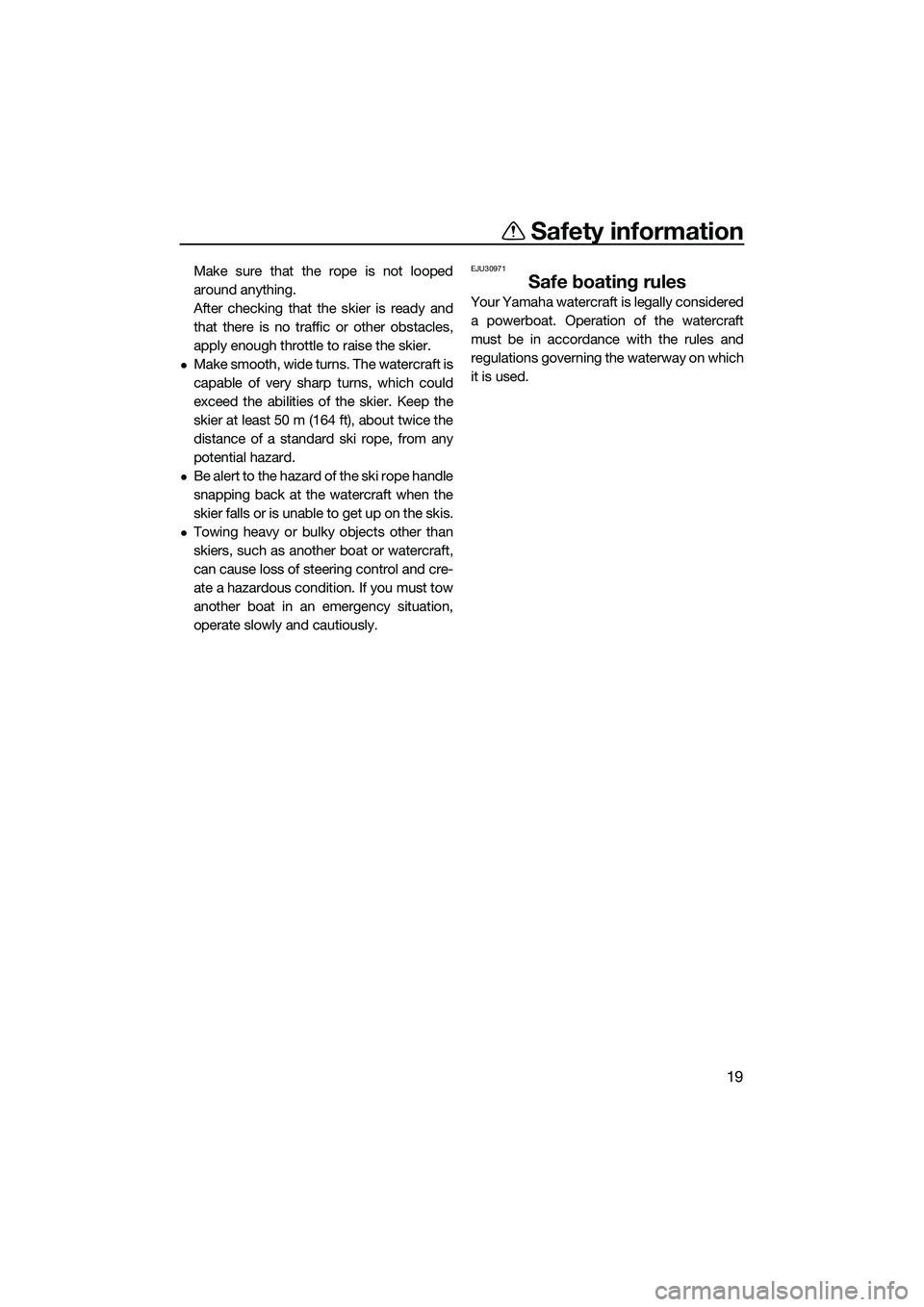

Make sure that the rope is not looped
around anything.
After checking that the skier is ready and
that there is no traffic or other obstacles,
apply enough throttle to raise the skier.
Make smooth, wide turns. The watercraft is
capable of very sharp turns, which could
exceed the abilities of the skier. Keep the
skier at least 50 m (164 ft), about twice the
distance of a standard ski rope, from any
potential hazard.
Be alert to the hazard of the ski rope handle
snapping back at the watercraft when the
skier falls or is unable to get up on the skis.
Towing heavy or bulky objects other than
skiers, such as another boat or watercraft,
can cause loss of steering control and cre-
ate a hazardous condition. If you must tow
another boat in an emergency situation,
operate slowly and cautiously.
EJU30971
Safe boating rules
Your Yamaha watercraft is legally considered
a powerboat. Operation of the watercraft
must be in accordance with the rules and
regulations governing the waterway on which
it is used.
UF3J70E0.book Page 19 Wednesd ay, October 9, 2013 2:07 PM

Safety information
20

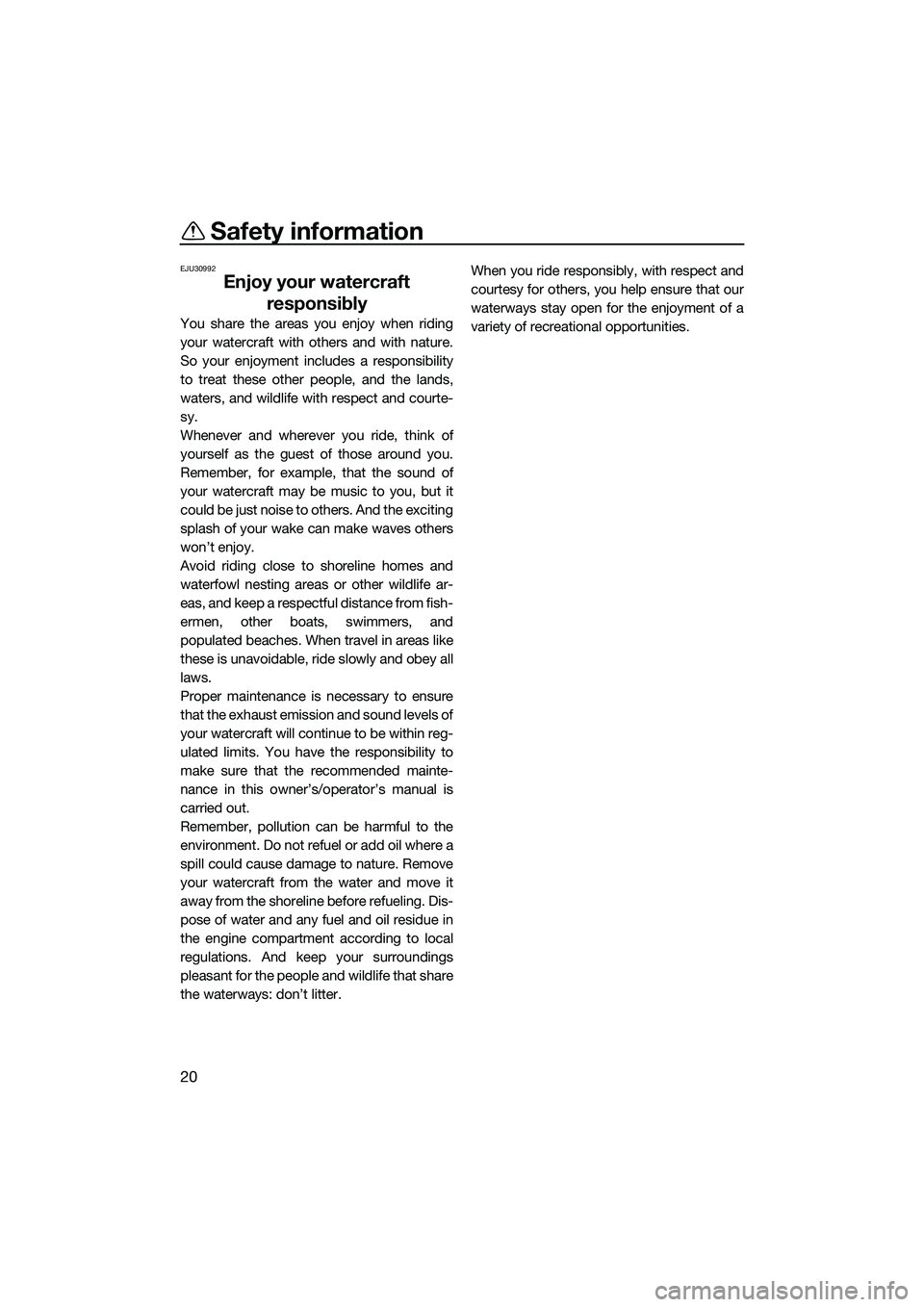

EJU30992
Enjoy your watercraft responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility
to treat these other people, and the lands,
waters, and wildlife with respect and courte-
sy.
Whenever and wherever you ride, think of
yourself as the guest of those around you.
Remember, for example, that the sound of
your watercraft may be music to you, but it
could be just noise to others. And the exciting
splash of your wake can make waves others
won’t enjoy.
Avoid riding close to shoreline homes and
waterfowl nesting areas or other wildlife ar-
eas, and keep a respectful distance from fish-
ermen, other boats, swimmers, and
populated beaches. When travel in areas like
these is unavoidable, ride slowly and obey all
laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within reg-
ulated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. Dis-
pose of water and any fuel and oil residue in
the engine compartment according to local
regulations. And keep your surroundings
pleasant for the people and wildlife that share
the waterways: don’t litter. When you ride responsibly, with respect and
courtesy for others, you help ensure that our
waterways stay open for the enjoyment of a
variety of recreational opportunities.
UF3J70E0.book Page 20 Wednesd
ay, October 9, 2013 2:07 PM

Description
21

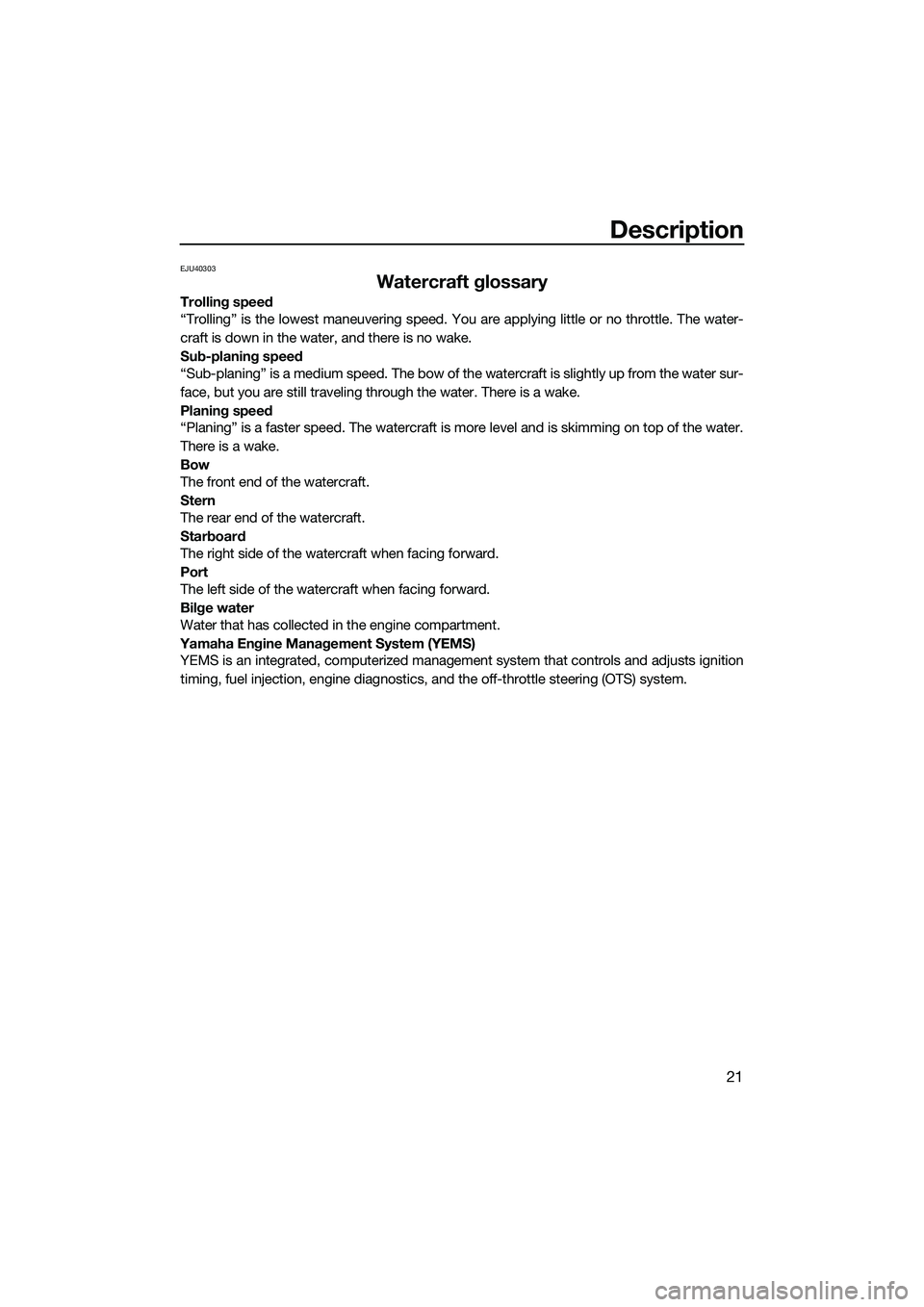

EJU40303
Watercraft glossary
Trolling speed
“Trolling” is the lowest maneuvering speed. You are applying little or no throttle. The water-
craft is down in the water, and there is no wake.
Sub-planing speed
“Sub-planing” is a medium speed. The bow of the watercraft is slightly up from the water sur-
face, but you are still traveling through the water. There is a wake.
Planing speed
“Planing” is a faster speed. The watercraft is more level and is skimming on top of the water.
There is a wake.
Bow
The front end of the watercraft.
Stern
The rear end of the watercraft.
Starboard
The right side of the watercraft when facing forward.
Port
The left side of the watercraft when facing forward.
Bilge water
Water that has collected in the engine compartment.
Yamaha Engine Management System (YEMS) YEMS is an integrated, computerized management system that controls and adjusts ignition
timing, fuel injection, engine diagnostics, and the off-throttle steering (OTS) system.
UF3J70E0.book Page 21 Wednesd ay, October 9, 2013 2:07 PM

Description
22
EJU31012

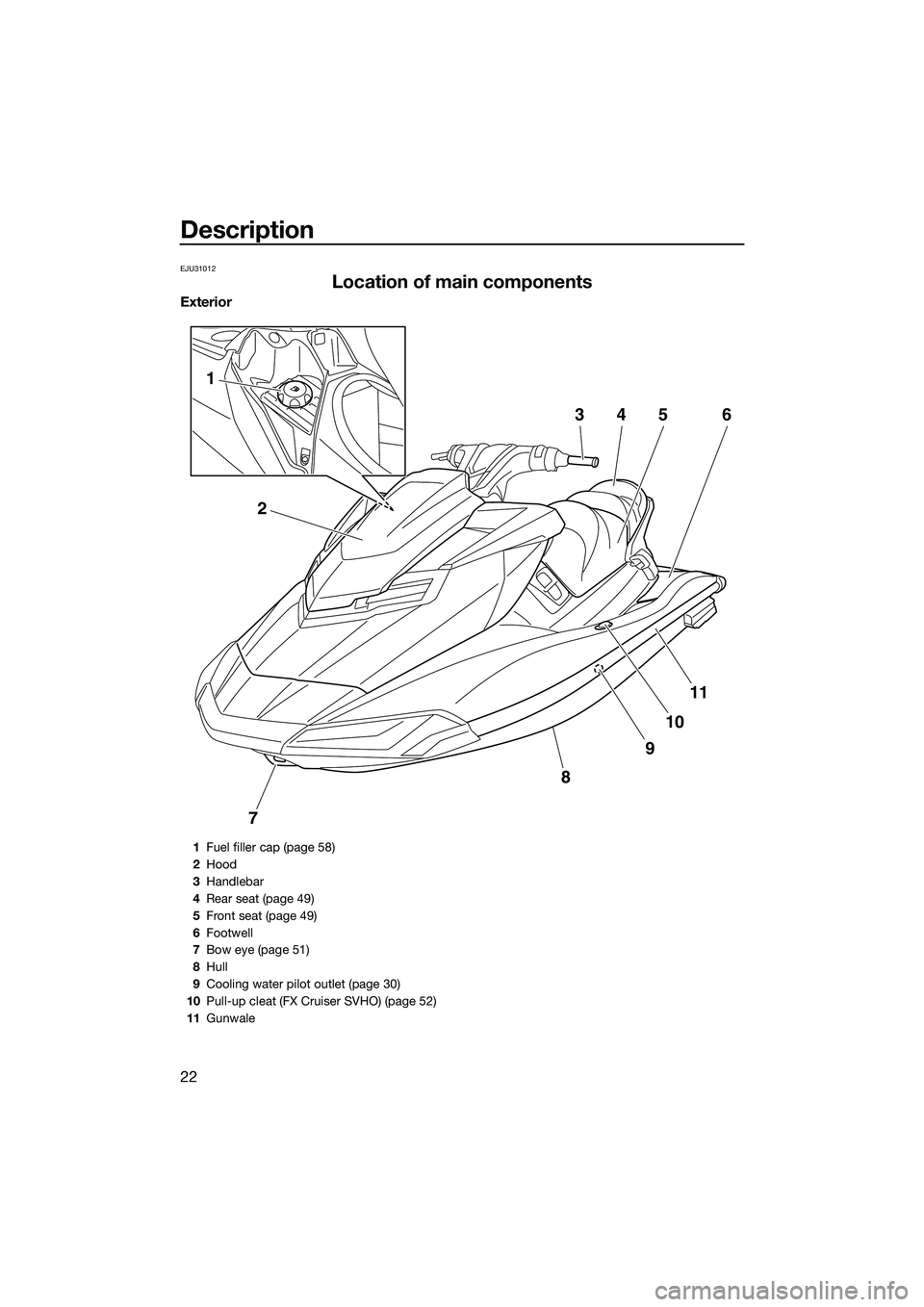

Location of main components
Exterior
7
8
9
10
11
2
1
3456
1Fuel filler cap (page 58)
2 Hood
3 Handlebar
4 Rear seat (page 49)
5 Front seat (page 49)
6 Footwell
7 Bow eye (page 51)
8 Hull
9 Cooling water pilot outlet (page 30)
10 Pull-up cleat (FX Cruiser SVHO) (page 52)
11 Gunwale
UF3J70E0.book Page 22 Wednesd ay, October 9, 2013 2:07 PM

Description
23
11109876
1
3
2
4
5
14
1312
1Boarding platform
2 Reboarding grip (page 50)
3 Stern storage compartment (page 54)
4 Cleat (page 51)
5 Handgrip (page 50)
6 Reboarding step (page 50)
7 Reverse gate (page 32)
8 Jet thrust nozzle
9 Ride plate
10 Stern drain plug (page 61)
11 Stern eye (page 51)
12 Speed sensor 13
Intake grate
14 Flushing hose connector
UF3J70E0.book Page 23 Wednesd ay, October 9, 2013 2:07 PM

Description
24
12
6789
5
3411101213 14 15 1716
18 19 20 21
222324

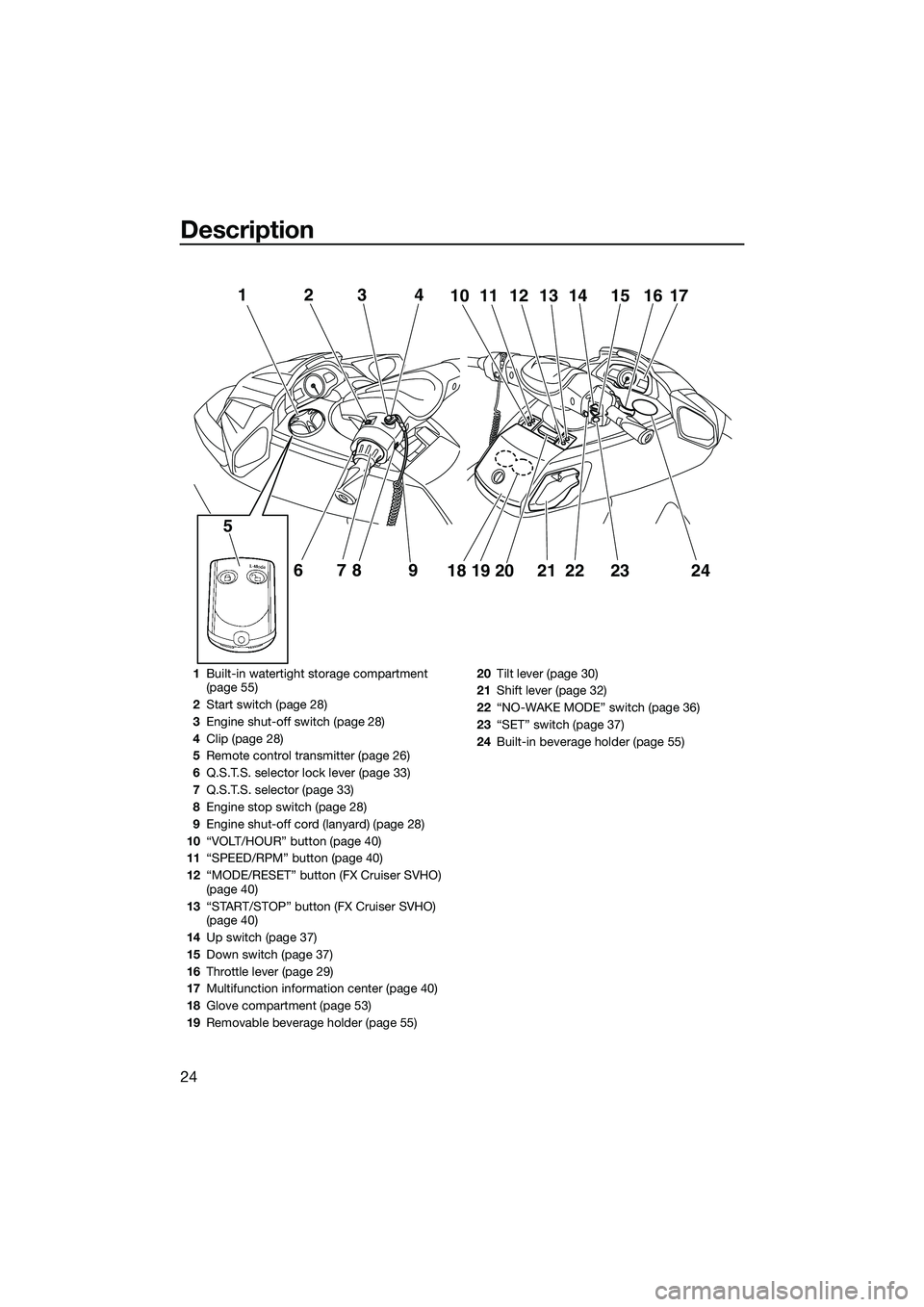

1Built-in watertight storage compartment
(page 55)
2 Start switch (page 28)
3 Engine shut-off switch (page 28)
4 Clip (page 28)
5 Remote control transmitter (page 26)
6 Q.S.T.S. selector lock lever (page 33)
7 Q.S.T.S. selector (page 33)
8 Engine stop switch (page 28)
9 Engine shut-off cord (lanyard) (page 28)
10 “VOLT/HOUR” button (page 40)
11 “SPEED/RPM” button (page 40)
12 “MODE/RESET” button (FX Cruiser SVHO)
(page 40)
13 “START/STOP” button (FX Cruiser SVHO)
(page 40)
14 Up switch (page 37)
15 Down switch (page 37)
16 Throttle lever (page 29)
17 Multifunction information center (page 40)
18 Glove compartment (page 53)
19 Removable beverage holder (page 55) 20
Tilt lever (page 30)
21 Shift lever (page 32)
22 “NO-WAKE MODE” switch (page 36)
23 “SET” switch (page 37)
24 Built-in beverage holder (page 55)
UF3J70E0.book Page 24 Wednesd ay, October 9, 2013 2:07 PM
