YAMAHA FX SVHO 2014 Owners Manual

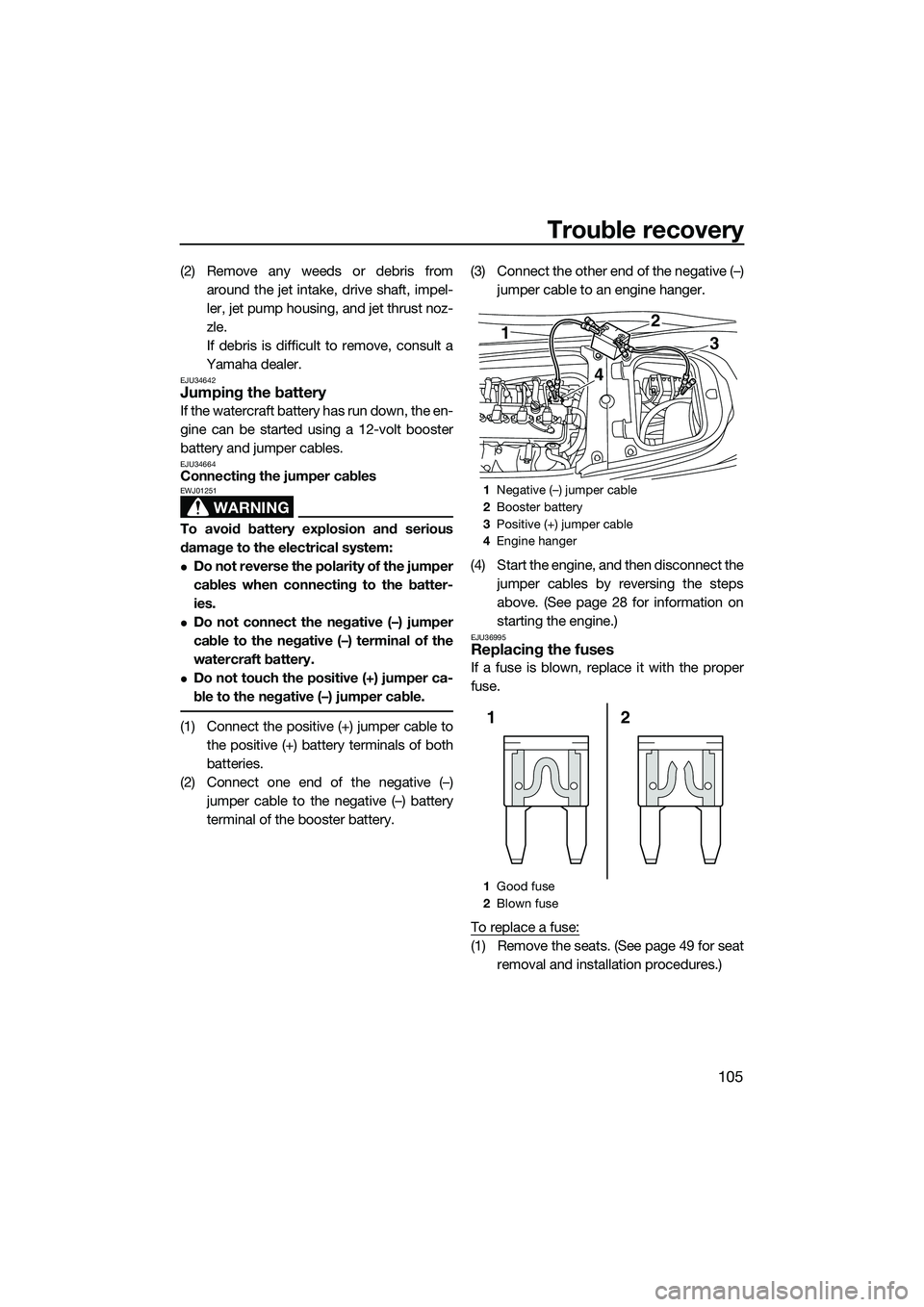

Trouble recovery
105
(2) Remove any weeds or debris fromaround the jet intake, drive shaft, impel-
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.
EJU34642Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU34664Connecting the jumper cables
WARNING
EWJ01251
To avoid battery explosion and serious
damage to the electrical system:
Do not reverse the polarity of the jumper
cables when connecting to the batter-
ies.
Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.
Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
(1) Connect the positive (+) jumper cable to the positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–) jumper cable to the negative (–) battery
terminal of the booster battery. (3) Connect the other end of the negative (–)
jumper cable to an engine hanger.
(4) Start the engine, and then disconnect the jumper cables by reversing the steps
above. (See page 28 for information on
starting the engine.)
EJU36995Replacing the fuses
If a fuse is blown, replace it with the proper
fuse.
To replace a fuse:
(1) Remove the seats. (See page 49 for seatremoval and installation procedures.)
1Negative (–) jumper cable
2 Booster battery
3 Positive (+) jumper cable
4 Engine hanger
1 Good fuse
2 Blown fuse
1
4
3
2
2
1
UF3J70E0.book Page 105 Wednesd ay, October 9, 2013 2:07 PM

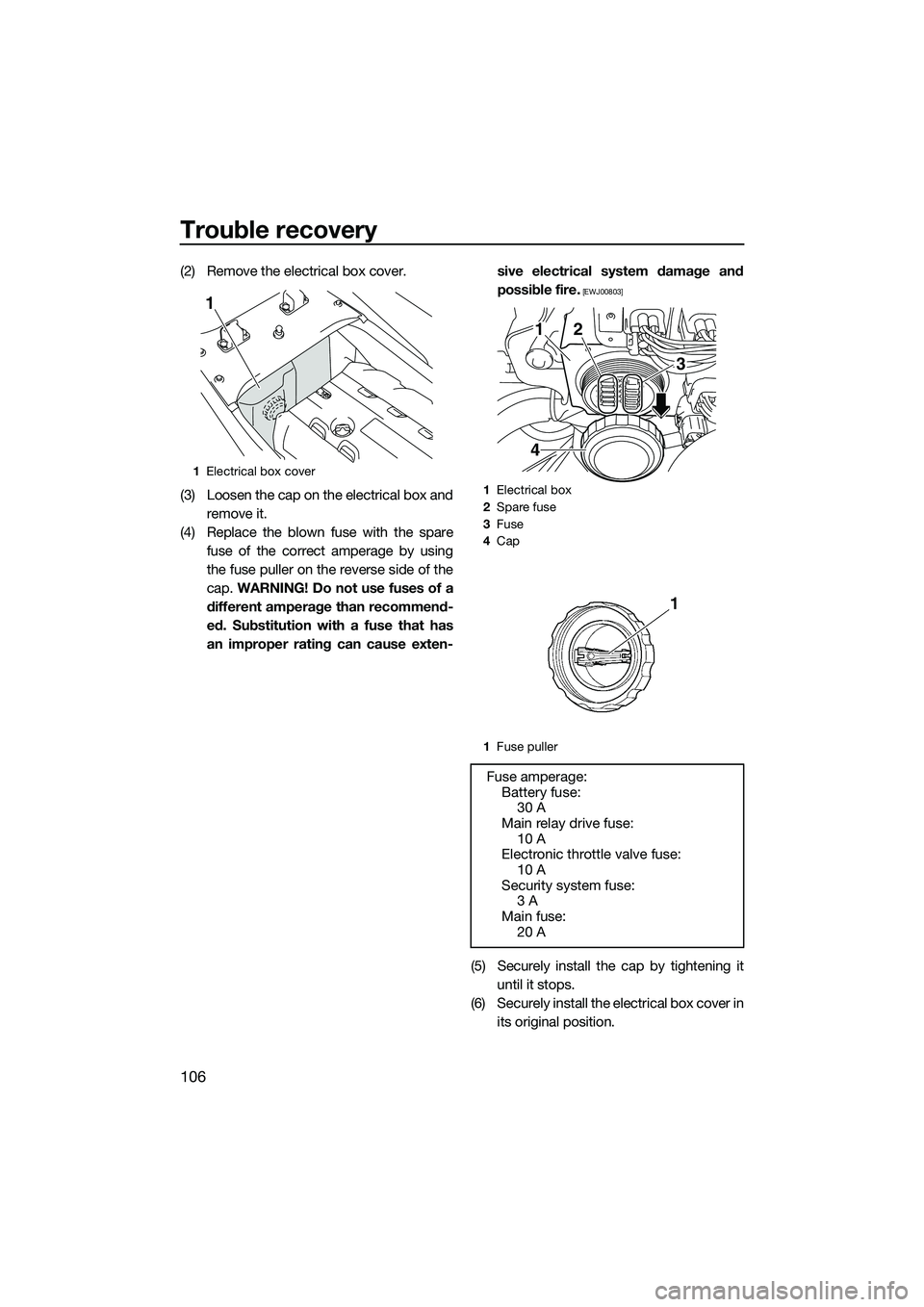

Trouble recovery
106
(2) Remove the electrical box cover.
(3) Loosen the cap on the electrical box andremove it.
(4) Replace the blown fuse with the spare fuse of the correct amperage by using
the fuse puller on the reverse side of the
cap. WARNING! Do not use fuses of a
different amperage than recommend-
ed. Substitution with a fuse that has
an improper rating can cause exten- sive electrical system damage and
possible fire.
[EWJ00803]
(5) Securely install the cap by tightening it
until it stops.
(6) Securely install the electrical box cover in its original position.
1Electrical box cover
1
1Electrical box
2 Spare fuse
3 Fuse
4 Cap
1 Fuse puller
Fuse amperage:
Battery fuse: 30 A
Main relay drive fuse: 10 A
Electronic throttle valve fuse:
10 A
Security system fuse: 3 A
Main fuse: 20 A
1
4 3
2
UF3J70E0.book Page 106 Wednesd
ay, October 9, 2013 2:07 PM

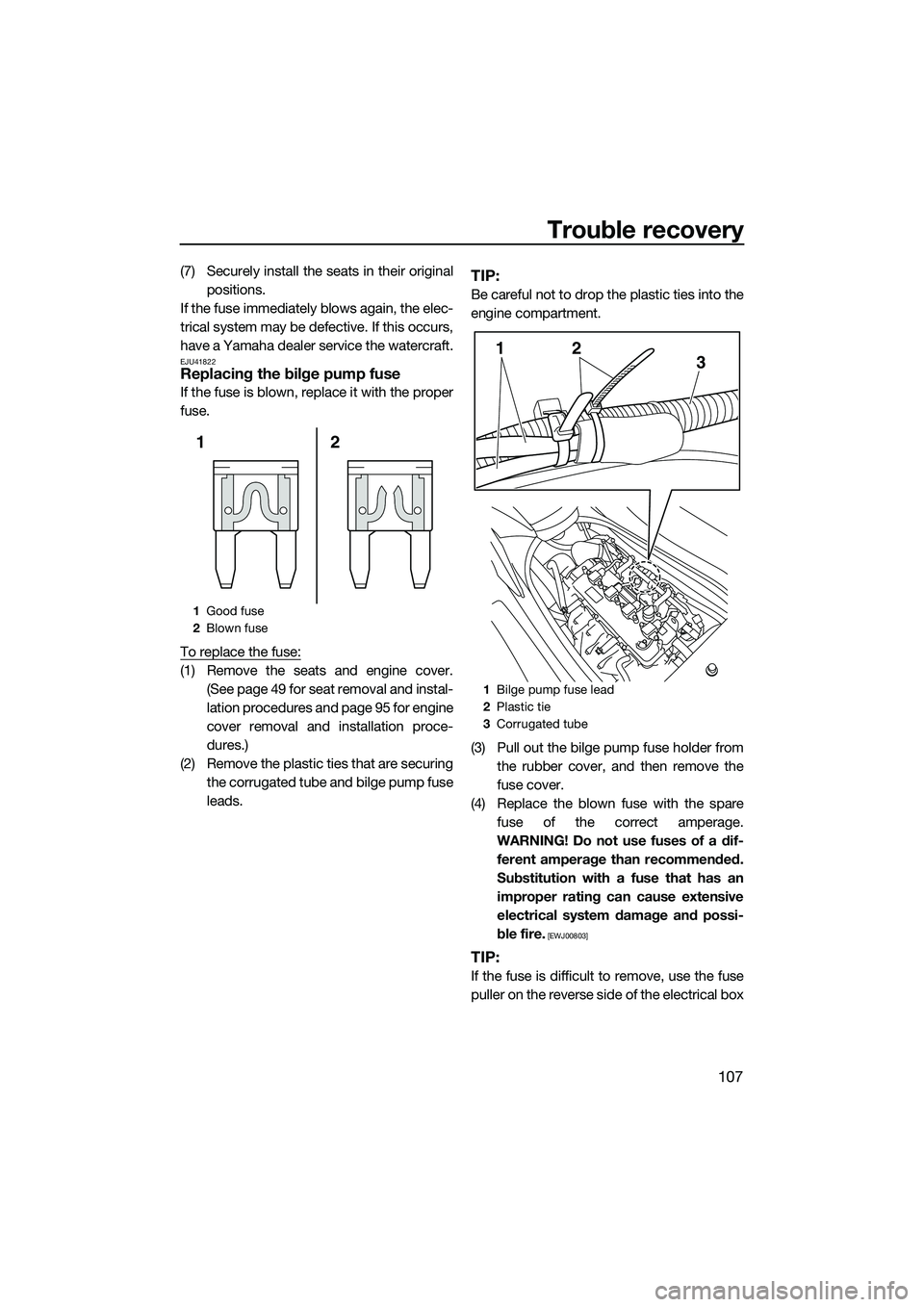

Trouble recovery
107
(7) Securely install the seats in their originalpositions.
If the fuse immediately blows again, the elec-
trical system may be defective. If this occurs,
have a Yamaha dealer service the watercraft.
EJU41822Replacing the bilge pump fuse
If the fuse is blown, replace it with the proper
fuse.
To replace the fuse:
(1) Remove the seats and engine cover. (See page 49 for seat removal and instal-
lation procedures and page 95 for engine
cover removal and installation proce-
dures.)
(2) Remove the plastic ties that are securing the corrugated tube and bilge pump fuse
leads.
TIP:
Be careful not to drop the plastic ties into the
engine compartment.
(3) Pull out the bilge pump fuse holder fromthe rubber cover, and then remove the
fuse cover.
(4) Replace the blown fuse with the spare fuse of the correct amperage.
WARNING! Do not use fuses of a dif- ferent amperage than recommended.
Substitution with a fuse that has an
improper rating can cause extensive
electrical system damage and possi-
ble fire.
[EWJ00803]
TIP:
If the fuse is difficult to remove, use the fuse
puller on the reverse side of the electrical box
1 Good fuse
2 Blown fuse
2
1
1 Bilge pump fuse lead
2 Plastic tie
3 Corrugated tube
213
UF3J70E0.book Page 107 Wednesd ay, October 9, 2013 2:07 PM

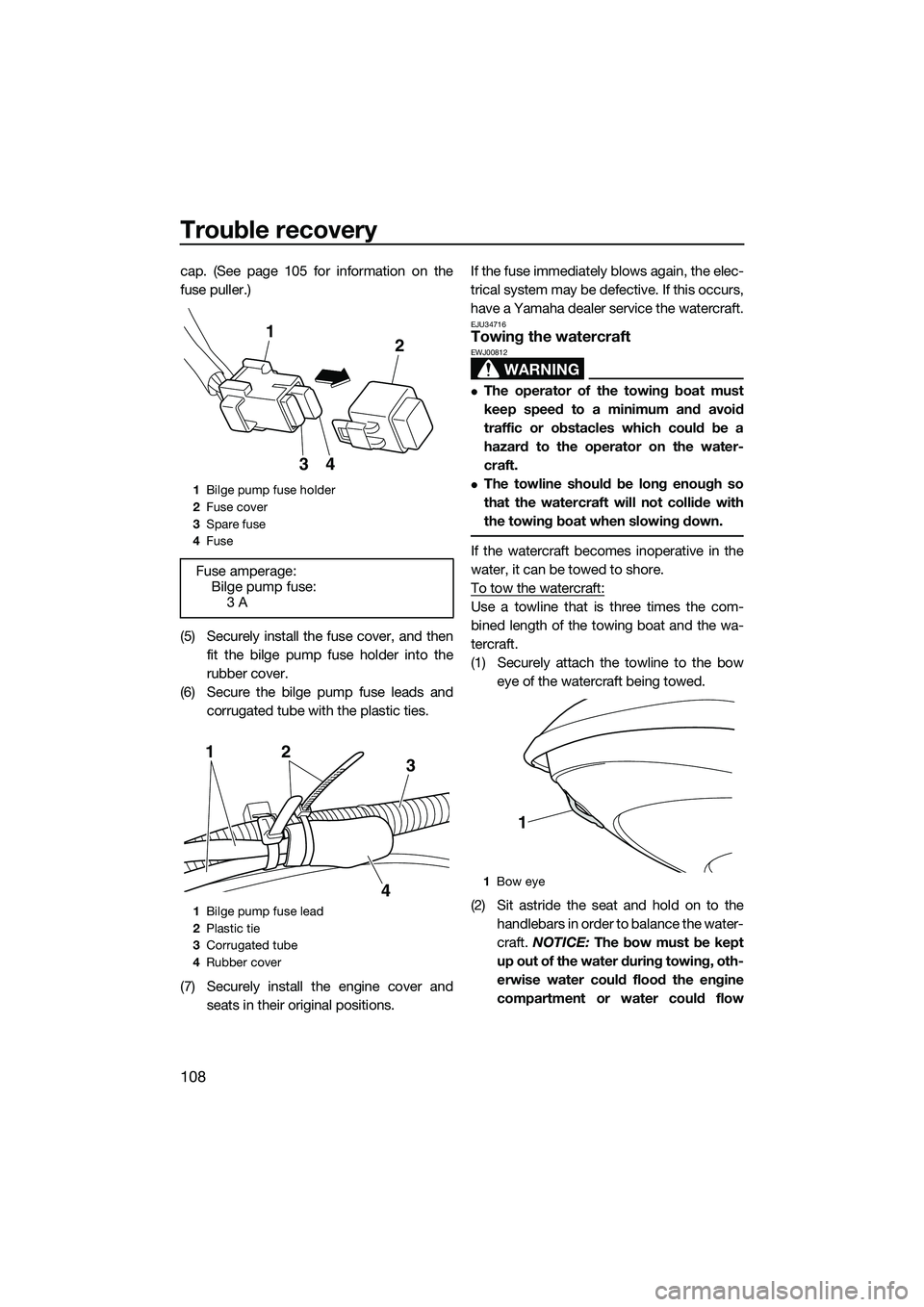

Trouble recovery
108
cap. (See page 105 for information on the
fuse puller.)
(5) Securely install the fuse cover, and thenfit the bilge pump fuse holder into the
rubber cover.
(6) Secure the bilge pump fuse leads and corrugated tube with the plastic ties.
(7) Securely install the engine cover and seats in their original positions. If the fuse immediately blows again, the elec-
trical system may be defective. If this occurs,
have a Yamaha dealer service the watercraft.
EJU34716Towing the watercraft
WARNING
EWJ00812
The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the operator on the water-
craft.
The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
To tow the watercraft:
Use a towline that is three times the com-
bined length of the towing boat and the wa-
tercraft.
(1) Securely attach the towline to the bow
eye of the watercraft being towed.
(2) Sit astride the seat and hold on to the handlebars in order to balance the water-
craft. NOTICE: The bow must be kept
up out of the water during towing, oth-
erwise water could flood the engine
compartment or water could flow
1 Bilge pump fuse holder
2 Fuse cover
3 Spare fuse
4 Fuse
Fuse amperage:
Bilge pump fuse:3 A
1Bilge pump fuse lead
2 Plastic tie
3 Corrugated tube
4 Rubber cover
21
43
213
41Bow eye
1
UF3J70E0.book Page 108 Wednesd ay, October 9, 2013 2:07 PM

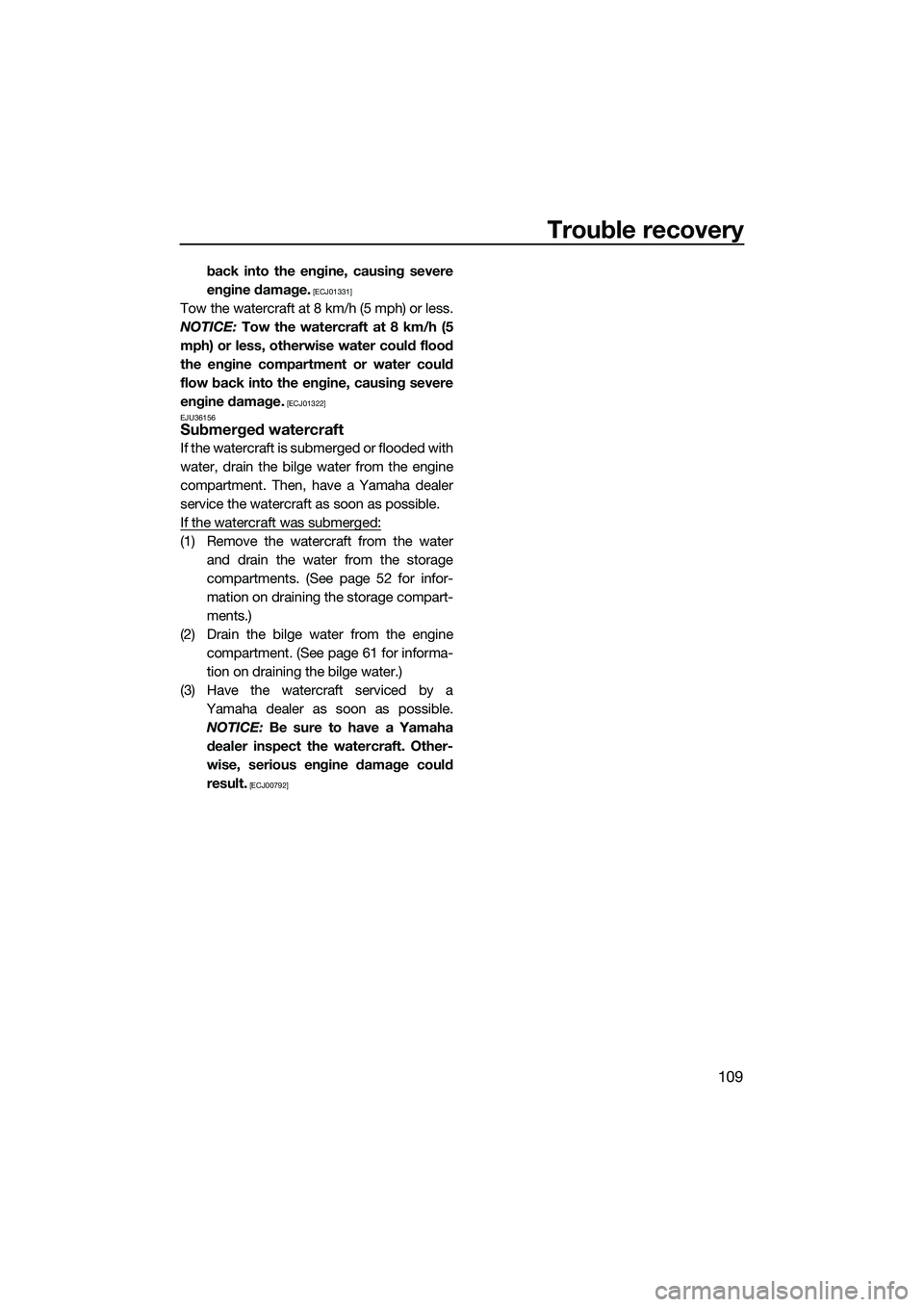

Trouble recovery
109
back into the engine, causing severe
engine damage.
[ECJ01331]
Tow the watercraft at 8 km/h (5 mph) or less.
NOTICE: Tow the watercraft at 8 km/h (5
mph) or less, otherwise water could flood
the engine compartment or water could
flow back into the engine, causing severe
engine damage.
[ECJ01322]
EJU36156
Submerged watercraft
If the watercraft is submerged or flooded with
water, drain the bilge water from the engine
compartment. Then, have a Yamaha dealer
service the watercraft as soon as possible.
If the watercraft was submerged:
(1) Remove the watercraft from the water and drain the water from the storage
compartments. (See page 52 for infor-
mation on draining the storage compart-
ments.)
(2) Drain the bilge water from the engine compartment. (See page 61 for informa-
tion on draining the bilge water.)
(3) Have the watercraft serviced by a Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could
result.
[ECJ00792]
UF3J70E0.book Page 109 Wednesd ay, October 9, 2013 2:07 PM

Index
A
Adjustable tilt steering system ................. 30
Adjustable tilt steering system checks .... 70
After removing the watercraft from the water ..................................................... 88
Analog speedometer/tachometer ............ 40
B
Battery care.............................................. 90
Battery checks ......................................... 68
Battery, jumping ..................................... 105
Beaching and docking the watercraft ...... 87
Beverage holders ..................................... 55
Bilge pump fuse, replacing .................... 107
Bilge water check..................................... 68
Bilge water, draining ................................ 61
Bilge water, draining on land ................... 61
Bilge water, draining on water ................. 62
Boarding alone ......................................... 82
Boarding and starting off from a dock ..... 86
Boarding the watercraft ........................... 82
Boarding with passenger(s) ..................... 83
Bow eye ................................................... 51
Bow storage compartment ...................... 52
Builder’s plate ............................................ 2
C
Capsized watercraft ................................. 86
Check engine warning ............................. 45
Cleaning ................................................... 93
Cleaning the watercraft ............................ 90
Cleat ......................................................... 51
Cooling water pilot outlet check .............. 74
Cooling water pilot outlets ....................... 30
Craft Identification Number (CIN)............... 1
Cruise assist............................................. 37
Cruising limitations................................... 12
D
Digital speedometer ................................. 41
E
Emergency procedures .......................... 104
Engine break-in ........................................ 64
Engine compartment check ..................... 67
Engine cover, removing and installing ..... 95
Engine idling speed check ....................... 75
Engine oil ................................................. 60
Engine oil and oil filter .............................. 99 Engine oil level check ............................... 68
Engine oil requirements ........................... 60
Engine overheat warning.......................... 44
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 72
Engine shut-off switch ............................. 28
Engine stop switch ................................... 28
Engine unit check ..................................... 68
Enjoy your watercraft responsibly ............ 20
Equipment ................................................ 49
F
Fire extinguisher check ............................ 73
Fire extinguisher holder and cover........... 57
Fire extinguisher holder, cover, and
band checks ......................................... 73
Flushing the cooling water passages....... 89
Fuel .......................................................... 58
Fuel level check........................................ 67
Fuel level meter ........................................ 43
Fuel level warning..................................... 44
Fuel requirements .................................... 58
Fuel system checks ................................. 67
Fuses, replacing ..................................... 105
G
Getting to know your watercraft .............. 76
Glossary, watercraft ................................. 21
Glove compartment ................................. 53
H
Handgrip .................................................. 50
Hazard information................................... 16
Hood check .............................................. 74
Hour meter/voltmeter ............................... 42
Hull and deck check ................................ 73
I
Identification numbers ............................... 1
Information display................................... 41
J
Jet intake and impeller, cleaning............ 104
Jet intake checks ..................................... 73
Jumper cables, connecting .................... 105
L
Labels, important ....................................... 4
Labels, other .............................................. 9
Labels, warning .......................................... 5
Launching the watercraft ......................... 77
UF3J70E0.book Page 1 Wednesd ay, October 9, 2013 2:07 PM

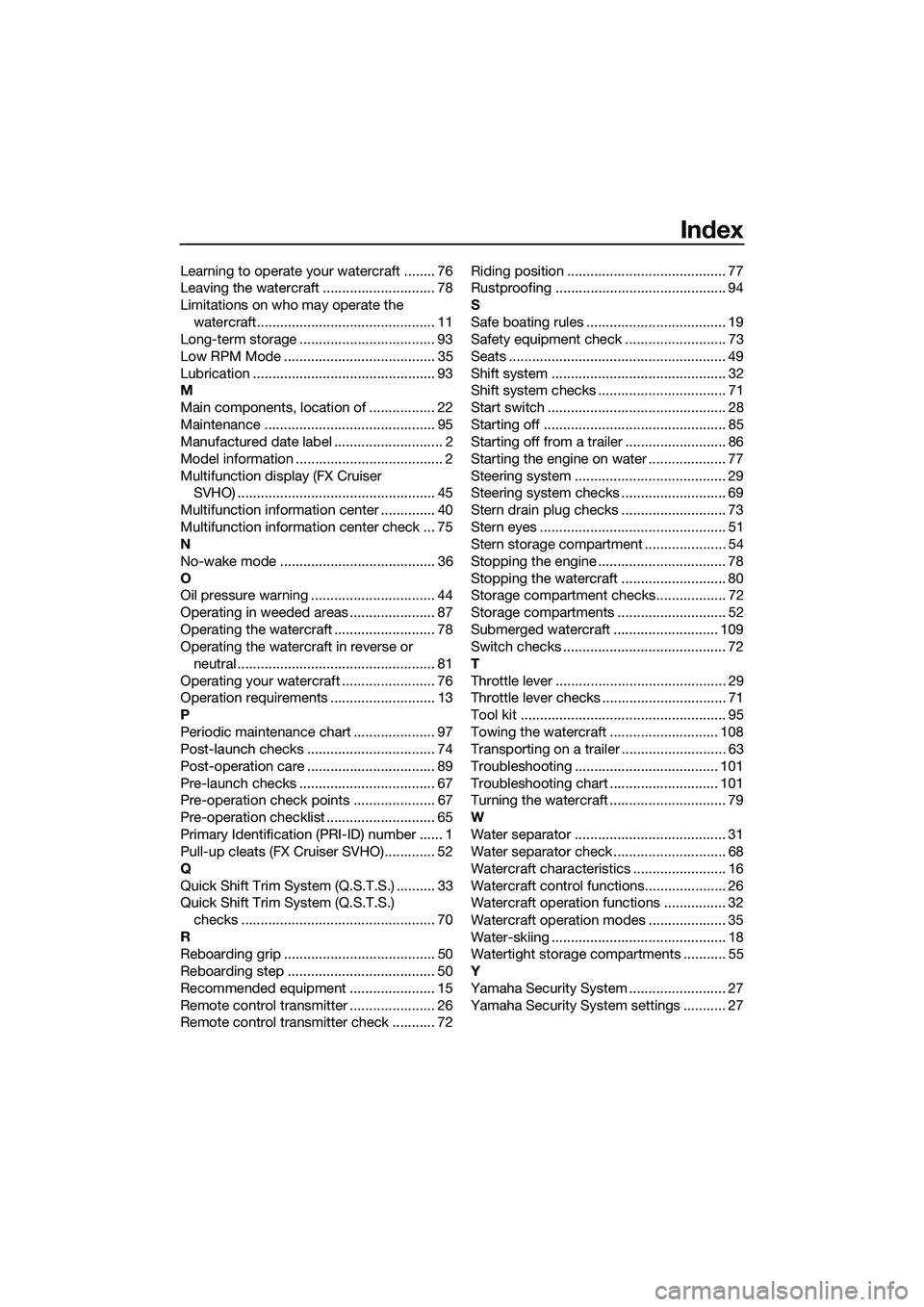

Index
Learning to operate your watercraft ........ 76
Leaving the watercraft ............................. 78
Limitations on who may operate the watercraft.............................................. 11
Long-term storage ................................... 93
Low RPM Mode ....................................... 35
Lubrication ............................................... 93
M
Main components, location of ................. 22
Maintenance ............................................ 95
Manufactured date label ............................ 2
Model information ...................................... 2
Multifunction display (FX Cruiser SVHO) ................................................... 45
Multifunction information center .............. 40
Multifunction information center check ... 75
N
No-wake mode ........................................ 36
O
Oil pressure warning ................................ 44
Operating in weeded areas ...................... 87
Operating the watercraft .......................... 78
Operating the watercraft in reverse or neutral ................................................... 81
Operating your watercraft ........................ 76
Operation requirements ........................... 13
P
Periodic maintenance chart ..................... 97
Post-launch checks ................................. 74
Post-operation care ................................. 89
Pre-launch checks ................................... 67
Pre-operation check points ..................... 67
Pre-operation checklist ............................ 65
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats (FX Cruiser SVHO)............. 52
Q
Quick Shift Trim System (Q.S.T.S.) .......... 33
Quick Shift Trim System (Q.S.T.S.) checks .................................................. 70
R
Reboarding grip ....................................... 50
Reboarding step ...................................... 50
Recommended equipment ...................... 15
Remote control transmitter ...................... 26
Remote control transmitter check ........... 72 Riding position ......................................... 77
Rustproofing ............................................ 94
S
Safe boating rules .................................... 19
Safety equipment check .......................... 73
Seats ........................................................ 49
Shift system ............................................. 32
Shift system checks ................................. 71
Start switch .............................................. 28
Starting off ............................................... 85
Starting off from a trailer .......................... 86
Starting the engine on water .................... 77
Steering system ....................................... 29
Steering system checks ........................... 69
Stern drain plug checks ........................... 73
Stern eyes ................................................ 51
Stern storage compartment ..................... 54
Stopping the engine ................................. 78
Stopping the watercraft ........................... 80
Storage compartment checks.................. 72
Storage compartments ............................ 52
Submerged watercraft ........................... 109
Switch checks .......................................... 72
T
Throttle lever ............................................ 29
Throttle lever checks ................................ 71
Tool kit ..................................................... 95
Towing the watercraft ............................ 108
Transporting on a trailer ........................... 63
Troubleshooting ..................................... 101
Troubleshooting chart ............................ 101
Turning the watercraft .............................. 79
W
Water separator ....................................... 31
Water separator check ............................. 68
Watercraft characteristics ........................ 16
Watercraft control functions..................... 26
Watercraft operation functions ................ 32
Watercraft operation modes .................... 35
Water-skiing ............................................. 18
Watertight storage compartments ........... 55
Y
Yamaha Security System ......................... 27
Yamaha Security System settings ........... 27
UF3J70E0.book Page 2 Wednesd
ay, October 9, 2013 2:07 PM

Printed in U.S.A.
October 2013–0.5 × 1 CR
UF3J70E0.book Page 1 Wednesd ay, October 9, 2013 2:07 PM
