Safety information
14

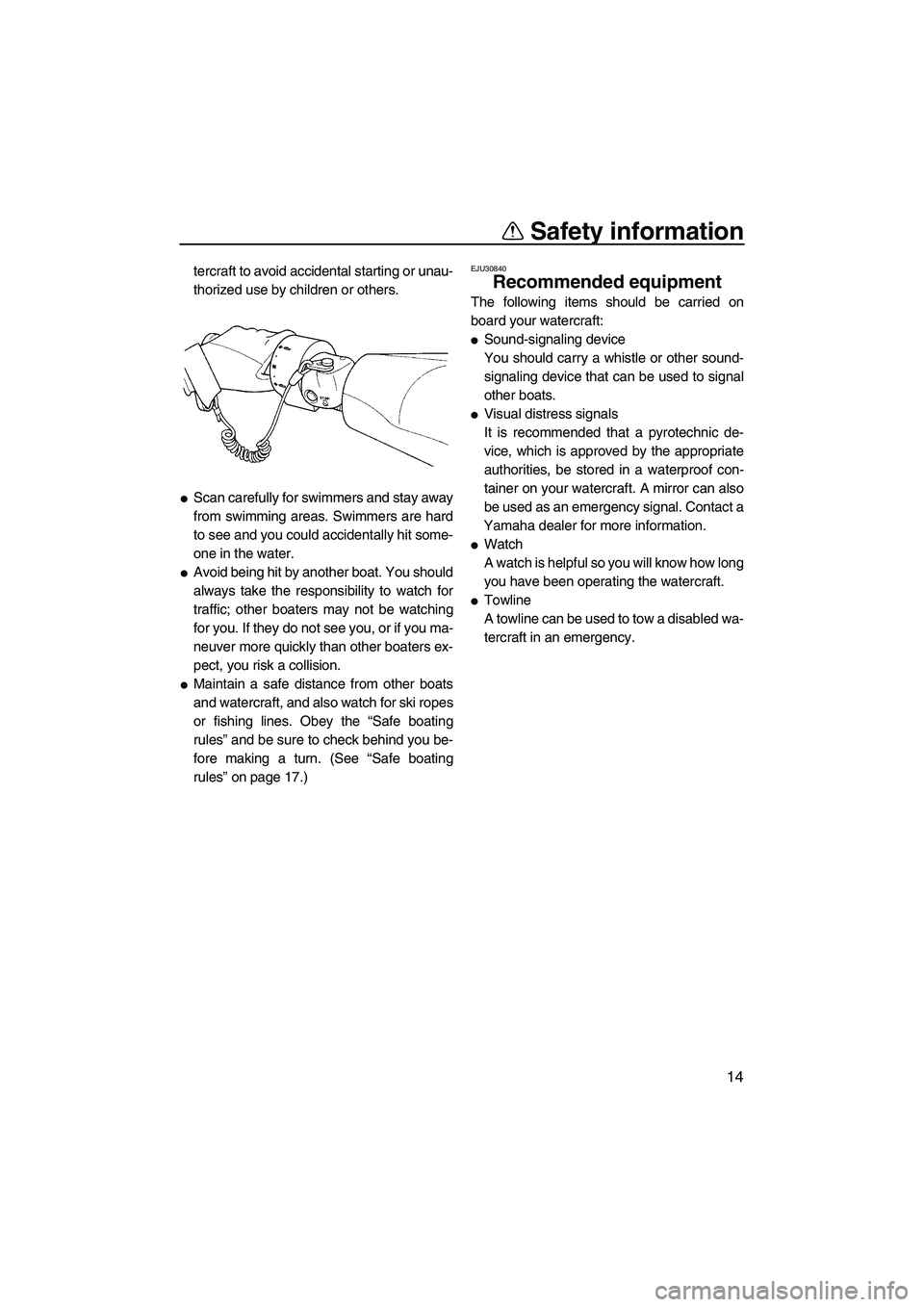

tercraft to avoid accidental starting or unau-
thorized use by children or others.

Scan carefully for swimmers and stay away
from swimming areas. Swimmers are hard
to see and you could accidentally hit some-
one in the water.

Avoid being hit by another boat. You should
always take the responsibility to watch for
traffic; other boaters may not be watching
for you. If they do not see you, or if you ma-
neuver more quickly than other boaters ex-
pect, you risk a collision.

Maintain a safe distance from other boats
and watercraft, and also watch for ski ropes
or fishing lines. Obey the “Safe boating
rules” and be sure to check behind you be-
fore making a turn. (See “Safe boating
rules” on page 17.)
EJU30840
Recommended equipment
The following items should be carried on
board your watercraft:

Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to signal
other boats.

Visual distress signals
It is recommended that a pyrotechnic de-
vice, which is approved by the appropriate
authorities, be stored in a waterproof con-
tainer on your watercraft. A mirror can also
be used as an emergency signal. Contact a
Yamaha dealer for more information.

Watch
A watch is helpful so you will know how long
you have been operating the watercraft.

Towline
A towline can be used to tow a disabled wa-
tercraft in an emergency.
UF2R70E0.book Page 14 Thursday, November 6, 2008 10:05 AM

Safety information
15
EJU36850
Hazard information

Never start the engine or let it run for any
length of time in an enclosed area. Exhaust
fumes contain carbon monoxide, a color-
less, odorless gas that may cause loss of
consciousness and death within a short
time. Always operate the watercraft in an
open area.

Do not touch the hot muffler or engine dur-
ing or immediately after engine operation;
they can cause serious burns.
EJU30920
Watercraft characteristics

Jet thrust turns the watercraft. Releasing
the throttle lever completely produces only
minimum thrust. If you are traveling at
speeds above trolling, you will have rapidly
decreasing ability to steer without throttle.
This model is equipped with the Yamaha
Engine Management System (YEMS) that
includes an off-throttle steering (OTS) sys-
tem. It will activate at planing speeds should
you attempt to steer the watercraft after re-
leasing the throttle lever. The OTS system
assists in turning by continuing to supply
some thrust while the watercraft is deceler-
ating, but you can turn more sharply if you
apply throttle while turning the handlebars.
The OTS system does not function below
planing speeds or when the engine is off.
Once the engine slows down, the watercraft
will no longer turn in response to handlebar
input until you apply throttle again or you
reach trolling speed.
Practice turning in an open area without ob-
stacles until you have a good feel for this
maneuver.

This watercraft is water-jet propelled. The
jet pump is directly connected to the engine.
This means that jet thrust will produce some
movement whenever the engine is running.
There is no “neutral” position. You are in ei-
ther “forward” or “reverse”, depending upon
the shift lever position.

Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or im-
pact the handlebars.
This could increase the risk of back/spinal
injury (paralysis), facial injuries, and broken
legs, ankles, and other bones. You could
also damage the shift mechanism.
UF2R70E0.book Page 15 Thursday, November 6, 2008 10:05 AM

Safety information
16

Reverse can be used to slow down or stop
during slow-speed maneuvering, such as
when docking. Once the engine is idling,
shift into reverse and gradually increase en-
gine speed. Make sure that there are no ob-
stacles or people behind you before shifting
into reverse.

Keep away from the intake grate while the
engine is on. Items such as long hair, loose
clothing, or PFD straps can become entan-
gled in moving parts, resulting in severe in-
jury or drowning.

Never insert any object into the jet thrust
nozzle while the engine is running. Severe
injury or death could result from coming in
contact with the rotating parts of the jet
pump.

Stop the engine and remove the clip from
the engine shut-off switch before removingany debris or weeds, which may have col-
lected around the jet intake.
1Intake grate
2Jet thrust nozzle
1Clip
2Engine shut-off switch
2
1
UF2R70E0.book Page 16 Thursday, November 6, 2008 10:05 AM

Safety information
17
EJU30970
Safe boating rules
Your Yamaha watercraft is legally considered
a powerboat. Operation of the watercraft must
be in accordance with the rules and regula-
tions governing the waterway on which it is
used.
EJU30991
Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility to
treat these other people, and the lands, wa-
ters, and wildlife with respect and courtesy.
Whenever and wherever you ride, think of
yourself as the guest of those around you. Re-
member, for example, that the sound of your
watercraft may be music to you, but it could be
just noise to others. And the exciting splash of
your wake can make waves others won’t en-
joy.
Avoid riding close to shoreline homes and wa-
terfowl nesting areas or other wildlife areas,
and keep a respectful distance from fisher-
men, other boats, swimmers, and populated
beaches. When travel in areas like these is
unavoidable, ride slowly and obey all laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within regu-
lated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. Dis-
pose of water and any fuel and oil residue in
the engine compartment according to local
regulations. And keep your surroundings
pleasant for the people and wildlife that share
the waterways: don’t litter.
When you ride responsibly, with respect and
courtesy for others, you help ensure that our
UF2R70E0.book Page 17 Thursday, November 6, 2008 10:05 AM

Safety information
18

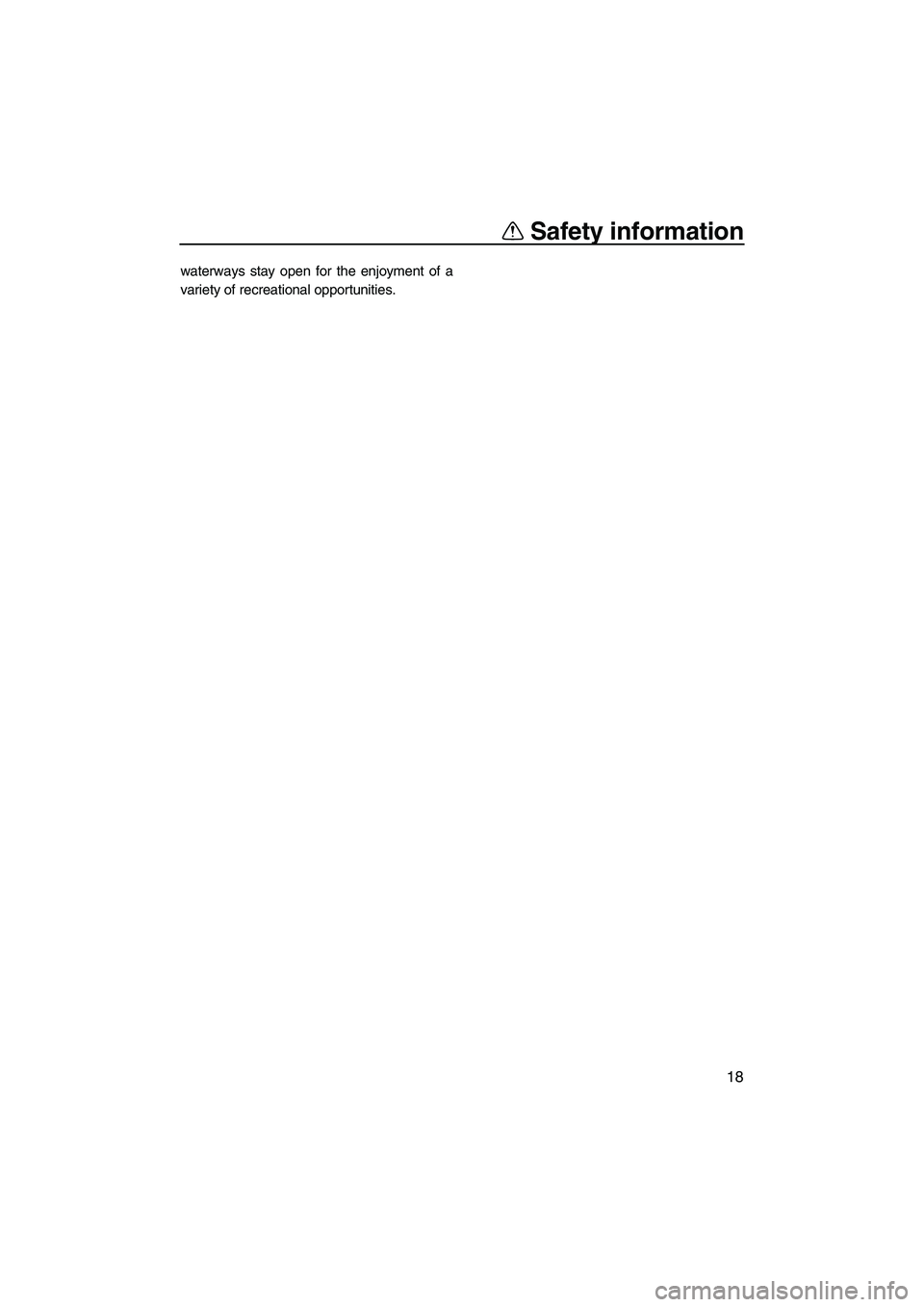

waterways stay open for the enjoyment of a
variety of recreational opportunities.
UF2R70E0.book Page 18 Thursday, November 6, 2008 10:05 AM

Features and functions
19
EJU31010

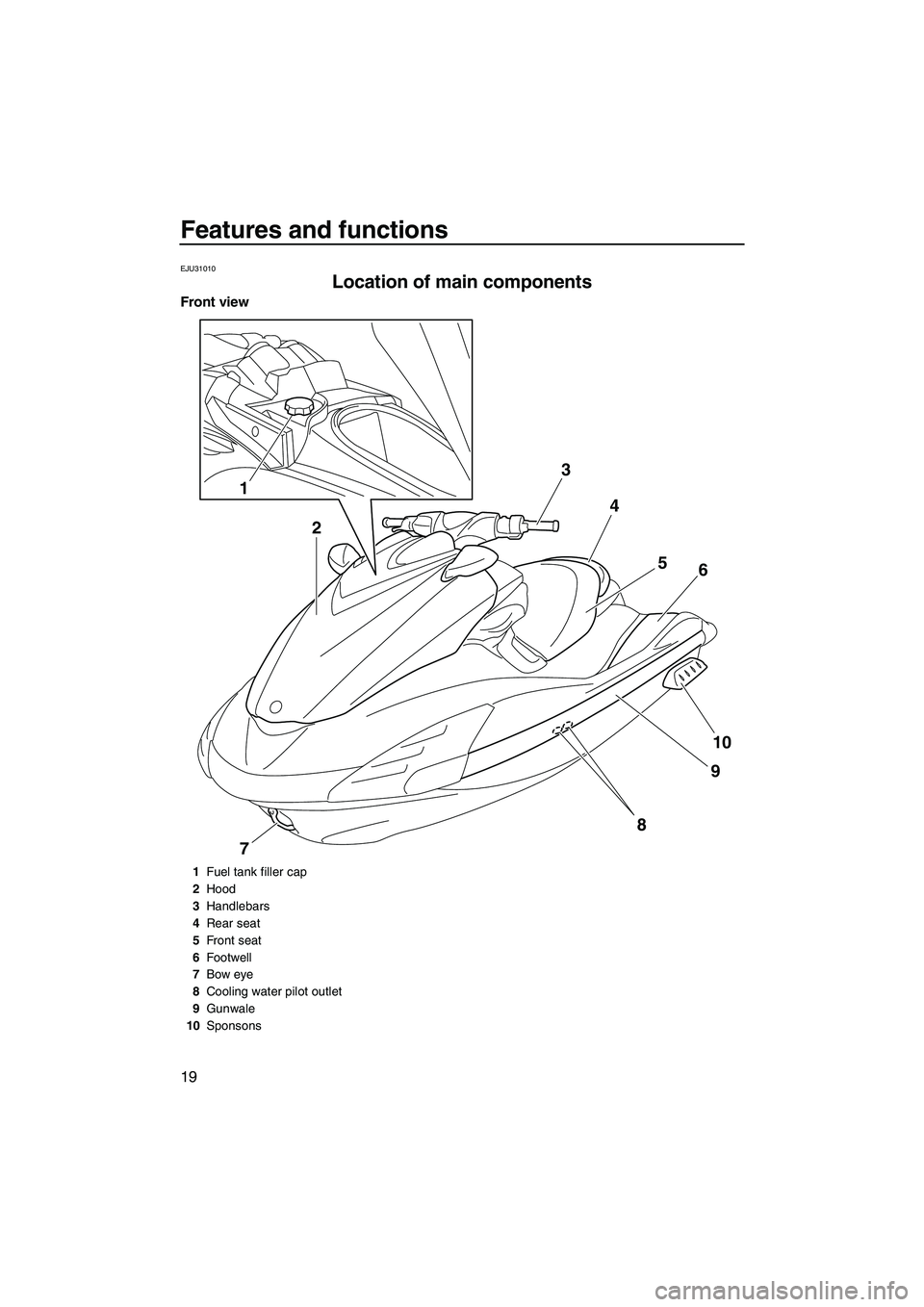

Location of main components
Front view
3
4
5
6
10
9
7
8
1
2
1Fuel tank filler cap
2Hood
3Handlebars
4Rear seat
5Front seat
6Footwell
7Bow eye
8Cooling water pilot outlet
9Gunwale
10Sponsons
UF2R70E0.book Page 19 Thursday, November 6, 2008 10:05 AM

Features and functions
20
Rear view
23
8
7
4 1
6
5
10
9
1Boarding platform
2Electric bilge pilot outlet
3Reboarding grip
4Jet thrust nozzle
5Reverse gate
6Ride plate
7Stern drain plugs
8Stern eyes
9Speed sensor
10Intake grate
UF2R70E0.book Page 20 Thursday, November 6, 2008 10:05 AM

Features and functions
21
Control system
1234
6
7 5
10
11121314 9 8
1Quick Shift Trim System (QSTS) selector
2QSTS selector lock lever
3Start switch
4Engine shut-off switch
5Clip
6Engine stop switch
7Engine shut-off cord (lanyard)
8Dual analog meter unit
9Rearview mirrors
10Glove compartment
11Remote control transmitter
12Beverage holder
13Shift lever
14Throttle lever
UF2R70E0.book Page 21 Thursday, November 6, 2008 10:05 AM

Features and functions
22
Engine compartment
123
46 5
910
8
7
1Engine cover
2Air filter case
3Water separator
4Fuel tank
5Battery
6Flushing hose connector
7Electrical box
8Spark plug cap
9Engine oil filler cap
10Dipstick
UF2R70E0.book Page 22 Thursday, November 6, 2008 10:05 AM

Features and functions
23
EJU31022
Operation of controls and other
functions
EJU31041Seats
To remove the rear seat:
Pull the rear seat latch up, and then pull the
seat off.
To install the rear seat:
Insert the projections on the front of the seat
into the stays on the deck, and then push the
rear of the seat down to lock it in place. Makesure that the seat is securely installed before
operating the watercraft.
To remove the front seat:
(1) Remove the rear seat.
(2) Pull the front seat latch up, and then pull
the seat off.
To install the front seat:
(1) Insert the projections on the front of the
seat into the stays on the deck, and then
1Seat latch
1
1Seat latch
1
