YAMAHA GP1300R 2003 Owners Manual

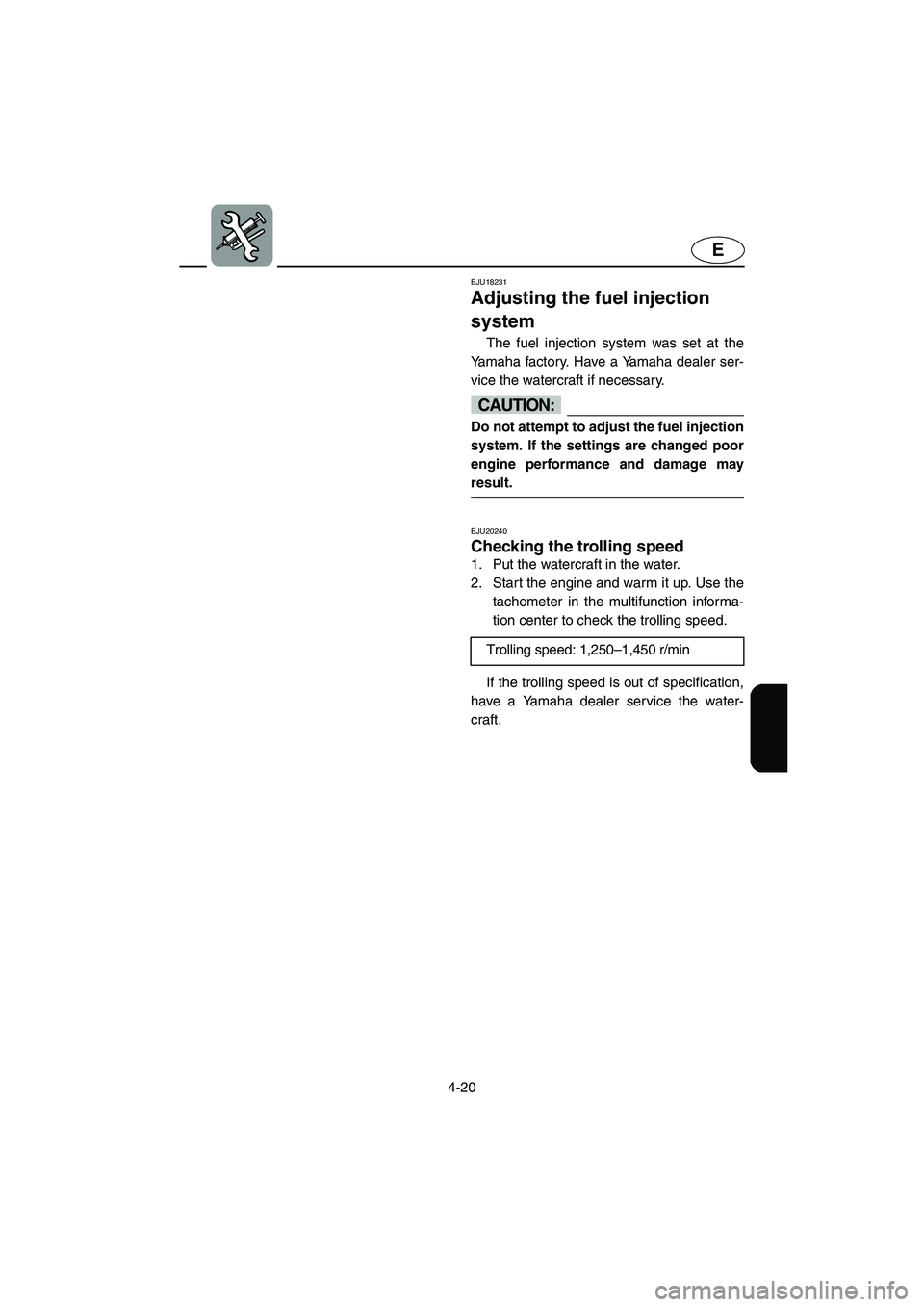

4-20
E
EJU18231
Adjusting the fuel injection
system
The fuel injection system was set at the
Yamaha factory. Have a Yamaha dealer ser-
vice the watercraft if necessary.
CAUTION:@ Do not attempt to adjust the fuel injection
system. If the settings are changed poor
engine performance and damage may
result.
@
EJU20240
Checking the trolling speed
1. Put the watercraft in the water.
2. Start the engine and warm it up. Use the
tachometer in the multifunction informa-
tion center to check the trolling speed.
If the trolling speed is out of specification,
have a Yamaha dealer service the water-
craft. Trolling speed: 1,250–1,450 r/min
UF1G70.book Page 20 Wednesday, December 18, 2002 3:35 PM

4-21
E
EJU18250
Replacing the fuse
The fuse is in the electrical box 1.
To replace the fuse:
1. Remove the cap 2.
2. Replace the fuse 4 with the spare
fuse5 of the correct amperage by using
the special tool 3 on the reverse side of
the cap.
WARNING@ Do not use fuses of higher amperage
than those recommended. Substitution
of a fuse of improper rating can cause
extensive electrical system damage and
possible fire.
@
EJU11120
Bleeding the oil injection
pump
If the oil tank becomes completely empty,
or any hose connected to the oil pump has
been disconnected, the oil pump must be
bled to ensure proper oil flow.
If bleeding of the oil pump is necessary,
have a Yamaha dealer bleed it. Fuse amperage:
20 A (main)
3 A (meter)
3 A (bilge pump)
UF1G70.book Page 21 Wednesday, December 18, 2002 3:35 PM

4-22
E
EJU11130
Adjusting the Yamaha
Adjustable Sponson (Y.A.S.)
The Yamaha Adjustable Sponsons can be
adjusted to enhance watercraft performance
according to operator preference and oper-
ating conditions. (See page 2-21 for an
explanation of various positions.)
To adjust the Y.A.S.:
1. Remove the bolts 1 on both sponsons.
2. Remove both sponsons, and then install
them in the desired position.
NOTE:@ Be sure to install both sponsons to the same
level.
@
3. Tighten the bolts on both sponsons to
the correct torque.
Tightening torque:
18 N·m (1.8 kgf·m, 13 ft·lb)
UF1G70.book Page 22 Wednesday, December 18, 2002 3:35 PM

4-23
E
EJU13590
Specifications
SPC-*** MODEL
ITEMUnit GP1300R
WATERCRAFT CAPACITY
Maximum people on board Number of people 2
Maximum load capacity kg (lb) 160 (353)
DIMENSIONS
Length mm (in) 2,930 (115.4)
Width mm (in) 1,150 (45.3)
Height mm (in) 1,020 (40.2)
Dry weight kg (lb) 297 (653)
PERFORMANCE
Maximum output kW (PS) @ r/min 121.4 (165) @ 7,000
Maximum fuel consumption L/h (US gal/h, Imp gal/h) 63.0 (16.6, 13.9)
Cruising range at full throttle hr. 1.0
Trolling speed r/min 1,250–1,450
ENGINE
Engine type 2-stroke
Number of cylinders 3
Engine displacement
cm
3 (cu in)1,297 (79.1)
Bore & stroke mm (in) 84 ×
78 (3.31 ×
3.07)
Compression ratio 5.9:1
Lubrication system Variable oil injection
Cooling system Water cooled
Starting system Electric starter
Ignition system Digital CDI
Spark plug BR8ES-11 (NGK)
Spark plug gap mm (in) 1.0–1.1 (0.039–0.043)
Battery capacity V-AH 12-19
Charging system Flywheel magneto
DRIVE UNIT
Propulsion system Jet pump
Jet pump type Axial flow, single stage
Impeller rotation Counterclockwise (viewed from rear)
Transmission Direct drive from engine
Jet thrust nozzle angle Degree 23 + 23
Trim nozzle angle Degree -5, 0, 5, 10, 15
FUEL AND OIL
Recommended fuel Regular unleaded gasoline
Minimum octane rating PON
RON86
90
Recommended engine oil YAMALUBE 2-W only
Fuel tank capacity
Total L (US gal, Imp gal) 60 (15.9, 13.2)
Oil tank capacity L (US gal, Imp gal) 5.5 (1.5, 1.2)
UF1G70.book Page 23 Wednesday, December 18, 2002 3:35 PM

E
5
EJU11150
TROUBLESHOOTING
AND EMERGENCY
PROCEDURES
Troubleshooting ...................................... 5-1
Troubleshooting chart ............................ 5-1
Emergency procedures .......................... 5-4
Cleaning the jet intake and impeller ...... 5-4
Jumping the battery ............................... 5-5
Towing the watercraft ............................ 5-7
Submerged watercraft ........................... 5-8
UF1G70.book Page 1 Wednesday, December 18, 2002 3:35 PM

5-1
E
EJU11160
Troubleshooting
If you have any trouble with your watercraft, use this section to check for the possible
cause.
If you cannot find the cause, or if the procedure for replacement or repair is not described
in this Owner’s/Operator’s Manual, have a Yamaha dealer perform the necessary service.
EJU13670
Troubleshooting chart
TBC-*** TROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
startStarter motor does not turn over
Engine shut-
off switchClip not in place Install clip
2-7
Fuse Burned out Replace the fuse and
check wiring4-21
Battery Run down Recharge 4-18
Poor terminal connec-
tionsTighten as required
4-18
Terminal corroded Clean—
Starter motor Faulty Have serviced by
Yamaha dealer—
War ning
systemOverheat mode Cool down engine
2-12
Starter motor turns over
Throttle lever Squeezed Release 2-7
Fuel Empty Refill as soon as possi-
ble3-4
Stale or contaminated Have serviced by
Yamaha dealer4-10
Fuel tank Water or dirt present Have serviced by
Yamaha dealer4-10
Spark plug Fouled or defective Clean or replace 4-14
Spark plug cap Not connected or loose Connect properly 4-14
Crankcase Filled with water Crank engine with plug
out until clean5-8
Fuel injection
systemFuel pump faulty Have serviced by
Yamaha dealer—
Water
temperature
sensorFailed Have serviced by
Yamaha dealer 2-12
UF1G70.book Page 1 Wednesday, December 18, 2002 3:35 PM

5-2
E
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as possi-
ble3-4
Stale or contaminated Have serviced by
Yamaha dealer4-10
Fuel tank Water or dirt present Have serviced by
Yamaha dealer4-10
Spark plug Fouled or defective Replace 4-14
Incorrect heat range Replace 4-14
Gap incorrect Adjust 4-14
Spark plug cap Loose Connect properly 4-14
Cracked, torn, or dam-
agedReplace
—
Electrical
wiringLoose connection Tighten or connect
properly—
Fuel injection
systemFaulty or clogged injec-
torsHave serviced by
Yamaha dealer—
Warning light or
indicator blinksFuel level Empty Refill as soon as possi-
ble3-4
Engine oil level Empty Refill immediately 3-5
Oil filter clogged Have serviced by
Yamaha dealer—
Engine
overheatedJet intake clogged Clean 5-4
Water temperature
sensor is failedHave serviced by
Yamaha dealer2-12
Low battery
voltageBattery voltage low Charge 4-18
Battery terminal con-
nected wrongConnect properly
4-18
Exhaust gas
temperatureGas temperature is too
highCool down engine
2-13
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer— TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF1G70.book Page 2 Wednesday, December 18, 2002 3:35 PM

5-3
E
Wate rcr af t slow or
loses powerCavitation Jet intake clogged Clean 5-4
Impeller damaged or
wornHave serviced by
Yamaha dealer—
Engine
overheatedJet intake clogged Clean
5-4
Spark plug Fouled or defective Replace 4-14
Incorrect heat range Replace 4-14
Gap incorrect Adjust 4-14
Spark plug
capsLoose Connect properly
4-14
Electrical
wiringLoose connection Tighten or connect
properly—
Fuel Stale or contaminated Have serviced by
Yamaha dealer4-10
Bilge Water in bilge Drain 3-8 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF1G70.book Page 3 Wednesday, December 18, 2002 3:35 PM

5-4
E
EJU11180
Emergency procedures
EJU11190
Cleaning the jet intake and
impeller
If weeds or debris get caught in the intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine
speed rises. If this condition is allowed to
continue, the engine will overheat and may
seize. If there is any sign that the jet intake
or impeller is clogged with weeds or debris,
beach the watercraft and check the intake
and impeller. Always stop the engine before
beaching the watercraft.
WARNING@ Before attempting to remove weeds or
debris from the jet intake or impeller
areas, shut the engine off and remove
the clip from the engine shut-off switch.
Severe injury or death could result from
contact with the rotating parts of the jet
pump.
@
1. Turn the watercraft on its side as shown.
CAUTION:@
Place a suitable clean cloth or carpet-
ing underneath the watercraft to pro-
tect it from abrasions and scratches.

Always turn the watercraft over onto
its port (left) side.

When turning the watercraft on its
side, support the bow so the handle-
bars cannot be bent or damaged.
@
UF1G70.book Page 4 Wednesday, December 18, 2002 3:35 PM

5-5
E
2. Remove any weeds or debris from
around the drive shaft, impeller, pump
housing, and jet thrust nozzle.
If debris is difficult to remove, consult
your Yamaha dealer.
CAUTION:@ Always avoid operating your watercraft in
areas where weed growth is thick. If trav-
eling in weeded areas is unavoidable,
operate the engine alternately at partial
throttle and full throttle. Weeds tend to
accumulate more at a steady speed and
at trolling speed. If weeds clog the intake
or impeller area and cause cavitation, fol-
low the cleaning procedure above.
@
EJU18440
Jumping the battery
If the watercraft battery has run down, the
engine can be started using a 12-volt bat-
tery and jumper cables.
WARNING@ Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg or vegetable oil. Call physi-
cian immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes, etc. well away.
If using or charging the battery in an
enclosed space, make sure that it is well
ventilated. Always shield your eyes when
working near batteries.
KEEP OUT OF THE REACH OF CHILDREN.
@
