Table of contents
Battery ............................................. 61
Cleaning the watercraft ................... 62
Maintenance and adjustments ..... 63
Owner’s/operator’s manual and
tool kit ........................................... 63
Periodic maintenance chart ............. 65
Checking the fuel system ................ 66
Checking the oil injection system .... 66
Checking the jet thrust
nozzle angle ................................. 66
Checking and adjusting the throttle
cable ............................................ 67
Cleaning and adjusting the
spark plugs ................................... 67
Lubrication points ............................ 68
Checking the battery ....................... 69
Fuel injection system ....................... 71
Bleeding the oil pump ...................... 71
Adjusting the Yamaha Adjustable
Sponsons (YAS) .......................... 71
Specifications .................................. 72
Specifications ................................ 72
Trouble recovery ............................. 73
Troubleshooting ........................... 73
Troubleshooting chart ...................... 73
Emergency procedures ................ 76
Cleaning the jet intake and
impeller ........................................ 76
Jumping the battery ......................... 77
Replacing the fuses ......................... 78
Towing the watercraft ...................... 78
Submerged watercraft ..................... 79
UF1G74E0.book Page 2 Monday, July 31, 2006 10:10 AM

Features and functions
20
Engine compartment
1Spark plugs/Spark plug caps
2Electrical box
3Flushing hose connector
4Spark plug lead
5Muffler
6Fuel tank
7Oil tank
8Battery
9Fire extinguisher container
10Water separator
UF1G74E0.book Page 20 Monday, July 31, 2006 10:10 AM

Features and functions
27
The bow eye is used to attach a rope to the
watercraft when transporting, mooring, or
towing it in an emergency.
EJU36020Stern rope holes
The stern rope holes are located at the stern
of the watercraft.
The stern rope holes are used to attach a rope
to the watercraft when transporting or moor-
ing it.
EJU31370Yamaha Engine Management System
(YEMS)
This model is equipped with an integrated,
computerized management system that con-
trols and adjusts ignition timing, fuel injection,
engine diagnostics, and the off-throttle steer-
ing (OTS) system.
EJU31420Multifunction information center
This meter contains the following functions for
help and convenience in operating the water-
craft.
CAUTION:
ECJ00060

Do not run the engine over 4000 r/min
when checking the operation of the
meter on land without supplying water,
otherwise the engine could overheat
and the catalytic converter could be se-
riously damaged.

Use the specified resistor-type spark
plugs and caps, otherwise the meter
may function erratically.
NOTE:

When the engine is started, all displays light
up for a few seconds, the buzzer sounds
twice, and then the meter starts to operate
normally.
1Bow eye
1Stern rope hole
1Tachometer
2Speedometer
3Hour meter/voltmeter
4Fuel level meter
5“WARNING” light
6Fuel level warning indicator
7Oil level warning indicator
8Engine overheat warning indicator
9Exhaust temperature warning indicator
10Check engine warning indicator
11Select button
UF1G74E0.book Page 27 Monday, July 31, 2006 10:10 AM

Maintenance and care
61
EJU33580Lubrication
WARNING
EWJ00260
Do not spray flammable rust inhibitor
products on engine surfaces while the en-
gine is hot. The sprayed substance or pro-
pellants could catch fire.
(1) Remove the spark plugs and pour ap-
proximately one tablespoon of engine oil
into each cylinder.
(2) Grease the spark plug threads and rein-
stall the spark plugs.
(3) With the spark plug caps removed from
the spark plugs, crank the engine for 3
seconds or less using the start switch.
(4) Lubricate all cables such as the throttle
and steering cables.
NOTE:
Use a suitable marine grease applicator to
pressure-lubricate the cables and purge out
any moisture between the inner and outer ca-
bles.
(5) Lubricate the areas of the watercraft
specified in “Lubrication points” on page
68.
EJU33651Fuel system
WARNING
EWJ00290
GASOLINE AND ITS VAPORS ARE HIGH-
LY FLAMMABLE AND EXPLOSIVE!

Do not smoke when refueling, and keep
away from sparks, flames, and other
sources of ignition.

Stop the engine before refueling.

Refuel in a well-ventilated area with the
watercraft in a horizontal position.

Do not stand or sit on the watercraft
while refueling in case of fire.

Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags. Always properly dispose of
gasoline-soaked rags.

Avoid overfilling the fuel tank. Stop fill-
ing when the fuel level just reaches the
bottom of the filler tube. Do not fill up the
filler tube because fuel expands as it
warms up and could overflow. If tempo-
rarily leaving the watercraft with a full
fuel tank, do not leave it in direct sun-
light. Leave it in a well-ventilated area
with the watercraft in a horizontal posi-
tion.

Tighten the fuel tank filler cap securely
after refueling.

If you should swallow some gasoline, in-
hale a lot of gasoline vapor, or get gaso-
line in your eyes, get immediate medical
attention.

If any gasoline spills on your skin or
clothing, immediately wash the affected
area with soap and water and change
your clothes.
Top off the fuel tank with fresh gasoline and
add 470 ml (15.9 US oz, 16.5 Imp oz) of
Yamaha Fuel Stabilizer and Conditioner.
CAUTION:
ECJ00140
Use only Yamaha Fuel Stabilizer and Con-
ditioner, otherwise the catalytic converter
could be seriously damaged.
EJU33680Battery
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft and store it in a cool, dry place.
(1) Disconnect the negative (–) battery lead
first, then the positive (+) battery lead and
breather hose, and then remove the bat-
tery from the watercraft.
UF1G74E0.book Page 61 Monday, July 31, 2006 10:10 AM

Maintenance and care
65
EJU33820Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, maintenance
may need to be performed more frequently depending on your operating conditions.
This “” mark indicates maintenance that you may do yourself.
This “” mark indicates work to be done by a Yamaha dealer.
* This operation should be performed after every use.
Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, adjust 67
Lubrication pointsLubricate 68
Intermediate hous-
ingLubricate 68
Fuel systemCheck 66
Fuel tankCheck, clean 66
Oil injection sys-
temCheck, clean 66
Throttle shaftCheck—
Cooling water pas-
sagesFlush
*60
Water inlet strain-
erCheck, clean—
Bilge strainerClean—
Electric bilge
pump strainerCheck, clean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust 66
QSTS mechanismCheck, adjust—
Throttle cableCheck, adjust 67
Stern drain plugsCheck, replace 40
BatteryCheck, charge 69
Rubber couplingCheck—
Engine mountCheck—
Nuts and boltsCheck—
UF1G74E0.book Page 65 Monday, July 31, 2006 10:10 AM

Maintenance and care
67
If the steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU34360Checking and adjusting the throttle
cable
Check that the throttle cable moves back to
the set position smoothly and that the throttle
lever free play is within specification.
(1) Squeeze and release the throttle lever. If
the throttle lever does not return smooth-
ly, have a Yamaha dealer service it.(2) Adjust the free play by loosening the lock-
nut and turning the adjuster.
EJU34371Cleaning and adjusting the spark
plugs
WARNING
EWJ00350
Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks to
escape, which could result in a fire or ex-
plosion.
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if the
center electrode porcelain is very white, this
could indicate an intake air leak or carburetion
problem in that cylinder. Do not attempt to di-
agnose any problems yourself. Have a
Yamaha dealer service the watercraft.
Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the spark
plugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon Difference of A and B:
Maximum 5 mm (0.20 in)
1Locknut
2Adjuster
3Throttle lever free play
Throttle lever free play:
4.0–7.0 mm (0.16–0.28 in)
UF1G74E0.book Page 67 Monday, July 31, 2006 10:10 AM

Maintenance and care
68
and other deposits are excessive, replace the
spark plug with the specified plug.
Measure the spark plug gap with a wire thick-
ness gauge. Replace the spark plugs or ad-
just the gap to specification if necessary.
To install a spark plug:
(1) Clean the gasket surface.
(2) Wipe any dirt from the threads of the
spark plug.
(3) Install the spark plug, and then tighten it
to the specified torque.
(4) Install the spark plug cap.
NOTE:

Wipe off any water on the spark plug or in-
side the spark plug cap before installing the
cap. Push the spark plug cap down until it is
securely installed.

If a torque wrench is not available when you
are installing a spark plug, a good estimate
of the correct torque is 1/4 turn to 1/2 turnpast finger tight using the spark plug
wrench included in the tool kit. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
EJU34410Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.

Throttle cable (handlebar end)
Squeeze the throttle lever and remove the
seal. Spray a rust inhibitor into the outer ca-
ble. Refit the seal securely.

Steering cable (handlebar end)

Steering cable (jet thrust nozzle end)

Jet thrust nozzle pivot shaft Specified spark plug:
BR8ES-11
1Spark plug gap
Spark plug gap:
1.0–1.1 mm (0.039–0.043 in)
Spark plug tightening torque:
25.0 Nm (18.4 ft-lb) (2.55 kgf-m)
Recommended water-resistant grease:
Yamaha Marine Grease/Yamaha
Grease A
1Seal
UF1G74E0.book Page 68 Monday, July 31, 2006 10:10 AM

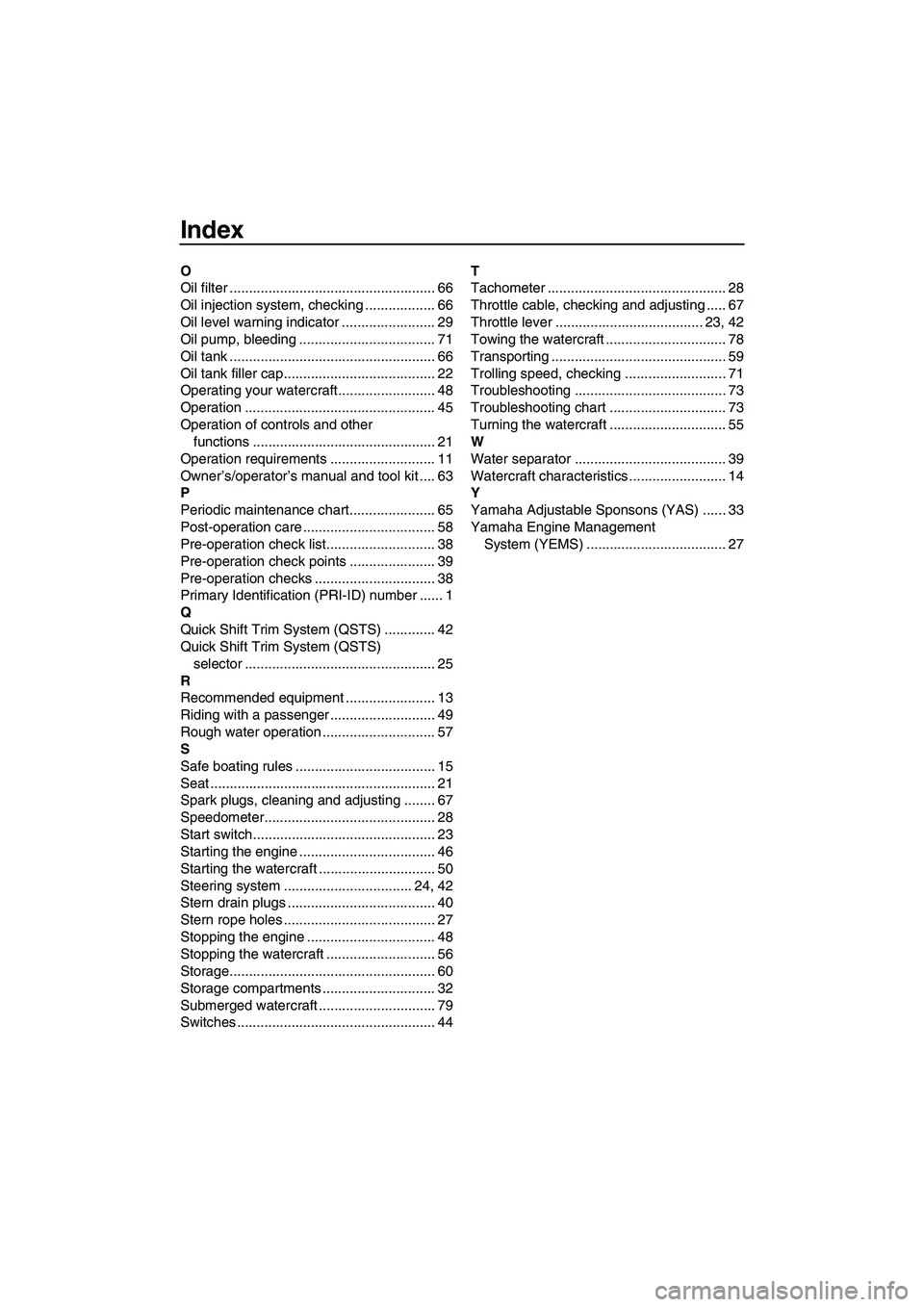

Index
O
Oil filter ..................................................... 66
Oil injection system, checking .................. 66
Oil level warning indicator ........................ 29
Oil pump, bleeding ................................... 71
Oil tank ..................................................... 66
Oil tank filler cap....................................... 22
Operating your watercraft......................... 48
Operation ................................................. 45
Operation of controls and other
functions ............................................... 21
Operation requirements ........................... 11
Owner’s/operator’s manual and tool kit .... 63
P
Periodic maintenance chart...................... 65
Post-operation care .................................. 58
Pre-operation check list............................ 38
Pre-operation check points ...................... 39
Pre-operation checks ............................... 38
Primary Identification (PRI-ID) number ...... 1
Q
Quick Shift Trim System (QSTS) ............. 42
Quick Shift Trim System (QSTS)
selector ................................................. 25
R
Recommended equipment ....................... 13
Riding with a passenger ........................... 49
Rough water operation ............................. 57
S
Safe boating rules .................................... 15
Seat .......................................................... 21
Spark plugs, cleaning and adjusting ........ 67
Speedometer............................................ 28
Start switch............................................... 23
Starting the engine ................................... 46
Starting the watercraft .............................. 50
Steering system ................................. 24, 42
Stern drain plugs ...................................... 40
Stern rope holes ....................................... 27
Stopping the engine ................................. 48
Stopping the watercraft ............................ 56
Storage..................................................... 60
Storage compartments ............................. 32
Submerged watercraft .............................. 79
Switches ................................................... 44T
Tachometer .............................................. 28
Throttle cable, checking and adjusting ..... 67
Throttle lever ...................................... 23, 42
Towing the watercraft ............................... 78
Transporting ............................................. 59
Trolling speed, checking .......................... 71
Troubleshooting ....................................... 73
Troubleshooting chart .............................. 73
Turning the watercraft .............................. 55
W
Water separator ....................................... 39
Watercraft characteristics ......................... 14
Y
Yamaha Adjustable Sponsons (YAS) ...... 33
Yamaha Engine Management
System (YEMS) .................................... 27
UF1G74E0.book Page 2 Monday, July 31, 2006 10:10 AM
