Hood
To open the hood, push the latch 1
down, and then lift the hood up.
To close the hood, push the hood down to
lock it in place.
NOTE:@ Make sure that the hood is properly secured
before operating the watercraft.
@
EJU01012
Fuel tank filler cap
To remove the fuel tank filler cap 1, turn it
counterclockwise.
NOTE:@ Make sure that the fuel tank filler cap is
properly secured before operating the water-
craft.
@
EJU01013
Oil tank filler cap
To remove the oil tank filler cap 2, turn it
counterclockwise.
NOTE:@ Make sure that the oil tank filler cap is prop-
erly secured before operating the watercraft.
@
UF0W71.book Page 6 Thursday, August 30, 2001 3:46 PM

2-7
E
EJU01014
Fuel cock knob
The fuel cock supplies fuel from the fuel
tank to the carburetors.
The fuel cock knob 1 positions are
explained as follows and are shown in the
illustration.
OFF:
With the fuel cock knob in this position,
fuel does not flow. Always turn the fuel cock
knob to this position when the engine is not
running.
ON:
With the fuel cock knob in this position,
fuel flows to the carburetors. Turn the fuel
cock knob to this position when starting the
engine and operating the watercraft.
RES:
This indicates reserve. With the fuel cock
knob in this position, the fuel reserve is
made available. Tur n the fuel cock knob to
this position if you run out of fuel while oper-
ating the watercraft. When this occurs,
refuel as soon as possible and be sure to
turn the fuel cock knob back to “ON”!
UF0W71.book Page 7 Thursday, August 30, 2001 3:46 PM

2-8
E
EJU01015
Engine stop switch
Push this switch 1 (red button) to stop
the engine normally.
EJU01016
Engine shut-off switch
Insert the clip 1, on the end of the engine
shut-off cord 2, under the engine shut-off
switch 3 (black button). The engine will stop
automatically when the clip is removed from
the switch, such as if the operator falls off
the watercraft.
WARNING@
Always attach the engine shut-off cord
to your wrist and the clip to the engine
shut-off switch BEFORE starting the
engine.

To prevent accidental starting of the
engine or unauthorized use by chil-
dren or others, always remove the clip
from the shut-off switch when the
engine is not running.
@
EJU01017
Choke lever
Starting a cold engine requires a richer
air-fuel mixture, which is supplied by the
choke.
Move the lever 1 in direction a to turn
the choke on.
Move the lever in direction b to turn the
choke off.
UF0W71.book Page 8 Thursday, August 30, 2001 3:46 PM

2-9
E
EJU01018
Throttle lever
Squeeze the throttle lever 1 to increase
engine speed.
Release the throttle lever to decrease
engine speed or to return it to the idle posi-
tion.
EJU01019
Start switch
Push the start switch 1 (green button) to
start the engine.
NOTE:@ The engine will not start when the clip is
removed from the engine shut-off switch.
@
UF0W71.book Page 9 Thursday, August 30, 2001 3:46 PM

2-10
E
EJU01020
Cooling water pilot outlet
This watercraft is equipped with a cooling
water pilot outlets.
When the engine is running, cooling
water is circulated in the engine, and then it
is discharged from the pilot outlets.
To check for proper operation of the cool-
ing system, check that water is being dis-
charged from the pilot outlets. If water is not
being discharged from the outlets, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and
check for the cause. (See pages 2-13 and
5-4 for further instructions.)
NOTE:@ If the cooling water passages are dry, it will
take about 20 seconds for the water to reach
the outlet after the engine is started.
@
EJU01021
Steering system
Your watercraft can be steered by turning
the handlebars 1 the same direction you
wish to travel.
When the handlebars are turned, the
angle of the jet thrust nozzle 2 is changed,
and the direction of the watercraft is
changed accordingly. Since the strength of
the jet thrust determines the speed and
direction of a turn, the throttle must always
be open when attempting a turn, except at
trolling speed.
UF0W71.book Page 10 Thursday, August 30, 2001 3:46 PM

2-11
E
EJU01022

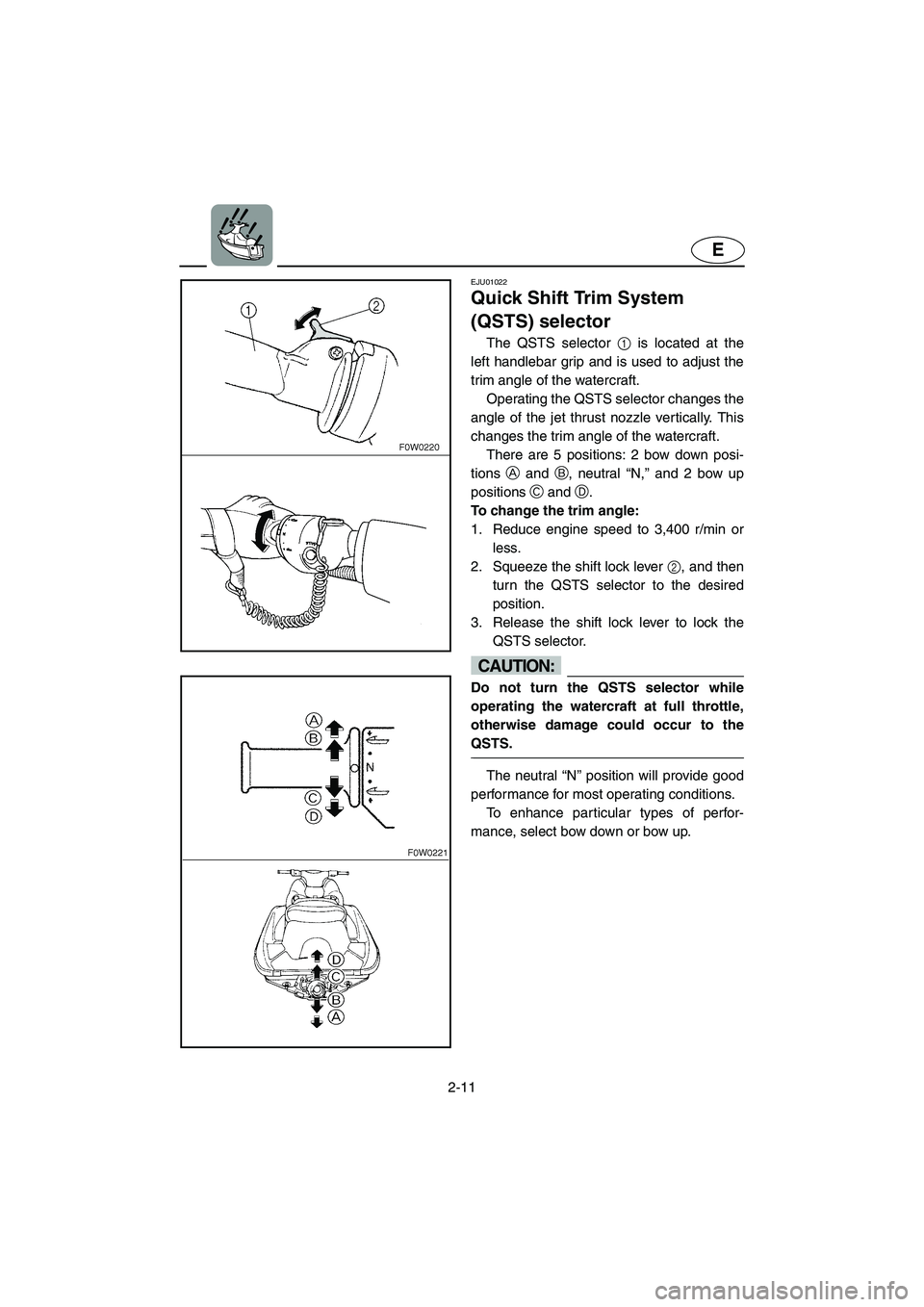

Quick Shift Trim System
(QSTS) selector
The QSTS selector 1 is located at the
left handlebar grip and is used to adjust the
trim angle of the watercraft.
Operating the QSTS selector changes the
angle of the jet thrust nozzle vertically. This
changes the trim angle of the watercraft.
There are 5 positions: 2 bow down posi-
tions A and B, neutral “N,” and 2 bow up
positions C and D.
To change the trim angle:
1. Reduce engine speed to 3,400 r/min or
less.
2. Squeeze the shift lock lever 2, and then
turn the QSTS selector to the desired
position.
3. Release the shift lock lever to lock the
QSTS selector.
CAUTION:@ Do not turn the QSTS selector while
operating the watercraft at full throttle,
otherwise damage could occur to the
QSTS.
@
The neutral “N” position will provide good
performance for most operating conditions.
To enhance particular types of perfor-
mance, select bow down or bow up.
UF0W71.book Page 11 Thursday, August 30, 2001 3:46 PM

2-12
E
EJU01023
Bow down
Turn the grip to A or B and the bow will
go down while the watercraft is on plane.
Bow down puts more of the bow in the
water. This gives the watercraft more “hook,”
which enhances turning performance. This
position will also help the watercraft get up
on plane more quickly.
At higher speeds, however, the watercraft
will have greater tendency to “bow steer”
and follow waves and wakes in the water.
Fuel economy and maximum speed are also
reduced.
EJU01024
Bow up
Turn the grip to C or D and the bow will
go up while the watercraft is on plane.
Bow up puts less of the bow in the water.
There is less water resistance, so straight-
ahead acceleration when on plane and top
speed are enhanced.
In some conditions, however, the water-
craft may tend to “porpoise” (hop in the
water). If the watercraft is porpoising,
choose neutral or bow down.
EJU01025
Handgrip
The handgrip 1 provides a handhold for
boarding the watercraft.
CAUTION:@ Do not use to tow objects, lift watercraft,
or attach tie downs, otherwise damage
could occur.
@
UF0W71.book Page 12 Thursday, August 30, 2001 3:46 PM

2-13
E
EJU01140
Engine overheat warning
system
This model is equipped with an engine
overheat warning system.
If the engine starts to overheat, the warn-
ing light and the engine overheat warning
indicator begin to blink, the buzzer sounds,
and the engine speed will be limited to about
3,400 r/min.
When this occurs, check for water dis-
charge at the cooling water pilot outlet. If
there is no discharge of water, reduce the
engine speed and beach the watercraft, and
then check the intake grate and impeller for
clogging.
WARNING@ Before attempting to remove weeds or
debris from the intake grate or impeller,
shut the engine off and remove the clip
from the engine shut-off switch. Severe
injury or death could result from coming
in contact with the rotating parts of the
jet pump.
@
CAUTION:@ If you cannot locate and correct the
cause of the overheating, consult a
Yamaha dealer. Continuing to operate at
higher speeds could result in severe
engine damage.
@
NOTE:@ Press the reset button on the multifunction
information center to stop the buzzer.
@
UF0W71.book Page 13 Thursday, August 30, 2001 3:46 PM

2-14
E
EJU01027
Multifunction information
center
This meter contains following functions for
the help and convenience of operation.
1
Tachometer
2
Speedometer
3
Fuel meter
4
Hour meter
5
Warning light
6
Oil warning indicator
7
Engine overheat warning indicator
8
Fuel warning indicator
9
Reset button
CAUTION:@
Do not run the engine at full throttle or
more than 15 seconds to check the
meter for operation on land. The
engine could overheat.

Use the specified resistor-type spark
plug and cap, otherwise the meter may
function erratically.
@
NOTE:@ All display light up and the buzzer sounds
twice after the engine starts. Then, the
meter will operate normally after few sec-
onds. The current display will continue to
operate for 30 seconds after the engine
stops.
@
UF0W71.book Page 14 Thursday, August 30, 2001 3:46 PM

2-15
E
F0X0230
RESET
4
3
2
1
EJU01028
Tachometer
The engine speed (r/min) is displayed by
segments. Each segment indicates a 250 r/min
increment.
EJU01029
Speedometer
The meter shows the watercraft speed
against water.
NOTE:@ If the speedometer malfunctions, “_ _” dis-
play will blink.
@
EJU01030
Reset button
Pushing the reset button stops sounding
the buzzer.
