Page 111 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
8-42
1
2
3
4
5
6
78
9
10
11

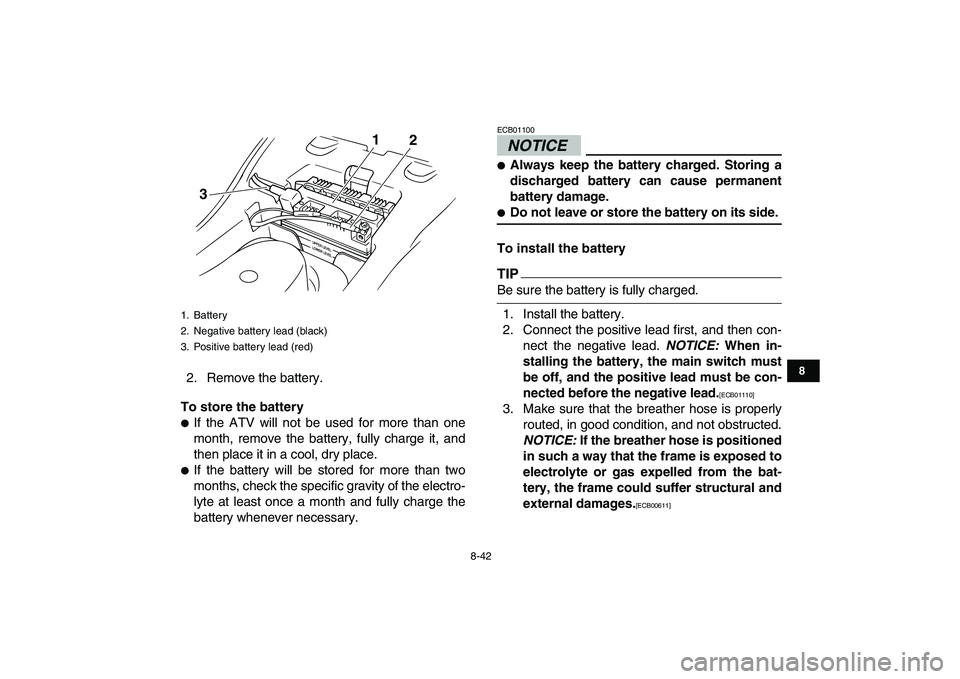

2. Remove the battery.
To store the battery

If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool,

Page 112 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
8-43
1
2
3
4
5
6
78
9
10
11

EBU25263

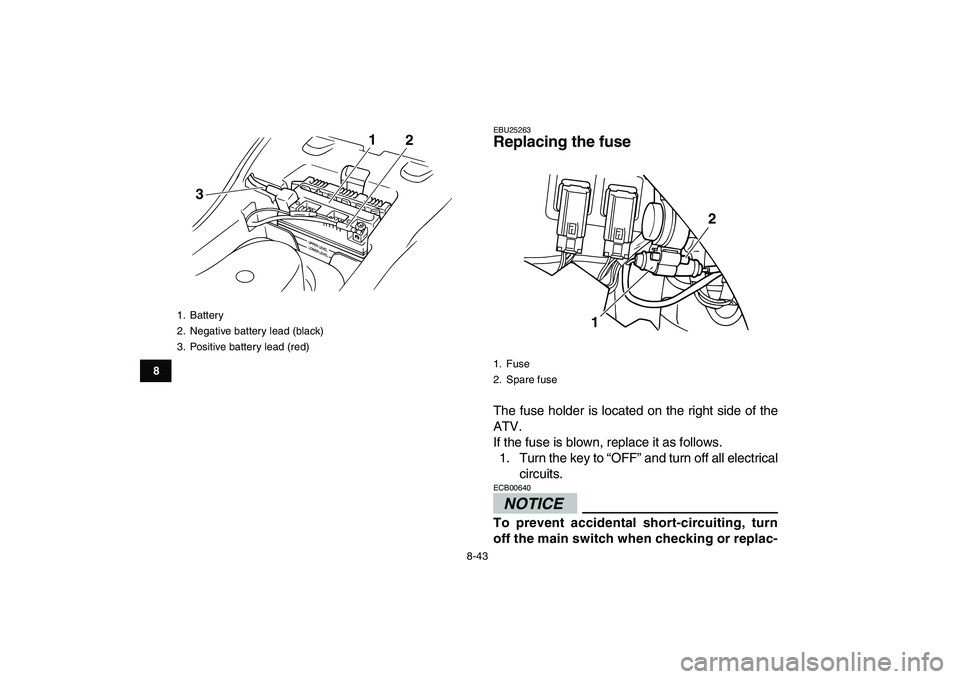

Replacing the fuse
The fuse holder is located on the right side of the
ATV.
If the fuse is blown, replace it as follows.
1. Turn the key to “OFF” and t

Page 113 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
8-44
1
2
3
4
5
6
78
9
10
11

ing a fuse.

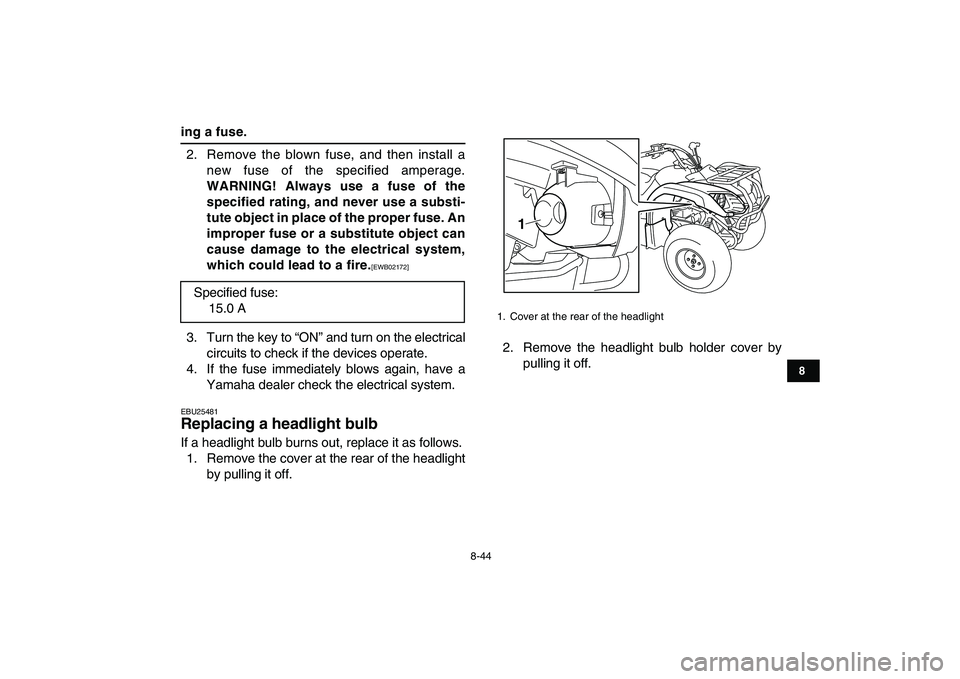

2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the
specified rating, and never use a subs

Page 114 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
8-45
1
2
3
4
5
6
78
9
10
11

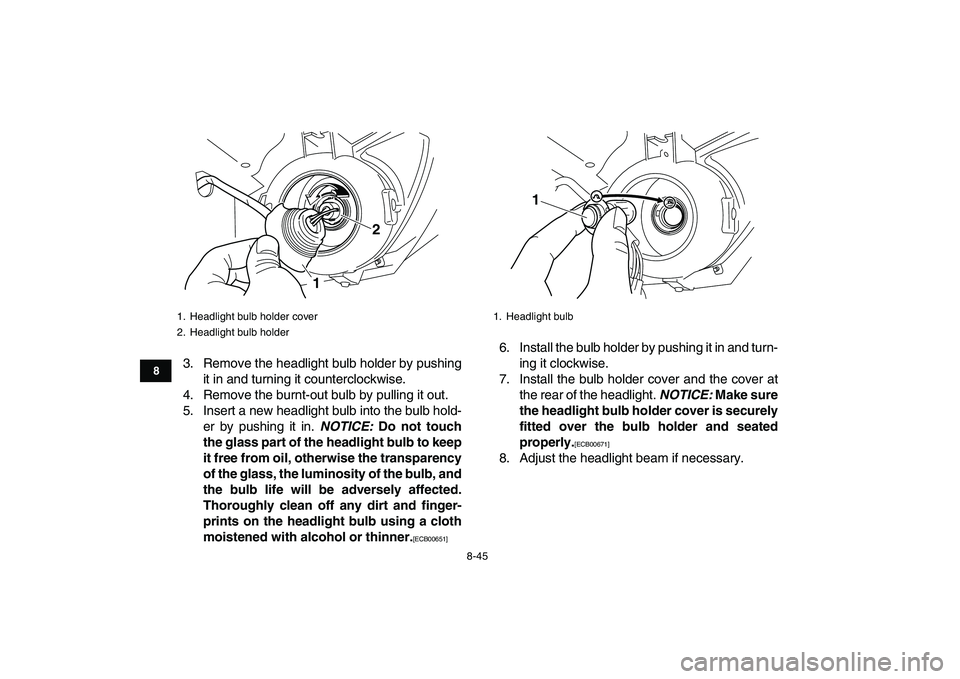

3. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise.
4. Remove the burnt-out bulb by pulling it out.
5. Insert a new headlight bulb in

Page 115 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
8-46
1
2
3
4
5
6
78
9
10
11

EBU25551

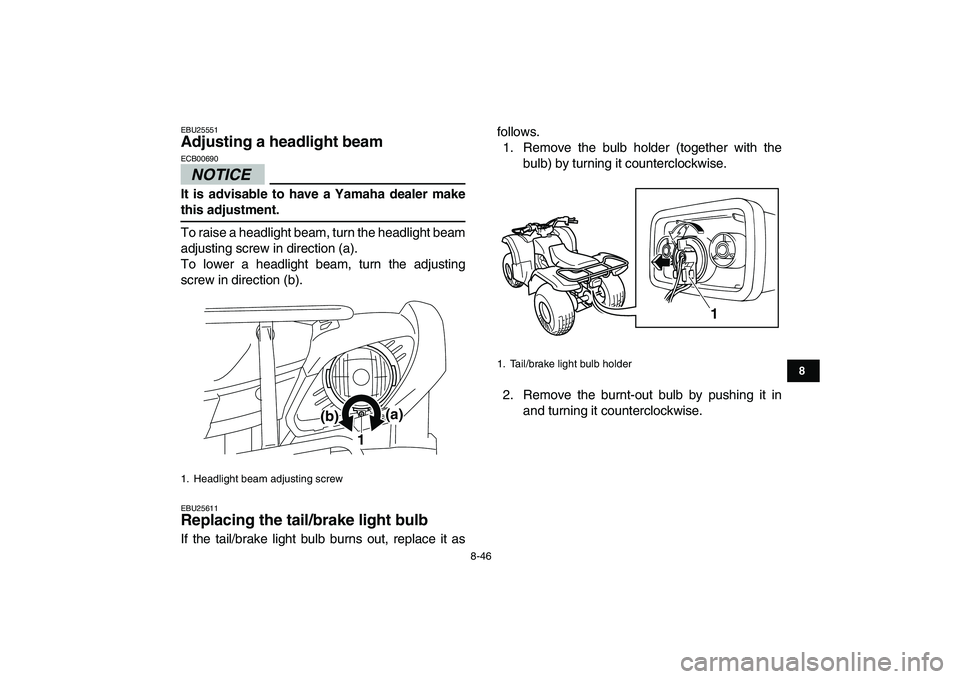

Adjusting a headlight beam
NOTICE

ECB00690
It is advisable to have a Yamaha dealer make
this adjustment.
To raise a headlight beam, turn the headlight

Page 116 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
8-47
1
2
3
4
5
6
78
9
10
11

3. Insert a new bulb into the bulb holder, push it
in, and then turn it clockwise until it stops.
4. Install the bulb holder (together with the bulb)
by turning it clo

Page 117 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
8-48
1
2
3
4
5
6
78
9
10
11

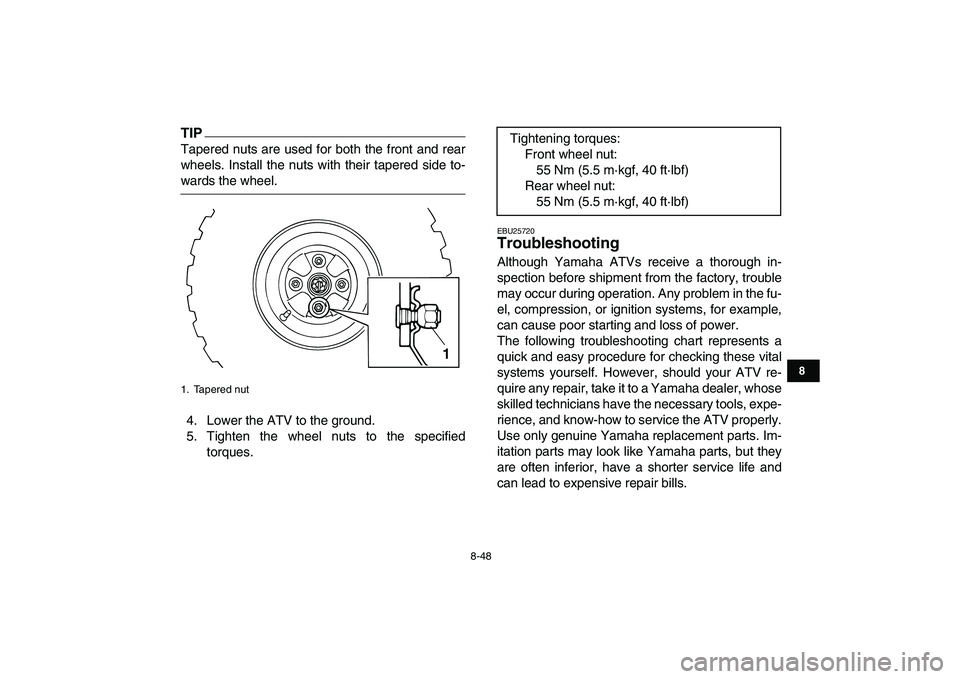

TIP

Tapered nuts are used for both the front and rear
wheels. Install the nuts with their tapered side to-
wards the wheel.
4. Lower the ATV to the ground.
5. Tighten

Page 118 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
8-49
1
2
3
4
5
6
78
9
10
11

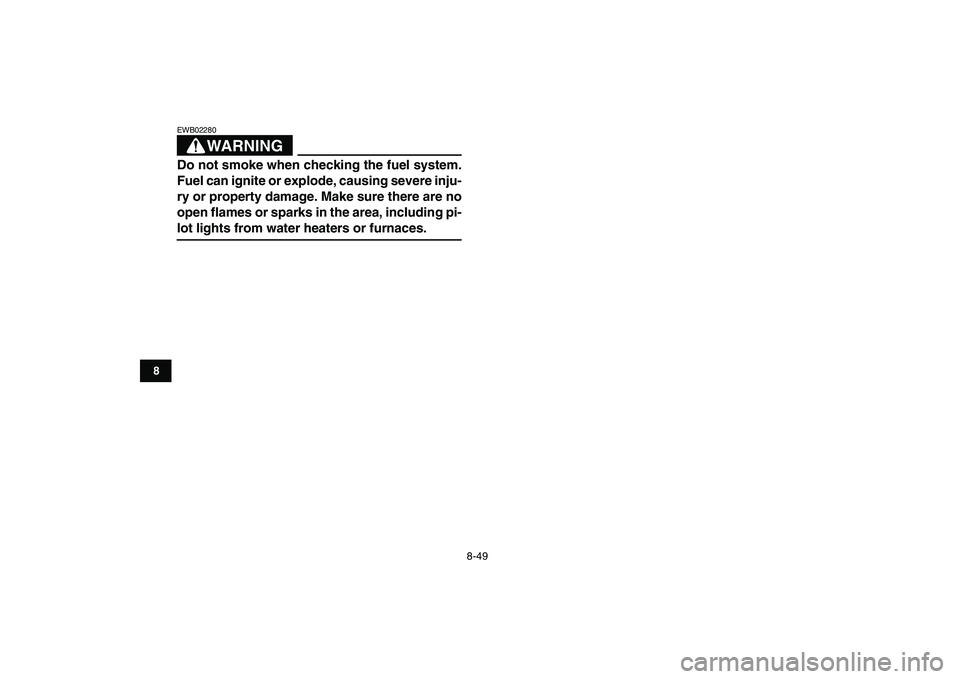

WARNING

EWB02280
Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flam

Page 119 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
8-50
1
2
3
4
5
6
78
9
10
11

EBU25791

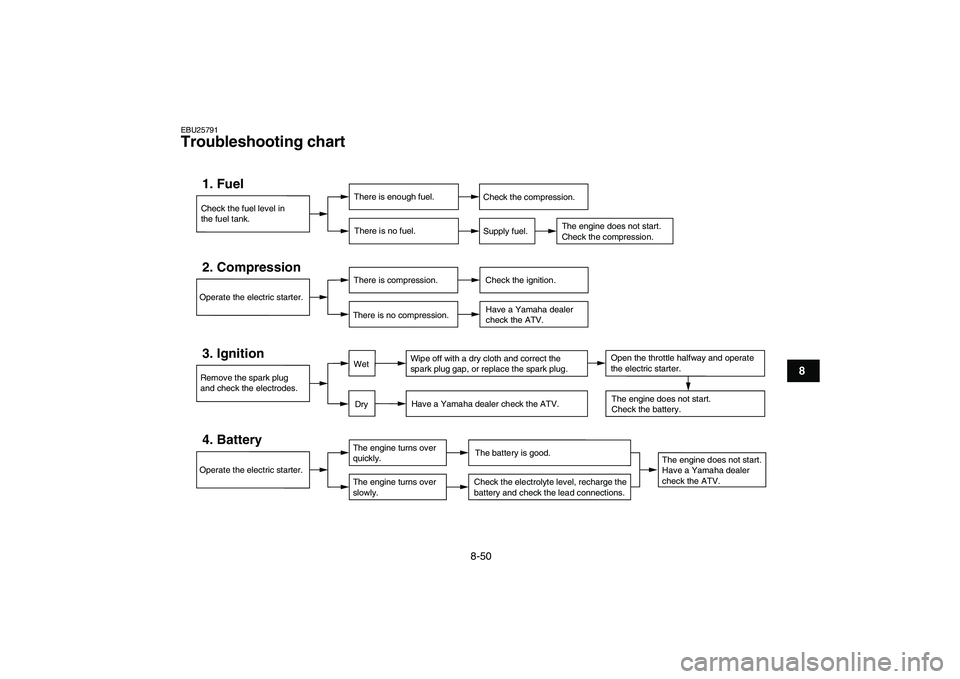

Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine d

Page 120 of 132

YAMAHA GRIZZLY 125 2011  Owners Manual
9-1
1
2
3
4
5
6
7
89
10
11

EBU25860

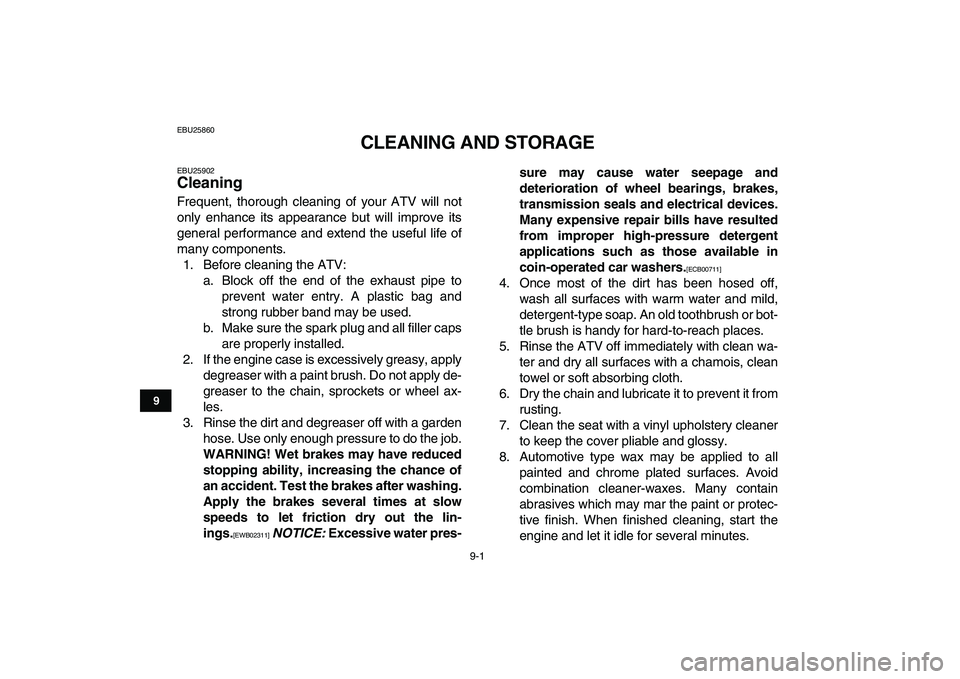

CLEANING AND STORAGE
EBU25902
Cleaning
Frequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performan
