EBU29680

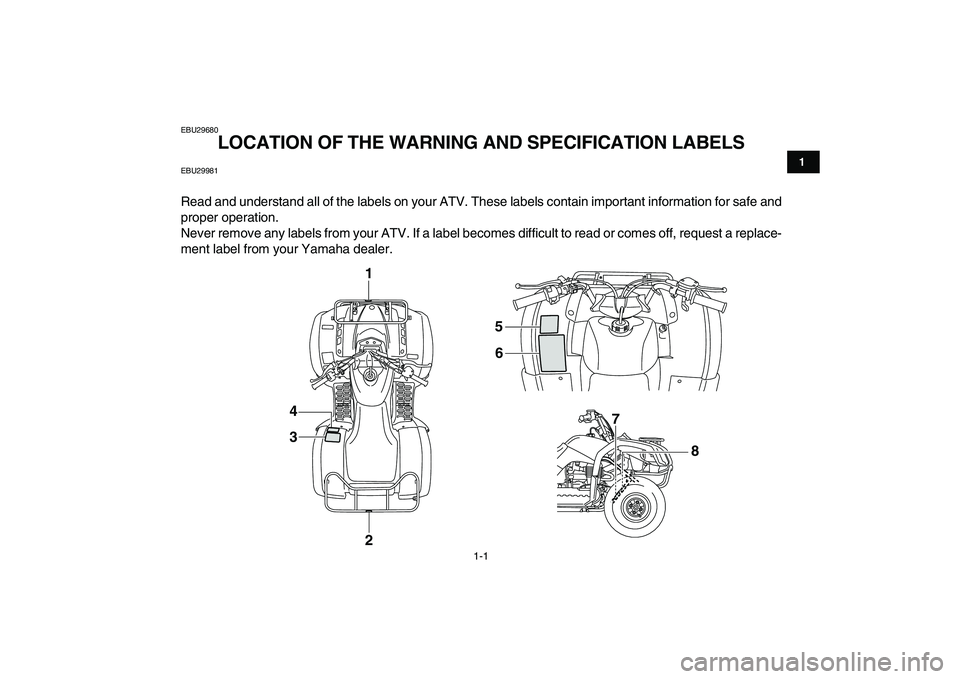

LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU29981
Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replace-
ment label from your Yamaha dealer.
1
3 4
2
7
8
5
6

1-2
1
2
3
4
5
6
7
8
9
10
11
1
2
34

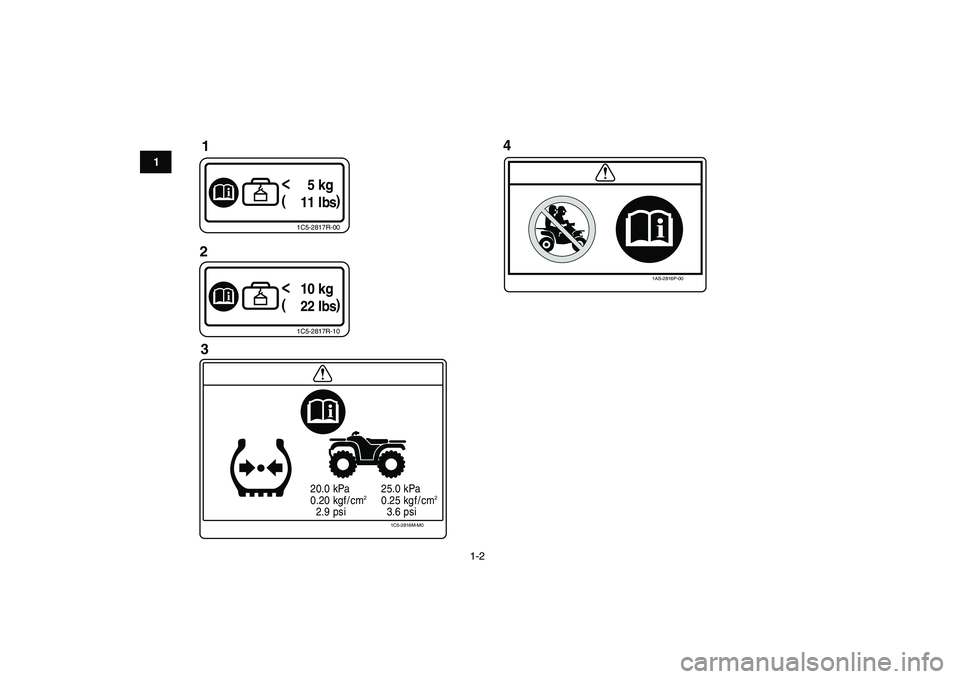

1C5-2817R-00
< 5 kg
(
11 Ibs)1C5-2817R-10
< 10 kg
(
22 Ibs)
1C5-2816M-M0
kPa
kgf / cm
2
psi 20.0
0.20
2.9kPa
kgf / cm
2
psi 25.0
0.25
3.6
1AS-2816P-00

1-3
1
2
3
4
5
6
7
8
9
10
11
5
6
7

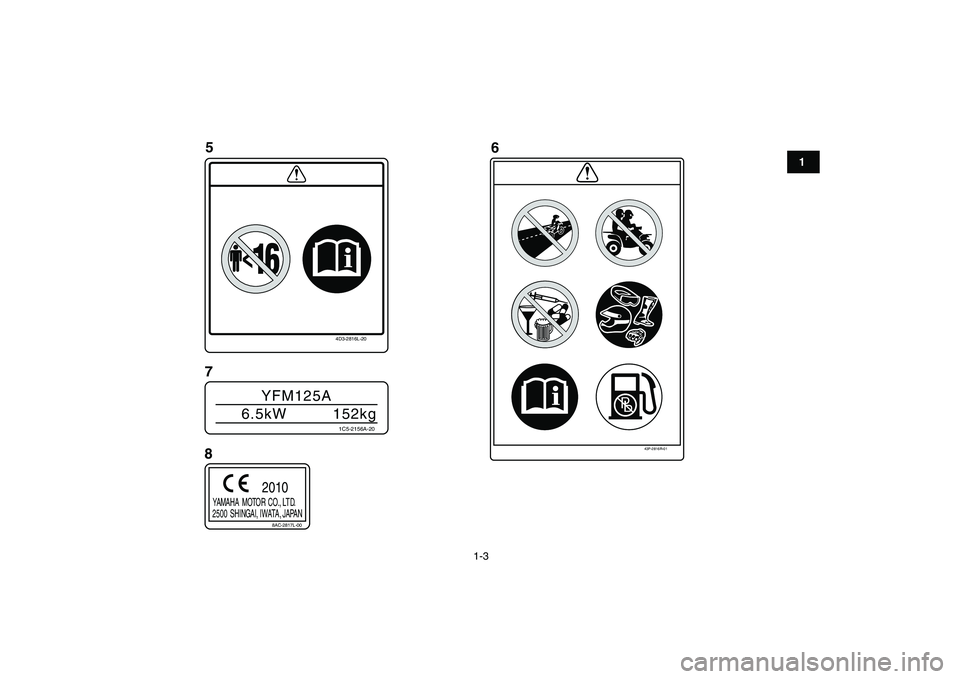

4D3-2816L-20
8
43P-2816R-01
YFM125A
6.5kW 152kg
1C5-2156A-20
8AC-2817L-00
YAMAHA MOTOR CO., LT D.
2500 SHINGAI, IWATA, JAPAN
2010

1-4
1
2
3
4
5
6
7
8
9
10
11

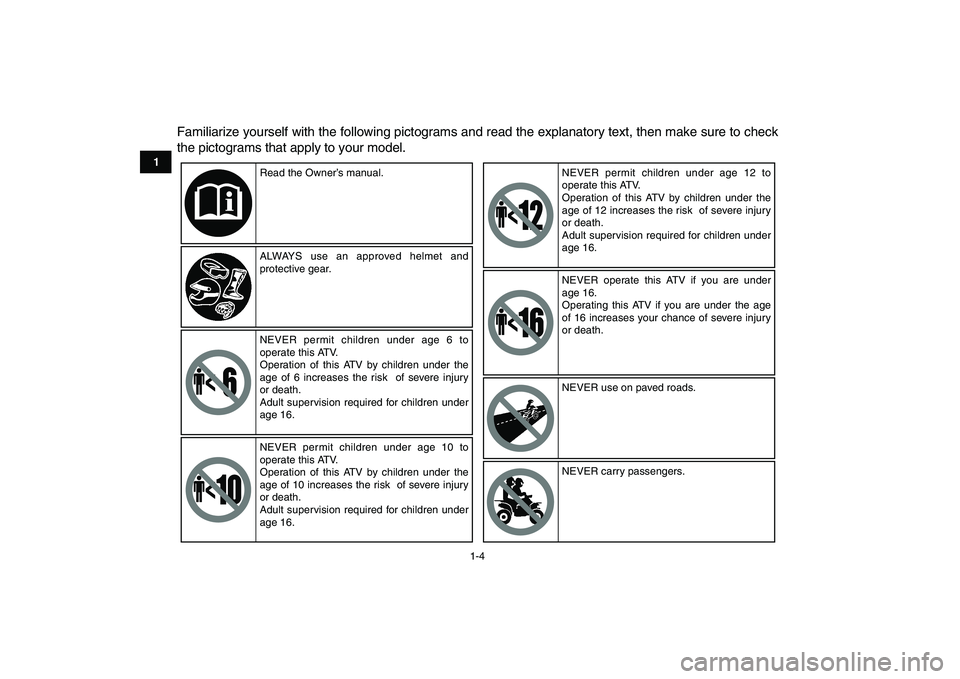

Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
NEVER permit children under age 6 to
operate this ATV.
Operation of this ATV by children under the
age of 6 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER permit children under age 10 to
operate this ATV.
Operation of this ATV by children under the
age of 10 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.NEVER permit children under age 12 to
operate this ATV.
Operation of this ATV by children under the
age of 12 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
NEVER operate this ATV if you are under
age 16.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death.
NEVER use on paved roads.
NEVER carry passengers.

1-5
1
2
3
4
5
6
7
8
9
10
11
**.* kPa
*.** kgf/cm²
*.* psi**.* kPa
*.** kgf/cm²
*.* psi
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold.Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
Turning the ATV in 4WD-LOCK
(“DIFF.LOCK”) takes more effort.
Operate at a slow speed and allow extra
time and distance for maneuvers to avoid
loss of control.
This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.

1-6
1
2
3
4
5
6
7
8
9
10
11
******
*** kW *** kg1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
****1This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
1
2
3Model Name
Max. Power
Mass In Running Order
1
Year of construction

2-1
12
3
4
5
6
7
8
9
10
11

EBU17431

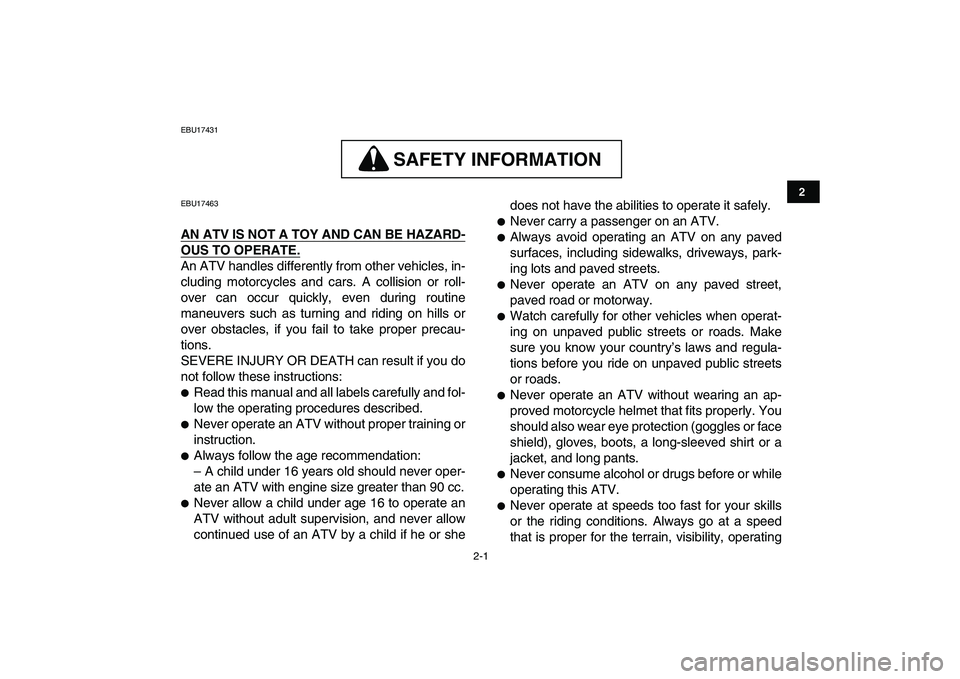

SAFETY INFORMATION

SAFETY INFORMATION
EBU17463
AN ATV IS NOT A TOY AND CAN BE HAZARD-
OUS TO OPERATE.

An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:

Read this manual and all labels carefully and fol-
low the operating procedures described.

Never operate an ATV without proper training or
instruction.

Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc.

Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or shedoes not have the abilities to operate it safely.

Never carry a passenger on an ATV.

Always avoid operating an ATV on any paved
surfaces, including sidewalks, driveways, park-
ing lots and paved streets.

Never operate an ATV on any paved street,
paved road or motorway.

Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.

Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.

Never consume alcohol or drugs before or while
operating this ATV.

Never operate at speeds too fast for your skills
or the riding conditions. Always go at a speed
that is proper for the terrain, visibility, operating

2-2
12
3
4
5
6
7
8
9
10
11

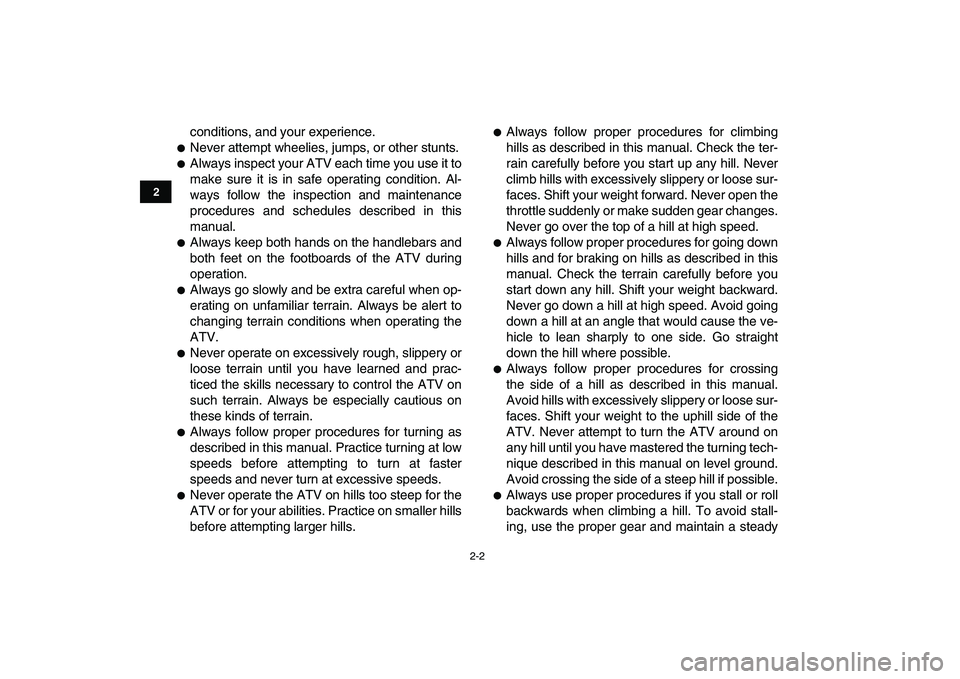

conditions, and your experience.

Never attempt wheelies, jumps, or other stunts.

Always inspect your ATV each time you use it to
make sure it is in safe operating condition. Al-
ways follow the inspection and maintenance
procedures and schedules described in this
manual.

Always keep both hands on the handlebars and
both feet on the footboards of the ATV during
operation.

Always go slowly and be extra careful when op-
erating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the
ATV.

Never operate on excessively rough, slippery or
loose terrain until you have learned and prac-
ticed the skills necessary to control the ATV on
such terrain. Always be especially cautious on
these kinds of terrain.

Always follow proper procedures for turning as
described in this manual. Practice turning at low
speeds before attempting to turn at faster
speeds and never turn at excessive speeds.

Never operate the ATV on hills too steep for the
ATV or for your abilities. Practice on smaller hills
before attempting larger hills.

Always follow proper procedures for climbing
hills as described in this manual. Check the ter-
rain carefully before you start up any hill. Never
climb hills with excessively slippery or loose sur-
faces. Shift your weight forward. Never open the
throttle suddenly or make sudden gear changes.
Never go over the top of a hill at high speed.

Always follow proper procedures for going down
hills and for braking on hills as described in this
manual. Check the terrain carefully before you
start down any hill. Shift your weight backward.
Never go down a hill at high speed. Avoid going
down a hill at an angle that would cause the ve-
hicle to lean sharply to one side. Go straight
down the hill where possible.

Always follow proper procedures for crossing
the side of a hill as described in this manual.
Avoid hills with excessively slippery or loose sur-
faces. Shift your weight to the uphill side of the
ATV. Never attempt to turn the ATV around on
any hill until you have mastered the turning tech-
nique described in this manual on level ground.
Avoid crossing the side of a steep hill if possible.

Always use proper procedures if you stall or roll
backwards when climbing a hill. To avoid stall-
ing, use the proper gear and maintain a steady

2-3
12
3
4
5
6
7
8
9
10
11

speed when climbing a hill. If you stall or roll
backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.

Always check for obstacles before operating in a
new area.

Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.

Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.

Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

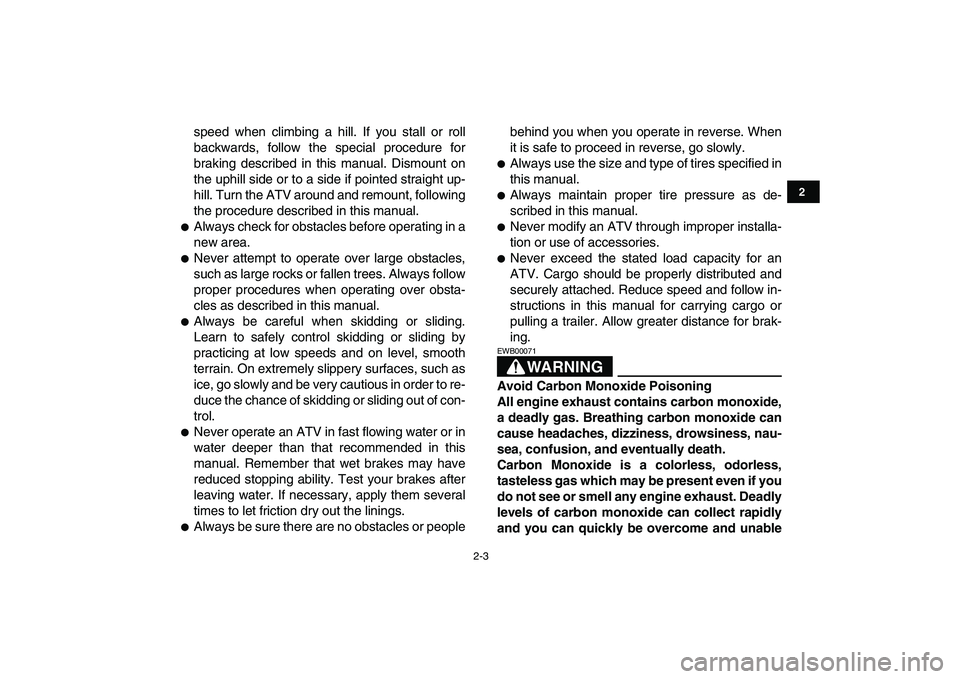

Always be sure there are no obstacles or peoplebehind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.

Always use the size and type of tires specified in
this manual.

Always maintain proper tire pressure as de-
scribed in this manual.

Never modify an ATV through improper installa-
tion or use of accessories.

Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.WARNING

EWB00071
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
and you can quickly be overcome and unable

2-4
12
3
4
5
6
7
8
9
10
11

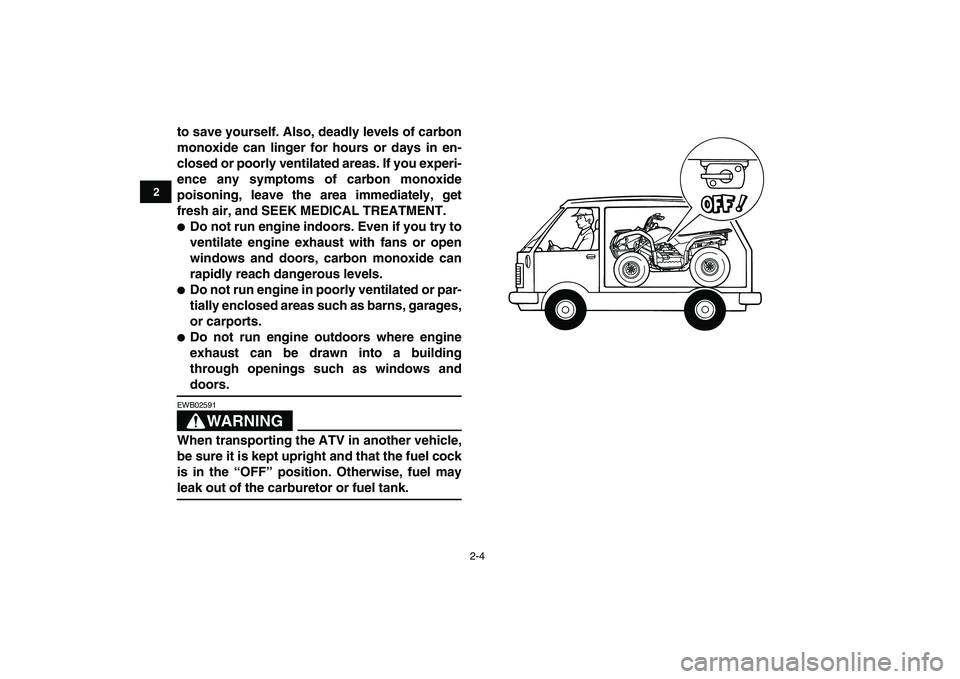

to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.

Do not run engine indoors. Even if you try to
ventilate engine exhaust with fans or open
windows and doors, carbon monoxide can
rapidly reach dangerous levels.

Do not run engine in poorly ventilated or par-
tially enclosed areas such as barns, garages,
or carports.

Do not run engine outdoors where engine
exhaust can be drawn into a building
through openings such as windows and
doors.
WARNING

EWB02591
When transporting the ATV in another vehicle,
be sure it is kept upright and that the fuel cock
is in the “OFF” position. Otherwise, fuel may
leak out of the carburetor or fuel tank.
