YAMAHA GRIZZLY 125 2011 Owner's Manual

3-1
1
23
4
5
6
7
8
9
10
11

EBU17680

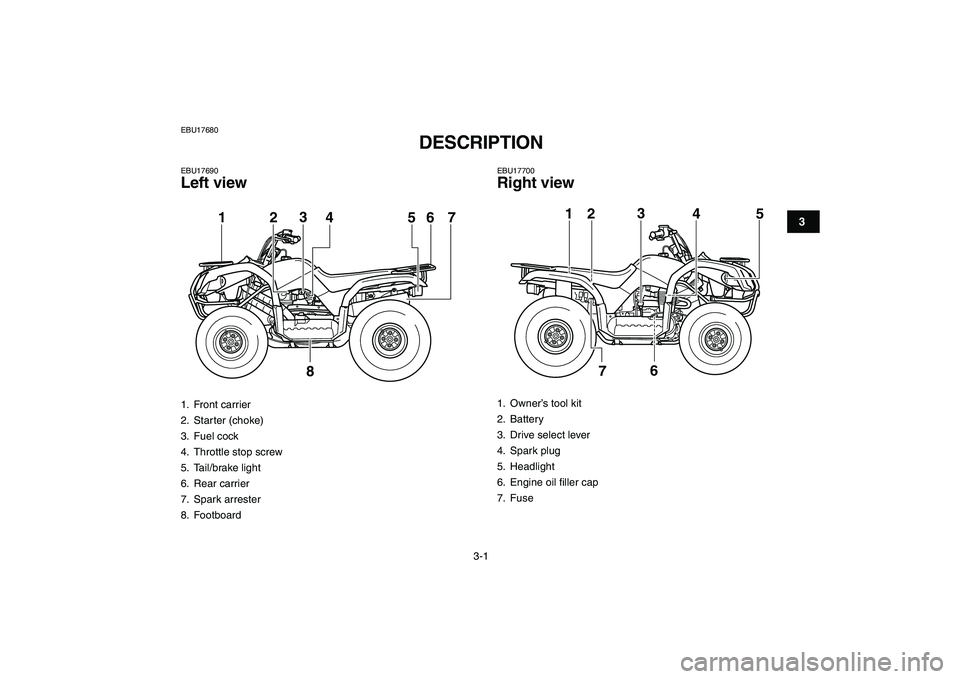

DESCRIPTION
EBU17690
Left view
EBU17700
Right view
1. Front carrier
2. Starter (choke)
3. Fuel cock
4. Throttle stop screw
5. Tail/brake light
6. Rear carrier
7. Spark arrester
8. Footboard
123
5
6
7
8
4

1. Owner’s tool kit
2. Battery
3. Drive select lever
4. Spark plug
5. Headlight
6. Engine oil filler cap
7. Fuse
23
5
6
7
1
4

3-2
1
23
4
5
6
7
8
9
10
11

EBU17712

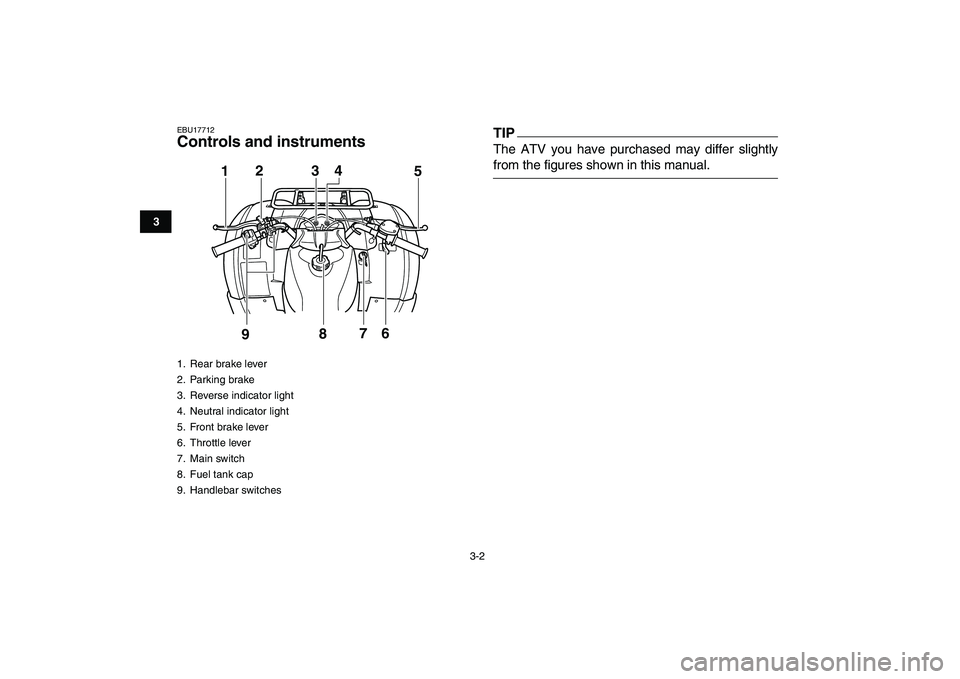

Controls and instruments
TIP
The ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Rear brake lever
2. Parking brake
3. Reverse indicator light
4. Neutral indicator light
5. Front brake lever
6. Throttle lever
7. Main switch
8. Fuel tank cap
9. Handlebar switches
12
34
5
9876

4-1
1
2
34
5
6
7
8
9
10
11

EBU17733

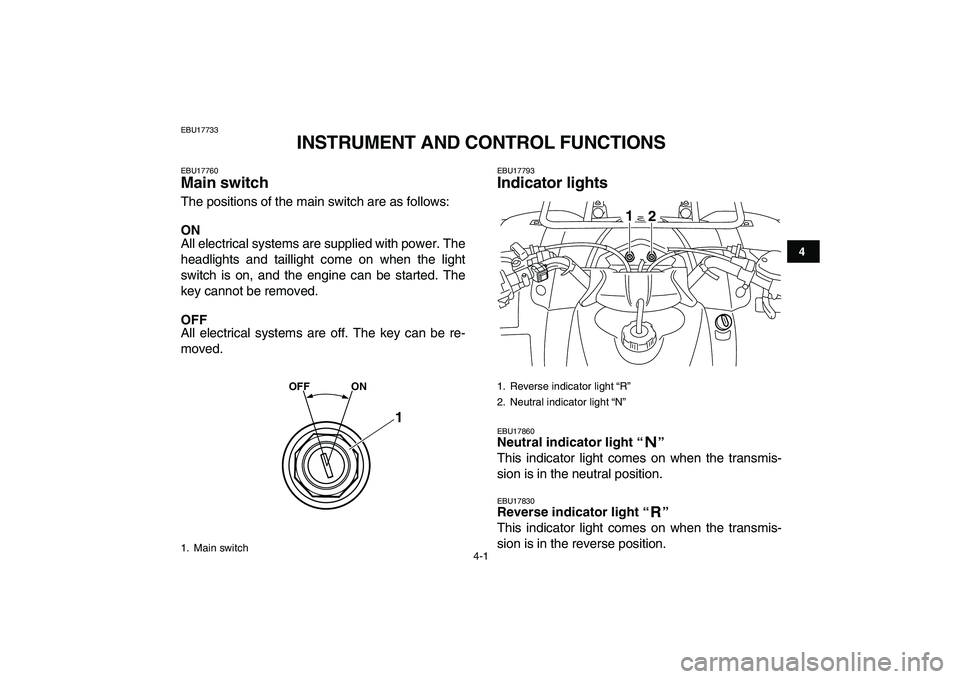

INSTRUMENT AND CONTROL FUNCTIONS
EBU17760
Main switch
The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.

EBU17793
Indicator lights
EBU17860
Neutral indicator light “”
This indicator light comes on when the transmis-
sion is in the neutral position.
EBU17830
Reverse indicator light “”
This indicator light comes on when the transmis-
sion is in the reverse position.
1. Main switch
OFF ON
1

1. Reverse indicator light “R”
2. Neutral indicator light “N”
1
2

4-2
1
2
34
5
6
7
8
9
10
11

EBU18061

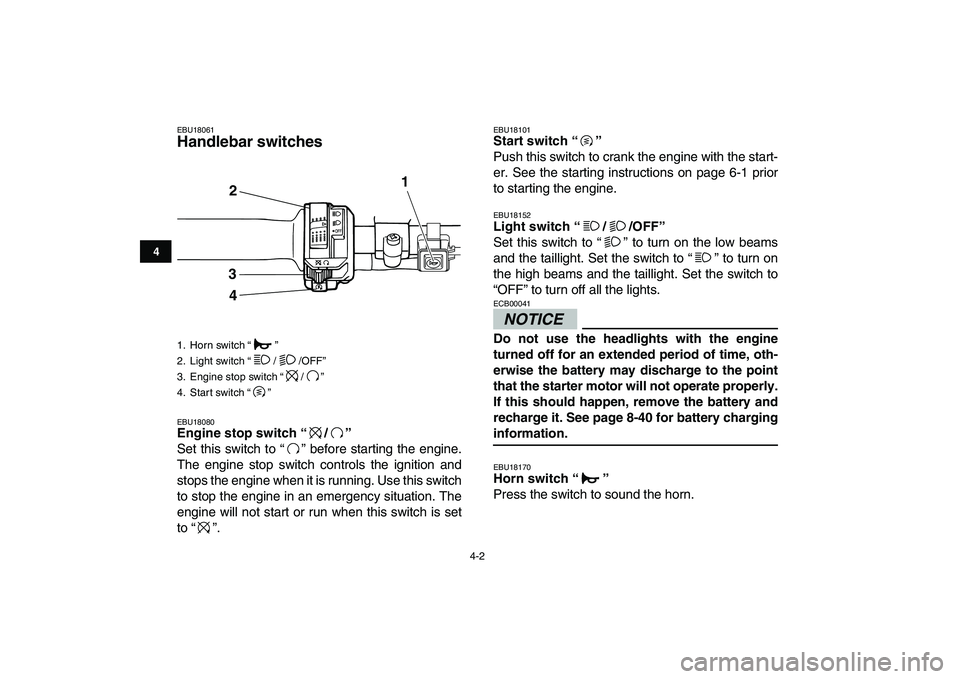

Handlebar switches
EBU18080
Engine stop switch “/”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “ ”.
EBU18101
Start switch “”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.
EBU18152
Light switch “/ /OFF”
Set this switch to “ ” to turn on the low beams
and the taillight. Set the switch to “ ” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.NOTICE
ECB00041
Do not use the headlights with the engine
turned off for an extended period of time, oth-
erwise the battery may discharge to the point
that the starter motor will not operate properly.
If this should happen, remove the battery and
recharge it. See page 8-40 for battery charging
information.
EBU18170
Horn switch “”
Press the switch to sound the horn.
1. Horn switch “ ”
2. Light switch “ / /OFF”
3. Engine stop switch “ / ”
4. Start switch “ ”
2
3
41

4-3
1
2
34
5
6
7
8
9
10
11

EBU18282

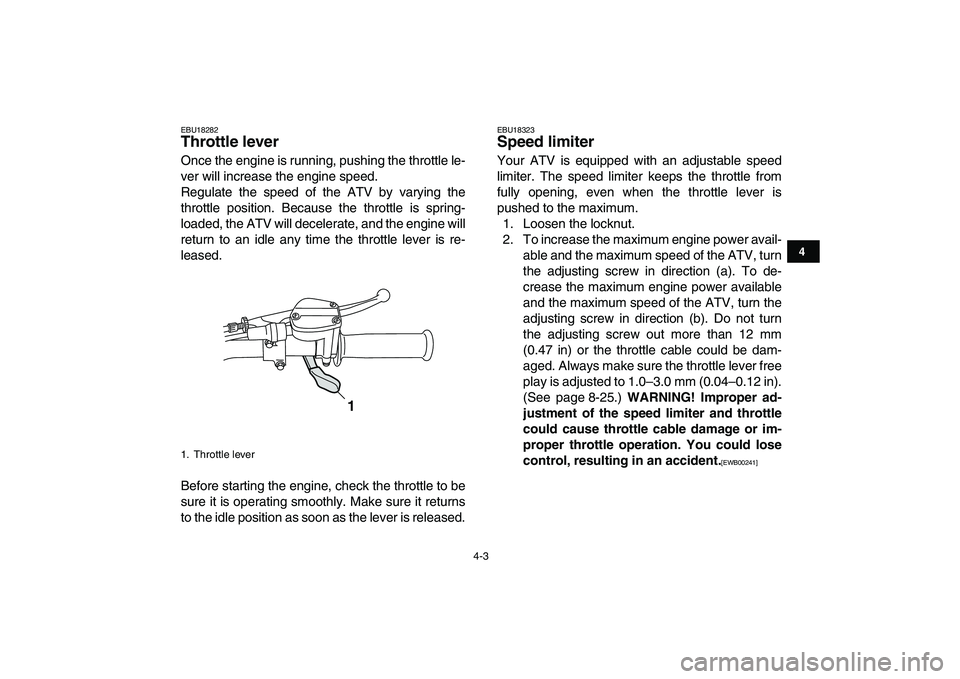

Throttle lever
Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18323
Speed limiter
Your ATV is equipped with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b). Do not turn
the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 1.0–3.0 mm (0.04–0.12 in).
(See page 8-25.)
WARNING! Improper ad-
justment of the speed limiter and throttle
could cause throttle cable damage or im-
proper throttle operation. You could lose
control, resulting in an accident.
[EWB00241]

1. Throttle lever
1

4-4
1
2
34
5
6
7
8
9
10
11

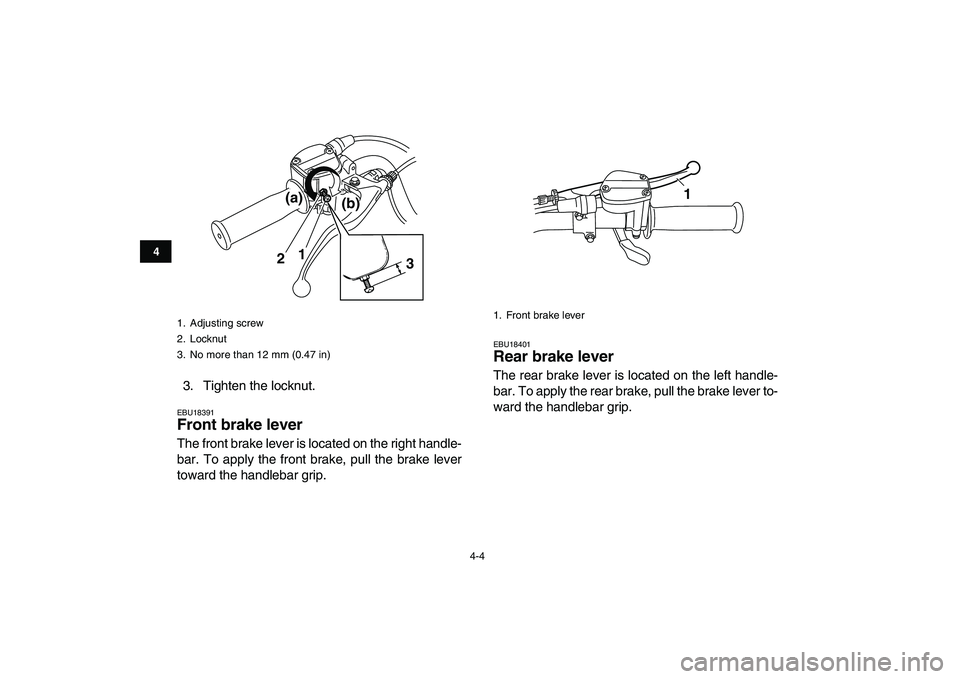

3. Tighten the locknut.
EBU18391
Front brake lever
The front brake lever is located on the right handle-
bar. To apply the front brake, pull the brake lever
toward the handlebar grip.
EBU18401
Rear brake lever
The rear brake lever is located on the left handle-
bar. To apply the rear brake, pull the brake lever to-
ward the handlebar grip.
1. Adjusting screw
2. Locknut
3. No more than 12 mm (0.47 in)
3 1
2
(a)
(b)

1. Front brake lever
1

4-5
1
2
34
5
6
7
8
9
10
11

EBU18460

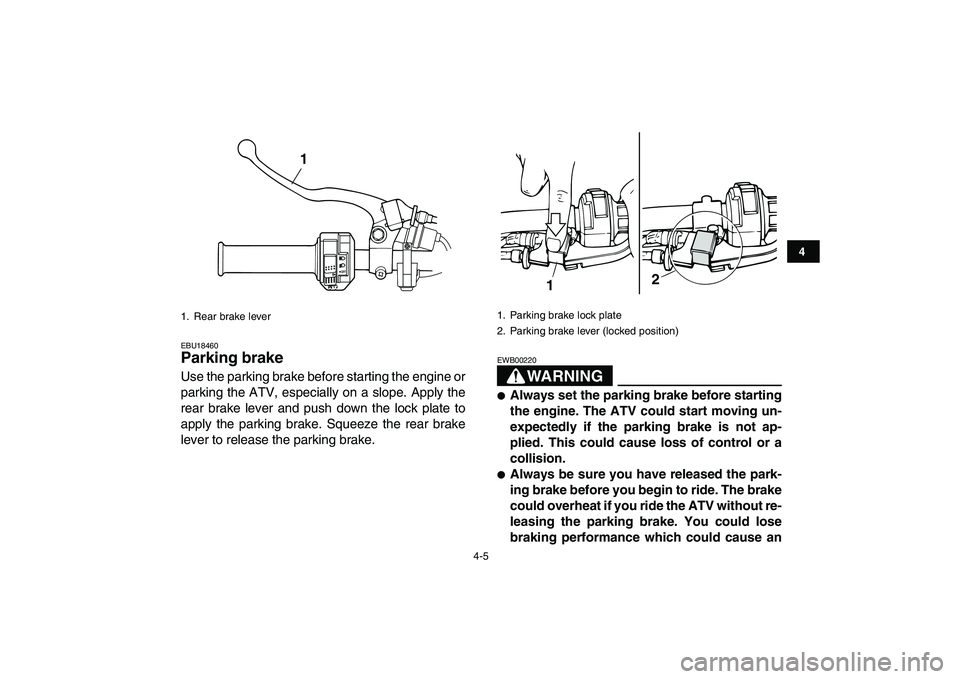

Parking brake
Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Apply the
rear brake lever and push down the lock plate to
apply the parking brake. Squeeze the rear brake
lever to release the parking brake.
WARNING

EWB00220

Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.

Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
1. Rear brake lever
1

1. Parking brake lock plate
2. Parking brake lever (locked position)
2
1

4-6
1
2
34
5
6
7
8
9
10
11

accident. You could also wear out the brakes
prematurely.
EBU18581

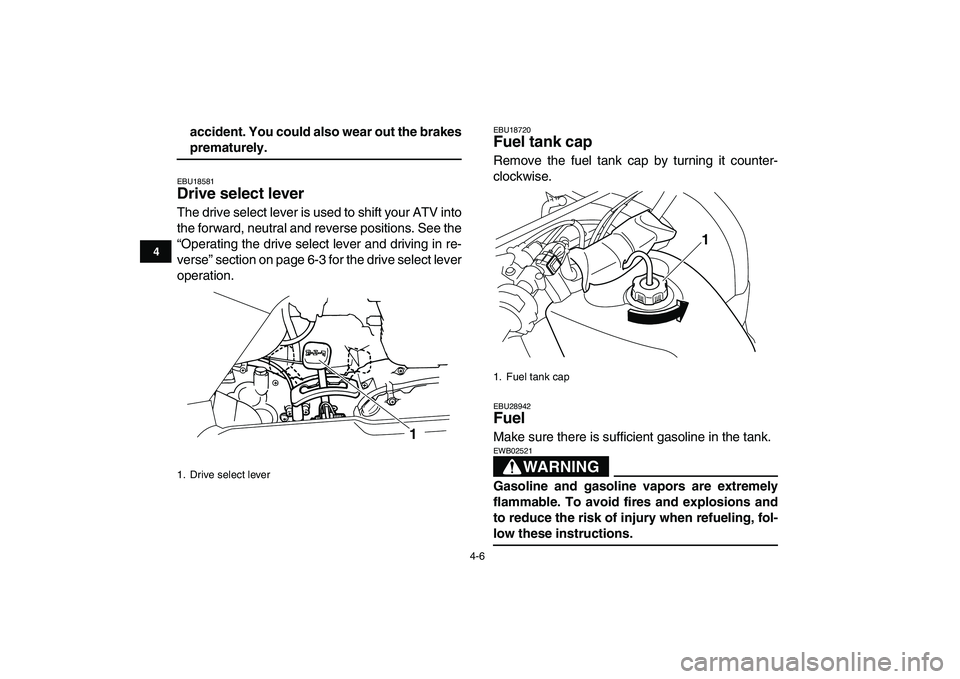

Drive select lever
The drive select lever is used to shift your ATV into
the forward, neutral and reverse positions. See the
“Operating the drive select lever and driving in re-
verse” section on page 6-3 for the drive select lever
operation.
EBU18720
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
EBU28942
Fuel
Make sure there is sufficient gasoline in the tank.WARNING
EWB02521
Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions.
1. Drive select lever
1

1. Fuel tank cap
1

4-7
1
2
34
5
6
7
8
9
10
11

1. Before refueling, turn off the engine and be
sure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinity
of sparks, open flames, or other sources of ig-
nition such as the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling,
be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel reach-
es the bottom of the filler tube. Because fuel
expands when it heats up, heat from the en-
gine or the sun can cause fuel to spill out of
the fuel tank.3. Wipe up any spilled fuel immediately.
NOTICE:
Immediately wipe off spilled
fuel with a clean, dry, soft cloth, since
fuel may deteriorate painted surfaces
or plastic parts.
[ECB00981]

4. Turn the fuel tank cap fully clockwise to make
sure it is securely closed.
WARNING

EWB02531
Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow
some gasoline or inhale a lot of gasoline vapor,
or get some gasoline in your eyes, see your
doctor immediately. If gasoline spills on your
skin, wash with soap and water. If gasoline
spills on your clothing, change your clothes.
1. Maximum fuel level
2. Fuel tank filler tube
Recommended fuel:
Regular unleaded gasoline only with a re-
search octane number of 91 or higher
Fuel tank capacity:
7.0 L (1.85 US gal, 1.54 Imp.gal)
Fuel reserve amount:
1.3 L (0.34 US gal, 0.29 Imp.gal)

4-8
1
2
34
5
6
7
8
9
10
11

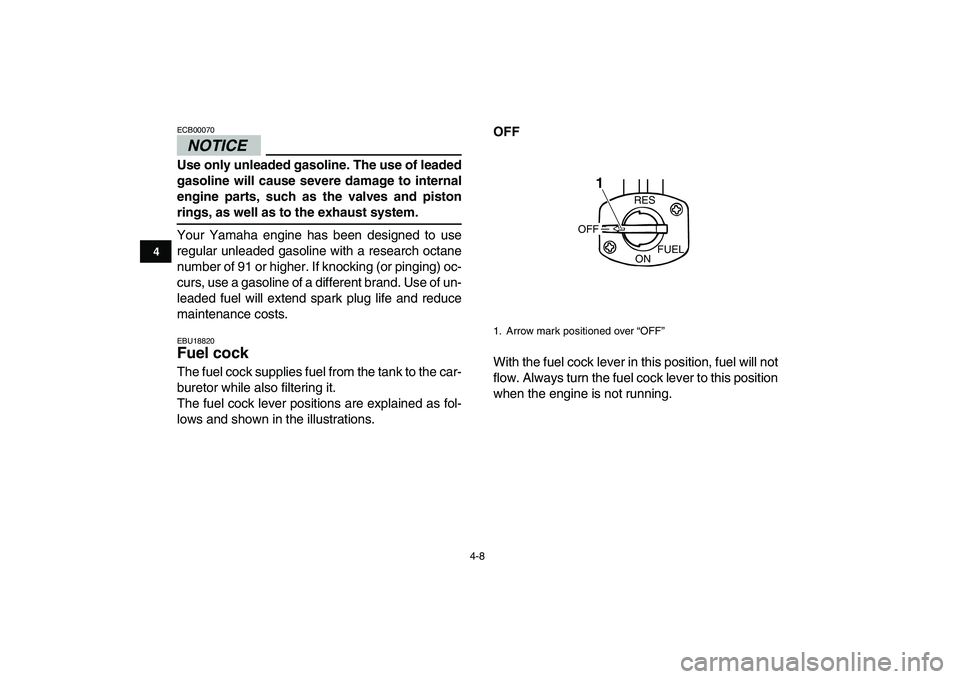

NOTICE

ECB00070
Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system.
Your Yamaha engine has been designed to use
regular unleaded gasoline with a research octane
number of 91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand. Use of un-
leaded fuel will extend spark plug life and reduce
maintenance costs.
EBU18820
Fuel cock
The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.
OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
1. Arrow mark positioned over “OFF”
RES
ONFUEL
OFF
1
