8-12
8
TIPThe engine oil should be between the minimum
and maximum level marks.5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
NOTICE: Be sure the engine oil is at the
correct level, otherwise engine damage
may result.
[ECB00851]
6. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.To change the engine oil
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase. NOTICE: When remov-
ing the engine oil drain bolt, the compres-
sion spring, oil strainer and O-ring will fall
out. Take care not to lose these parts.
[ECB00311]
1. Maximum level mark
2. Minimum level mark
1
2
U1PY60E0.book Page 12 Friday, March 11, 2011 9:30 AM

8-13
8
5. Clean the oil strainer with solvent.
6. Apply a thin coat of clean engine oil to a new
O-ring.
7. Install the oil strainer, the compression spring,
the new O-ring and the engine oil drain bolt.
Tighten the engine oil drain bolt to the speci-
fied torque. NOTICE: Before installing the
engine oil drain bolt, be sure to install the
O-ring, compression spring and oil strain-
er.
[ECB00321]
8. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICEECB00330
Do not use oils with a diesel specification of
“CD” or oils of a higher quality than speci-
fied. In addition, do not use oils labeled “EN-
ERGY CONSERVING II” or higher.
Make sure that no foreign material enters the
crankcase.
1. Engine oil drain bolt
2. O-ring
3. Spring
4. Oil strainer
4
3
2
1 1
Tightening torque:
Engine oil drain bolt:
32 Nm (3.2 m·kgf, 23 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
1.25 L (1.32 US qt, 1.10 Imp.qt)
U1PY60E0.book Page 13 Friday, March 11, 2011 9:30 AM

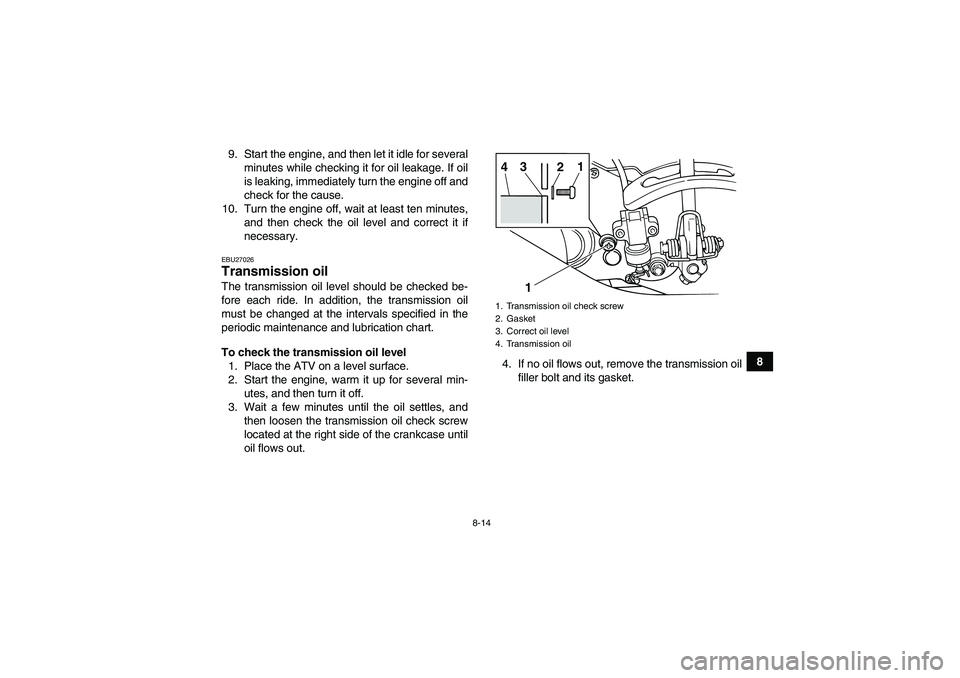

8-14
8 9. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
10. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
EBU27026Transmission oil The transmission oil level should be checked be-
fore each ride. In addition, the transmission oil
must be changed at the intervals specified in the
periodic maintenance and lubrication chart.
To check the transmission oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Wait a few minutes until the oil settles, and
then loosen the transmission oil check screw
located at the right side of the crankcase until
oil flows out.4. If no oil flows out, remove the transmission oil
filler bolt and its gasket.
1. Transmission oil check screw
2. Gasket
3. Correct oil level
4. Transmission oil
1 431
2
U1PY60E0.book Page 14 Friday, March 11, 2011 9:30 AM

8-15
85. Pour the recommended type of oil in the trans-
mission oil filler hole until it flows out of the
check screw hole.
6. Tighten the oil check screw to the specified
torque.
7. Check the oil filler bolt gasket for damage, and
replace it if necessary.8. Install the transmission oil filler bolt and its
gasket, and then tighten the bolt to the speci-
fied torque.
To change the transmission oil
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the transmission to col-
lect the used oil.
4. Remove the transmission oil filler bolt, the
transmission oil drain bolt and their gasket to
drain the oil from the transmission case.
1. Transmission oil filler bolt
2. GasketTightening torque:
Transmission oil check screw:
16 Nm (1.6 m·kgf, 12 ft·lbf)
1
2
Tightening torque:
Transmission oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U1PY60E0.book Page 15 Friday, March 11, 2011 9:30 AM

8-16
8 5. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
6. Refill with the specified amount of the recom-
mended transmission oil. NOTICE: Make
sure that no foreign material enters the
transmission case.
[ECB00791]
7. Check the oil filler bolt gasket for damage, and
replace it if necessary.
8. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.NOTICEECB01061Make sure that no oil gets on the tires or
wheels.9. Start the engine, and then let it idle for several
minutes while checking the transmission for
oil leakage. If oil is leaking, immediately turn
off the engine and check for the cause.
10. Turn the engine off, and then check the oil lev-
el and correct it if necessary.
1. Transmission oil drain bolt
2. GasketTightening torque:
Transmission oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
12
Recommended transmission oil:
See page 10-1.
Oil quantity:
0.6 L (0.63 US qt, 0.53 Imp.qt)
Tightening torque:
Transmission oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U1PY60E0.book Page 16 Friday, March 11, 2011 9:30 AM

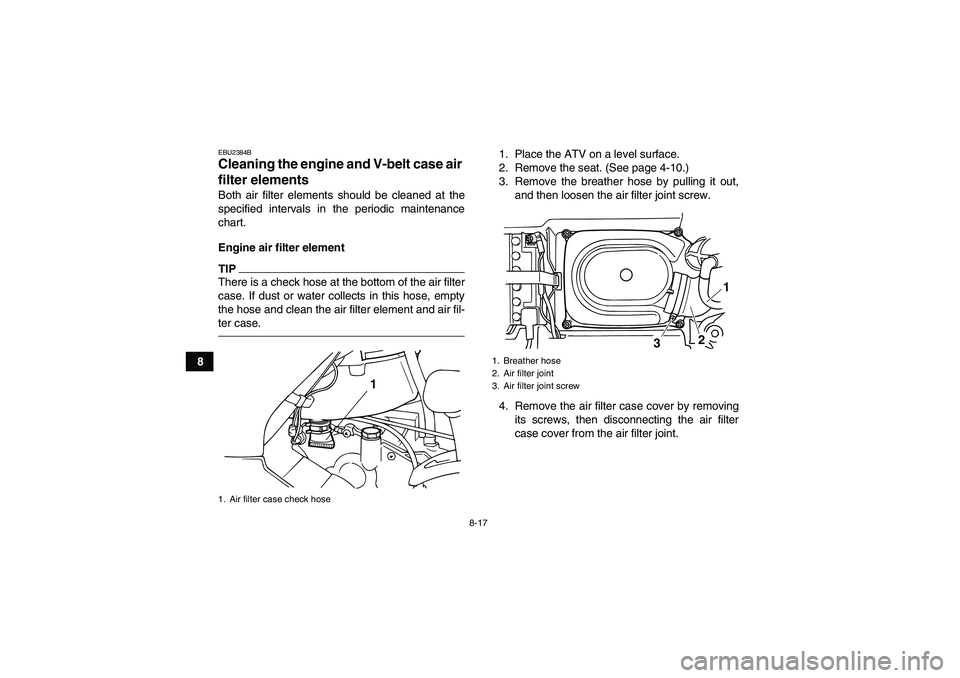

8-17
8
EBU2384BCleaning the engine and V-belt case air
filter elements Both air filter elements should be cleaned at the
specified intervals in the periodic maintenance
chart.
Engine air filter elementTIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
1. Place the ATV on a level surface.
2. Remove the seat. (See page 4-10.)
3. Remove the breather hose by pulling it out,
and then loosen the air filter joint screw.
4. Remove the air filter case cover by removing
its screws, then disconnecting the air filter
case cover from the air filter joint.
1. Air filter case check hose
1
1. Breather hose
2. Air filter joint
3. Air filter joint screw
1
3
2
U1PY60E0.book Page 17 Friday, March 11, 2011 9:30 AM

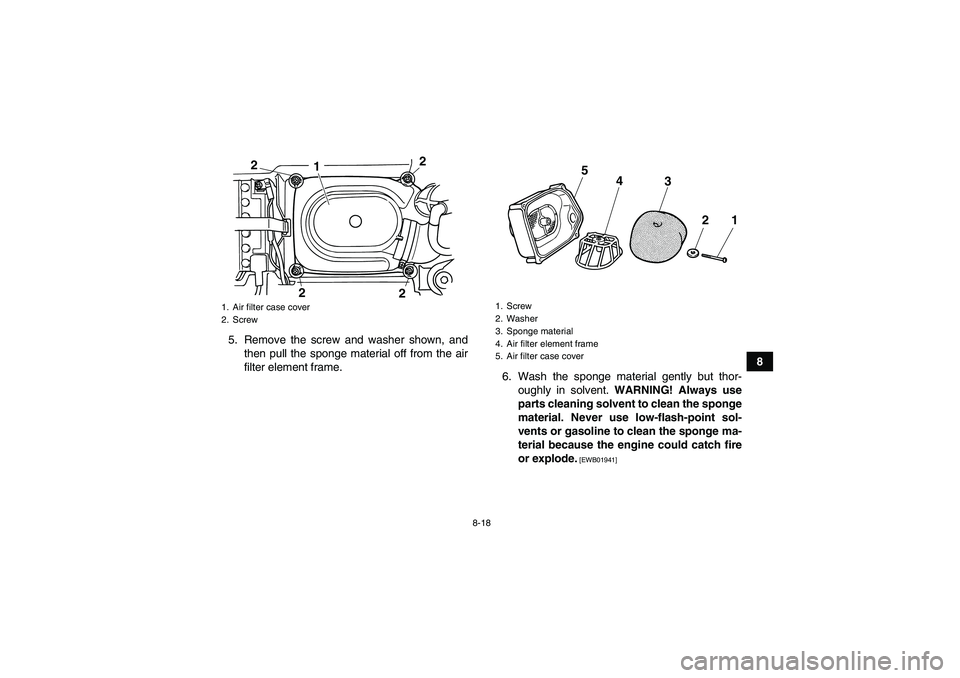

8-18
8 5. Remove the screw and washer shown, and
then pull the sponge material off from the air
filter element frame.
6. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent to clean the sponge
material. Never use low-flash-point sol-
vents or gasoline to clean the sponge ma-
terial because the engine could catch fire
or explode.
[EWB01941]
1. Air filter case cover
2. Screw
1 22
2
2
1. Screw
2. Washer
3. Sponge material
4. Air filter element frame
5. Air filter case cover
3 4
21
5
U1PY60E0.book Page 18 Friday, March 11, 2011 9:30 AM

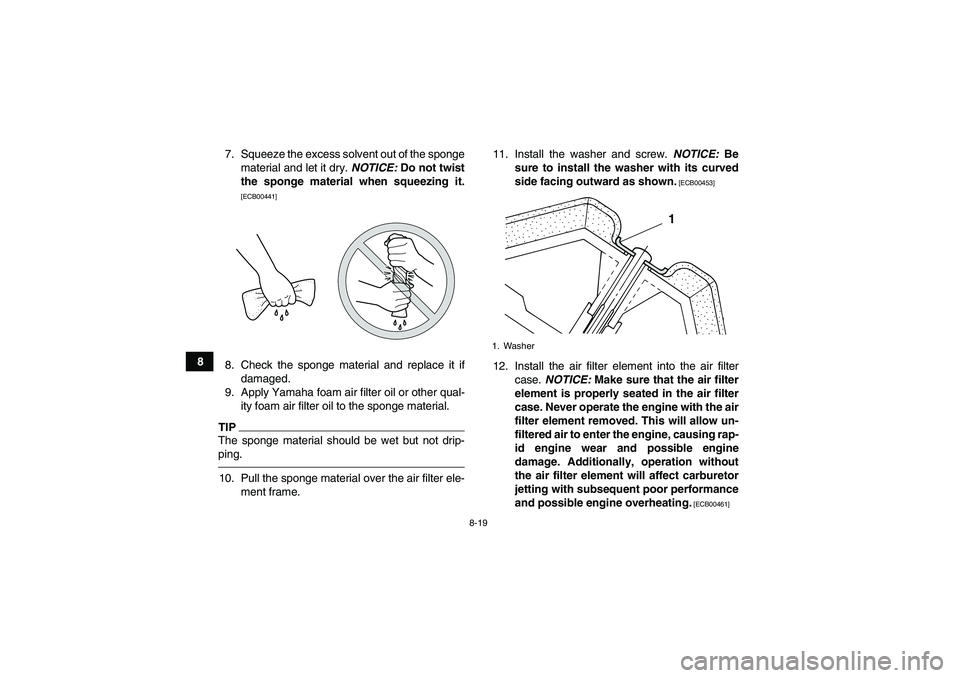

8-19
87. Squeeze the excess solvent out of the sponge
material and let it dry. NOTICE: Do not twist
the sponge material when squeezing it.
[ECB00441]
8. Check the sponge material and replace it if
damaged.
9. Apply Yamaha foam air filter oil or other qual-
ity foam air filter oil to the sponge material.TIPThe sponge material should be wet but not drip-
ping.10. Pull the sponge material over the air filter ele-
ment frame.11. Install the washer and screw. NOTICE: Be
sure to install the washer with its curved
side facing outward as shown.
[ECB00453]
12. Install the air filter element into the air filter
case. NOTICE: Make sure that the air filter
element is properly seated in the air filter
case. Never operate the engine with the air
filter element removed. This will allow un-
filtered air to enter the engine, causing rap-
id engine wear and possible engine
damage. Additionally, operation without
the air filter element will affect carburetor
jetting with subsequent poor performance
and possible engine overheating.
[ECB00461]
1. Washer
1
U1PY60E0.book Page 19 Friday, March 11, 2011 9:30 AM

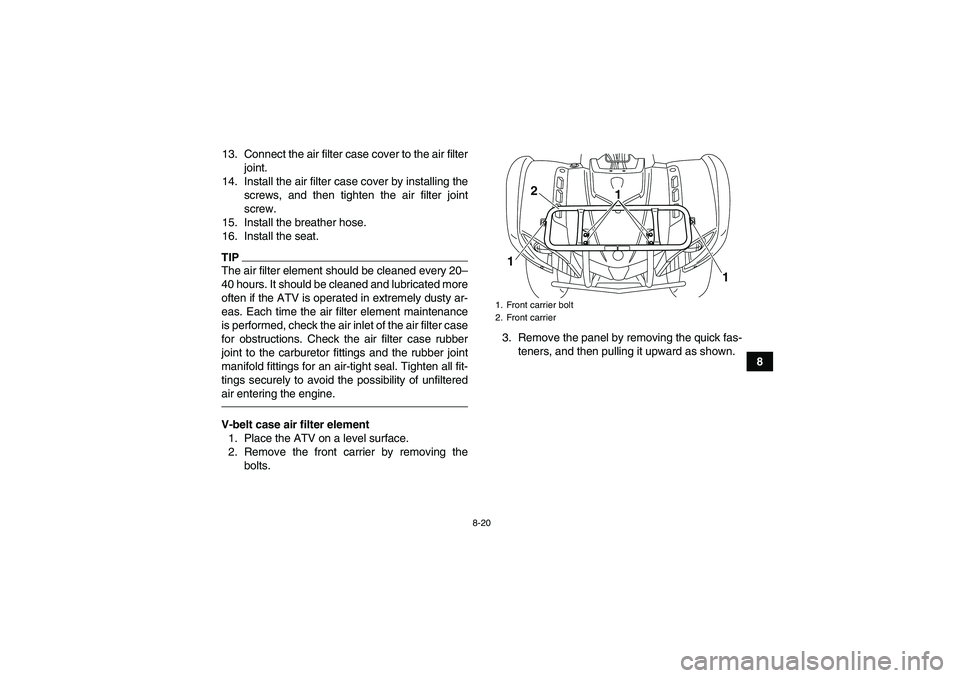

8-20
8 13. Connect the air filter case cover to the air filter
joint.
14. Install the air filter case cover by installing the
screws, and then tighten the air filter joint
screw.
15. Install the breather hose.
16. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber joint
manifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfiltered
air entering the engine.V-belt case air filter element
1. Place the ATV on a level surface.
2. Remove the front carrier by removing the
bolts.3. Remove the panel by removing the quick fas-
teners, and then pulling it upward as shown.
1. Front carrier bolt
2. Front carrier
2
11
1
U1PY60E0.book Page 20 Friday, March 11, 2011 9:30 AM

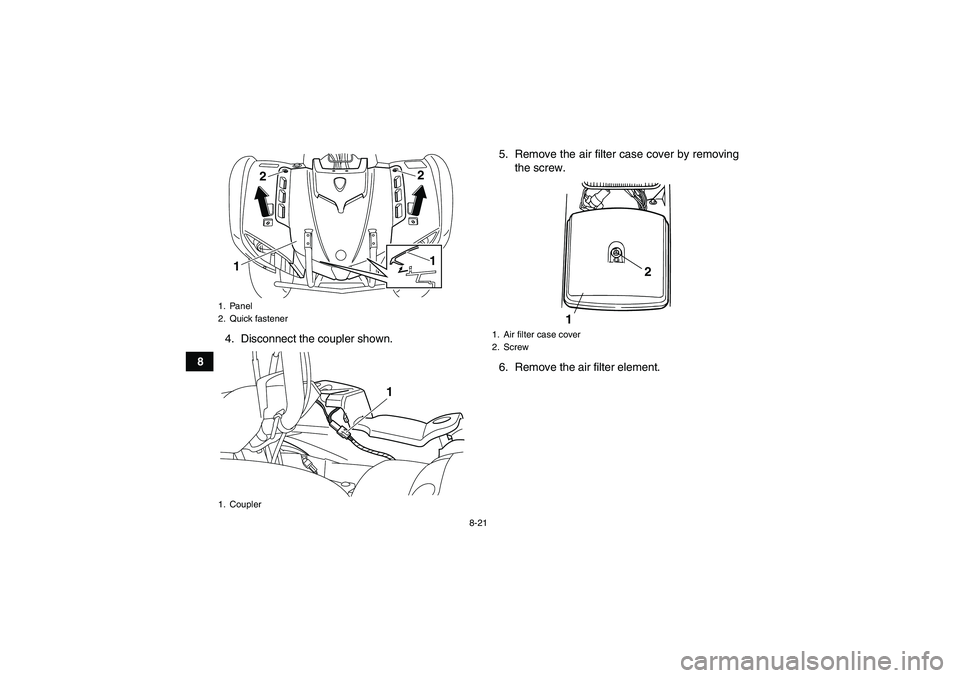

8-21
84. Disconnect the coupler shown.5. Remove the air filter case cover by removing
the screw.
6. Remove the air filter element.
1. Panel
2. Quick fastener
1. Coupler
122
1
1
1. Air filter case cover
2. Screw
12
