8 The service information included in this manual
and the tools provided in the owner’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However,
additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.1. Owner’s manual
2. Owner’s tool kit
3. Low-pressure tire gaugeU1P065E0.book Page 2 Monday, August 31, 2009 1:10 PM

8-10
8
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
To install the spark plug
1. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque. Specified spark plug:
NGK/DR7EA
1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
U1P065E0.book Page 10 Monday, August 31, 2009 1:10 PM

8-11
8
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the specified
torque as soon as possible.3. Install the spark plug cap.EBU2329FEngine oil and oil filter element The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element cleaned at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading.3. Remove the engine oil filler cap, and then
wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.TIPThe engine oil should be between the minimum
and maximum level marks.
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
U1P065E0.book Page 11 Monday, August 31, 2009 1:10 PM

8-15

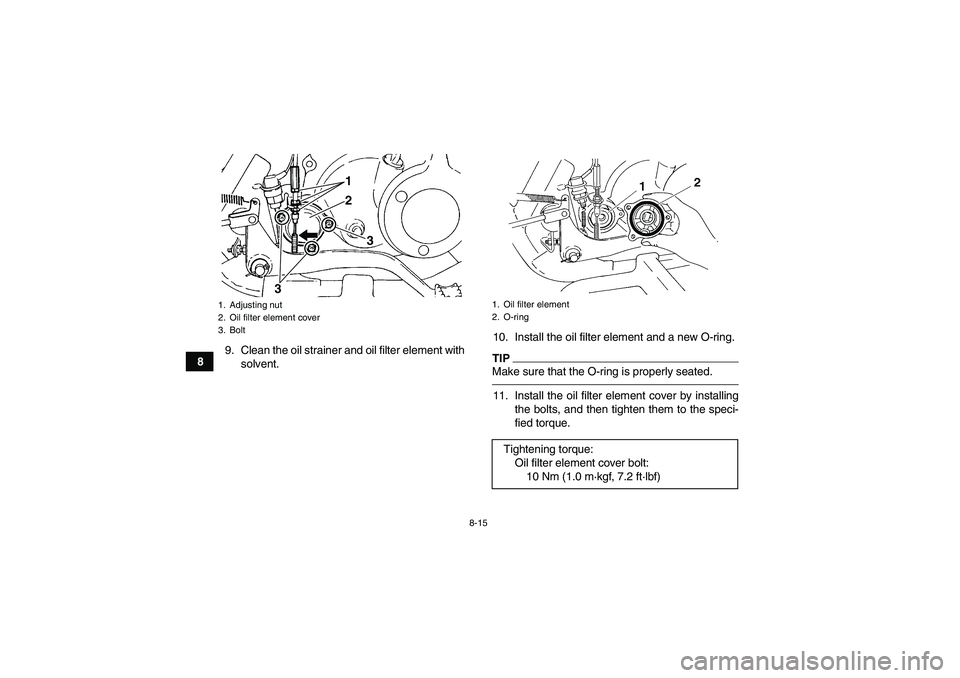

89. Clean the oil strainer and oil filter element with
solvent.10. Install the oil filter element and a new O-ring.
TIPMake sure that the O-ring is properly seated.11. Install the oil filter element cover by installing
the bolts, and then tighten them to the speci-
fied torque.
1. Adjusting nut
2. Oil filter element cover
3. Bolt
12
3
3
1. Oil filter element
2. O-ringTightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U1P065E0.book Page 15 Monday, August 31, 2009 1:10 PM

8-16
8 12. Install the oil strainer, the compression spring,
a new O-ring and the engine oil drain bolt, and
then tighten the engine oil drain bolt to the
specified torque. NOTICE: Before installing
the engine oil drain bolt, be sure to install
the O-ring, compression spring and oil
strainer.
[ECB00321]
13. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICEECB00300
In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
Make sure that no foreign material enters the
crankcase.14. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
15. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
16. Install the footboard by installing the bolts, and
then tighten them to the specified torques. Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter element removal:
1.50 L (1.59 US qt, 1.32 Imp.qt)
With oil filter element removal:
1.60 L (1.69 US qt, 1.41 Imp.qt)
U1P065E0.book Page 16 Monday, August 31, 2009 1:10 PM

8-17
8
17. Adjust the brake pedal free play. (See page
8-30.)
EBU23386Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.
2. Remove the final gear oil filler bolt and its gas-
ket, and then check the oil level in the final
gear case. The oil level should be at the brim
of the filler hole.
1. Footboard bolt A
2. Footboard bolt BTightening torques:
Footboard bolt A:
4 Nm (0.4 m·kgf, 2.9 ft·lbf)
Footboard bolt B:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
U1P065E0.book Page 17 Monday, August 31, 2009 1:10 PM

8-18
8
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Check the gasket for damage, and replace it if
necessary.
5. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.To change the final gear oil
1. Place the ATV on a level surface.
2. Remove the final gear case guard by remov-
ing the bolts.
3. Place an oil pan under the final gear case to
collect the used oil.
4. Remove the final gear oil filler bolt, the final
gear oil drain bolt, and their gasket to drain the
oil from the final gear case.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelTightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
4
3
1. Final gear case guard
2. Bolt
U1P065E0.book Page 18 Monday, August 31, 2009 1:10 PM

8-19
85. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
6. Refill with the recommended final gear oil to
the brim of the filler hole as shown. NOTICE:
Be sure no foreign material enters the final
gear case.
[ECB00421]
7. Check the oil filler bolt gasket for damage, and
replace it if necessary.
8. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.
1. Final gear oil drain bolt
2. GasketTightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
1
2
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelRecommended final gear oil:
See page 10-1.
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
4
3
U1P065E0.book Page 19 Monday, August 31, 2009 1:10 PM

8-20
8 9. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
10. Install the final gear case guard by installing
the bolts and tightening them to the specified
torque.
EBU23686Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
1. Place the ATV on a level surface.
2. Remove the seat. (See page 4-11.)
3. Remove the air filter case cover by unhooking
the holders. Tightening torque:
Final gear case guard bolt:
17 Nm (1.7 m·kgf, 12 ft·lbf)1. Air filter case check hose
U1P065E0.book Page 20 Monday, August 31, 2009 1:10 PM

8-24
8 2. Remove the tailpipe by pulling it out of the
muffler.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.4. Insert the tailpipe into the muffler and align the
bolt holes.
5. Install the bolts and tighten them to the speci-
fied torque.
1. Bolt
2. Tailpipe
1. Tailpipe
2. Spark arresterTightening torque:
Tailpipe bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
