YAMAHA GRIZZLY 350 2008 User Guide

2-1
2
EBU17660

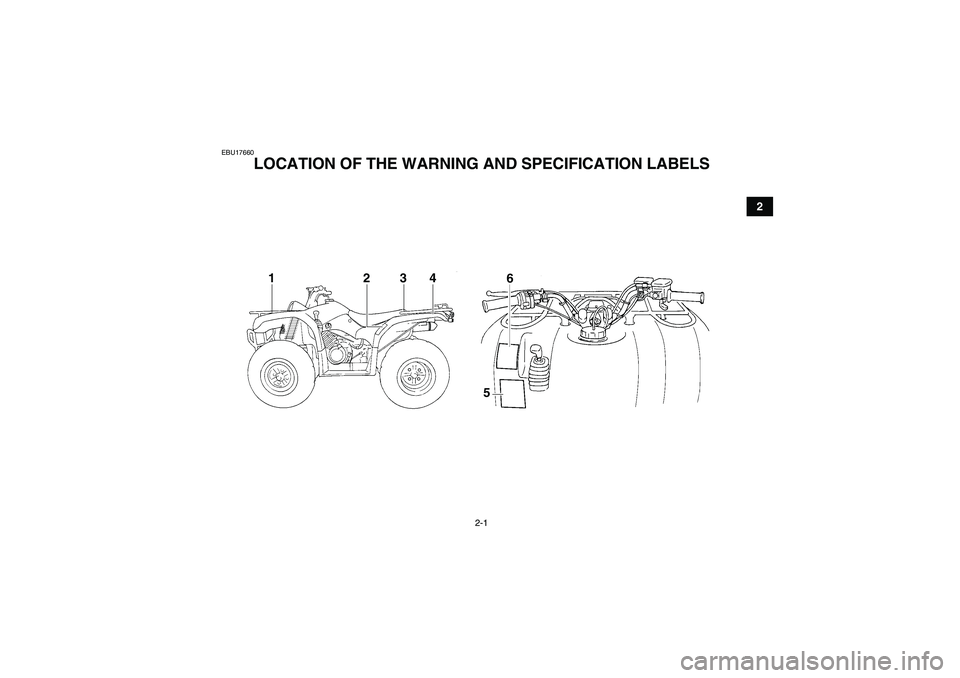

LOCATION OF THE WARNING AND SPECIFICATION LABELS
5
6
1234

2-2
2

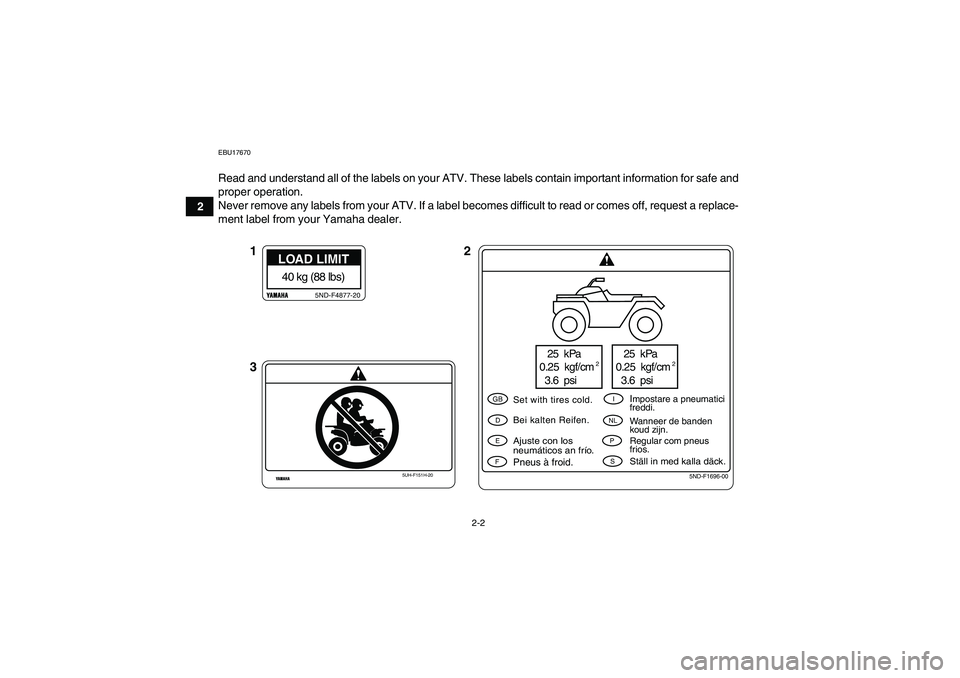

EBU17670Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replace-
ment label from your Yamaha dealer.
40 kg (88 lbs)
5ND-F4877-20
LOAD LIMIT
12
3
5UH-F151H-20
5ND-F1696-00
GB
Set with tires cold.
Bei kalten Reifen.Pneus à froid.I
mpostare a pneumatici
freddi.
Wanneer de banden
koud zijn.
Regular com pneus
frios.Ställ in med kalla däck.
Ajuste con los
neumáticos an frío.
DEF
INLPS
25 kPa
0.25 kgf/cm
2
3.6 psi 25 kPa
0.25 kgf/cm
2
3.6 psi

2-3
2

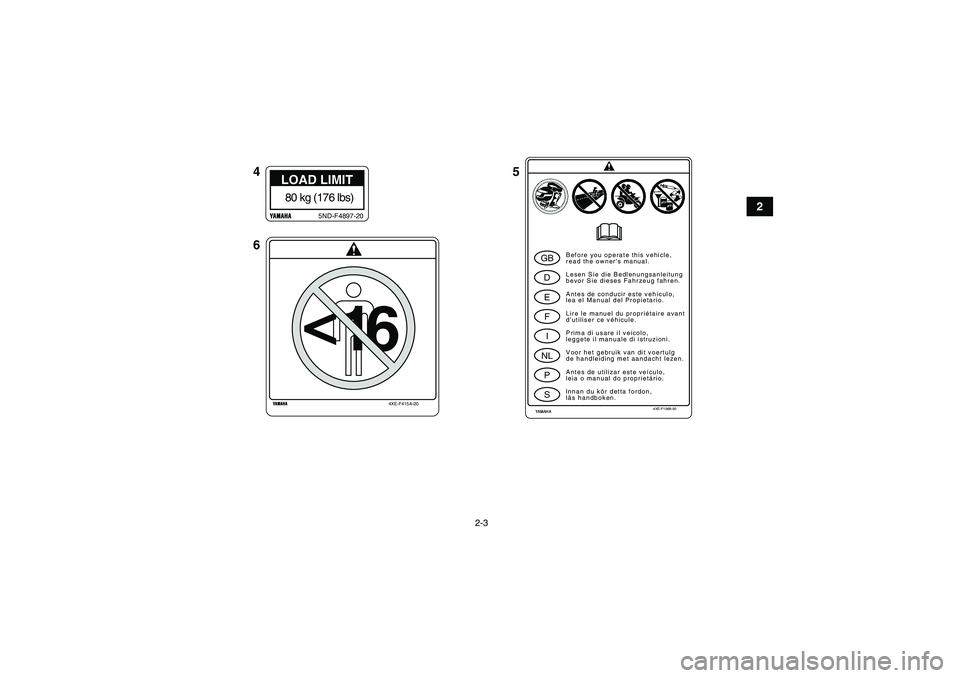

80 kg (176 lbs)
5ND-F4897-20
LOAD LIMIT
4XE-F415A-20
<
16
4XE-F1568-50
GBDEFINLPS
Before you operate this vehicle,
read the owner's manual.
Lesen Sie die Bedlenungsanleitung
bevor Sie dieses Fahrzeug fahren.
Antes de conducir este vehículo,
lea el Manual del Propietario.
Lire le manuel du propriétaire avant
d'utiliser ce véhicule.
Prima di usare il veicolo,
leggete il manuale di istruzioni.
Voor het gebruik van dit voertulg
de handleiding met aandacht lezen.
Antes de utilizar este veículo,
leia o manual do proprietário.
lnnan du kör detta fordon,
läs handboken.
45
6

3-1
3
EBU17680

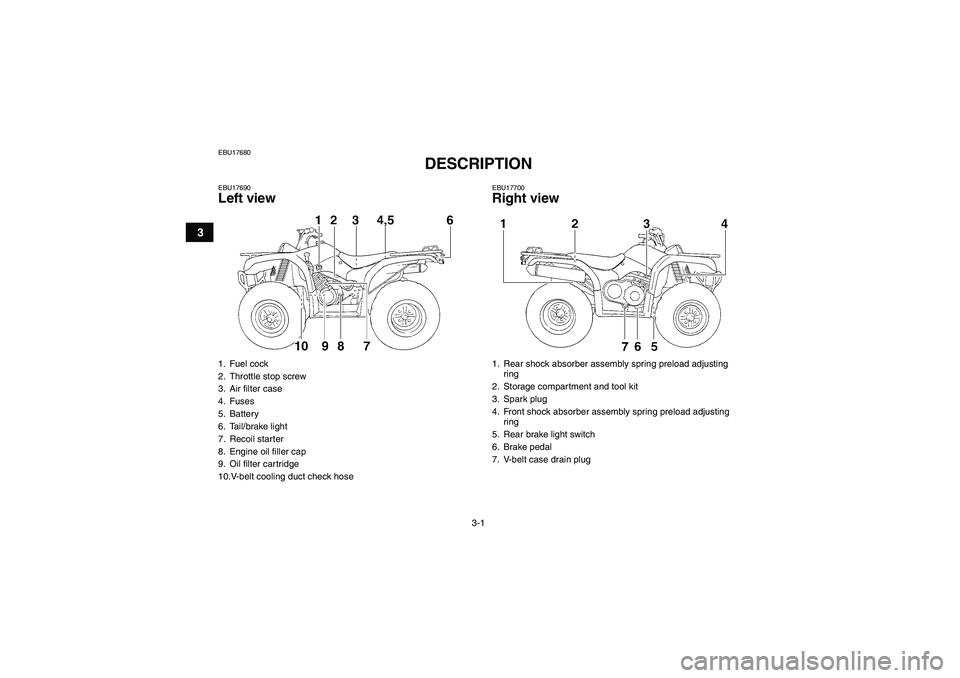

DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Fuel cock
2. Throttle stop screw
3. Air filter case
4. Fuses
5. Battery
6. Tail/brake light
7. Recoil starter
8. Engine oil filler cap
9. Oil filter cartridge
10.V-belt cooling duct check hose
1. Rear shock absorber assembly spring preload adjusting
ring
2. Storage compartment and tool kit
3. Spark plug
4. Front shock absorber assembly spring preload adjusting
ring
5. Rear brake light switch
6. Brake pedal
7. V-belt case drain plug

3-2
3

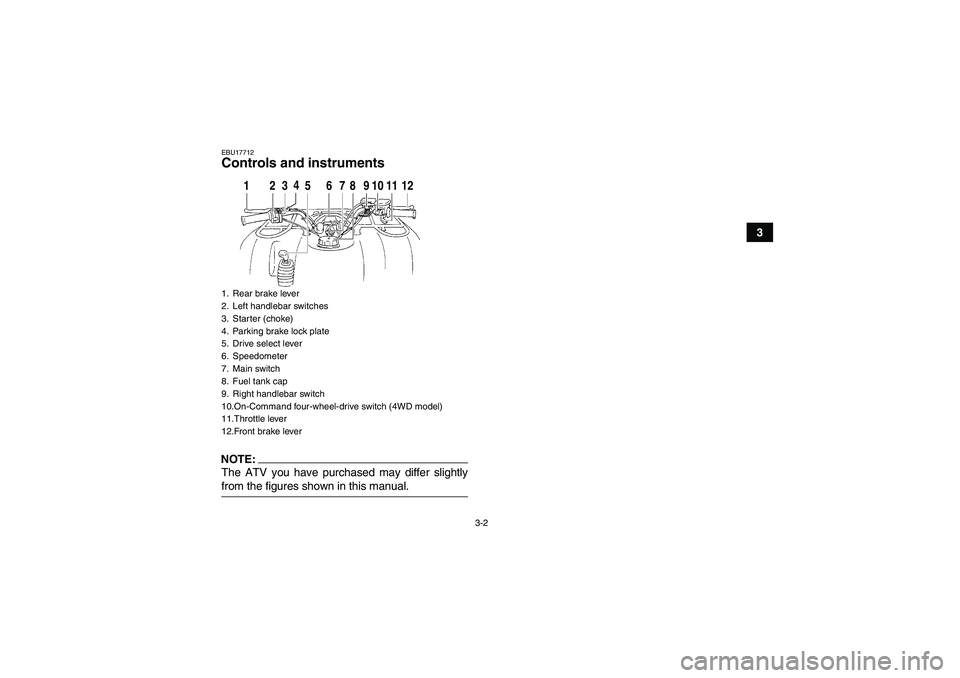

EBU17712Controls and instrumentsNOTE:The ATV you have purchased may differ slightlyfrom the figures shown in this manual.1. Rear brake lever
2. Left handlebar switches
3. Starter (choke)
4. Parking brake lock plate
5. Drive select lever
6. Speedometer
7. Main switch
8. Fuel tank cap
9. Right handlebar switch
10.On-Command four-wheel-drive switch (4WD model)
11.Throttle lever
12.Front brake lever
11
2
3
5 4
6
78
910
11
12

4-1
4
EBU17732

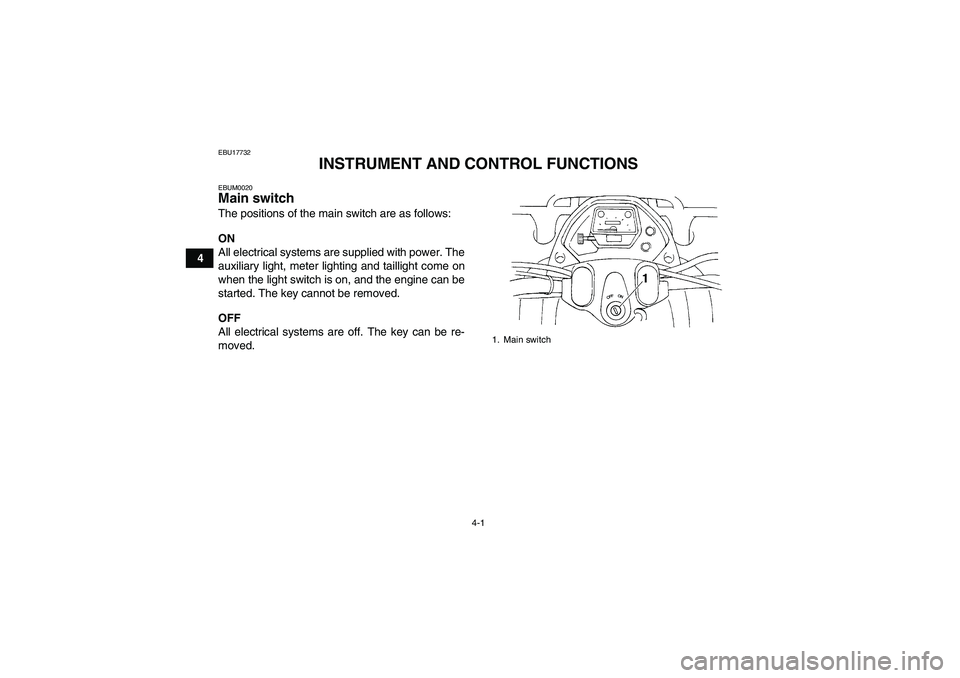

INSTRUMENT AND CONTROL FUNCTIONS
EBUM0020Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
auxiliary light, meter lighting and taillight come on
when the light switch is on, and the engine can be
started. The key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch

4-2
4

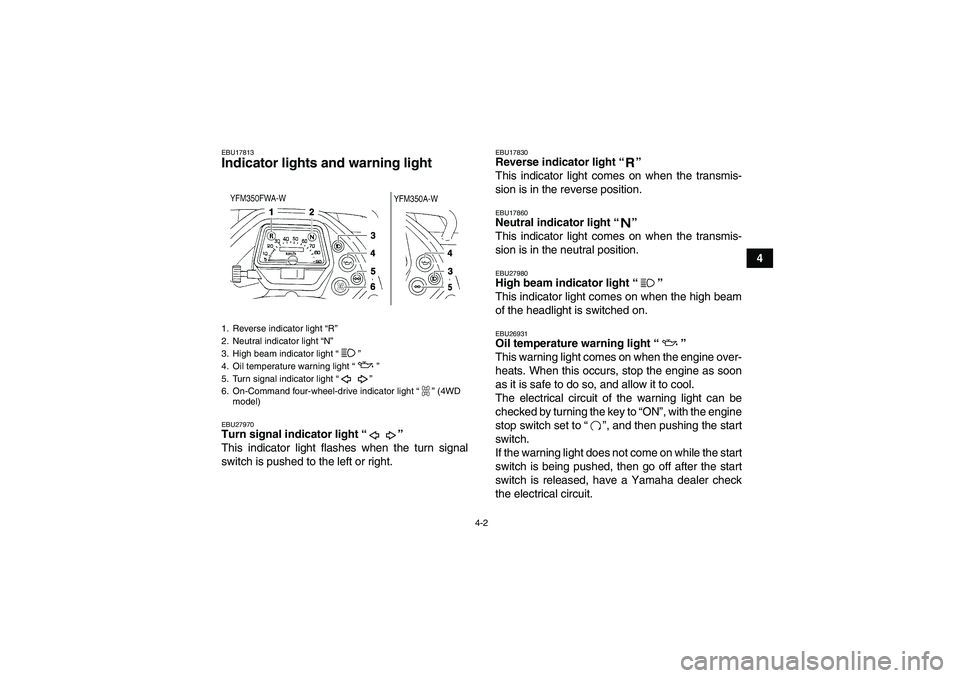

EBU17813Indicator lights and warning light EBU27970Turn signal indicator light“”
This indicator light flashes when the turn signal
switch is pushed to the left or right.
EBU17830Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU27980High beam indicator light“”
This indicator light comes on when the high beam
of the headlight is switched on.EBU26931Oil temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs, stop the engine as soon
as it is safe to do so, and allow it to cool.
The electrical circuit of the warning light can be
checked by turning the key to “ON”, with the engine
stop switch set to“”, and then pushing the start
switch.
If the warning light does not come on while the start
switch is being pushed, then go off after the start
switch is released, have a Yamaha dealer check
the electrical circuit.
1. Reverse indicator light “R”
2. Neutral indicator light “N”
3. High beam indicator light“”
4. Oil temperature warning light“”
5. Turn signal indicator light“”
6. On-Command four-wheel-drive indicator light“” (4WD
model)

4-3

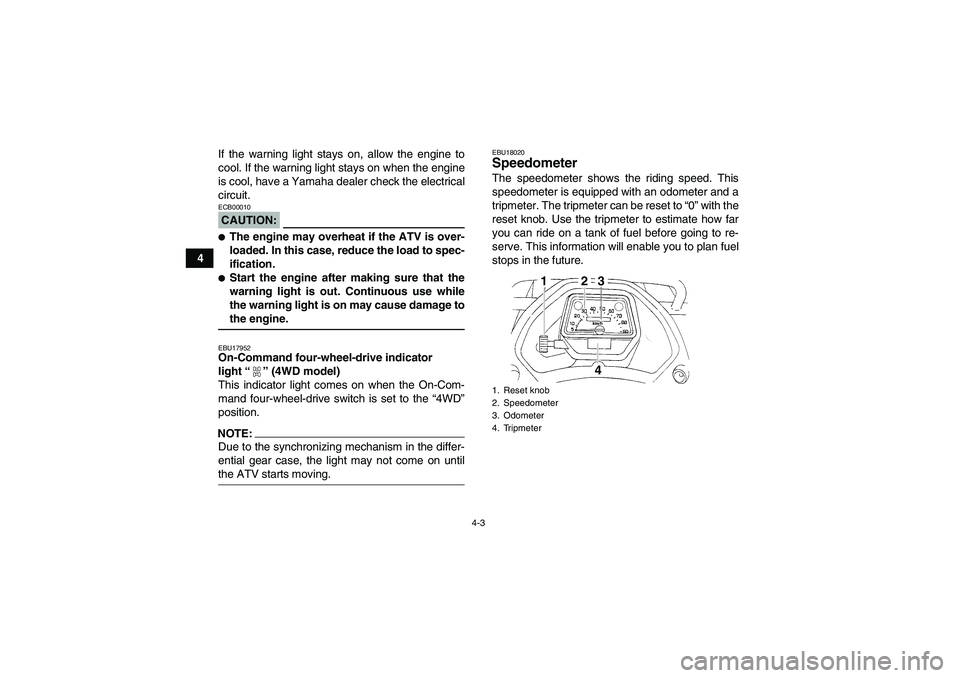

4If the warning light stays on, allow the engine to
cool. If the warning light stays on when the engine
is cool, have a Yamaha dealer check the electrical
circuit.
CAUTION:ECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage tothe engine.EBU17952On-Command four-wheel-drive indicator
light“” (4WD model)
This indicator light comes on when the On-Com-
mand four-wheel-drive switch is set to the “4WD”
position.NOTE:Due to the synchronizing mechanism in the differ-
ential gear case, the light may not come on untilthe ATV starts moving.
EBU18020Speedometer The speedometer shows the riding speed. This
speedometer is equipped with an odometer and a
tripmeter. The tripmeter can be reset to “0” with the
reset knob. Use the tripmeter to estimate how far
you can ride on a tank of fuel before going to re-
serve. This information will enable you to plan fuel
stops in the future.1. Reset knob
2. Speedometer
3. Odometer
4. Tripmeter
123
4

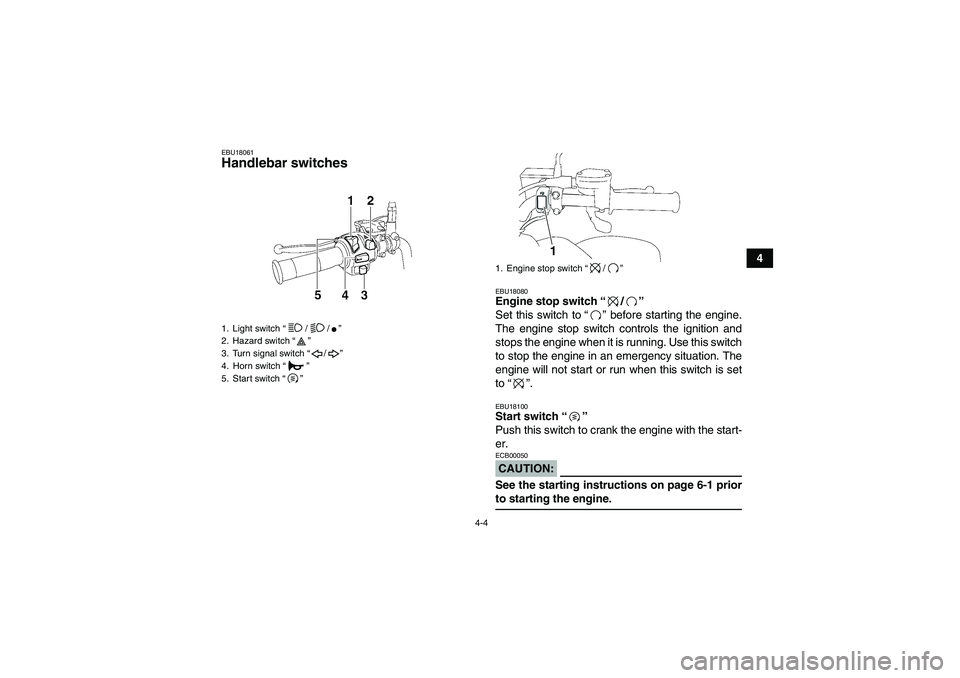

4-4
4
EBU18061Handlebar switches
EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to“”.EBU18100Start switch“”
Push this switch to crank the engine with the start-
er.CAUTION:ECB00050See the starting instructions on page 6-1 priorto starting the engine.
1. Light switch“//”
2. Hazard switch“”
3. Turn signal switch“/”
4. Horn switch“”
5. Start switch“”
1. Engine stop switch“/”
1

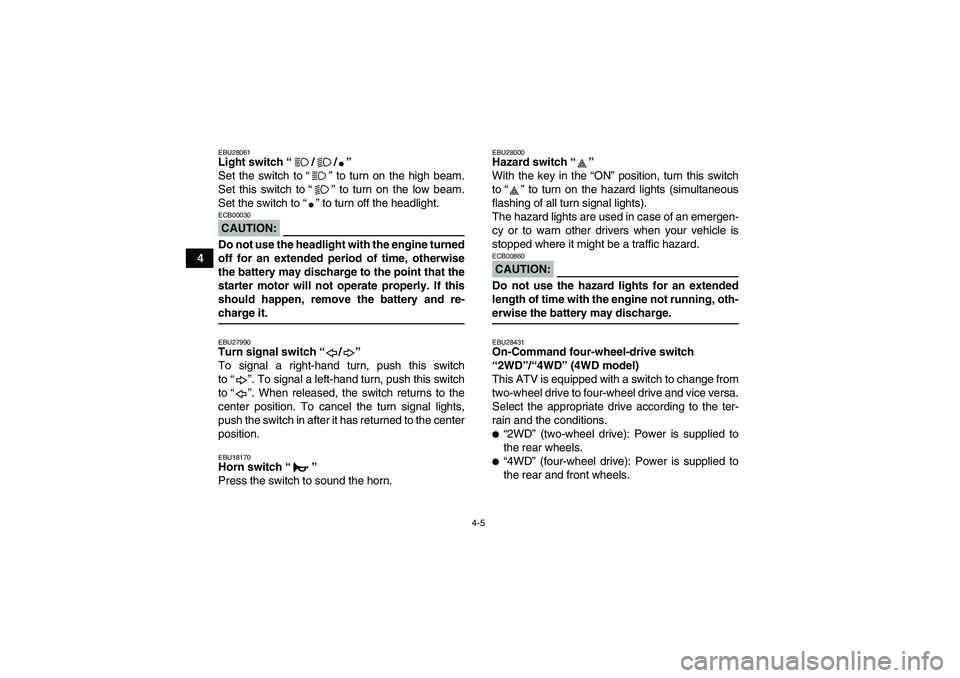

4-5
4
EBU28061Light switch“//”
Set the switch to“” to turn on the high beam.
Set this switch to“” to turn on the low beam.
Set the switch to“” to turn off the headlight.CAUTION:ECB00030Do not use the headlight with the engine turned
off for an extended period of time, otherwise
the battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-charge it.EBU27990Turn signal switch“/”
To signal a right-hand turn, push this switch
to“”. To signal a left-hand turn, push this switch
to“”. When released, the switch returns to the
center position. To cancel the turn signal lights,
push the switch in after it has returned to the center
position.EBU18170Horn switch“”
Press the switch to sound the horn.
EBU28000Hazard switch“”
With the key in the “ON” position, turn this switch
to“” to turn on the hazard lights (simultaneous
flashing of all turn signal lights).
The hazard lights are used in case of an emergen-
cy or to warn other drivers when your vehicle is
stopped where it might be a traffic hazard.CAUTION:ECB00860Do not use the hazard lights for an extended
length of time with the engine not running, oth-erwise the battery may discharge.EBU28431On-Command four-wheel-drive switch
“2WD”/“4WD” (4WD model)
This ATV is equipped with a switch to change from
two-wheel drive to four-wheel drive and vice versa.
Select the appropriate drive according to the ter-
rain and the conditions.
“2WD” (two-wheel drive): Power is supplied to
the rear wheels.
“4WD” (four-wheel drive): Power is supplied to
the rear and front wheels.
