Page 31 of 130

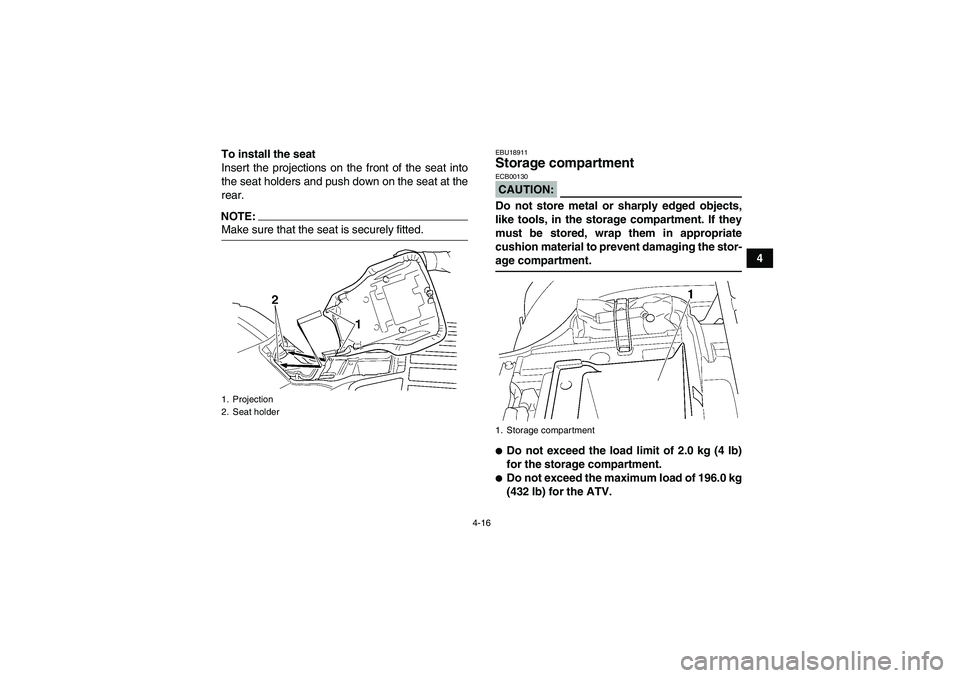

YAMAHA GRIZZLY 350 2008 Owners Guide 4-16
4 To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear.
NOTE:Make sure that the seat is securely fitted.
EBU18911Storage

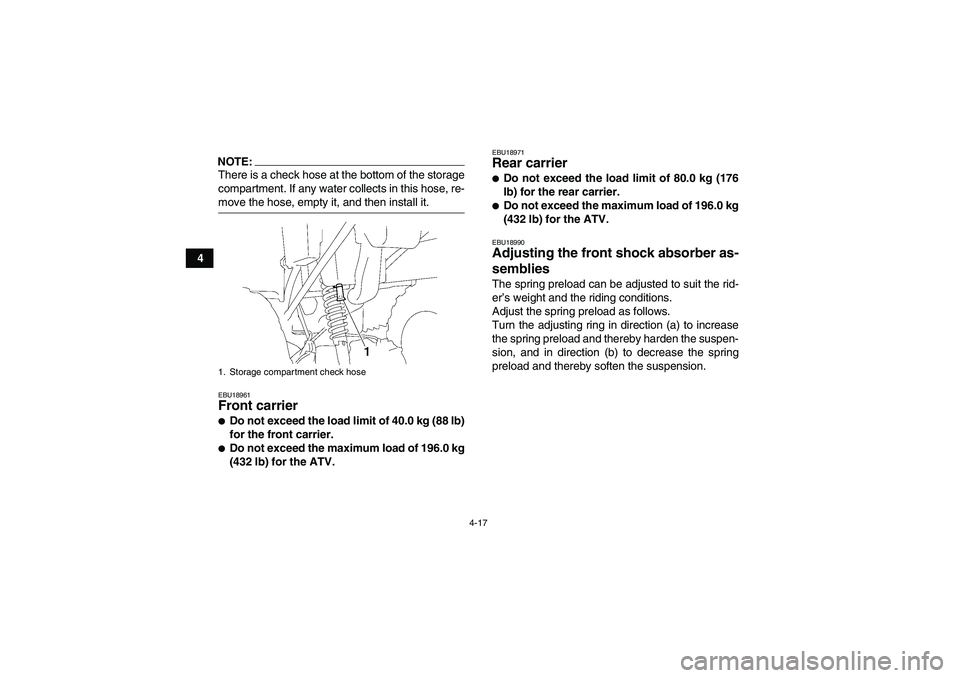

Page 32 of 130

YAMAHA GRIZZLY 350 2008 Owners Guide 4-17
4
NOTE:There is a check hose at the bottom of the storage
compartment. If any water collects in this hose, re-move the hose, empty it, and then install it.EBU18961Front carrier Do not exceed the

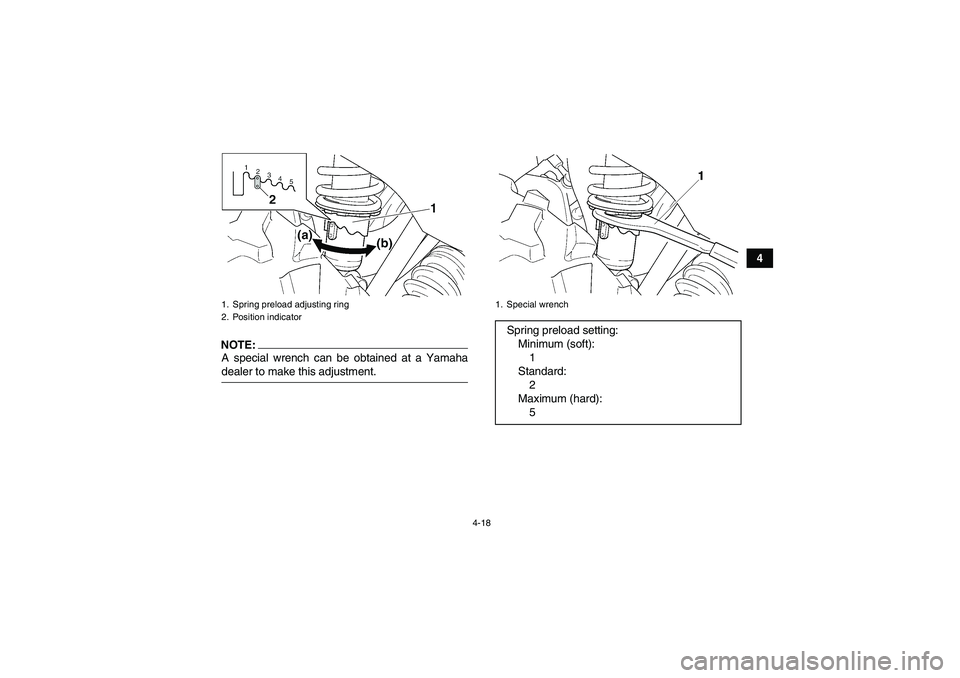

Page 33 of 130

YAMAHA GRIZZLY 350 2008 Owners Guide 4-18
4
NOTE:A special wrench can be obtained at a Yamahadealer to make this adjustment.1. Spring preload adjusting ring
2. Position indicator
1. Special wrenchSpring preload setting:
Minimum (soft):
1

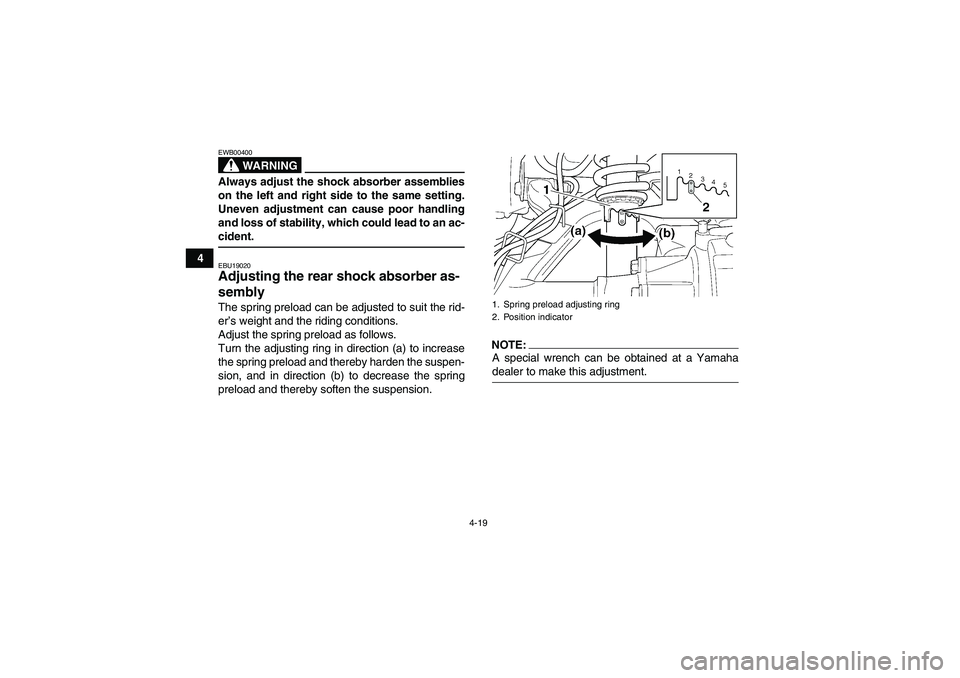

Page 34 of 130

YAMAHA GRIZZLY 350 2008 Owners Guide 4-19
4
WARNING
EWB00400Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to

Page 35 of 130

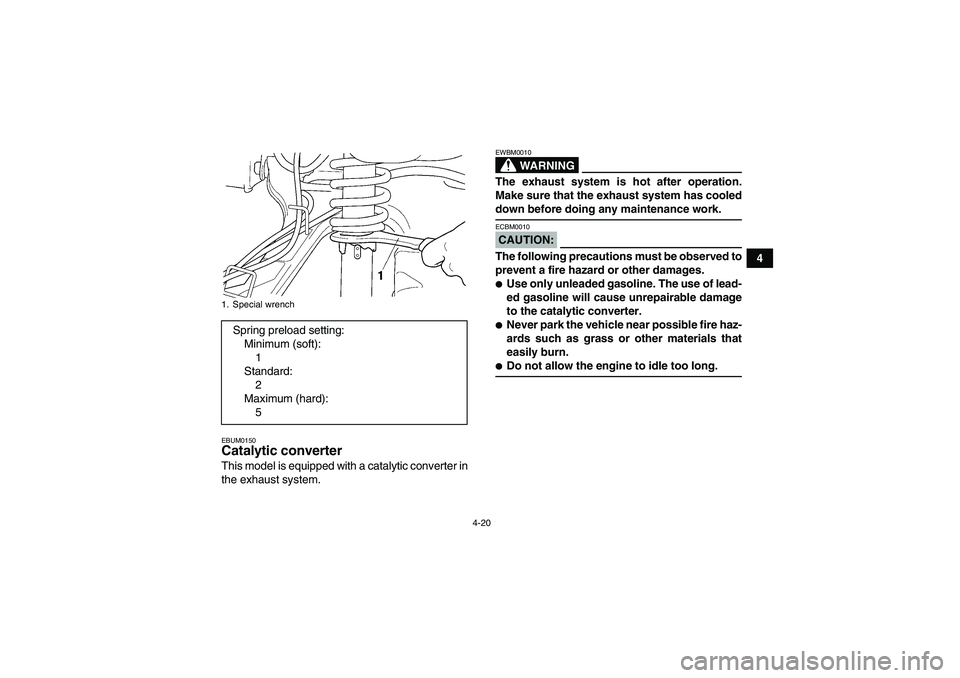

YAMAHA GRIZZLY 350 2008 Owners Guide 4-20
4
EBUM0150Catalytic converter This model is equipped with a catalytic converter in
the exhaust system.
WARNING
EWBM0010The exhaust system is hot after operation.
Make sure that the exhaust system

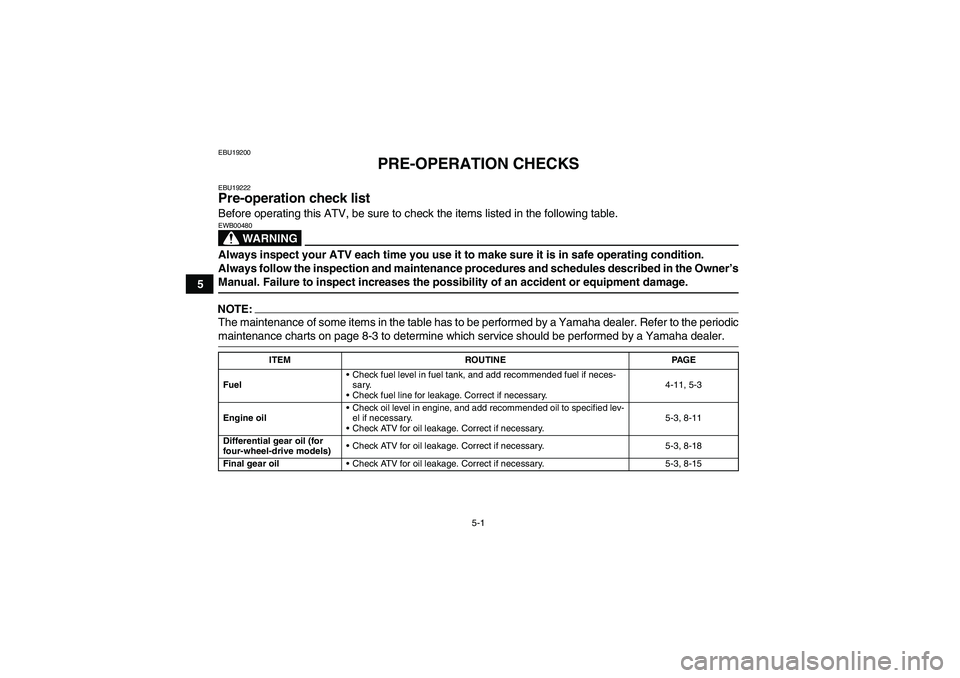

Page 36 of 130

YAMAHA GRIZZLY 350 2008 Owners Guide 5-1
5
EBU19200
PRE-OPERATION CHECKS
EBU19222Pre-operation check list Before operating this ATV, be sure to check the items listed in the following table.
WARNING
EWB00480Always inspect your ATV each t

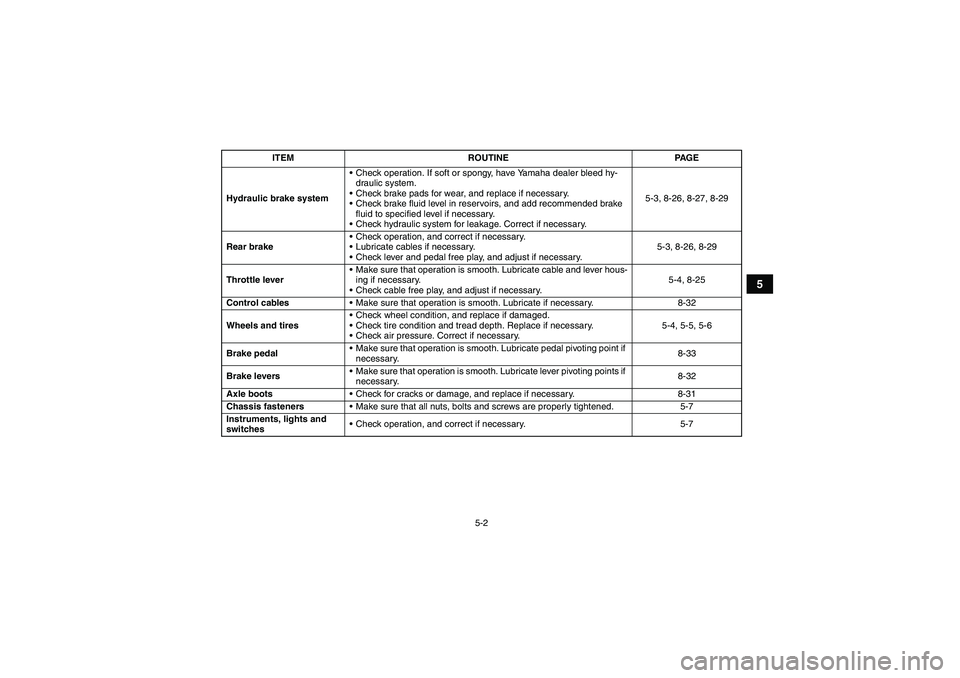

Page 37 of 130

YAMAHA GRIZZLY 350 2008 Owners Guide 5-2
5
Hydraulic brake systemCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoi

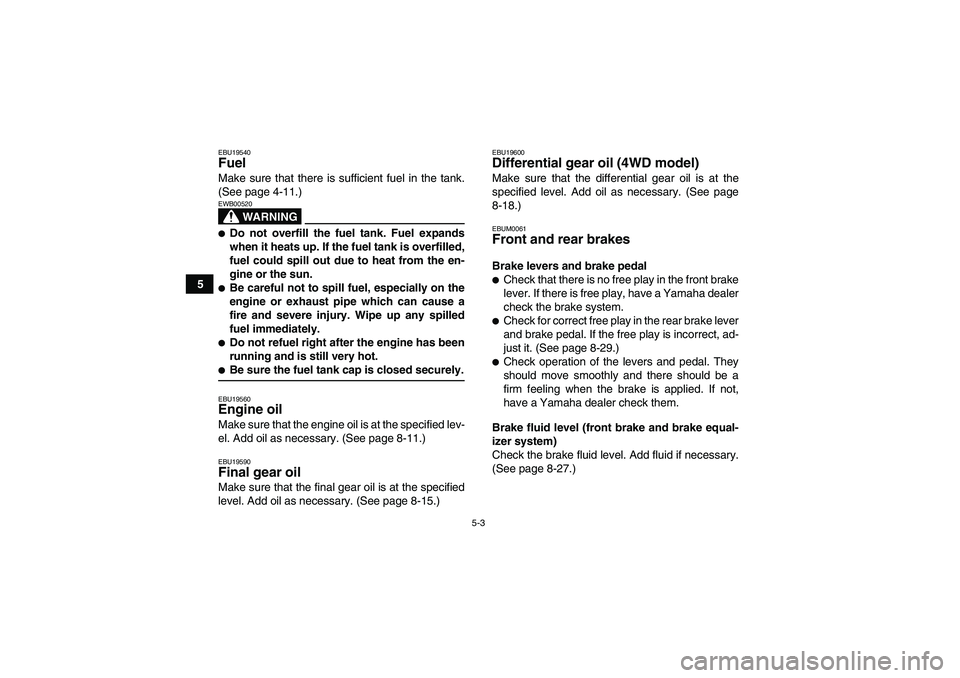

Page 38 of 130

YAMAHA GRIZZLY 350 2008 Owners Guide 5-3
5
EBU19540Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-11.)
WARNING
EWB00520Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,

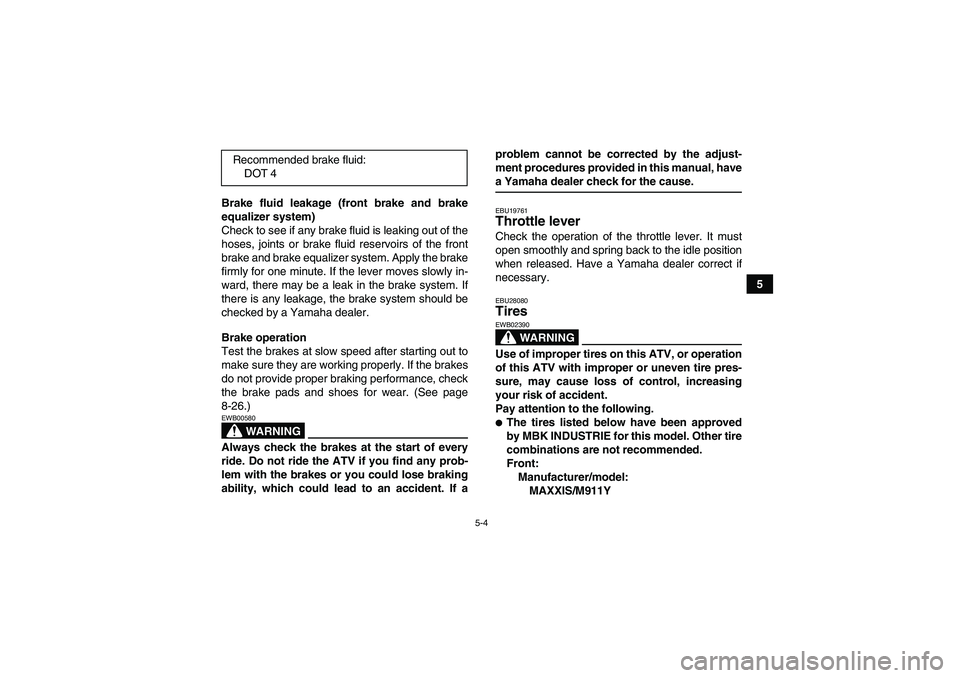

Page 39 of 130

YAMAHA GRIZZLY 350 2008 Owners Guide 5-4
5 Brake fluid leakage (front brake and brake
equalizer system)
Check to see if any brake fluid is leaking out of the
hoses, joints or brake fluid reservoirs of the front
brake and brake equalizer

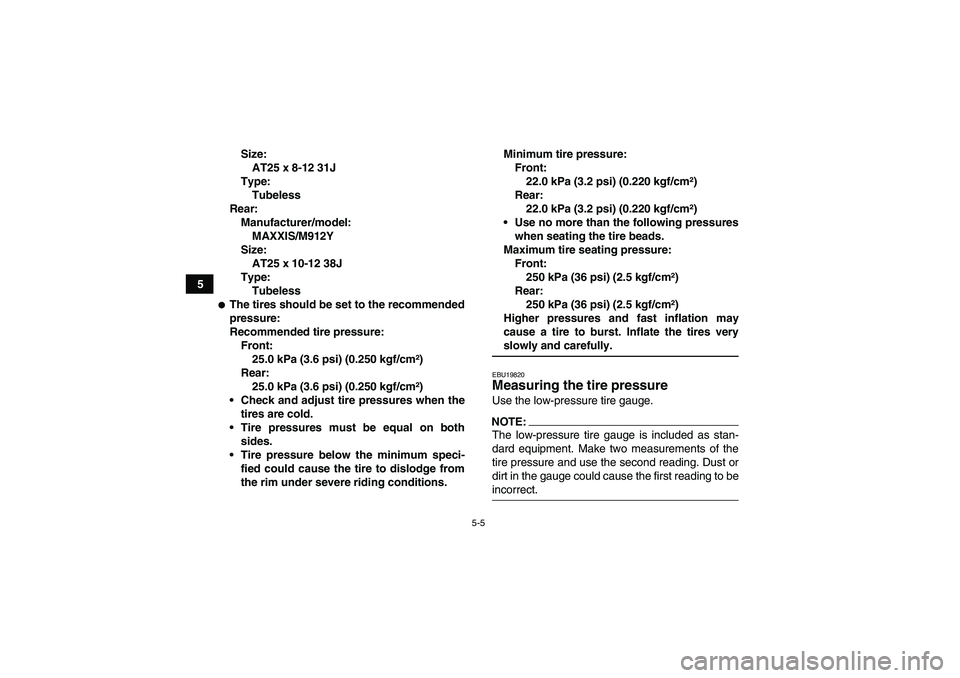

Page 40 of 130

YAMAHA GRIZZLY 350 2008 Owners Guide 5-5
5Size:
AT25 x 8-12 31J
Type:
Tubeless
Rear:
Manufacturer/model:
MAXXIS/M912Y
Size:
AT25 x 10-12 38J
Type:
Tubeless
The tires should be set to the recommended
pressure:
Recommended tire pressure:
