Page 41 of 130

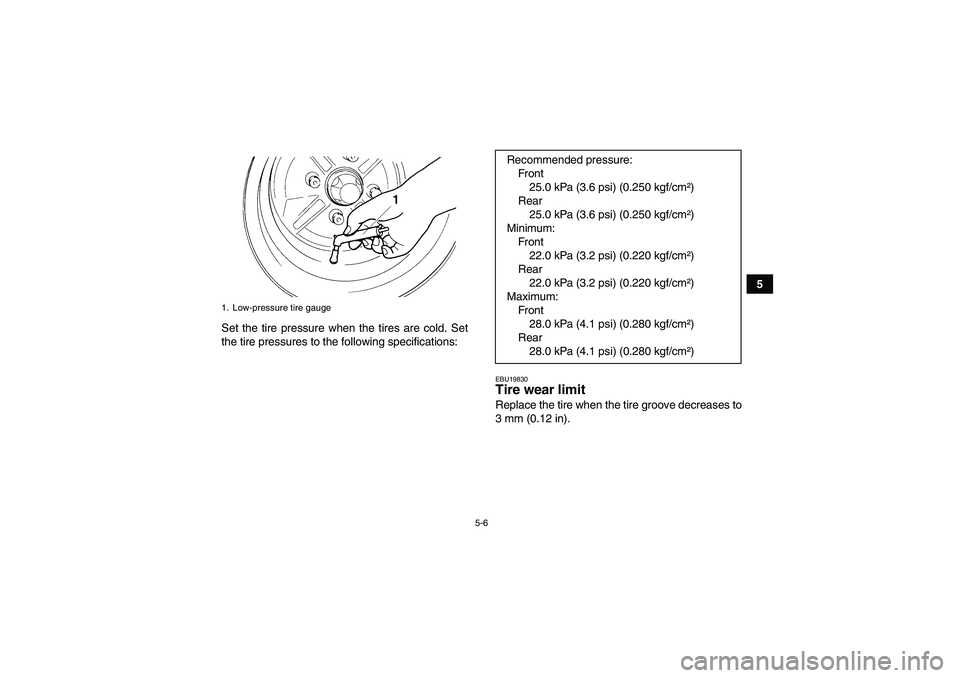

YAMAHA GRIZZLY 350 2008 Service Manual 5-6
5
Set the tire pressure when the tires are cold. Set
the tire pressures to the following specifications:
EBU19830Tire wear limit Replace the tire when the tire groove decreases to
3 mm (0.12 in).

Page 42 of 130

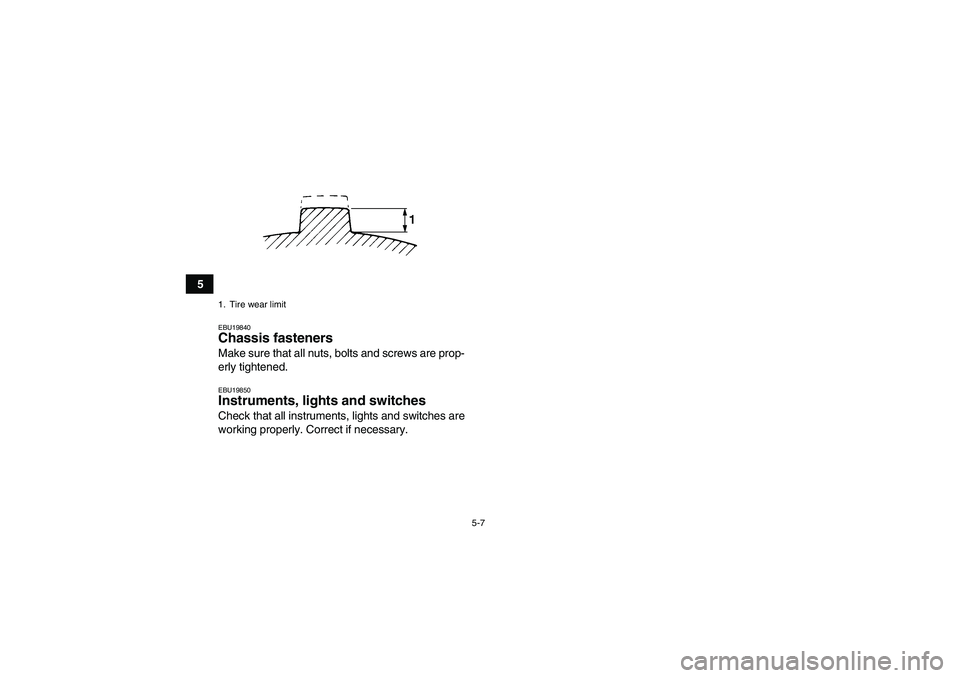

YAMAHA GRIZZLY 350 2008 Service Manual 5-7
5
EBU19840Chassis fasteners Make sure that all nuts, bolts and screws are prop-
erly tightened.EBU19850Instruments, lights and switches Check that all instruments, lights and switches are
working

Page 43 of 130

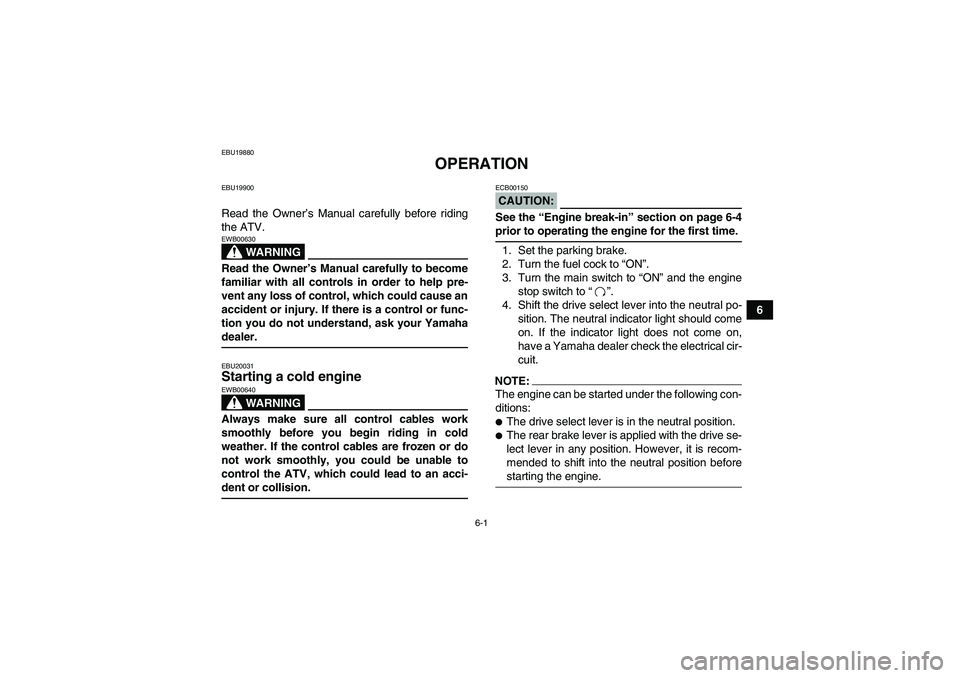

YAMAHA GRIZZLY 350 2008 Service Manual 6-1
6
EBU19880
OPERATION
EBU19900Read the Owner’s Manual carefully before riding
the ATV.
WARNING
EWB00630Read the Owner’s Manual carefully to become
familiar with all controls in order to help pr

Page 44 of 130

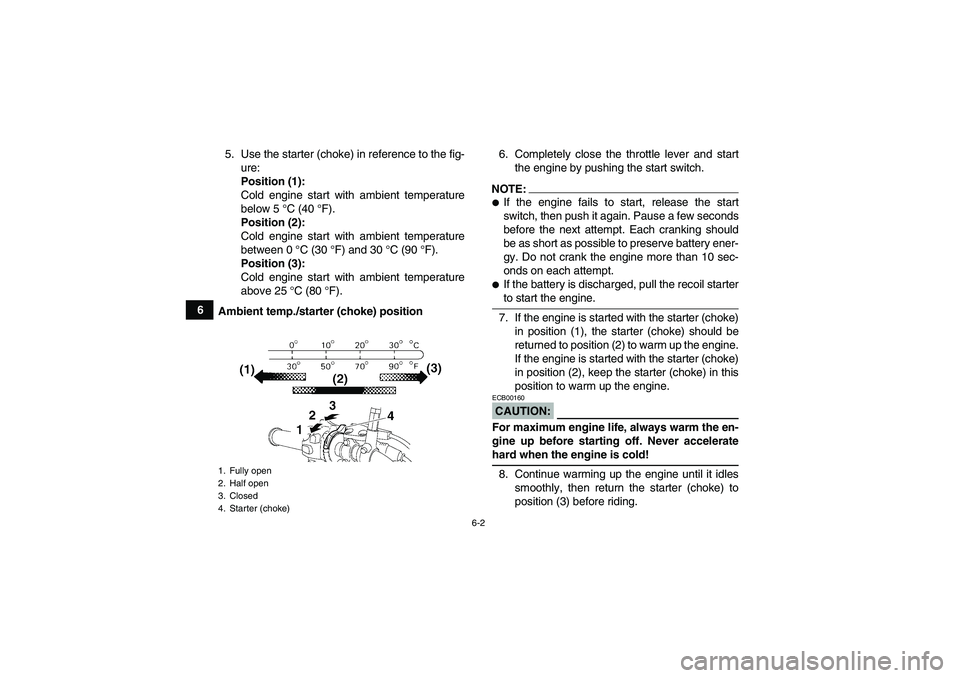

YAMAHA GRIZZLY 350 2008 Service Manual 6-2
65. Use the starter (choke) in reference to the fig-
ure:
Position (1):
Cold engine start with ambient temperature
below 5 °C (40 °F).
Position (2):
Cold engine start with ambient temperature
be

Page 45 of 130

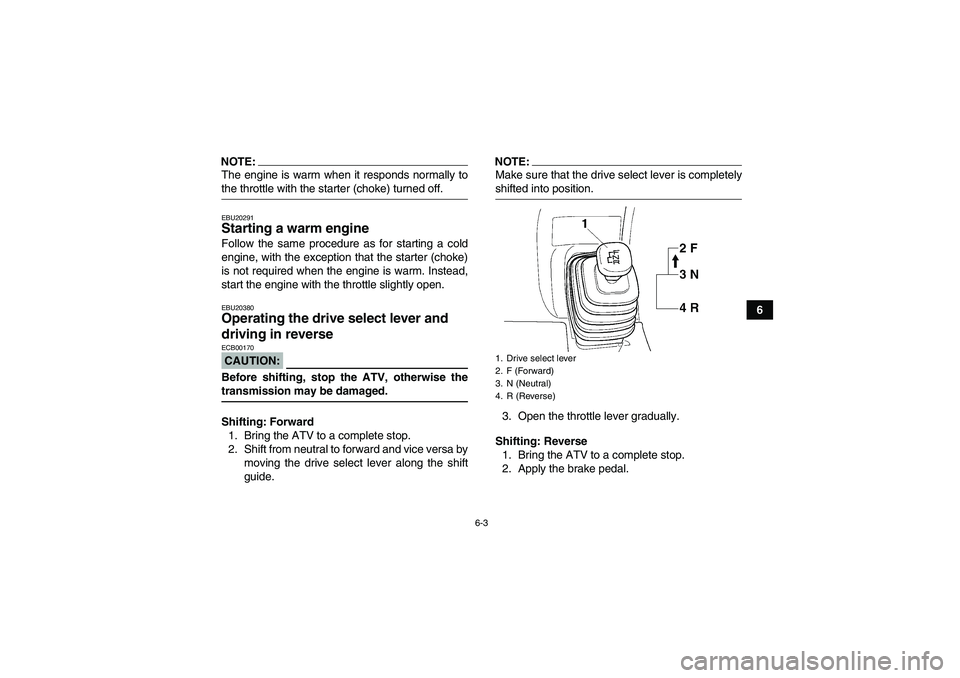

YAMAHA GRIZZLY 350 2008 Service Manual 6-3
6
NOTE:The engine is warm when it responds normally tothe throttle with the starter (choke) turned off.EBU20291Starting a warm engine Follow the same procedure as for starting a cold
engine, with

Page 46 of 130

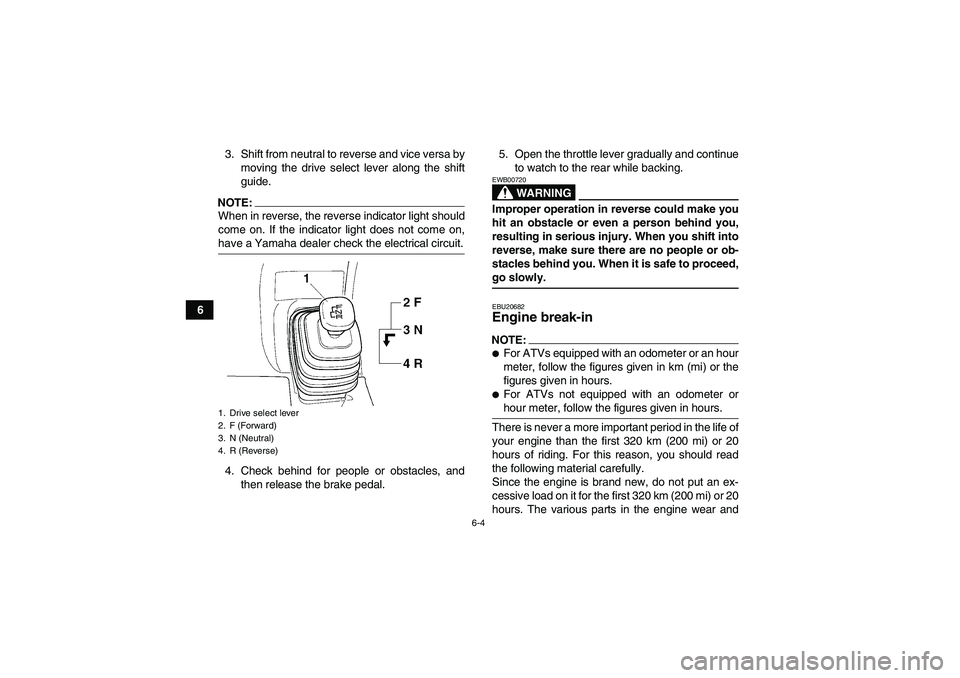

YAMAHA GRIZZLY 350 2008 Service Manual 6-4
63. Shift from neutral to reverse and vice versa by
moving the drive select lever along the shift
guide.
NOTE:When in reverse, the reverse indicator light should
come on. If the indicator light do

Page 47 of 130

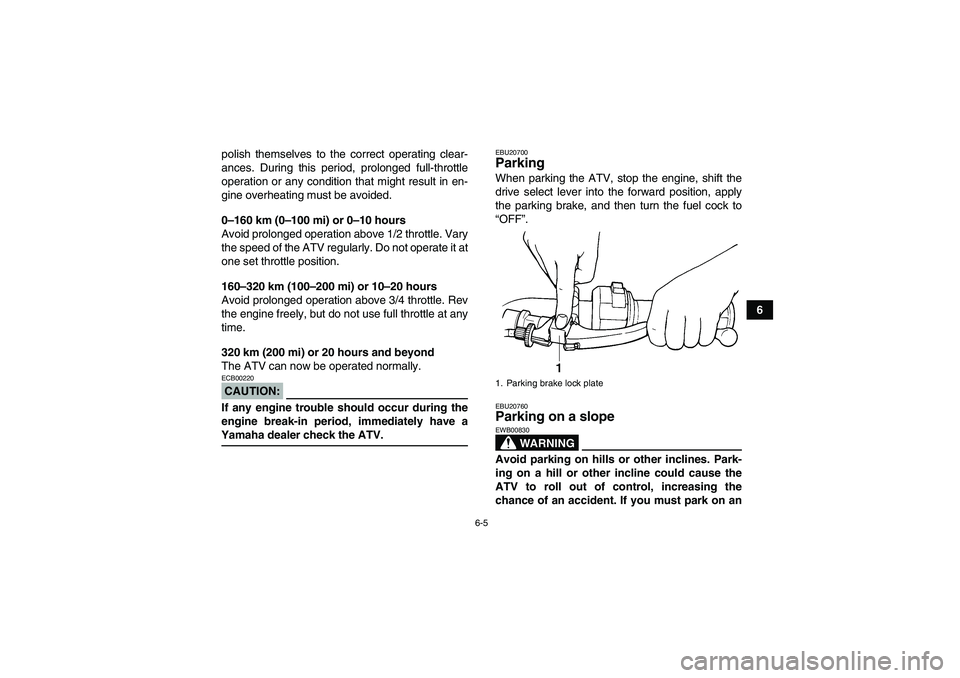

YAMAHA GRIZZLY 350 2008 Service Manual 6-5
6 polish themselves to the correct operating clear-
ances. During this period, prolonged full-throttle
operation or any condition that might result in en-
gine overheating must be avoided.
0–160

Page 48 of 130

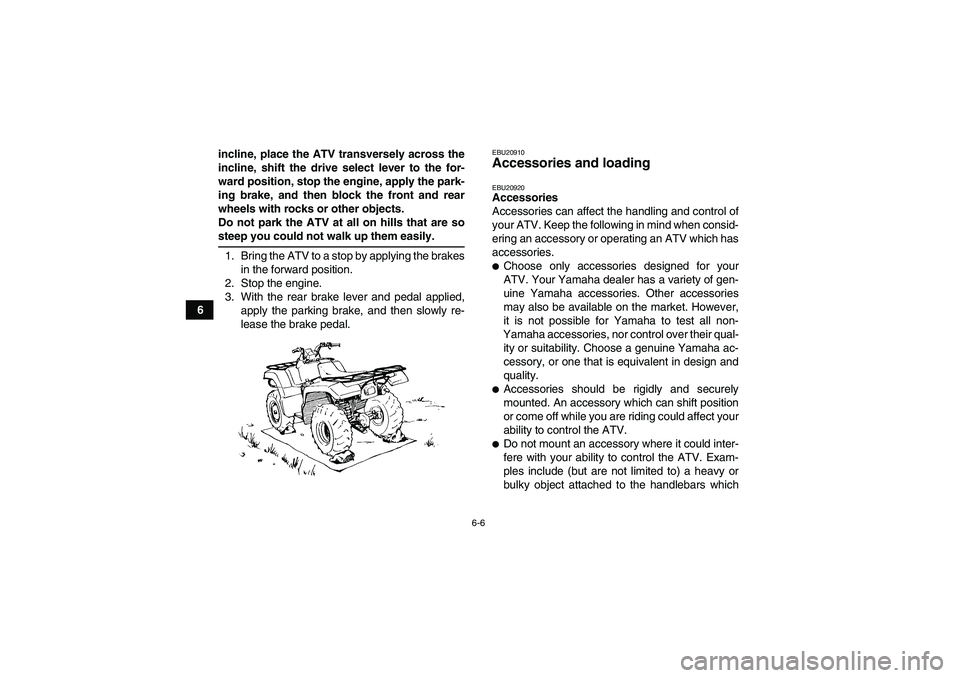

YAMAHA GRIZZLY 350 2008 Service Manual 6-6
6incline, place the ATV transversely across the
incline, shift the drive select lever to the for-
ward position, stop the engine, apply the park-
ing brake, and then block the front and rear
wheel

Page 49 of 130

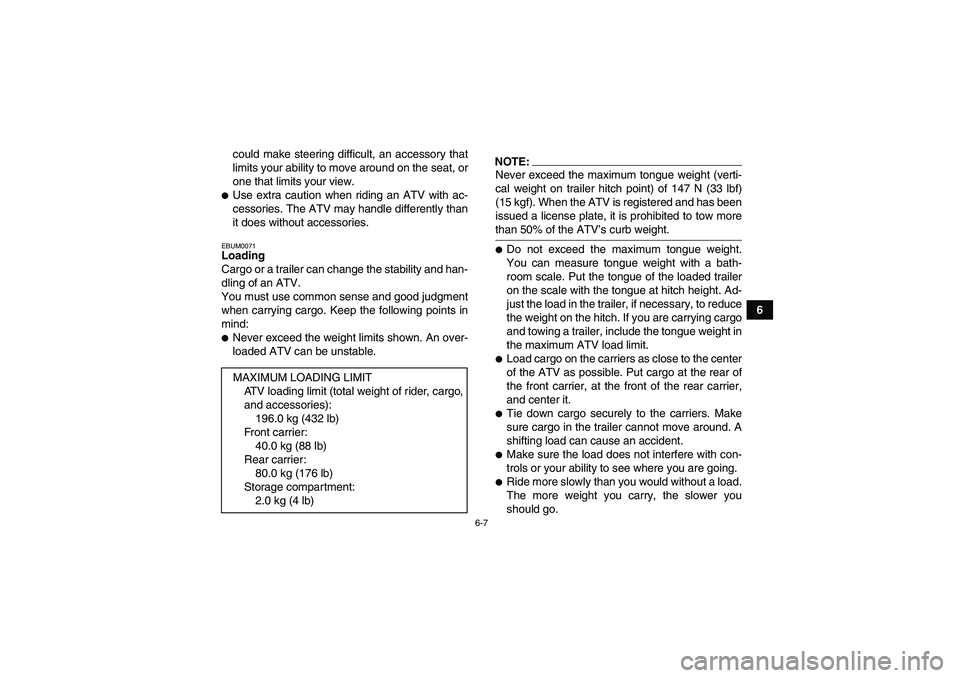

YAMAHA GRIZZLY 350 2008 Service Manual 6-7
6 could make steering difficult, an accessory that
limits your ability to move around on the seat, or
one that limits your view.
Use extra caution when riding an ATV with ac-
cessories. The ATV m

Page 50 of 130

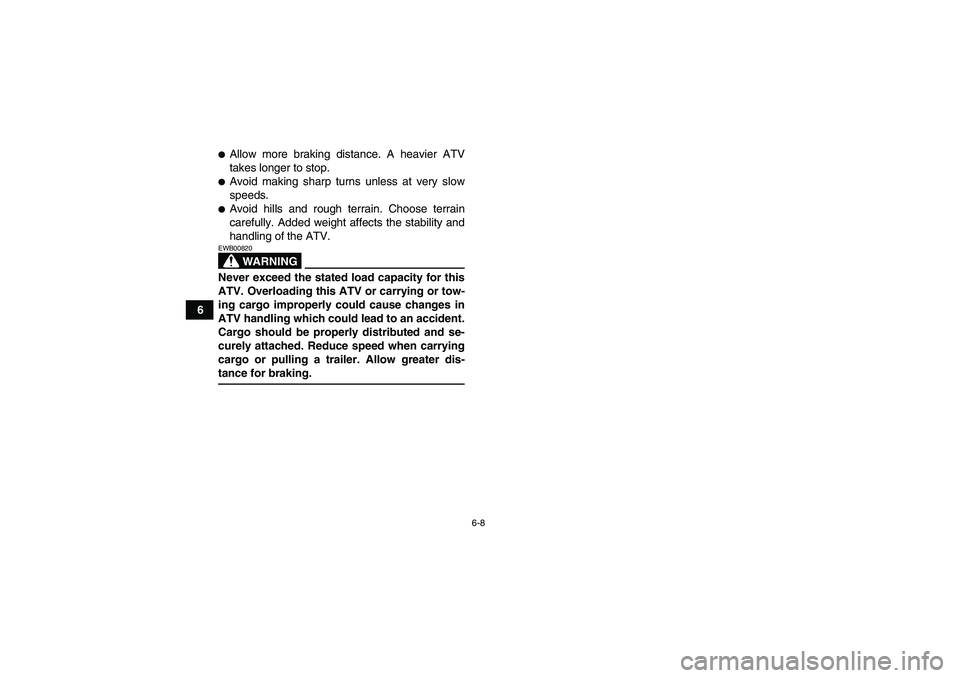

YAMAHA GRIZZLY 350 2008 Service Manual 6-8
6
Allow more braking distance. A heavier ATV
takes longer to stop.Avoid making sharp turns unless at very slow
speeds.Avoid hills and rough terrain. Choose terrain
carefully. Added weight affec
