YAMAHA GRIZZLY 450 2010 Owner's Manual
Manufacturer: YAMAHA, Model Year: 2010, Model line: GRIZZLY 450, Model: YAMAHA GRIZZLY 450 2010Pages: 166, PDF Size: 6.07 MB
Page 21 of 166
1-11
1
WARNING
Fuel vapors can be a fire or explosion hazard.
To avoid injury or death, never store fuel or
flammable liquids in this storage compartment.
Storage should not exceed 0.5 kg (1 lb)
37S-F151F-00
8
9
U37S61E0.book Page 11 Tuesday, June 2, 2009 10:33 AM
Page 22 of 166
2-1
2
EBU17431

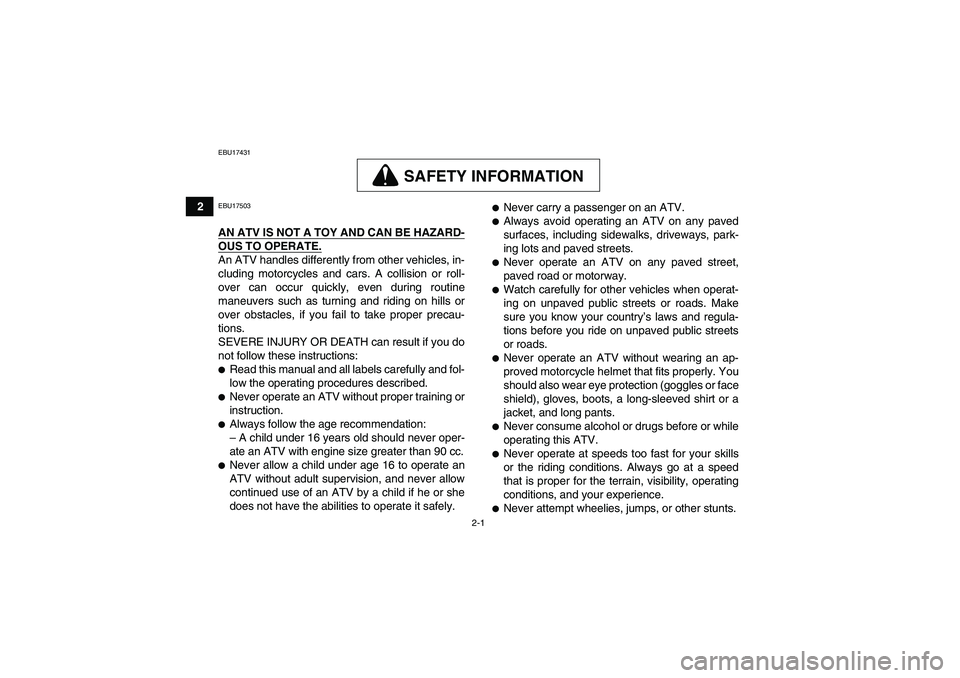

SAFETY INFORMATION
EBU17503AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:Read this manual and all labels carefully and fol-
low the operating procedures described.Never operate an ATV without proper training or
instruction.Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc.Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.
Never carry a passenger on an ATV.Always avoid operating an ATV on any paved
surfaces, including sidewalks, driveways, park-
ing lots and paved streets.Never operate an ATV on any paved street,
paved road or motorway.Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.Never consume alcohol or drugs before or while
operating this ATV.Never operate at speeds too fast for your skills
or the riding conditions. Always go at a speed
that is proper for the terrain, visibility, operating
conditions, and your experience.Never attempt wheelies, jumps, or other stunts.
U37S61E0.book Page 1 Tuesday, June 2, 2009 10:33 AM
Page 23 of 166
2-2
2

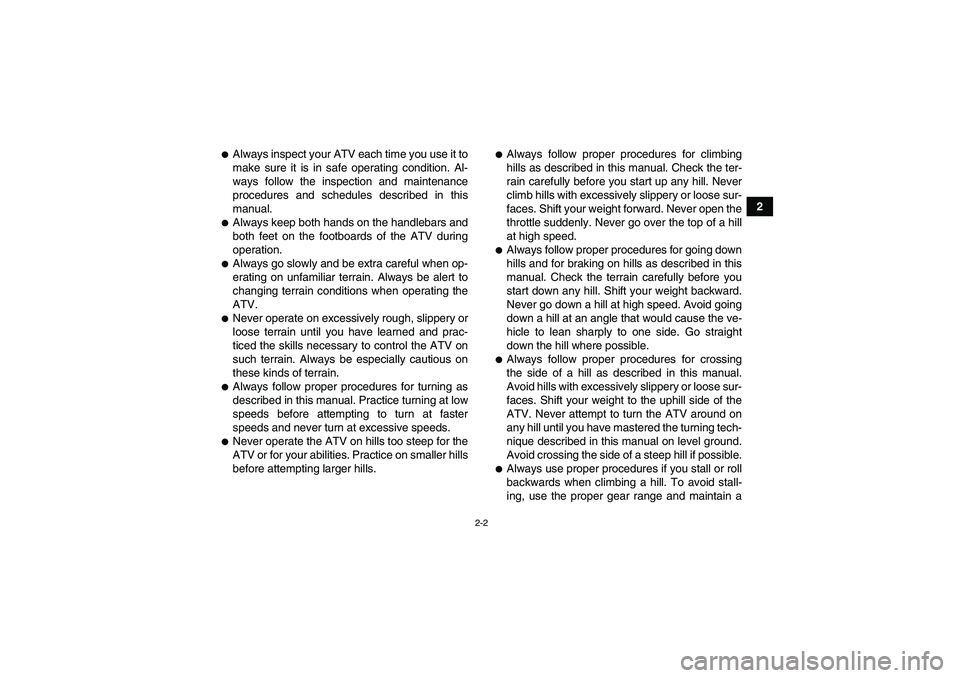

Always inspect your ATV each time you use it to
make sure it is in safe operating condition. Al-
ways follow the inspection and maintenance
procedures and schedules described in this
manual.Always keep both hands on the handlebars and
both feet on the footboards of the ATV during
operation.Always go slowly and be extra careful when op-
erating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the
ATV.Never operate on excessively rough, slippery or
loose terrain until you have learned and prac-
ticed the skills necessary to control the ATV on
such terrain. Always be especially cautious on
these kinds of terrain.Always follow proper procedures for turning as
described in this manual. Practice turning at low
speeds before attempting to turn at faster
speeds and never turn at excessive speeds.Never operate the ATV on hills too steep for the
ATV or for your abilities. Practice on smaller hills
before attempting larger hills.
Always follow proper procedures for climbing
hills as described in this manual. Check the ter-
rain carefully before you start up any hill. Never
climb hills with excessively slippery or loose sur-
faces. Shift your weight forward. Never open the
throttle suddenly. Never go over the top of a hill
at high speed.Always follow proper procedures for going down
hills and for braking on hills as described in this
manual. Check the terrain carefully before you
start down any hill. Shift your weight backward.
Never go down a hill at high speed. Avoid going
down a hill at an angle that would cause the ve-
hicle to lean sharply to one side. Go straight
down the hill where possible.Always follow proper procedures for crossing
the side of a hill as described in this manual.
Avoid hills with excessively slippery or loose sur-
faces. Shift your weight to the uphill side of the
ATV. Never attempt to turn the ATV around on
any hill until you have mastered the turning tech-
nique described in this manual on level ground.
Avoid crossing the side of a steep hill if possible.Always use proper procedures if you stall or roll
backwards when climbing a hill. To avoid stall-
ing, use the proper gear range and maintain a
U37S61E0.book Page 2 Tuesday, June 2, 2009 10:33 AM
Page 24 of 166
2-3

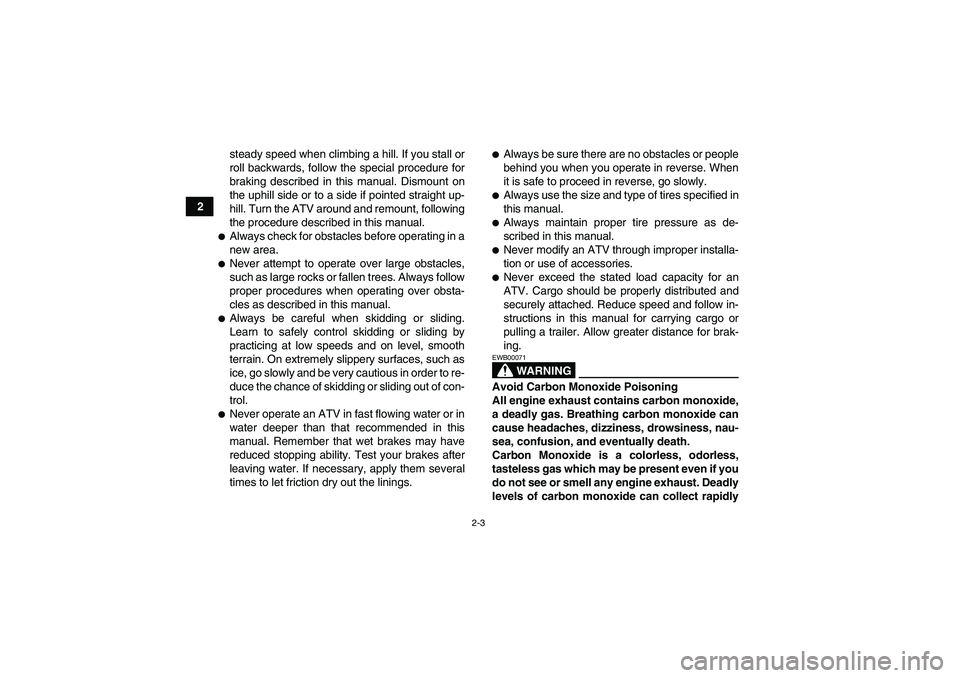

2steady speed when climbing a hill. If you stall or
roll backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.
Always check for obstacles before operating in a
new area.Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.
Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.Always use the size and type of tires specified in
this manual.Always maintain proper tire pressure as de-
scribed in this manual.Never modify an ATV through improper installa-
tion or use of accessories.Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.
WARNING
EWB00071Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
U37S61E0.book Page 3 Tuesday, June 2, 2009 10:33 AM
Page 25 of 166
2-4

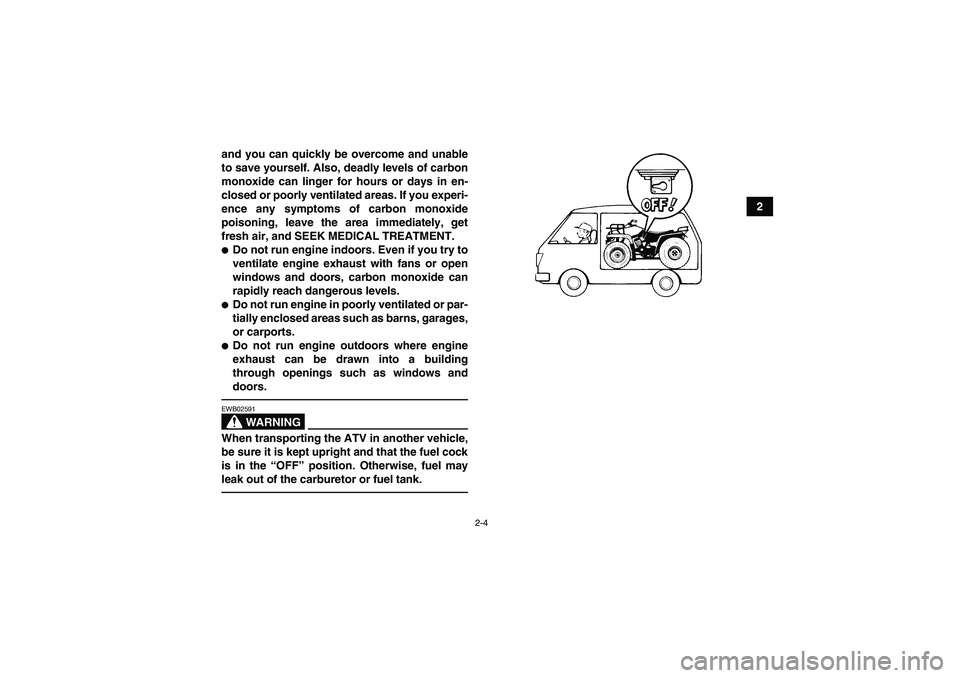

2 and you can quickly be overcome and unable
to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.
Do not run engine indoors. Even if you try to
ventilate engine exhaust with fans or open
windows and doors, carbon monoxide can
rapidly reach dangerous levels.Do not run engine in poorly ventilated or par-
tially enclosed areas such as barns, garages,
or carports.Do not run engine outdoors where engine
exhaust can be drawn into a building
through openings such as windows and
doors.
WARNING
EWB02591When transporting the ATV in another vehicle,
be sure it is kept upright and that the fuel cock
is in the “OFF” position. Otherwise, fuel may
leak out of the carburetor or fuel tank.U37S61E0.book Page 4 Tuesday, June 2, 2009 10:33 AM
Page 26 of 166
3-1
3
EBU17680

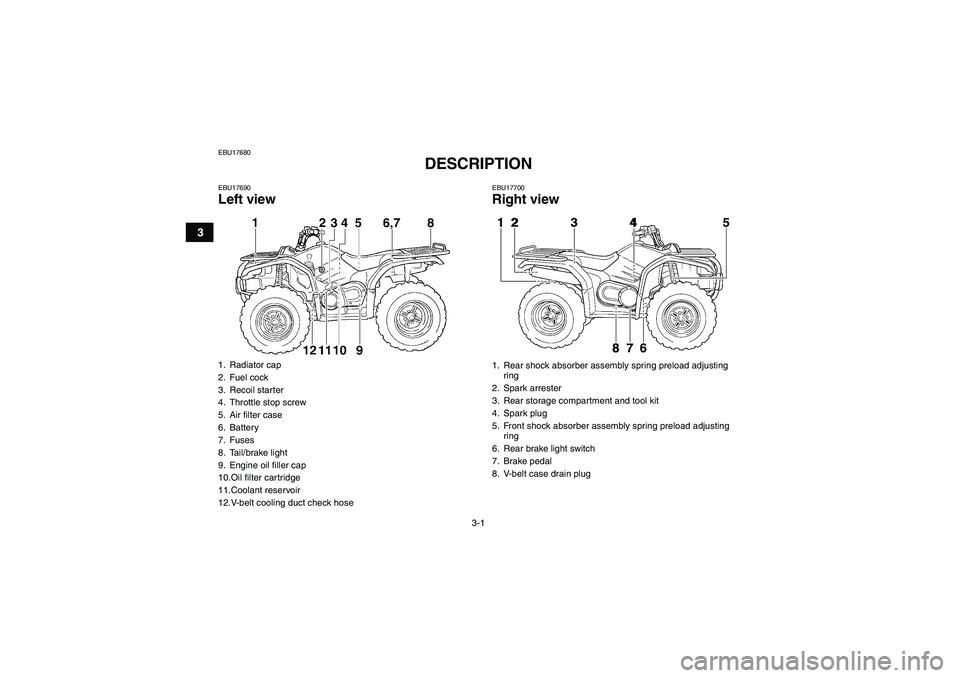

DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Fuel cock
3. Recoil starter
4. Throttle stop screw
5. Air filter case
6. Battery
7. Fuses
8. Tail/brake light
9. Engine oil filler cap
10.Oil filter cartridge
11.Coolant reservoir
12.V-belt cooling duct check hose
1. Rear shock absorber assembly spring preload adjusting
ring
2. Spark arrester
3. Rear storage compartment and tool kit
4. Spark plug
5. Front shock absorber assembly spring preload adjusting
ring
6. Rear brake light switch
7. Brake pedal
8. V-belt case drain plug1
2
3
4
5
6
7
8
U37S61E0.book Page 1 Tuesday, June 2, 2009 10:33 AM
Page 27 of 166
3-2
3

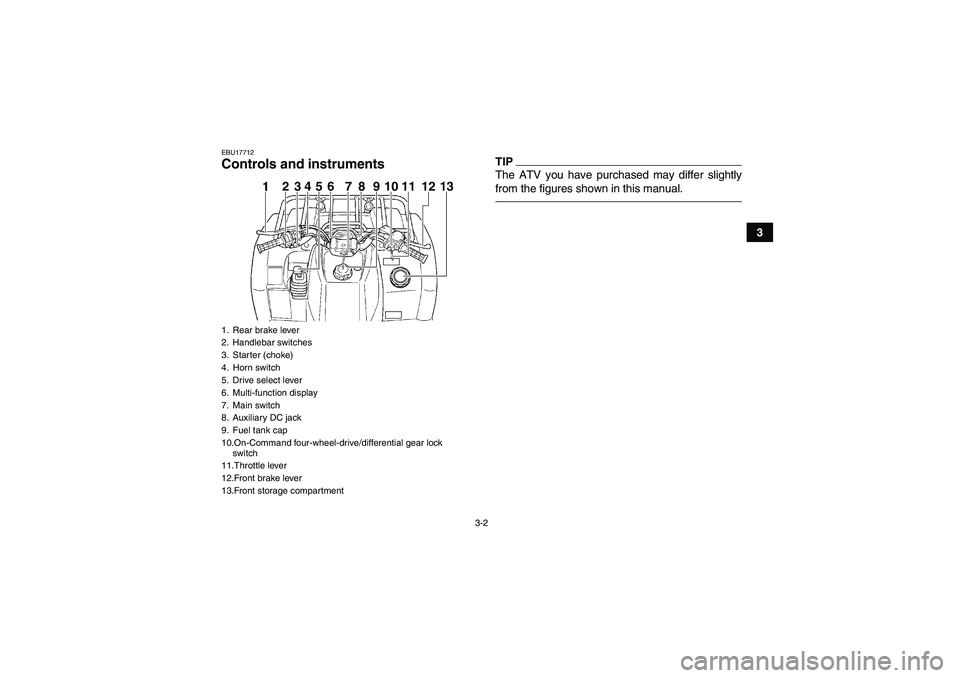

EBU17712Controls and instruments
TIPThe ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Rear brake lever
2. Handlebar switches
3. Starter (choke)
4. Horn switch
5. Drive select lever
6. Multi-function display
7. Main switch
8. Auxiliary DC jack
9. Fuel tank cap
10.On-Command four-wheel-drive/differential gear lock
switch
11.Throttle lever
12.Front brake lever
13.Front storage compartment
9
54
13 12 11 10 23 6 7 8
U37S61E0.book Page 2 Tuesday, June 2, 2009 10:33 AM
Page 28 of 166
4-1
4
EBU17733

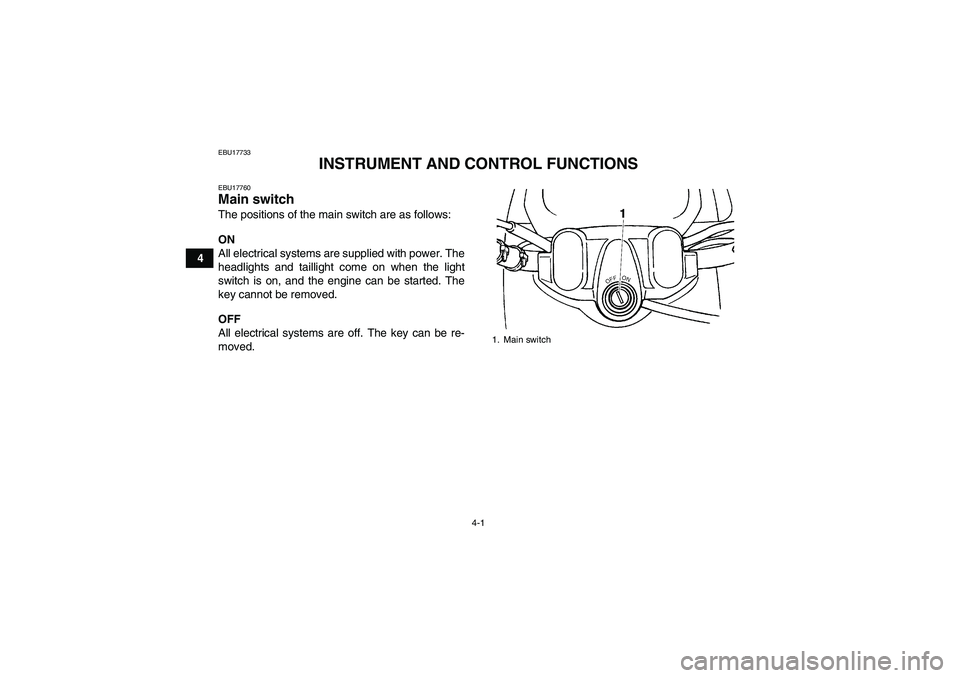

INSTRUMENT AND CONTROL FUNCTIONS
EBU17760Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
U37S61E0.book Page 1 Tuesday, June 2, 2009 10:33 AM
Page 29 of 166
4-2
4
EBU17814Indicator lights and warning light EBU17842Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.Furthermore, this indicator light flashes when the
engine is being raced for 10 seconds or more.
TIPIf the indicator light flashes under any other circum-
stances or the speedometer does not show the
speed while riding, have a Yamaha dealer check
the speed sensor circuit.EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17920Coolant temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.NOTICEECB00010The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. On-Command four-wheel-drive/differential gear lock
indicator“”/“”
8. Coolant temperature warning light“”U37S61E0.book Page 2 Tuesday, June 2, 2009 10:33 AM
Page 30 of 166
4-3
4
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.EBU29621On-Command four-wheel-drive indicator“”,
On-Command differential gear lock
indicator“” and indicator light “DIFF.
LOCK”
The On-Command four-wheel-drive indicator“”
comes on when the On-Command four-wheel-
drive switch is set to the “4WD” position.
The On-Command differential gear lock
indicator“” and the On-Command differential
gear lock indicator light “DIFF. LOCK” come on
when the On-Command differential gear lock
switch is set to the “LOCK” position.TIPDue to the synchronizing mechanism in the dif-
ferential gear case, the four-wheel-drive indica-
tor may not come on until the ATV starts moving.When the On-Command differential gear lock
switch is set to “LOCK”, the indicator“” and
the indicator light “DIFF. LOCK” will flash until
the differential gear is locked. If the indicator andthe indicator light continue to flash, the differen-
tial is not locked. In this case, start moving to al-
low time for the differential to lock.
EBU17970Park indicator light“”
This indicator light comes on when the transmis-
sion is in the park position.EBU17980High-range indicator light“”
This indicator light comes on when the transmis-
sion is in the high-range position.EBU17990Low-range indicator light“”
This indicator light comes on when the transmis-
sion is in the low-range position.
U37S61E0.book Page 3 Tuesday, June 2, 2009 10:33 AM
