YAMAHA GRIZZLY 450 2010 Service Manual
Manufacturer: YAMAHA, Model Year: 2010, Model line: GRIZZLY 450, Model: YAMAHA GRIZZLY 450 2010Pages: 166, PDF Size: 6.07 MB
Page 41 of 166
4-14
4
WARNING

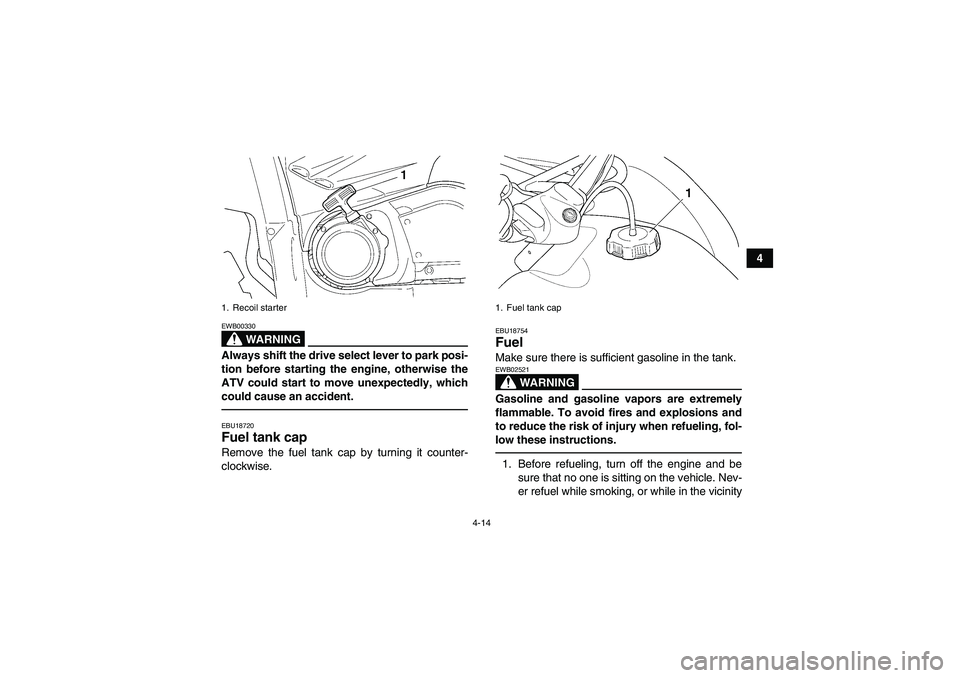

EWB00330Always shift the drive select lever to park posi-
tion before starting the engine, otherwise the
ATV could start to move unexpectedly, which
could cause an accident.EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.
EBU18754Fuel Make sure there is sufficient gasoline in the tank.
WARNING
EWB02521Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions.1. Before refueling, turn off the engine and be
sure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinity
1. Recoil starter
1. Fuel tank cap
U37S61E0.book Page 14 Tuesday, June 2, 2009 10:33 AM
Page 42 of 166
4-15

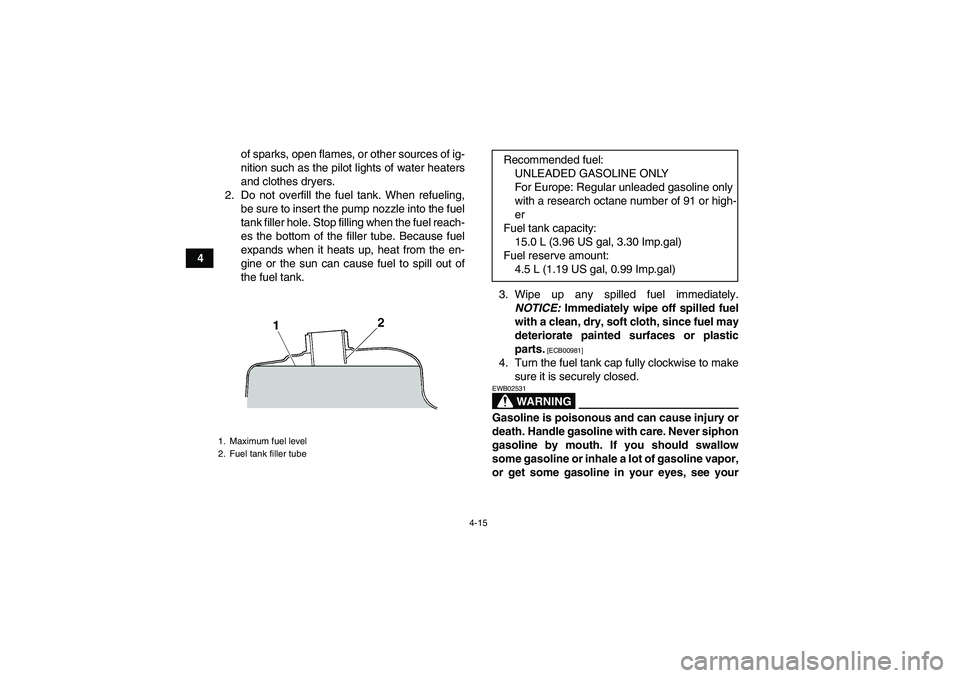

4of sparks, open flames, or other sources of ig-
nition such as the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling,
be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel reach-
es the bottom of the filler tube. Because fuel
expands when it heats up, heat from the en-
gine or the sun can cause fuel to spill out of
the fuel tank.
3. Wipe up any spilled fuel immediately.
NOTICE: Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic
parts.
[ECB00981]
4. Turn the fuel tank cap fully clockwise to make
sure it is securely closed.
WARNING
EWB02531Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow
some gasoline or inhale a lot of gasoline vapor,
or get some gasoline in your eyes, see your
1. Maximum fuel level
2. Fuel tank filler tube
Recommended fuel:
UNLEADED GASOLINE ONLY
For Europe: Regular unleaded gasoline only
with a research octane number of 91 or high-
er
Fuel tank capacity:
15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)
U37S61E0.book Page 15 Tuesday, June 2, 2009 10:33 AM
Page 43 of 166
4-16
4 doctor immediately. If gasoline spills on your
skin, wash with soap and water. If gasoline
spills on your clothing, change your clothes.
NOTICEECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system.Your Yamaha engine has been designed to use
regular unleaded gasoline with a research octane
number of 91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand. Use of un-
leaded fuel will extend spark plug life and reduce
maintenance costs.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
1. Arrow mark pointing to “OFF”
U37S61E0.book Page 16 Tuesday, June 2, 2009 10:33 AM
Page 44 of 166
4-17

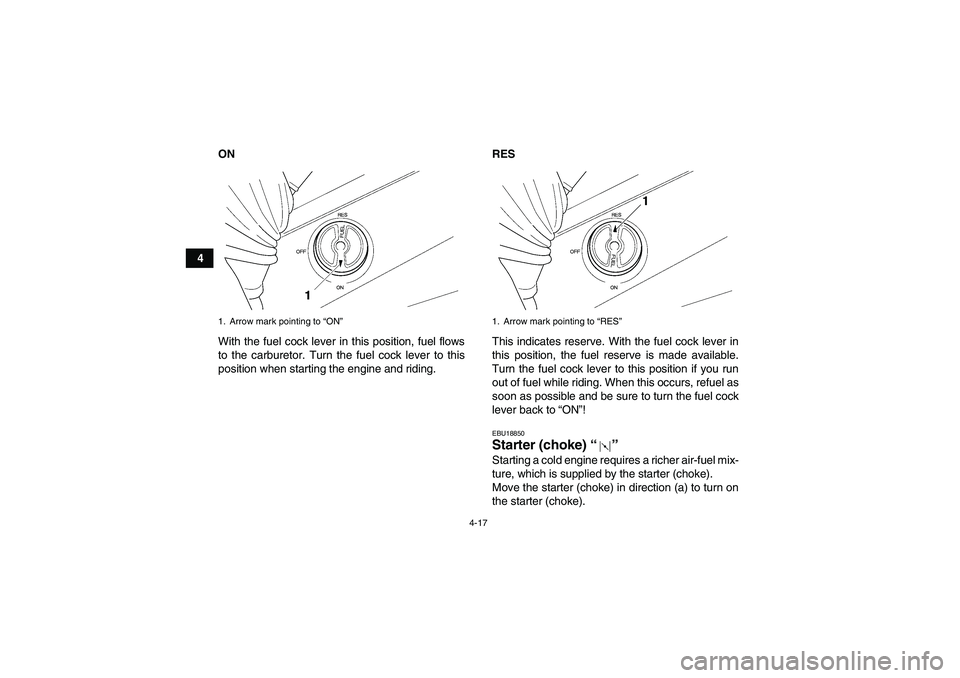

4ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18850Starter (choke)“” Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).
1. Arrow mark pointing to “ON”
1. Arrow mark pointing to “RES”
U37S61E0.book Page 17 Tuesday, June 2, 2009 10:33 AM
Page 45 of 166
4-18
4 Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU18881Seat To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear. Make sure that the seat is securely fitted.1. Starter (choke)“”
1. Seat
2. Seat lock lever
U37S61E0.book Page 18 Tuesday, June 2, 2009 10:33 AM
Page 46 of 166
4-19
4

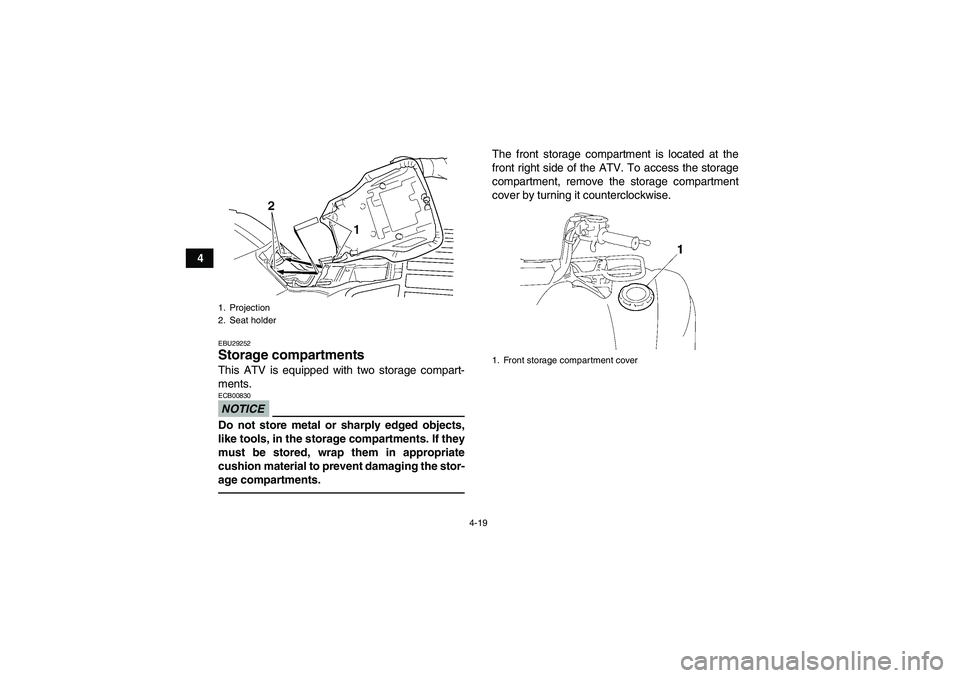

EBU29252Storage compartments This ATV is equipped with two storage compart-
ments.NOTICEECB00830Do not store metal or sharply edged objects,
like tools, in the storage compartments. If they
must be stored, wrap them in appropriate
cushion material to prevent damaging the stor-
age compartments.
The front storage compartment is located at the
front right side of the ATV. To access the storage
compartment, remove the storage compartment
cover by turning it counterclockwise.
1. Projection
2. Seat holder
1. Front storage compartment cover
U37S61E0.book Page 19 Tuesday, June 2, 2009 10:33 AM
Page 47 of 166
4-20
4

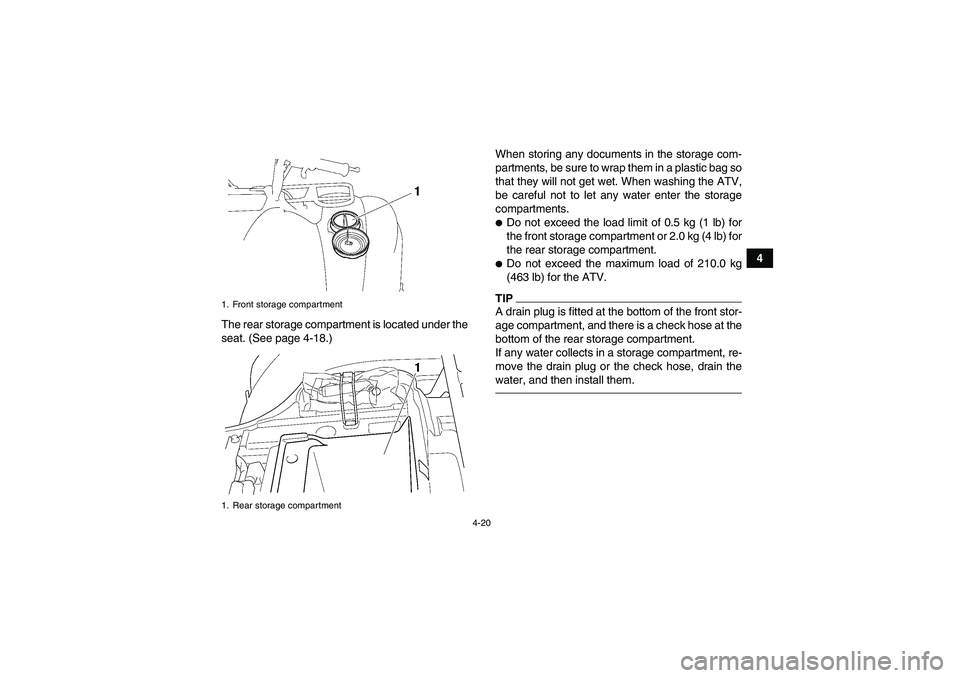

The rear storage compartment is located under the
seat. (See page 4-18.)When storing any documents in the storage com-
partments, be sure to wrap them in a plastic bag so
that they will not get wet. When washing the ATV,
be careful not to let any water enter the storage
compartments.
Do not exceed the load limit of 0.5 kg (1 lb) for
the front storage compartment or 2.0 kg (4 lb) for
the rear storage compartment.Do not exceed the maximum load of 210.0 kg
(463 lb) for the ATV.TIPA drain plug is fitted at the bottom of the front stor-
age compartment, and there is a check hose at the
bottom of the rear storage compartment.
If any water collects in a storage compartment, re-
move the drain plug or the check hose, drain the
water, and then install them.
1. Front storage compartment
1. Rear storage compartmentU37S61E0.book Page 20 Tuesday, June 2, 2009 10:33 AM
Page 48 of 166
4-21
4

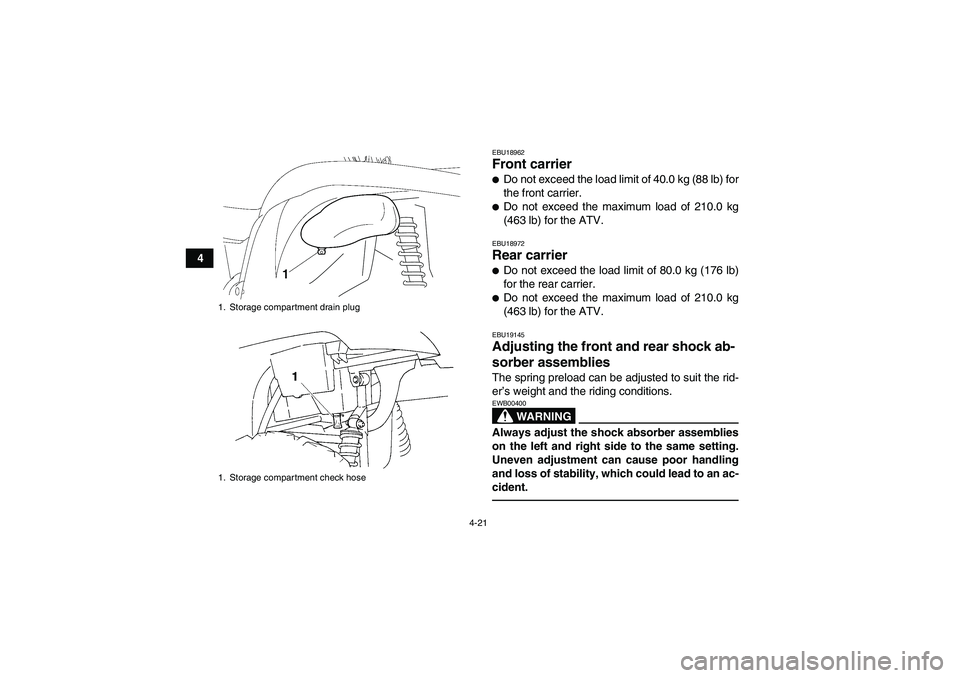

EBU18962Front carrier Do not exceed the load limit of 40.0 kg (88 lb) for
the front carrier.Do not exceed the maximum load of 210.0 kg
(463 lb) for the ATV.EBU18972Rear carrier Do not exceed the load limit of 80.0 kg (176 lb)
for the rear carrier.Do not exceed the maximum load of 210.0 kg
(463 lb) for the ATV.EBU19145Adjusting the front and rear shock ab-
sorber assemblies The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
WARNING
EWB00400Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an ac-
cident.
1. Storage compartment drain plug
1. Storage compartment check hoseU37S61E0.book Page 21 Tuesday, June 2, 2009 10:33 AM
Page 49 of 166
4-22

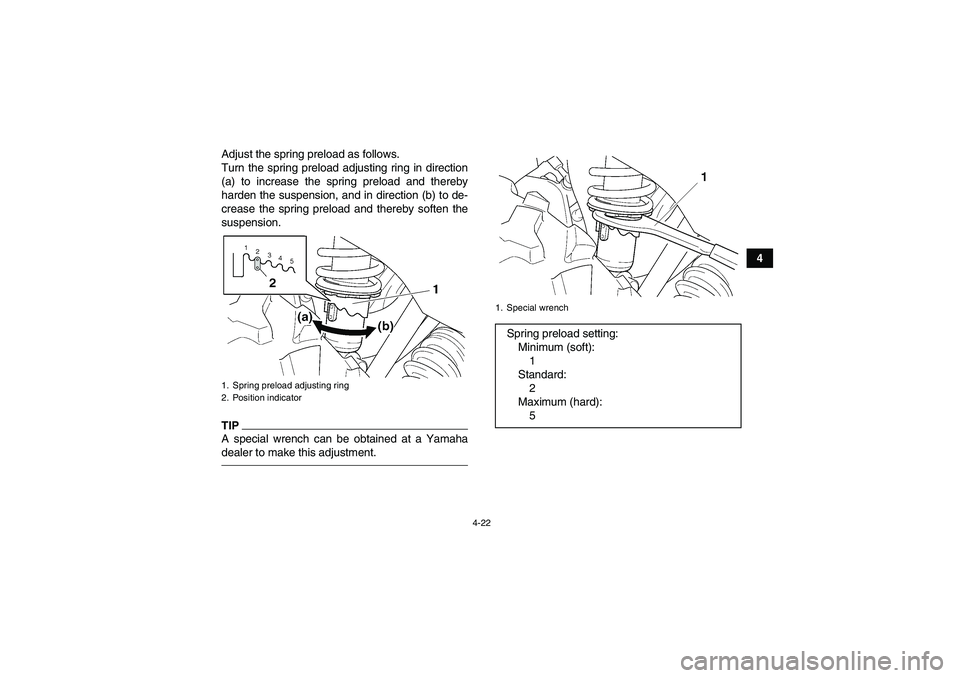

4 Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment.1. Spring preload adjusting ring
2. Position indicator
1. Special wrenchSpring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
5
U37S61E0.book Page 22 Tuesday, June 2, 2009 10:33 AM
Page 50 of 166
4-23
4

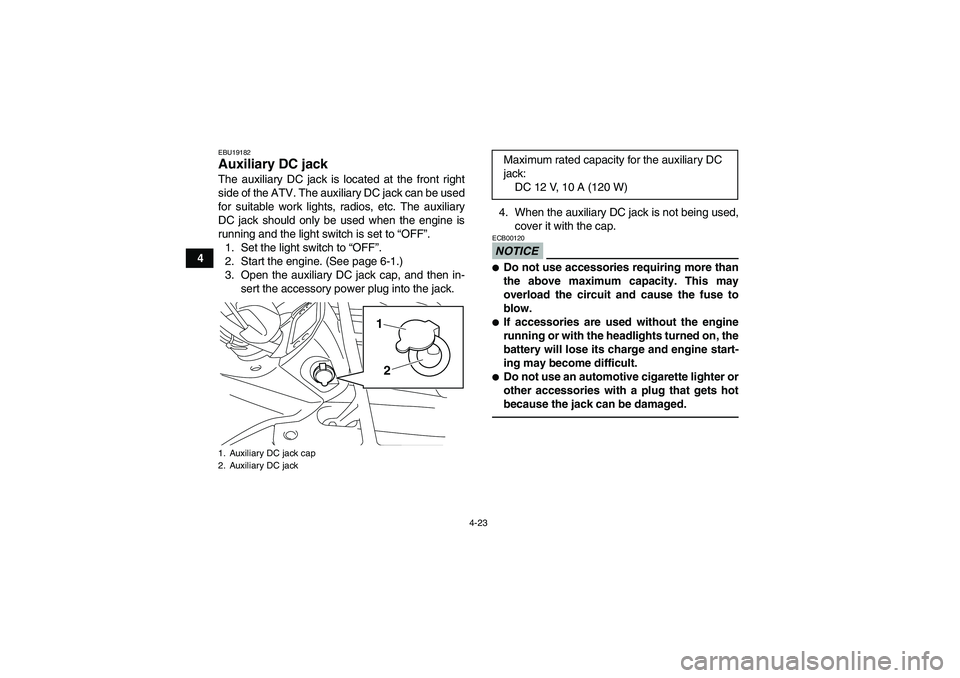

EBU19182Auxiliary DC jack The auxiliary DC jack is located at the front right
side of the ATV. The auxiliary DC jack can be used
for suitable work lights, radios, etc. The auxiliary
DC jack should only be used when the engine is
running and the light switch is set to “OFF”.
1. Set the light switch to “OFF”.
2. Start the engine. (See page 6-1.)
3. Open the auxiliary DC jack cap, and then in-
sert the accessory power plug into the jack.4. When the auxiliary DC jack is not being used,
cover it with the cap.
NOTICEECB00120Do not use accessories requiring more than
the above maximum capacity. This may
overload the circuit and cause the fuse to
blow.If accessories are used without the engine
running or with the headlights turned on, the
battery will lose its charge and engine start-
ing may become difficult.Do not use an automotive cigarette lighter or
other accessories with a plug that gets hot
because the jack can be damaged.
1. Auxiliary DC jack cap
2. Auxiliary DC jack
1
2
Maximum rated capacity for the auxiliary DC
jack:
DC 12 V, 10 A (120 W)
U37S61E0.book Page 23 Tuesday, June 2, 2009 10:33 AM
