YAMAHA GRIZZLY 450 2015 Owners Manual

8-19
8
TIPAn oil filter wrench is available at a nearby Yamaha
dealer. 8. Apply a thin coat of engine oil to the O-ring ofthe new oil filter cartridge.
TIPMake sure that the O-ring is properly seated. 9. Install the new oil filter cartridge with an oil fil-ter wrench, and then tighten it to the specified
torque with a torque wrench.
1. Oil filter wrench
1. O-ring
U2LC61E0.book Page 19 Wednesday, February 26, 2014 3:56 PM

8-20
810. Install panels D and C.
11. Install the engine oil drain bolt and its new gasket, and then tighten the bolt to the spec-
ified torque. 12. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down. NOTICEECB00301In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
1. Torque wrenchTightening torque:
Oil filter cartridge:17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque: Engine oil drain bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
Recommended oil:See page 10-1.
Oil quantity: Without oil filter cartridge replacement:2.30 L (2.43 US qt, 2.02 Imp.qt)
With oil filter cartridge replacement: 2.40 L (2.54 US qt, 2.11 Imp.qt)
U2LC61E0.book Page 20 Wednesday, February 26, 2014 3:56 PM

8-21
8

Make sure that no foreign material enters the
crankcase.
13. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
14. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.
15. Install panel E.EBU30271Final gear oilThe final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the final gear oil level 1. Place the ATV on a level surface. 2. Remove the final gear oil filler bolt and its gas-
ket, and then check the oil level in the final
gear case. The oil level should be at the brim
of the filler hole.
3. If the oil is below the brim of the filler hole, add sufficient oil of the recommended type to
raise it to the correct level.
4. Check the oil filler bolt gasket for damage, and replace it if necessary.
5. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil level1
2
3
4
U2LC61E0.book Page 21 Wednesday, February 26, 2014 3:56 PM

8-22
8To change the final gear oil
1. Place the ATV on a level surface.
2. Remove the engine guard and the final gear case guard by removing the bolts.
3. Place an oil pan under the final gear case to collect the used oil. 4. Remove the final gear oil filler bolt, the final
gear oil drain bolt and their gasket to drain the
oil from the final gear case.
5. Install the drain bolt and its new gasket, and then tighten the bolt to the specified torque.
Tightening torque:
Final gear oil filler bolt:22 Nm (2.2 m·kgf, 16 ft·lbf)
1. Engine guard
2. Final gear case guard
3. Bolt
2
3 3
1. Final gear oil drain bolt
2. GasketTightening torque:
Final gear oil drain bolt:22 Nm (2.2 m·kgf, 16 ft·lbf)
12
U2LC61E0.book Page 22 Wednesday, February 26, 2014 3:56 PM

8-23
8
6. Refill with the recommended final gear oil to
the brim of the filler hole as shown. NOTICE:
Be sure no foreign material enters the final
gear case.
[ECB00422]
TIPIf the recommended oil is not available, SAE80W-
90 API GL-5 Hypoid gear oil may be used instead. However, when using this oil, noise from the final
gear case may occur when applying the rear
brake.
7. Check the oil filler bolt gasket for damage,
and replace it if necessary.
8. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
9. Check the final gear case for oil leakage. If oil is leaking, check for the cause.
10. Install the engine guard and the final gear case guard by installing the bolts, and then
tightening them to the specified torques.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelRecommended final gear oil:See page 10-1.1
2
3
4
Tightening torque: Final gear oil filler bolt:22 Nm (2.2 m·kgf, 16 ft·lbf)
Tightening torques: Engine guard bolt:7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Final gear case guard bolt: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
U2LC61E0.book Page 23 Wednesday, February 26, 2014 3:56 PM

8-24
8
EBU23427Differential gear oilThe differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must be
checked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart.
To check the differential gear oil level1. Place the ATV on a level surface.
2. Remove the differential gear oil filler bolt and its gasket, and then check the oil level in the
differential gear case. The oil level should be
at the brim of the filler hole. 3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to
raise it to the correct level.
4. Check the gasket for damage, and replace it if necessary.
5. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
1. Differential gear oil filler bolt
2. Gasket
3. Differential gear oil
4. Correct oil levelTightening torque:Differential gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
3
4
U2LC61E0.book Page 24 Wednesday, February 26, 2014 3:56 PM

8-25
8
To change the differential gear oil
1. Place the ATV on a level surface.
2. Place an oil pan under the differential gear case to collect the used oil.
3. Remove the differential gear oil filler bolt, the differential gear oil drain bolt and their gasket
to drain the oil from the differential gear case.
4. Install the drain bolt and its new gasket, and then tighten the bolt to the specified torque. 5. Refill with the recommended differential gear
oil to the brim of the filler hole as shown.
NOTICE: Be sure no foreign material en-
ters the differential gear case.
[ECB00412]
6. Check the oil filler bolt gasket for damage, and replace it if necessary.
7. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
1. Differential gear oil drain bolt
2. GasketTightening torque:Differential gear oil drain bolt:9.8 Nm (0.98 m·kgf, 7.1 ft·lbf)
12
1. Differential gear oil filler bolt
2. Gasket
3. Differential gear oil
4. Correct oil levelRecommended differential gear oil: See page 10-1.
1
2
3
4
U2LC61E0.book Page 25 Wednesday, February 26, 2014 3:56 PM

8-26
88. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23471CoolantThe coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27127To check the coolant level1. Place the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-

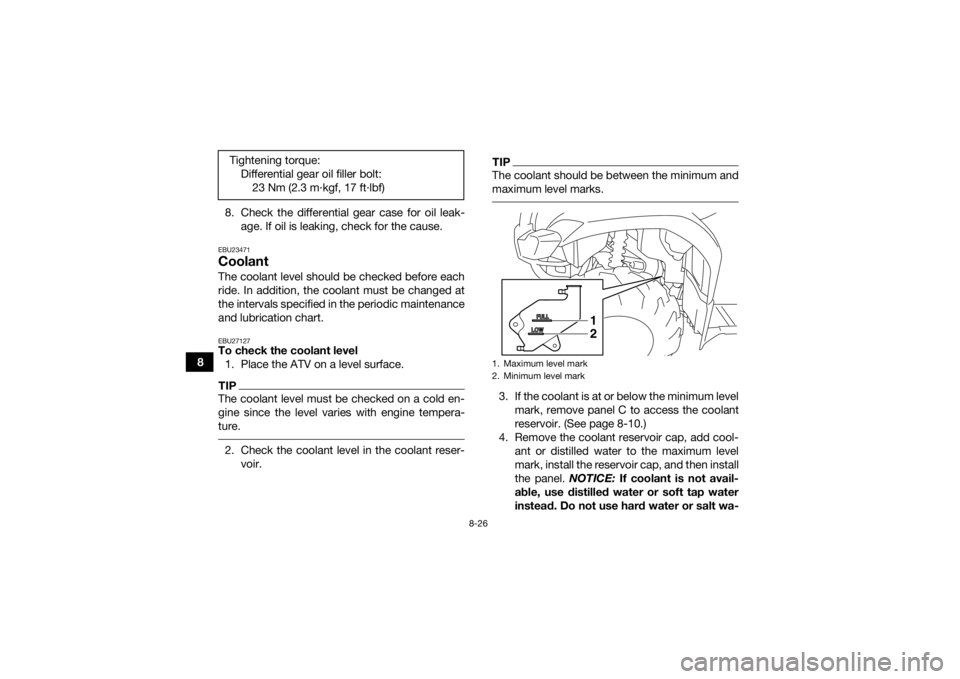

ture. 2. Check the coolant level in the coolant reser- voir.
TIPThe coolant should be between the minimum and
maximum level marks. 3. If the coolant is at or below the minimum levelmark, remove panel C to access the coolant
reservoir. (See page 8-10.)
4. Remove the coolant reservoir cap, add cool- ant or distilled water to the maximum level
mark, install the reservoir cap, and then install
the panel. NOTICE: If coolant is not avail-
able, use distilled water or soft tap water
instead. Do not use hard water or salt wa-
Tightening torque:
Differential gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)1. Maximum level mark
2. Minimum level mark
1
2
U2LC61E0.book Page 26 Wednesday, February 26, 2014 3:56 PM

8-27
8
ter since they are harmful to the engine. If
water has been used instead of coolant,
replace it with coolant as soon as possible,
otherwise the cooling system will not be
protected against frost and corrosion. If
water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01012]
TIP
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
 If the engine overheats, see page 8-65 for fur-
ther instructions. EBU23606To change the coolant
WARNING
EWB01891Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. 1. Place the ATV on a level surface.
2. Remove panels D and E. (See page 8-10.)
3. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the footrest.)

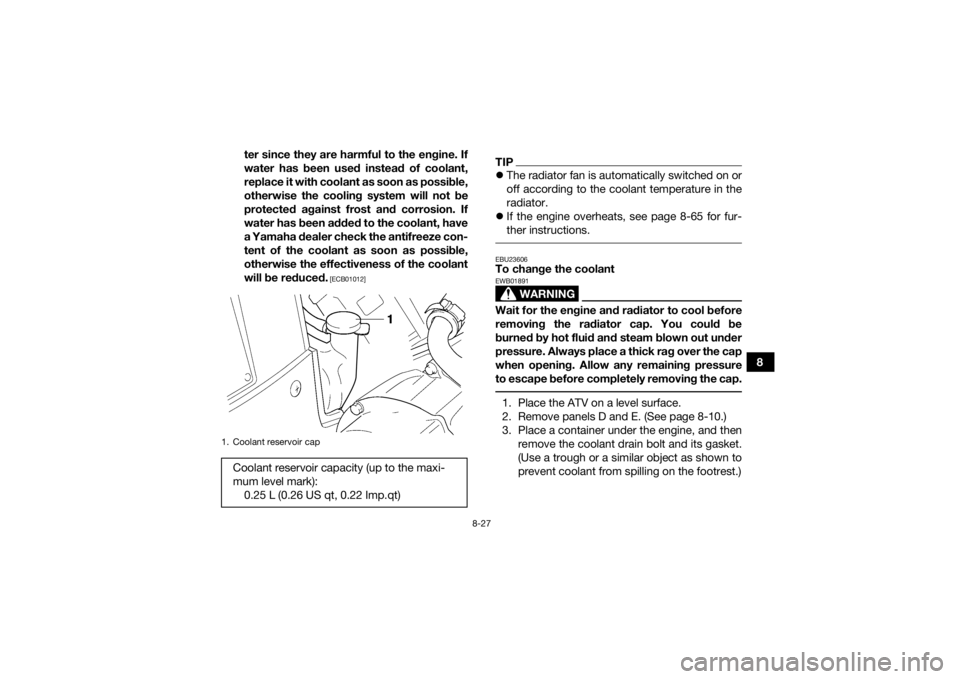

1. Coolant reservoir capCoolant reservoir capacity (up to the maxi-
mum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
U2LC61E0.book Page 27 Wednesday, February 26, 2014 3:56 PM

8-28
84. Remove the front carrier and panel B. (See
page 8-10.)
5. Remove the radiator cap.
6. Remove panel C. (See page 8-10.)
7. Remove the coolant reservoir cap.
8. Disconnect the coolant reservoir hose on the coolant reservoir side, and then drain the
coolant from the coolant reservoir.

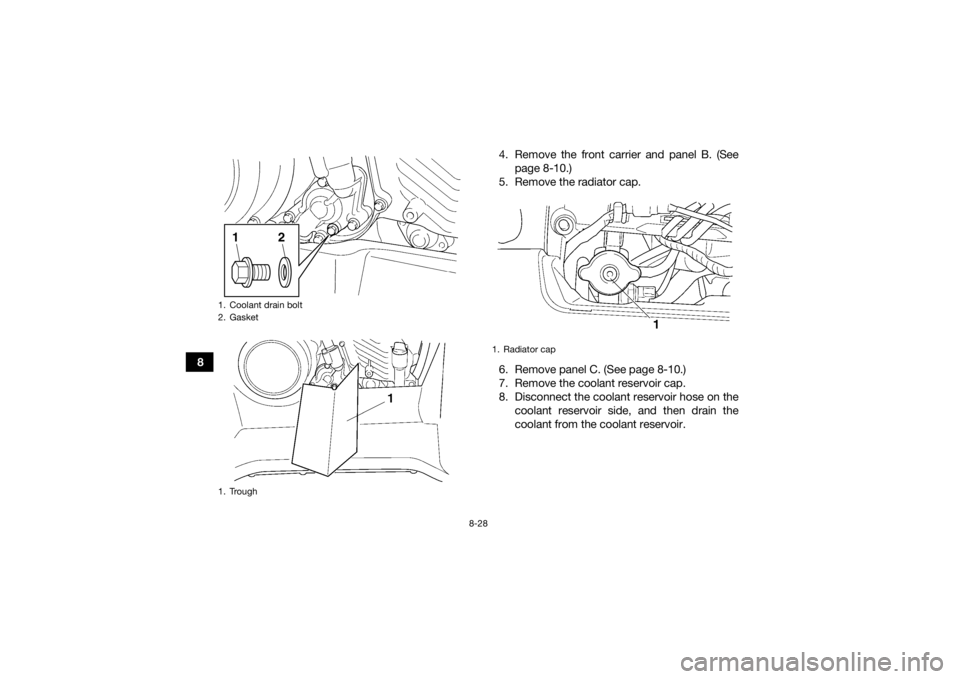

1. Coolant drain bolt
2. Gasket
1. Trough
2
1
1. Radiator cap
