YAMAHA GRIZZLY 450 2015 Owners Manual

8-39
8

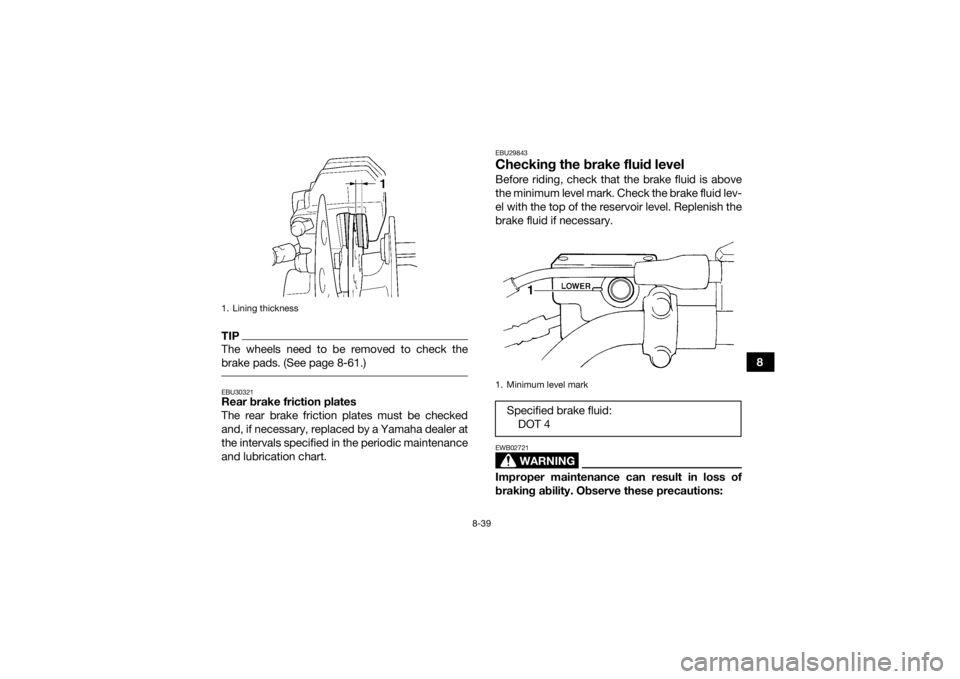

TIPThe wheels need to be removed to check the
brake pads. (See page 8-61.) EBU30321Rear brake friction plates
The rear brake friction plates must be checked
and, if necessary, replaced by a Yamaha dealer at
the intervals specified in the periodic maintenance
and lubrication chart.
EBU29843Checking the brake fluid levelBefore riding, check that the brake fluid is above
the minimum level mark. Check the brake fluid lev-
el with the top of the reservoir level. Replenish the
brake fluid if necessary.
WARNING
EWB02721Improper maintenance can result in loss of
braking ability. Observe these precautions:
1. Lining thickness
1. Minimum level markSpecified brake fluid:DOT 4
1
U2LC61E0.book Page 39 Wednesday, February 26, 2014 3:56 PM

8-40
8
Insufficient brake fluid may allow air to enter
the brake system, reducing braking perfor-
mance.
 Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed contain-
er.
 Use only the specified brake fluid; otherwise,
the rubber seals may deteriorate, causing
leakage.
 Refill with the same type of brake fluid. Add-
ing a brake fluid other than DOT 4 may result
in a harmful chemical reaction.
 Be careful that water does not enter the
brake fluid reservoir when refilling. Water will
significantly lower the boiling point of the flu-
id and may result in vapor lock.
NOTICEECB01161Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately. As the brake pads wear, it is normal for the brake
fluid level to gradually go down. A low brake fluid
level may indicate worn brake pads and/or brake
system leakage; therefore, be sure to check the brake pads for wear and the brake system for
leakage. If the brake fluid level goes down sud-
denly, have a Yamaha dealer check the cause be-
fore further riding.
EBU24283Changing the brake fluidHave a Yamaha dealer change the brake fluid at
the intervals specified in the periodic maintenance
and lubrication chart. In addition, have the oil seals
of the brake master cylinder and calipers as well
as the brake hoses replaced at the intervals listed
below or whenever they are damaged or leaking.

Oil seals: Replace every two years.
 Brake hoses: Replace every four years.EBU24395Checking the front brake lever free
playThe brake lever free play must be checked at the
intervals specified in the periodic maintenance
and lubrication chart. The brake lever should have
no free play as shown. If there is free play, have a
Yamaha dealer check the brake system.
U2LC61E0.book Page 40 Wednesday, February 26, 2014 3:56 PM

8-41
8
EBU30345Adjusting the rear brake lever and
brake pedal free play, and the brake
pedal heightThe rear brake lever and brake pedal free play,
and the brake pedal height must be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.

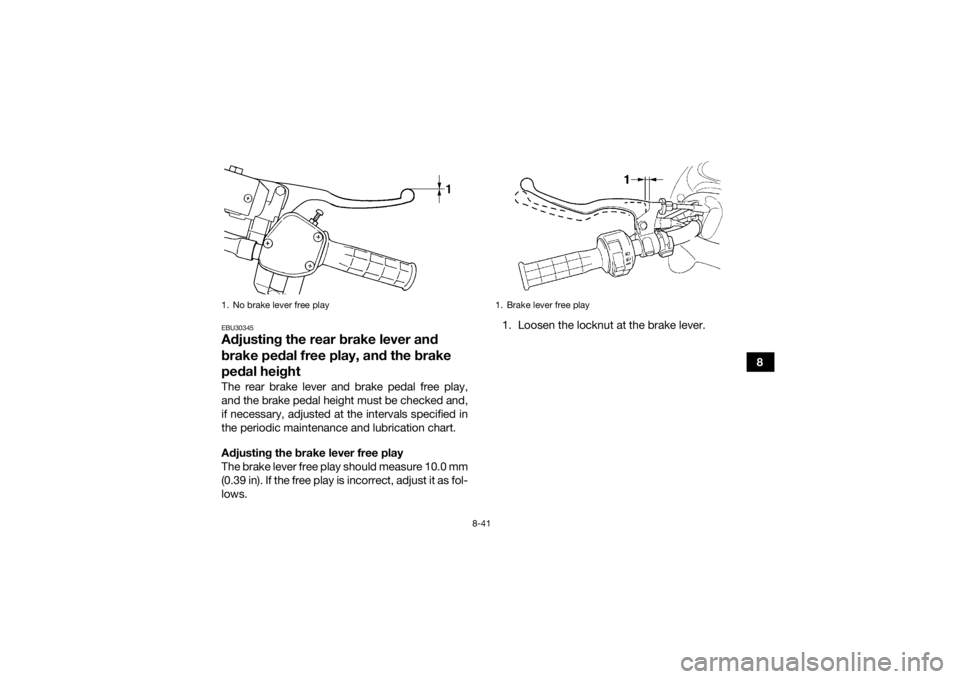

Adjusting the brake lever free play
The brake lever free play should measure 10.0 mm
(0.39 in). If the free play is incorrect, adjust it as fol-
lows.1. Loosen the locknut at the brake lever.1. No brake lever free play
1. Brake lever free play
U2LC61E0.book Page 41 Wednesday, February 26, 2014 3:56 PM

8-42
82. To increase the brake lever free play, turn the
brake lever free play adjusting bolt in direction
(a). To decrease the brake lever free play, turn
the adjusting bolt in direction (b). NOTICE:
Distance A must not measure more than
12.7 mm (0.50 in). If distance A exceeds
12.7 mm (0.50 in), the specified brake lever
free play cannot be obtained, therefore
proceed with the following steps.
[ECB01143]
TIPIf the specified brake lever free play could be ob-
tained as described above, skip steps 3-8. 3. Fully turn the adjusting bolt in direction (a) to loosen the brake cable.
4. Slide the rubber cover back.
5. Loosen the brake cable adjuster locknut.
6. To increase the brake lever free play, turn the brake lever free play adjusting nut in direction
(a). To decrease the brake lever free play, turn
1. Locknut
2. Distance A
3. Brake lever free play adjusting bolt
12
3
(a)
(b)
1. Rubber cover
2. Distance B
3. Brake cable adjuster locknut
4. Brake lever free play adjusting nut
1
2
3
4
(b)(a)
U2LC61E0.book Page 42 Wednesday, February 26, 2014 3:56 PM

8-43
8
the adjusting nut in direction (b).
NOTICE:
Make sure that distance B measures 22
mm (0.87 in) or less. If distance B reaches
22 mm (0.87 in), adjust the brake lever free
play at the brake lever again. If distance A
exceeds 12.7 mm (0.50 in), have a Yamaha
dealer check the vehicle.
[ECB01153]
7. Tighten the brake cable adjuster locknut.
8. Slide the rubber cover to its original position.
9. Tighten the locknut at the brake lever.
Adjusting the brake pedal height
The top of the brake pedal should be positioned
75.0–85.0 mm (2.95–3.35 in) above the footboard
bracket. If the brake pedal height is incorrect, ad-
just it as follows. 1. Remove the footboard by removing the bolts
and nuts.
1. Distance between brake pedal and footboard bracket1
U2LC61E0.book Page 43 Wednesday, February 26, 2014 3:56 PM

8-44
82. Loosen the locknut. 3. Turn the adjusting bolt in or out until the brake
pedal height is within the specified limits.
4. Tighten the locknut.

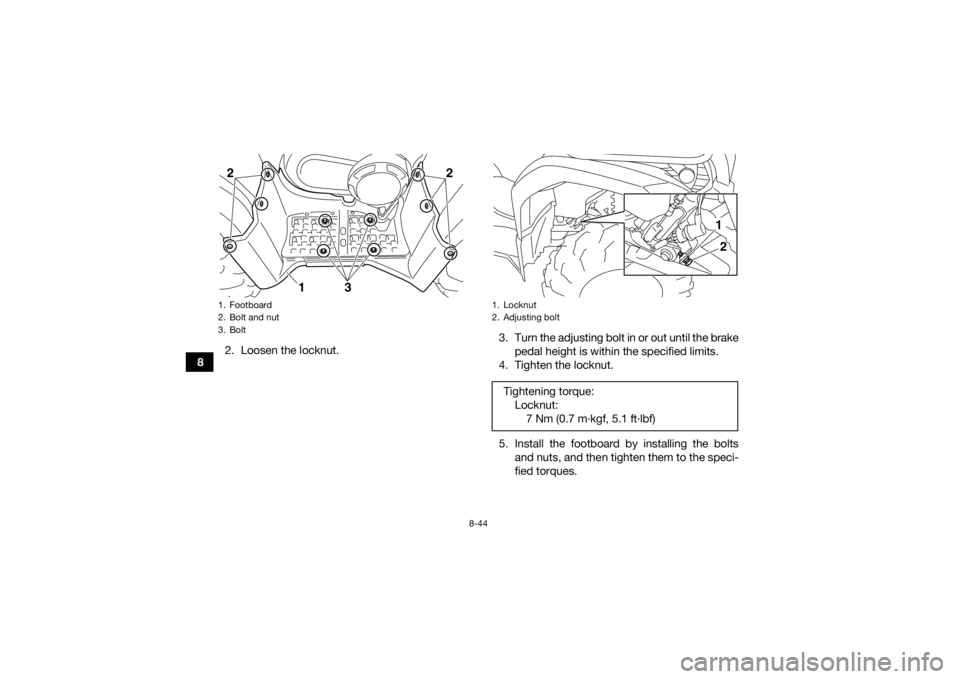

5. Install the footboard by installing the bolts and nuts, and then tighten them to the speci-
fied torques.
1. Footboard
2. Bolt and nut
3. Bolt22
31
1. Locknut
2. Adjusting boltTightening torque:Locknut:7 Nm (0.7 m·kgf, 5.1 ft·lbf)
21
U2LC61E0.book Page 44 Wednesday, February 26, 2014 3:56 PM

8-45
8

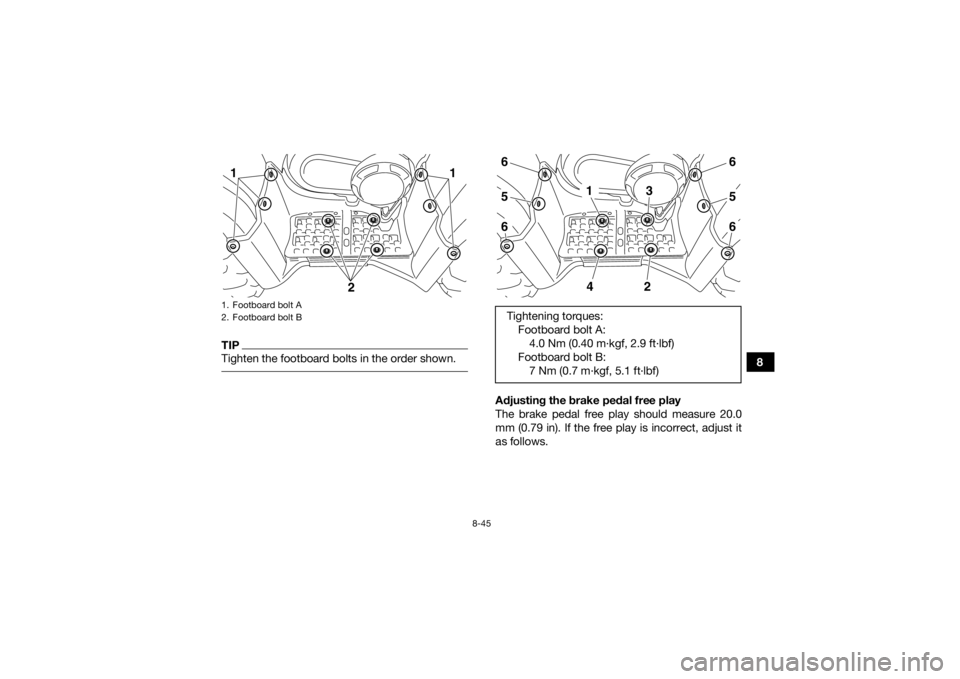

TIPTighten the footboard bolts in the order shown.
Adjusting the brake pedal free play
The brake pedal free play should measure 20.0
mm (0.79 in). If the free play is incorrect, adjust it
as follows.
1. Footboard bolt A
2. Footboard bolt B112
Tightening torques:Footboard bolt A:4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Footboard bolt B: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)656
656
2
4
3
1
U2LC61E0.book Page 45 Wednesday, February 26, 2014 3:56 PM

8-46
8

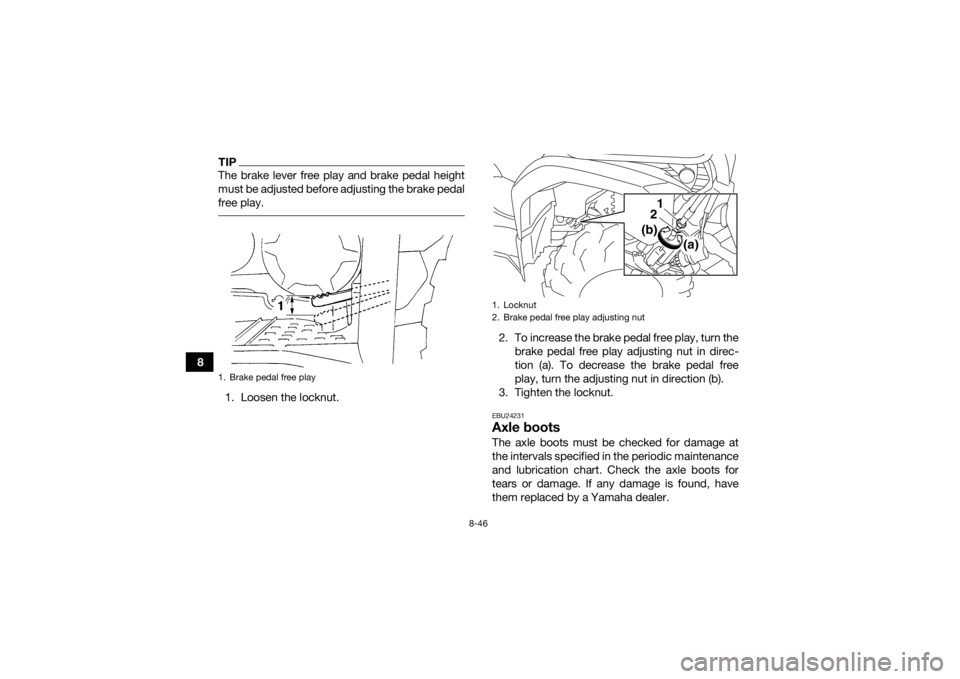

TIPThe brake lever free play and brake pedal height
must be adjusted before adjusting the brake pedal
free play. 1. Loosen the locknut.2. To increase the brake pedal free play, turn the
brake pedal free play adjusting nut in direc-
tion (a). To decrease the brake pedal free
play, turn the adjusting nut in direction (b).
3. Tighten the locknut.
EBU24231Axle bootsThe axle boots must be checked for damage at
the intervals specified in the periodic maintenance
and lubrication chart. Check the axle boots for
tears or damage. If any damage is found, have
them replaced by a Yamaha dealer.
1. Brake pedal free play
1. Locknut
2. Brake pedal free play adjusting nut
21
(a)
(b)
U2LC61E0.book Page 46 Wednesday, February 26, 2014 3:56 PM

8-47
8
EBU29882Brake light switchesThe brake light, which is activated by the brake
pedal and brake levers, should come on just be-
fore braking takes effect.
The rear brake light switch for the brake pedal can
be adjusted as follows, but the other brake light
switches should be adjusted by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while
holding the brake light switch in place. To make
the brake light come on earlier, turn the adjusting
nut in direction (a). To make the brake light come
on later, turn the adjusting nut in direction (b).

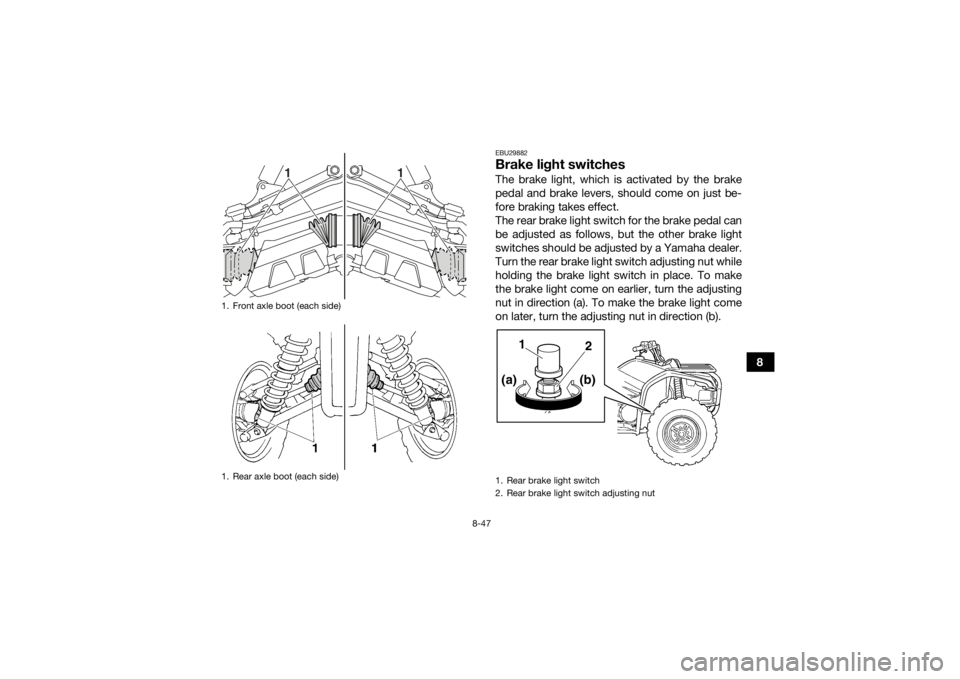

1. Front axle boot (each side)
1. Rear axle boot (each side)
1
1
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1
2(b)
(a)
U2LC61E0.book Page 47 Wednesday, February 26, 2014 3:56 PM

8-48
8
EBU24905Checking and lubricating the cablesThe operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02582Inspect cables frequently and replace if
damaged. Corrosion can result when the ca-
ble sheaths become damaged, and cables
can also become frayed or kinked, which
could restrict the operation of controls and
lead to an accident or injury.
 Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do not work smoothly, you could be unable
to control the ATV, which could lead to an
accident or collision.
EBU28712Checking and lubricating the front and
rear brake leversThe operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
Recommended lubricant:
Yamaha cable lubricant or other suitable cable lubricantRecommended lubricants: Front brake lever:Silicone grease
Rear brake lever: Lithium-soap-based grease
