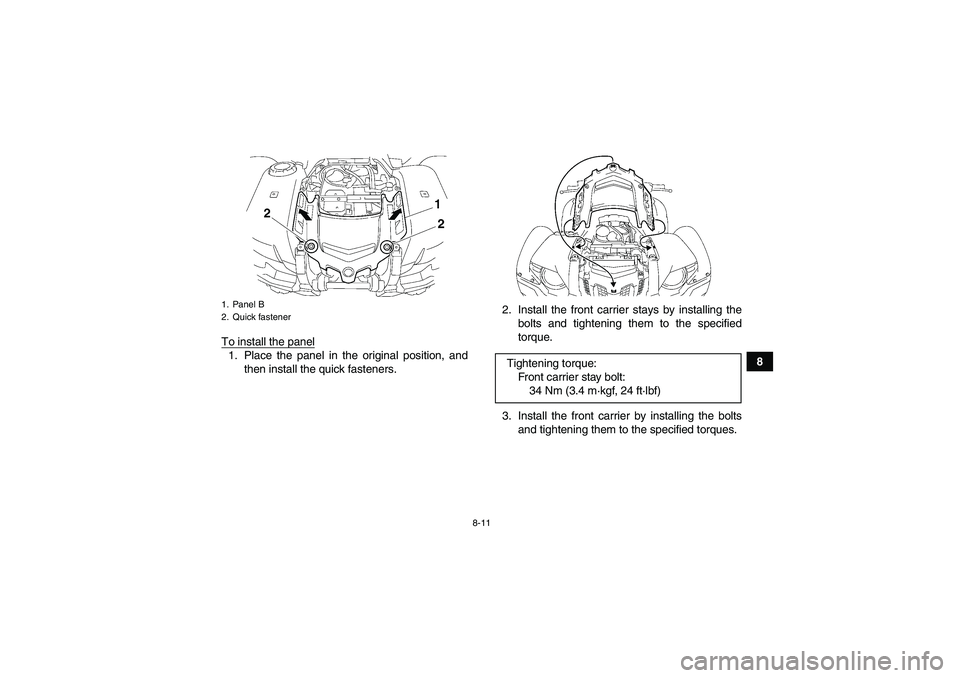

8-11
8 To install the panel
1. Place the panel in the original position, and
then install the quick fasteners.2. Install the front carrier stays by installing the
bolts and tightening them to the specified
torque.
3. Install the front carrier by installing the bolts
and tightening them to the specified torques.1. Panel B
2. Quick fastener
Tightening torque:
Front carrier stay bolt:
34 Nm (3.4 m·kgf, 24 ft·lbf)
U28P61E0.book Page 11 Wednesday, March 18, 2009 9:25 AM

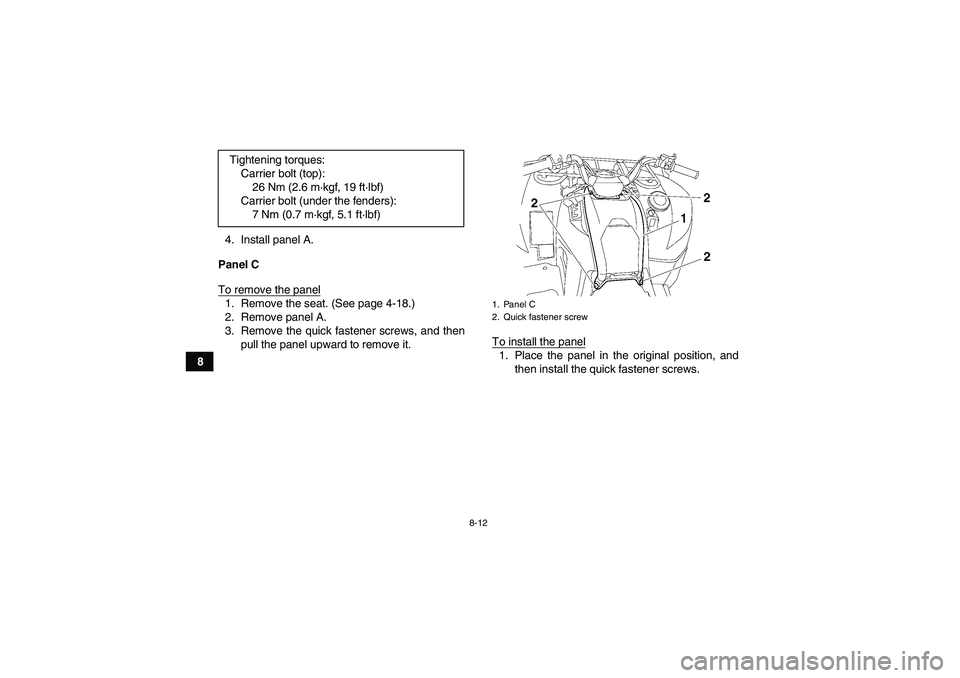

8-12
84. Install panel A.
Panel C
To remove the panel
1. Remove the seat. (See page 4-18.)
2. Remove panel A.
3. Remove the quick fastener screws, and then
pull the panel upward to remove it.To install the panel
1. Place the panel in the original position, and
then install the quick fastener screws. Tightening torques:
Carrier bolt (top):
26 Nm (2.6 m·kgf, 19 ft·lbf)
Carrier bolt (under the fenders):
7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Panel C
2. Quick fastener screw
U28P61E0.book Page 12 Wednesday, March 18, 2009 9:25 AM

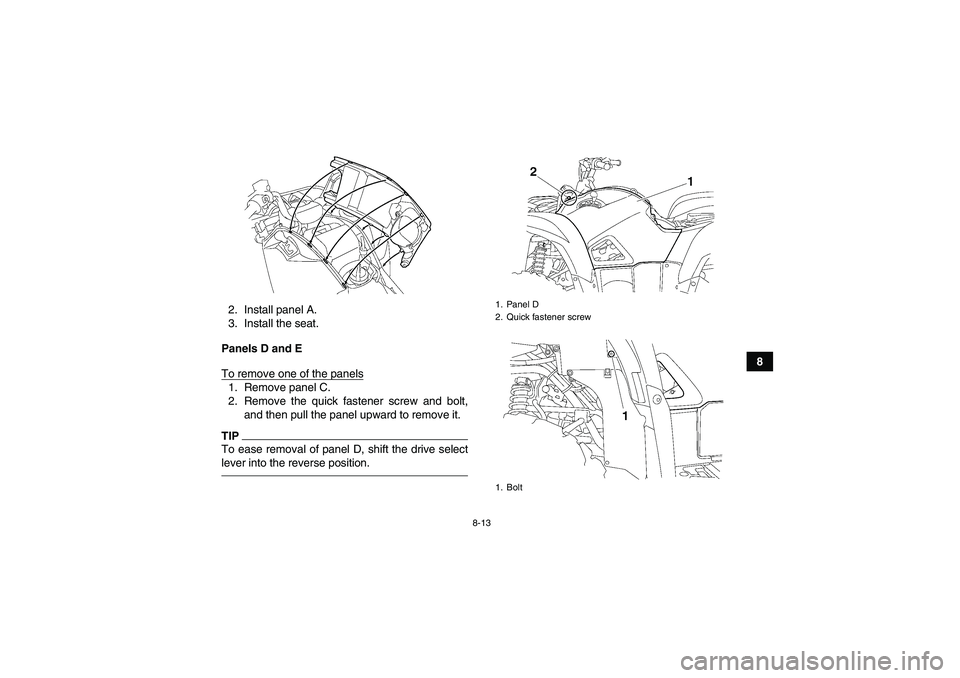

8-13
8 2. Install panel A.
3. Install the seat.
Panels D and E
To remove one of the panels
1. Remove panel C.
2. Remove the quick fastener screw and bolt,
and then pull the panel upward to remove it.TIPTo ease removal of panel D, shift the drive select
lever into the reverse position.
1. Panel D
2. Quick fastener screw
1. Bolt
U28P61E0.book Page 13 Wednesday, March 18, 2009 9:25 AM

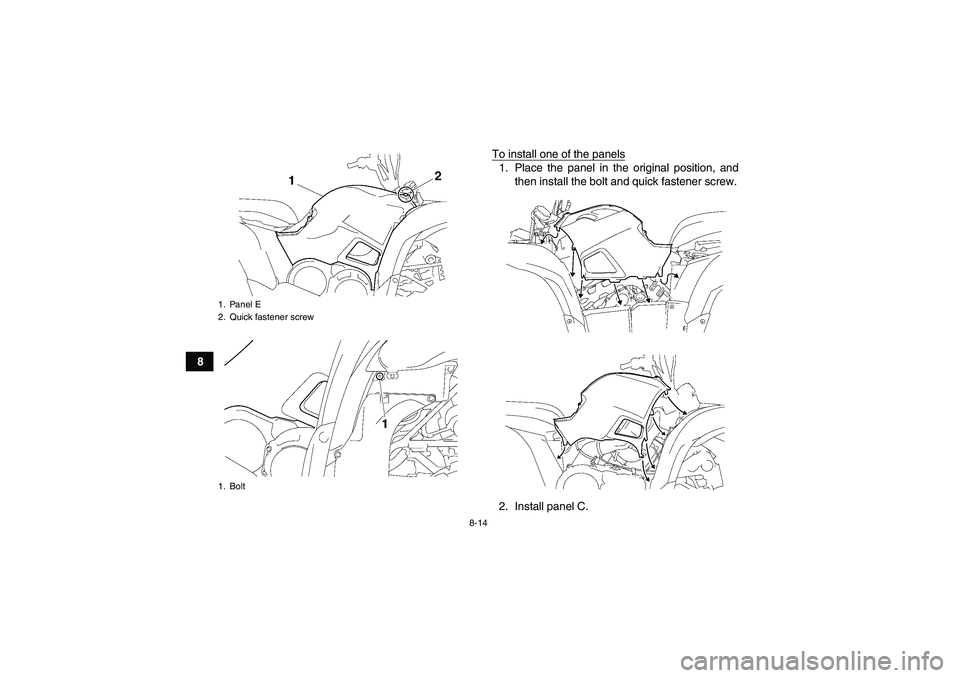

8-14
8To install one of the panels
1. Place the panel in the original position, and
then install the bolt and quick fastener screw.
2. Install panel C.
1. Panel E
2. Quick fastener screw
1. BoltU28P61E0.book Page 14 Wednesday, March 18, 2009 9:25 AM

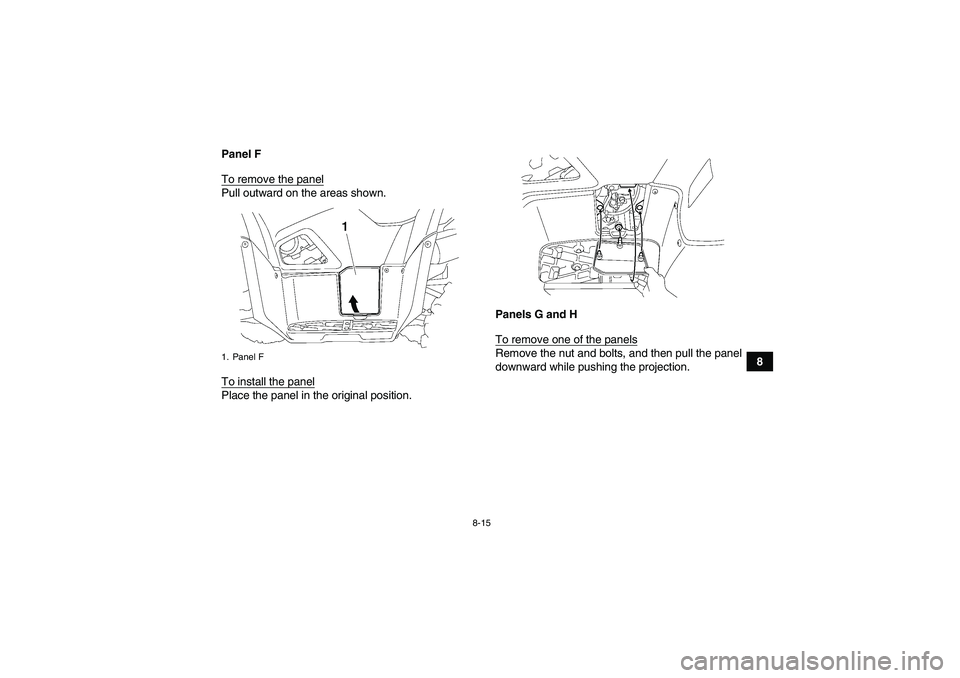

8-15
8 Panel F
To remove the panel
Pull outward on the areas shown.
To install the panelPlace the panel in the original position.Panels G and H
To remove one of the panels
Remove the nut and bolts, and then pull the panel
downward while pushing the projection.
1. Panel FU28P61E0.book Page 15 Wednesday, March 18, 2009 9:25 AM

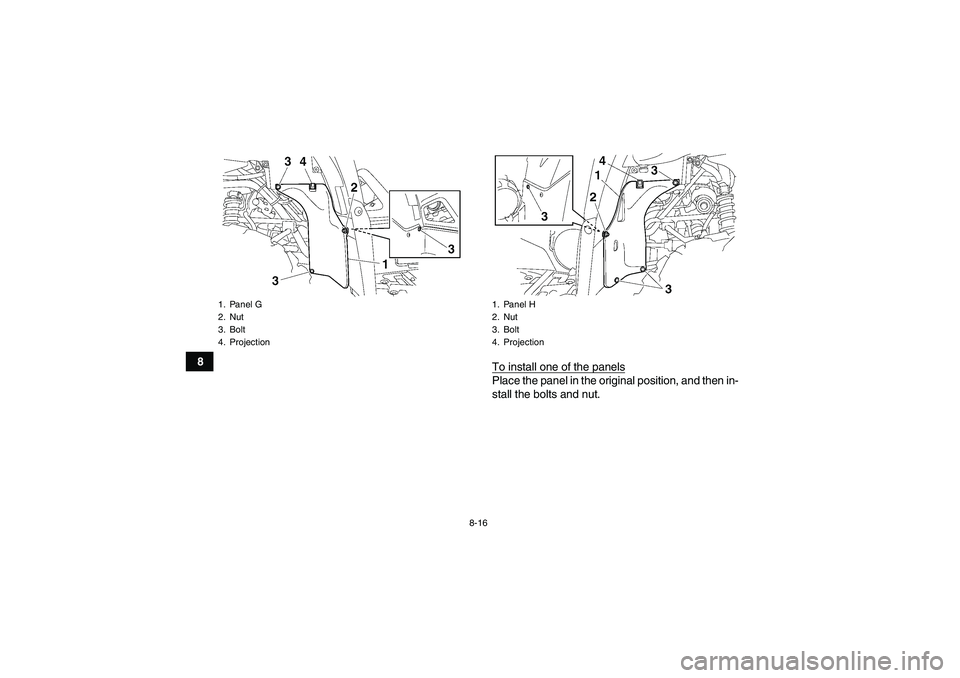

8-16
8
To install one of the panels
Place the panel in the original position, and then in-
stall the bolts and nut.
1. Panel G
2. Nut
3. Bolt
4. Projection
1. Panel H
2. Nut
3. Bolt
4. Projection
U28P61E0.book Page 16 Wednesday, March 18, 2009 9:25 AM

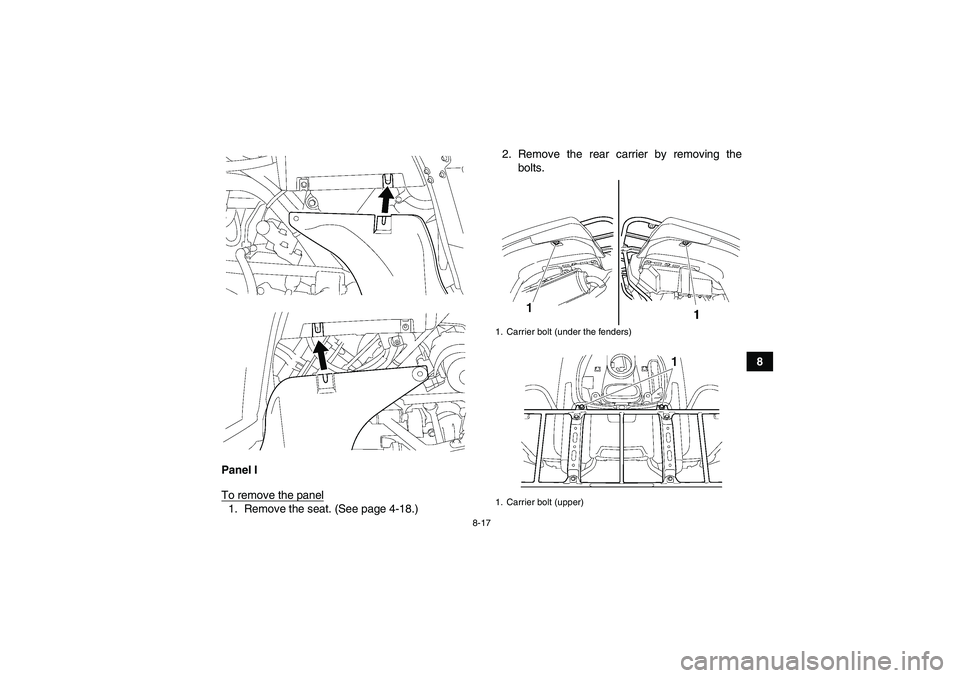

8-17
8
Panel I
To remove the panel
1. Remove the seat. (See page 4-18.)2. Remove the rear carrier by removing the
bolts.
1. Carrier bolt (under the fenders)
1. Carrier bolt (upper)
U28P61E0.book Page 17 Wednesday, March 18, 2009 9:25 AM

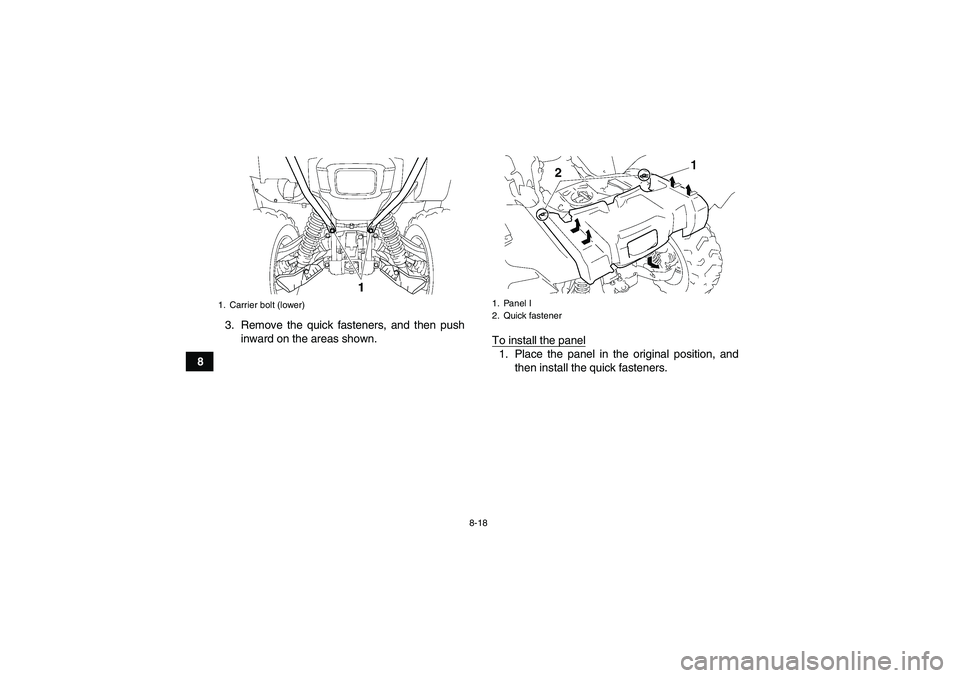

8-18
83. Remove the quick fasteners, and then push
inward on the areas shown.
To install the panel
1. Place the panel in the original position, and
then install the quick fasteners.
1. Carrier bolt (lower)
1. Panel I
2. Quick fastener
U28P61E0.book Page 18 Wednesday, March 18, 2009 9:25 AM

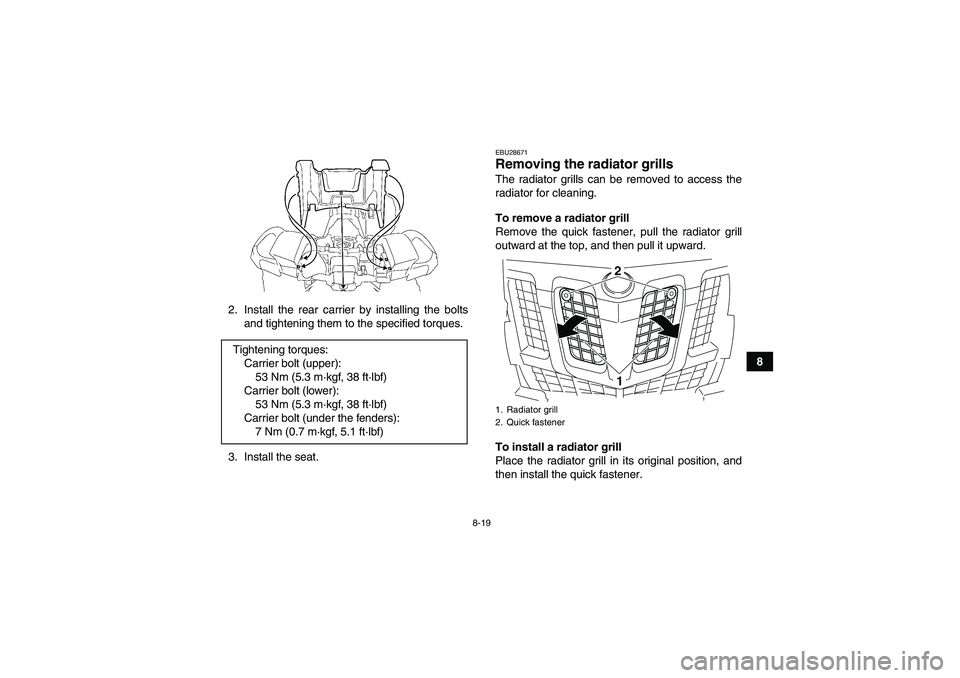

8-19
8 2. Install the rear carrier by installing the bolts
and tightening them to the specified torques.
3. Install the seat.
EBU28671Removing the radiator grills The radiator grills can be removed to access the
radiator for cleaning.
To remove a radiator grill
Remove the quick fastener, pull the radiator grill
outward at the top, and then pull it upward.
To install a radiator grill
Place the radiator grill in its original position, and
then install the quick fastener. Tightening torques:
Carrier bolt (upper):
53 Nm (5.3 m·kgf, 38 ft·lbf)
Carrier bolt (lower):
53 Nm (5.3 m·kgf, 38 ft·lbf)
Carrier bolt (under the fenders):
7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Radiator grill
2. Quick fastener
21
U28P61E0.book Page 19 Wednesday, March 18, 2009 9:25 AM

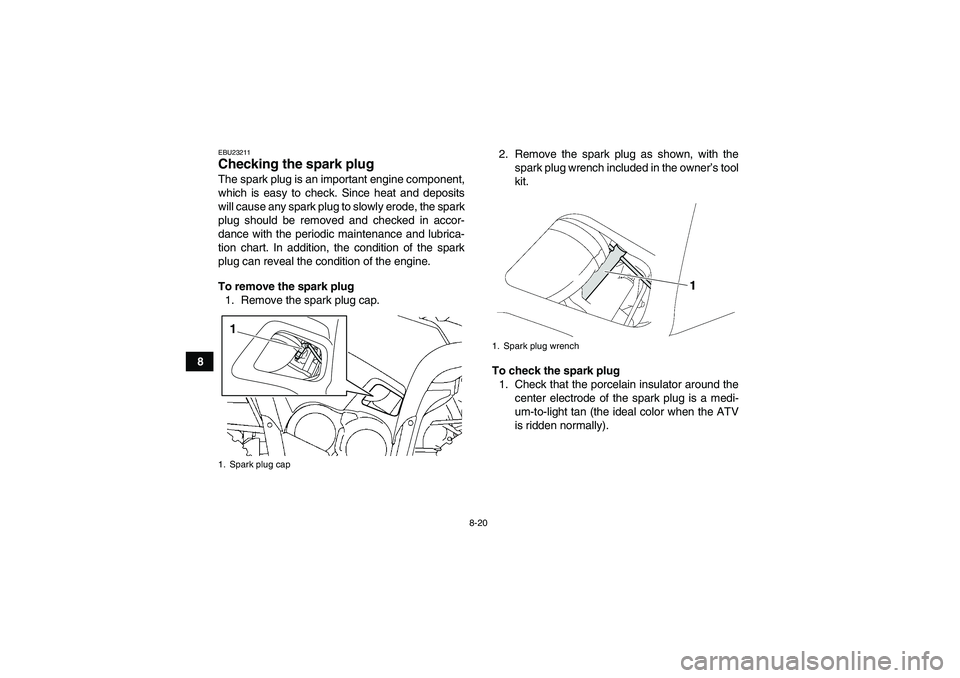

8-20
8
EBU23211Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap1
1. Spark plug wrench
U28P61E0.book Page 20 Wednesday, March 18, 2009 9:25 AM
