YAMAHA GRIZZLY 550 2013 Owners Manual

8-19
8

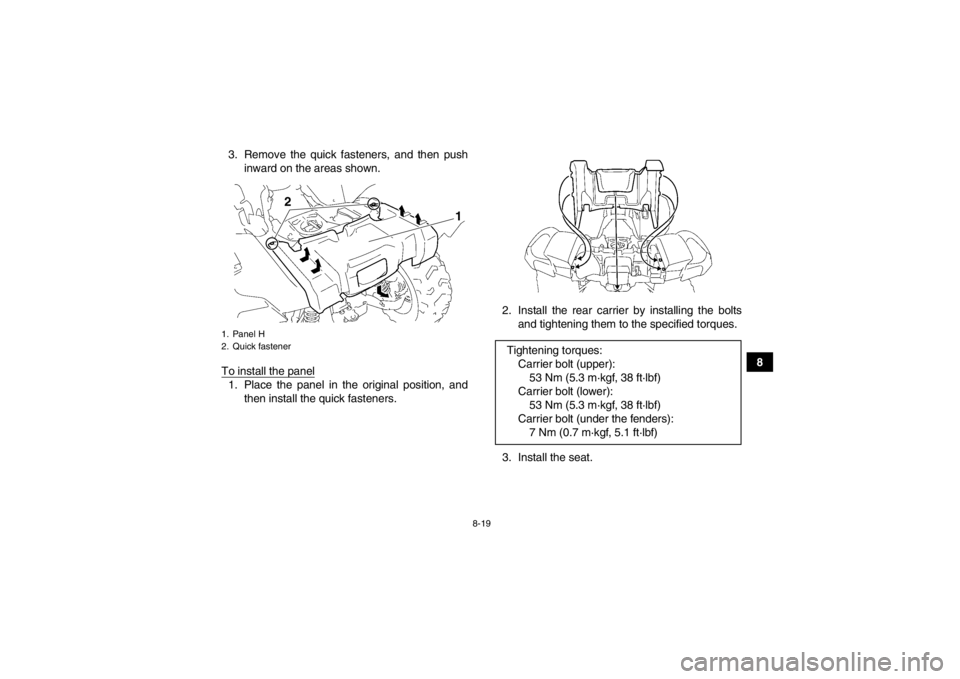

3. Remove the quick fasteners, and then push
inward on the areas shown.
To install the panel
1. Place the panel in the original position, and then install the quick fasteners. 2. Install the rear carrier by installing the bolts
and tightening them to the specified torques.
3. Install the seat.1. Panel H
2. Quick fastener
2
1
Tightening torques: Carrier bolt (upper):53 Nm (5.3 m·kgf, 38 ft·lbf)
Carrier bolt (lower): 53 Nm (5.3 m·kgf, 38 ft·lbf)
Carrier bolt (under the fenders): 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
U1HS61E0.book Page 19 Wednesday, May 23, 2012 5:24 PM

8-20
8
EBU28671Removing the radiator grills The radiator grills can be removed to access the
radiator for cleaning.
To remove a radiator grill
Remove the quick fastener, pull the radiator grill
outward at the top, and then pull it upward.
To install a radiator grill
Place the radiator grill in its original position, and
then install the quick fastener.
EBU23213Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug1. Remove the spark plug cap.

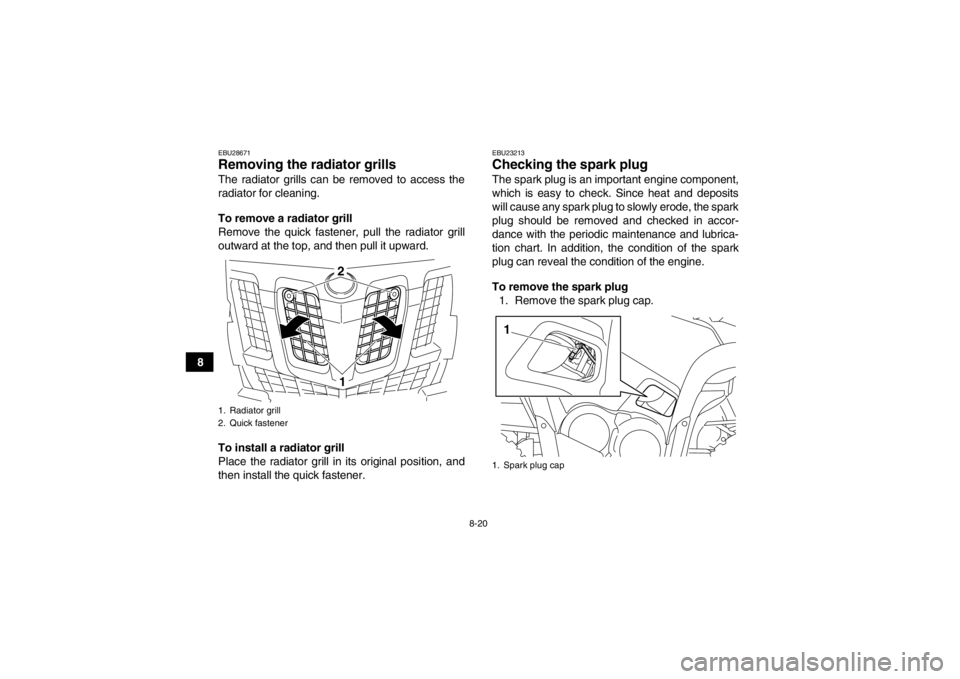

1. Radiator grill
2. Quick fastener
21
1. Spark plug cap1
U1HS61E0.book Page 20 Wednesday, May 23, 2012 5:24 PM

8-21
8
2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug 1. Check that the porcelain insulator around the center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.2. Check the spark plug for electrode erosionand excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap
to specification.

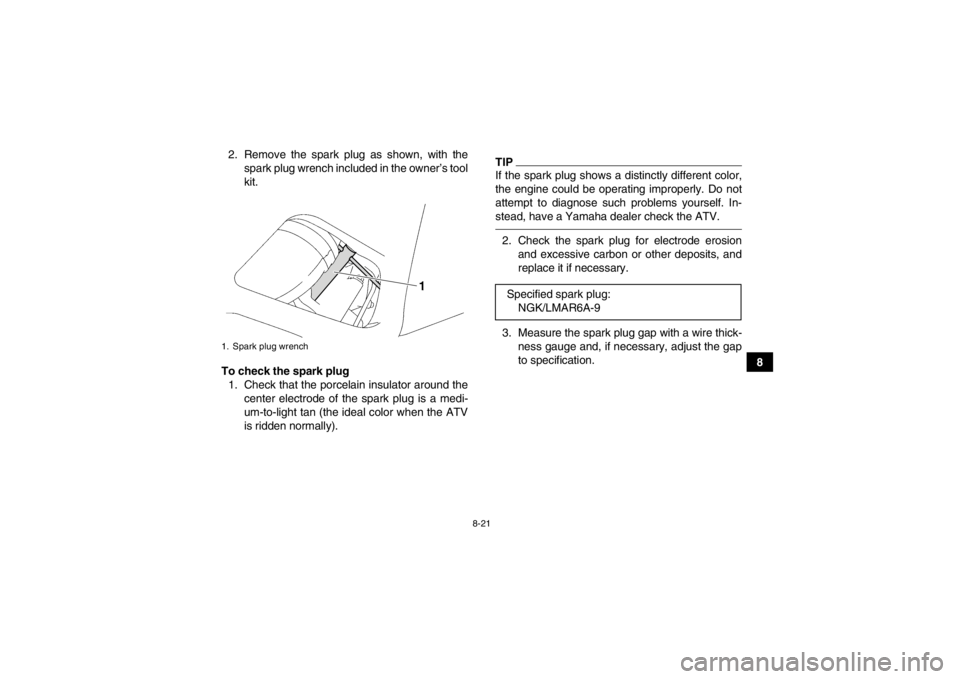

1. Spark plug wrench
Specified spark plug:NGK/LMAR6A-9
U1HS61E0.book Page 21 Wednesday, May 23, 2012 5:24 PM

8-22
8To install the spark plug
1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tighten it to the specified
torque.
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the specified
torque as soon as possible.3. Install the spark plug cap.EBU27467Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
1. Spark plug gapSpark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Tightening torque:Spark plug:13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U1HS61E0.book Page 22 Wednesday, May 23, 2012 5:24 PM

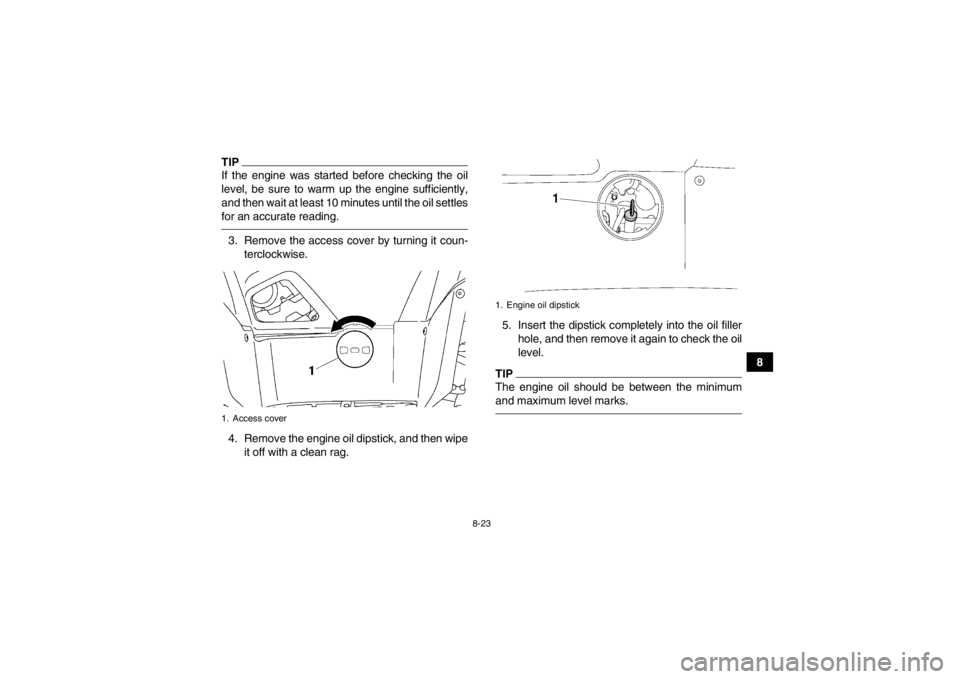

8-23
8
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least 10 minutes until the oil settles
for an accurate reading.3. Remove the access cover by turning it coun-terclockwise.
4. Remove the engine oil dipstick, and then wipe it off with a clean rag. 5. Insert the dipstick completely into the oil filler
hole, and then remove it again to check the oil
level.
TIPThe engine oil should be between the minimum
and maximum level marks.
1. Access cover
1. Engine oil dipstick
U1HS61E0.book Page 23 Wednesday, May 23, 2012 5:24 PM

8-24
86. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
NOTICE: Be sure the engine oil is at the
correct level, otherwise engine damage
may result.
[ECB00851]
7. Insert the dipstick completely into the oil filler hole.
8. Install the access cover by turning it clock- wise. To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Place the ATV on a level surface.
2. Remove the access cover by turning it coun- terclockwise.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the dipstick, and then remove the en- gine oil drain bolt and its gasket to drain the oil

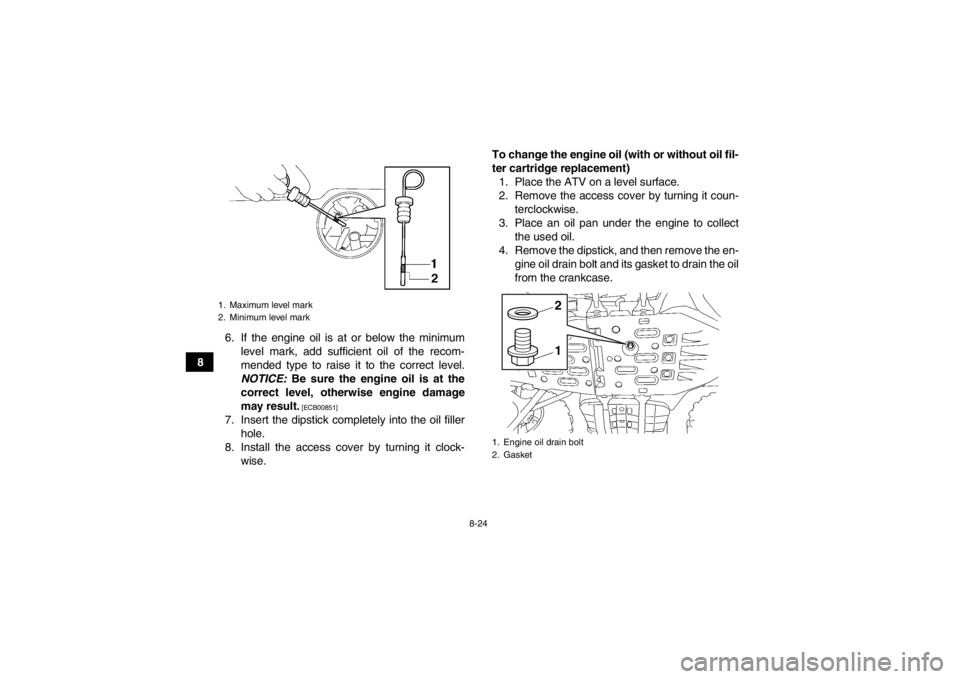

from the crankcase.1. Maximum level mark
2. Minimum level mark
1. Engine oil drain bolt
2. Gasket
12
U1HS61E0.book Page 24 Wednesday, May 23, 2012 5:24 PM

8-25
8
TIPSkip steps 5–9 if the oil filter cartridge is not being
replaced.5. Remove panel F. (See page 8-10.)

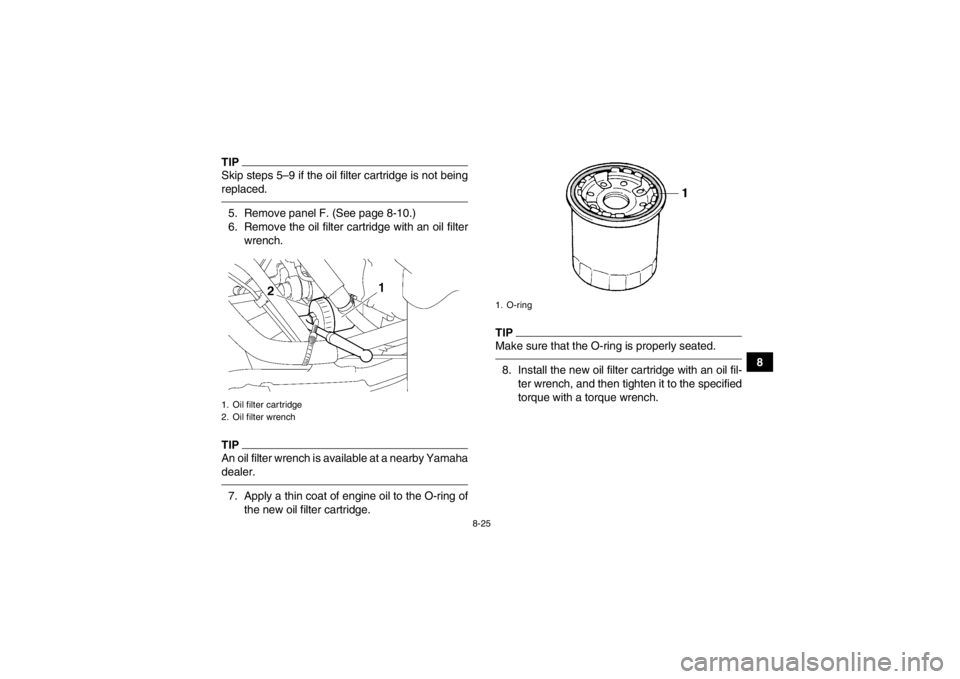

6. Remove the oil filter cartridge with an oil filterwrench.TIPAn oil filter wrench is available at a nearby Yamaha
dealer.7. Apply a thin coat of engine oil to the O-ring ofthe new oil filter cartridge.
TIPMake sure that the O-ring is properly seated.8. Install the new oil filter cartridge with an oil fil-ter wrench, and then tighten it to the specified
torque with a torque wrench.
1. Oil filter cartridge
2. Oil filter wrench
1. O-ring
U1HS61E0.book Page 25 Wednesday, May 23, 2012 5:24 PM

8-26
89. Install panel F.
10. Install the engine oil drain bolt and its new gasket, and then tighten the bolt to the speci-
fied torque. 11. Refill with the specified amount of the recom-
mended engine oil, and then insert the dip-
stick completely into the oil filler hole.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICEECB00300●In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.

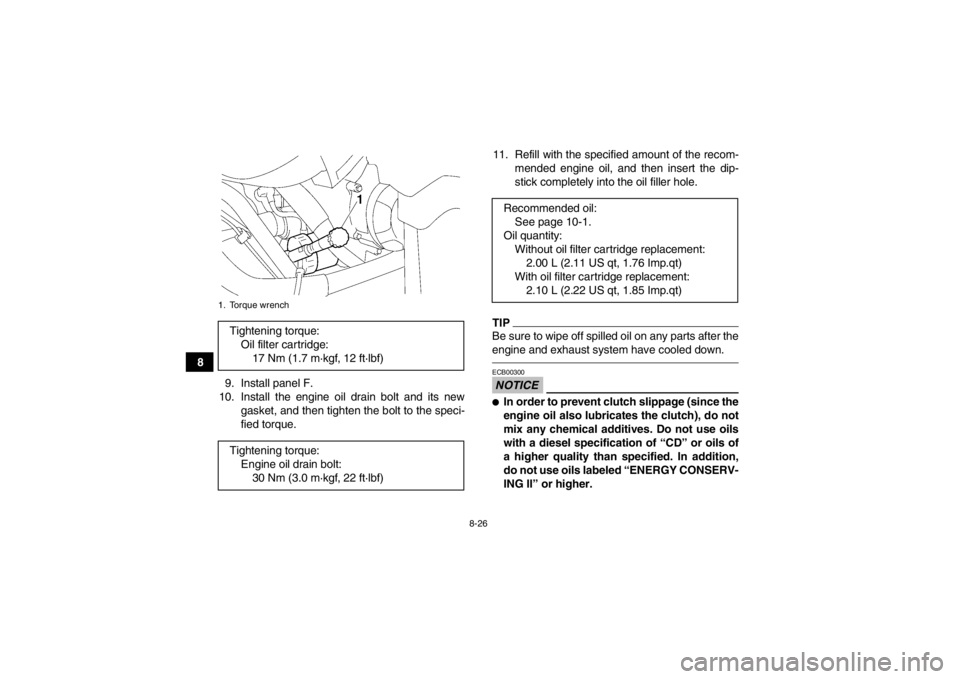

1. Torque wrenchTightening torque:Oil filter cartridge:17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque: Engine oil drain bolt:30 Nm (3.0 m·kgf, 22 ft·lbf)
Recommended oil:See page 10-1.
Oil quantity: Without oil filter cartridge replacement:2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement: 2.10 L (2.22 US qt, 1.85 Imp.qt)
U1HS61E0.book Page 26 Wednesday, May 23, 2012 5:24 PM

8-27
8
●Make sure that no foreign material enters the
crankcase.12. Start the engine, and then let it idle for severalminutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
13. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.
14. Install the access cover by turning it clock- wise.EBU27306Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.

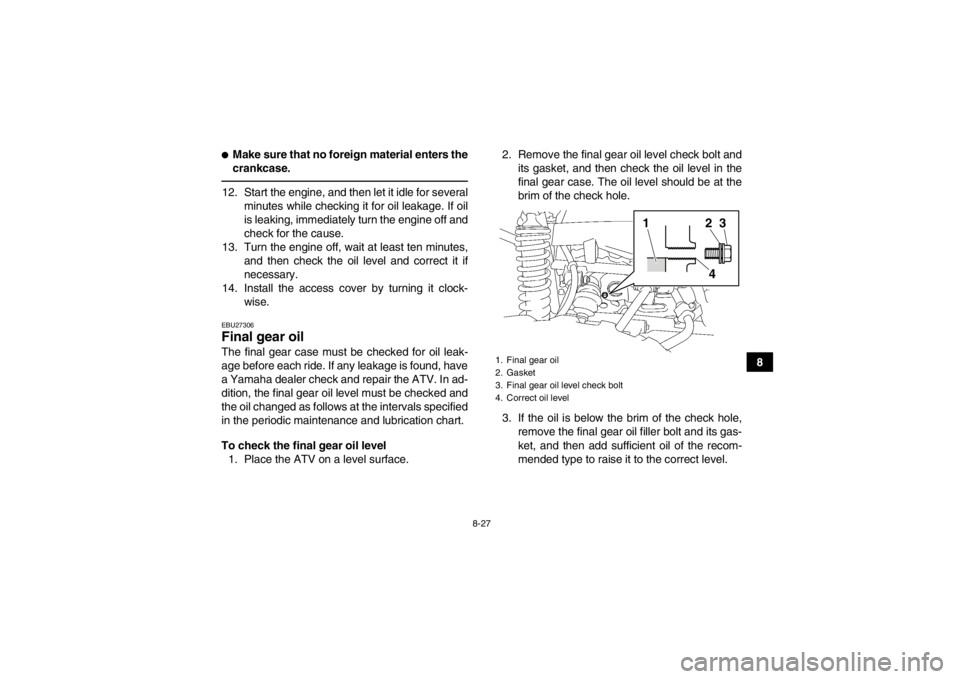

To check the final gear oil level1. Place the ATV on a level surface. 2. Remove the final gear oil level check bolt and
its gasket, and then check the oil level in the
final gear case. The oil level should be at the
brim of the check hole.
3. If the oil is below the brim of the check hole, remove the final gear oil filler bolt and its gas-
ket, and then add sufficient oil of the recom-
mended type to raise it to the correct level.
1. Final gear oil
2. Gasket
3. Final gear oil level check bolt
4. Correct oil level
1
243
U1HS61E0.book Page 27 Wednesday, May 23, 2012 5:24 PM

8-28
84. Check the gaskets for damage, and replace
them if necessary.
5. Install the oil level check bolt, the oil filler bolt and their gasket, and then tighten the bolts to
the specified torques. To change the final gear oil
1. Place the ATV on a level surface.
2. Place an oil pan under the final gear case to collect the used oil.
3. Remove the final gear oil filler bolt, the final gear oil level check bolt, the final gear oil drain
bolt and their gasket to drain the oil from the
final gear case.
4. Install the drain bolt and its new gasket, and then tighten the bolt to the specified torque.

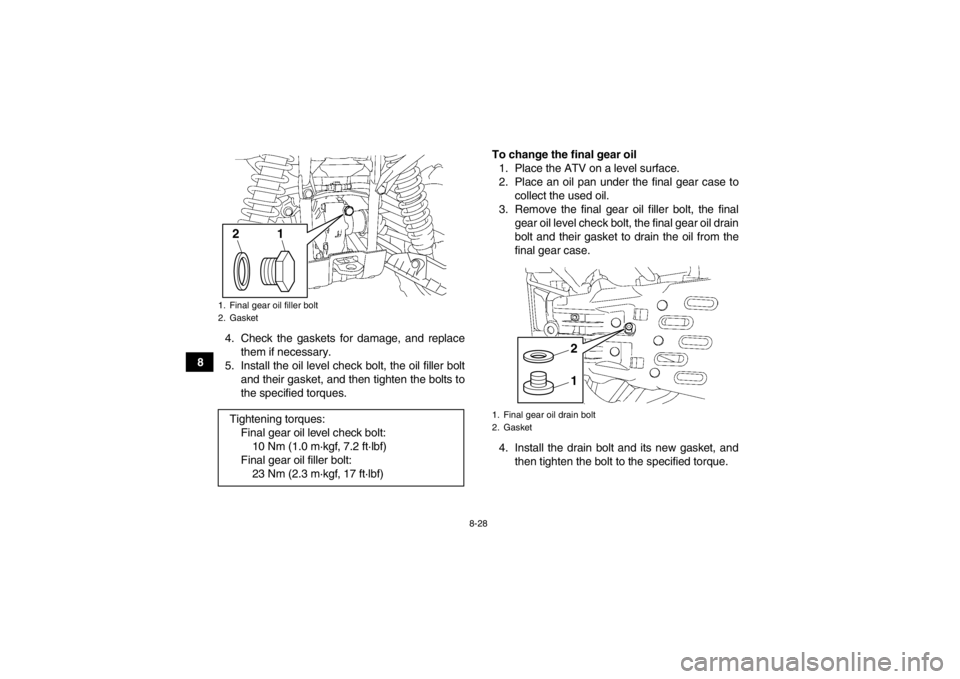

1. Final gear oil filler bolt
2. GasketTightening torques:Final gear oil level check bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Final gear oil filler bolt: 23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
1. Final gear oil drain bolt
2. Gasket
12
