If the rear wheels of your ATV start to slide side-
ways, control can usually be regained (if there is
room to do so) by steering in the direction of the
slide. Applying the brakes or accelerating is not
recommended until you have corrected the slide. With practice, over a period of time, skill at con-
trolled sliding can be developed. The terrain
should be chosen carefully before attempting such
maneuvers, since both stability and control are re-
duced. Bear in mind that sliding maneuvers should
always be avoided on extremely slippery surfaces
such as ice, since all control may be lost.
WHAT TO DO IF...
This section is designed to be a reference guide
only. Be sure to read each section on riding tech-
niques completely.
U1HS61E0.book Page 22 Wednesday, May 23, 2012 5:24 PM

7-23
7WHAT TO DO...
●If your ATV doesn’t turn when you want it to:
Bring the ATV to a stop and practice the turning
maneuvers again. Be sure you are putting your
weight on the footboard to the outside of the
turn. Position your weight over the front wheels
for better control. (See page 7-12.)●If your ATV begins to tip while turning:
Lean more into the turn to regain balance. If nec-
essary, gradually let off the throttle and/or steer
to the outside of the turn. (See page 7-12.)●If your ATV starts to slide sideways:
Steer in the direction of the slide if you have the
room. Applying the brakes or accelerating is not
recommended until you have corrected the
slide. (See page 7-21.)●If your ATV can’t make it up a hill you are trying
to climb:
Turn the ATV around if you still have forward
speed. If not, stop, dismount on the uphill side of
the ATV and physically turn the ATV around. If
the ATV starts to slip backwards, DO NOT USE
THE REAR BRAKE IF THE ATV IS IN “2WD” –
the ATV may tip over on top of you. Dismount
the ATV on the uphill side. (See page 7-13.)
●If your ATV is traversing a sloping surface:
Be sure to ride with your weight positioned to-
wards the uphill side of the ATV to maintain
proper balance. If the ATV starts to tip, steer
down the hill (if there are no obstacles in your
way) to regain balance. If you discover that the
ATV is going to tip over, dismount on the uphill
side. (See page 7-17.)●If your ATV encounters shallow water:
Ride slowly and carefully through slow moving
water, watching for obstacles. Be sure to let wa-
ter drain from the ATV and CHECK YOUR
BRAKES FOR PROPER OPERATION when
you come out of the water. Do not continue to
ride your ATV until you have regained adequate
braking ability. (See page 7-18.)
U1HS61E0.book Page 23 Wednesday, May 23, 2012 5:24 PM

8-1
8
EBU28783
PERIODIC MAINTENANCE AND ADJUSTMENT
EBU21674Periodic inspection, adjustment, and lubrication
will keep your vehicle in the safest and most effi-
cient condition possible. Safety is an obligation of
the vehicle owner/operator. The most important
points of vehicle inspection, adjustment, and lubri-
cation are explained on the following pages.
WARNING
EWB01841Failure to properly maintain the vehicle or per-
forming maintenance activities incorrectly may
increase your risk of injury or death during ser-
vice or while using the vehicle. If you are not fa-
miliar with vehicle service, have a Yamaha
dealer perform the service.
WARNING
EWB02562Turn off the engine when performing mainte-
nance unless otherwise specified.●A running engine has moving parts that can
catch on body parts or clothing and electri-
cal parts that can cause shocks or fires.
●Running the engine while servicing can lead
to eye injury, burns, fire, or carbon monoxide
poisoning - possibly leading to death. See
page 2-6 for more information about carbon
monoxide.
WARNING
EWB02690Brake discs, calipers, drums, and linings can
become very hot during use. To avoid possible
burns, let brake components cool before
touching them.The intervals given in the periodic maintenance
charts should be considered as a general guide
under normal riding conditions. However, DE-
PENDING ON THE WEATHER, TERRAIN, GEO-
GRAPHICAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTERVALS MAY
NEED TO BE SHORTENED.
U1HS61E0.book Page 1 Wednesday, May 23, 2012 5:24 PM

8-2
8
EBU27111Owner’s manual and tool kit Be sure to put this owner’s manual in the plastic
bag and to always carry it as well as the owner’s
tool kit and the low-pressure tire gauge in their re-
spective compartments under the seat.
The service information included in this manual
and the tools provided in the owner’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However,additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.

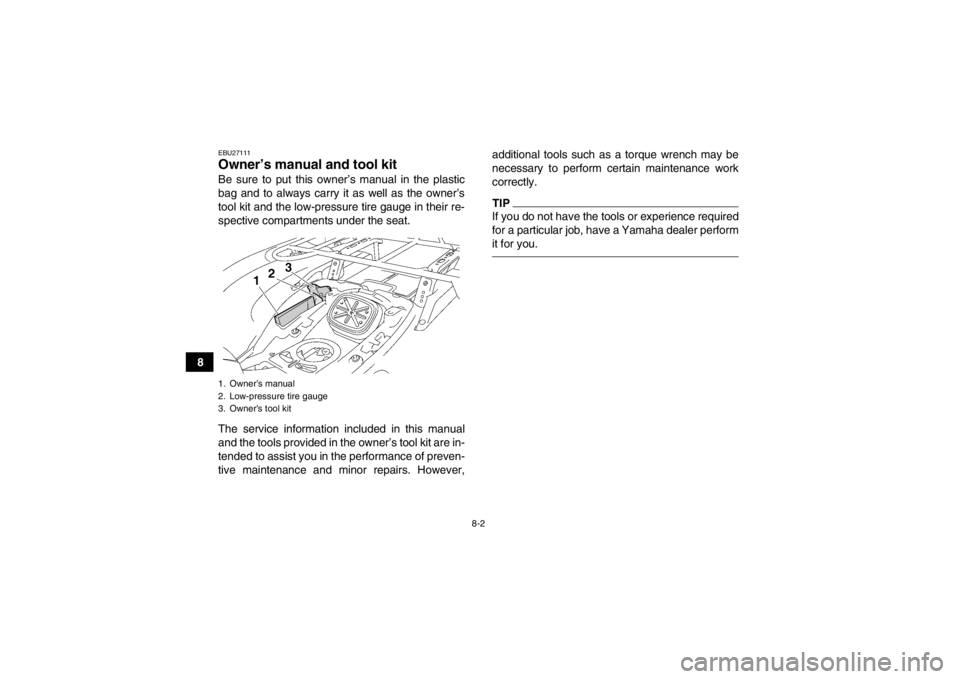

1. Owner’s manual
2. Low-pressure tire gauge
3. Owner’s tool kitU1HS61E0.book Page 2 Wednesday, May 23, 2012 5:24 PM

8-3
8
EBU21743Periodic maintenance chart for the emission control system TIP●For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.●For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.●Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO.ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 *Fuel line Check fuel hoses for cracks or other damage, and
replace if necessary. √√√
2 Spark plug Check condition and clean, regap, or replace if
necessary. √√√√√
3 *Valves Check valve clearance and adjust if necessary. √ √√√
4 *Crankcase breather
system Check breather hose for cracks or other damage,
and replace if necessary. √√√
5 *Exhaust system Check for leakage and replace gasket(s) if neces-
sary.
Check for looseness and tighten all screw clamps and joints if necessary. √√√
U1HS61E0.book Page 3 Wednesday, May 23, 2012 5:24 PM

8-4
8
6 Spark arrester Clean. √√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1HS61E0.book Page 4 Wednesday, May 23, 2012 5:24 PM

8-5
8
EBU21865General maintenance and lubrication chart TIP●For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.●For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.●Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO.ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 Air filter element Clean and replace if necessary. Every 20–40 hours (more often in wet or
dusty areas)
2 *Front brake Check operation and correct if necessary.
Check fluid level and ATV for fluid leakage, and
correct if necessary. √√√√√
Replace brake pads. Whenever worn to the limit
U1HS61E0.book Page 5 Wednesday, May 23, 2012 5:24 PM

8-6
8
3*Rear brake Check operation and correct if necessary.
Check brake pedal free play and adjust if neces-
sary.
Check fluid level and ATV for fluid leakage, and correct if necessary. √√√√√
Replace brake pads. Whenever worn to the limit
4 *Brake hoses Check for cracks or other damage, and replace if
necessary. √√√√
Replace. Every 4 years
5 *Wheels Check runout and for damage, and replace if nec-
essary. √ √√√
6 *Tires Check tread depth and for damage, and replace if
necessary.
Check air pressure and balance, and correct if necessary. √ √√√
7 *Wheel hub bearings Check for looseness or damage, and replace if
necessary. √ √√√
8 *V- b e l t Check for wear, cracks or other damage, and re-
place if necessary. √ √√√
9 *Chassis fasteners Make sure that all nuts, bolts, and screws are
properly tightened. √√√√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1HS61E0.book Page 6 Wednesday, May 23, 2012 5:24 PM

8-7
8
10*Shock absorber as-
semblies Check operation and correct if necessary.
Check for oil leakage and replace if necessary.
√√√
11 *Stabilizer bushes Check for cracks or other damage, and replace if
necessary. √√√
12 *Rear knuckle pivots Lubricate with lithium-soap-based grease. √√√
13 *Steering shaft Lubricate with lithium-soap-based grease. √√√
14 *Steering system Check operation and repair or replace if damaged.
Check toe-in and adjust if necessary.
√√√√√
15 *Engine mount Check for cracks or other damage, and replace if
necessary. √√√
16 *Axle boots Check for cracks or other damage, and replace if
necessary. √√√√√
17 Engine oil Change.
Check ATV for oil leakage, and correct if neces-
sary. √ √√√
18 Engine oil filter car-
tridge Replace.
√√√
19 Differential gear oil Change.
Check ATV for oil leakage, and correct if neces-
sary. √√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1HS61E0.book Page 7 Wednesday, May 23, 2012 5:24 PM

8-8
8
20 Final gear oil Change.
Check ATV for oil leakage, and correct if neces-
sary. √√
21 Cooling system Check coolant level and ATV for coolant leakage,
and correct if necessary. √√√√√
Replace coolant. Every 2 years
22 *Moving parts and
cables Lubricate.
√√√√
23 *Drive select lever
safety system cable Check operation and adjust or replace if neces-
sary. √√√
24 *Throttle lever Check operation.
Check throttle lever free play, and adjust if neces-
sary.
Lubricate cable and lever housing. √√√√√
25 *Front and rear brake
switches Check operation and correct if necessary.
√√√√√
26 *Lights and switches Check operation and correct if necessary.
Adjust headlight beams.
√√√√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km
(mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
