YAMAHA GRIZZLY 550 2015 Owners Manual

8-39
8
EBU27807Cleaning the air filter elementThe air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are rid-

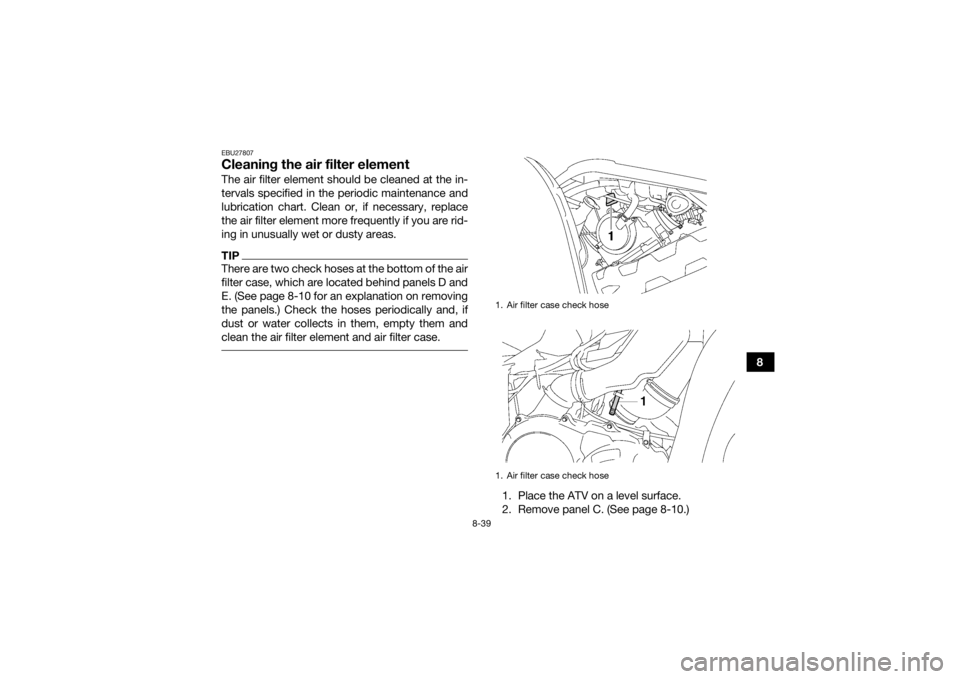

ing in unusually wet or dusty areas.TIPThere are two check hoses at the bottom of the air
filter case, which are located behind panels D and
E. (See page 8-10 for an explanation on removing
the panels.) Check the hoses periodically and, if
dust or water collects in them, empty them and
clean the air filter element and air filter case.
1. Place the ATV on a level surface.
2. Remove panel C. (See page 8-10.)1. Air filter case check hose
1. Air filter case check hose
U2LB61E0.book Page 39 Friday, February 21, 2014 3:03 PM

8-40

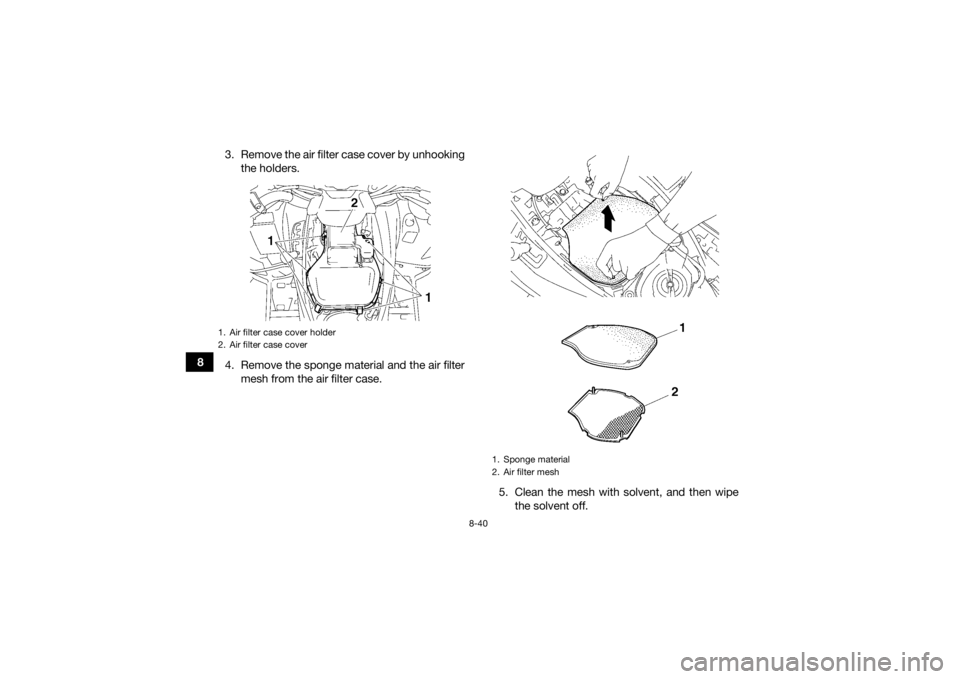

83. Remove the air filter case cover by unhooking
the holders.
4. Remove the sponge material and the air filter mesh from the air filter case.
5. Clean the mesh with solvent, and then wipethe solvent off.
1. Air filter case cover holder
2. Air filter case cover
1. Sponge material
2. Air filter mesh
U2LB61E0.book Page 40 Friday, February 21, 2014 3:03 PM

8-41
8
6. Wash the sponge material gently, but thor-
oughly, in solvent. WARNING! Always use
parts cleaning solvent to clean the sponge
material. Never use low-flash-point sol-
vents or gasoline to clean the sponge ma-
terial because the engine could catch fire
or explode.
[EWB01942]

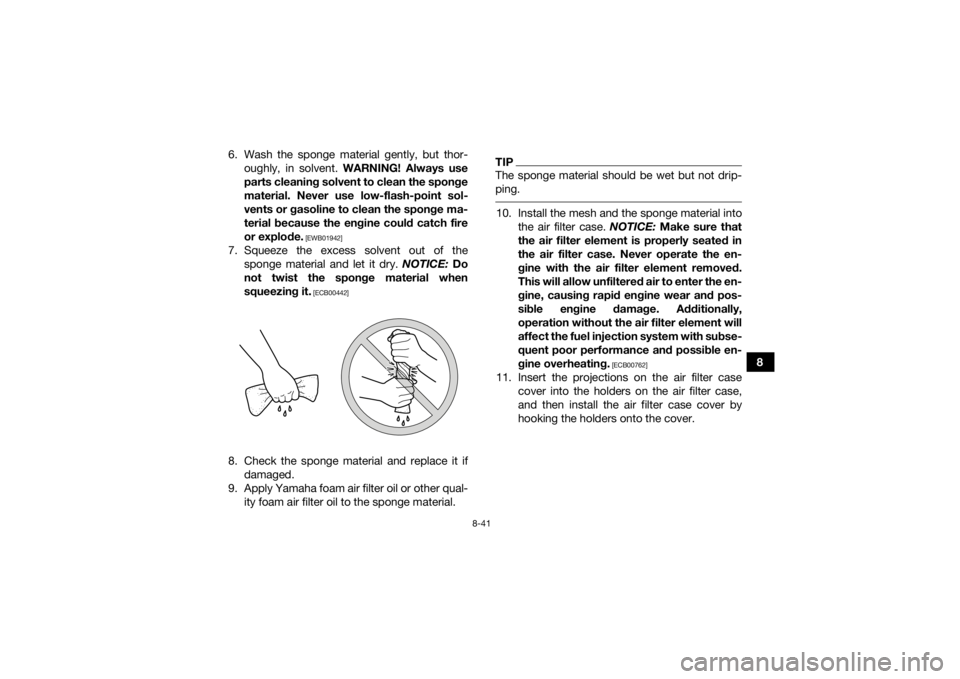

7. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]
8. Check the sponge material and replace it if damaged.
9. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.
TIPThe sponge material should be wet but not drip-
ping. 10. Install the mesh and the sponge material into the air filter case. NOTICE: Make sure that
the air filter element is properly seated in
the air filter case. Never operate the en-
gine with the air filter element removed.
This will allow unfiltered air to enter the en-
gine, causing rapid engine wear and pos-
sible engine damage. Additionally,
operation without the air filter element will
affect the fuel injection system with subse-
quent poor performance and possible en-
gine overheating.
[ECB00762]
11. Insert the projections on the air filter case cover into the holders on the air filter case,
and then install the air filter case cover by
hooking the holders onto the cover.
U2LB61E0.book Page 41 Friday, February 21, 2014 3:03 PM

8-42

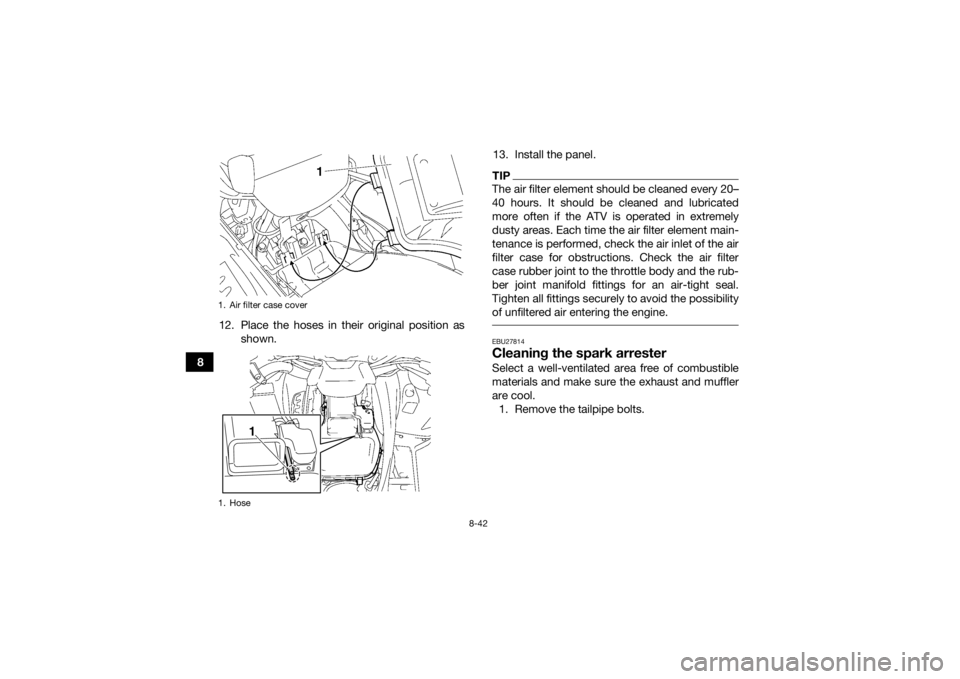

812. Place the hoses in their original position as
shown. 13. Install the panel.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated
more often if the ATV is operated in extremely
dusty areas. Each time the air filter element main-
tenance is performed, check the air inlet of the air
filter case for obstructions. Check the air filter
case rubber joint to the throttle body and the rub-
ber joint manifold fittings for an air-tight seal.
Tighten all fittings securely to avoid the possibility
of unfiltered air entering the engine. EBU27814Cleaning the spark arresterSelect a well-ventilated area free of combustible
materials and make sure the exhaust and muffler
are cool.
1. Remove the tailpipe bolts.
1. Air filter case cover
1. Hose
1
U2LB61E0.book Page 42 Friday, February 21, 2014 3:03 PM

8-43
8

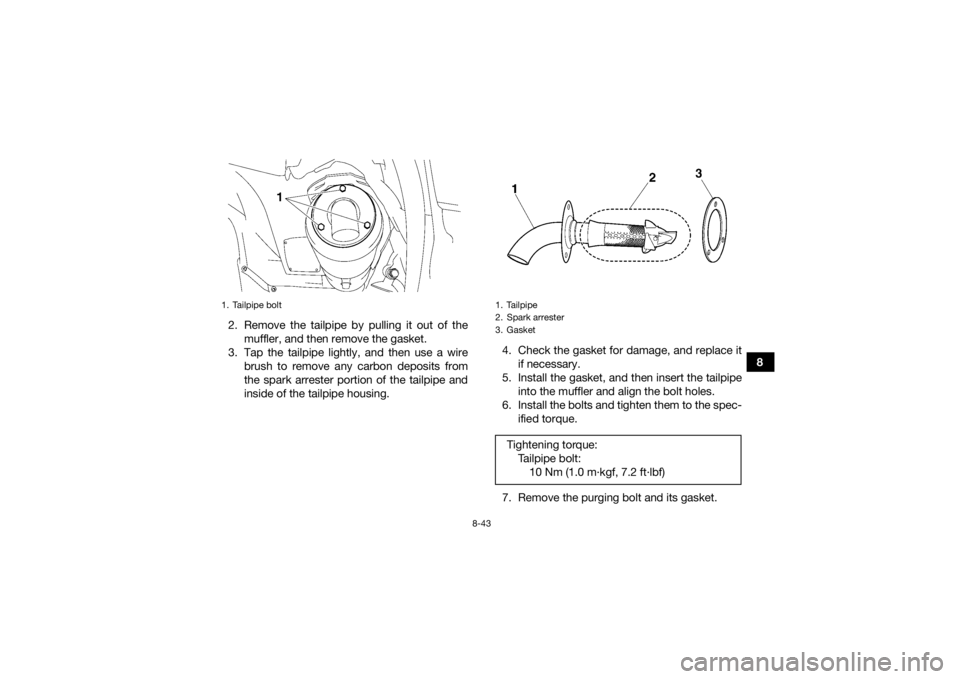

2. Remove the tailpipe by pulling it out of the
muffler, and then remove the gasket.
3. Tap the tailpipe lightly, and then use a wire brush to remove any carbon deposits from
the spark arrester portion of the tailpipe and
inside of the tailpipe housing. 4. Check the gasket for damage, and replace it
if necessary.
5. Install the gasket, and then insert the tailpipe into the muffler and align the bolt holes.
6. Install the bolts and tighten them to the spec- ified torque.
7. Remove the purging bolt and its gasket.
1. Tailpipe bolt
1. Tailpipe
2. Spark arrester
3. GasketTightening torque: Tailpipe bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U2LB61E0.book Page 43 Friday, February 21, 2014 3:03 PM

8-44
88. Start the engine and rev it up approximately
twenty times while momentarily creating ex-
haust system back pressure by blocking the
end of the muffler with a shop towel.
9. Stop the engine and allow the exhaust pipe to cool.
10. Check the gasket for damage, and replace it if necessary.
11. Install the purging bolt and its gasket, and then tighten the bolt to the specified torque.
WARNING
EWB02381Never run the engine in an enclosed area when
purging the spark arrester, otherwise it could
cause injury to the eyes, burns, carbon monox-
ide poisoning, possibly leading to death, and
start a fire.
Always let the exhaust system cool prior to
touching exhaust components.
 Always wear eye protection, and make sure
no one is behind the ATV.
 Make sure there are no combustible materi-
als in the area. EBU23932V-belt case drain plugAfter riding in water deep enough to allow it to en-
ter the V-belt case, remove the V-belt case drain
plug to drain the water from the case.
1. Purging bolt
2. Gasket
2
Tightening torque:
Purging bolt:27 Nm (2.7 m·kgf, 20 ft·lbf)
U2LB61E0.book Page 44 Friday, February 21, 2014 3:03 PM

8-45
8
TIPIf water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV as

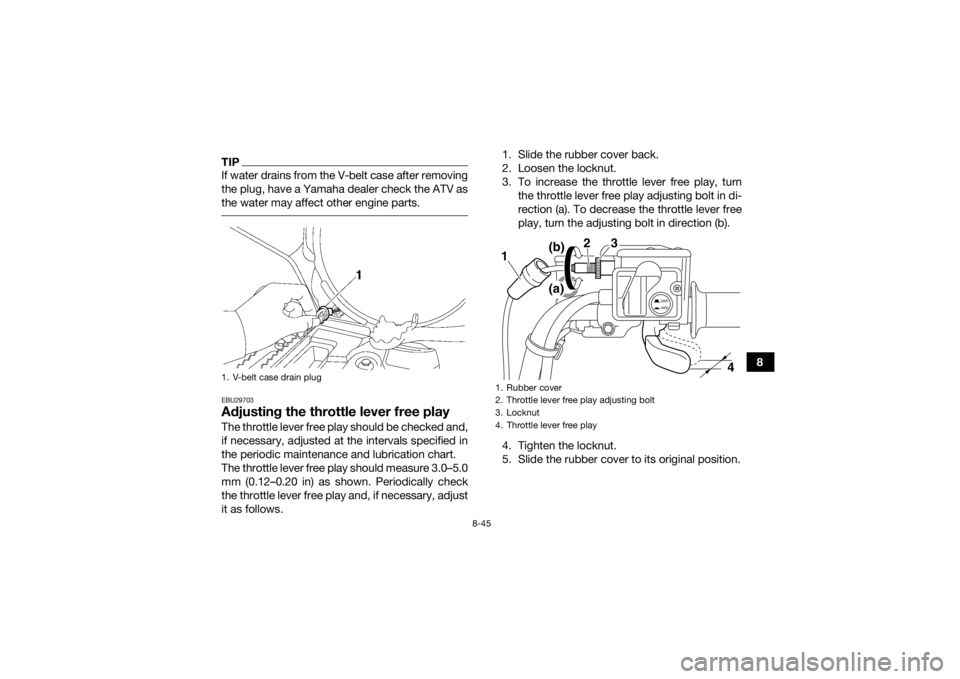

the water may affect other engine parts. EBU29703Adjusting the throttle lever free playThe throttle lever free play should be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The throttle lever free play should measure 3.0–5.0
mm (0.12–0.20 in) as shown. Periodically check
the throttle lever free play and, if necessary, adjust
it as follows.1. Slide the rubber cover back.
2. Loosen the locknut.
3. To increase the throttle lever free play, turn
the throttle lever free play adjusting bolt in di-
rection (a). To decrease the throttle lever free
play, turn the adjusting bolt in direction (b).
4. Tighten the locknut.
5. Slide the rubber cover to its original position.1. V-belt case drain plug
1. Rubber cover
2. Throttle lever free play adjusting bolt
3. Locknut
4. Throttle lever free play
2WD
4WD
3
2
1
4
(b)
(a)
U2LB61E0.book Page 45 Friday, February 21, 2014 3:03 PM

8-46
8
EBU24061Valve clearanceThe valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.EBU24072Adjusting the drive select lever safety
system cableThe drive select lever safety system cable stretch-
es with use, which can result in improper function.
Therefore, the safety system cable should be
checked and adjusted by a Yamaha dealer at the
intervals specified in the periodic maintenance
and lubrication chart.EBU29602BrakesReplacement of brake components requires pro-
fessional knowledge. Brake service should be
performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability

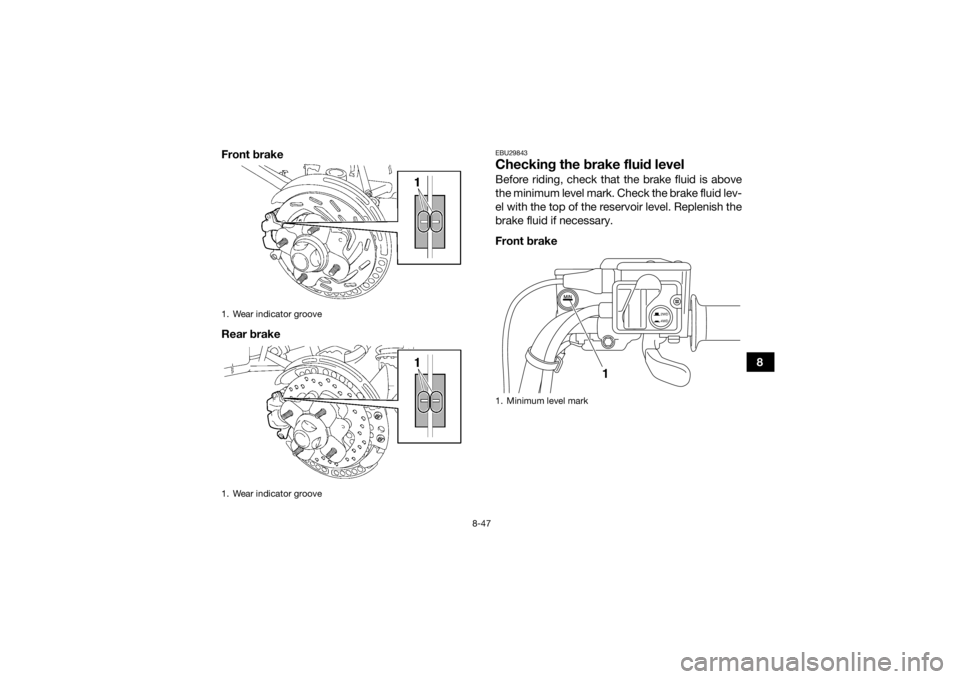

and an accident. EBU27471Checking the front and rear brake padsThe front and rear brake pads must be checked
for wear at the intervals specified in the periodic
maintenance and lubrication chart. Each brake
pad is provided with a wear indicator groove,
which allows you to check the brake pad wear
without having to disassemble the brake. If a
brake pad has worn to the point that the wear in-
dicator groove has almost disappeared, have a
Yamaha dealer replace the brake pads as a set.TIPThe wheels need to be removed to check the
brake pads. (See page 8-64.)
U2LB61E0.book Page 46 Friday, February 21, 2014 3:03 PM

8-47
8
Front brake
Rear brake

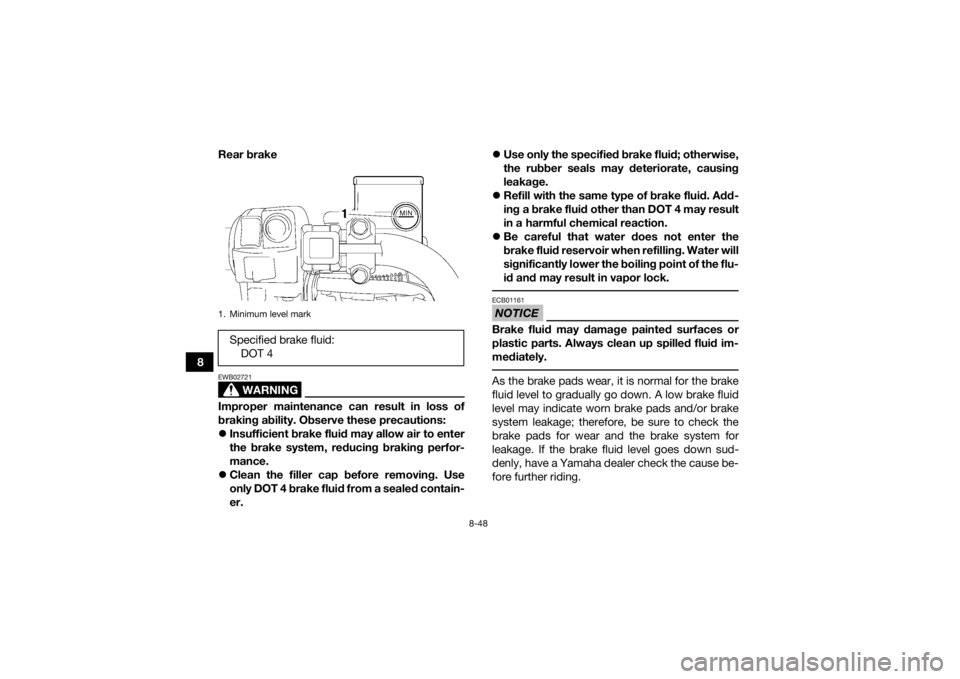

EBU29843Checking the brake fluid levelBefore riding, check that the brake fluid is above
the minimum level mark. Check the brake fluid lev-
el with the top of the reservoir level. Replenish the
brake fluid if necessary.
Front brake
1. Wear indicator groove
1. Wear indicator groove
1. Minimum level mark
2WD
4WD
1
U2LB61E0.book Page 47 Friday, February 21, 2014 3:03 PM

8-48
8Rear brake
WARNING
EWB02721Improper maintenance can result in loss of
braking ability. Observe these precautions:

Insufficient brake fluid may allow air to enter
the brake system, reducing braking perfor-
mance.
 Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed contain-
er. 
Use only the specified brake fluid; otherwise,
the rubber seals may deteriorate, causing
leakage.
 Refill with the same type of brake fluid. Add-
ing a brake fluid other than DOT 4 may result
in a harmful chemical reaction.
 Be careful that water does not enter the
brake fluid reservoir when refilling. Water will
significantly lower the boiling point of the flu-
id and may result in vapor lock.
NOTICEECB01161Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately. As the brake pads wear, it is normal for the brake
fluid level to gradually go down. A low brake fluid
level may indicate worn brake pads and/or brake
system leakage; therefore, be sure to check the
brake pads for wear and the brake system for
leakage. If the brake fluid level goes down sud-
denly, have a Yamaha dealer check the cause be-
fore further riding.
1. Minimum level markSpecified brake fluid:
DOT 4
