YAMAHA GRIZZLY 660 2007 Owners Manual

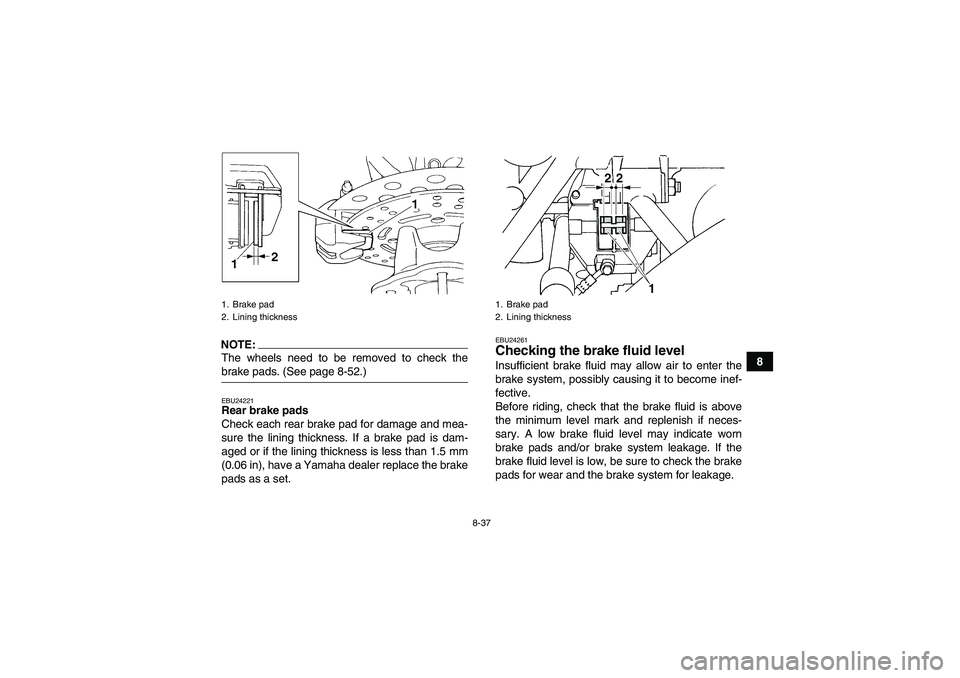

8-37
8
NOTE:The wheels need to be removed to check thebrake pads. (See page 8-52.)EBU24221Rear brake pads
Check each rear brake pad for damage and mea-
sure the lining thickness. If a brake pad is dam-
aged or if the lining thickness is less than 1.5 mm
(0.06 in), have a Yamaha dealer replace the brake
pads as a set.
EBU24261Checking the brake fluid level Insufficient brake fluid may allow air to enter the
brake system, possibly causing it to become inef-
fective.
Before riding, check that the brake fluid is above
the minimum level mark and replenish if neces-
sary. A low brake fluid level may indicate worn
brake pads and/or brake system leakage. If the
brake fluid level is low, be sure to check the brake
pads for wear and the brake system for leakage.
1. Brake pad
2. Lining thickness
1. Brake pad
2. Lining thickness
U2C661E0.book Page 37 Thursday, March 16, 2006 10:45 AM

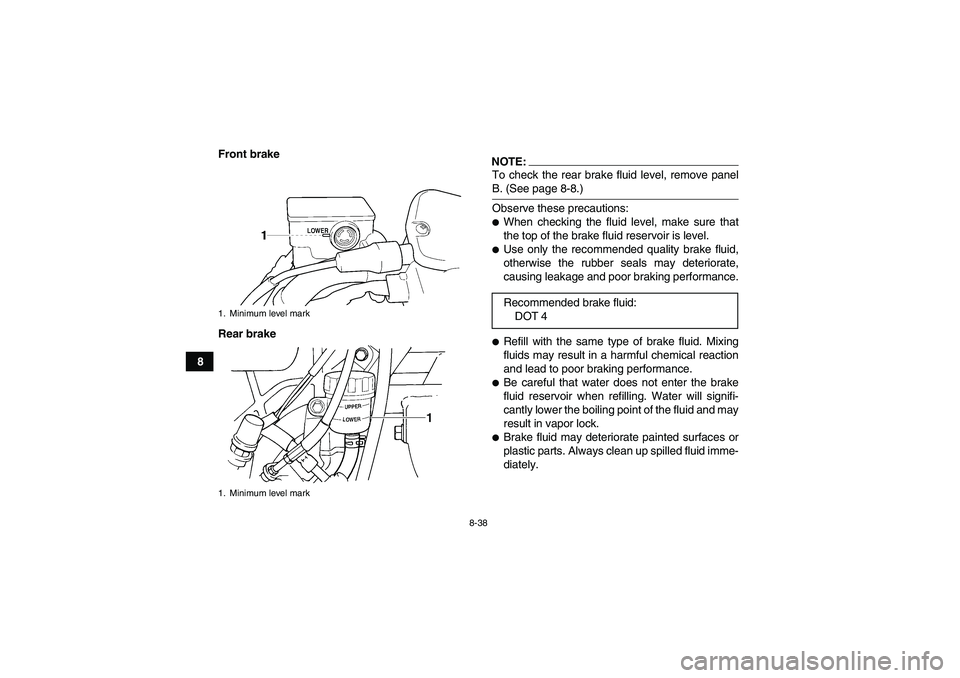

8-38
8Front brake
Rear brake
NOTE:To check the rear brake fluid level, remove panelB. (See page 8-8.)
Observe these precautions:
When checking the fluid level, make sure that
the top of the brake fluid reservoir is level.
Use only the recommended quality brake fluid,
otherwise the rubber seals may deteriorate,
causing leakage and poor braking performance.
Refill with the same type of brake fluid. Mixing
fluids may result in a harmful chemical reaction
and lead to poor braking performance.
Be careful that water does not enter the brake
fluid reservoir when refilling. Water will signifi-
cantly lower the boiling point of the fluid and may
result in vapor lock.
Brake fluid may deteriorate painted surfaces or
plastic parts. Always clean up spilled fluid imme-
diately.
1. Minimum level mark
1. Minimum level mark
Recommended brake fluid:
DOT 4
U2C661E0.book Page 38 Thursday, March 16, 2006 10:45 AM

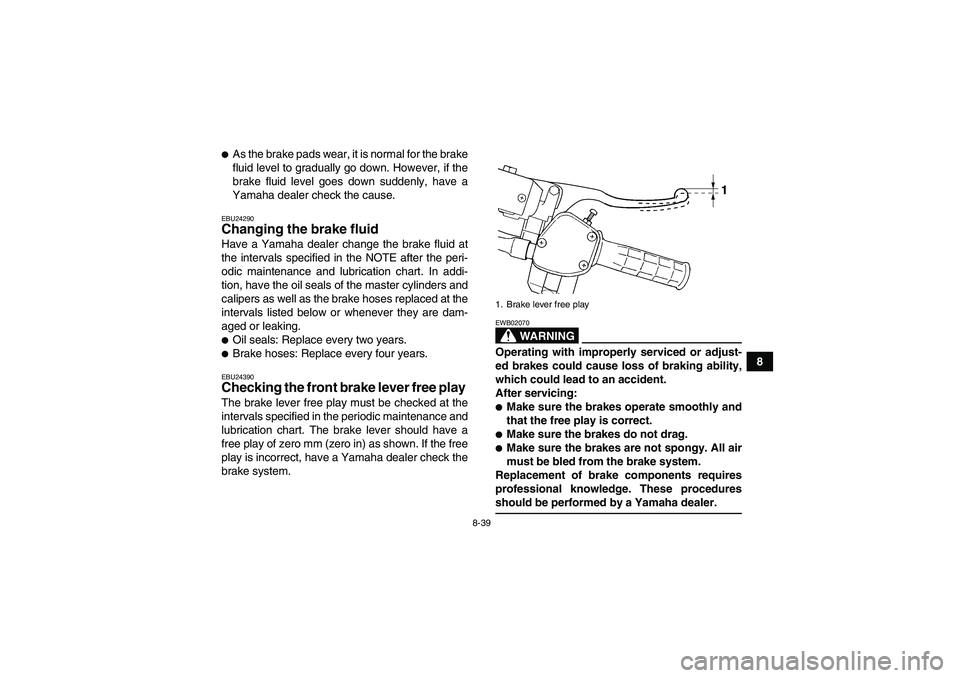

8-39
8

As the brake pads wear, it is normal for the brake
fluid level to gradually go down. However, if the
brake fluid level goes down suddenly, have a
Yamaha dealer check the cause.EBU24290Changing the brake fluid Have a Yamaha dealer change the brake fluid at
the intervals specified in the NOTE after the peri-
odic maintenance and lubrication chart. In addi-
tion, have the oil seals of the master cylinders and
calipers as well as the brake hoses replaced at the
intervals listed below or whenever they are dam-
aged or leaking.
Oil seals: Replace every two years.
Brake hoses: Replace every four years.EBU24390Checking the front brake lever free play The brake lever free play must be checked at the
intervals specified in the periodic maintenance and
lubrication chart. The brake lever should have a
free play of zero mm (zero in) as shown. If the free
play is incorrect, have a Yamaha dealer check the
brake system.
WARNING
EWB02070Operating with improperly serviced or adjust-
ed brakes could cause loss of braking ability,
which could lead to an accident.
After servicing:
Make sure the brakes operate smoothly and
that the free play is correct.
Make sure the brakes do not drag.
Make sure the brakes are not spongy. All air
must be bled from the brake system.
Replacement of brake components requires
professional knowledge. These proceduresshould be performed by a Yamaha dealer.1. Brake lever free play
U2C661E0.book Page 39 Thursday, March 16, 2006 10:45 AM

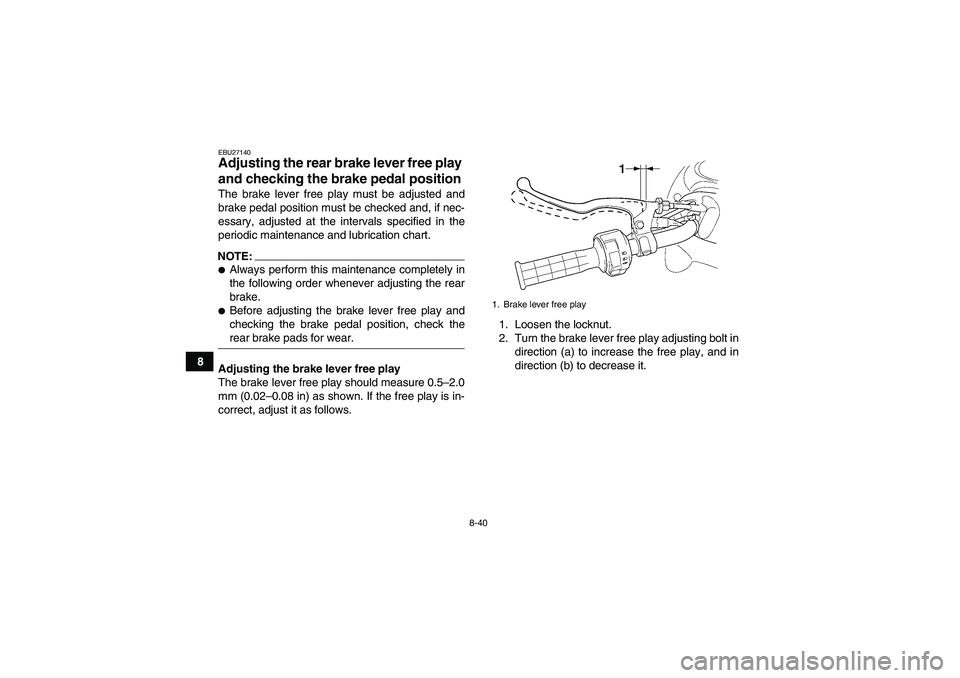

8-40
8
EBU27140Adjusting the rear brake lever free play
and checking the brake pedal position The brake lever free play must be adjusted and
brake pedal position must be checked and, if nec-
essary, adjusted at the intervals specified in the
periodic maintenance and lubrication chart.NOTE:
Always perform this maintenance completely in
the following order whenever adjusting the rear
brake.
Before adjusting the brake lever free play and
checking the brake pedal position, check therear brake pads for wear.
Adjusting the brake lever free play
The brake lever free play should measure 0.5–2.0
mm (0.02–0.08 in) as shown. If the free play is in-
correct, adjust it as follows.1. Loosen the locknut.
2. Turn the brake lever free play adjusting bolt in
direction (a) to increase the free play, and in
direction (b) to decrease it.
1. Brake lever free play
U2C661E0.book Page 40 Thursday, March 16, 2006 10:45 AM

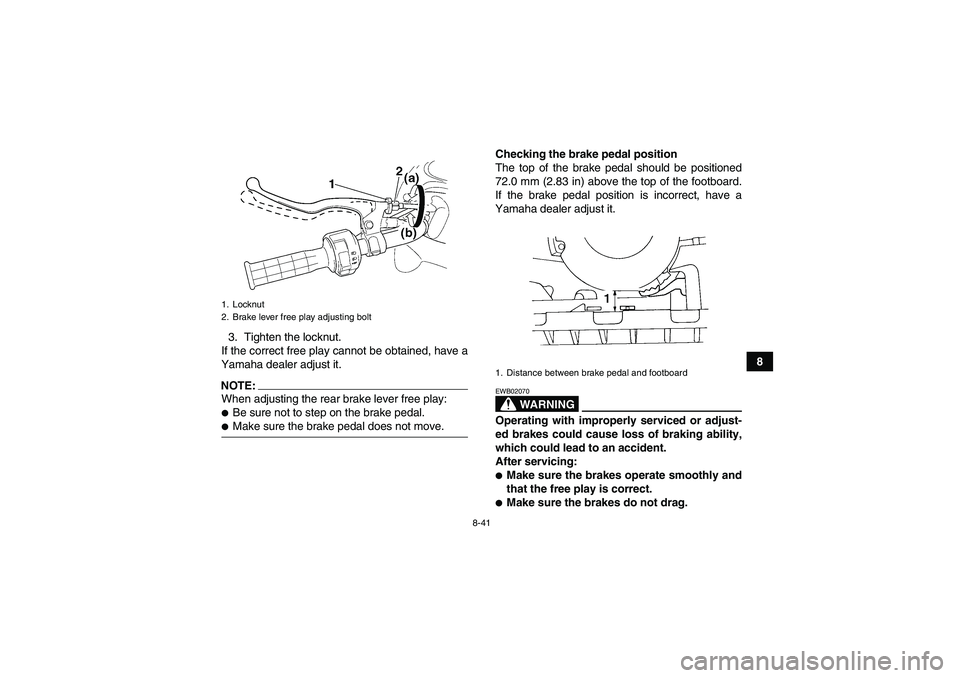

8-41
8 3. Tighten the locknut.
If the correct free play cannot be obtained, have a
Yamaha dealer adjust it.
NOTE:When adjusting the rear brake lever free play:
Be sure not to step on the brake pedal.
Make sure the brake pedal does not move.Checking the brake pedal position
The top of the brake pedal should be positioned
72.0 mm (2.83 in) above the top of the footboard.
If the brake pedal position is incorrect, have a
Yamaha dealer adjust it.
WARNING
EWB02070Operating with improperly serviced or adjust-
ed brakes could cause loss of braking ability,
which could lead to an accident.
After servicing:
Make sure the brakes operate smoothly and
that the free play is correct.
Make sure the brakes do not drag.
1. Locknut
2. Brake lever free play adjusting bolt
1. Distance between brake pedal and footboard
U2C661E0.book Page 41 Thursday, March 16, 2006 10:45 AM

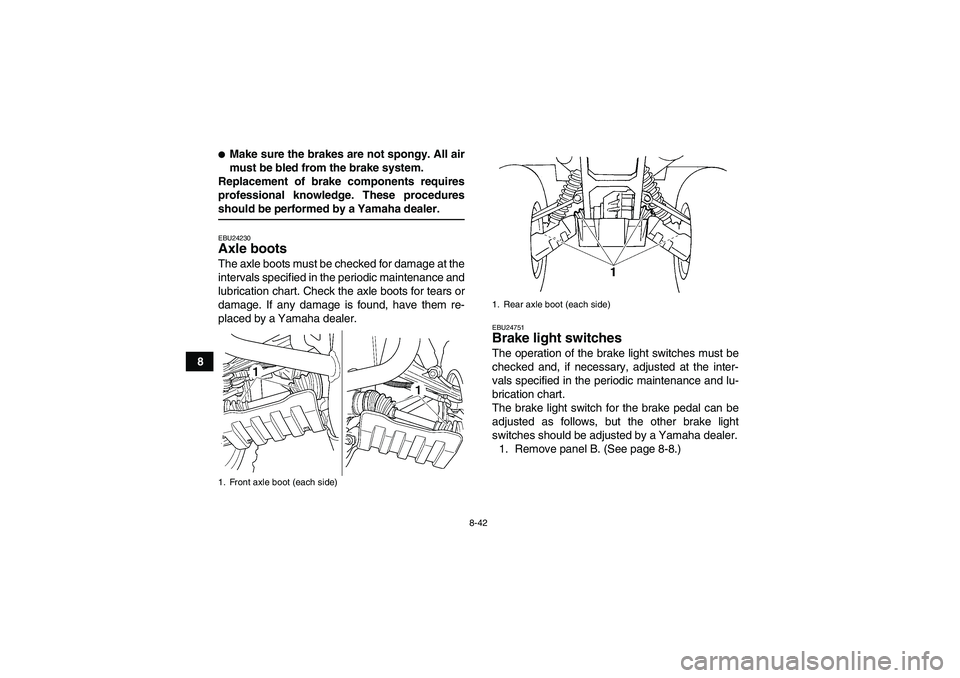

8-42
8

Make sure the brakes are not spongy. All air
must be bled from the brake system.
Replacement of brake components requires
professional knowledge. These proceduresshould be performed by a Yamaha dealer.EBU24230Axle boots The axle boots must be checked for damage at the
intervals specified in the periodic maintenance and
lubrication chart. Check the axle boots for tears or
damage. If any damage is found, have them re-
placed by a Yamaha dealer.
EBU24751Brake light switches The operation of the brake light switches must be
checked and, if necessary, adjusted at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
The brake light switch for the brake pedal can be
adjusted as follows, but the other brake light
switches should be adjusted by a Yamaha dealer.
1. Remove panel B. (See page 8-8.)
1. Front axle boot (each side)
1. Rear axle boot (each side)
U2C661E0.book Page 42 Thursday, March 16, 2006 10:45 AM

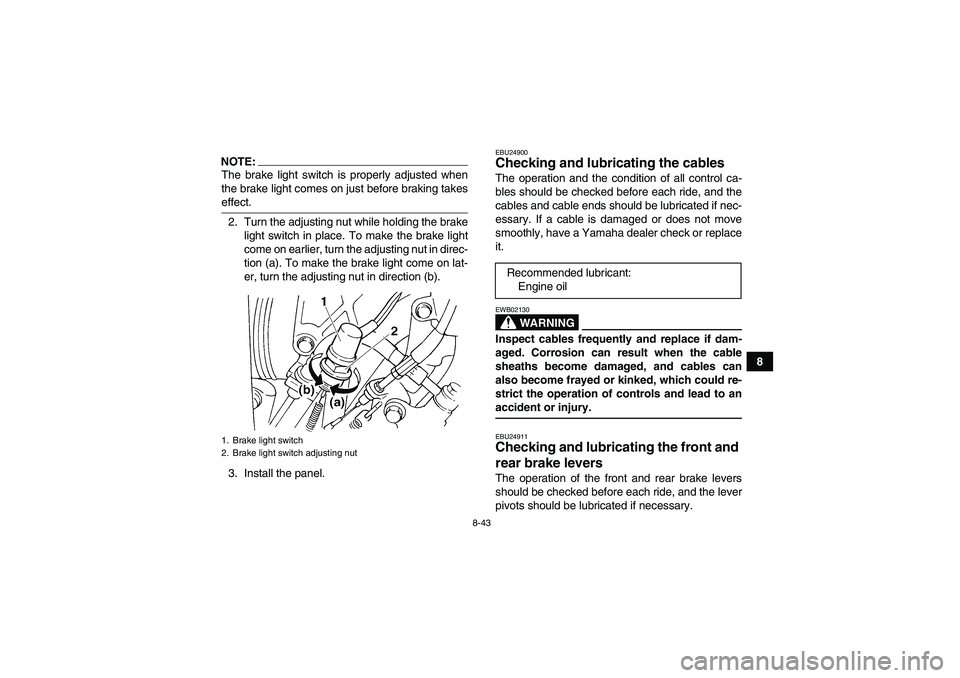

8-43
8
NOTE:The brake light switch is properly adjusted when
the brake light comes on just before braking takeseffect.
2. Turn the adjusting nut while holding the brake
light switch in place. To make the brake light
come on earlier, turn the adjusting nut in direc-
tion (a). To make the brake light come on lat-
er, turn the adjusting nut in direction (b).
3. Install the panel.
EBU24900Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02130Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to anaccident or injury.EBU24911Checking and lubricating the front and
rear brake levers The operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
1. Brake light switch
2. Brake light switch adjusting nut
Recommended lubricant:
Engine oil
U2C661E0.book Page 43 Thursday, March 16, 2006 10:45 AM

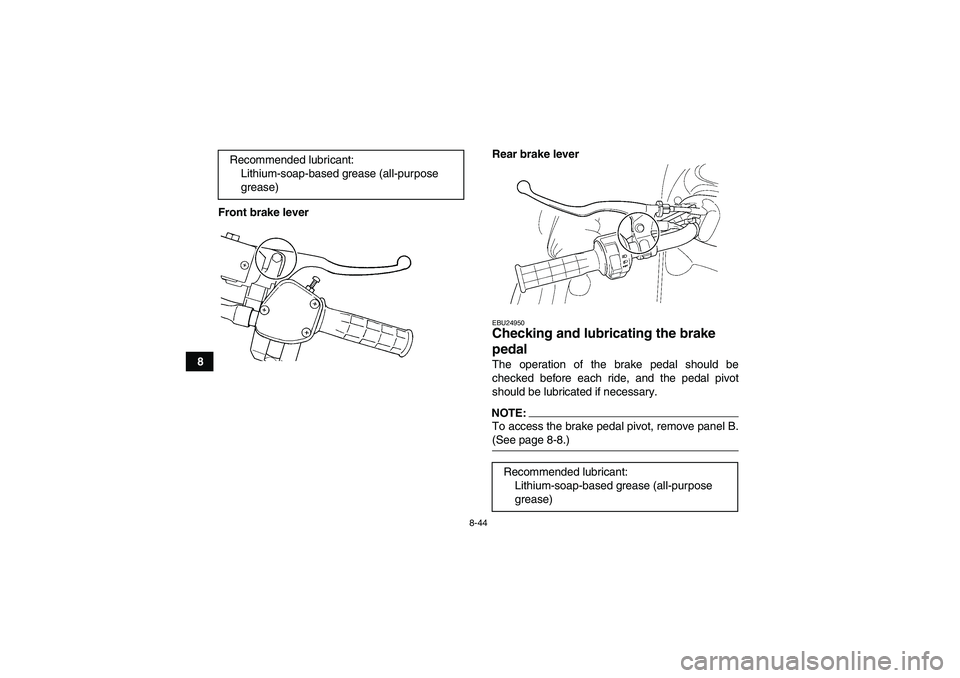

8-44
8Front brake leverRear brake lever
EBU24950Checking and lubricating the brake
pedal The operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.NOTE:To access the brake pedal pivot, remove panel B.(See page 8-8.) Recommended lubricant:
Lithium-soap-based grease (all-purpose
grease)Recommended lubricant:
Lithium-soap-based grease (all-purpose
grease)
U2C661E0.book Page 44 Thursday, March 16, 2006 10:45 AM

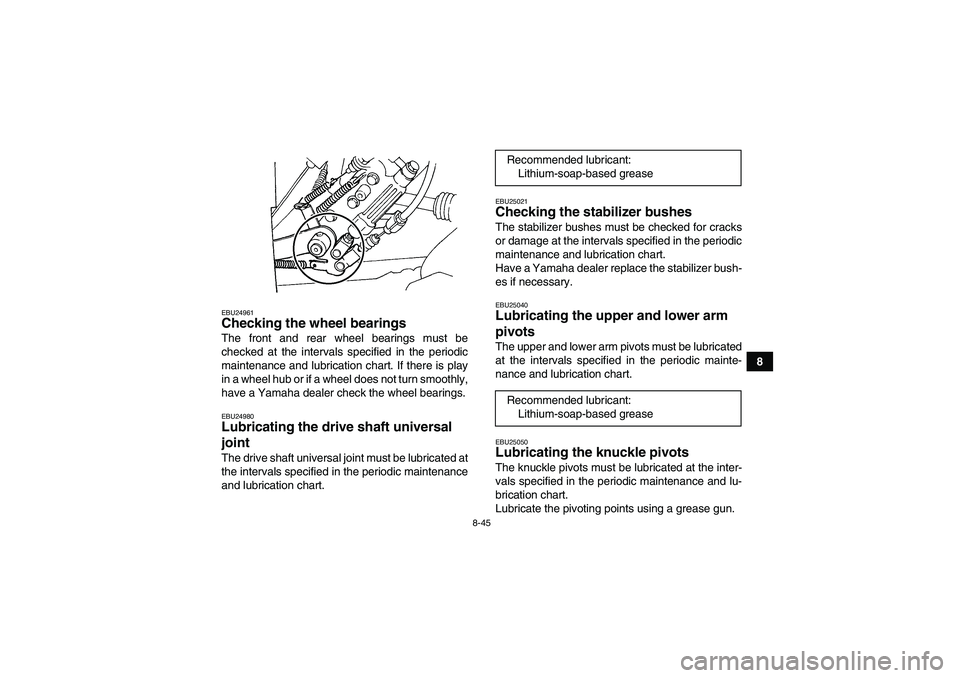

8-45
8
EBU24961Checking the wheel bearings The front and rear wheel bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel bearings.EBU24980Lubricating the drive shaft universal
joint The drive shaft universal joint must be lubricated at
the intervals specified in the periodic maintenance
and lubrication chart.
EBU25021Checking the stabilizer bushes The stabilizer bushes must be checked for cracks
or damage at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the stabilizer bush-
es if necessary.EBU25040Lubricating the upper and lower arm
pivots The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte-
nance and lubrication chart.EBU25050Lubricating the knuckle pivots The knuckle pivots must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
Lubricate the pivoting points using a grease gun.Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
U2C661E0.book Page 45 Thursday, March 16, 2006 10:45 AM

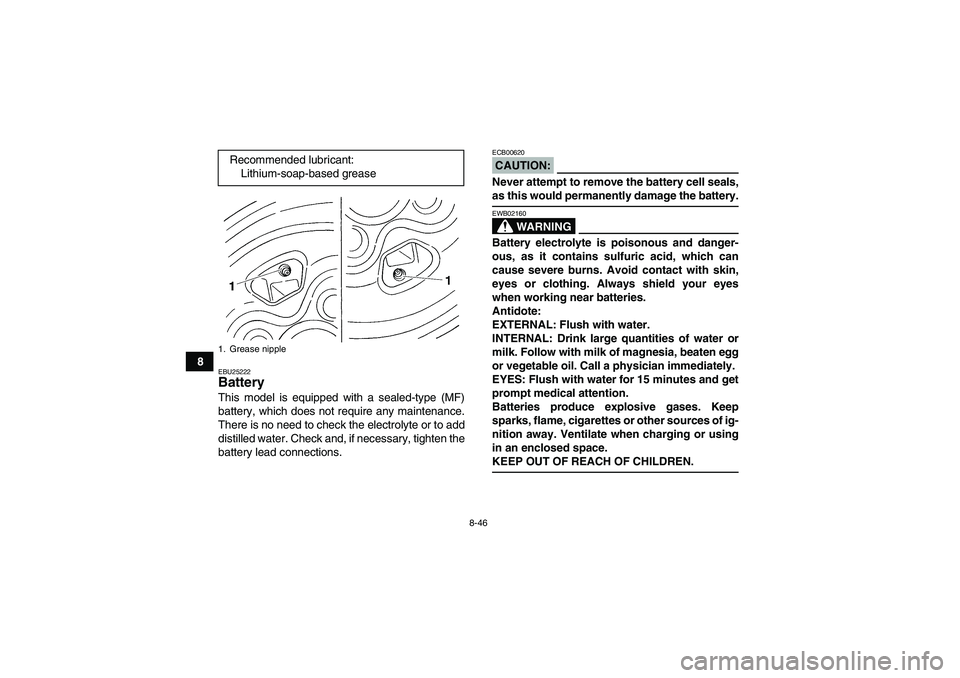

8-46
8
EBU25222Battery This model is equipped with a sealed-type (MF)
battery, which does not require any maintenance.
There is no need to check the electrolyte or to add
distilled water. Check and, if necessary, tighten the
battery lead connections.
CAUTION:ECB00620Never attempt to remove the battery cell seals,as this would permanently damage the battery.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.KEEP OUT OF REACH OF CHILDREN. Recommended lubricant:
Lithium-soap-based grease
1. Grease nippleU2C661E0.book Page 46 Thursday, March 16, 2006 10:45 AM
