YAMAHA GRIZZLY 660 2007 Owners Manual

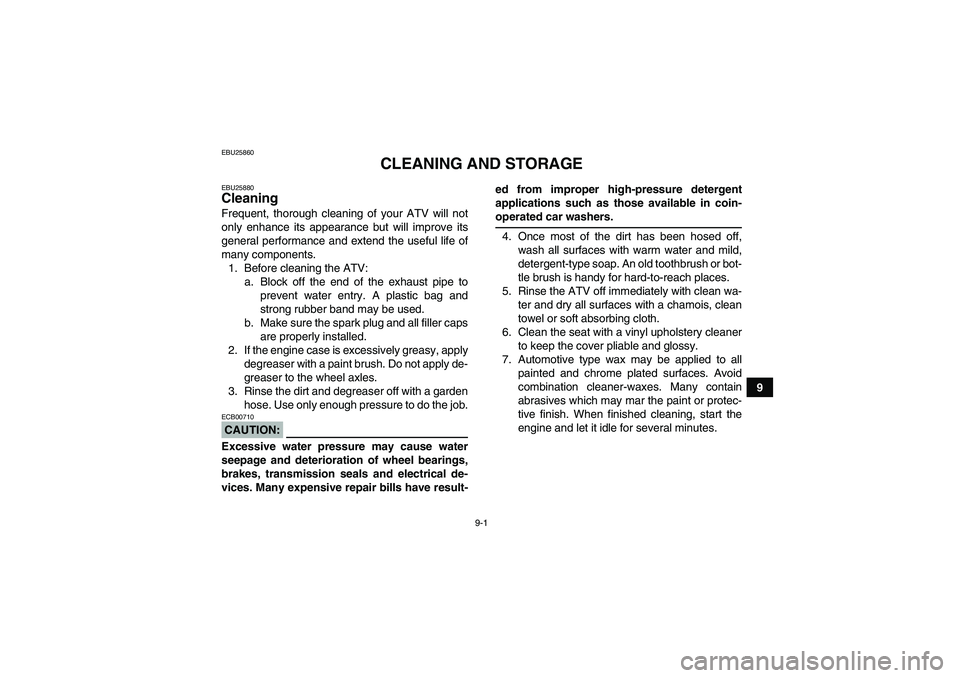

9-1
9
EBU25860
CLEANING AND STORAGE
EBU25880Cleaning Frequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performance and extend the useful life of
many components.
1. Before cleaning the ATV:
a. Block off the end of the exhaust pipe to
prevent water entry. A plastic bag and
strong rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, apply
degreaser with a paint brush. Do not apply de-
greaser to the wheel axles.
3. Rinse the dirt and degreaser off with a garden
hose. Use only enough pressure to do the job.CAUTION:ECB00710Excessive water pressure may cause water
seepage and deterioration of wheel bearings,
brakes, transmission seals and electrical de-
vices. Many expensive repair bills have result-ed from improper high-pressure detergent
applications such as those available in coin-
operated car washers.
4. Once most of the dirt has been hosed off,
wash all surfaces with warm water and mild,
detergent-type soap. An old toothbrush or bot-
tle brush is handy for hard-to-reach places.
5. Rinse the ATV off immediately with clean wa-
ter and dry all surfaces with a chamois, clean
towel or soft absorbing cloth.
6. Clean the seat with a vinyl upholstery cleaner
to keep the cover pliable and glossy.
7. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish. When finished cleaning, start the
engine and let it idle for several minutes.
U2C661E0.book Page 1 Thursday, March 16, 2006 10:45 AM

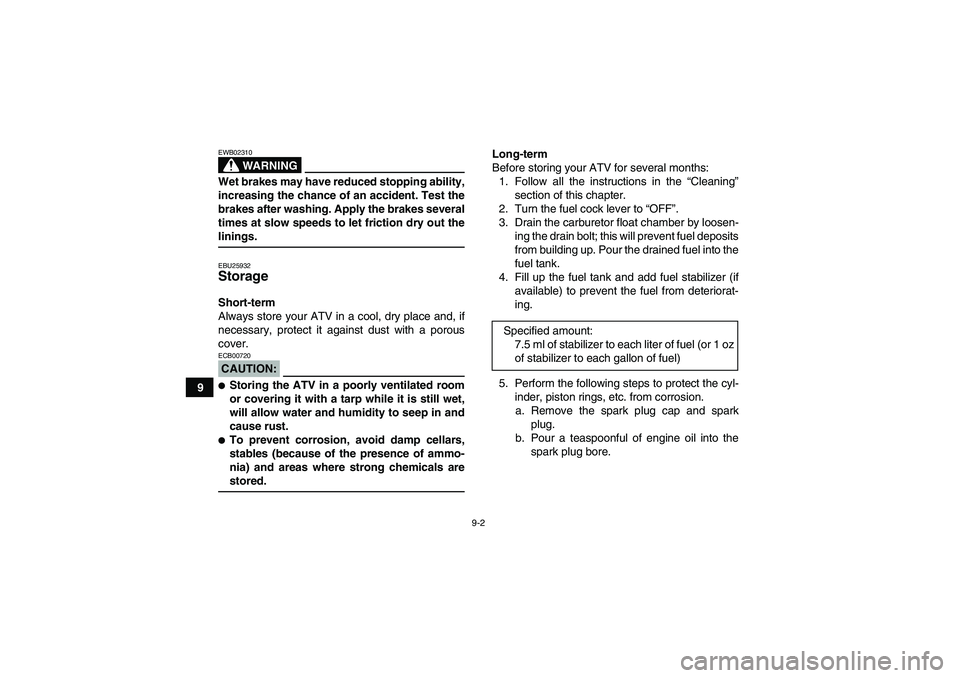

9-2
9
WARNING
EWB02310Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out thelinings.EBU25932Storage Short-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover.CAUTION:ECB00720
Storing the ATV in a poorly ventilated room
or covering it with a tarp while it is still wet,
will allow water and humidity to seep in and
cause rust.
To prevent corrosion, avoid damp cellars,
stables (because of the presence of ammo-
nia) and areas where strong chemicals arestored.Long-term
Before storing your ATV for several months:
1. Follow all the instructions in the “Cleaning”
section of this chapter.
2. Turn the fuel cock lever to “OFF”.
3. Drain the carburetor float chamber by loosen-
ing the drain bolt; this will prevent fuel deposits
from building up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.
5. Perform the following steps to protect the cyl-
inder, piston rings, etc. from corrosion.
a. Remove the spark plug cap and spark
plug.
b. Pour a teaspoonful of engine oil into the
spark plug bore. Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1 oz
of stabilizer to each gallon of fuel)
U2C661E0.book Page 2 Thursday, March 16, 2006 10:45 AM

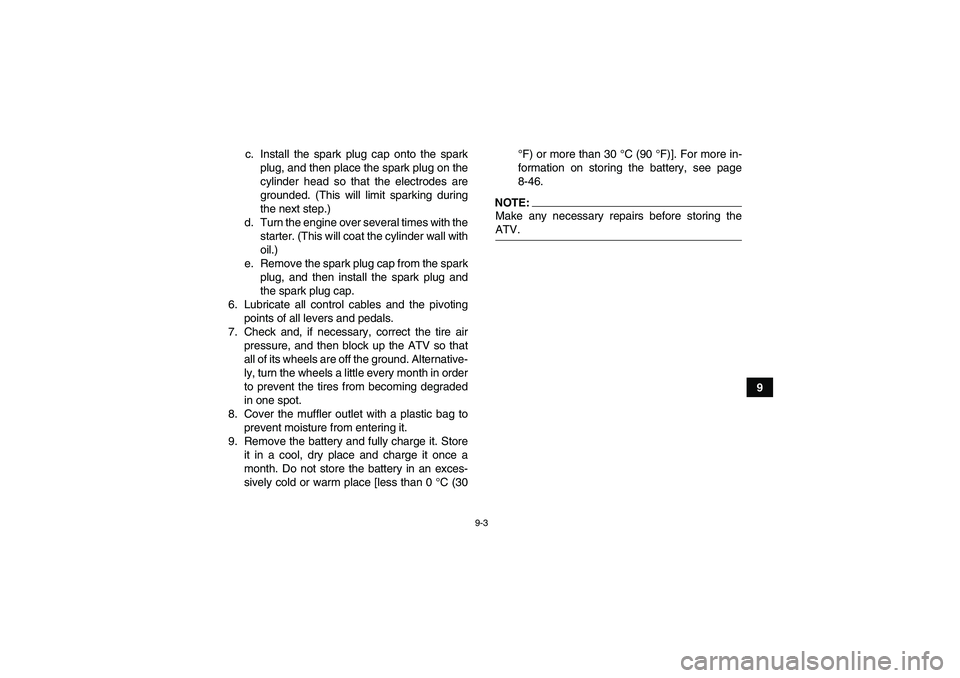

9-3
9 c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the
starter. (This will coat the cylinder wall with
oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and
the spark plug cap.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
9. Remove the battery and fully charge it. Store
it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page
8-46.
NOTE:Make any necessary repairs before storing theATV.
U2C661E0.book Page 3 Thursday, March 16, 2006 10:45 AM

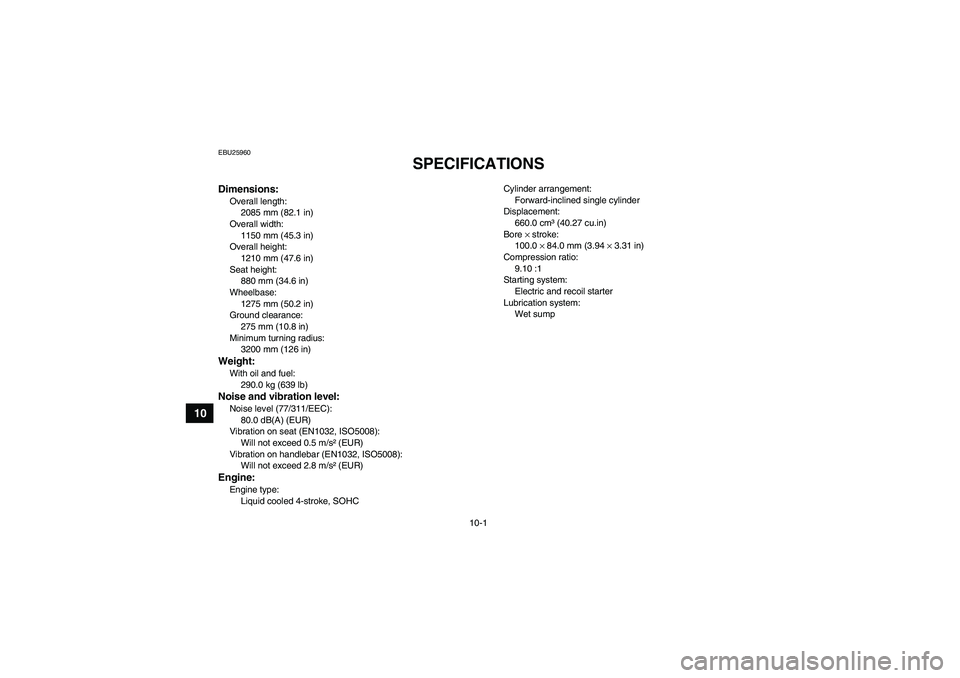

10-1
10
EBU25960
SPECIFICATIONS
Dimensions:Overall length:
2085 mm (82.1 in)
Overall width:
1150 mm (45.3 in)
Overall height:
1210 mm (47.6 in)
Seat height:
880 mm (34.6 in)
Wheelbase:
1275 mm (50.2 in)
Ground clearance:
275 mm (10.8 in)
Minimum turning radius:
3200 mm (126 in)Weight:With oil and fuel:
290.0 kg (639 lb)Noise and vibration level:Noise level (77/311/EEC):
80.0 dB(A) (EUR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s² (EUR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.8 m/s² (EUR)Engine:Engine type:
Liquid cooled 4-stroke, SOHCCylinder arrangement:
Forward-inclined single cylinder
Displacement:
660.0 cm³ (40.27 cu.in)
Bore × stroke:
100.0 × 84.0 mm (3.94 × 3.31 in)
Compression ratio:
9.10 :1
Starting system:
Electric and recoil starter
Lubrication system:
Wet sump
U2C661E0.book Page 1 Thursday, March 16, 2006 10:45 AM

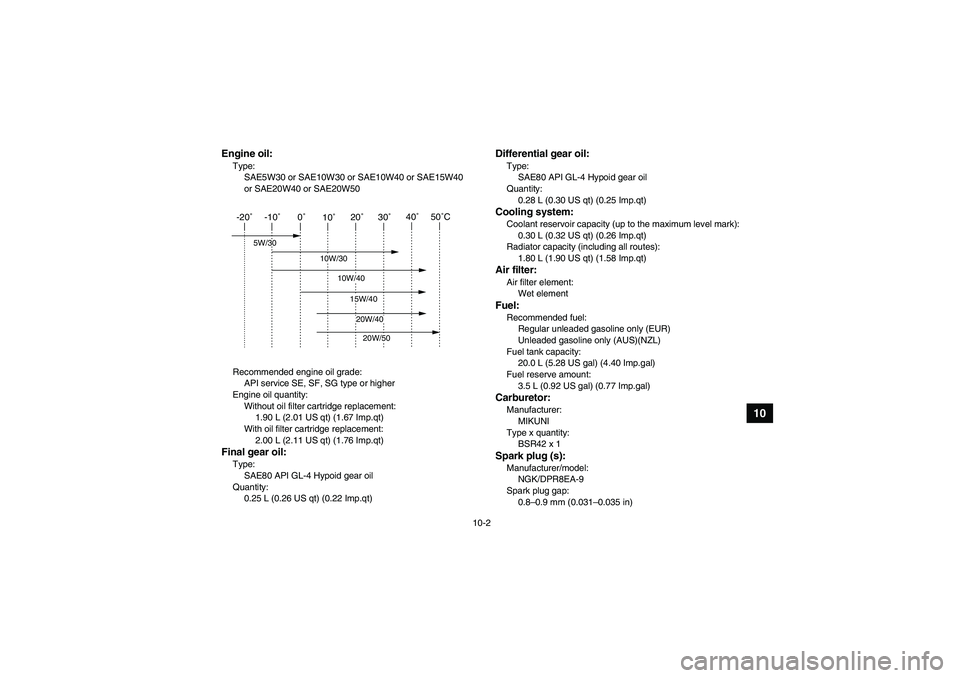

10-2
10
Engine oil:Type:
SAE5W30 or SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter cartridge replacement:
1.90 L (2.01 US qt) (1.67 Imp.qt)
With oil filter cartridge replacement:
2.00 L (2.11 US qt) (1.76 Imp.qt)Final gear oil:Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.25 L (0.26 US qt) (0.22 Imp.qt)
Differential gear oil:Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.28 L (0.30 US qt) (0.25 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.30 L (0.32 US qt) (0.26 Imp.qt)
Radiator capacity (including all routes):
1.80 L (1.90 US qt) (1.58 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only (EUR)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
20.0 L (5.28 US gal) (4.40 Imp.gal)
Fuel reserve amount:
3.5 L (0.92 US gal) (0.77 Imp.gal)Carburetor:Manufacturer:
MIKUNI
Type x quantity:
BSR42 x 1Spark plug (s):Manufacturer/model:
NGK/DPR8EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
U2C661E0.book Page 2 Thursday, March 16, 2006 10:45 AM

10-3
10
Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
41/21 × 24/18 × 33/9 (9.544)
Transmission type:
V-belt automatic
Operation:
Left hand operation
Reverse gear:
25/17 (1.471)
Low range:
35/17 (2.058)
High range:
26/21 (1.238)Chassis:Frame type:
Steel tube frame
Caster angle:
5.0 °
Trail:
26.0 mm (1.02 in)Front tire:Type:
TubelessSize:
AT25 x 8-12
Manufacturer/model:
CHENG SHIN/C828-4P (AUS)(NZL)
DUNLOP/KT131 (EUR)
Rear tire:Type:
Tubeless
Size:
AT25 x 10-12
Manufacturer/model:
CHENG SHIN/C828-4P (AUS)(NZL)
DUNLOP/KT135 (EUR)Loading:Maximum load:
220.0 kg (485 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
35 kPa (5.0 psi) (0.35 kgf/cm²)
Rear:
30 kPa (4.3 psi) (0.30 kgf/cm²)
Minimum:
Front:
32 kPa (4.6 psi) (0.32 kgf/cm²)
Rear:
27 kPa (3.9 psi) (0.27 kgf/cm²)
Maximum:
Front:
38 kPa (5.5 psi) (0.38 kgf/cm²)
U2C661E0.book Page 3 Thursday, March 16, 2006 10:45 AM

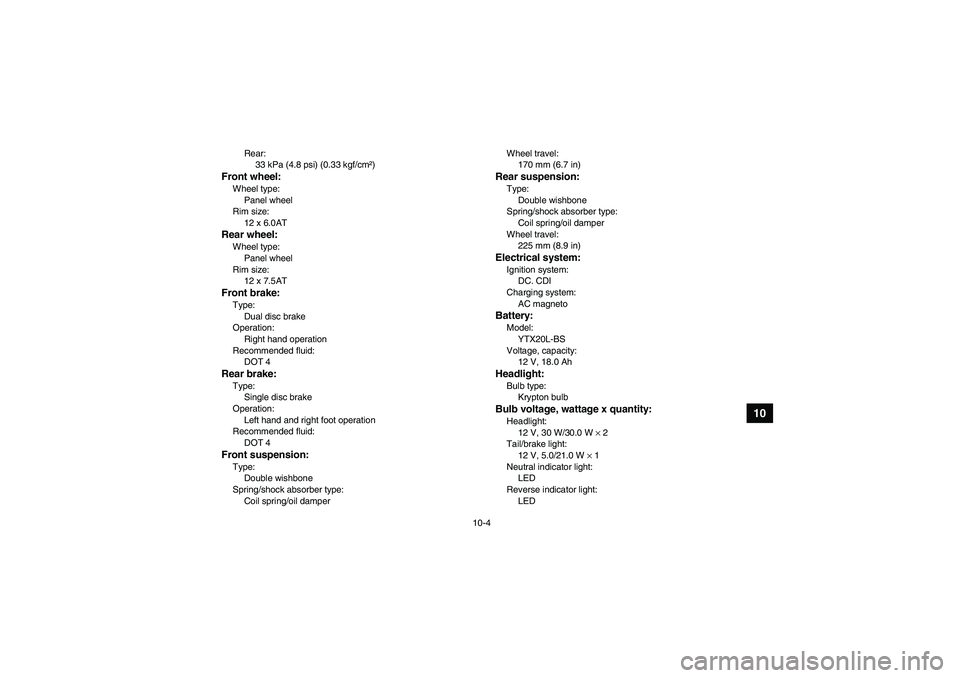

10-4
10
Rear:
33 kPa (4.8 psi) (0.33 kgf/cm²)
Front wheel:Wheel type:
Panel wheel
Rim size:
12 x 6.0ATRear wheel:Wheel type:
Panel wheel
Rim size:
12 x 7.5ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand and right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damperWheel travel:
170 mm (6.7 in)
Rear suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
225 mm (8.9 in)Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
YTX20L-BS
Voltage, capacity:
12 V, 18.0 AhHeadlight:Bulb type:
Krypton bulbBulb voltage, wattage x quantity:Headlight:
12 V, 30 W/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Neutral indicator light:
LED
Reverse indicator light:
LED
U2C661E0.book Page 4 Thursday, March 16, 2006 10:45 AM

10-5
10

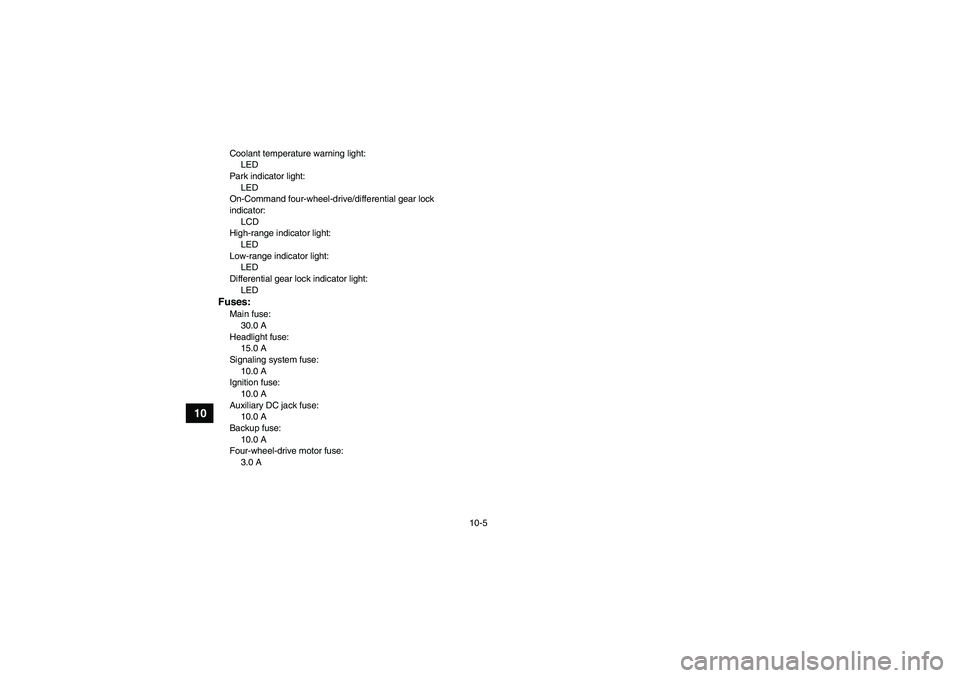

Coolant temperature warning light:
LED
Park indicator light:
LED
On-Command four-wheel-drive/differential gear lock
indicator:
LCD
High-range indicator light:
LED
Low-range indicator light:
LED
Differential gear lock indicator light:
LEDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Auxiliary DC jack fuse:
10.0 A
Backup fuse:
10.0 A
Four-wheel-drive motor fuse:
3.0 A
U2C661E0.book Page 5 Thursday, March 16, 2006 10:45 AM

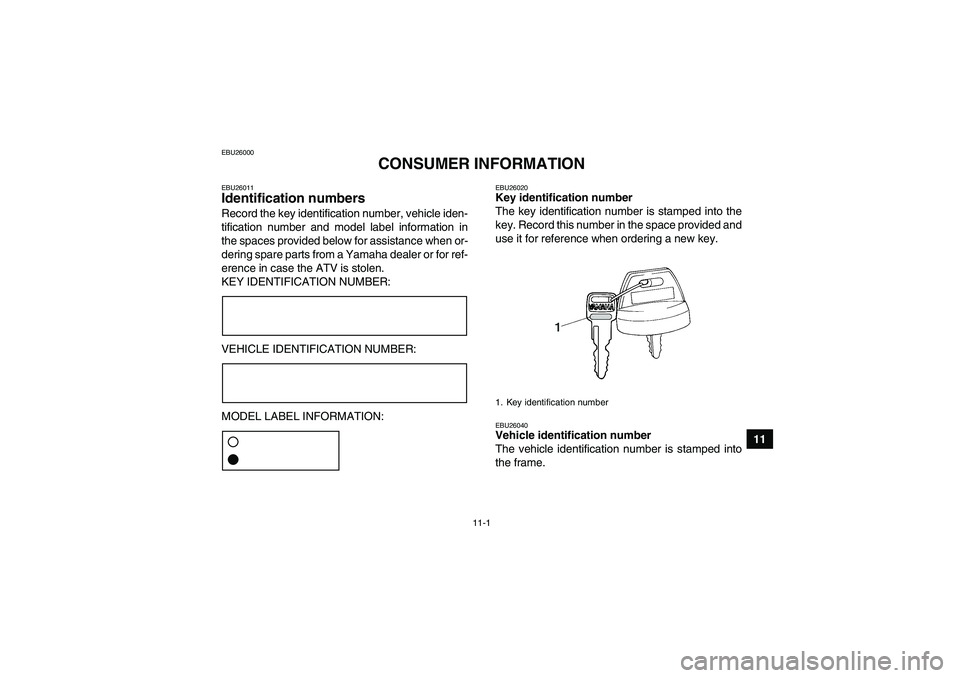

11-1
11
EBU26000
CONSUMER INFORMATION
EBU26011Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.EBU26040Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
U2C661E0.book Page 1 Thursday, March 16, 2006 10:45 AM

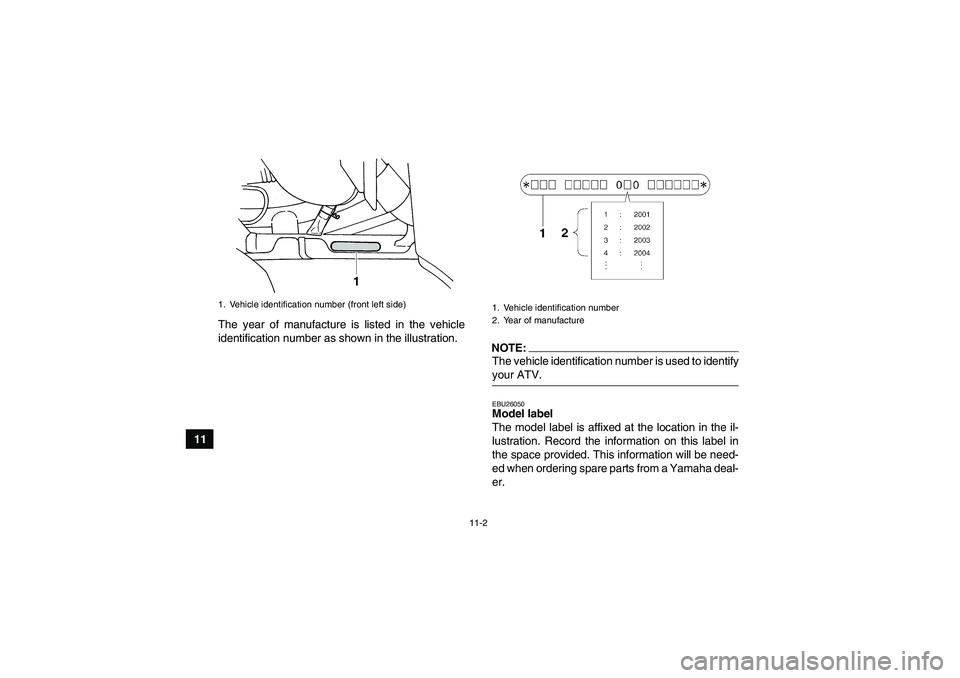

11-2
11The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
NOTE:The vehicle identification number is used to identifyyour ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number (front left side)
1. Vehicle identification number
2. Year of manufacture
