YAMAHA GRIZZLY 700 2013 Owners Manual

YFM7FGD/YFM7FGPD/YFM7FGPHD
YFM7FGPAD/YFM7FGPSED/YFM7FGPLED YFM700FAPD/YFM700FAPSED
OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE
MANUAL DEL PROPIETARIO
1HP-F8199-61
READ THIS MANUAL CAREFULLY!
It contains important safety information.
LIRE ATTENTIVEMENT CE MANUEL!
Il comprend d’importantes informations de sécurité.
¡LEA ESTE MANUAL ATENTAMENTE!
Contiene indicaciones importantes acerca de la seguridad.
DIC183

PRINTED IN USA
2012.04-0.6×1 CR (E,F,S)
DIC183

READ THIS MANUAL CAREFULLY!
It contains important safety information.
WARNING
OWNER’S MANUAL
YFM7FGD/YFM7FGPD/YFM7FGPHD
YFM7FGPAD/YFM7FGPSED/YFM7FGPLED
YFM700FAPD/YFM700FAPSED
This ATV should not be ridden by anyone under 16 years of age.
1HP-F8199-61-E0
U1HP61E0.book Page 1 Thursday, April 5, 2012 3:33 PM

EBU27858
Read this manual carefully before operating this vehicle. This manual should stay with this ve-
hicle if it is sold.
EN15997, ANSI/SVIA 1-2010
General Manager
RV Engineering Division
Recreational Vehicle Business Unit
Business Development Operations
YAMAHA MOTOR CO., LTD.
29 February, 2012
We, YAMAHA MOTOR CO., LTD. 2500 Shingai, Iwata, Japan,
declare in sole responsibility, that the product
(Make, model)
(If applicable)
and to the other relevant Directives of EEC
2004/108/EC
(Title and/or number and date of issue of the other Directives of EEC)
(If applicable)YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
Signature
Eiji Kato
Date of Issue
to which this declaration applies, conforms to the essential health
and safety requirements of Directive 2006/42/EC
To effect correct application of the essential health and safety requirements
stated in the Directives of EEC, the following-standards and/or technical
specifications were consulted:
(Title and/or number and date of issue of standards and/or specifications)
Authorized Representative

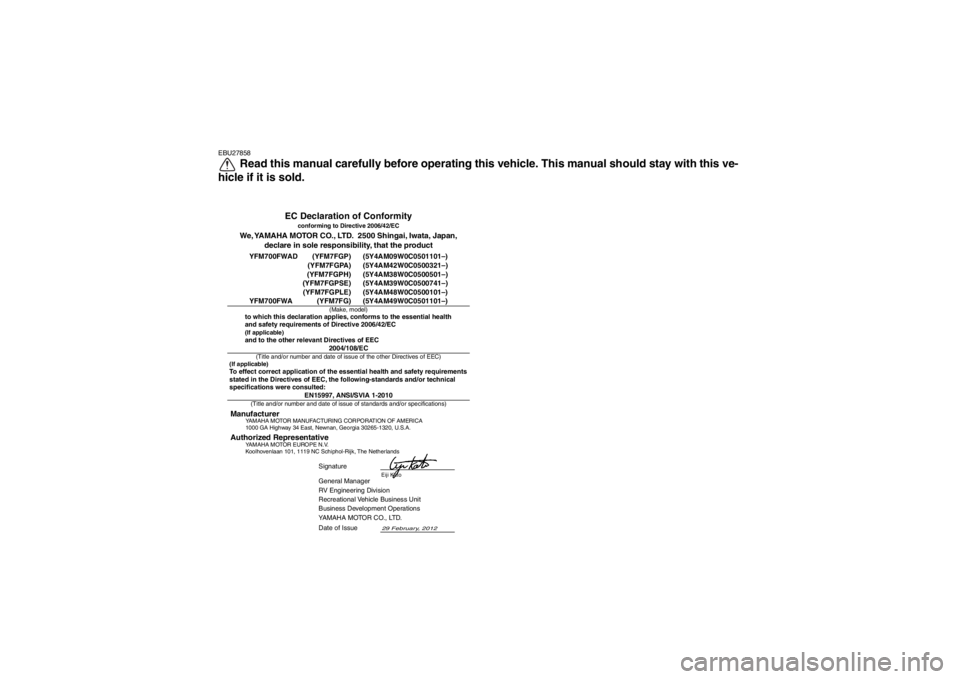

EC Declaration of Conformity
conforming to Directive 2006/42/EC
Manufacturer
YAMAHA MOTOR MANUFACTURING CORPORATION OF AMERICA
1000 GA Highway 34 East, Newnan, Georgia 30265-1320, U.S.A.YFM700FWAD (YFM7FGP) (5Y4AM09W0C0501101–) (YFM7FGPA) (5Y4AM42W0C0500321–)
(YFM7FGPH) (5Y4AM38W0C0500501–)
(YFM7FGPSE) (5Y4AM39W0C0500741–) (YFM7FGPLE) (5Y4AM48W0C0500101–)
YFM700FWA (YFM7FG) (5Y4AM49W0C0501101–)
U1HP61E0.book Page 1 Thursday, April 5, 2012 3:33 PM

EBU17170
INTRODUCTION
EBU17292Congratulations on your purchase of the Yamaha YFM7FGD/YFM7FGPD/YFM7FGPHD/YFM7FGPAD/
YFM7FGPSED/YFM7FGPLED/YFM700FAPD/YFM700FAPSED. This ATV represents the result of many
years of Yamaha experience in the production of fine sporting, touring, and pacesetting racing machines.
With the purchase of this Yamaha, you can now appreciate the high degree of craftsmanship and reliability
that have made Yamaha a leader in these fields.
This manual will provide you with a good basic understanding of the features and operation of this ATV.
This manual includes important safety information. It provides information about special tech-
niques and skills necessary to ride the ATV. It also includes basic maintenance and inspection proce-
dures. If you have any questions regarding the operation or maintenance of your ATV, please consult a
Yamaha dealer.
AN IMPORTANT SAFETY MESSAGE:●Read this manual completely before operating your ATV. Make sure you understand all instructions.●Pay close attention to the warning and notice labels on the ATV.●This ATV should not be ridden by anyone under 16 years of age.
U1HP61E0.book Page 1 Thursday, April 5, 2012 3:33 PM

EBU17330
IMPORTANT MANUAL INFORMATION
EBU17342FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.This is the safety alert symbol. It is used to alert you to potential per-
sonal injury hazards. Obey all safety messages that follow this sym-
bol to avoid possible injury or death.
A WARNING indicates a hazardous si
tuation which, if not avoided,
could result in death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIPU1HP61E0.book Page 1 Thursday, April 5, 2012 3:33 PM

EBU17350
IMPORTANT NOTICE
EBU17372This ATV is designed and manufactured for use on unpaved surfaces only. It is unsafe to operate this ATV
on any paved surface, paved street, paved road or motorway.
Please check your local riding laws and regulations before operating this ATV.
EBU17410
YFM7FGD/YFM7FGPD/YFM7FGPHD
YFM7FGPAD/YFM7FGPSED/YFM7FGPLED YFM700FAPD/YFM700FAPSED
OWNER’S MANUAL
©2012 by Yamaha Motor Co., Ltd. 1st edition, March 2012
All rights reserved.
Any reprinting or unauthorized use without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited. Printed in U.S.A.
U1HP61E0.book Page 1 Thursday, April 5, 2012 3:33 PM

EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1Left view ...................................................... 3-1
Right view.................................................... 3-1
Controls and instruments ............................ 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1 Main switch ................................................ 4-1
Indicator lights and warning lights .............. 4-2
Multi-function display .................................. 4-5
Handlebar switches .................................... 4-7
Throttle lever ............................................ 4-13
Speed limiter ............................................ 4-13
Front brake lever ...................................... 4-14
Brake pedal and rear brake lever ............. 4-14
Drive select lever ...................................... 4-15
Fuel tank cap ............................................ 4-15
Fuel .......................................................... 4-16
Seat .......................................................... 4-18 Storage compartments .............................4-18
Front carrier ..............................................4-21
Rear carrier ...............................................4-21
Adjusting the front and rear shock
absorber assemblies ...............................4-21
Auxiliary DC jack .......................................4-23
PRE-OPERATION CHECKS ..........................5-1 Fuel .............................................................5-3
Engine oil ....................................................5-3
Final gear oil ...............................................5-3
Differential gear oil ......................................5-3
Coolant .......................................................5-3
Front and rear brakes .................................5-3
Throttle lever ...............................................5-4
Tires ............................................................5-4
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7
OPERATION...................................................6-1 Starting the engine ......................................6-1
Operating the drive select lever and driving in reverse ......................................6-2
Engine break-in ...........................................6-4U1HP61E0.book Page 1 Thursday, April 5, 2012 3:33 PM

Parking ....................................................... 6-5
Parking on a slope ..................................... 6-5
Accessories and loading ............................ 6-6
RIDING YOUR ATV ...................................... 7-1 GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-17
CROSSING THROUGH SHALLOW WATER ................................................... 7-18
RIDING OVER ROUGH TERRAIN ........... 7-21
SLIDING AND SKIDDING ......................... 7-21
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-23
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1 Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for the emission control system ................ 8-3
General maintenance and lubrication chart ......................................................... 8-5 Removing and installing panels ................8-10
Removing the radiator grills ......................8-20
Checking the spark plug ...........................8-20
Engine oil and oil filter cartridge ................8-22
Final gear oil .............................................8-27
Differential gear oil ....................................8-29
Coolant .....................................................8-32
Cleaning the air filter element ...................8-39
Cleaning the spark arrester ......................8-43
V-belt case drain plug ...............................8-45
Adjusting the throttle lever free play .........8-45
Valve clearance ........................................8-46
Adjusting the drive select lever safety
system cable ...........................................8-46
Brakes .......................................................8-46
Checking the front and rear brake pads ...8-47
Checking the brake fluid level ...................8-48
Changing the brake fluid ...........................8-49
Checking the front and rear brake lever free play ..................................................8-49
Adjusting the brake pedal free play ..........8-50
Axle boots .................................................8-52
Checking and lubricating the cables .........8-53
Checking and lubricating the front and rear brake levers .....................................8-53
Checking and lubricating the brake pedal .......................................................8-54
U1HP61E0.book Page 2 Thursday, April 5, 2012 3:33 PM

Checking the wheel hub bearings ............ 8-55
Checking the stabilizer bushes ................ 8-55
Lubricating the rear knuckle pivots ........... 8-55
Lubricating the steering shaft ................... 8-56
Battery ...................................................... 8-56
Replacing a fuse ...................................... 8-59
Replacing a headlight bulb ....................... 8-61
Adjusting a headlight beam ...................... 8-63
Replacing the tail/brake light bulb ............ 8-63
Removing a wheel .................................... 8-64
Installing a wheel ...................................... 8-65
Troubleshooting ....................................... 8-66
Troubleshooting charts ............................. 8-67
CLEANING AND STORAGE .......................... 9-1 Cleaning ..................................................... 9-1
Storage ....................................................... 9-2
SPECIFICATIONS ...................................... 10-1
CONSUMER INFORMATION ...................... 11-1 Identification numbers .............................. 11-1
