Page 11 of 182
1-1
1
EBU38860
VEHICLE IDENTIFICATION
EBU28205Identification numbersRecord the vehicle identification number and
model label information in the spaces provided
below.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26032Vehicle identification number

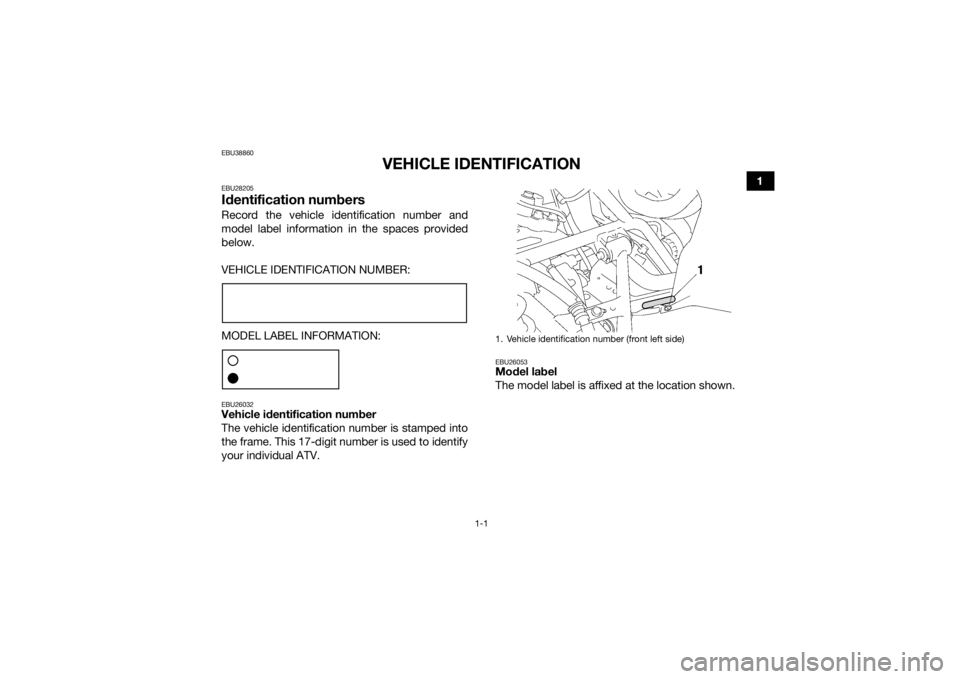

The vehicle identification number is stamped into
the frame. This 17-digit number is used to identify
your individual ATV.
EBU26053Model label
The model label is affixed at the location shown.1. Vehicle identification number (front left side)
UBDE60E0.book Page 1 Monday, April 22, 2019 4:12 PM
Page 12 of 182
1-2

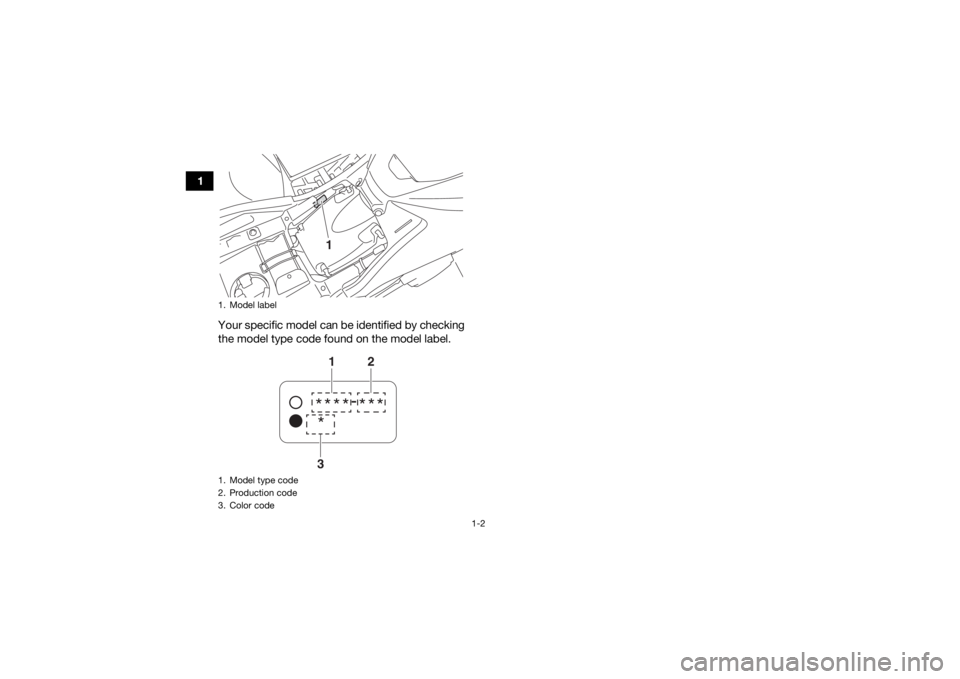

1Your specific model can be identified by checking
the model type code found on the model label.
1. Model label
1. Model type code
2. Production code
3. Color code
1*
****
-
***1
3
2
UBDE60E0.book Page 2 Monday, April 22, 2019 4:12 PM
Page 13 of 182
2-1
2
EBU29681

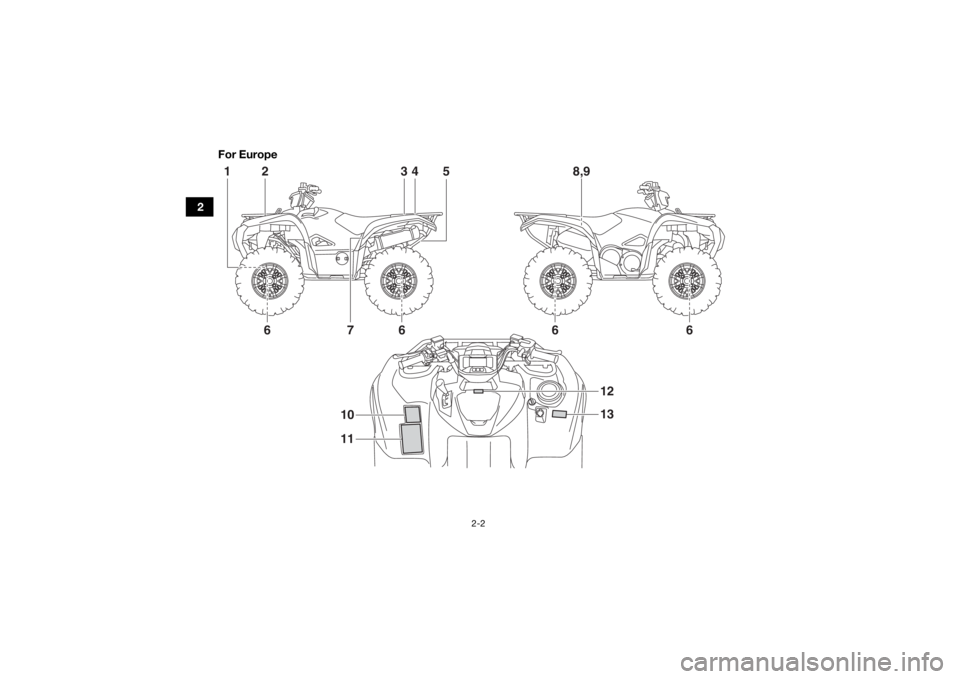

LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU37163Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a re-
placement label from your Yamaha dealer.UBDE60E0.book Page 1 Monday, April 22, 2019 4:12 PM
Page 14 of 182
2-2
2For Europe
2
13
45
7
6
6
8,9
6
6
13
12
10
11
UBDE60E0.book Page 2 Monday, April 22, 2019 4:12 PM
Page 15 of 182

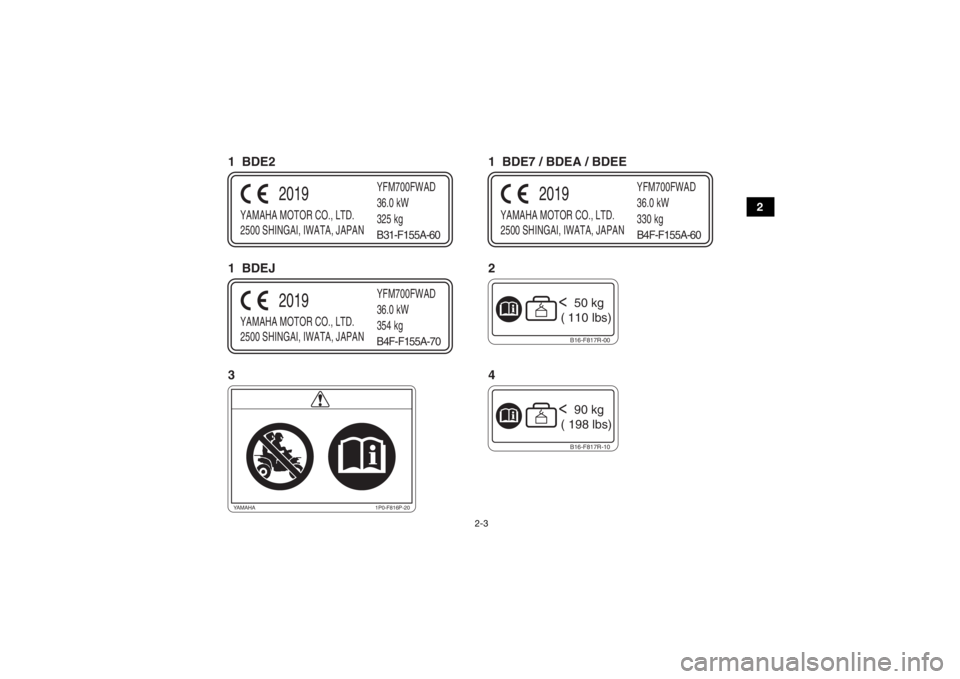

2-3
2
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWAD
36.0 kW
325 kg
2019
B31-F155A-60
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWAD
36.0 kW
330 kg
2019
B4F-F155A-60
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFM700FWAD
36.0 kW
354 kg
2019
B4F-F155A-70
B16-F817R-10< 90 kg
( 198 lbs)B16-F817R-00< 50 kg
( 110 lbs)
1P0-F816P-20
YAMAHA
1 BDE2 1 BDE7 / BDEA / BDEE
1 BDEJ 2
34
UBDE60E0.book Page 3 Monday, April 22, 2019 4:12 PM
Page 16 of 182

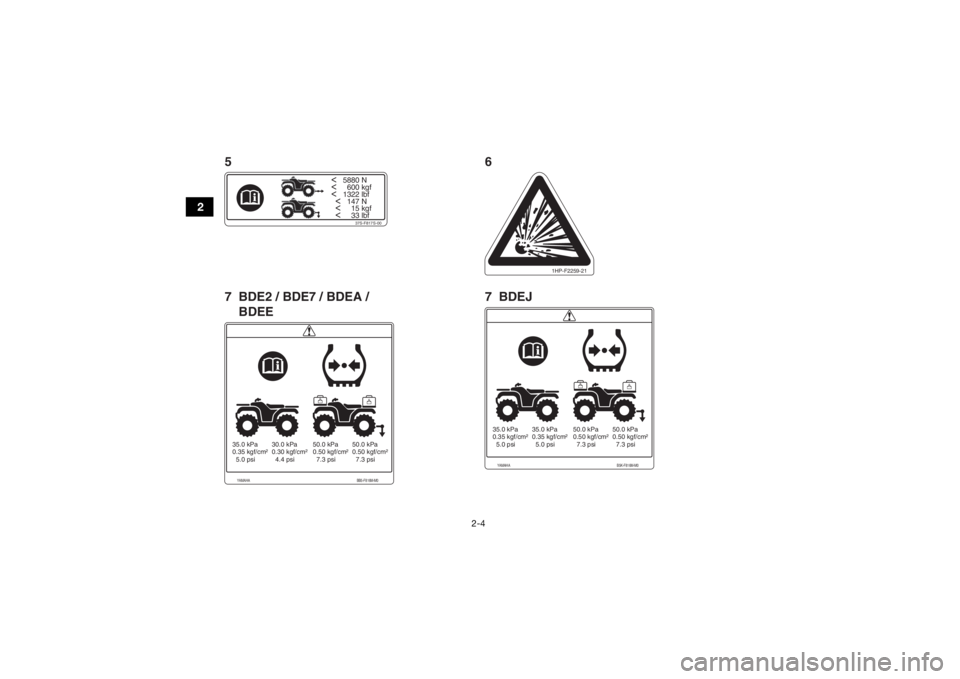

2-4
2
< 5880 N< 600 kgf< 1322 lbf
< 147 N
< 15 kgf
< 33 lbf
37S-F817S-00
1HP-F2259-21
YAMAHA BB5-F816M-M035.0 kPa
0.35 kgf/cm²
5.0 psi30.0 kPa
0.30 kgf/cm²
4.4 psi 50.0 kPa
0.50 kgf/cm²
7.3 psi50.0 kPa
0.50 kgf/cm²
7.3 psi
YAMAHA
B5K-F816M-M035.0 kPa
0.35 kgf/cm²
5.0 psi35.0 kPa
0.35 kgf/cm²
5.0 psi 50.0 kPa
0.50 kgf/cm²
7.3 psi50.0 kPa
0.50 kgf/cm²
7.3 psi
5
7 BDE2 / BDE7 / BDEA /
BDEE 7 BDEJ 6UBDE60E0.book Page 4 Monday, April 22, 2019 4:12 PM

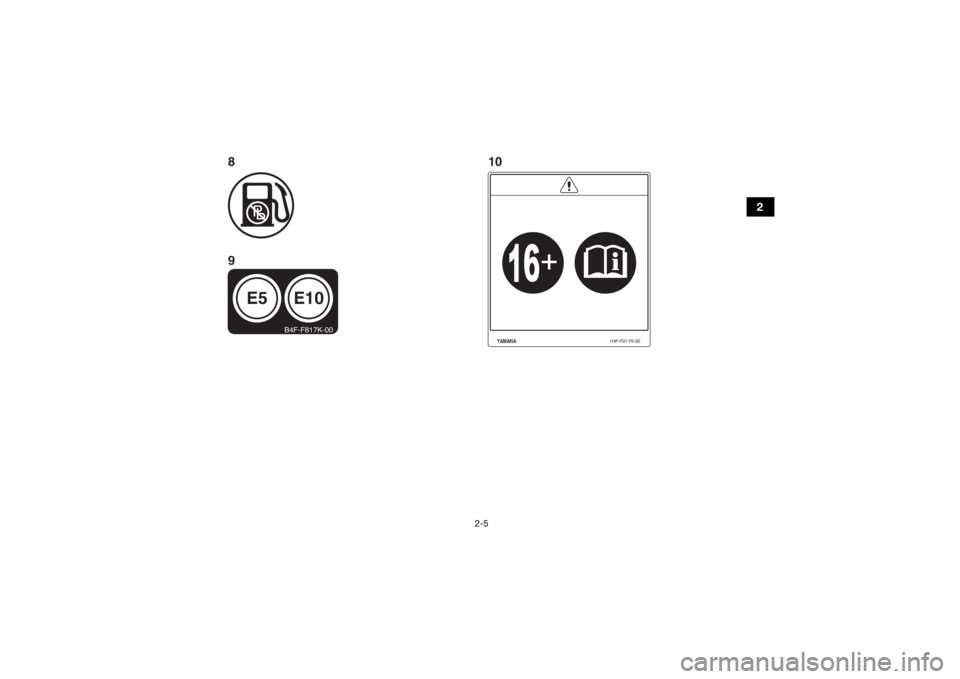

Page 17 of 182
2-5
2
YAMAHA
1HP-F811R-00
E10
E5
B4F-F817K-00
10
8
9
UBDE60E0.book Page 5 Monday, April 22, 2019 4:12 PM
Page 18 of 182

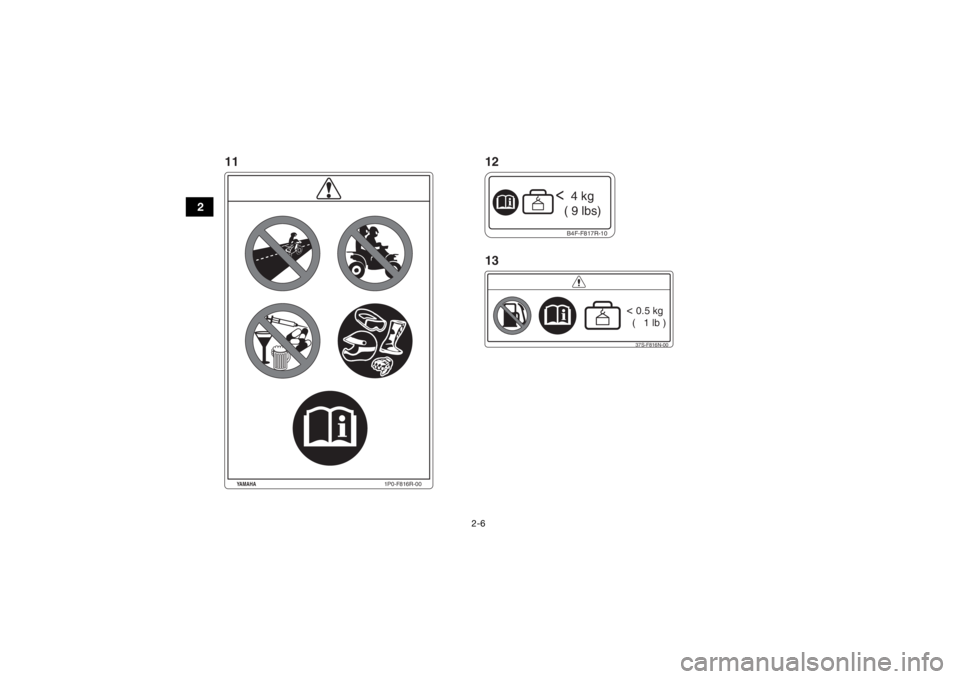

2-6
2
37S-F816N-00< 0.5 kg
( 1 lb )
B4F-F817R-10< 4 kg
( 9 lbs)
1P0-F816R-00
YAMAHA
12
13
11
UBDE60E0.book Page 6 Monday, April 22, 2019 4:12 PM
Page 19 of 182

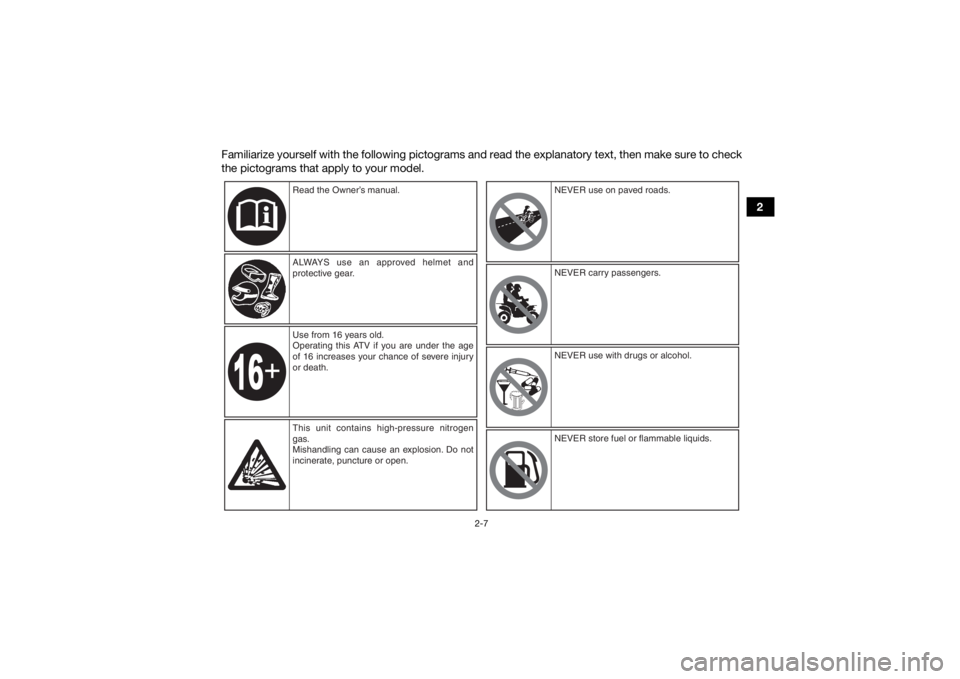

2-7
2
Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death. NEVER use on paved roads.
NEVER carry passengers.
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
UBDE60E0.book Page 7 Monday, April 22, 2019 4:12 PM
Page 20 of 182

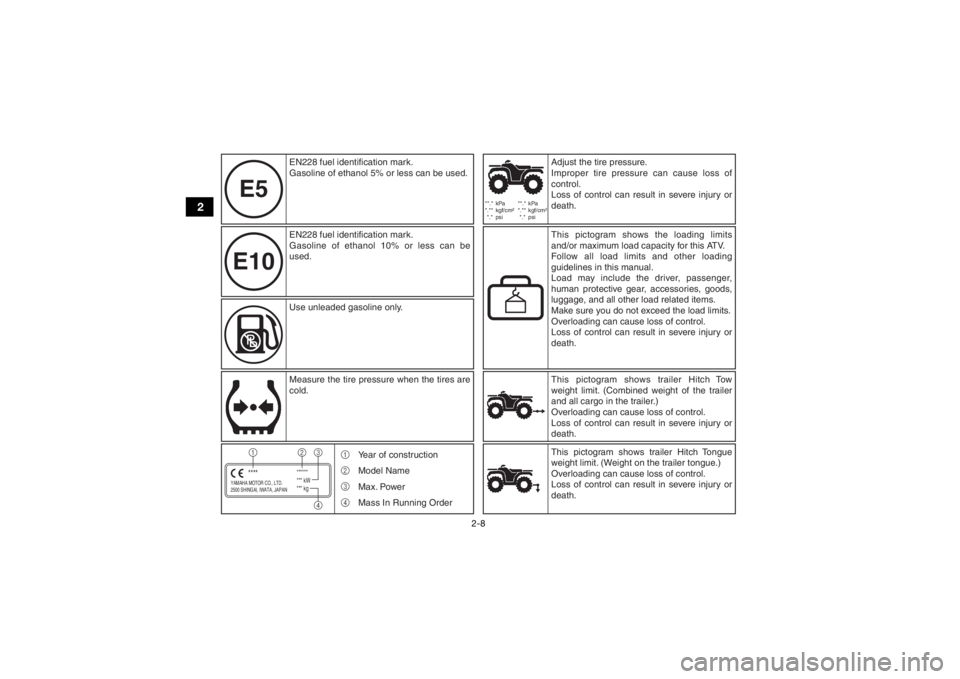

2-8
2
E10E5
**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
34 This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
EN228 fuel identification mark.
Gasoline of ethanol 10% or less can be
used. EN228 fuel identification mark.
Gasoline of ethanol 5% or less can be used.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold. Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death.
This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
1
2
3
4 Year of construction
Model Name
Max. Power
Mass In Running Order
UBDE60E0.book Page 8 Monday, April 22, 2019 4:12 PM
