SAFETY INFORMATION
1-4
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket pro-
ducts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifica-
tions performed to your vehicle that
change any of the vehicle’s design or
operation characteristics can put you
and others at greater risk of serious
injury or death. You are responsible
for injuries related to changes in the
vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
●Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduceground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-
ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-edom of movement of the ope-
rator and may limit control abi-
lity, therefore, such accesso-
ries are not recommended.
●Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system,
an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
scooter were designed to match the
performance capabilities and to pro-
vide the best combination of hand-
ling, braking, and comfort. Other tires,
rims, sizes, and combinations may
not be appropriate. Refer to page
6-11 for tire specifications and more
information on replacing your tires.

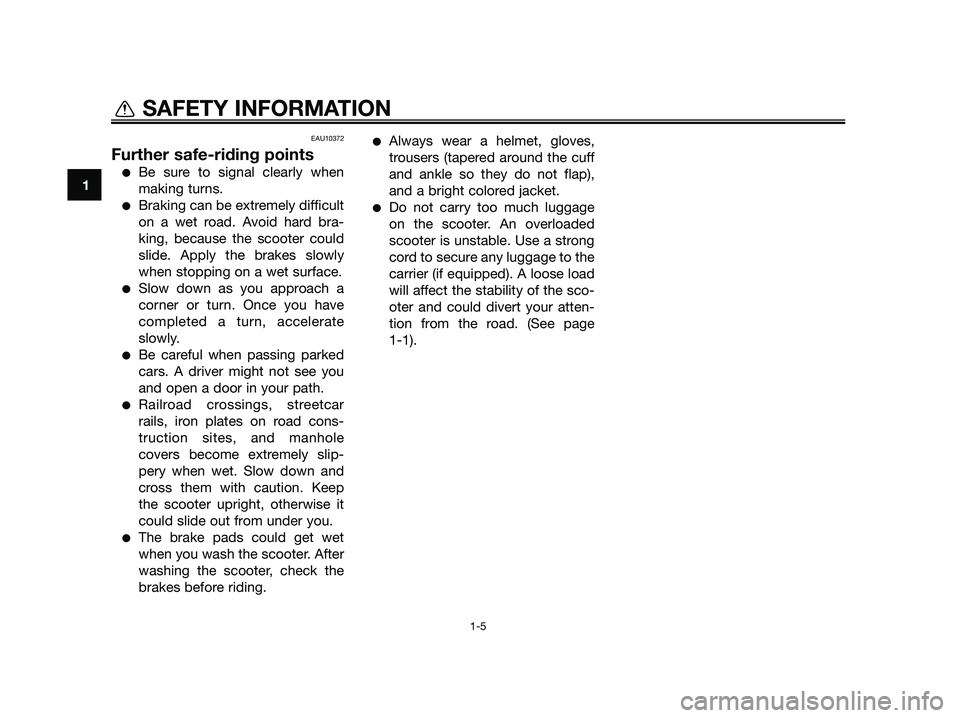

EAU10372
Further safe-riding points
●Be sure to signal clearly when
making turns.
●Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowly
when stopping on a wet surface.
●Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
●Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
●Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
●The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
●Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.
●Do not carry too much luggage
on the scooter. An overloaded
scooter is unstable. Use a strong
cord to secure any luggage to the
carrier (if equipped). A loose load
will affect the stability of the sco-
oter and could divert your atten-
tion from the road. (See page
1-1).
1
SAFETY INFORMATION
1-5

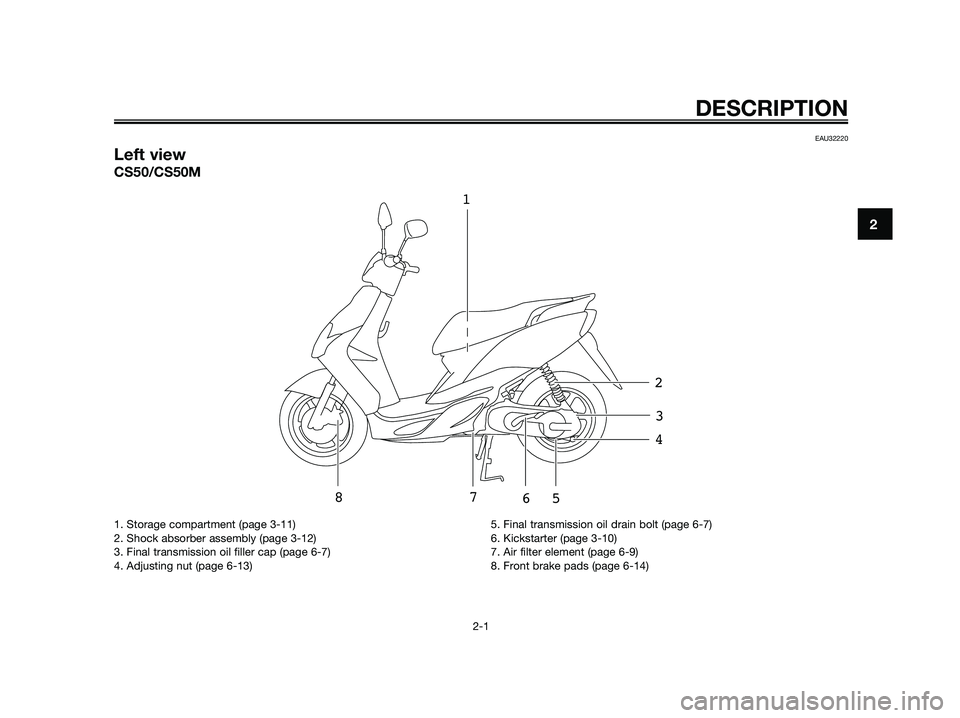

EAU32220
Left view
CS50/CS50M
1
2
3
4
5
6 7
8
DESCRIPTION
2-1
2
1. Storage compartment (page 3-11)
2. Shock absorber assembly (page 3-12)
3. Final transmission oil filler cap (page 6-7)
4. Adjusting nut (page 6-13)5. Final transmission oil drain bolt (page 6-7)
6. Kickstarter (page 3-10)
7. Air filter element (page 6-9)
8. Front brake pads (page 6-14)

CS50Z
1
2
3
4
5
6 7
9
8
DESCRIPTION
2-2
2
1. Storage compartment (page 3-11)
2. Shock absorber assembly (page 3-12)
3. Final transmission oil filler cap (page 6-7)
4. Adjusting nut (page 6-13)
5. Final transmission oil drain bolt (page 6-7)6. Kickstarter (page 3-10)
7. Air filter element (page 6-9)
8. Coolant level check window (page 6-8)
9. Front brake pads (page 6-14)

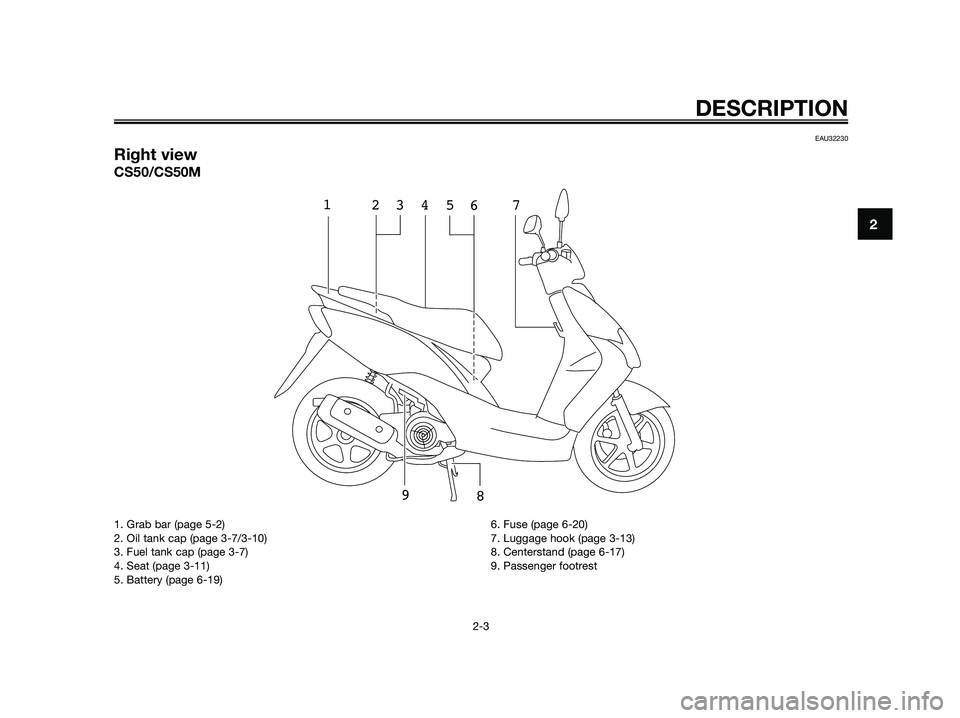

EAU32230
Right view
CS50/CS50M
1
3 24
67
9
85
DESCRIPTION
2-3
2
1. Grab bar (page 5-2)
2. Oil tank cap (page 3-7/3-10)
3. Fuel tank cap (page 3-7)
4. Seat (page 3-11)
5. Battery (page 6-19)6. Fuse (page 6-20)
7. Luggage hook (page 3-13)
8. Centerstand (page 6-17)
9. Passenger footrest

DESCRIPTION
2-4
2
1. Grab bar (page 5-2)
2. Oil tank cap (page 3-7/3-10)
3. Fuel tank cap (page 3-7)
4. Seat (page 3-11)
5. Battery (page 6-19)6. Fuse (page 6-20)
7. Luggage hook (page 3-13)
8. Coolant reservoir cap (page 6-8)
9. Centerstand (page 6-17)
10. Passenger footrest

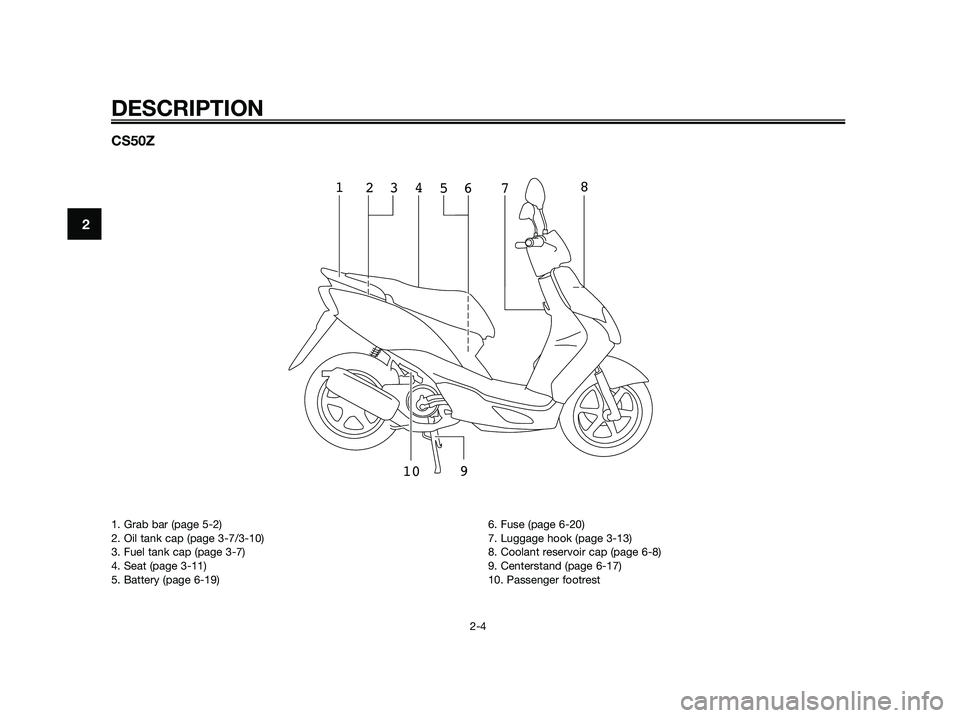

CS50Z
13 24
678
1095

DESCRIPTION
2-5
2
1. Rear brake lever (page 3-7)
2. Left handlebar switches (page 3-6)
3. Speedometer (page 3-3)
4. Multi-function display (page 3-4)5. Main switch/steering lock (page 3-1)
6. Right handlebar switch (page 3-6)
7. Throttle grip (page 6-10)
8. Front brake lever (page 3-6)

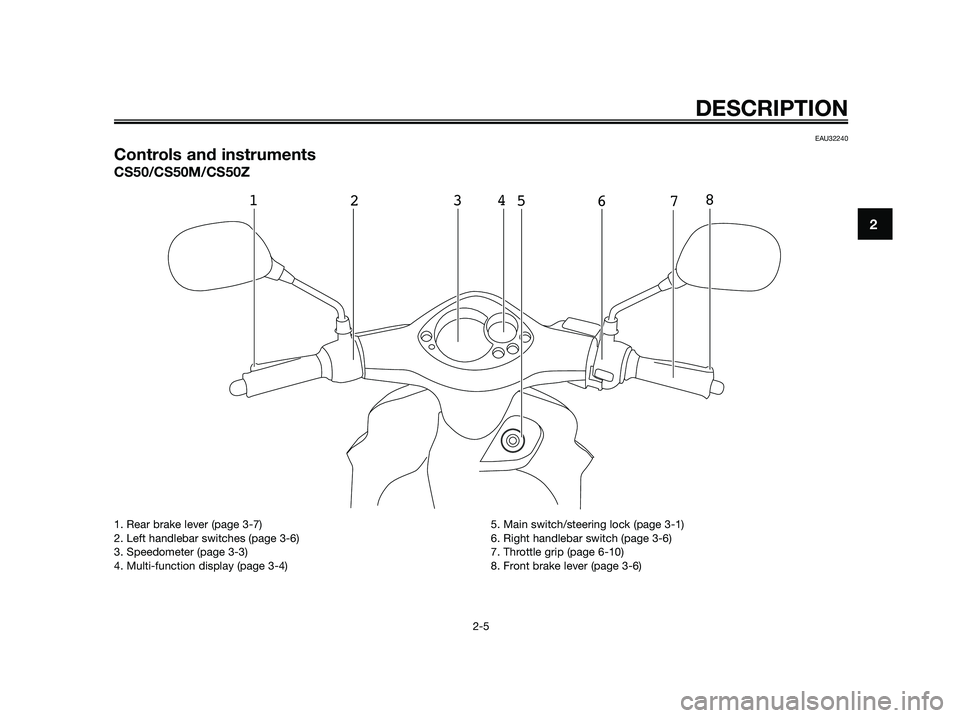

EAU32240
Controls and instruments
CS50/CS50M/CS50Z
1
234
5
678

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
“” ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
TIP
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10661
“” OFF
All electrical systems are off. The key
can be removed.
EWA10061
sWARNING
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU10670
The 2-stroke engine oil level warning
light should come on. (See page 3-2).
EAU10681
“ ” LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.T
o lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ”
position, and then turn it to “ ”
while still pushing it.
3. Remove the key.

To unlock the steering
1. Push.
2. Turn.
1. Push the key in, and then turn it
to “ ” while still pushing it.
EAU11003
Indicator and warning lights
1. Left turn signal indicator light “ ”
2. Oil level warning light “ ”
3. High beam indicator light “ ”
4. Right turn signal indicator light “ ”1. Left turn signal indicator light “ ”
2. Coolant temperature warning light “ ”
3. Oil level warning light “ ”
4. High beam indicator light “ ”
5. Right turn signal indicator light “ ”
EAU11030
Turn signal indicator lights “ ”
and “ ”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “ ”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
km/h
01020304050607080
14
3 25
CS50Z
km/h
01020304050607080
143 2
CS50/CS50M1
2
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3

EAU11181
Oil level warning light “ ”
This warning light comes on when the
key is in the “ ” position or if the oil
level in the 2-stroke engine oil tank is
low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with
Yamalube 2 or equivalent 2-stroke
engine oil of either JASO grade “FC”
or ISO grades “EG-C” or “EG-D”. The
warning light should go off after the 2-
stroke engine oil tank has been refi-
lled.
TIP
If the warning light does not come on
when the key is in the “ ” position
or does not go off after the 2-stroke
engine oil tank has been refilled, have
a Yamaha dealer check the electrical
circuit.
ECA16291
NOTICE
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.
EAUS1530
Speedometer
1. Speedometer
1. Speedometer
1. Speedometer
1. Speedometer
The speedometer shows the riding
speed.
k m/hmph
0
10
203040
50
01020304050 6 0 7 0 8 0
1
CS50Z (for UK only)
k m/hmph
0
10
203040
50
01020304050 6 0 7 0 8 0
1
CS50/CS50M (for UK only)
k m/h
010
20
30405060
70
80
1
CS50Z
k m/h
010
20
30405060
70
80
1
CS50/CS50M
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
