fuel filter YAMAHA JOG50R 2013 Owners Manual

SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-5
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-3
Controls and instruments .................2-5
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator and warning lights .............3-2
Turn signal indicator lights .............3-2
High beam indicator light .................3-2
Oil level warning light .......................3-3
Speedometer ....................................3-3
Multi-function display .......................3-4
Handlebar switches ..........................3-6
Dimmer switch ..................................3-6
Turn signal switch ............................3-6
Horn switch.......................................3-6
Start switch .......................................3-6
Front brake lever...............................3-6
Rear brake lever................................3-7
Fuel and 2-stroke engine oil
tank caps .......................................3-7
Fuel ...................................................3-8
Catalytic converter............................3-9
2-stroke engine oil ..........................3-10
Kickstarter.......................................3-10
Rider seat........................................3-11Storage compartment.....................3-11
Adjusting the shock absorber
assembly .....................................3-12
Luggage hook .................................3-13
FOR YOUR SAFETY–
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT
RIDING POINTS..................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE
AND ADJUSTMENT............................6-1
Periodic maintenance and
lubrication chart ............................6-2
Removing and installing the
cowling and panel .........................6-5
Checking the spark plug ..................6-6
Final transmission oil ........................6-7
Coolant .............................................6-8
Air filter element ................................6-9
Adjusting the carburetor .................6-10Adjusting the throttle cable free
play ..............................................6-10
Tires ................................................6-11
Cast wheels ....................................6-12
Checking the front brake lever
free play .......................................6-13
Adjusting the rear brake lever
free play .......................................6-13
Checking the front brake pads
and rear brake shoes ..................6-14
Checking the brake fluid level ........6-15
Changing the brake fluid ................6-16
Checking and lubricating the
throttle grip and cable .................6-16
Lubricating the front and rear
brake levers .................................6-16
Checking and lubricating the
centerstand .................................6-17
Checking the front fork ...................6-18
Checking the steering.....................6-18
Checking the wheel bearings .........6-19
Battery ............................................6-19
Replacing the fuse ..........................6-20
Replacing the headlight bulb
or a front turn signal light bulb ....6-21
Replacing the tail/brake light bulb
or a rear turn signal light bulb .....6-23
Replacing the license plate light
bulb .............................................6-24
Replacing an auxiliary light bulb.....6-24
Troubleshooting ..............................6-25
TABLE OF CONTENTS

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU17715
Periodic maintenance and lubrication chart
TIP
●The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK,
a mileage-based maintenance, is performed instead.
●From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).
●Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
1*Fuel line• Check fuel and vacuum hoses for
cracks or damage.√√√ √√
2Spark plug• Replace.√√√ √√
3Air filter element• Clean.√√• Replace.√√
• Check operation, fluid level and
4*Front brakevehicle for fluid leakage.√√ √√ √ √
• Replace brake pads. Whenever worn to the limit
• Check operation and adjust brake
5*Rear brakelever free play.√√ √√ √ √
• Replace brake shoes. Whenever worn to the limit
6*Brake hose• Check for cracks or damage.√√√ √√
• Replace. Every 4 years

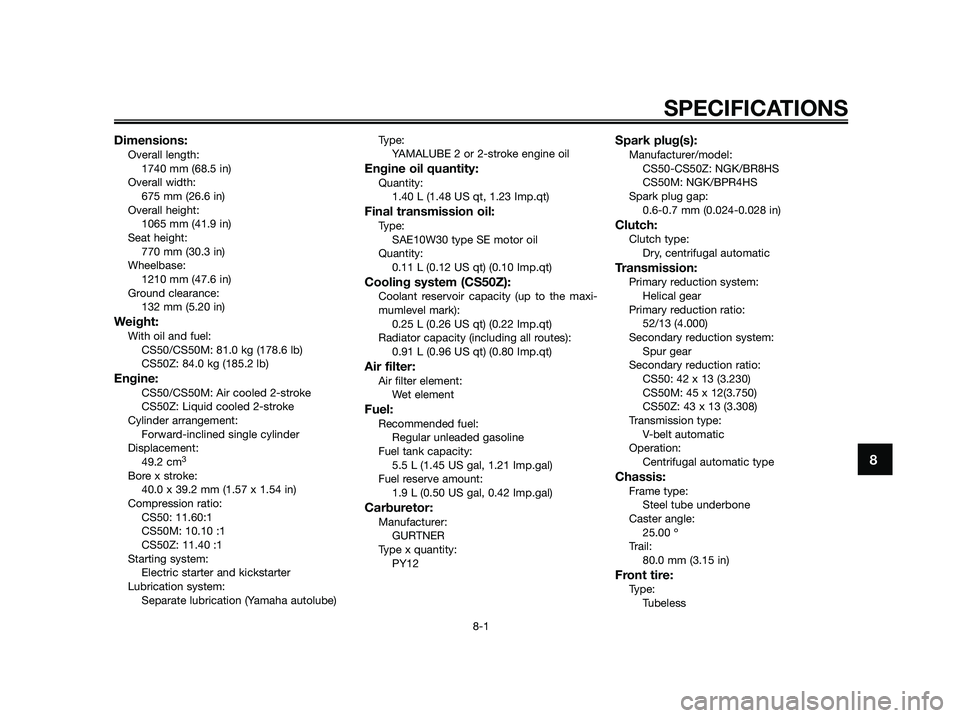

Dimensions:Overall length:
1740 mm (68.5 in)
Overall width:
675 mm (26.6 in)
Overall height:
1065 mm (41.9 in)
Seat height:
770 mm (30.3 in)
Wheelbase:
1210 mm (47.6 in)
Ground clearance:
132 mm (5.20 in)
Weight:With oil and fuel:
CS50/CS50M: 81.0 kg (178.6 lb)
CS50Z: 84.0 kg (185.2 lb)
Engine:CS50/CS50M: Air cooled 2-stroke
CS50Z: Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
49.2 cm
3
Bore x stroke:
40.0 x 39.2 mm (1.57 x 1.54 in)
Compression ratio:
CS50: 11.60:1
CS50M: 10.10 :1
CS50Z: 11.40 :1
Starting system:
Electric starter and kickstarter
Lubrication system:
Separate lubrication (Yamaha autolube)Type:
YAMALUBE 2 or 2-stroke engine oil
Engine oil quantity:Quantity:
1.40 L (1.48 US qt, 1.23 Imp.qt)
Final transmission oil:Type:
SAE10W30 type SE motor oil
Quantity:
0.11 L (0.12 US qt) (0.10 Imp.qt)
Cooling system (CS50Z):Coolant reservoir capacity (up to the maxi-
mumlevel mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
0.91 L (0.96 US qt) (0.80 Imp.qt)
Air filter:Air filter element:
Wet element
Fuel:Recommended fuel:
Regular unleaded gasoline
Fuel tank capacity:
5.5 L (1.45 US gal, 1.21 Imp.gal)
Fuel reserve amount:
1.9 L (0.50 US gal, 0.42 Imp.gal)
Carburetor:Manufacturer:
GURTNER
Type x quantity:
PY12
Spark plug(s):Manufacturer/model:
CS50-CS50Z: NGK/BR8HS
CS50M: NGK/BPR4HS
Spark plug gap:
0.6-0.7 mm (0.024-0.028 in)
Clutch:Clutch type:
Dry, centrifugal automatic
Transmission:Primary reduction system:
Helical gear
Primary reduction ratio:
52/13 (4.000)
Secondary reduction system:
Spur gear
Secondary reduction ratio:
CS50: 42 x 13 (3.230)
CS50M: 45 x 12(3.750)
CS50Z: 43 x 13 (3.308)
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic type
Chassis:Frame type:
Steel tube underbone
Caster angle:
25.00 º
Trail:
80.0 mm (3.15 in)
Front tire:Type:
Tubeless
SPECIFICATIONS
8-1
8

2-stroke engine oil ...................................3-10
AAcceleration and deceleration ...................5-2
Air filter element .........................................6-9
Auxiliary light bulb, replacing ...................6-24
BBattery......................................................6-19
Brake fluid level, checking .......................6-15
Brake fluid, changing ...............................6-16
Brake lever, front ........................................3-6
Brake lever, rear .........................................3-7
Brake levers, lubricating ..........................6-16
Brake pads and shoes, checking ............6-14
Braking .......................................................5-3
CCarburetor,adjusting.................................6-10
Care............................................................7-1
Catalytic converter .....................................3-9
Centerstand, checking and lubricating ....6-17
Coolant.......................................................6-8
Cowling and panel, removing
and installing............................................6-5
DDimmer switch ...........................................3-6
EEngine break-in ..........................................5-4
FFinal transmission oil .................................6-7
Front brake lever free play, checking.......6-13
Front fork, checking .................................6-18
Fuel ............................................................3-8
Fuel and 2-stroke engine oil tank caps .....3-7
Fuel consumption, tips for reducing ..........5-3
Fuse, replacing.........................................6-20
HHandlebar switches ...................................3-6
Headlight and front turn signal light
bulb, replacing .......................................6-21
High beam indicator light...........................3-2
Horn switch ................................................3-6
IIdentification numbers ...............................9-1
Indicator and warning lights ......................3-2
KKey identification number ..........................9-1
Kickstarter ................................................3-10
LLicense plate light bulb, replacing ...........6-24
Luggage hook ..........................................3-13
M
Main switch/steering lock ..........................3-1
Matte color, caution ...................................7-1
Model label ................................................9-2
Multi-function display ................................3-4
OOil level warning light .................................3-3
PParking .......................................................5-4
Part locations .............................................1-5
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake lever free play, adjusting .......6-13
Rider seat .................................................3-11
SSafe-riding points.......................................1-5
Safety information ......................................1-1Shock absorber assembly, adjusting.......3-12
Spark plug, checking .................................6-6
Specifications.............................................7-3
Speedometer .............................................3-3
Start switch ................................................3-6
Starting a cold engine ................................5-1
Starting off .................................................5-2
Steering, checking ...................................6-18
Storage.......................................................7-3
Storage compartment ..............................3-11
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-23
Throttle cable free play, adjusting ............6-10
Throttle grip and cable, checking and
lubricating ..............................................6-16
Tires .........................................................6-11
Troubleshooting .......................................6-25
Troubleshooting charts ............................6-26
Turn signal indicator lights .........................3-2
Turn signal switch ......................................3-6
VVehicle identification number .....................9-1
WWheel bearings, checking........................6-19
Wheels .....................................................6-12
INDEX
