YAMAHA KODIAK 450 2022 Owners Manual

9-11
9

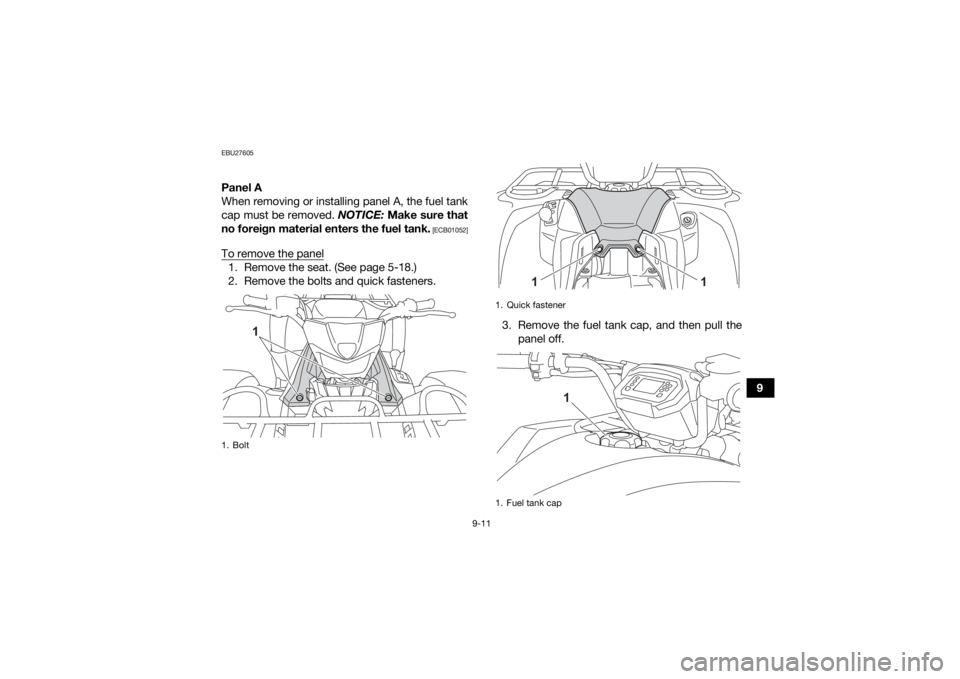

EBU27605Panel A
When removing or installing panel A, the fuel tank
cap must be removed. NOTICE: Make sure that
no foreign material enters the fuel tank.
[ECB01052]
To remove the panel1. Remove the seat. (See page 5-18.)
2. Remove the bolts and quick fasteners.
3. Remove the fuel tank cap, and then pull thepanel off.1. Bolt
1
1. Quick fastener
1. Fuel tank cap
1
1
1
UBHT60E0.book Page 11 Wednesday, August 4, 2021 8:09 AM

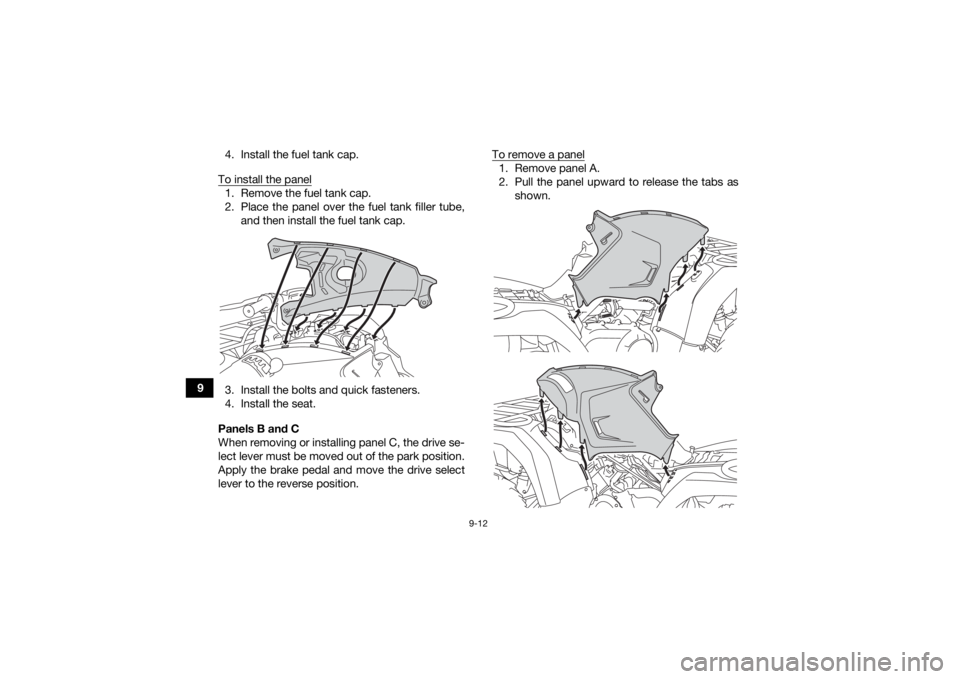

9-12
94. Install the fuel tank cap.
To install the panel
1. Remove the fuel tank cap.
2. Place the panel over the fuel tank filler tube, and then install the fuel tank cap.
3. Install the bolts and quick fasteners.
4. Install the seat.
Panels B and C
When removing or installing panel C, the drive se-
lect lever must be moved out of the park position.
Apply the brake pedal and move the drive select
lever to the reverse position. To remove a panel
1. Remove panel A.
2. Pull the panel upward to release the tabs as
shown.
UBHT60E0.book Page 12 Wednesday, August 4, 2021 8:09 AM

9-13
9

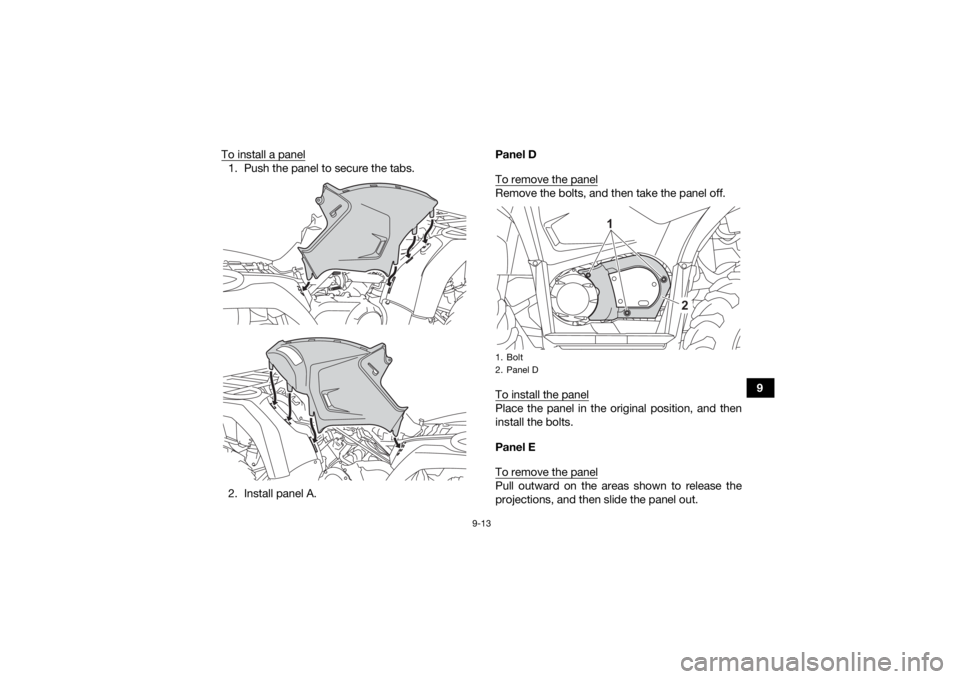

To install a panel
1. Push the panel to secure the tabs.
2. Install panel A. Panel D
To remove the panel
Remove the bolts, and then take the panel off.
To install the panelPlace the panel in the original position, and then
install the bolts.
Panel E
To remove the panelPull outward on the areas shown to release the
projections, and then slide the panel out.1. Bolt
2. Panel D
1
2
UBHT60E0.book Page 13 Wednesday, August 4, 2021 8:09 AM

9-14

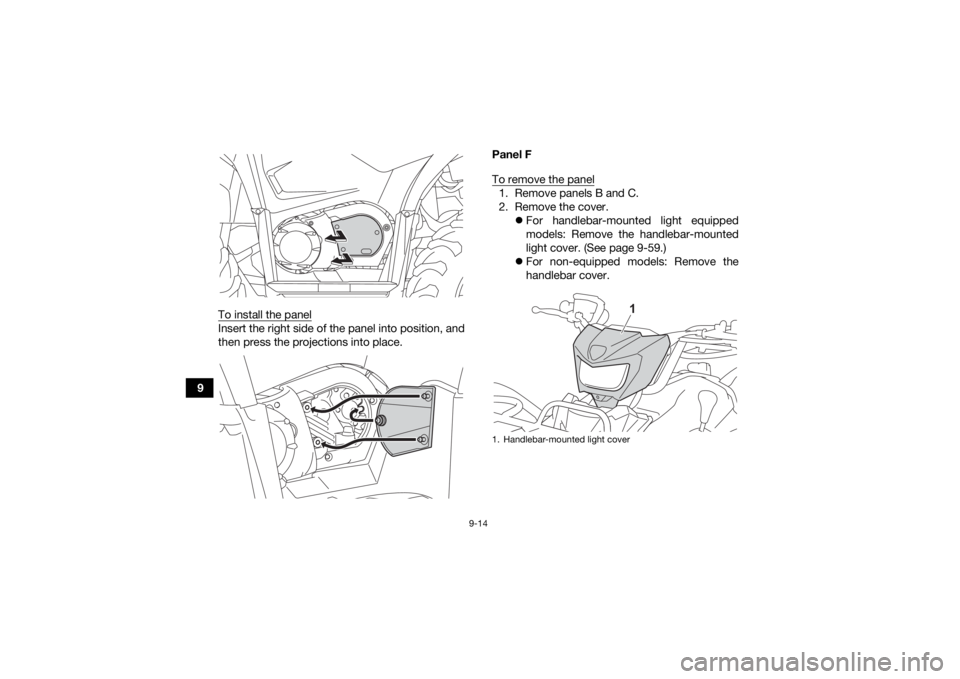

9To install the panel
Insert the right side of the panel into position, and
then press the projections into place. Panel F
To remove the panel
1. Remove panels B and C.
2. Remove the cover.
For handlebar-mounted light equipped
models: Remove the handlebar-mounted
light cover. (See page 9-59.)
 For non-equipped models: Remove the
handlebar cover.1. Handlebar-mounted light cover
1
UBHT60E0.book Page 14 Wednesday, August 4, 2021 8:09 AM

9-15
9

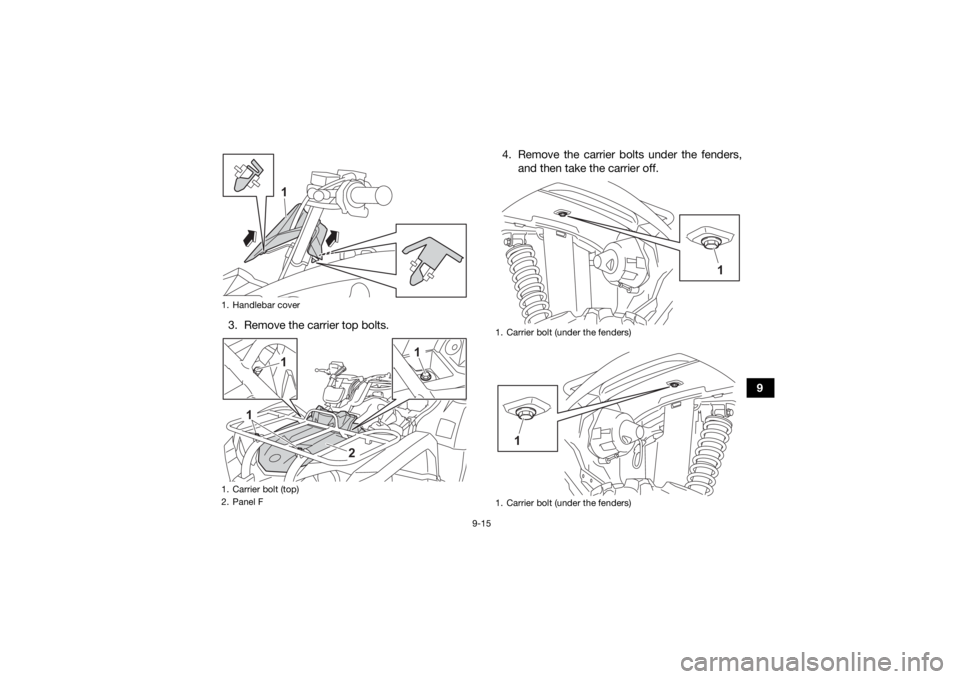

3. Remove the carrier top bolts. 4. Remove the carrier bolts under the fenders,
and then take the carrier off.
1. Handlebar cover
1. Carrier bolt (top)
2. Panel F
1
1
1
1
2
1. Carrier bolt (under the fenders)
1. Carrier bolt (under the fenders)
1
1
UBHT60E0.book Page 15 Wednesday, August 4, 2021 8:09 AM

9-16
95. Remove the quick fasteners.
6. Lift up the panel and disconnect the coupler.
To install the panel
1. Connect the coupler, and then place the pan-
el in the original position.
2. Install the quick fasteners.
3. Place the carrier in the original position, and then install the carrier bolts under the fenders.
4. Install the carrier top bolts, and then tighten all bolts to the specified torques.

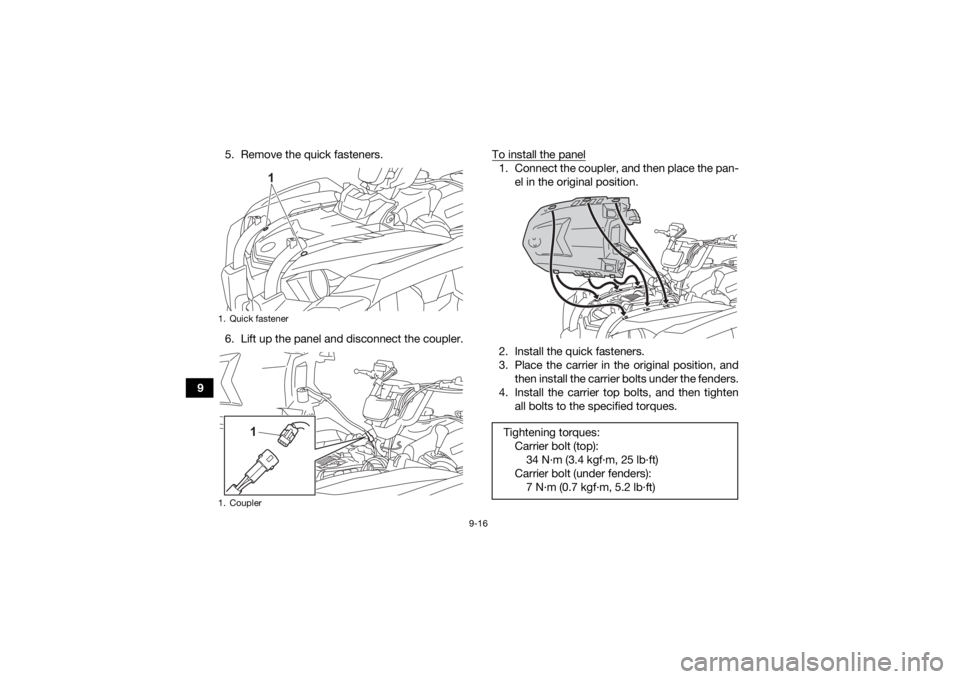

1. Quick fastener
1. Coupler
1
1
Tightening torquesWCarrier bolt (top)W34 N

9-17
9
5. Install the cover.
For handlebar-mounted light equipped
models: Install the handlebar-mounted
light cover.
 For non-equipped models: Install the han-
dlebar cover.
6. Install the panels.
EBU23216Checking the spark plugThe spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the
spark plug should be removed and checked in ac-
cordance with the periodic maintenance chart. In
addition, the condition of the spark plug can reveal
the condition of the engine.
To remove the spark plug 1. Remove the spark plug cap. 2. Remove the spark plug as shown, with the
spark plug wrench included in the tool kit.
1. Spark plug cap
1. Spark plug wrench
11
UBHT60E0.book Page 17 Wednesday, August 4, 2021 8:09 AM

9-18
9To check the spark plug
1. Check that the porcelain insulator around the center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV. 2. Check the spark plug for electrode erosionand excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap
to specification. To install the spark plug
1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tighten it to the specified
torque.
Specified spark plug:
NGK/DR7EA
1. Spark plug gapSpark plug gap:0.6–0.7 mm (0.024–0.028 in)
UBHT60E0.book Page 18 Wednesday, August 4, 2021 8:09 AM

9-19
9
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the speci-
fied torque as soon as possible. 3. Install the spark plug cap.EBU30245Engine oil and oil filter cartridgeThe engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
specified in the periodic maintenance chart.
To check the engine oil level1. Park the ATV on a level surface.
2. Remove panel E. (See page 9-10.)
3. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, warm up the engine, and then wait at least
ten minutes until the oil settles for an accurate
reading. 4. Remove the engine oil filler cap, and then wipe the dipstick with a clean rag.
5. Insert the dipstick into the filler hole (without screwing it in), and then remove it again to
check the oil level.
Tightening torque:
Spark plug:18 N

9-20
9
TIPThe engine oil should be between the tip of the
dipstick and the maximum level mark. 6. If the engine oil is not between the tip of thedipstick and the maximum level mark, add
sufficient oil of the recommended type to
raise it to the correct level. NOTICE: Be sure
the engine oil is at the correct level, other-
wise engine damage may result.
[ECB00852]
7. Check the filler cap O-ring for damage, and replace it if necessary.
8. Install the engine oil filler cap and the panel.
To change the engine oil (and replace the oil fil-
ter cartridge) 1. Park the ATV on a level surface.
2. Remove panel E. (See page 9-10.)
3. Start the engine, warm it up for several min- utes, and then turn it off.
4. Place an oil pan under the engine to collect the used oil.
5. Remove the engine oil filler cap, and then re- move the engine oil drain bolt and its gasket
to drain the oil from the crankcase.
1. Engine oil filler cap
2. O-ring
3. Engine oil dipstick
4. Maximum level mark
5. Tip of the engine oil dipstick
12345
