YAMAHA KODIAK 700 2017 Owner's Guide

3-2
3
EBU17714Controls and instrumentsYFM70KDXHYFM70KPXH / YFM70KPHH / YFM70KPSH /
YFM70KPAH1. Drive select lever
2. Rear brake lever
3. Handlebar switches
4. Horn switch
5. Drive lever “2WD”/“4WD”
6. Warning and indicator lights
7. Front brake fluid reservoir
8. Front brake lever
9. Throttle lever
10.Auxiliary DC jack
11.Main switch123
4 5 6 7 8 9 10 11
1. Drive select lever
2. Rear brake lever
3. Handlebar switches
4. Horn switch
5. Drive lever “2WD”/“4WD” (YFM70KPXH / YFM70KPHH /
YFM70KPAH)
6. Multi-function display
7. Front brake fluid reservoir
8. On-Command four-wheel-drive/differential gear lock switch (YFM70KPSH)
9. Front brake lever
10.Throttle lever
11.Auxiliary DC jack
12.Main switch123 67
8 9 10 11 12
45
UB1661E0.book Page 2 Thursday, May 12, 2016 2:47 PM

3-3
3
TIPThe ATV you have purchased may differ slightly
from the figures shown in this manual. UB1661E0.book Page 3 Thursday, May 12, 2016 2:47 PM

4-1
4
EBU17738
INSTRUMENT AND CONTROL FUNCTIONS
EBU29912Main switchThe positions of the main switch are as follows:
“” (on)
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
“ ” (off)
All electrical systems are off. The key can be re-
moved.
1. Main switch
1
UB1661E0.book Page 1 Thursday, May 12, 2016 2:47 PM

4-2
4
EBU26697Indicator lights and warning lightsYFM70KDXHYFM70KPXH / YFM70KPHH / YFM70KPSH /
YFM70KPAH1. Fuel level warning light “ ”
2. Engine trouble warning light “ ”
3. Coolant temperature warning light “ ”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. Four-wheel-drive indicator light “ ”
123456
7
1. On-Command differential gear lock indicator light “DIFF.
LOCK” (YFM70KPSH)
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. Four-wheel-drive indicator “ ”
8. On-Command differential gear lock indicator “ ” (YFM70KPSH)
9. Engine trouble warning light “ ”
10.Coolant temperature warning light “ ”
11.Electric Power Steering warning light “EPS”
7,8
1
2
3
4
5
6
91011
UB1661E0.book Page 2 Thursday, May 12, 2016 2:47 PM

4-3
4
EBU17992Low-range indicator light “ ” (YFM70KPXH /
YFM70KPHH / YFM70KPSH / YFM70KPAH)
This indicator light comes on when the transmis-
sion is in the low-range position.EBU17982High-range indicator light “ ” (YFM70KPXH /
YFM70KPHH / YFM70KPSH / YFM70KPAH)
This indicator light comes on when the transmis-
sion is in the high-range position.EBU17861Neutral indicator light “ ”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17831Reverse indicator light “ ”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU17971Park indicator light “ ”
This indicator light comes on when the transmis-
sion is in the park position.
EBU34560Coolant temperature warning light “ ”
This warning light comes on when the engine
overheats. When this occurs during operation,
stop the engine as soon as it is safe to do so and
allow it to cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The
warning light should come on for a few seconds,
and then go off.
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning
light remains on, have a Yamaha dealer check the
electrical circuit.NOTICEECB02400The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
 The engine may also overheat if mud or dirt
has accumulated on the radiator (i.e., after
riding in wet terrain). In this case, have a
Yamaha dealer clean the radiator.
UB1661E0.book Page 3 Thursday, May 12, 2016 2:47 PM

4-4
4
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.
EBU29933Fuel level warning light “ ” (YFM70KDXH)
This warning light comes on when the fuel level
drops below approximately 4.0 L (1.06 US gal,
0.88 Imp.gal). When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light can be
checked by setting the engine stop switch to “ ”
and turning the key to “ ” (on). The warning light
should come on for a few seconds, and then go
off.
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning
light remains on, have a Yamaha dealer check the
electrical circuit.
EBU27287Engine trouble warning light “ ”
YFM70KDXH
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnosis system.
YFM70KPXH / YFM70KPHH / YFM70KPSH /
YFM70KPAH
This warning light comes on or flashes if a problem
is detected in the electrical circuit monitoring the
engine. When this occurs, the display will indicate
an error code (see page 4-9). Have a Yamaha
dealer check the self-diagnosis system.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The
warning light should come on for a few seconds,
and then go off.
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning
light remains on, have a Yamaha dealer check the
vehicle.
UB1661E0.book Page 4 Thursday, May 12, 2016 2:47 PM

4-5
4
EBU30571Electric Power Steering warning light “EPS”
(for EPS model)
This warning light comes on when the key is
turned to “ ” (on), and then goes off once the
engine is started. If the warning light remains on or
comes on after the engine is started, the EPS sys-
tem may not be working correctly. When this oc-
curs, have a Yamaha dealer check the EPS
system.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). If the
warning light does not come on, have a Yamaha
dealer check the electrical circuit.TIPIf the engine is stopped using the engine stop
switch and the key is in the “ ” (on) position,
the EPS warning light comes on to indicate that
the power assistance for the steering is not
functioning.
 If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protect
the EPS motor from overheating.
EBU34250Four-wheel-drive indicator light “ ”
(YFM70KDXH)
This indicator light comes on when the drive lever
is set to the “4WD” position.TIPDue to the synchronizing mechanism in the differ-
ential gear case, the light may not come on until
the ATV starts moving. Four-wheel-drive indicator “ ” (YFM70KPXH /
YFM70KPHH / YFM70KPSH / YFM70KPAH)
This indicator comes on when the drive lever or
the On-Command four-wheel-drive switch is set
to the “4WD” position.TIPDue to the synchronizing mechanism in the differ-
ential gear case, the indicator may not come on
until the ATV starts moving.
UB1661E0.book Page 5 Thursday, May 12, 2016 2:47 PM

4-6
4On-Command differential gear lock
indicator “ ” and indicator light “DIFF. LOCK”
(YFM70KPSH)
This indicator and indicator light come on when
the On-Command differential gear lock switch is
set to the “LOCK” position.
TIPWhen the On-Command differential gear lock
switch is set to “LOCK” or “4WD”, the
indicator “ ” and the indicator light “DIFF. LOCK”
will flash until the differential gear is completely
locked or unlocked. If the indicator and the indica-
tor light continue to flash, the differential is not
completely locked or unlocked. In this case, start
moving to allow time for the differential to lock or
unlock.

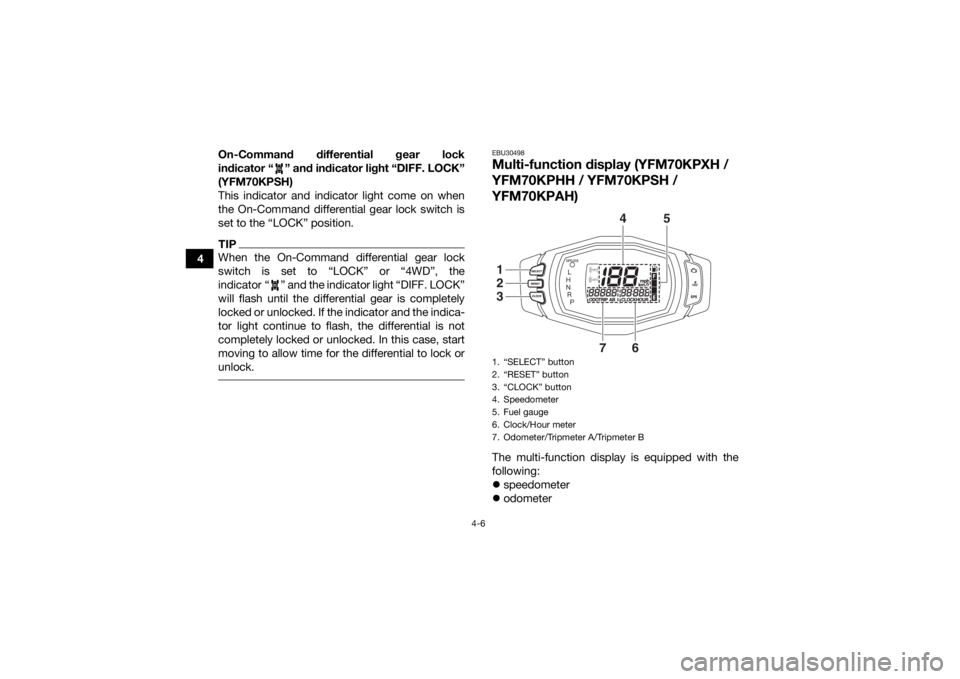

EBU30498Multi-function display (YFM70KPXH /
YFM70KPHH / YFM70KPSH /
YFM70KPAH)The multi-function display is equipped with the
following:

speedometer
 odometer1. “SELECT” button
2. “RESET” button
3. “CLOCK” button
4. Speedometer
5. Fuel gauge
6. Clock/Hour meter
7. Odometer/Tripmeter A/Tripmeter B
4
5
7
6
123
UB1661E0.book Page 6 Thursday, May 12, 2016 2:47 PM

4-7
4

two tripmeters
 clock
 hour meter
 fuel gauge
 error code display
Speedometer
The speedometer shows the vehicle’s traveling
speed. The speedometer can be set to “mph” or
“km/h”. This also changes the odometer and trip-
meter units between miles and kilometers. To
change the display between “mph” and “km/h”,
turn the key to “ ” (off), then while holding the
“SELECT” button pushed, turn the key to “ ”
(on).
Odometer and tripmeters
The odometer shows the total distance traveled
by the vehicle. The odometer can be used for
maintenance and service intervals.
The tripmeters show the distance traveled since
they were last reset. The tripmeters can be used to
record the distance traveled on a single trip, or to
estimate the distance that can be traveled with a
full tank of gas, etc. Push the “SELECT” button to switch between the
odometer “ODO” and the tripmeters “TRIP A” and
“TRIP B” in the following order:
ODO
→ TRIP A → TRIP B → ODO
To reset a tripmeter, set the display to the tripme-
ter you want to reset, then push the “RESET” but-
ton for three seconds.
TIP The odometer will lock at 99999.
 The tripmeters will reset and continue counting
after 9999.9 is reached. Clock and hour meter
The clock displays time in 12-hour format.
The hour meter shows the total time the engine
has been running.
Push the “CLOCK” button to switch between the
clock “CLOCK” and the hour meter mode
“HOUR” in the following order:
CLOCK → HOUR → CLOCK
To set the clock1. Set the display to the clock.
2. Push both the “SELECT” button and “RE- SET” button for three seconds. The hour dig-
its will start flashing.
UB1661E0.book Page 7 Thursday, May 12, 2016 2:47 PM

4-8
43. Push the “RESET” button to set the hours.
4. Push the “SELECT” button, and the minute
digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button and then release it to start the clock.
Fuel gauge
The fuel gauge indicates the amount of fuel in the
fuel tank. The display segments of the fuel gauge
disappear from “F” (full) towards “E” (empty) as
the fuel level decreases. When the “E” segment
disappears and the fuel level warning indicator
flashes, refuel as soon as possible.
TIPThe fuel gauge is equipped with a self-diagnosis
system. If the fuel gauge electrical circuit is not
working correctly, all display segments and the
fuel level warning indicator will flash repeatedly. If
this occurs, have a Yamaha dealer check the ve-
hicle.
1. Fuel level warning indicator
2. Fuel gauge
3. “E” segment
1
23
