YAMAHA KODIAK 700 2017 Workshop Manual

4-19
4

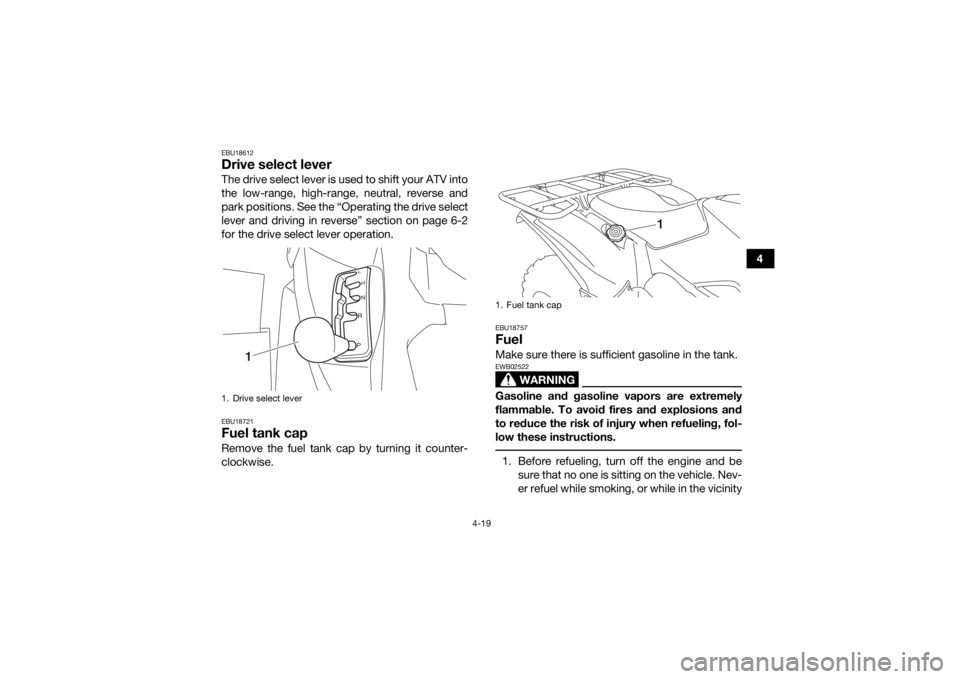

EBU18612Drive select leverThe drive select lever is used to shift your ATV into
the low-range, high-range, neutral, reverse and
park positions. See the “Operating the drive select
lever and driving in reverse” section on page 6-2
for the drive select lever operation.EBU18721Fuel tank capRemove the fuel tank cap by turning it counter-
clockwise.
EBU18757FuelMake sure there is sufficient gasoline in the tank.
WARNING
EWB02522Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions. 1. Before refueling, turn off the engine and besure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinity
1. Drive select lever
1
1. Fuel tank cap
1
UB1661E0.book Page 19 Thursday, May 12, 2016 2:47 PM

4-20
4of sparks, open flames, or other sources of
ignition such as the pilot lights of water heat-
ers and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel
reaches the bottom of the filler tube. Because
fuel expands when it heats up, heat from the
engine or the sun can cause fuel to spill out of
the fuel tank.
3. Wipe up any spilled fuel immediately.NOTICE: Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic
parts.
[ECB00982]
4. Turn the fuel tank cap fully clockwise to make sure it is securely closed.
WARNING
EWB02532Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow some
gasoline or inhale a lot of gasoline vapor, or get
some gasoline in your eyes, see your doctor

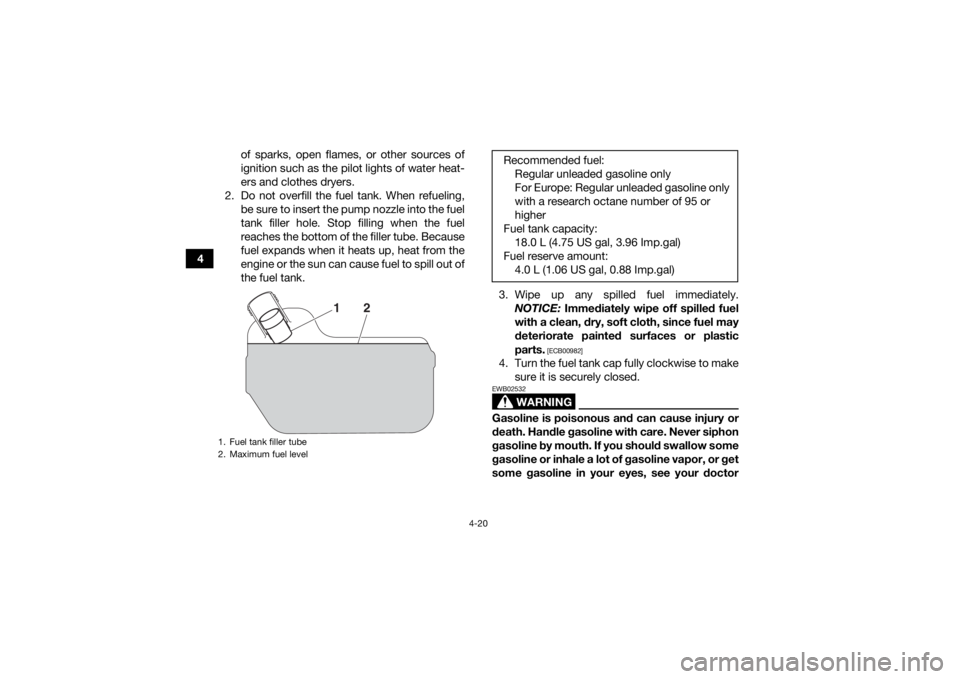

1. Fuel tank filler tube
2. Maximum fuel level
2
1
Recommended fuel:Regular unleaded gasoline only
For Europe: Regular unleaded gasoline only
with a research octane number of 95 or
higher
Fuel tank capacity: 18.0 L (4.75 US gal, 3.96 Imp.gal)
Fuel reserve amount: 4.0 L (1.06 US gal, 0.88 Imp.gal)
UB1661E0.book Page 20 Thursday, May 12, 2016 2:47 PM

4-21
4
immediately. If gasoline spills on your skin,
wash with soap and water. If gasoline spills on
your clothing, change your clothes.
NOTICEECB00071Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system. Your Yamaha engine has been designed to use
regular unleaded gasoline with a research octane
number of 91 or higher (95 or higher for Europe). If
knocking (or pinging) occurs, use a gasoline of a
different brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance costs.EBU34140SeatTo remove the seat
Pull up the seat at the rear, and then pull the seat
rearward. To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear. Make sure that the seat is securely fitted.
1. Seat
1
UB1661E0.book Page 21 Thursday, May 12, 2016 2:47 PM

4-22
4

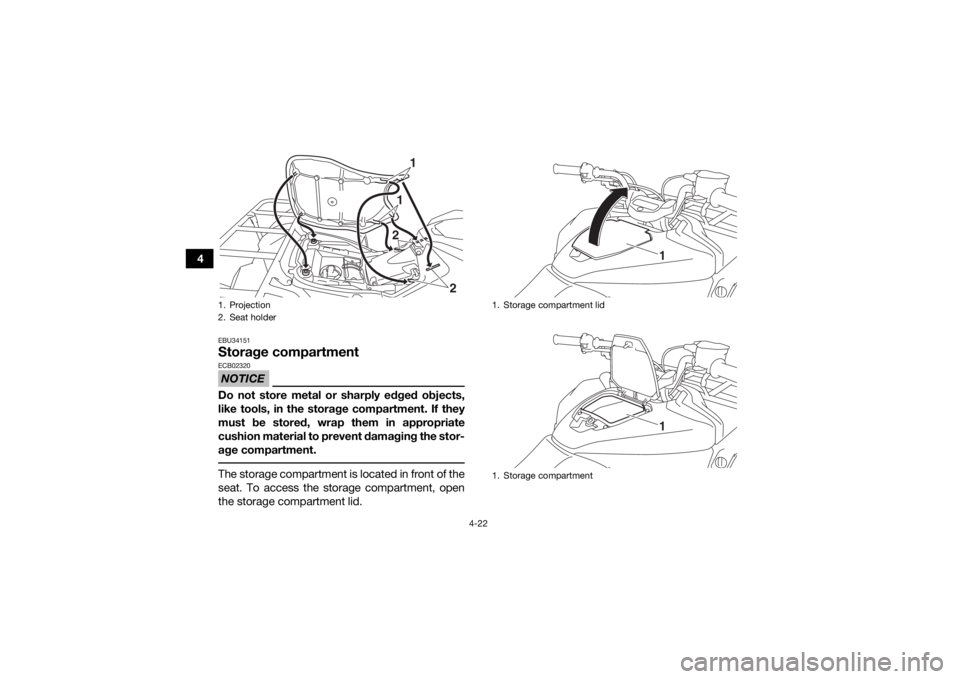

EBU34151Storage compartmentNOTICEECB02320Do not store metal or sharply edged objects,
like tools, in the storage compartment. If they
must be stored, wrap them in appropriate
cushion material to prevent damaging the stor-
age compartment. The storage compartment is located in front of the
seat. To access the storage compartment, open
the storage compartment lid.1. Projection
2. Seat holder
1
12
2
1. Storage compartment lid
1. Storage compartment
11
UB1661E0.book Page 22 Thursday, May 12, 2016 2:47 PM

4-23
4
When storing any documents in the storage com-
partment, be sure to wrap them in a plastic bag so
that they will not get wet. When washing the vehi-
cle, be careful not to let any water enter the stor-
age compartment.

Do not exceed the load limit of 4.0 kg (9 lb) for
the storage compartment.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the vehicle.

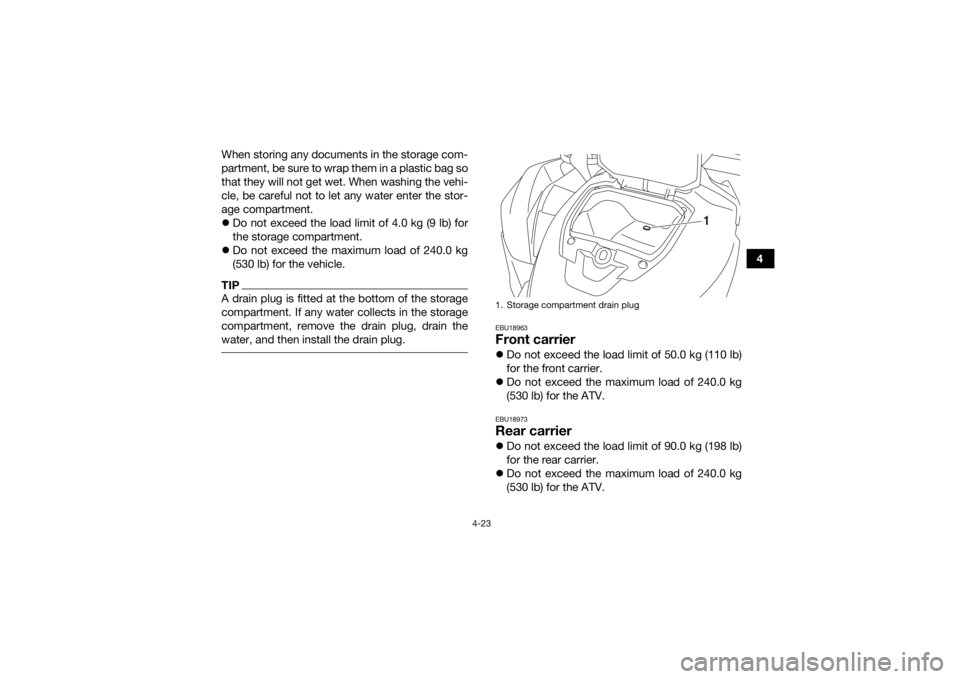

TIPA drain plug is fitted at the bottom of the storage
compartment. If any water collects in the storage
compartment, remove the drain plug, drain the
water, and then install the drain plug.
EBU18963Front carrierDo not exceed the load limit of 50.0 kg (110 lb)
for the front carrier.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the ATV.EBU18973Rear carrierDo not exceed the load limit of 90.0 kg (198 lb)
for the rear carrier.
 Do not exceed the maximum load of 240.0 kg
(530 lb) for the ATV.1. Storage compartment drain plug
1
UB1661E0.book Page 23 Thursday, May 12, 2016 2:47 PM

4-24
4

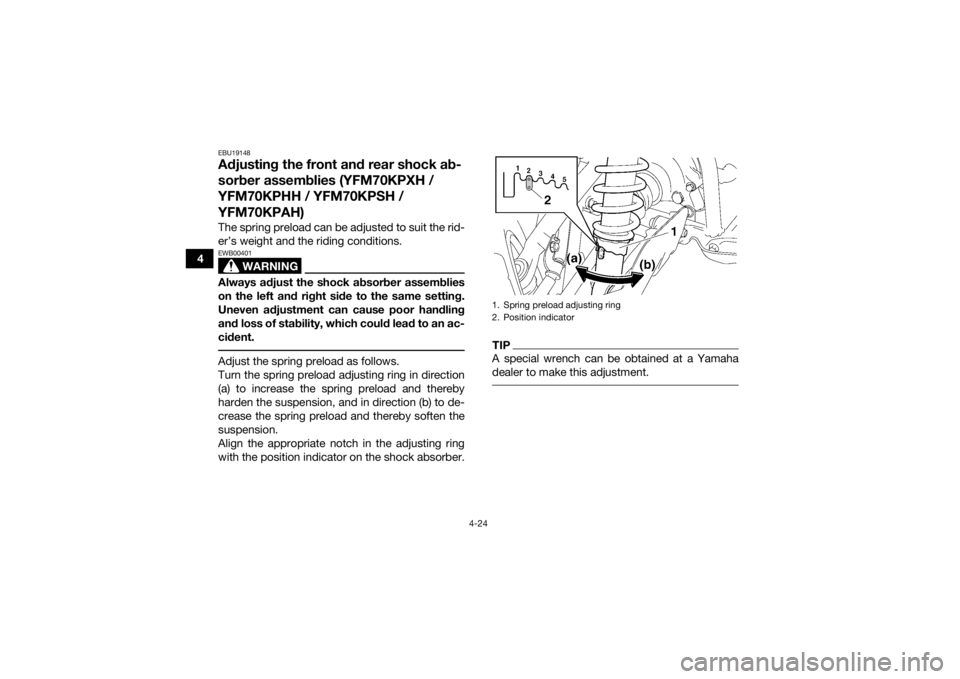

EBU19148Adjusting the front and rear shock ab-
sorber assemblies (YFM70KPXH /
YFM70KPHH / YFM70KPSH /
YFM70KPAH)The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
WARNING
EWB00401Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an ac-
cident. Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
Align the appropriate notch in the adjusting ring
with the position indicator on the shock absorber.
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment. 1. Spring preload adjusting ring
2. Position indicator
UB1661E0.book Page 24 Thursday, May 12, 2016 2:47 PM

4-25
4

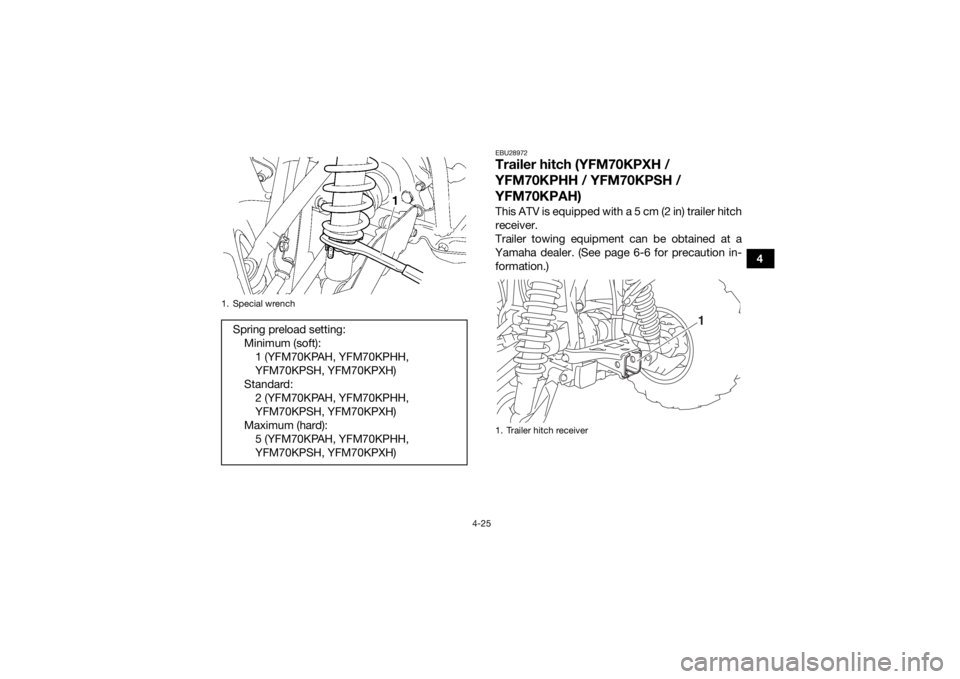

EBU28972Trailer hitch (YFM70KPXH /
YFM70KPHH / YFM70KPSH /
YFM70KPAH)This ATV is equipped with a 5 cm (2 in) trailer hitch
receiver.
Trailer towing equipment can be obtained at a
Yamaha dealer. (See page 6-6 for precaution in- formation.)
1. Special wrenchSpring preload setting: Minimum (soft):1 (YFM70KPAH, YFM70KPHH,
YFM70KPSH, YFM70KPXH)
Standard: 2 (YFM70KPAH, YFM70KPHH,
YFM70KPSH, YFM70KPXH)
Maximum (hard): 5 (YFM70KPAH, YFM70KPHH,
YFM70KPSH, YFM70KPXH)
1. Trailer hitch receiver
1
UB1661E0.book Page 25 Thursday, May 12, 2016 2:47 PM

4-26
4
EBU19184Auxiliary DC jackThe auxiliary DC jack is located at the front right
side of the ATV. The auxiliary DC jack can be used
for suitable work lights, radios, etc. The auxiliary
DC jack should only be used when the engine is
running and the light switch is set to “OFF”.1. Set the light switch to “OFF”.
2. Turn the accessory off.
3. Start the engine. (See page 6-1.)
4. Open the auxiliary DC jack cap, and then in- sert the accessory power plug into the jack. 5. Turn the accessory on.
6. When the auxiliary DC jack is not being used,
cover it with the cap.
NOTICEECB00121Do not use accessories requiring more than
the above maximum capacity. This may
overload the circuit and cause the fuse to
blow.
 If accessories are used without the engine
running or with the headlights turned on, the
battery will lose its charge and engine start-
ing may become difficult.
 Do not use an automotive cigarette lighter or
other accessories with a plug that gets hot
because the jack can be damaged.
1. Auxiliary DC jack cap
2. Auxiliary DC jack
21
Maximum rated capacity for the auxiliary DC
jack:
DC 12 V, 10 A (120 W)
UB1661E0.book Page 26 Thursday, May 12, 2016 2:47 PM

5-1
5
EBU19203
PRE-OPERATION CHECKS
EBU19226Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00482Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Before using this vehicle, check the following points:
ITEMROUTINE PAGE
Fuel • Check fuel level in fuel tank,
and add recommended fuel if neces-
sary.
• Check fuel line for leakage. Correct if necessary. 4-19, 5-3
Engine oil • Check oil level in engine, and add recommended oil to specified
level if necessary.
• Check ATV for oil leakage. Correct if necessary. 5-3, 8-20
Final gear oil • Check ATV for oil leakage. Correct if necessary. 5-3, 8-24
Differential gear oil • Check ATV for oil leakage. Correct if necessary. 5-3, 8-27
Coolant • Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.
• Check cooling system for leakage. Correct if necessary. 5-3, 8-29
UB1661E0.book Page 1 Thursday, May 12, 2016 2:47 PM

5-2
5
Front brake• Check operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
• Check brake pads for wear, and replace if necessary.
• Check brake fluid level in reservoir, and add specified brake fluid to specified level if necessary.
• Check hydraulic system for leakage. Correct if necessary. 5-3, 8-42, 8-44, 8-45
Rear brake • Check operation, and correct if necessary.
• Lubricate cables if necessary.
• Check lever and pedal free play, and adjust if necessary. 5-3, 8-42, 8-45
Throttle lever • Make sure that operation is smooth. Lubricate cable and lever
housing if necessary.
• Check lever free play, and adjust if necessary. 5-4, 8-41
Control cables • Make sure that operation is smooth. Lubricate if necessary. 8-49
Wheels and tires • Check wheel condition, and replace if damaged.
• Check tire condition and tread depth. Replace if necessary.
• Check air pressure. Correct if necessary. 5-4
Brake pedal • Make sure that operation is smooth. Lubricate pedal pivoting point
if necessary. 8-50
Brake levers • Make sure that operation is smooth. Lubricate lever pivoting points
if necessary. 8-49
Axle boots • Check for cracks or damage, and replace if necessary. 8-48
Chassis fasteners • Make sure that all nuts, bolts and screws are properly tightened. 5-7
Instruments, lights and
switches • Check operation, and correct if necessary. 5-7
ITEM ROUTINE PAGEUB1661E0.book Page 2 Thursday, May 12, 2016 2:47 PM
