YAMAHA KODIAK 700 2019 Owners Manual

8-43
8

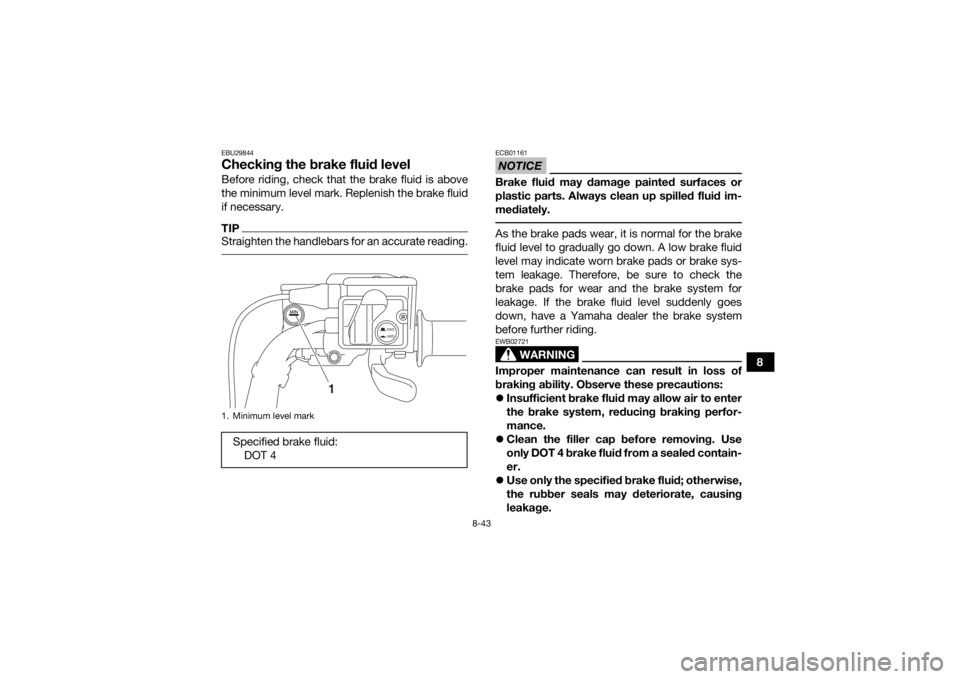

EBU29844Checking the brake fluid levelBefore riding, check that the brake fluid is above
the minimum level mark. Replenish the brake fluid
if necessary.TIPStraighten the handlebars for an accurate reading.
NOTICEECB01161Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately. As the brake pads wear, it is normal for the brake
fluid level to gradually go down. A low brake fluid
level may indicate worn brake pads or brake sys-
tem leakage. Therefore, be sure to check the
brake pads for wear and the brake system for
leakage. If the brake fluid level suddenly goes
down, have a Yamaha dealer the brake system
before further riding.
WARNING
EWB02721Improper maintenance can result in loss of
braking ability. Observe these precautions:
Insufficient brake fluid may allow air to enter
the brake system, reducing braking perfor-
mance.
 Clean the filler cap before removing. Use
only DOT 4 brake fluid from a sealed contain-
er.
 Use only the specified brake fluid; otherwise,
the rubber seals may deteriorate, causing
leakage.
1. Minimum level markSpecified brake fluid:
DOT 4
2WD
4WD
1
UB5K60E0.book Page 43 Monday, May 28, 2018 11:35 AM

8-44
8
Refill with the same type of brake fluid. Add-
ing a brake fluid other than DOT 4 may result
in a harmful chemical reaction.
 Be careful that water does not enter the
brake fluid reservoir when refilling. Water will
significantly lower the boiling point of the flu-
id and may result in vapor lock.
EBU24283Changing the brake fluidHave a Yamaha dealer change the brake fluid at
the intervals specified in the periodic maintenance
and lubrication chart. In addition, have the oil seals
of the brake master cylinder and calipers as well
as the brake hoses replaced at the intervals listed
below or whenever they are damaged or leaking.
Oil seals: Replace every two years.
 Brake hoses: Replace every four years.

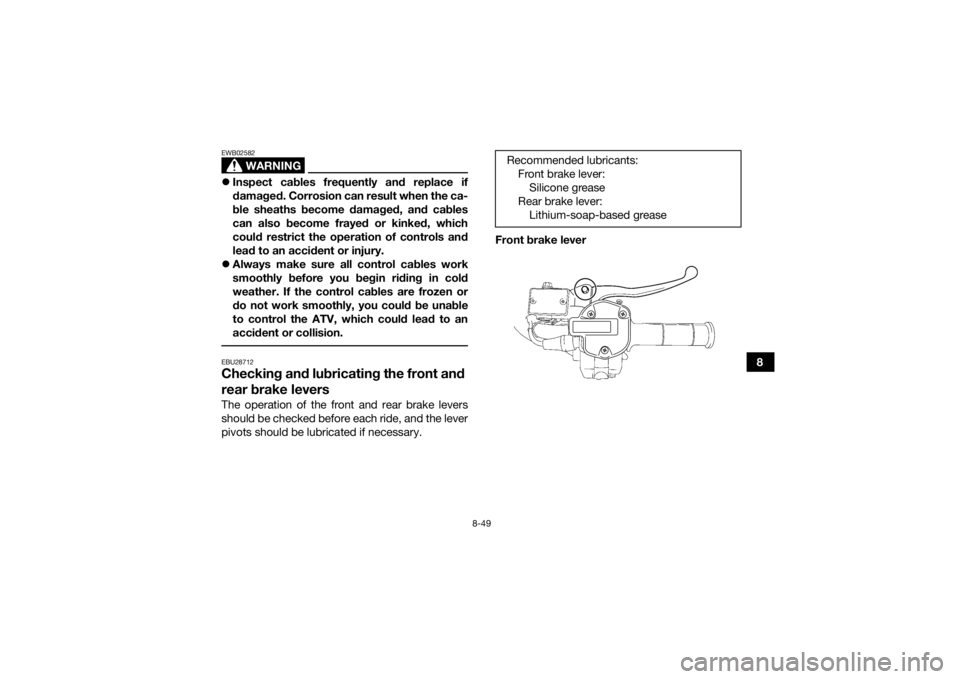

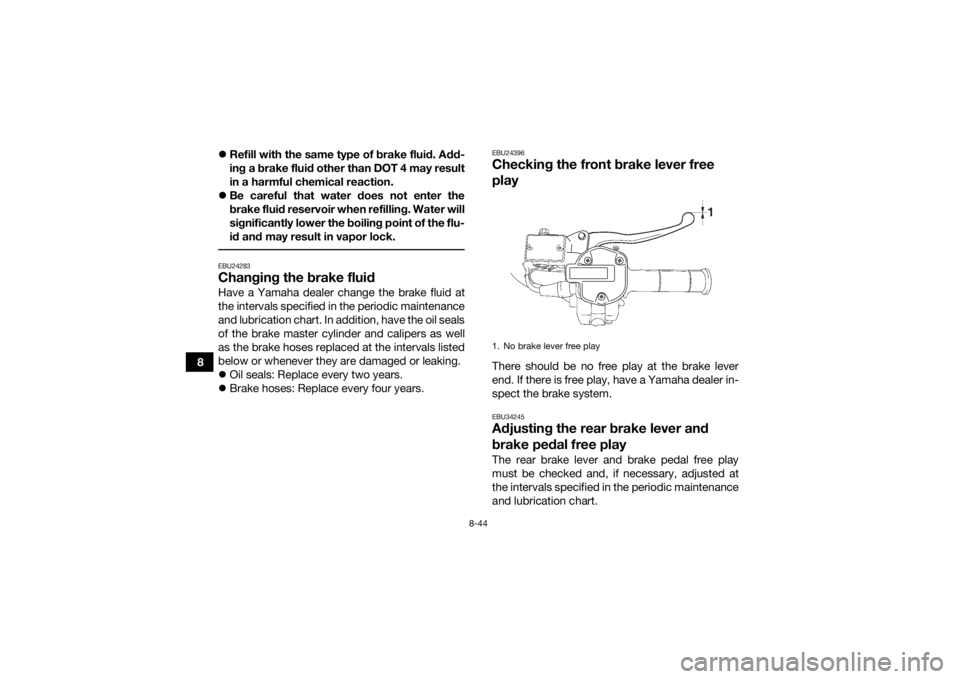

EBU24396Checking the front brake lever free
playThere should be no free play at the brake lever
end. If there is free play, have a Yamaha dealer in-
spect the brake system.EBU34245Adjusting the rear brake lever and
brake pedal free playThe rear brake lever and brake pedal free play
must be checked and, if necessary, adjusted at
the intervals specified in the periodic maintenance
and lubrication chart.1. No brake lever free play
UB5K60E0.book Page 44 Monday, May 28, 2018 11:35 AM

8-45
8

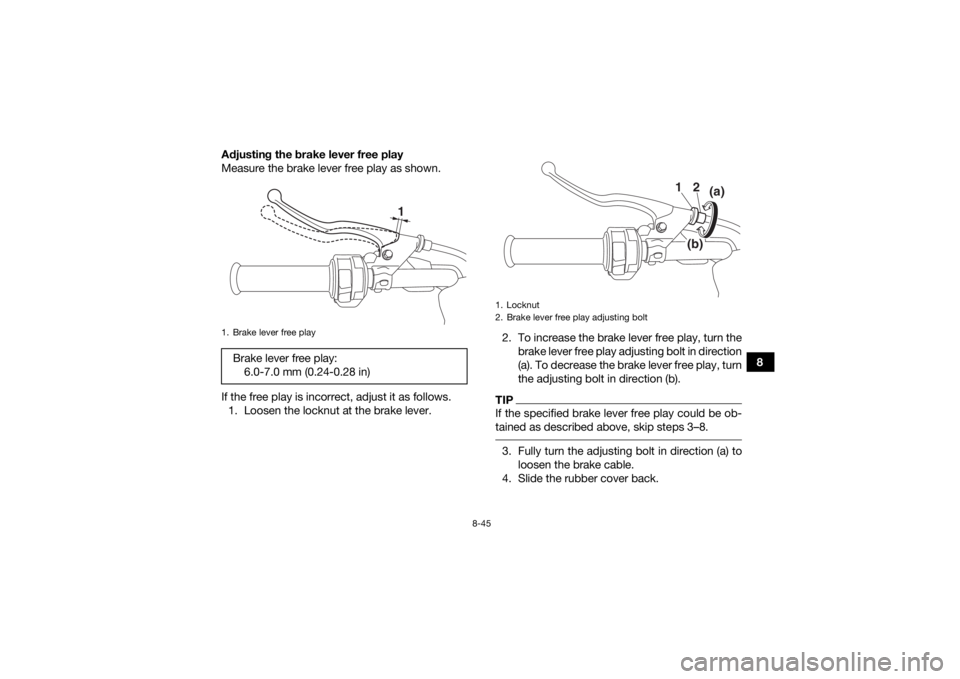

Adjusting the brake lever free play
Measure the brake lever free play as shown.
If the free play is incorrect, adjust it as follows.
1. Loosen the locknut at the brake lever. 2. To increase the brake lever free play, turn the
brake lever free play adjusting bolt in direction
(a). To decrease the brake lever free play, turn
the adjusting bolt in direction (b).
TIPIf the specified brake lever free play could be ob-
tained as described above, skip steps 3–8. 3. Fully turn the adjusting bolt in direction (a) toloosen the brake cable.
4. Slide the rubber cover back.
1. Brake lever free playBrake lever free play: 6.0-7.0 mm (0.24-0.28 in)
1
1. Locknut
2. Brake lever free play adjusting bolt
(a)
(b)
12
UB5K60E0.book Page 45 Monday, May 28, 2018 11:35 AM

8-46
85. Loosen the brake cable adjuster locknut.
6. To increase the brake lever free play, turn the
brake lever free play adjusting nut in direction
(a). To decrease the brake lever free play, turn
the adjusting nut in direction (b).
7. Tighten the brake cable adjuster locknut.
8. Slide the rubber cover to its original position.
9. Tighten the locknut at the brake lever.
Adjusting the brake pedal free play
Measure the brake pedal free play as shown. If the free play is incorrect, adjust it as follows.
1. Remove panel G.
2. Loosen the locknut.
1. Brake cable adjuster locknut
2. Brake lever free play adjusting nut
3. Rubber cover
2
3
1
(a)(b)
1. Brake pedal free playBrake pedal free play: 12.0–17.0 mm (0.47–0.67 in)
1
UB5K60E0.book Page 46 Monday, May 28, 2018 11:35 AM

8-47
8

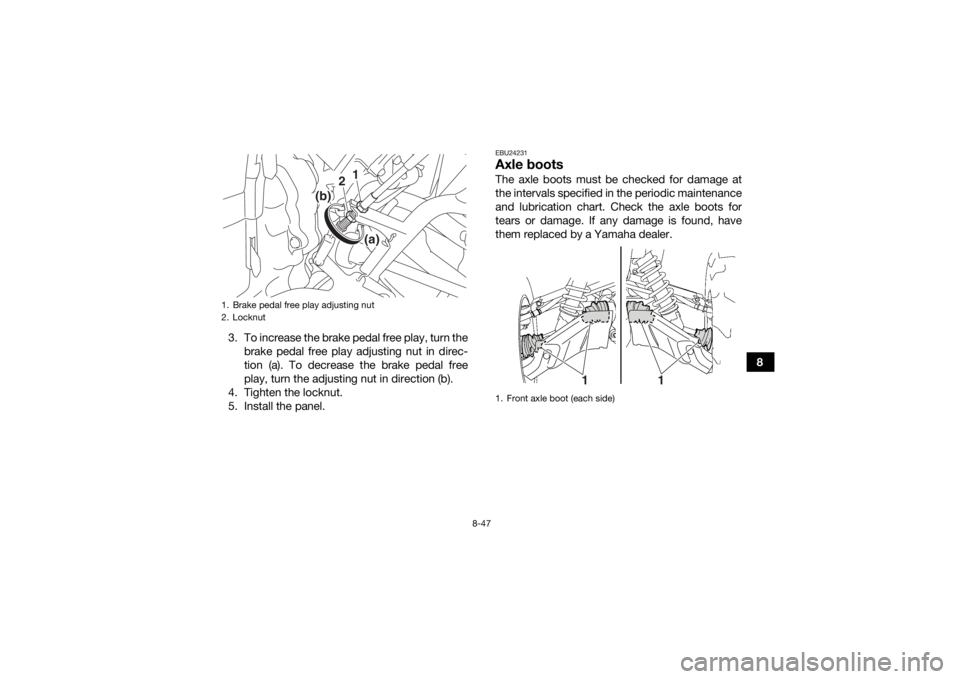

3. To increase the brake pedal free play, turn the
brake pedal free play adjusting nut in direc-
tion (a). To decrease the brake pedal free
play, turn the adjusting nut in direction (b).
4. Tighten the locknut.
5. Install the panel.
EBU24231Axle bootsThe axle boots must be checked for damage at
the intervals specified in the periodic maintenance
and lubrication chart. Check the axle boots for
tears or damage. If any damage is found, have
them replaced by a Yamaha dealer.

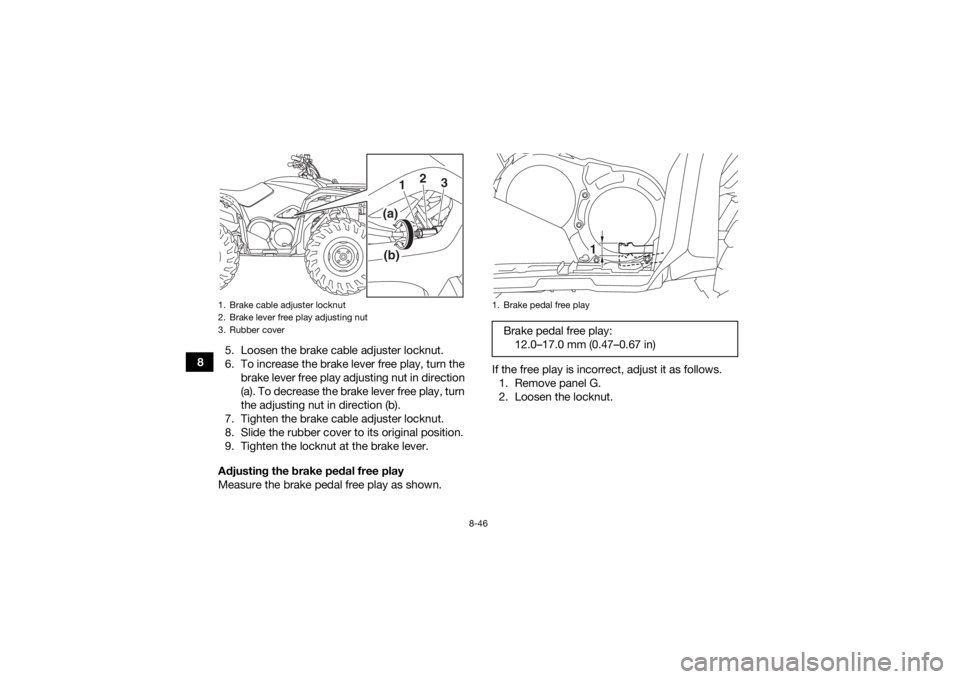

1. Brake pedal free play adjusting nut
2. Locknut
2
(a)
(b)
1
1. Front axle boot (each side)
1
1
UB5K60E0.book Page 47 Monday, May 28, 2018 11:35 AM

8-48
8

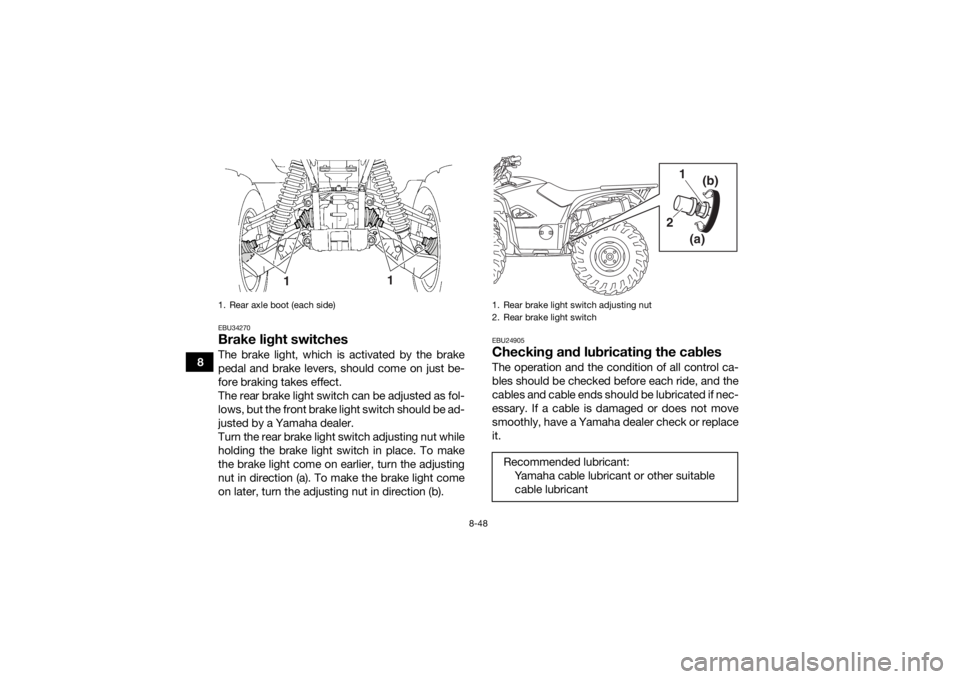

EBU34270Brake light switchesThe brake light, which is activated by the brake
pedal and brake levers, should come on just be-
fore braking takes effect.
The rear brake light switch can be adjusted as fol-
lows, but the front brake light switch should be ad-
justed by a Yamaha dealer.
Turn the rear brake light switch adjusting nut while
holding the brake light switch in place. To make
the brake light come on earlier, turn the adjusting
nut in direction (a). To make the brake light come
on later, turn the adjusting nut in direction (b).
EBU24905Checking and lubricating the cablesThe operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
1. Rear axle boot (each side)
1
1
1. Rear brake light switch adjusting nut
2. Rear brake light switchRecommended lubricant:
Yamaha cable lubricant or other suitable cable lubricant
1
2 (b)
(a)
UB5K60E0.book Page 48 Monday, May 28, 2018 11:35 AM

8-49
8
WARNING
EWB02582Inspect cables frequently and replace if
damaged. Corrosion can result when the ca-
ble sheaths become damaged, and cables
can also become frayed or kinked, which
could restrict the operation of controls and
lead to an accident or injury.
 Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or
do not work smoothly, you could be unable
to control the ATV, which could lead to an

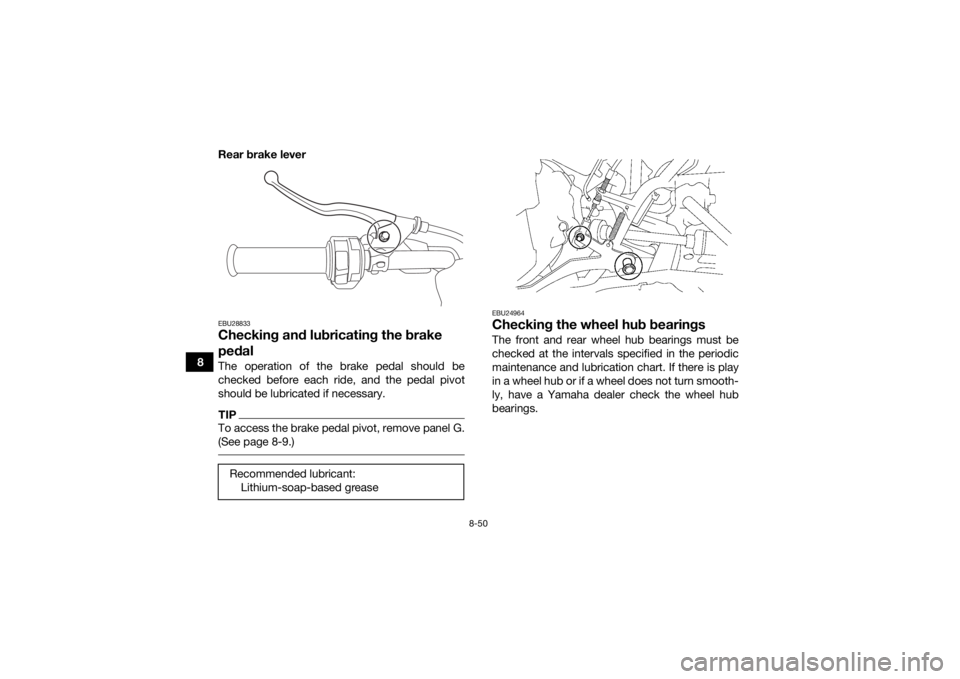

accident or collision. EBU28712Checking and lubricating the front and
rear brake leversThe operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary. Front brake lever
Recommended lubricants:
Front brake lever:Silicone grease
Rear brake lever: Lithium-soap-based greaseUB5K60E0.book Page 49 Monday, May 28, 2018 11:35 AM

8-50
8Rear brake lever
EBU28833Checking and lubricating the brake
pedalThe operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.TIPTo access the brake pedal pivot, remove panel G.
(See page 8-9.)

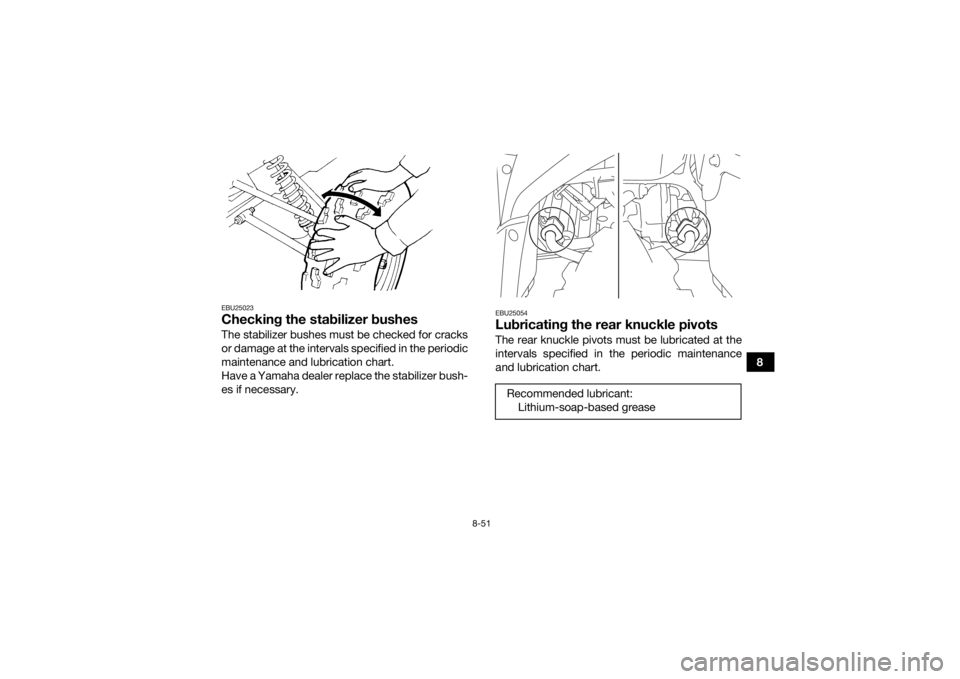

EBU24964Checking the wheel hub bearingsThe front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smooth-
ly, have a Yamaha dealer check the wheel hub
bearings.
Recommended lubricant: Lithium-soap-based grease
UB5K60E0.book Page 50 Monday, May 28, 2018 11:35 AM

8-51
8
EBU25023Checking the stabilizer bushesThe stabilizer bushes must be checked for cracks
or damage at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the stabilizer bush-
es if necessary.
EBU25054Lubricating the rear knuckle pivotsThe rear knuckle pivots must be lubricated at the
intervals specified in the periodic maintenance
and lubrication chart.Recommended lubricant:Lithium-soap-based grease
UB5K60E0.book Page 51 Monday, May 28, 2018 11:35 AM

8-52
8

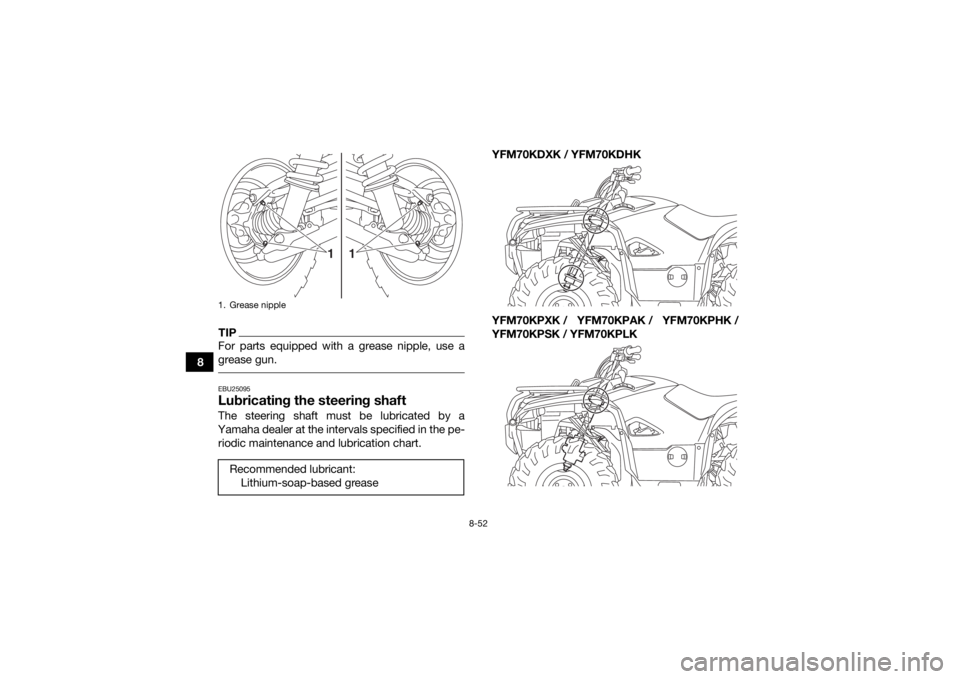

TIPFor parts equipped with a grease nipple, use a
grease gun. EBU25095Lubricating the steering shaftThe steering shaft must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart. YFM70KDXK / YFM70KDHK
YFM70KPXK / YFM70KPAK / YFM70KPHK /
YFM70KPSK / YFM70KPLK1. Grease nippleRecommended lubricant:
Lithium-soap-based grease
1
1
UB5K60E0.book Page 52 Monday, May 28, 2018 11:35 AM
