YAMAHA KODIAK 700 2019 Owner's Guide

3-2
3
EBU17715Controls and instrumentsYFM70KDXK / YFM70KDHKYFM70KPXK / YFM70KPAK / YFM70KPHK /
YFM70KPSK / YFM70KPLK1. Drive select lever
2. Rear brake lever
3. Handlebar switches
4. Horn switch
5. Drive lever “2WD / 4WD”
6. Warning and indicator lights
7. Front brake fluid reservoir
8. Front brake lever
9. Throttle lever
10.Auxiliary DC jack
11.Main switch123
45 6 7
891011
1. Drive select lever
2. Rear brake lever
3. Handlebar switches
4. Horn switch
5. Multi-function display
6. Front brake fluid reservoir
7. On-Command 4WD switches
8. Front brake lever
9. Throttle lever
10.Auxiliary DC jack
11.Main switch123 56
7891011
4
UB5K60E0.book Page 2 Monday, May 28, 2018 11:35 AM

4-1
4
EBU17739
INSTRUMENT AND CONTROL FUNCTIONS
EBU29913Main switch“” (on)
All electrical systems are supplied with power. The
engine can be started. The key cannot be re-
moved.
“ ” (off)
All electrical systems are off. The key can be re-
moved.
EBU26698Indicator lights and warning lightsYFM70KDXK / YFM70KDHK
1. Main switch
1
1. Fuel level warning light “ ”
2. Engine trouble warning light “ ”
3. Coolant temperature warning light “ ”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “P”
7. Four-wheel drive indicator light “ ”
123456
7
UB5K60E0.book Page 1 Monday, May 28, 2018 11:35 AM

4-2
4
YFM70KPXK / YFM70KPAK / YFM70KPHK /
YFM70KPSK / YFM70KPLK
EBU17992Low-range indicator light “ ” (YFM70KPXK /
YFM70KPAK / YFM70KPHK / YFM70KPSK /
YFM70KPLK)
This indicator light comes on when the transmis-
sion is in the low-range position.EBU17982High-range indicator light “ ” (YFM70KPXK /
YFM70KPAK / YFM70KPHK / YFM70KPSK /
YFM70KPLK)
This indicator light comes on when the transmis-
sion is in the high-range position.EBU17861Neutral indicator light “ ”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17831Reverse indicator light “ ”
This indicator light comes on when the transmis-
sion is in the reverse position.
1. Differential gear lo
ck indicator light “ ”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Park indicator light “ ”
7. Four-wheel drive icon “ ”
8. Differential gear lock icon “ ”
9. Electric Power Steering warning light “EPS”
10.High beam indicator light “ ”
11.Battery voltage warning light “ ”
12.Coolant temperature warning light “ ”
13.Engine trouble warning light “ ”1
7,8
23456
910111213
UB5K60E0.book Page 2 Monday, May 28, 2018 11:35 AM

4-3
4
EBU38270Park indicator light “ ” (YFM70KDXK /
YFM70KDHK) / “ ” (YFM70KPXK /
YFM70KPAK / YFM70KPHK / YFM70KPSK /
YFM70KPLK)
This indicator light comes on when the transmis-
sion is in the park position.EBU27982High beam indicator light “ ” (YFM70KPXK /
YFM70KPAK / YFM70KPHK / YFM70KPSK /
YFM70KPLK)
This indicator light comes on when the high beam
of the headlight is switched on.EBU38261Battery voltage warning light “ ”
(YFM70KPXK / YFM70KPAK / YFM70KPHK /
YFM70KPSK / YFM70KPLK)
This warning light comes on if the detected battery
voltage is less than 10 volts, or greater than 18
volts.EBU38290Coolant temperature warning light “ ”
This warning light comes on when the engine
overheats.The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The
warning light should come on for a few seconds,
and then go off. If the warning light does not come
on initially when the key is turned to “ ” (on), or
if the warning light remains on, have a Yamaha
dealer check the vehicle.
NOTICEECB02040
The engine may overheat if the vehicle is
overloaded. If this happens, reduce the load
to specification.
 After restarting, make sure that the warning
light is out. Continuous use while this warn-
ing light is on may cause damage to the en-
gine. YFM70KDXK / YFM70KDHK
If the light comes on during operation, stop the ve-
hicle as soon as it is safe to do so and allow the
engine to cool down for about 10 minutes. (See
page 8-67.)
UB5K60E0.book Page 3 Monday, May 28, 2018 11:35 AM

4-4
4
YFM70KPXK / YFM70KPAK / YFM70KPHK /
YFM70KPSK / YFM70KPLK
The warning light comes on in red when the en-
gine is overheating. If the red light comes on, stop
the vehicle as soon as it is safe to do so and allow
the engine to idle for about 10 minutes. If the
warning light does not go off, stop the engine and
allow it to cool. (See page 8-67.)
TIPWhen the key is turned to “ ” (on), the warning
light will come on in purple. EBU29933Fuel level warning light “ ” (YFM70KDXK /
YFM70KDHK)
This warning light comes on when the fuel level
drops below approximately 4.0 L (1.06 US gal,
0.88 Imp.gal). When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light can be
checked by setting the engine stop switch to “ ”
and turning the key to “ ” (on). The warning light
should come on for a few seconds, and then go
off. If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning
light remains on, have a Yamaha dealer check the
electrical circuit.
EBU27288Engine trouble warning light “ ”
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). The
warning light should come on for a few seconds,
and then go off.
If the warning light does not come on initially when
the key is turned to “ ” (on), or if the warning
light remains on, have a Yamaha dealer check the
vehicle.
YFM70KDXK / YFM70KDHK
This warning light comes on or flashes when an
electrical circuit monitoring the engine is not work-
ing correctly. When this occurs, have a Yamaha
dealer check the self-diagnosis system.
UB5K60E0.book Page 4 Monday, May 28, 2018 11:35 AM

4-5
4YFM70KPXK / YFM70KPAK / YFM70KPHK /
YFM70KPSK / YFM70KPLK
This warning light comes on or flashes if a problem
is detected in the electrical circuit monitoring the
engine. When this occurs, the display will indicate
an error code (see page 4-11). Have a Yamaha
dealer check the self-diagnosis system.
EBU30571Electric Power Steering warning light “EPS”
(for EPS model)
This warning light comes on when the key is
turned to “ ” (on), and then goes off once the
engine is started. If the warning light remains on or
comes on after the engine is started, the EPS sys-
tem may not be working correctly. When this oc-
curs, have a Yamaha dealer check the EPS
system.
The electrical circuit of the warning light can be
checked by turning the key to “ ” (on). If the
warning light does not come on, have a Yamaha
dealer check the electrical circuit.
TIP
If the engine is stopped using the engine stop
switch and the key is in the “ ” (on) position,
the EPS warning light comes on to indicate that
the power assistance for the steering is not
functioning.
 If the steering load is too heavy (i.e., excessive
steering use when the ATV is traveling at a slow
speed), the power assist is reduced to protect
the EPS motor from overheating. EBU38280Four-wheel drive indicators
Four-wheel drive indicator light “ ”
(YFM70KDXK / YFM70KDHK)
This indicator light comes on when the drivetrain
is set to “4WD” (four-wheel drive).TIPDue to the synchronizing mechanism in the differ-
ential gear case, the light may not come on until
the ATV starts moving.
UB5K60E0.book Page 5 Monday, May 28, 2018 11:35 AM

4-6
4
Four-wheel drive icon “ ” (YFM70KPXK /
YFM70KPAK / YFM70KPHK / YFM70KPSK /
YFM70KPLK)
This icon comes on when the drivetrain is set to
“4WD” (four-wheel drive).
TIPDue to the synchronizing mechanism in the differ-
ential gear case, the indicator may not come on
until the ATV starts moving. Differential gear lock icon “ ” and indicator
light “ ” (YFM70KPXK / YFM70KPAK /
YFM70KPHK / YFM70KPSK / YFM70KPLK)
This icon and this indicator light come on when
the drivetrain is set to “4WD” with the differential
gear locked.TIPWhen the On-Command differential gear lock
switch is set to “LOCK” or “4WD”, the “ ” icon
and the “ ” indicator light will flash until the dif-
ferential gear is completely locked or unlocked.
Turn the handlebar or start moving to help the dif-
ferential lock to engage or disengage.

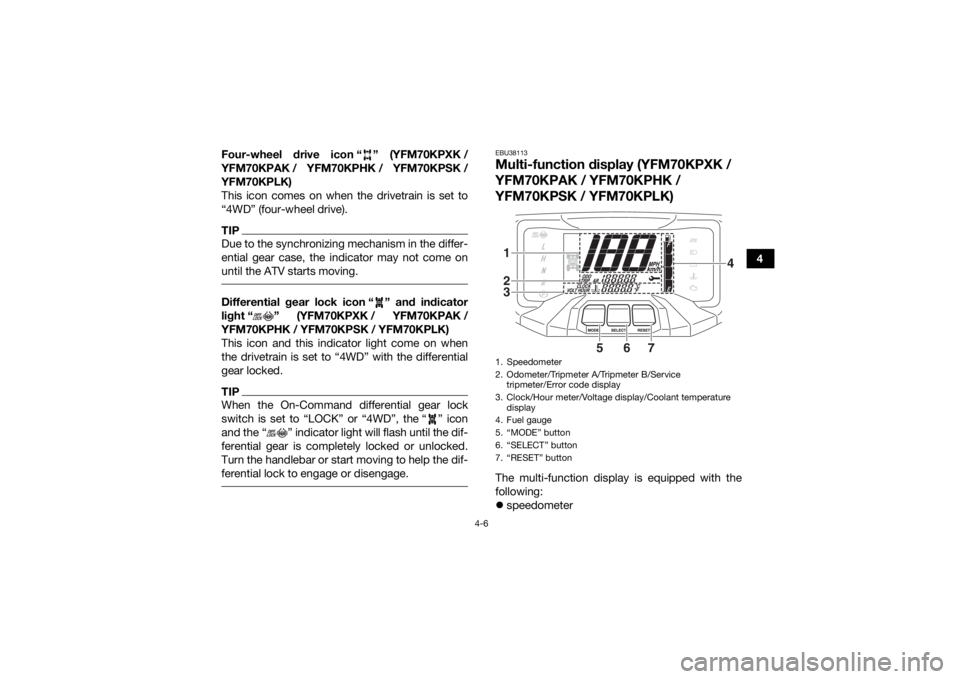

EBU38113Multi-function display (YFM70KPXK /
YFM70KPAK / YFM70KPHK /
YFM70KPSK / YFM70KPLK)The multi-function display is equipped with the
following:

speedometer1. Speedometer
2. Odometer/Tripmeter A/Tripmeter B/Service
tripmeter/Error code display
3. Clock/Hour meter/Voltage display/Coolant temperature display
4. Fuel gauge
5. “MODE” button
6. “SELECT” button
7. “RESET” button123
5
6
7
4
UB5K60E0.book Page 6 Monday, May 28, 2018 11:35 AM

4-7
4
odometer
 tripmeters
 clock
 hour meter
 voltage display
 coolant temperature display
 fuel gauge
 brightness control mode
 error code display
Speedometer
The speedometer shows the vehicle’s traveling
speed. The speedometer can be set to “MPH” or
“km/h”. This also changes the odometer and trip-
meter units between miles and kilometers. To
change the display between “MPH” and “km/h”,
turn the key to “ ” (off), then while holding the
“SELECT” button pushed, turn the key to “ ”
(on). Odometer and tripmeters
The odometer shows the total distance traveled
by the vehicle.
The tripmeters show the distance traveled since
they were last reset. The tripmeters can be used to
record the distance traveled on a single trip, or to
estimate the distance that can be traveled with a
full tank of gas, etc. The service tripmeter shows
the distance traveled since it was reset at the last
maintenance.
1. Odometer/Tripmeter A/Tripmeter B/Service
tripmeter/Error code display
2. “SELECT” button
3. “RESET” button1
2
3
UB5K60E0.book Page 7 Monday, May 28, 2018 11:35 AM

4-8
4
Push the “SELECT” button to switch between the
odometer “ODO”, the tripmeters “TRIP A” and
“TRIP B”, and the service tripmeter “ ” in the
following order:
ODO
→ TRIP A → TRIP B → → ODO
To reset a tripmeter, set the display to the tripme-
ter you want to reset, then push the “RESET” but-
ton for 2 seconds.
TIP The odometer will lock at 199999.
 The tripmeters will reset and continue counting
after 9999.9 is reached.

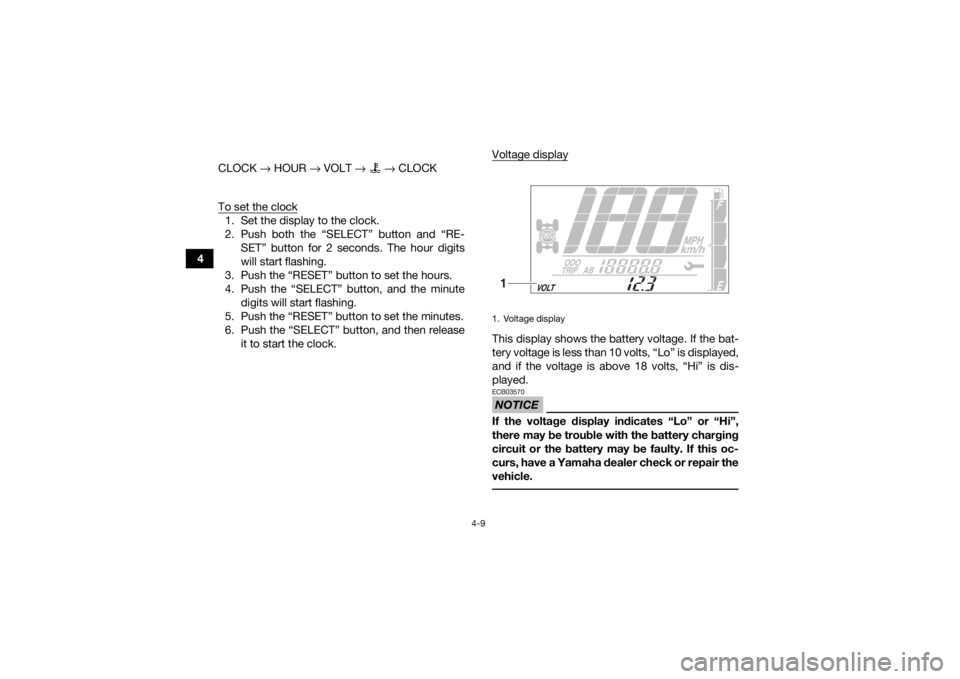

Clock, hour meter, voltage display and coolant
temperature display
The clock displays time in 12-hour format. The
hour meter shows the total time the engine has
been running. The voltage display shows the bat-
tery voltage. The coolant temperature display
shows the temperature of the coolant.
Push the “MODE” button to switch between the
clock “CLOCK”, the hour meter “HOUR”, the volt-
age display “VOLT”, and the coolant temperature

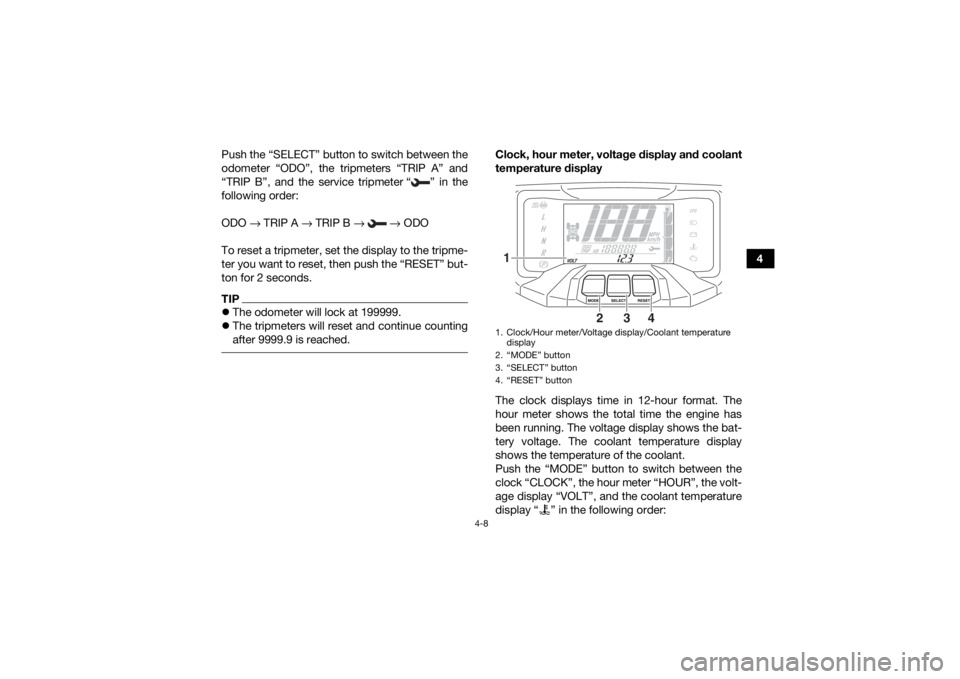

display “ ” in the following order:1. Clock/Hour meter/Voltage display/Coolant temperature
display
2. “MODE” button
3. “SELECT” button
4. “RESET” button1
2
3
4
UB5K60E0.book Page 8 Monday, May 28, 2018 11:35 AM

4-9
4CLOCK
→ HOUR → VOLT → → CLOCK
To set the clock
1. Set the display to the clock.
2. Push both the “SELECT” button and “RE- SET” button for 2 seconds. The hour digits
will start flashing.
3. Push the “RESET” button to set the hours.
4. Push the “SELECT” button, and the minute digits will start flashing.
5. Push the “RESET” button to set the minutes.
6. Push the “SELECT” button, and then release it to start the clock. Voltage display
This display shows the battery voltage. If the bat-
tery voltage is less than 10 volts, “Lo” is displayed,
and if the voltage is above 18 volts, “Hi” is dis-
played.NOTICEECB03570If the voltage display indicates “Lo” or “Hi”,
there may be trouble with the battery charging
circuit or the battery may be faulty. If this oc-
curs, have a Yamaha dealer check or repair the
vehicle. 1. Voltage display1
UB5K60E0.book Page 9 Monday, May 28, 2018 11:35 AM
