YAMAHA MAJESTY 125 2007 User Guide

• Never refuel while smoking or
in the vicinity of an open flame.
Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within
a short time. Always operate your
scooter in an area that has ade-
quate ventilation.
Always turn the engine off before
leaving the scooter unattended
and remove the key from the
main switch. When parking the
scooter, note the following:
• The engine and exhaust sys-
tem may be hot, therefore,
park the scooter in a place
where pedestrians or children
are not likely to touch these hot
areas.
• Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.
• Do not park the scooter near a
flammable source (e.g., a kero-
sene heater, or near an open
flame), otherwise it could catch
fire.
If you should swallow any gasoli-
ne, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immedia-
tely. If any gasoline spills on your
skin or clothing, immediately
wash the affected area with soap
and water and change your clot-
hes.
EAU10371
Further safe-riding points
Be sure to signal clearly when
making turns.
Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowly
when stopping on a wet surface.
Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manholecovers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.
Do not carry too much luggage
on the scooter. An overloaded
scooter is unstable.
1
SAFETY INFORMATION t
1-4
5D8-F8199-E0.qxd 1/6/07 16:20 Página 11

EAU10410
Left view
2
DESCRIPTION
2-1
@ @ @ @
123 4
5 6 7 8
1. Coolant reservoir cap (page 6-12)
2. Battery (page 6-24)
3. Storage compartment (page 3-11)
4. Fuel tank cap (page 3-7)5. Air filter (page 6-14)
6. V-Belt air filter (page 6-14)
7. Engine oil drain bolt (page 6-9)
8. Sidestand (page 3-12)
5D8-F8199-E0.qxd 1/6/07 16:20 Página 12

EAU10420
Right view
2
DESCRIPTION
2-2
Å
@Å@Å
@Å@
12345
6
7 8
1. Grab bar
2. Passenger Seat
3. Rider Seat (page 3-9)
4. Owner's tool kit (page 6-1)5. Fuses (page 6-26)
6. Headlight (page 6-27)
7. Radiator
8. Centerstand (page 6-22)
5D8-F8199-E0.qxd 1/6/07 16:20 Página 13

EAU10430

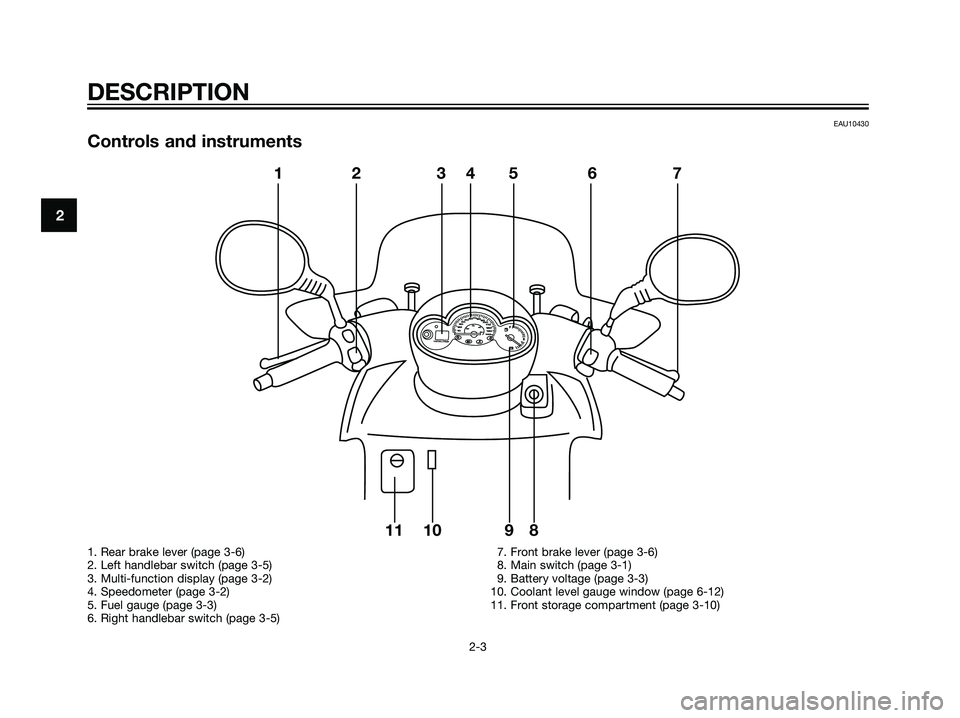

Controls and instruments
2
DESCRIPTION
2-3
12 345 6 7
8 9 10 11
1. Rear brake lever (page 3-6)
2. Left handlebar switch (page 3-5)
3. Multi-function display (page 3-2)
4. Speedometer (page 3-2)
5. Fuel gauge (page 3-3)
6. Right handlebar switch (page 3-5)7. Front brake lever (page 3-6)
8. Main switch (page 3-1)
9. Battery voltage (page 3-3)
10. Coolant level gauge window (page 6-12)
11. Front storage compartment (page 3-10)
5D8-F8199-E0.qxd 1/6/07 16:20 Página 14

EAU10460
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and
is used to lock the steering. The
various positions are described below.
EAU34121
ON “f”
All electrical circuits are supplied with
power; the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be star-
ted. The key cannot be removed.
NOTE:
The headlights come on automatically
when the engine is started and stay
on until the key is turned to "OFF" or
the sidestand is moved down.
EAU10660
OFF “e”
All electrical systems are off. The key
can be removed.
EAUM1020
“h”
The coolant temperature warning light
should come on when the key is tur-
ned to “
h”. (See page 3-2.)
EAU10680
LOCK “m”
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “
e”
position, and then turn it to “
m”
while still pushing it.
3. Remove the key.
T
o unlock the steering
Push the key in, and then turn it to
“
e” while still pushing it.
EWA10060
s s
WARNING
Never turn the key to “
e” or “m”
while the vehicle is moving, other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
Make sure that the vehicle is stop-
ped before turning the key to “
e”
or “
m”.
ON
OFF
LOCK
3
INSTRUMENT AND CONTROL FUNCTIONS
3-1
5D8-F8199-E0.qxd 1/6/07 16:20 Página 15

EAU10980
Indicator lights
1. Alarm indicator light
2. Left turn signal indicator light “c”
3. High beam indicator light “j”
4. Coolant temperature warning light “y”
5. Right turn signal indicator light “d”
EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAUM1070
Oil change indicator
At the initial 500 km (300 mi) and
every 3000 km (1800 mi) thereafter,
the message “CHnGE OIL” appears
in the odometer/clock display to indi-
cate that the engine oil should be
changed. (See page 6-9.)
EAUM1080
Coolant temperature warning light
“
y”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “h”.
2. If the warning light does not
come on, have a Yamaha dealer
check the electrical circuit.
ECA10020
CAUTION:
Do not operate the engine if it is
overheated.
EAUS1361
Speedometer unit
1. "TRIP" button
2. Multi-function display
3. Speedometer
4. Red zone
The speedometer unit is equipped
with the following:
a speedometer (which shows the
riding speed)
ECAS0010
CAUTION:
Do not operate the scooter in the
speedometer red zone.Red zone:
120 km/h (75 mph) and above
an odometer (which shows the
total distance traveled)
a tripmeter (which shows the dis-
tance traveled since it was last
set to zero)
12 3
y
4
y
12345
3
INSTRUMENT AND CONTROL FUNCTIONS
3-2
5D8-F8199-E0.qxd 1/6/07 16:20 Página 16

Pushing the “TRIP” button switches
the display between the odometer
mode “ODO” and the tripmeter mode
“TRIP”. To reset the tripmeter, enter
the “TRIP” mode, and then hold down
the “TRIP” button for at least one
second. The tripmeter can be used
together with the fuel gauge to esti-
mate the distance that can be trave-
led with a full tank of fuel. This infor-
mation will enable you to plan future
fuel stops.
Setting the odometer/tripmeter
reading mode
The odometer and tripmeter can be
set to count in either kilometers or
miles according to the following pro-
cedure.
1. Turn the key to “
f” while pres-
sing the reset button.
2. Release the reset button when
the display comes on.
3. The current mode appears in the
display: “CONT” (continental) for
the kilometer mode and “EnGL”
(English) for the mile mode.
4. Press the reset button to switch
the mode.5. Press the reset button for two
seconds to confirm the setting.
NOTE:
The odometer/tripmeter reading
mode can be changed any num-
ber of times while the odometer
reading is below 10 (km/h or
MPH), but it cannot be changed
anymore after the reading has
reached 10 (km/h or MPH).
Switching between the kilometer
mode and the mile mode does
not change or convert the current
odometer/tripmeter reading.

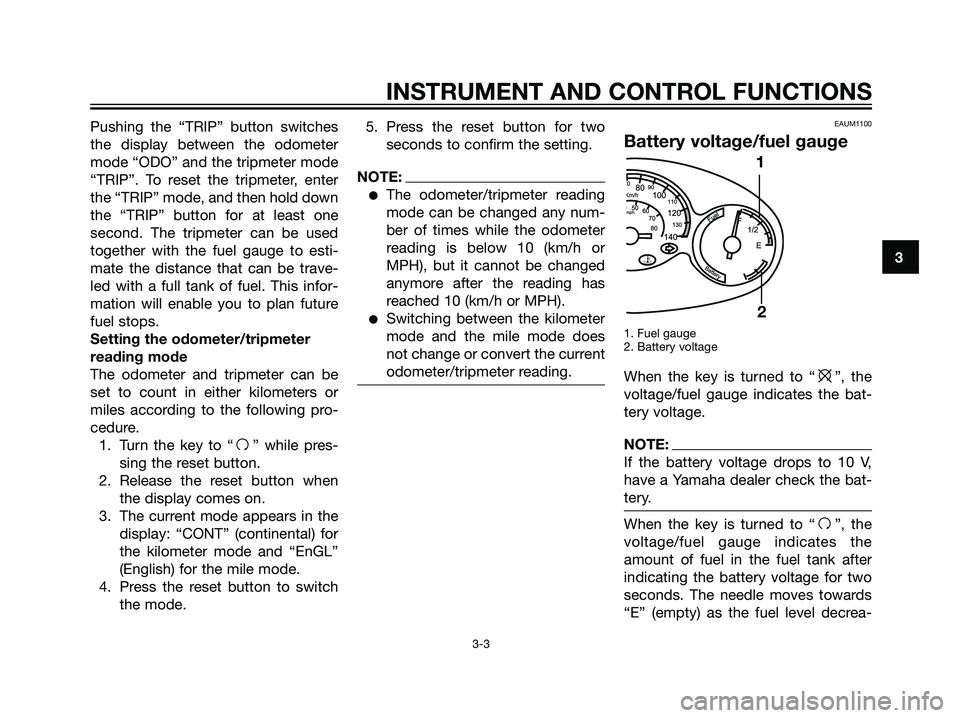

EAUM1100
Battery voltage/fuel gauge
1. Fuel gauge
2. Battery voltage
When the key is turned to “e”, the
voltage/fuel gauge indicates the bat-
tery voltage.
NOTE:
If the battery voltage drops to 10 V,
have a Yamaha dealer check the bat-
tery.
When the key is turned to “f”, the
voltage/fuel gauge indicates the
amount of fuel in the fuel tank after
indicating the battery voltage for two
seconds. The needle moves towards
“E” (empty) as the fuel level decrea-
1
2
y3
INSTRUMENT AND CONTROL FUNCTIONS
3-3
5D8-F8199-E0.qxd 1/6/07 16:20 Página 17

ses. When the needle reaches “E”,
refuel as soon as possible.
NOTE:
Do not allow the fuel tank to empty
itself completely.
EAUS1210
Clock
To set the clock
1. Turn the key to “
f”.
2. Press the “TRIP” button for two
seconds, and the hour display
will flash.
3. Press the “TRIP” button to set
the hours.4. Press the “TRIP” button for two
seconds, and the first minute
digit will flash.
5. Press the “TRIP” button to set
the first minute digit.
6. Press the “TRIP” button for two
more seconds, and the second
minute digit will flash.
7. Press the “TRIP” button to set
the second minute digit.
8. Press the “TRIP” button for two
seconds to set the clock.
Total/Trip
TOTAL TRIP
Total/Trip
TOTAL TRIP
Total/Trip
TOTAL TRIP3
INSTRUMENT AND CONTROL FUNCTIONS
3-4
5D8-F8199-E0.qxd 1/6/07 16:20 Página 18

EAU12331
Anti-theft alarm (optional)
This motorcycle can be equipped
with an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
EAU12347
Handlebar switches
1. Dimmer switch “j/k”
2. Turn signal switch “c/d”
3. Horn switch “a”
1. Hazard switch
“”2. Start switch “g”
EAUS1020
Dimmer switch “j/k”
Set this switch to “
j” for the high
beam and to “
k” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “
d”. To signal a left-hand
turn, push this switch to “
c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAU12720
Start switch “g”
With the sidestand up, push this
switch while applying the front or rear
brake to crank the engine with the
starter.
1
2
1
2
3
3
INSTRUMENT AND CONTROL FUNCTIONS
3-5
5D8-F8199-E0.qxd 1/6/07 16:20 Página 19

ECA10050
CAUTION:
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12764
Hazard switch “ ”
With the key in the “
f” position, turn
this switch to“” to turn on the
hazard lights (simultaneous flashing
of all turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10061
CAUTION:
Do not use the hazard lights for an
extended length of time with the
engine not running, otherwise the
battery may discharge.
EAU12900
Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
1
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-6
5D8-F8199-E0.qxd 1/6/07 16:20 Página 20
