6. Wax all painted surfaces.
7. Let the scooter dry completely
before storing or covering it.
EWA10940
s s
WARNING
Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or
acetone, and wash the tires
with warm water and a mild
detergent.
Before operating the scooter
test its braking performance
and cornering behavior.
ECA10800
CAUTION:
Apply spray oil and wax spa-
ringly and make sure to wipe
off any excess.
Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
Avoid using abrasive polishing
compounds as they will wear
away the paint.
NOTE:
Consult a Yamaha dealer for advice
on what products to use.EAU26300
Storage
Short-term
Always store your scooter in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA10820
CAUTION:
Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your scooter for seve-
ral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float cham-
ber by loosening the drain bolt;
this will prevent fuel deposits
from building up. Pour the drai-
ned fuel into the fuel tank.
7
SCOOTER CARE AND STORAGE
7-3
5D8-F8199-E0.qxd 1/6/07 16:20 Página 71

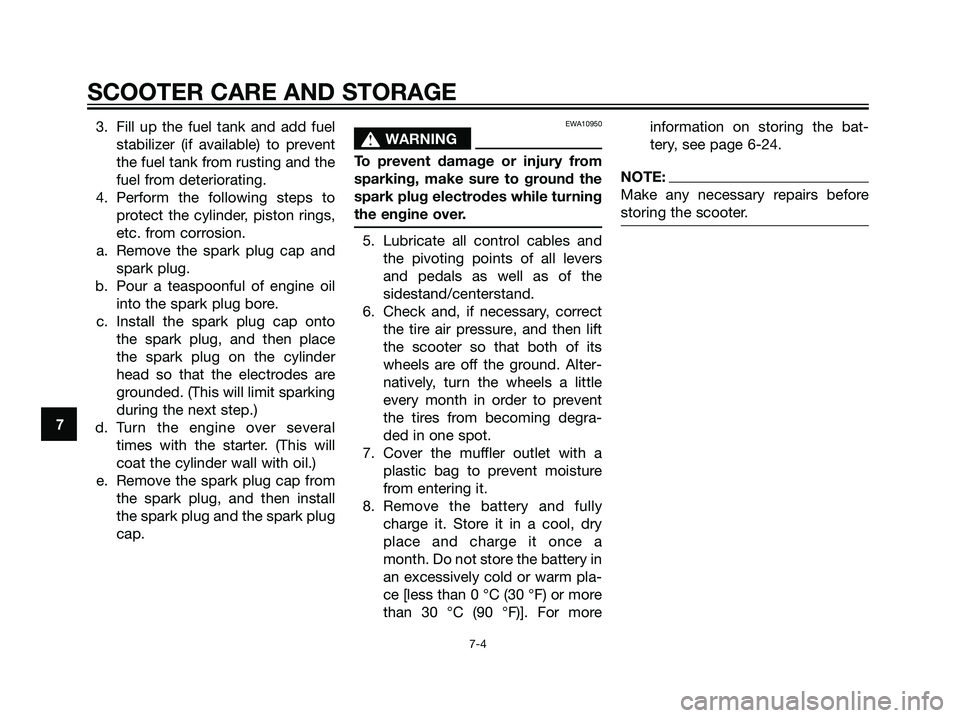

3. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
4. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a. Remove the spark plug cap and
spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit sparking
during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap from
the spark plug, and then install
the spark plug and the spark plug
cap.EWA10950
s s
WARNING
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.
5. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
6. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degra-
ded in one spot.
7. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
8. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla-
ce [less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For moreinformation on storing the bat-
tery, see page 6-24.
NOTE:
Make any necessary repairs before
storing the scooter.
7
SCOOTER CARE AND STORAGE
7-4
5D8-F8199-E0.qxd 1/6/07 16:20 Página 72

DimensionsOverall length
2030 mm (79.9 in)
Overall width
745 mm (29.3 in)
Overall height
1285 mm (50.6 in)
Seat height
774 mm (30.5 in)
Wheelbase
1480 mm (58.2 in)
Ground clearance
102 mm (4.01 in)
Minimum turning radius
3840 mm (151.2 in)
WeightWith oil and fuel
148 kg (326 lb)
EngineEngine type
Liquid cooled 4-stroke, SOHC
Cylinder arrangement
Forward-inclined single cylinder
Displacement
124.1 cm
3(7.57 cu.in)
Bore x stroke
53.7 x 54.8 mm (2.11 x 2.15 in)
Compression ratio
11:1
Starting system
Electric starter
Lubrication system
Wet sump
Engine oilType
SAE10W30 or SAE10W40
Recommended engine oil grade
API service SE, SF, SG type or higher
Engine oil quantityPeriodic oil change
1.2 L (1.27 US qt) (1.06 Imp.qt)
Final transmission oilType
YAMALUBE 4 (10W30) of SAE10W30
type SE motorolie
Quantity
0.15 L (0.16 US qt) (0.88 Imp.qt)
Cooling systemRadiator capacity (including all routes)
1.20 L (1.27 US qt) (1.06 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark)
0.30 L (0.32 US qt) (0.26 Imp.qt)
Air filterAir filter element
Dry element
Recommended fuelRecommended fuel
Unleaded fuel
Fuel tank capacity
10.5 L ( 2.77US gal) (2.31 Imp.gal)
Fuel reserve amount
3 L (0.79 US gal) (0.66 Imp gal)
CarburetorManufacturer
TEIKEI
Type x quantity
TK28 x 1
Spark plug (s)Manufacturer/model
NGK / CR8E
Spark plug gap
0.7 - 0.8 (0.028 - 0.031 in)
ClutchClutch type
Dry, automatic centrifugal
TransmissionPrimary reduction system
Helical gear
Primary reduction ratio
40/15 (2.666)
Secondary reduction system
Helical gear
Secondary reduction ratio
40/15 (2.666)
Transmission type
V-belt automatic
8
SPECIFICATIONS
8-1
5D8-F8199-E0.qxd 1/6/07 16:20 Página 73

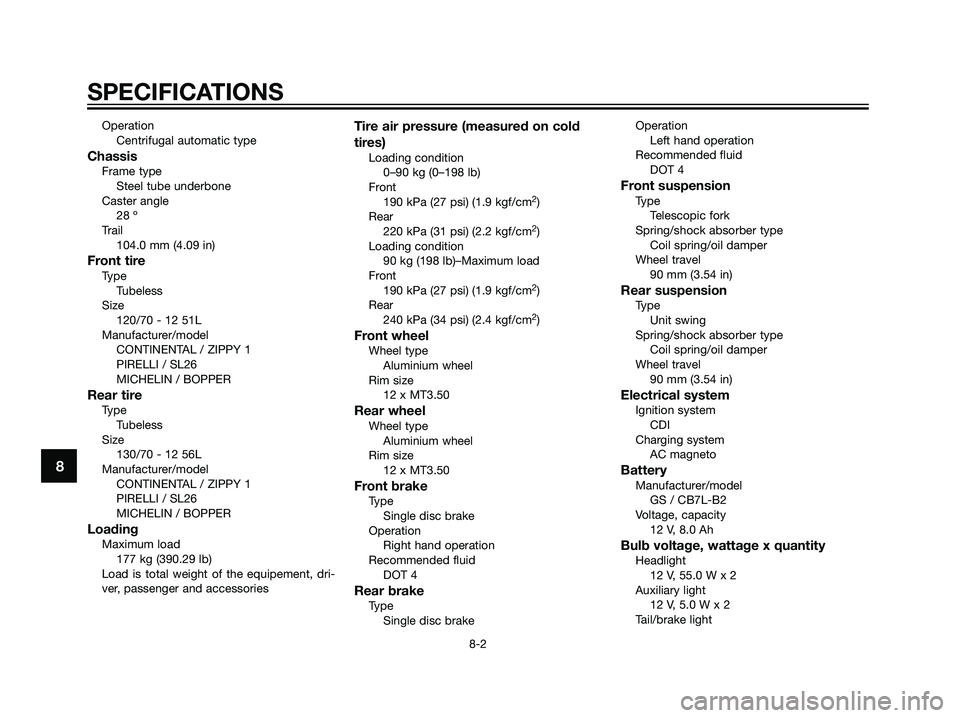

Operation
Centrifugal automatic type
ChassisFrame type
Steel tube underbone
Caster angle
28 º
Trail
104.0 mm (4.09 in)
Front tireType
Tubeless
Size
120/70 - 12 51L
Manufacturer/model
CONTINENTAL / ZIPPY 1
PIRELLI / SL26
MICHELIN / BOPPER
Rear tireType
Tubeless
Size
130/70 - 12 56L
Manufacturer/model
CONTINENTAL / ZIPPY 1
PIRELLI / SL26
MICHELIN / BOPPER
LoadingMaximum load
177 kg (390.29 lb)
Load is total weight of the equipement, dri-
ver, passenger and accessories
Tire air pressure (measured on cold
tires)
Loading condition
0–90 kg (0–198 lb)
Front
190 kPa (27 psi) (1.9 kgf/cm
2)
Rear
220 kPa (31 psi) (2.2 kgf/cm
2)
Loading condition
90 kg (198 lb)–Maximum load
Front
190 kPa (27 psi) (1.9 kgf/cm
2)
Rear
240 kPa (34 psi) (2.4 kgf/cm
2)
Front wheelWheel type
Aluminium wheel
Rim size
12 x MT3.50
Rear wheelWheel type
Aluminium wheel
Rim size
12 x MT3.50
Front brakeType
Single disc brake
Operation
Right hand operation
Recommended fluid
DOT 4
Rear brakeType
Single disc brakeOperation
Left hand operation
Recommended fluid
DOT 4
Front suspensionType
Telescopic fork
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
90 mm (3.54 in)
Rear suspensionType
Unit swing
Spring/shock absorber type
Coil spring/oil damper
Wheel travel
90 mm (3.54 in)
Electrical systemIgnition system
CDI
Charging system
AC magneto
BatteryManufacturer/model
GS / CB7L-B2
Voltage, capacity
12 V, 8.0 Ah
Bulb voltage, wattage x quantityHeadlight
12 V, 55.0 W x 2
Auxiliary light
12 V, 5.0 W x 2
Tail/brake light
8
SPECIFICATIONS
8-2
5D8-F8199-E0.qxd 1/6/07 16:20 Página 74

12 V, 21.0 W / 5.0 W x 2
Front turn signal light
12 V, 21.0 W x 2
Rear turn signal light
12 V, 10.0 W x 2
License plate light
12 V, 5.0 W x 1
Meter lighting
12 V, 1.2 W x 2
High beam Indicator light
12 V, 1.2 W x 1
Turn signal indicator light
12 V, 1.2 W x 2
Coolant temperature warning light
12 V, 1.2 W x 1
FusesMain fuse
20 A
Radiator fan fuse
4 A
Reserve fuse
20 A
Reserve fuse
4 A
8
SPECIFICATIONS
8-3
5D8-F8199-E0.qxd 1/6/07 16:20 Página 75

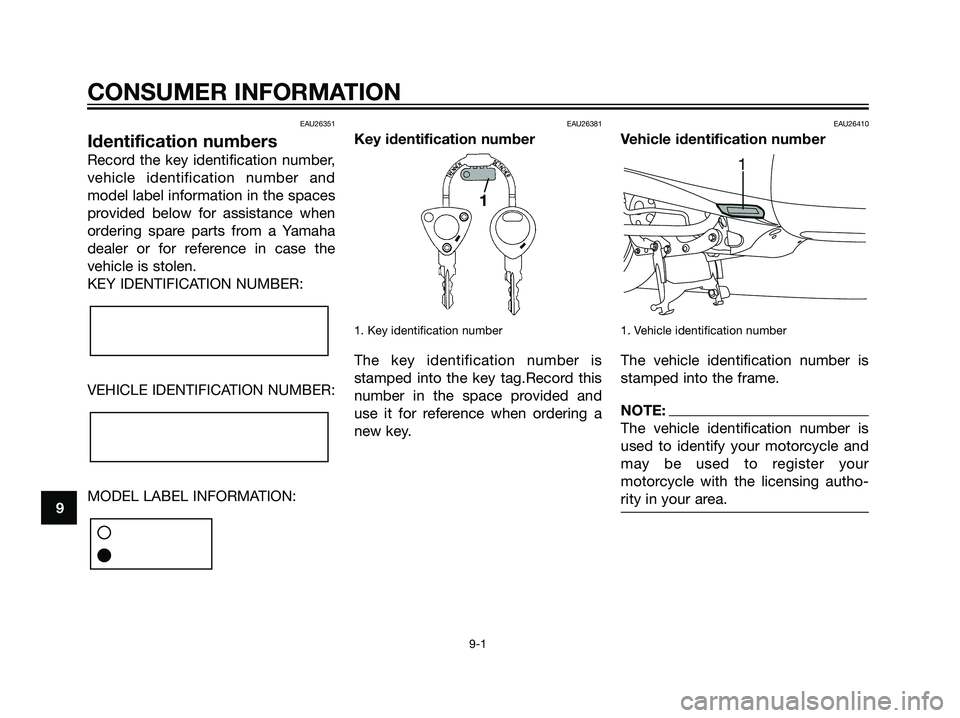

EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
1. Key identification number
The key identification number is
stamped into the key tag.Record this
number in the space provided and
use it for reference when ordering a
new key.
EAU26410
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the frame.
NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your
motorcycle with the licensing autho-
rity in your area.
1
1
9
CONSUMER INFORMATION
9-1
5D8-F8199-E0.qxd 1/6/07 16:20 Página 76

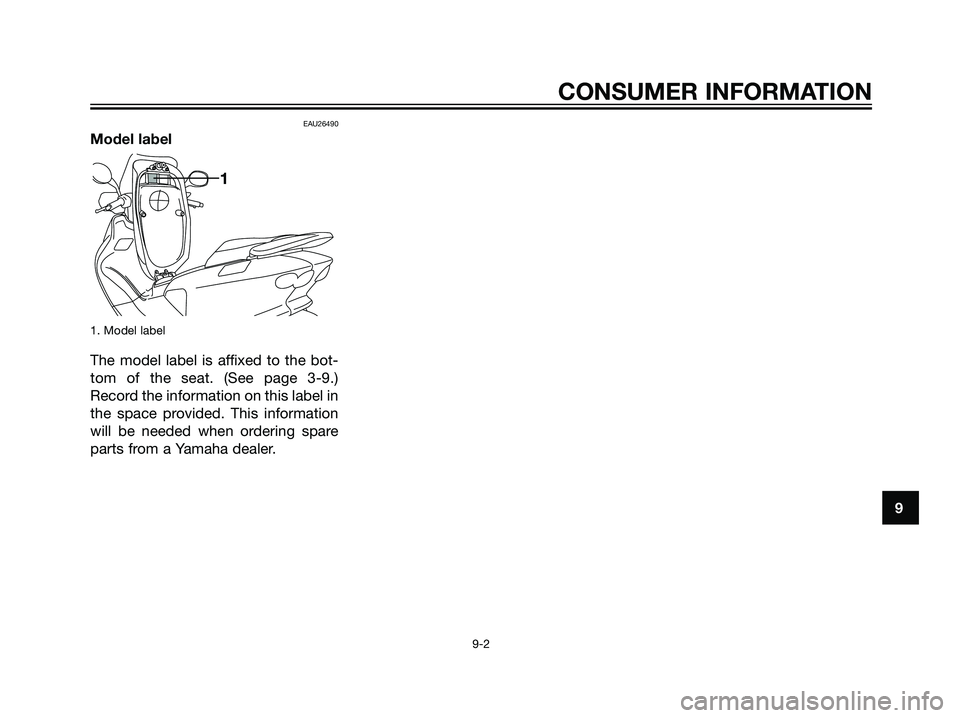

EAU26490
Model label
1. Model label
The model label is affixed to the bot-
tom of the seat. (See page 3-9.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1
9
CONSUMER INFORMATION
9-2
5D8-F8199-E0.qxd 1/6/07 16:20 Página 77

AAcceleration and deceleration ...................5-2
Air filter and V-belt case air filter
elements ................................................6-14
Anti-theft alarm (optional) ..........................3-5
Auxiliary light bulb, replacing ...................6-31
BBattery......................................................6-24
Brake fluid level, checking .......................6-20
Brake fluid, changing ...............................6-21
Brake lever, front ........................................3-6
Brake lever, rear .........................................3-6
Brake levers, lubricating ..........................6-22
Braking .......................................................5-2
CCables, checking and lubricating ............6-21
Carburetor,adjusting.................................6-15
Care............................................................7-1
Catalytic converter .....................................3-9
Caution, matte color ..................................7-1
Centerstand and sidestand, checking
and lubricating .......................................6-22
Clock ..........................................................3-4
Coolant.....................................................6-12
Coolant temperature warning light ............3-2
DDimmer switch ...........................................3-5
EEngine break-in ..........................................5-3
Engine oil ...................................................6-9
FFinal transmission oil ...............................6-11
Front and rear brake lever free play.........6-19
Front and rear brake pads, checking ......6-19Front fork, checking .................................6-23
Front Storage compartment ....................3-10
Fuel ............................................................3-8
Fuel consumption, tips for reducing ..........5-3
Fuel tank breather/overflow hose ..............3-9
Fuel tank cap .............................................3-7
Fuses, replacing .......................................6-26
HHandlebar switches ...................................3-5
Hazard switch ............................................3-6
Headlight bulb, replacing .........................6-27
High beam indicator light...........................3-2
Horn switch ................................................3-5
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-13
Indicator lights ...........................................3-2
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-31
MMain switch/steering lock ..........................3-1
Model label ................................................9-2
OOil change indicator ...................................3-2
PPanels, removing and installing .................6-6
Parking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
SSafe-riding points.......................................1-4
Safety information ......................................1-1
Seat ............................................................3-9
Shock absorber assemblies, adjusting....3-12
Sidestand .................................................3-12
Spark plug, checking .................................6-7
Specifications.............................................8-1
Speedometer unit ......................................3-2
Start switch ................................................3-5
Starting a cold engine ................................5-1
Starting off .................................................5-2
Steering, checking ...................................6-23
Storage.......................................................7-3
Storage compartment ..............................3-11
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-30
Throttle cable free play, adjusting ............6-15
Tires .........................................................6-16
Tool kit ........................................................6-1
Troubleshooting .......................................6-31
Troubleshooting charts ............................6-32
Turn signal indicator lights .........................3-2
Turn signal light bulb (front), replacing ....6-29
Turn signal switch ......................................3-5
VValve clearance ........................................6-16
Vehicle identification number .....................9-1
WWheel bearings, checking........................6-24
Wheels .....................................................6-18
INDEX
5D8-F8199-E0.qxd 1/6/07 16:20 Página 78

5D8-F8199-E0.qxd 1/6/07 16:20 Página 79

YAMAHA MOTOR ESPAÑA, S.A.
PRINTED IN SPAIN
2006.09-NOVOPRINT, S.A.
(E)
5D8-F8199-E0.qxd 1/6/07 16:20 Página 80
