lock YAMAHA MAJESTY 400 2004 Owners Manual

TABLE OF CONTENTS
SAFETY INFORMATION

...................1-1
Further safe-riding points .................1-4
DESCRIPTION

...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS

.......................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer ...................................3-4
Tachometer .....................................3-4
Multi-function display .......................3-5
Anti-theft alarm (optional) ................3-8
Handlebar switches .........................3-9

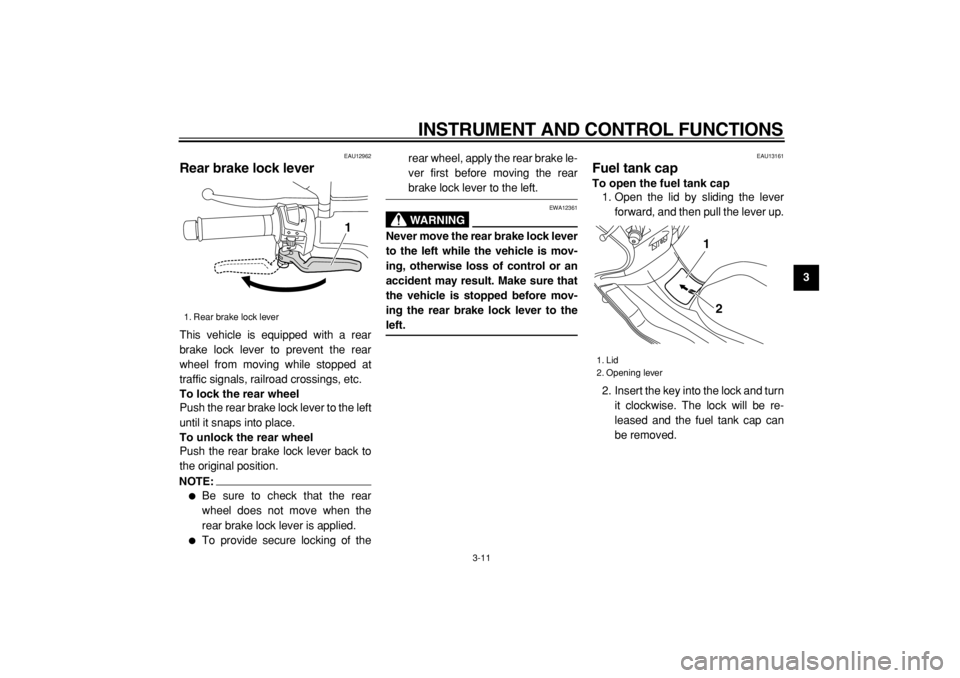

Front brake lever ...........................3-10
Rear brake lever ............................3-10
Rear brake lock lever .....................3-11

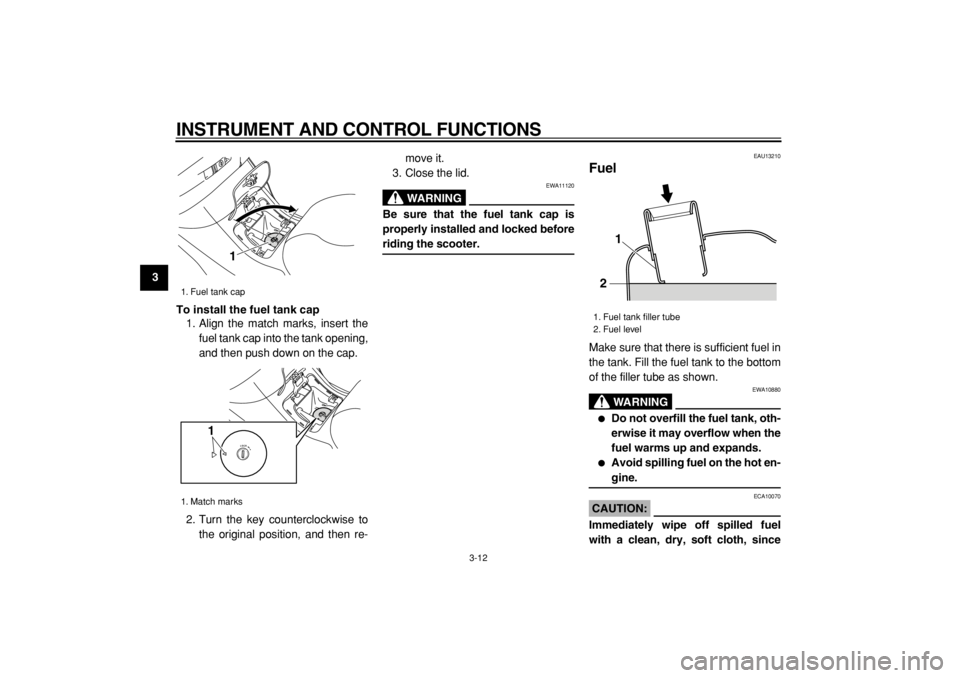

Fuel tank cap .................................3-11
Fuel ................................................3-12
Catalytic converter .........................3-13
Seats .............................................3-13
Adjusting the rider seat ..................3-15
Storage compartments ..................3-15
Sidestand .......................................3-17
Ignition circuit cut-off system .........3-17
PRE-OPERATION CHECKS

............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting the engine .......................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration ......... 5-2
Braking ............................................ 5-2
Tips for reducing fuel
consumption .................................. 5-3
Engine break-in ............................... 5-4
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR
.................................. 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and
lubrication chart ............................. 6-3
Removing and installing cowlings
and panels .................................... 6-6
Checking the spark plug ................ 6-10
Engine oil and oil filter element ..... 6-12
Final transmission oil ..................... 6-15
Coolant .......................................... 6-16
Air filter elements and check hoses
and V-belt case air filter
element ....................................... 6-18
Adjusting the throttle cable free
play ............................................. 6-20
Adjusting the valve clearance ....... 6-21Tires .............................................. 6-21
Cast wheels .................................. 6-23
Front and rear brake lever free
play ............................................. 6-24
Adjusting the rear brake lock lever
cable ........................................... 6-24
Checking the front and rear brake
pads ............................................ 6-25
Checking the brake fluid level ....... 6-25
Changing the brake fluid ............... 6-26
Checking and lubricating the
cables ......................................... 6-27
Checking and lubricating the
throttle grip and cable ................. 6-27
Lubricating the front and rear
brake levers ................................ 6-27
Checking and lubricating the
centerstand and sidestand ......... 6-28
Checking the front fork .................. 6-28
Checking the steering ................... 6-29
Checking the wheel bearings ........ 6-30
Battery ........................................... 6-30
Replacing the fuses ...................... 6-31
Replacing a headlight bulb ........... 6-33
Tail/brake light ............................... 6-33
Replacing a front turn signal light
bulb or an auxiliary light bulb ...... 6-34
Replacing a rear turn signal light
bulb ............................................. 6-35
Replacing the license plate light
bulb ............................................. 6-36

DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU10430
Controls and instruments
1345678
9 10 11 12
2

1. Rear brake lever (page 3-10)
2. Left handlebar switches (page 3-9)
3. Rear brake lock lever (page 3-11)
4. Speedometer (page 3-4)
5. Multi-function display (page 3-5)
6. Tachometer (page 3-4)
7. Right handlebar switches (page 3-9)
8. Front brake lever (page 3-10)9. Throttle grip (page 6-20)
10. Front storage compartment B (page 3-15)
11. Main switch/steering lock (page 3-2)
12. Front storage compartment A (page 3-15)

INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
2
3
4
5
6
7
8
9keys away from the main switch
as they may cause signal inter-

ference.
EAU10471

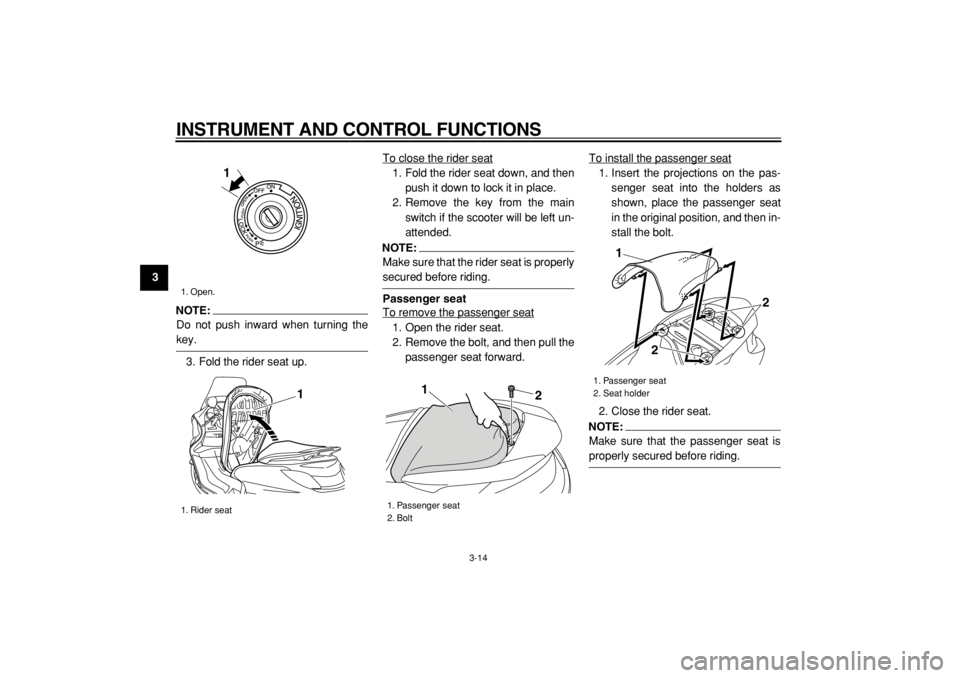

Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering.
NOTE:

Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code
re-registering key (red bow), keep it in a
safe place and only use it for code
re-registering.
EAU34121
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-ed. The key cannot be removed.
NOTE:

The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF” or the
sidestand is moved down.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to
“OFF” while still pushing it.

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9
WARNING

EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
EAU33491
(Parking)
The steering is locked, and the taillights
and auxiliary lights are on. The hazard
light and turn signal lights can be turned
on, but all other electrical systems are
off. The key can be removed.
The steering must be locked before the
key can be turned to “ ”.
CAUTION:

ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11001
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11480
Engine trouble warning light “”
This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU26871
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
1. Turn signal indicator lights “ ” and “ ”
2. High beam indicator light “ ”
3. Immobilizer system indicator light “ ”
4. Engine trouble warning light “ ”
1234

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9

EAU34133

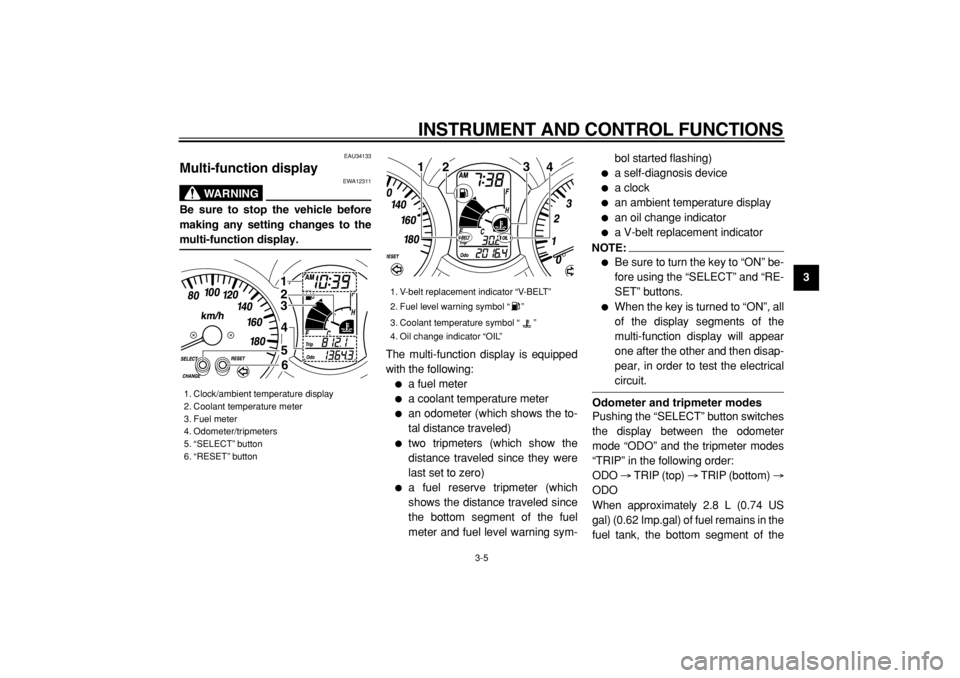

Multi-function display
WARNING

EWA12311
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
The multi-function display is equipped
with the following:

a fuel meter

a coolant temperature meter

an odometer (which shows the to-
tal distance traveled)

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled since
the bottom segment of the fuel
meter and fuel level warning sym-bol started flashing)

a self-diagnosis device

a clock

an ambient temperature display

an oil change indicator

a V-belt replacement indicator
NOTE:


Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.

When the key is turned to “ON”, all
of the display segments of the
multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuit.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP” in the following order:
ODO
→
TRIP (top)
→
TRIP (bottom)
→
ODO
When approximately 2.8 L (0.74 US
gal) (0.62 Imp.gal) of fuel remains in the
fuel tank, the bottom segment of the

1. Clock/ambient temperature display
2. Coolant temperature meter
3. Fuel meter
4. Odometer/tripmeters
5. “SELECT” button
6. “RESET” button
1
2
3
4
5
6

1. V-belt replacement indicator “V-BELT”
2. Fuel level warning symbol “ ”
3. Coolant temperature symbol “ ”
4. Oil change indicator “OIL”
123
4

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
Clock mode
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
Pushing the “SELECT” button for
at least two seconds switches theclock display to the ambient tem-
perature display.
Ambient temperature display
This display shows the ambient tem-
perature from –10 °C to 50 °C in 1 °C
increments. The temperature displayed
may vary from the ambient tempera-
ture. Pushing the “SELECT” button for
at least two seconds switches the am-
bient temperature display to the clock
display.
NOTE:


If the ambient temperature falls be-
low –10 °C, a lower temperature
than –10 °C will not be displayed.

If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.

The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h) or when stopped at traffic
signals, railroad crossings, etc.
EAU12330
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.

INSTRUMENT AND CONTROL FUNCTIONS
3-11
2
34
5
6
7
8
9

EAU12962
Rear brake lock lever
This vehicle is equipped with a rear
brake lock lever to prevent the rear
wheel from moving while stopped at
traffic signals, railroad crossings, etc.
To lock the rear wheel
Push the rear brake lock lever to the left
until it snaps into place.
To unlock the rear wheel
Push the rear brake lock lever back to
the original position.
NOTE:


Be sure to check that the rear
wheel does not move when the
rear brake lock lever is applied.

To provide secure locking of therear wheel, apply the rear brake le-
ver first before moving the rear
brake lock lever to the left.
WARNING

EWA12361
Never move the rear brake lock lever
to the left while the vehicle is mov-
ing, otherwise loss of control or an
accident may result. Make sure that
the vehicle is stopped before mov-
ing the rear brake lock lever to the
left.
EAU13161
Fuel tank cap
To open the fuel tank cap
1. Open the lid by sliding the lever
forward, and then pull the lever up.
2. Insert the key into the lock and turn
it clockwise. The lock will be re-
leased and the fuel tank cap can
be removed.
1. Rear brake lock lever
1

1. Lid
2. Opening lever
2 1

INSTRUMENT AND CONTROL FUNCTIONS
3-12
1
2
3
4
5
6
7
8
9To install the fuel tank cap
1. Align the match marks, insert the
fuel tank cap into the tank opening,
and then push down on the cap.
2. Turn the key counterclockwise to
the original position, and then re-move it.
3. Close the lid.
WARNING

EWA11120
Be sure that the fuel tank cap is
properly installed and locked before
riding the scooter.
EAU13210
Fuel
Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING

EWA10880

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.

Avoid spilling fuel on the hot en-
gine.
CAUTION:

ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
1. Fuel tank cap
1. Match marks
1
1

1. Fuel tank filler tube
2. Fuel level
21

INSTRUMENT AND CONTROL FUNCTIONS
3-13
2
34
5
6
7
8
9 fuel may deteriorate painted surfac-

es or plastic parts.
EAU33520
CAUTION:

ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13440
Catalytic converter
This vehicle is equipped with a catalytic
converter in the muffler.
WARNING

EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-
ing any maintenance work.
CAUTION:

ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.

Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.

Do not allow the engine to idle
too long.
EAU34140
Seats
Rider seat
To open the rider seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise. Recommended fuel:
REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity:
14.0 L (3.70 US gal)
(3.08 Imp.gal)

1. Rider seat
2. Passenger seat
2 1

INSTRUMENT AND CONTROL FUNCTIONS
3-14
1
2
3
4
5
6
7
8
9
NOTE:

Do not push inward when turning the
key.
3. Fold the rider seat up.To close the rider seat
1. Fold the rider seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left un-
attended.NOTE:

Make sure that the rider seat is properly
secured before riding.
Passenger seat
To remove the passenger seat
1. Open the rider seat.
2. Remove the bolt, and then pull the
passenger seat forward.To install the passenger seat
1. Insert the projections on the pas-
senger seat into the holders as
shown, place the passenger seat
in the original position, and then in-
stall the bolt.
2. Close the rider seat.NOTE:

Make sure that the passenger seat is
properly secured before riding.
1. Open.
1. Rider seat
1
1

1. Passenger seat
2. Bolt
2 1

1. Passenger seat
2. Seat holder
1
2
2
