INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU03882
Front brake lever The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
EAU00163
Rear brake lever The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
EAU03468*
Fuel tank cap To remove the fuel tank cap
1. Open the seat. (See page 3-6 for
seat opening and closing proce-
dures.)
2. Turn the fuel tank cap counter-
clockwise and pull it off.
1. Front brake lever
1. Rear brake lever
1. Fuel tank cap
a. Open.
b. Close.
U5MXE0.book Page 4 Thursday, December 20, 2001 2:08 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening and turn it clockwise
until the alignment marks on the
cap and tank are aligned.
2. Close the seat.
EW000024
WARNING
_ Make sure that the fuel tank cap is
properly installed before riding. _
EAU03753
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
EW000130
WARNING
_

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.


Avoid spilling fuel on the hot
engine.
_
EAU00185
CAUTION:_ Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-
es or plastic parts. _
EAU00187*
1. Fuel tank filler tube
2. Fuel level
Recommended fuel:
Regular gasoline
Fuel tank capacity:
Total amount:
4.9 L
U5MXE0.book Page 5 Thursday, December 20, 2001 2:08 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU03839
Starter (choke) lever “” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction a to turn on
the starter (choke).
Move the lever in direction b to turn off
the starter (choke).
EAU00214
Kickstarter To start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully.
EAU03802*
Seat To open the seat
1. Place the motorcycle on the cen-
terstand.
2. Insert the key into the main switch,
and then turn it counterclockwise.NOTE:_ Do not push inward when turning the
key. _3. Fold the seat up.
1. Starter (choke) lever “”
1. Kickstarter
1. Open.
U5MXE0.book Page 6 Thursday, December 20, 2001 2:08 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
EAU04134*
Replacing a headlight bulb If a headlight bulb burns out, replace it
as follows.
EC000107
CAUTION:_ It is advisable to have a Yamaha
dealer perform this job. _1. Place the motorcycle on the cen-
terstand.
2. Remove cowling A. (See page 6-5
for cowling removal and installa-
tion procedures.)3. Remove the headlight bulb cover
by turning it counterclockwise.4. Remove the socket by pushing it
in and turning it counterclockwise.
5. Remove the defective bulb.
EW000119
WARNING
_ Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down. _6. Place a new headlight bulb into
position.
7. Install the socket by pushing it in
and turning it clockwise.
1. Headlight bulb cover (× 2)
1. Headlight bulb socket (× 2)
U5MXE0.book Page 33 Thursday, December 20, 2001 2:08 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6 8. Install the headlight bulb cover by
turning it clockwise.
9. Install the cowling.
10. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAUT0022*
Replacing a front turn signal
light bulb
EC000107
CAUTION:_ It is advisable to have a Yamaha
dealer perform this job. _1. Place the motorcycle on the cen-
terstand.
2. Remove cowling A. (See page 6-5
for cowling removal and installa-
tion procedures.)3. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
4. Remove the defective bulb.
5. Insert a new bulb into position.
6. Install the socket (together with
the bulb) by turning it clockwise.
7. Install the cowling.
1. Turn signal light bulb socket (× 2)
U5MXE0.book Page 34 Thursday, December 20, 2001 2:08 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAUS0013*

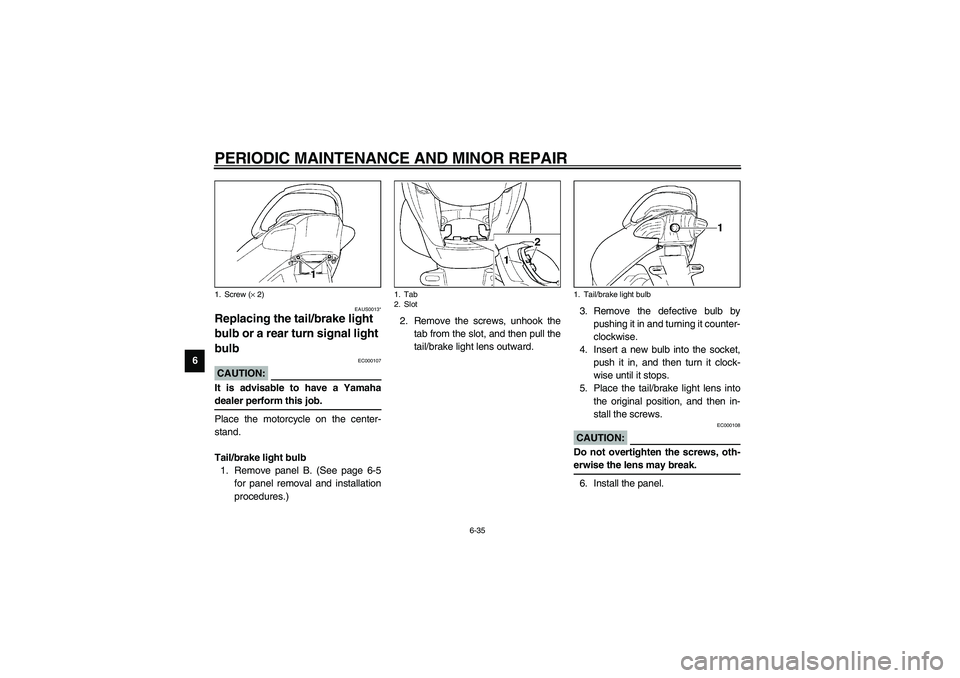

Replacing the tail/brake light
bulb or a rear turn signal light
bulb
EC000107
CAUTION:_ It is advisable to have a Yamaha
dealer perform this job. _Place the motorcycle on the center-
stand.
Tail/brake light bulb
1. Remove panel B. (See page 6-5
for panel removal and installation
procedures.)2. Remove the screws, unhook the
tab from the slot, and then pull the
tail/brake light lens outward.3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Place the tail/brake light lens into
the original position, and then in-
stall the screws.
EC000108
CAUTION:_ Do not overtighten the screws, oth-
erwise the lens may break. _6. Install the panel.
1. Screw (× 2)
1. Tab
2. Slot
1. Tail/brake light bulb
